Page 1

PRODUCT SPECIFICATIONS

Integrated Circuits Group

LH28F160S3HT-L10A

Flash Memory

16M (2MB × 8/1MB × 16)

(Model No.: LHF16KA7)

Spec No.: EL127111A

Issue Date: August 29, 2000

Page 2

SHARP

. -

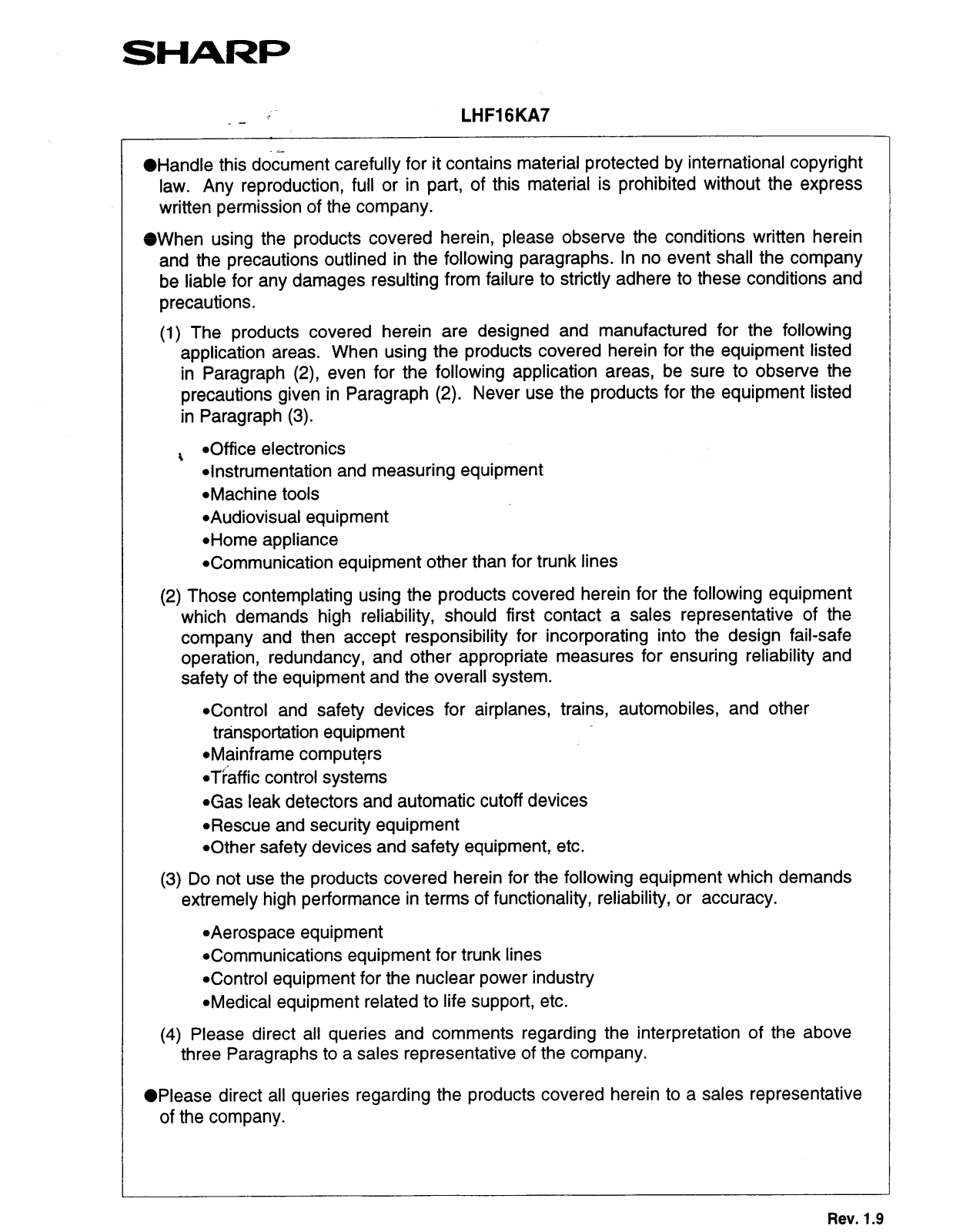

Handle this document carefully for it contains material protected by international copyright

law. Any reproduction, full or in part, of this material is prohibited without the express written permission of the company.

When using the products covered herein, please observe the conditions written herein

and the precautions outlined in the following paragraphs. In no event shall the company be liable for any damages resulting from failure to strictly adhere to these conditions and precautions.

(1) The products covered herein are designed and manufactured for the following

application areas. When using the products covered herein for the equipment listed

in Paragraph (2), even for the following application areas, be sure to observe the precautions given in Paragraph (2). Never use the products for the equipment listed in Paragraph (3).

i *Office electronics

instrumentation and measuring equipment

Machine tools aAudiovisual equipment *Home appliance

Communication equipment other than for trunk lines

LHF16KA7

(2) Those contemplating using the products covered herein for the following equipment

which demands high reliability, should first contact a sales representative of the company and then accept responsibility for incorporating into the design fail-safe operation, redundancy, and other appropriate measures for ensuring reliability and safety of the equipment and the overall system.

-Control and safety devices for airplanes, trains, automobiles, and other

transportation equipment

*Mainframe computers

Tcaff

ic control systems aGas leak detectors and automatic cutoff devices *Rescue and security equipment @Other safety devices and safety equipment, etc.

(3) Do not use the products covered herein for the following equipment which demands

extremely high performance in terms of functionality, reliability, or accuracy.

aAerospace equipment

Communications equipment for trunk lines

Control equipment for the nuclear power industry

Medical equipment related to life support, etc.

(4) Please direct all queries and comments regarding the interpretation of the above

three Paragraphs to a sales representative of the company.

Please direct all queries regarding the products covered herein to a sales representative of the company.

Rev.1.9

Page 3

SHARP

. -

LHF16KA7

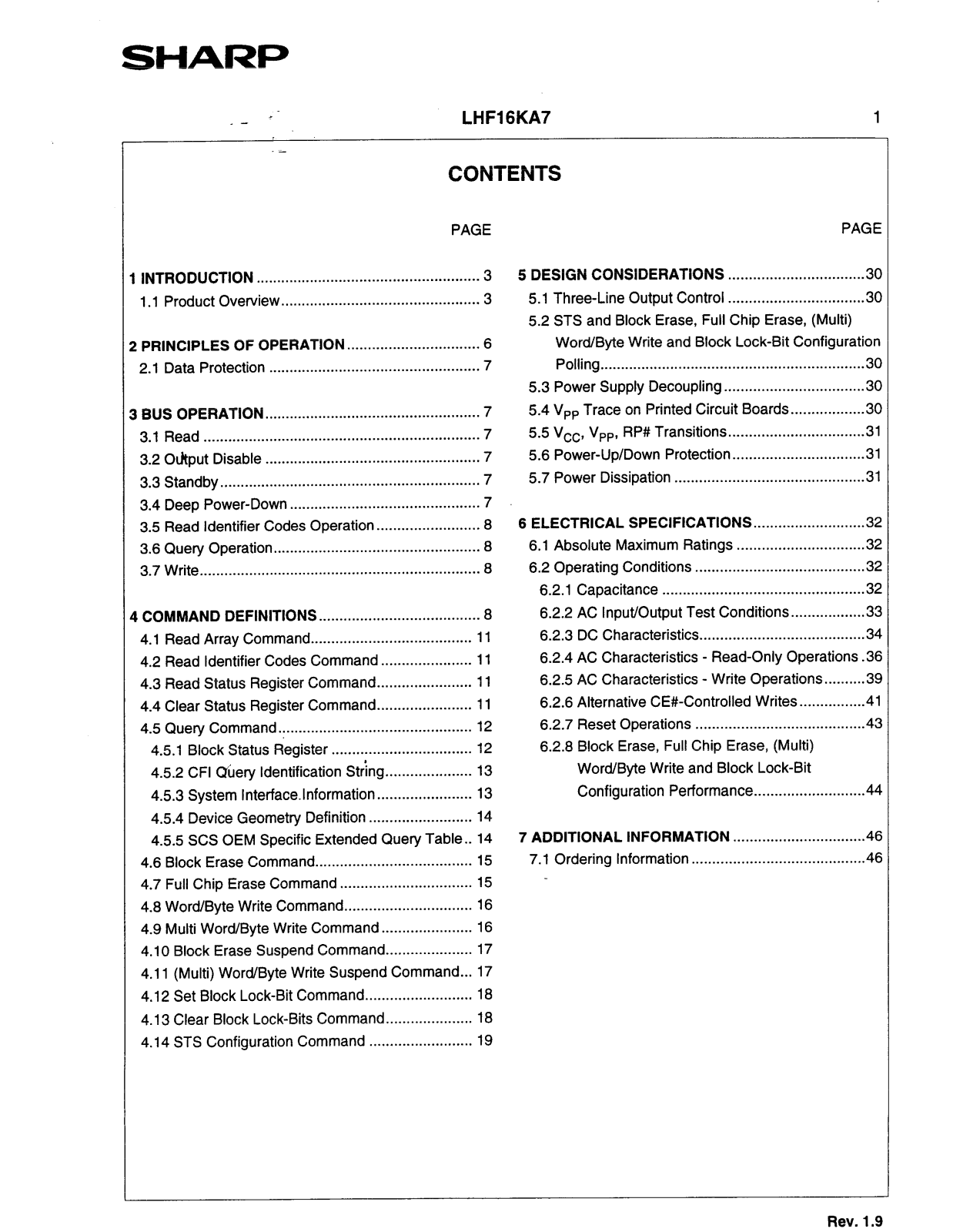

CONTENTS

PAGE PAGE

I INTRODUCTION

1.1 Product Overview.. .............................................. 3

2 PRINCIPLES OF OPERATION

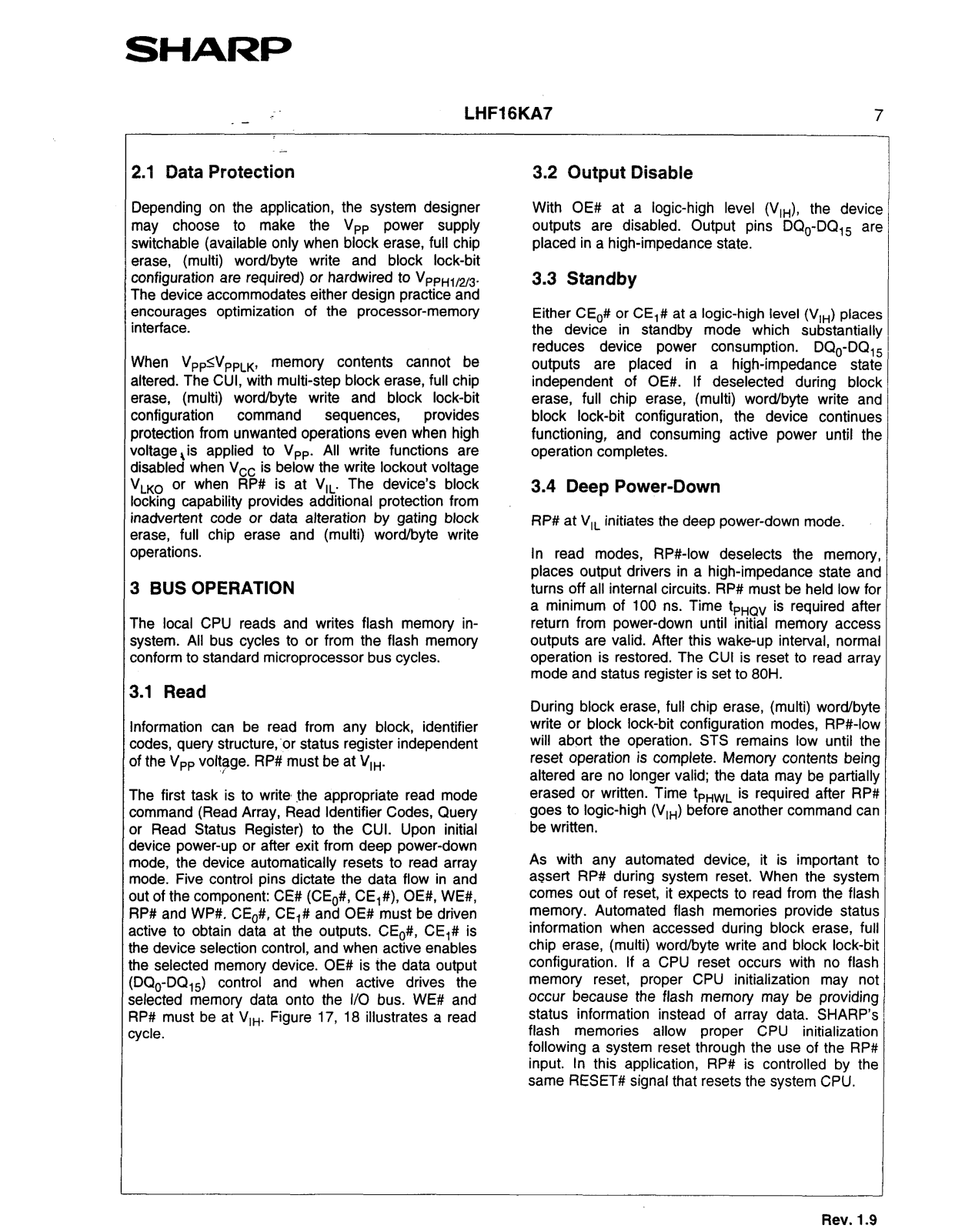

2.1

Data Protection ................................................... 7

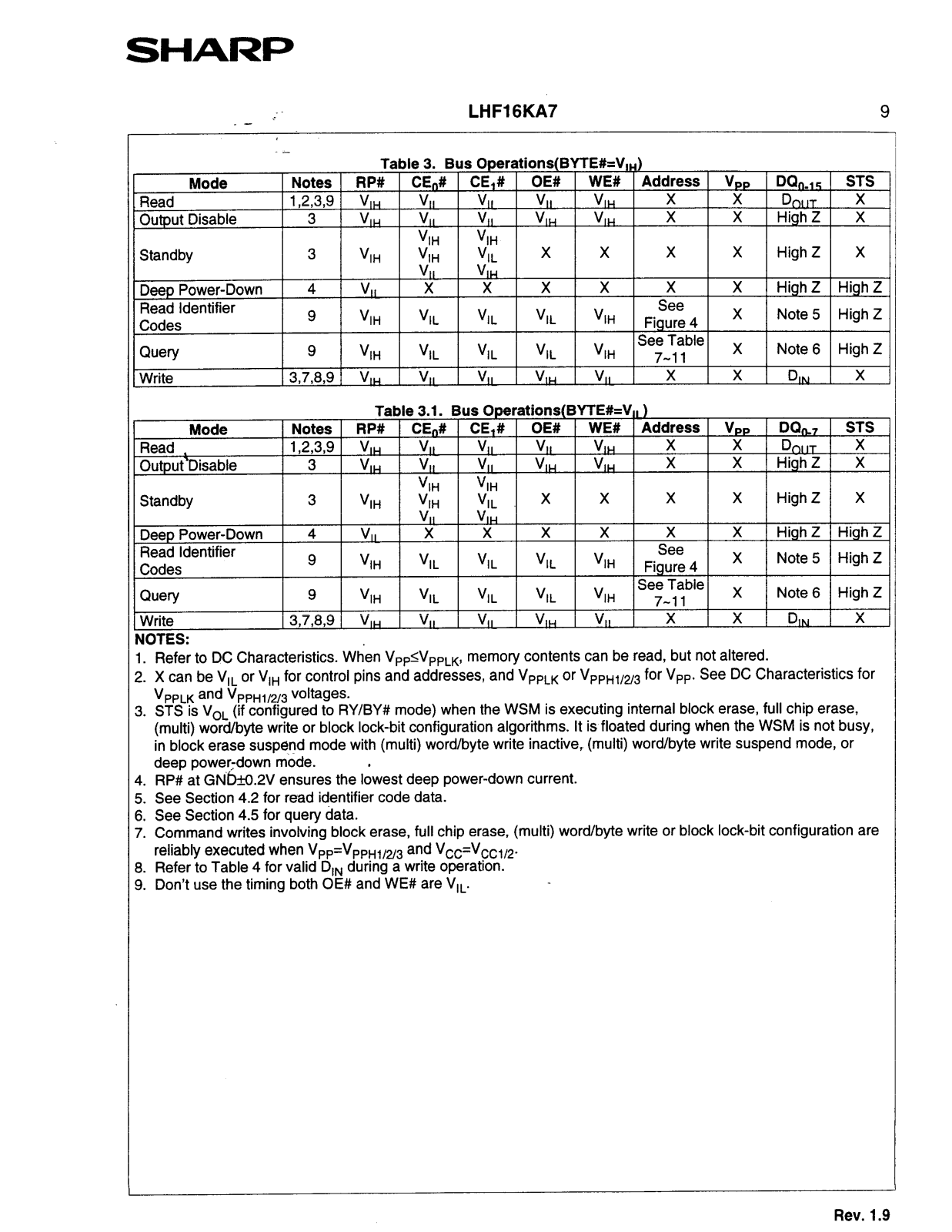

3 BUS OPERATION.. ..................................................

3.1 Read

3.2 O&put

3.3 Standby.. ............................................................. 7

3.4 Deep Power-Down .............................................. 7

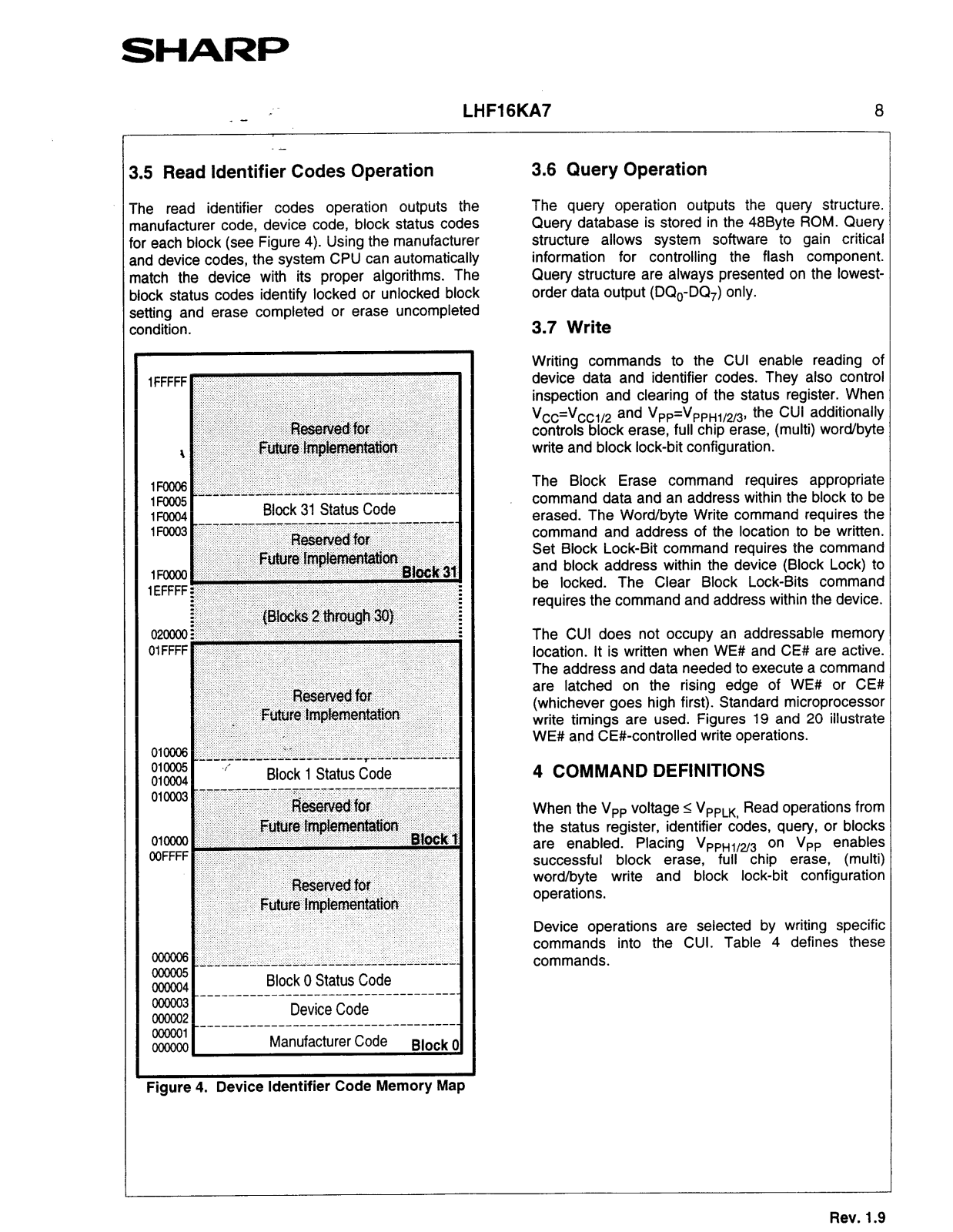

3.5 Read Identifier Codes Operation.. ....................... 8

3.6 Query Operation

3.7 Write.. .................................................................. 8

1 COMMAND

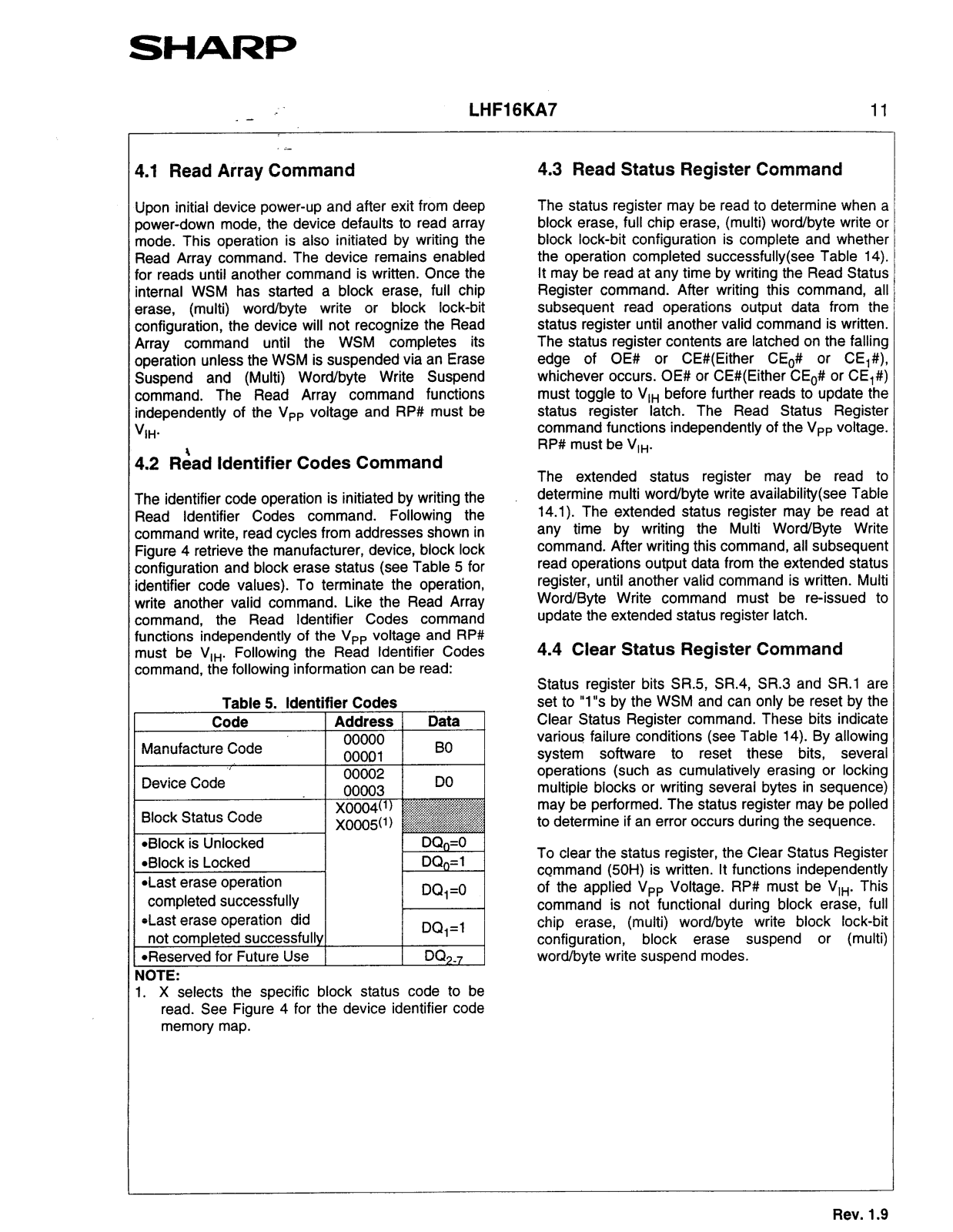

4.1 Read Array Command

4.2 Read Identifier Codes Command ...................... 11

4.3 Read Status Register Command.. ..................... 11

4.4 Clear Status Register Command.. .....................

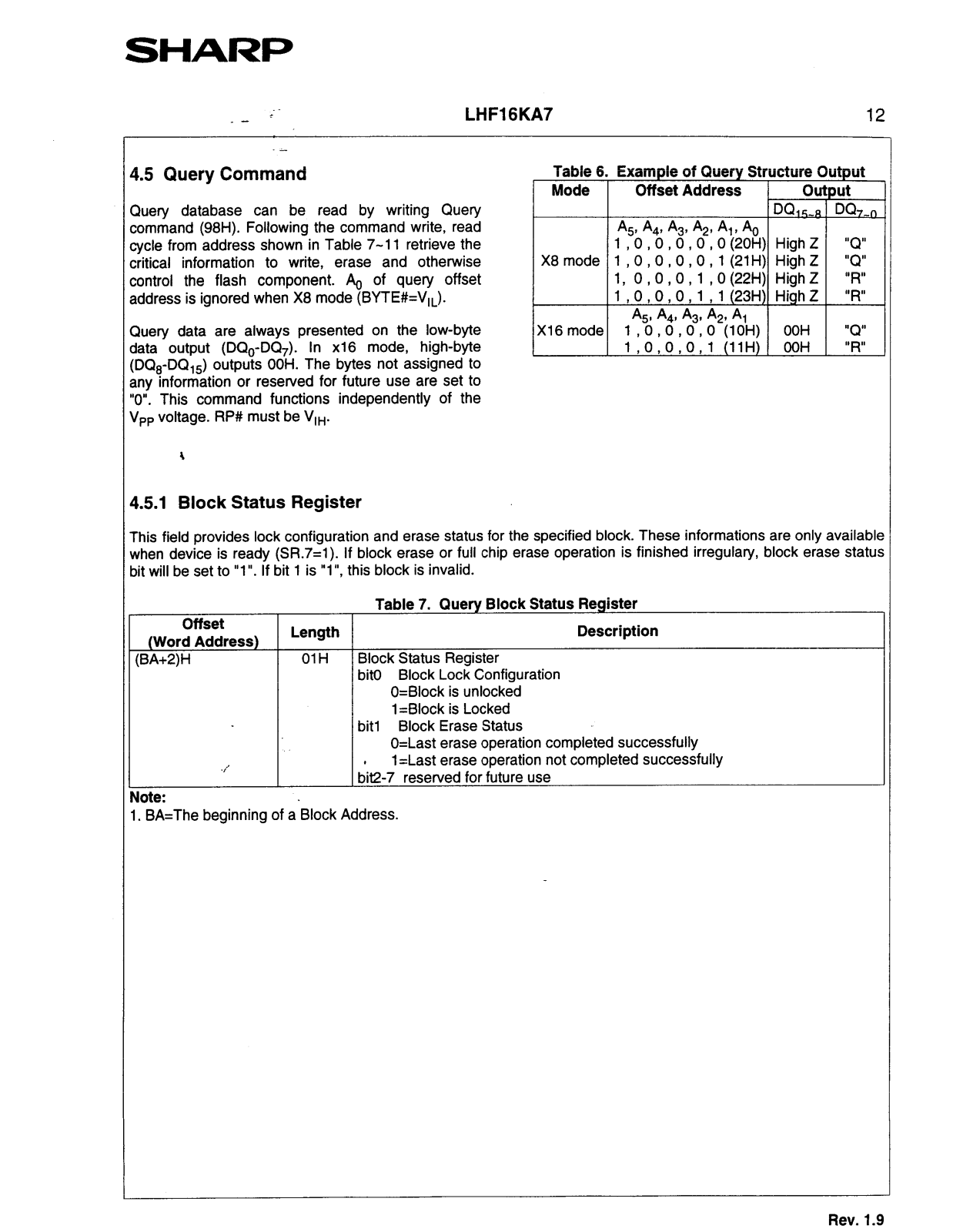

4.5 Query Command

4.51 Block Status Register

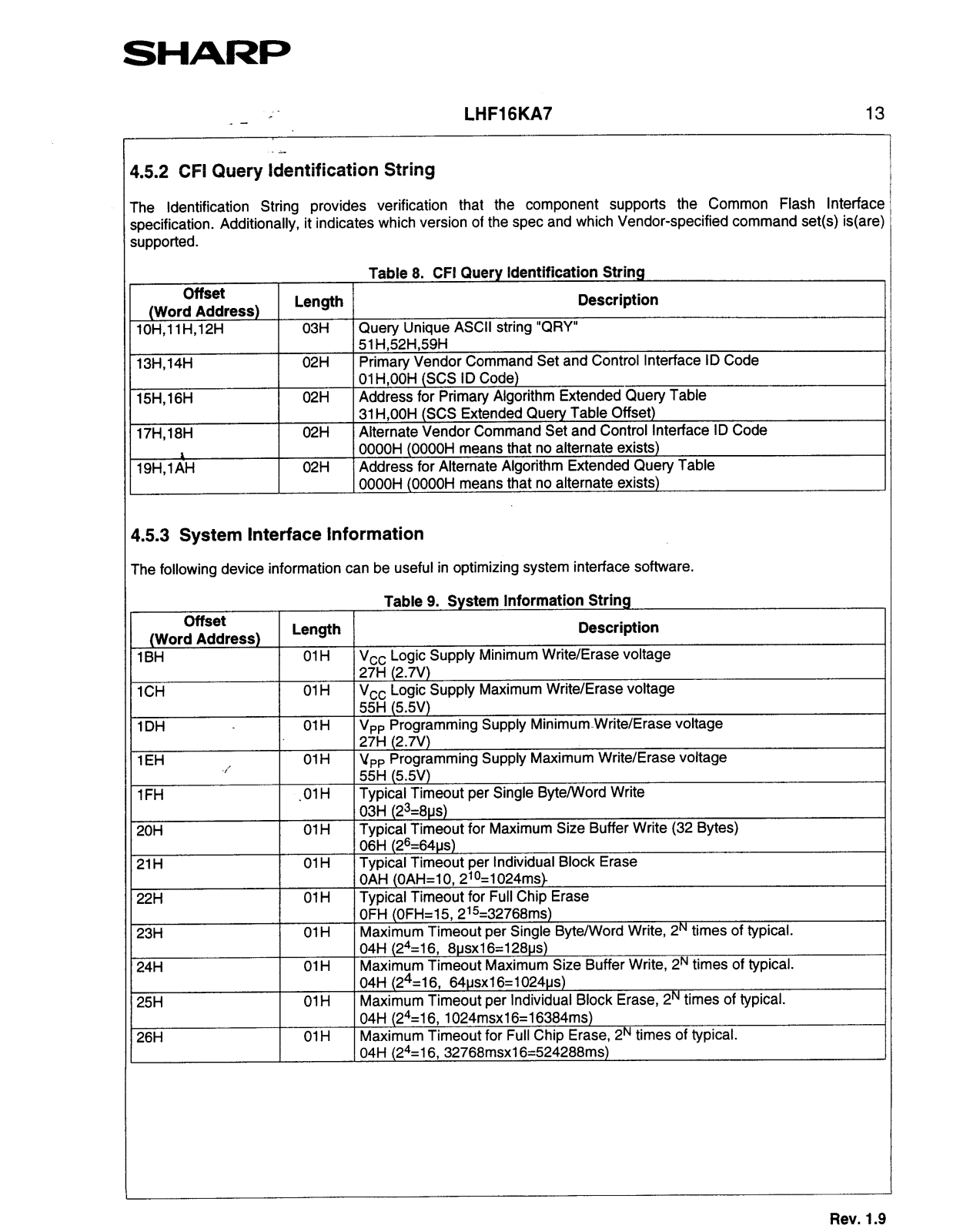

4.5.2 CFI Query Identification StAng.. ................... 13

4.5.3 System Interface.lnformation..

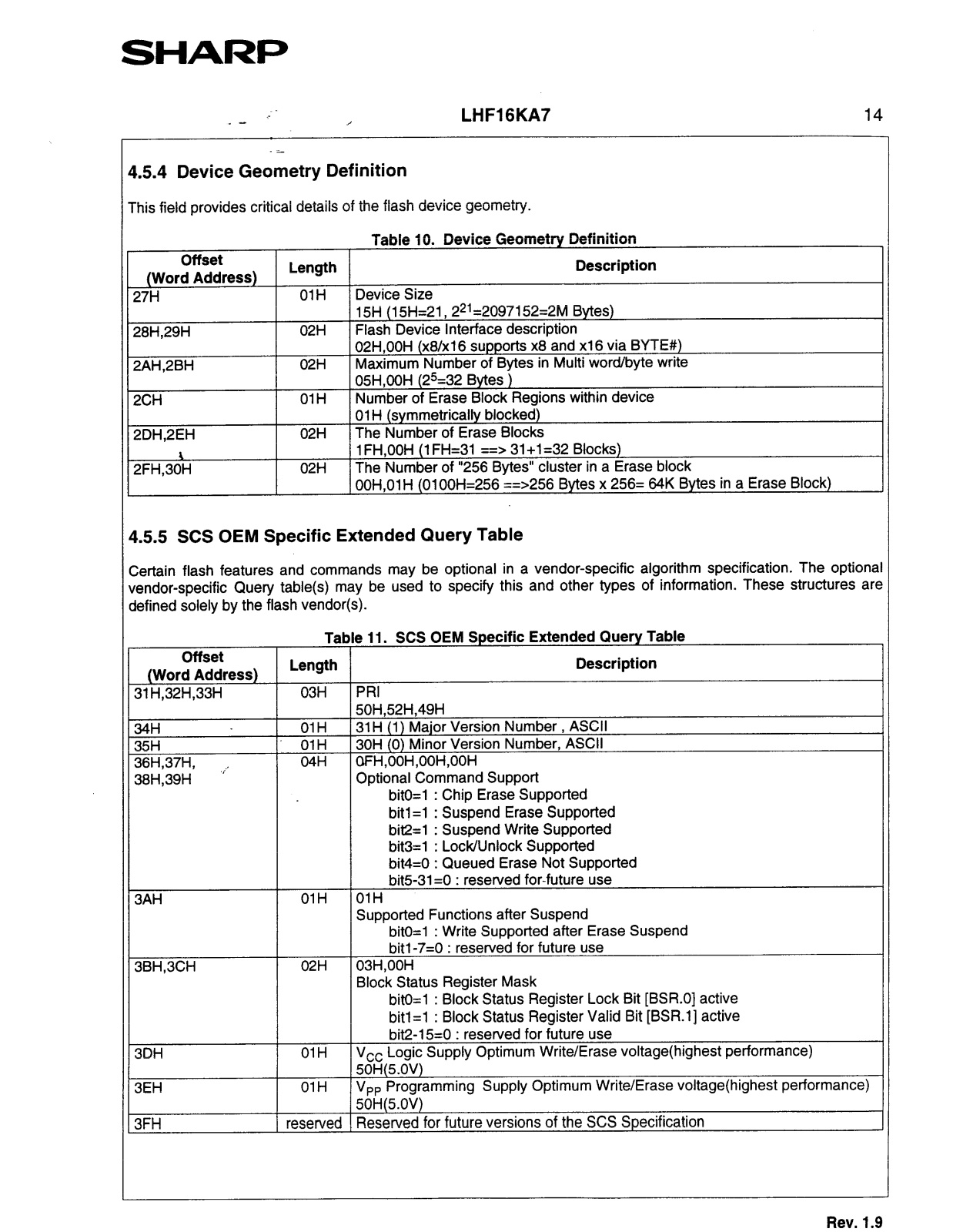

4.5.4 Device Geometry

4.5.5 SCS OEM Specific Extended Query Table.. 14

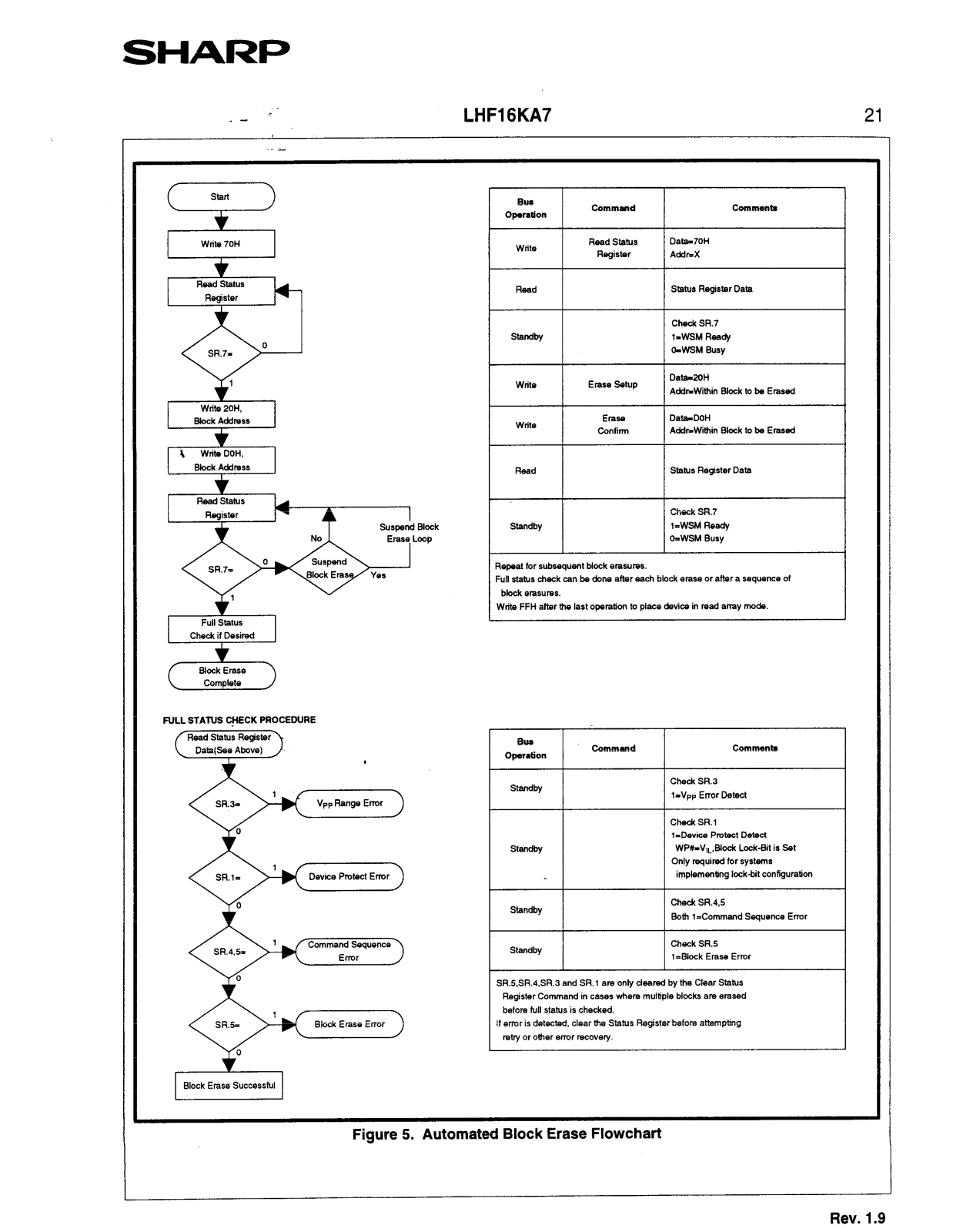

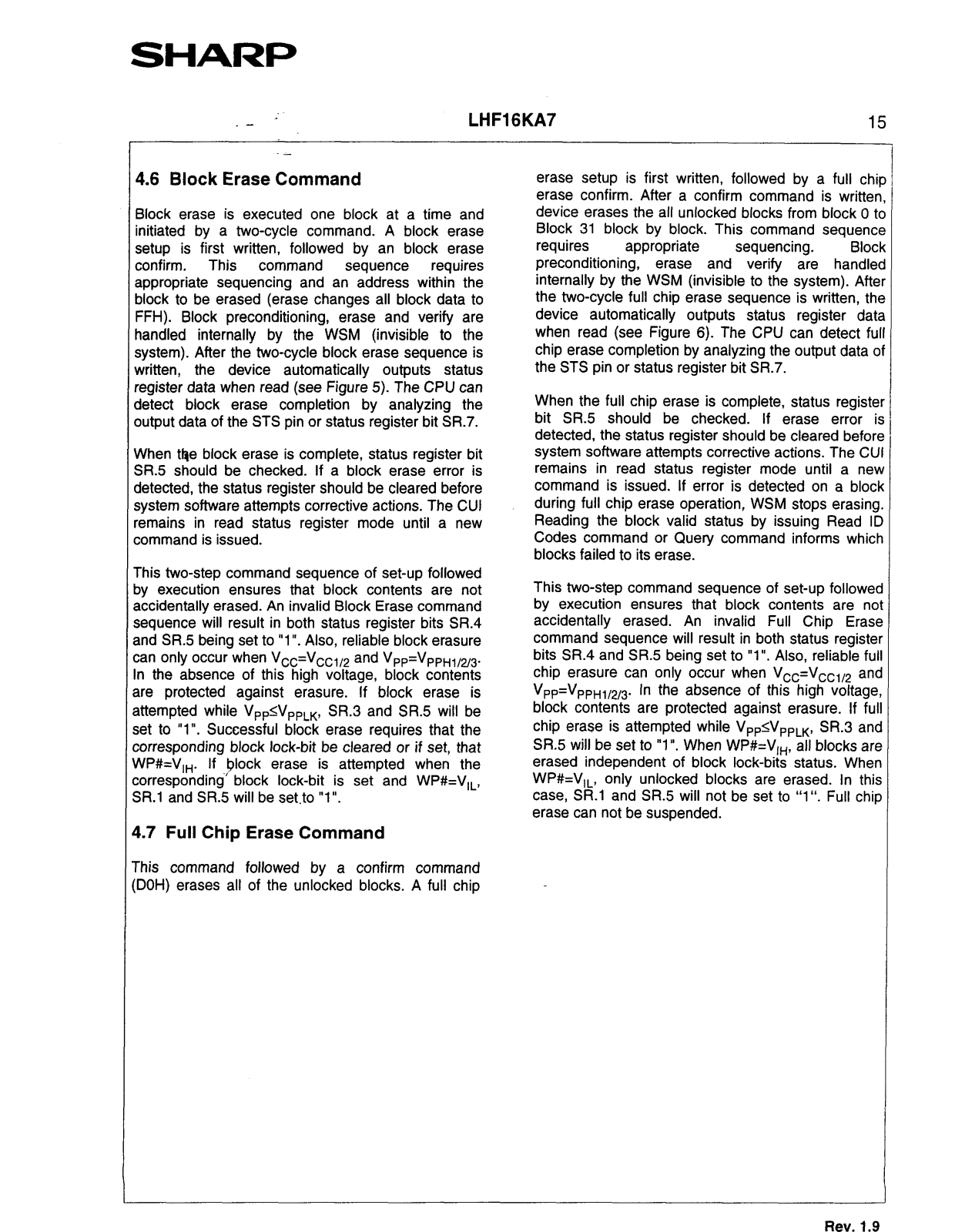

4.6 Block Erase Command.. ....................................

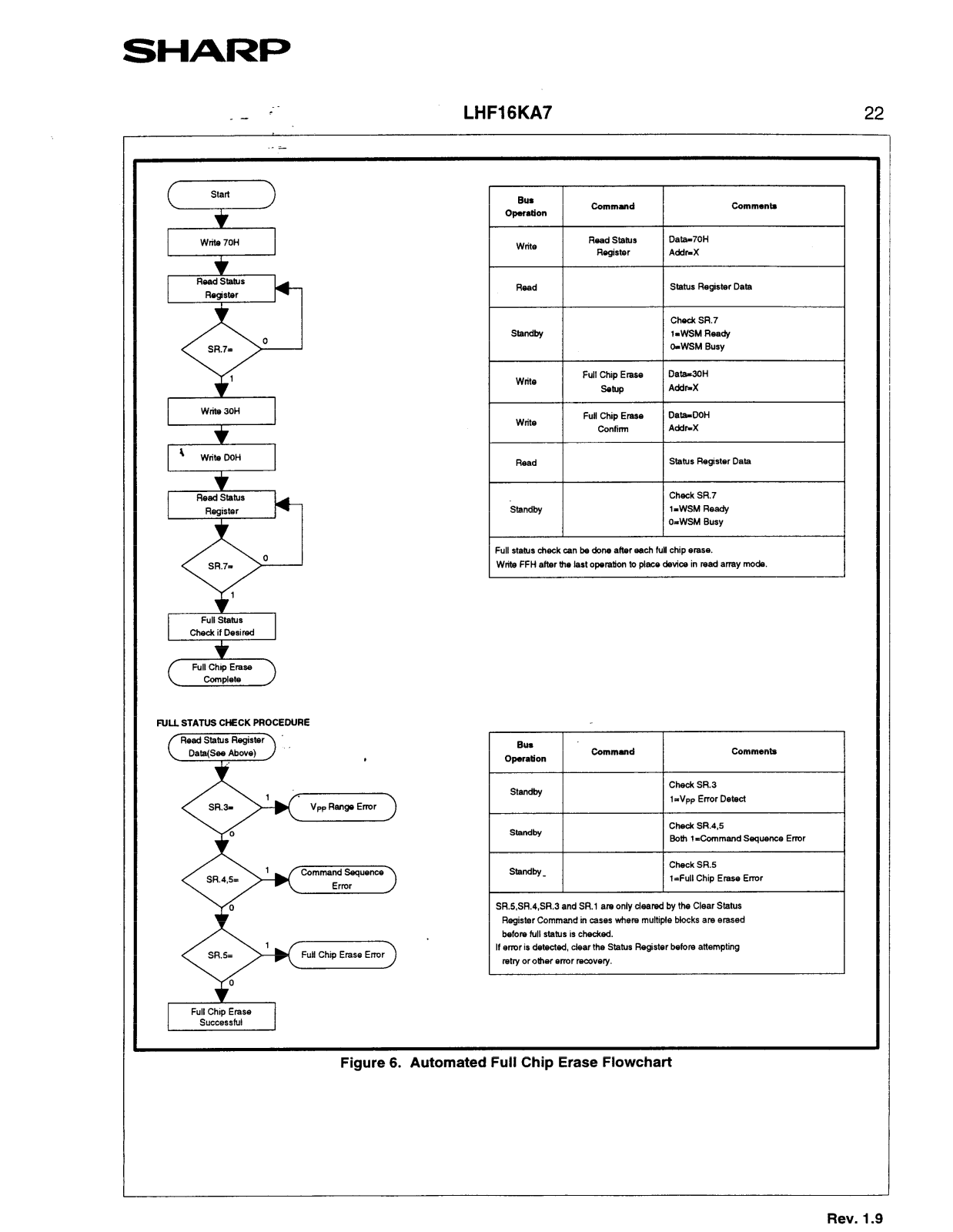

4.7 Full Chip Erase Command

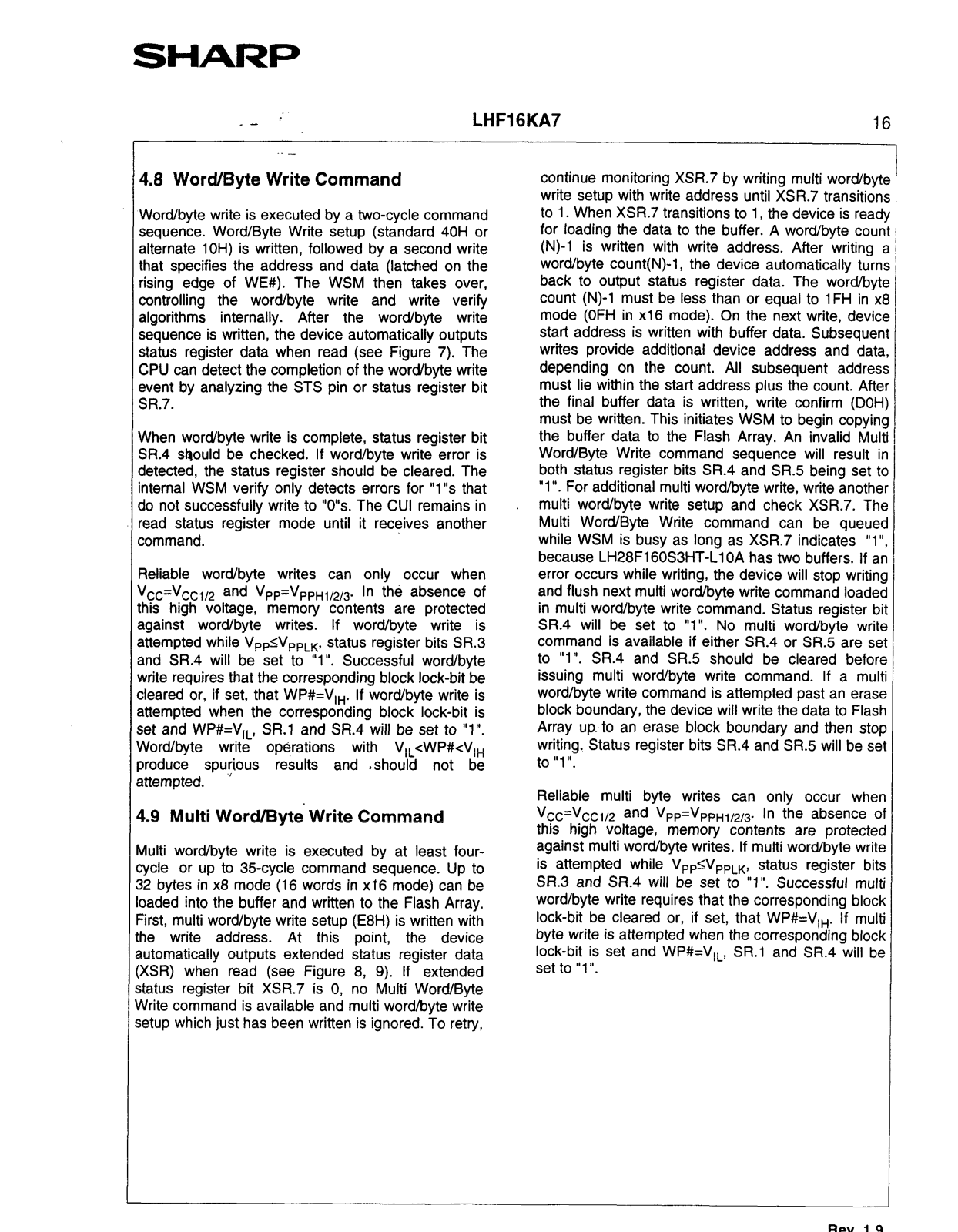

4.8 Word/Byte Write Command.. ............................. 16

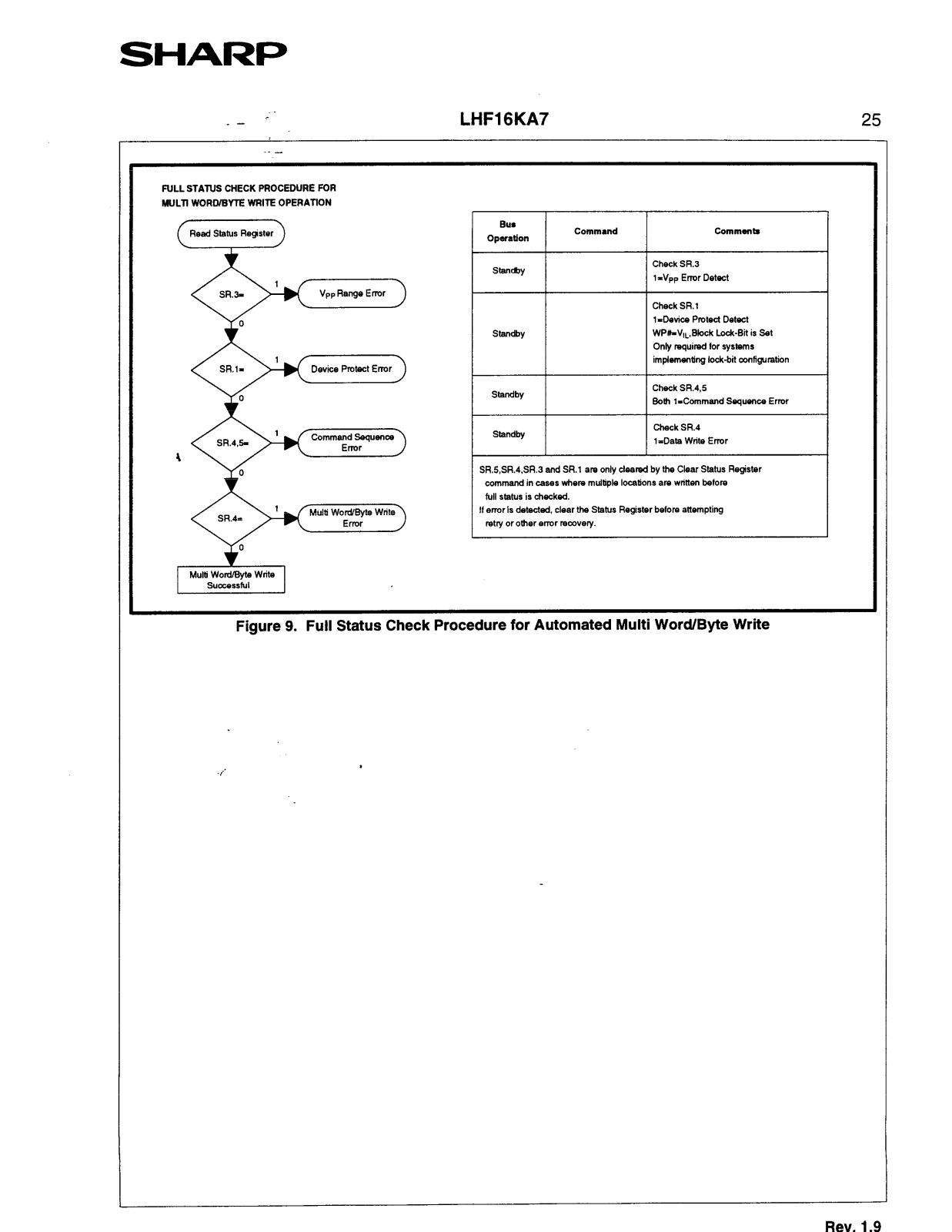

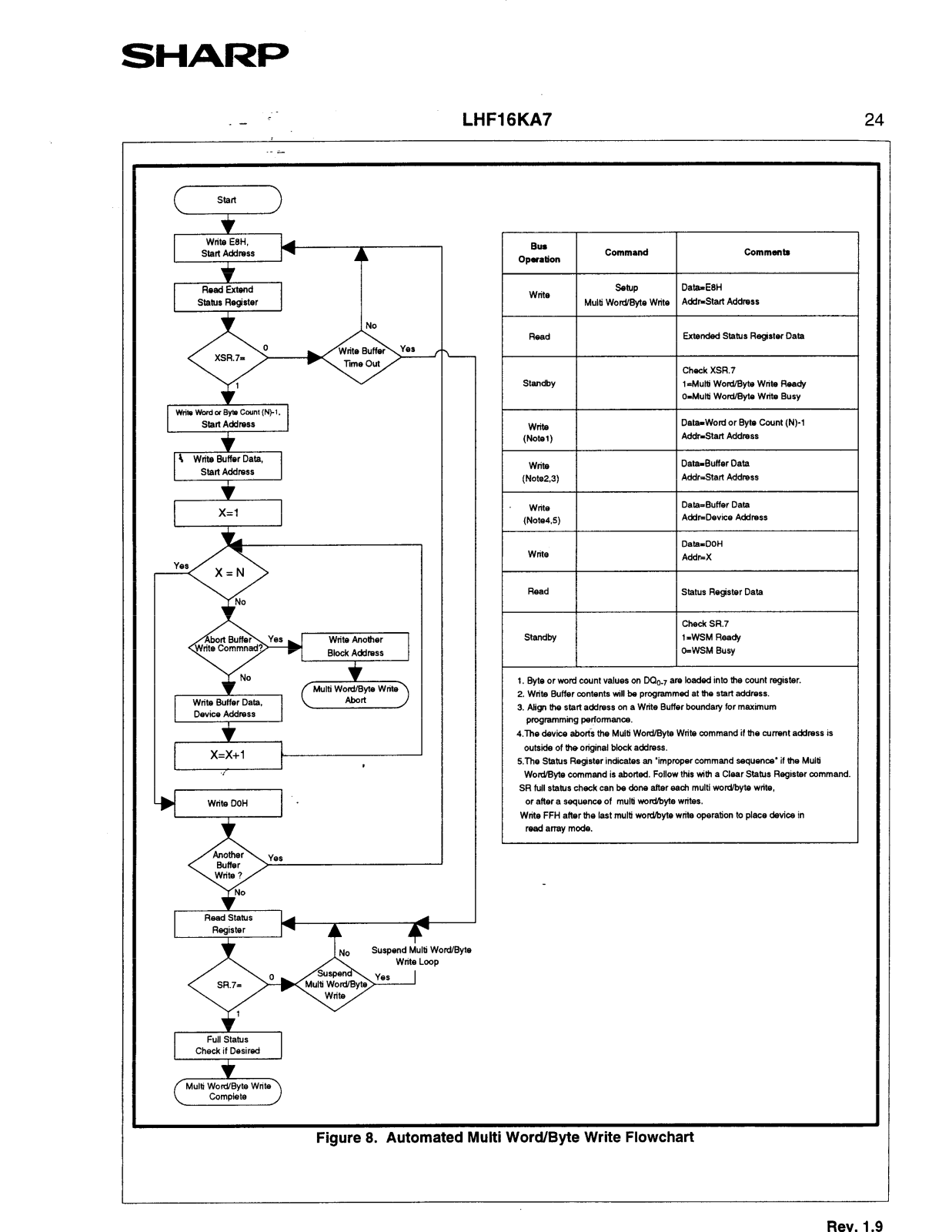

4.9 Multi Word/Byte Write Command ...................... 16

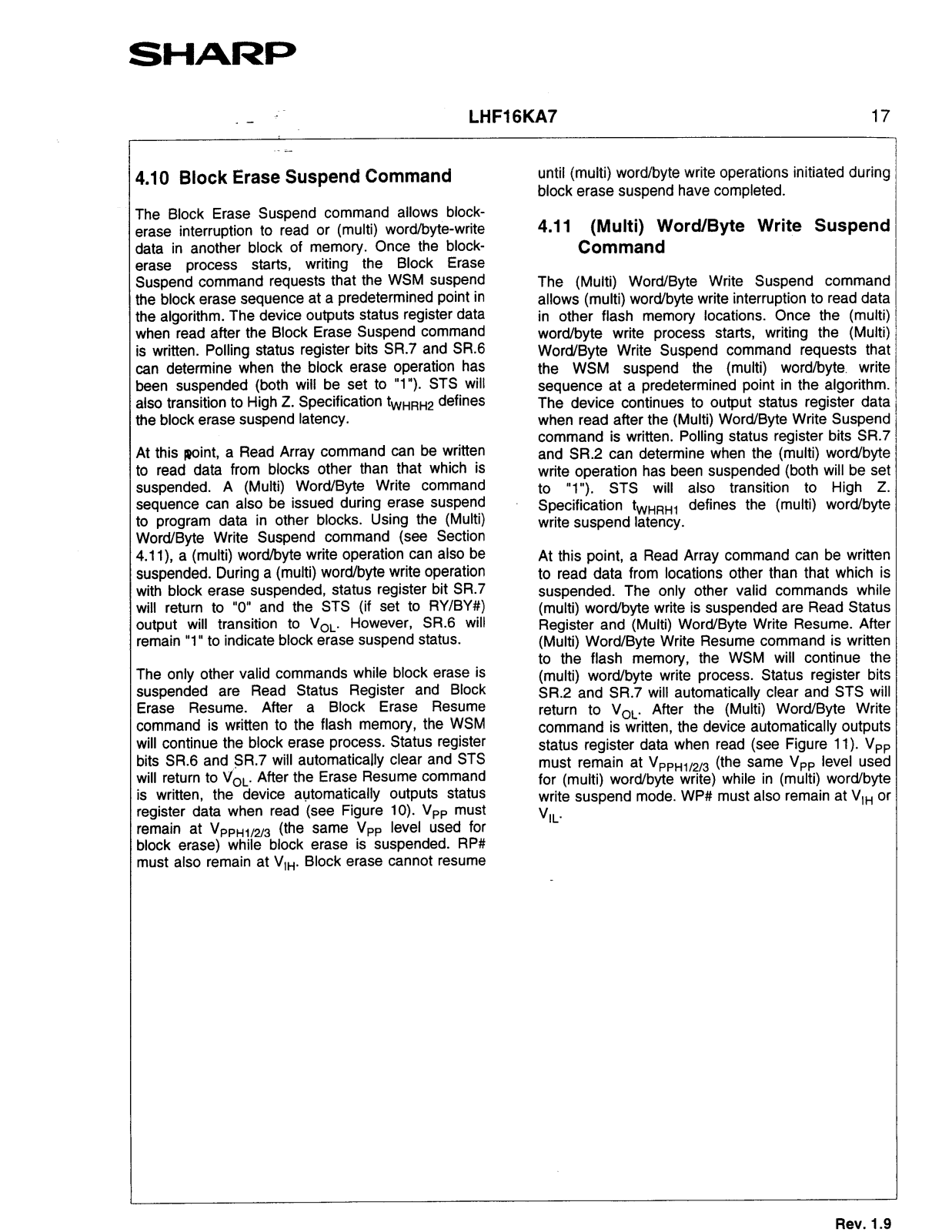

4.10 Block Erase Suspend Command.. ................... 17

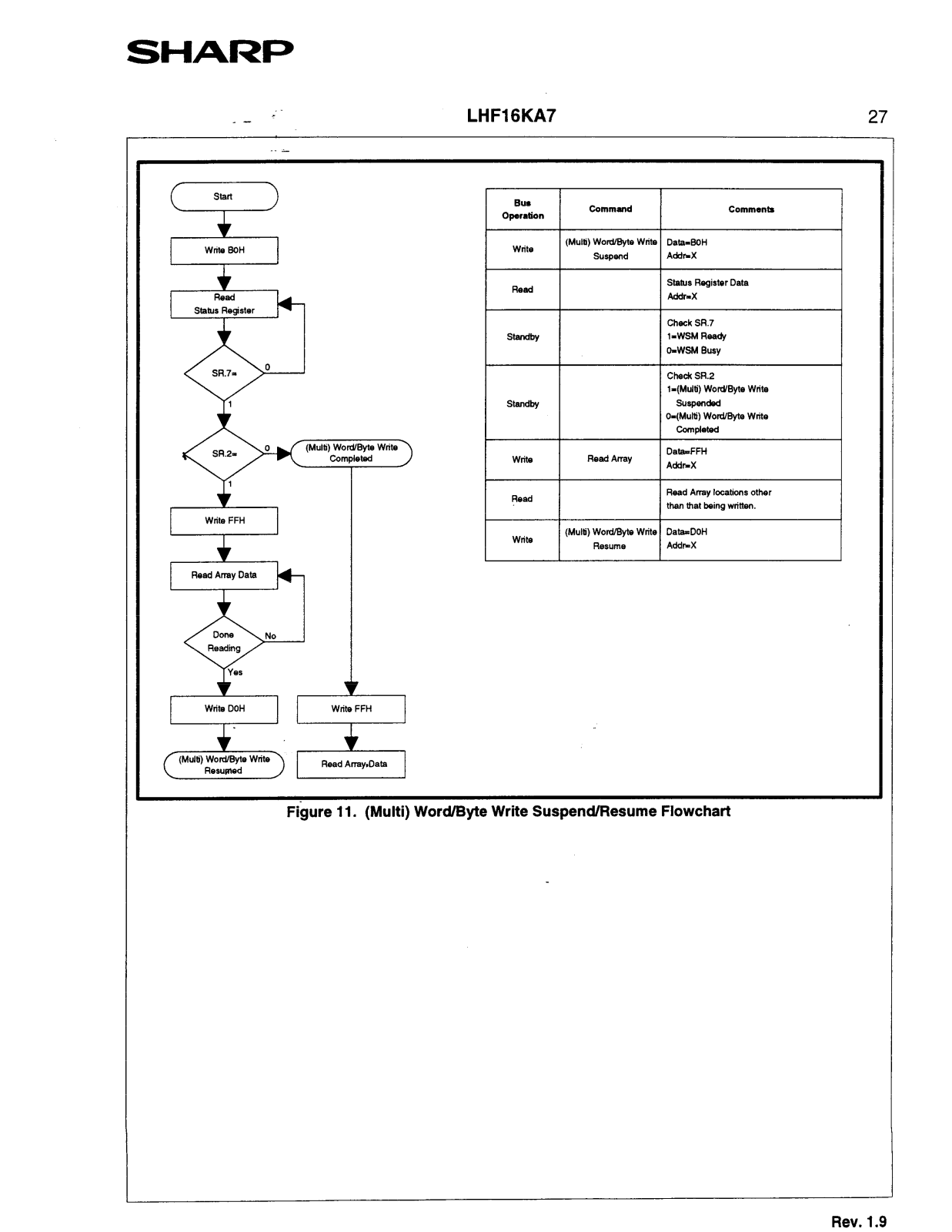

4.11 (Multi) Word/Byte Write Suspend Command ... 17

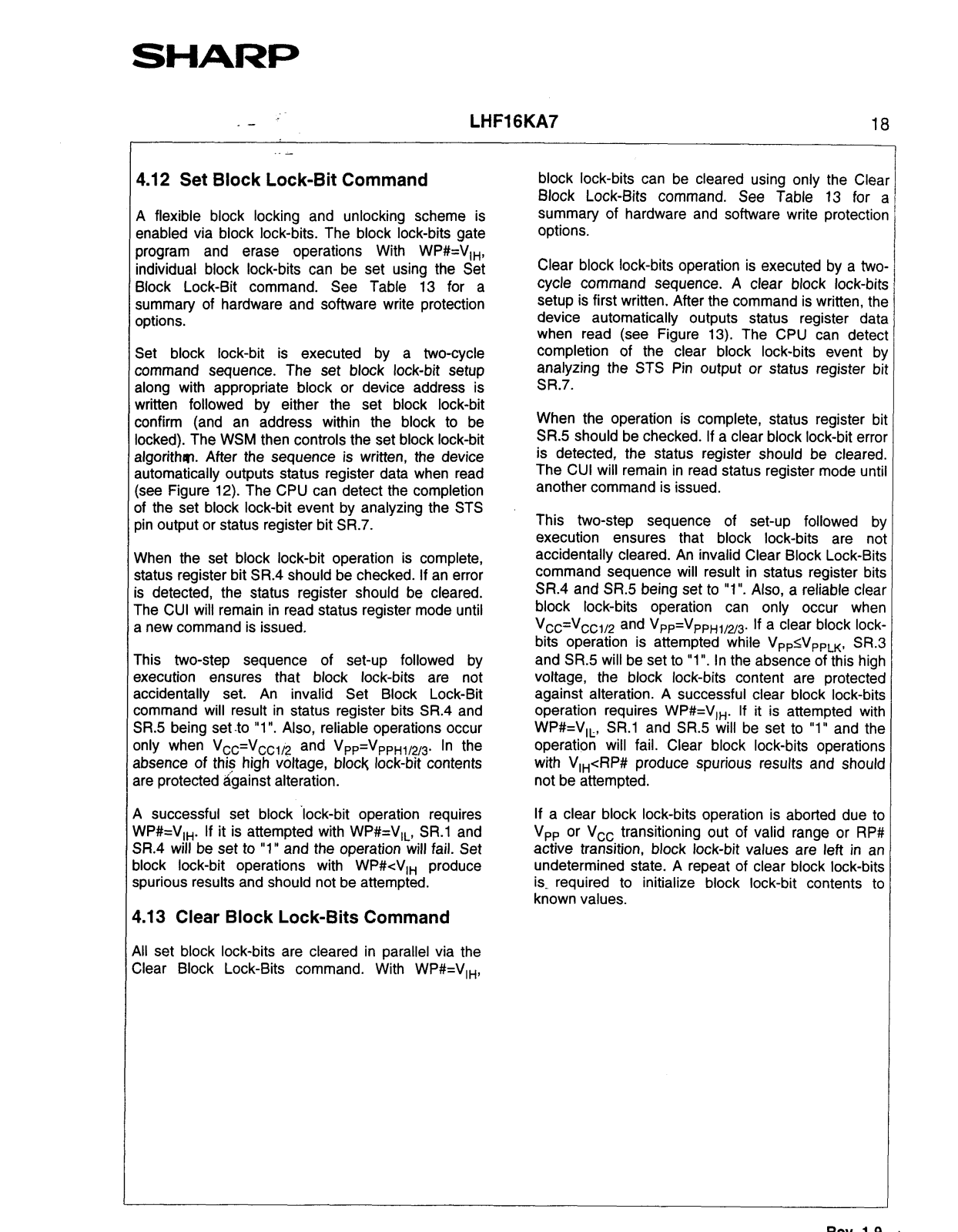

4.12 Set Block Lock-Bit Command.. ........................ 18

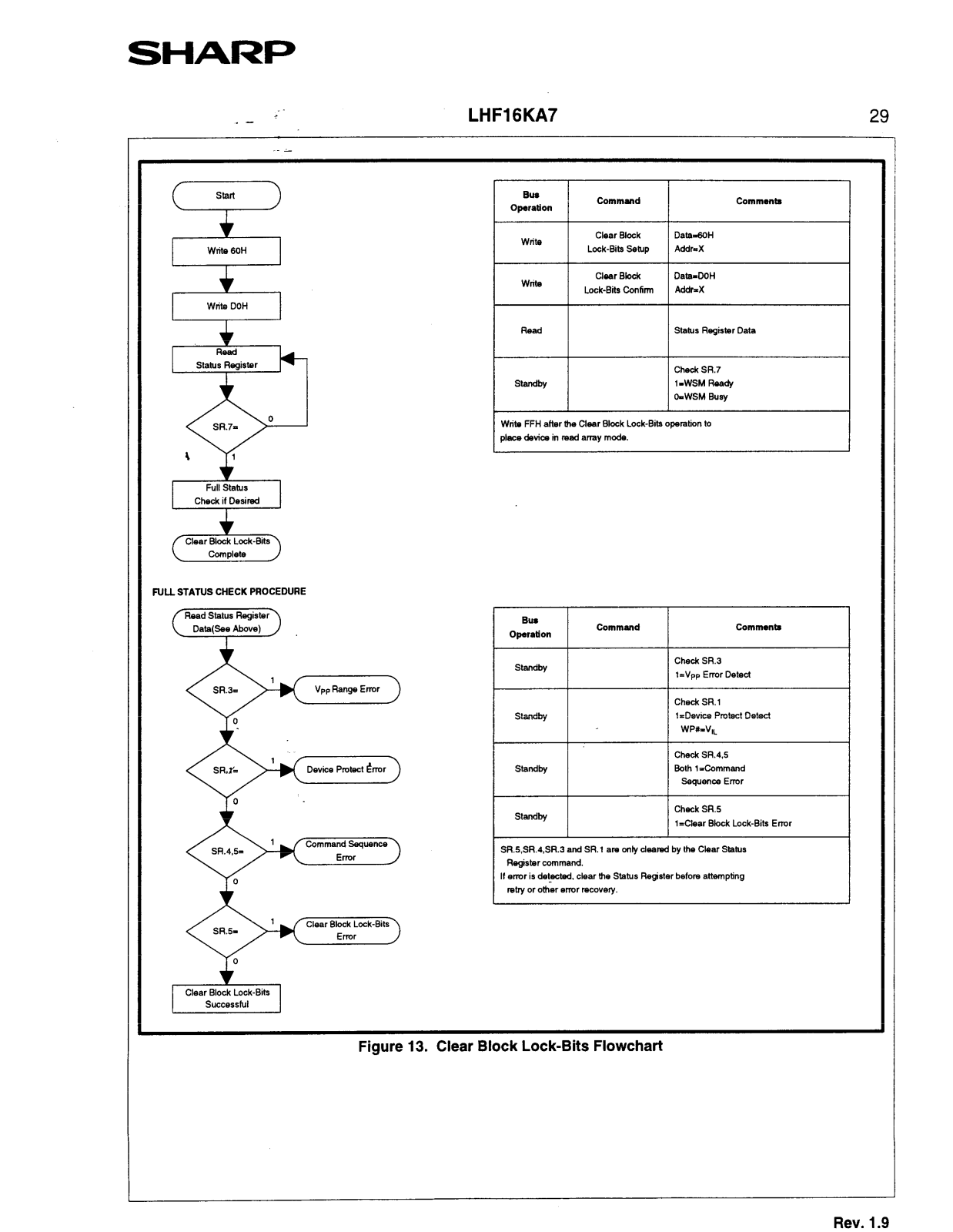

4.13 Clear Block Lock-Bits Command..

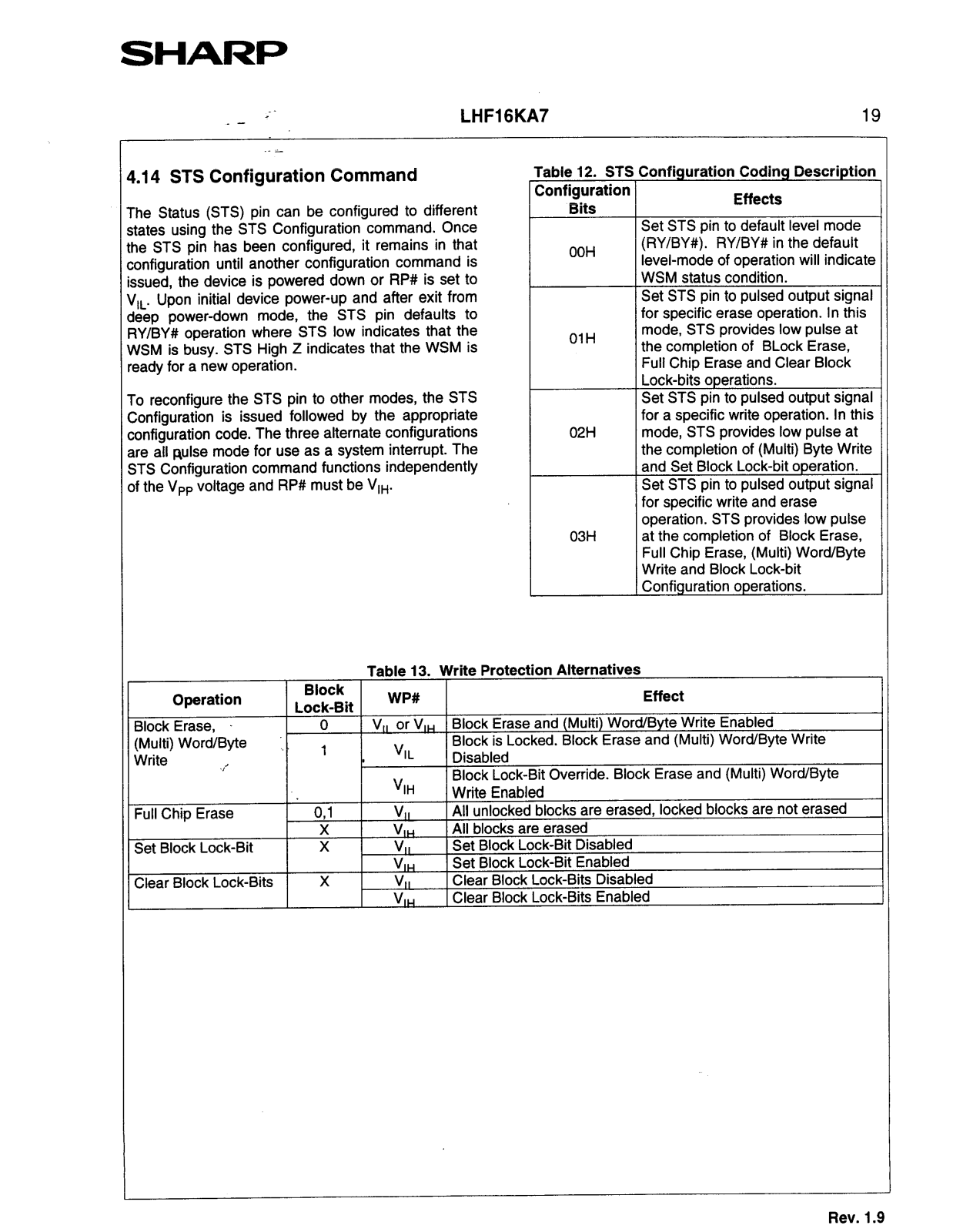

4.14 STS Configuration Command

................................................................... 7

...................................................... 3

................................ 6

Disable

....................................................

.................................................. 8

DEFINITIONS.. ..................................... 8

....................................... 11

............................................... 12

.................................. 12

.....................

Definition ......................... 14

................................ 15

...................

.........................

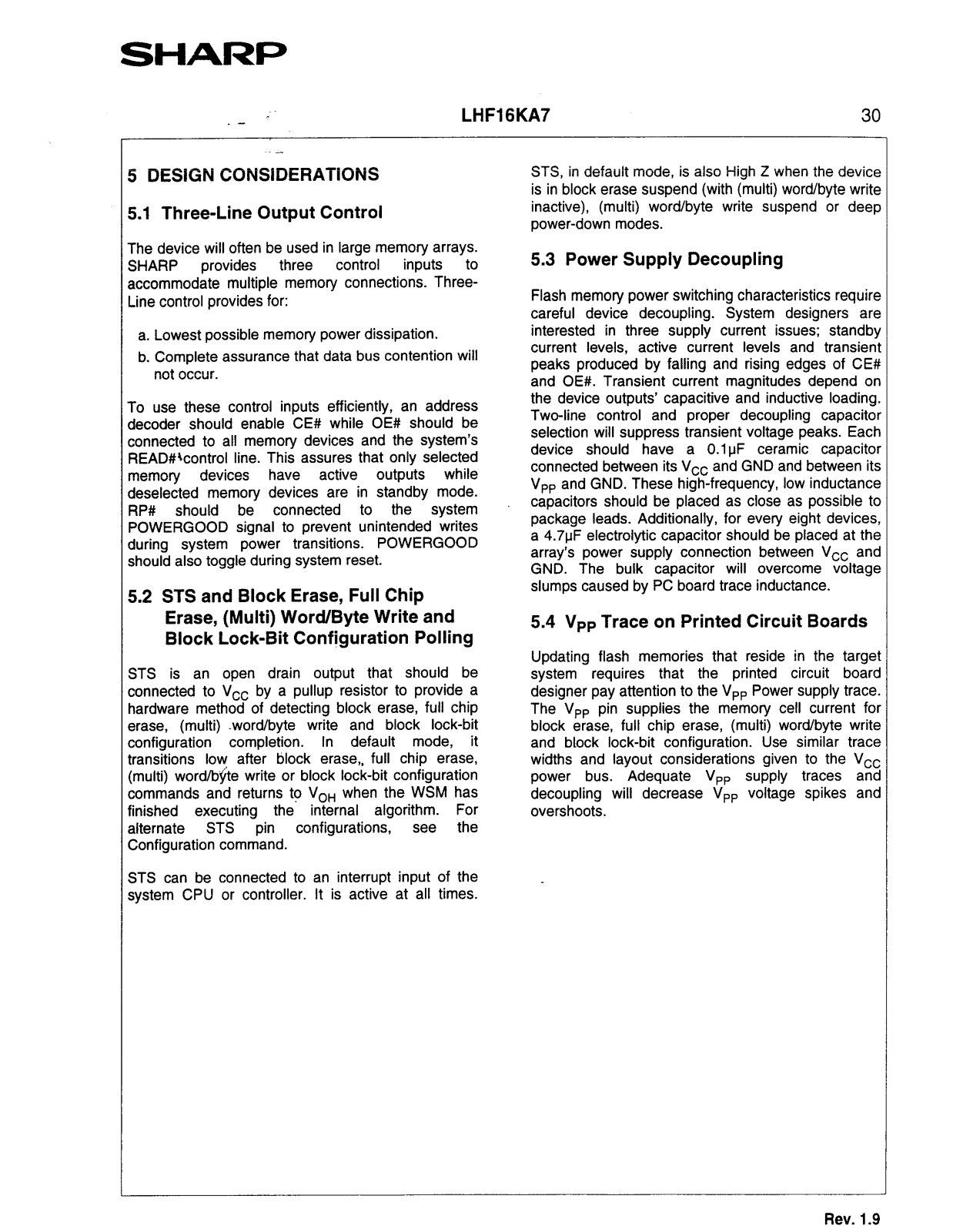

5 DESIGN CONSIDERATIONS

5.1 Three-Line Output Control

5.2 STS and Block Erase, Full Chip Erase, (Multi) Word/Byte Write and Block Lock-Bit Configuration

Polling ................................................................ 3c

5.3 Power Supply Decoupling .................................. 3c

5.4 V,, Trace on Printed Circuit Boards..

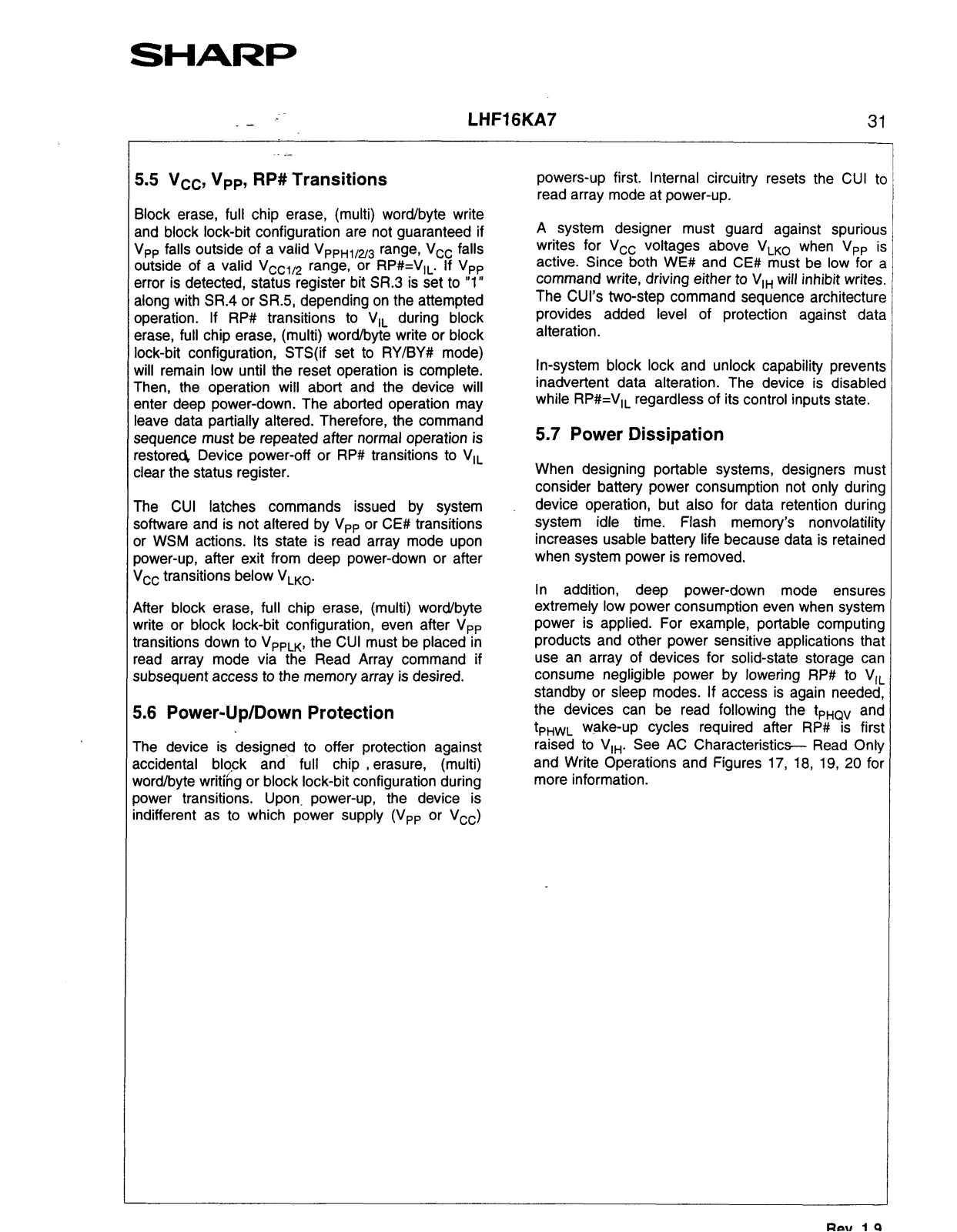

5.5 Vcc,

5.6 Power-Up/Down Protection..

5.7 Power Dissipation

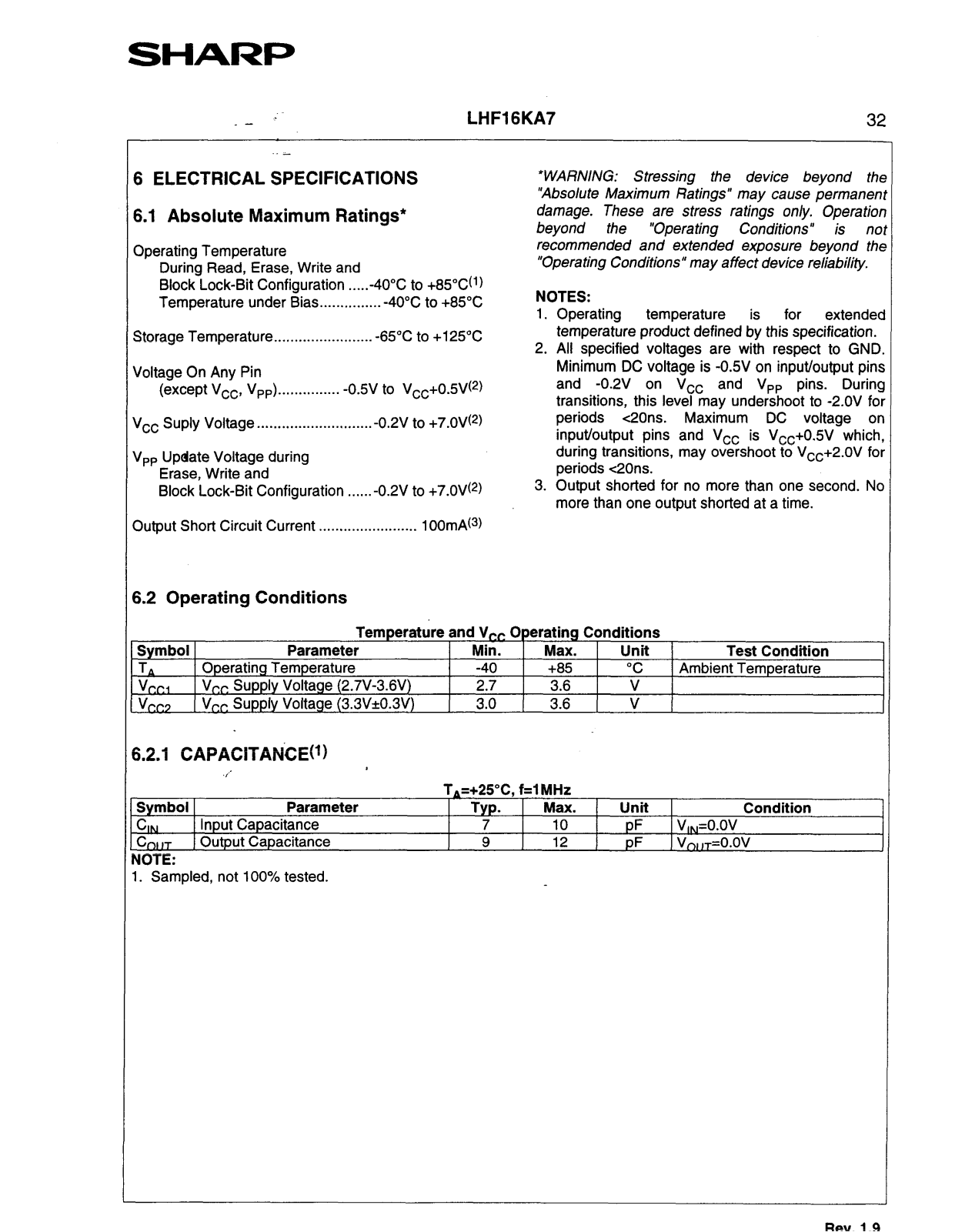

6 ELECTRICAL SPECIFICATIONS..

6.1 Absolute Maximum Ratings

6.2 Operating Conditions ......................................... 32

6.2.1 Capacitance ................................................. 32

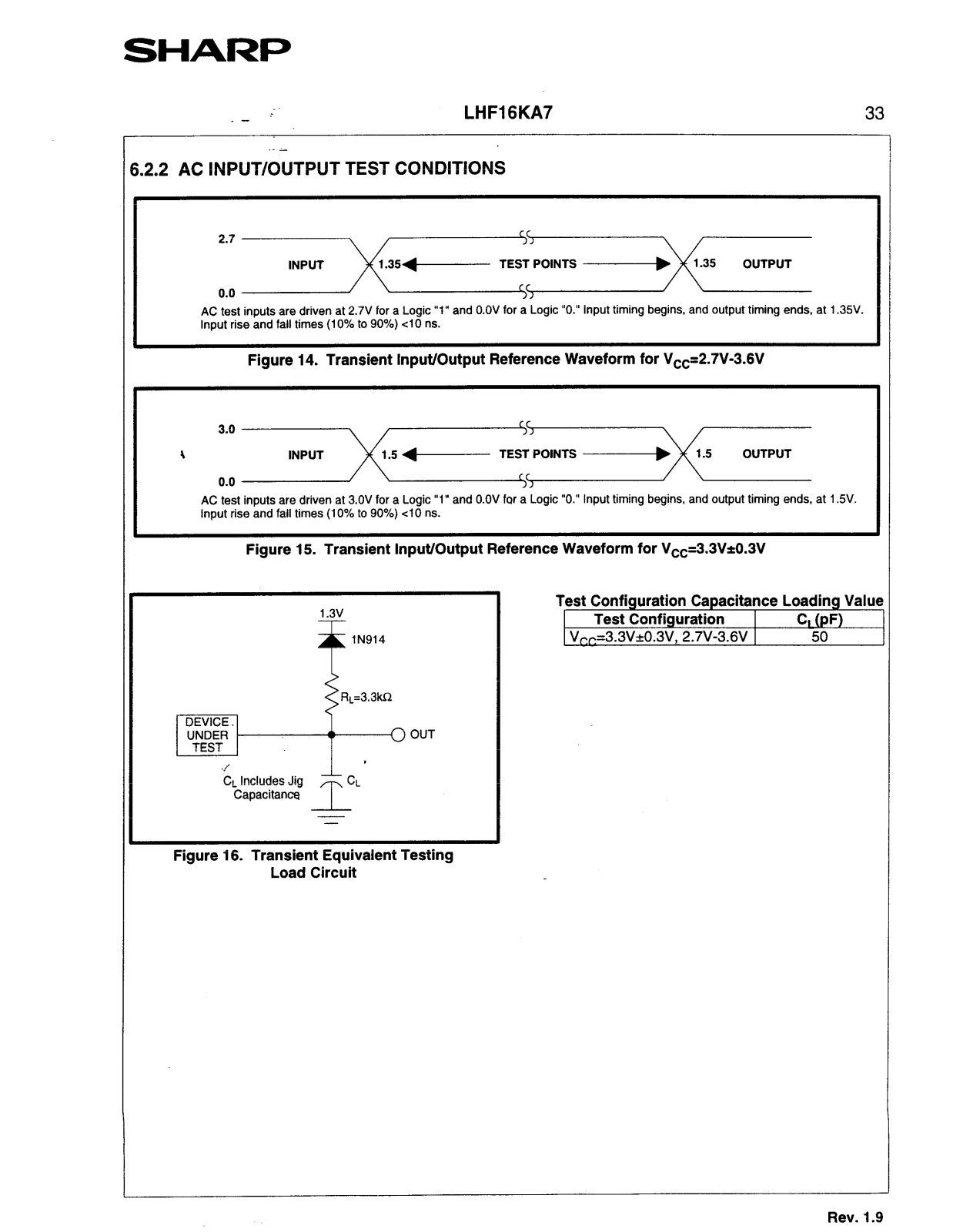

6.2.2 AC Input/Output Test Conditions..

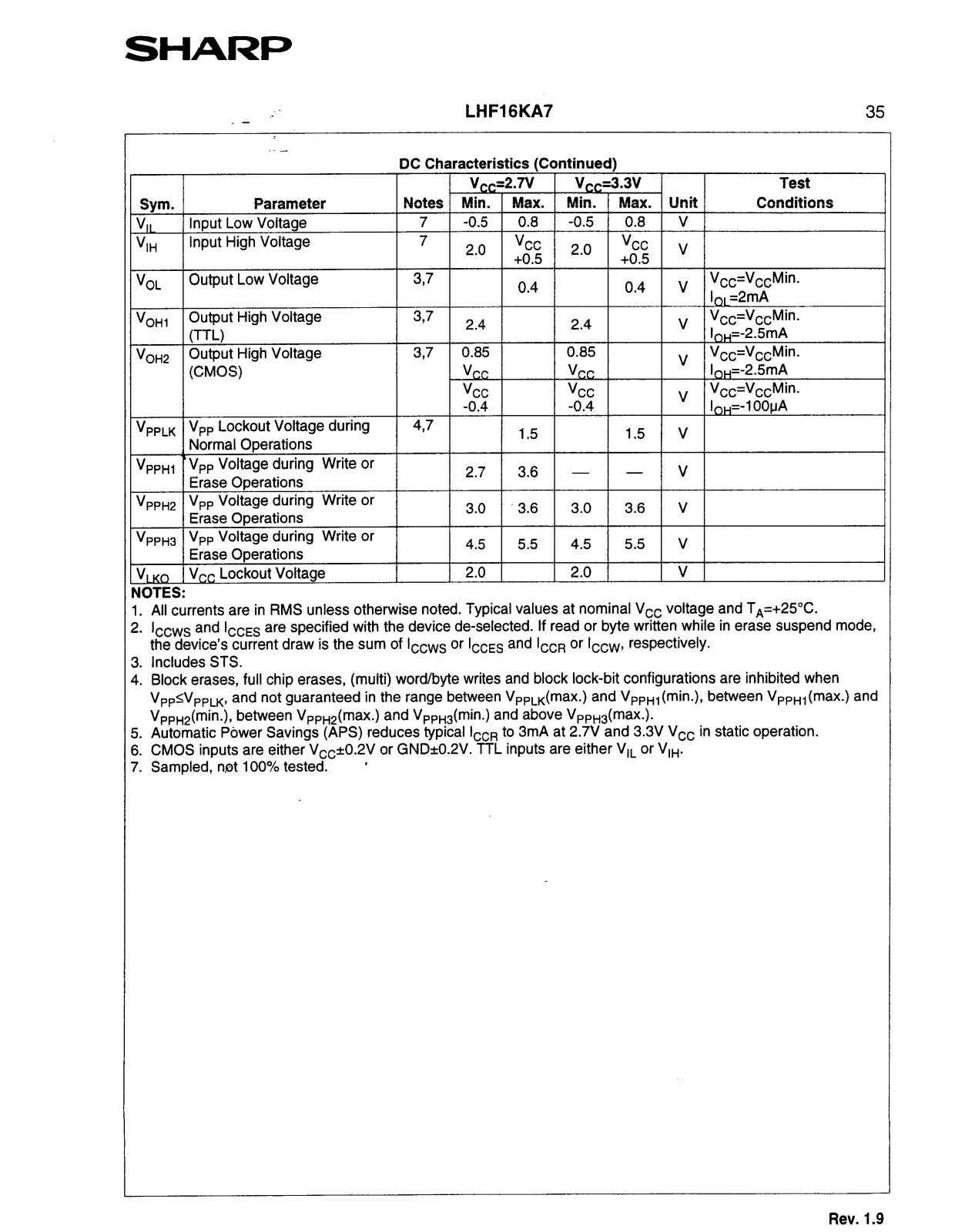

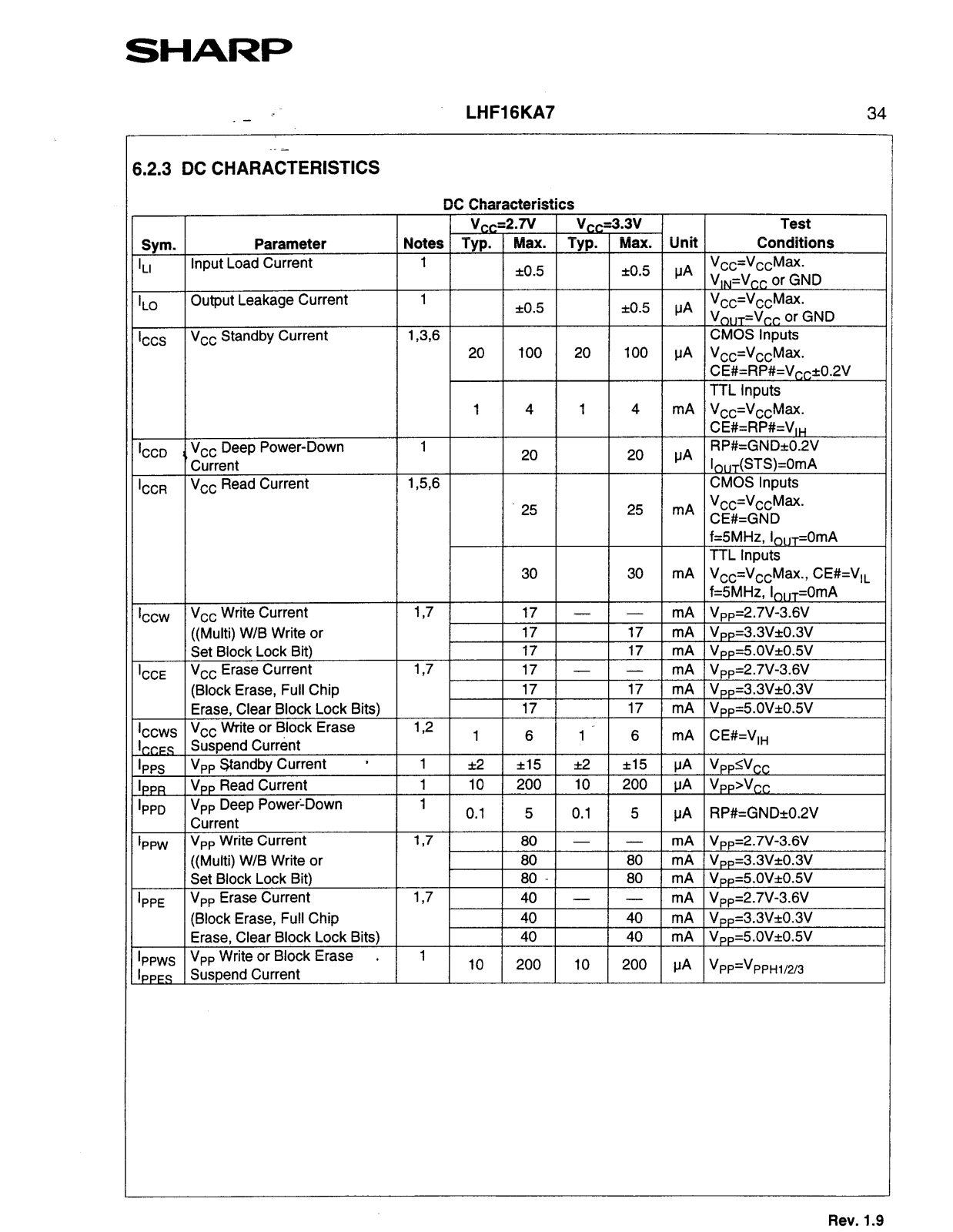

6.2.3 DC Characteristics ........................................ 34

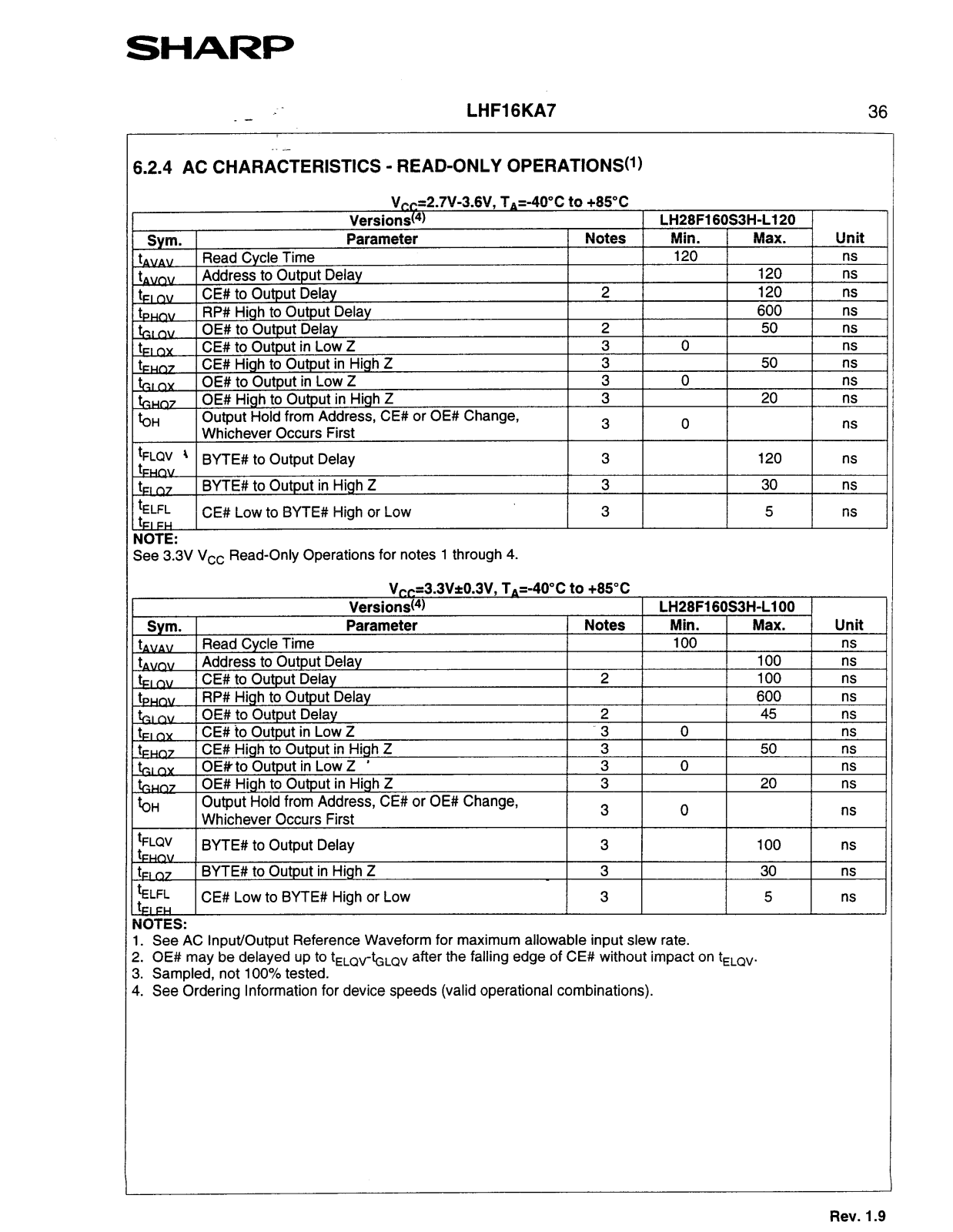

6.2.4 AC Characteristics - Read-Only Operations .3E

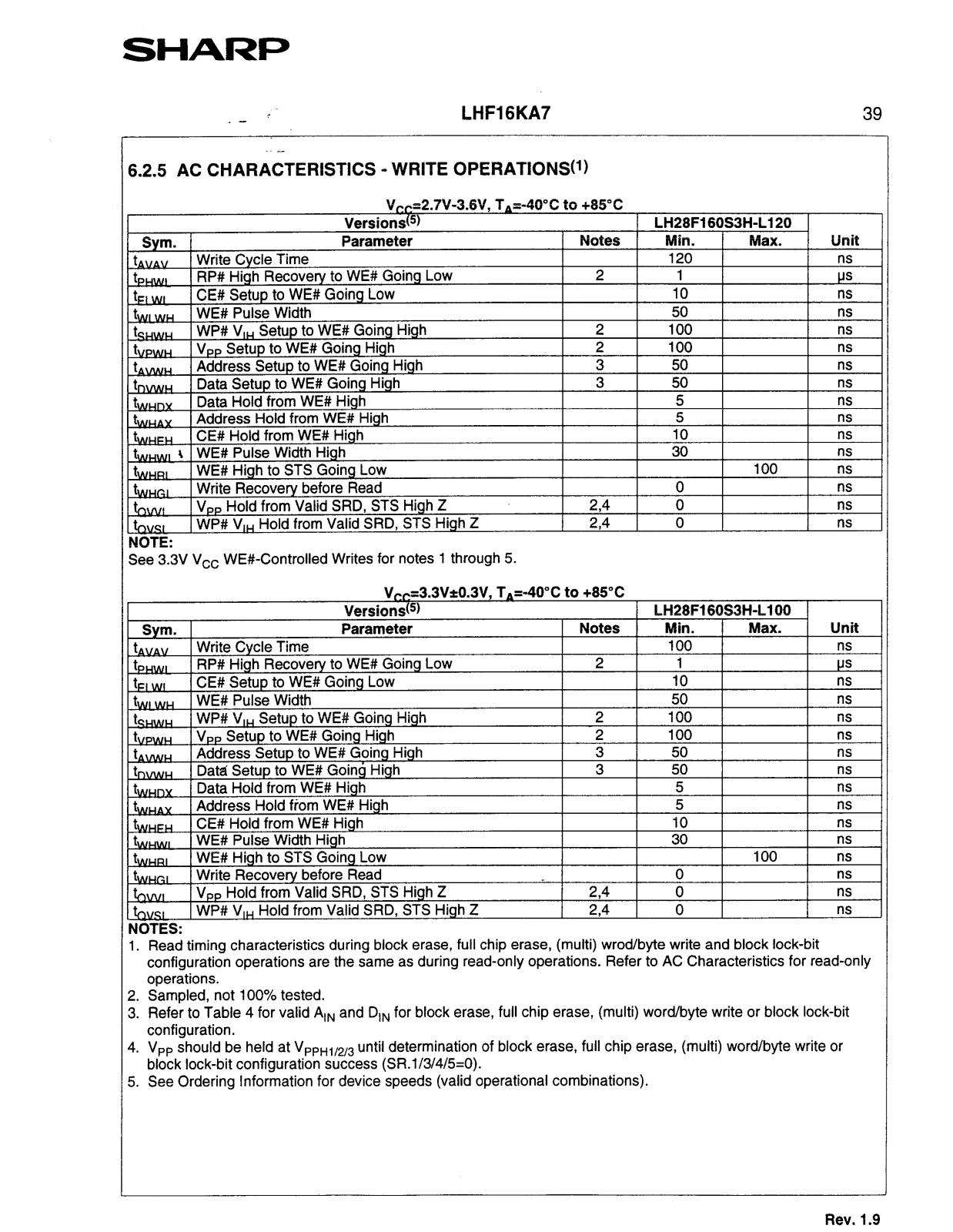

6.2.5 AC Characteristics - Write Operations..

18 19

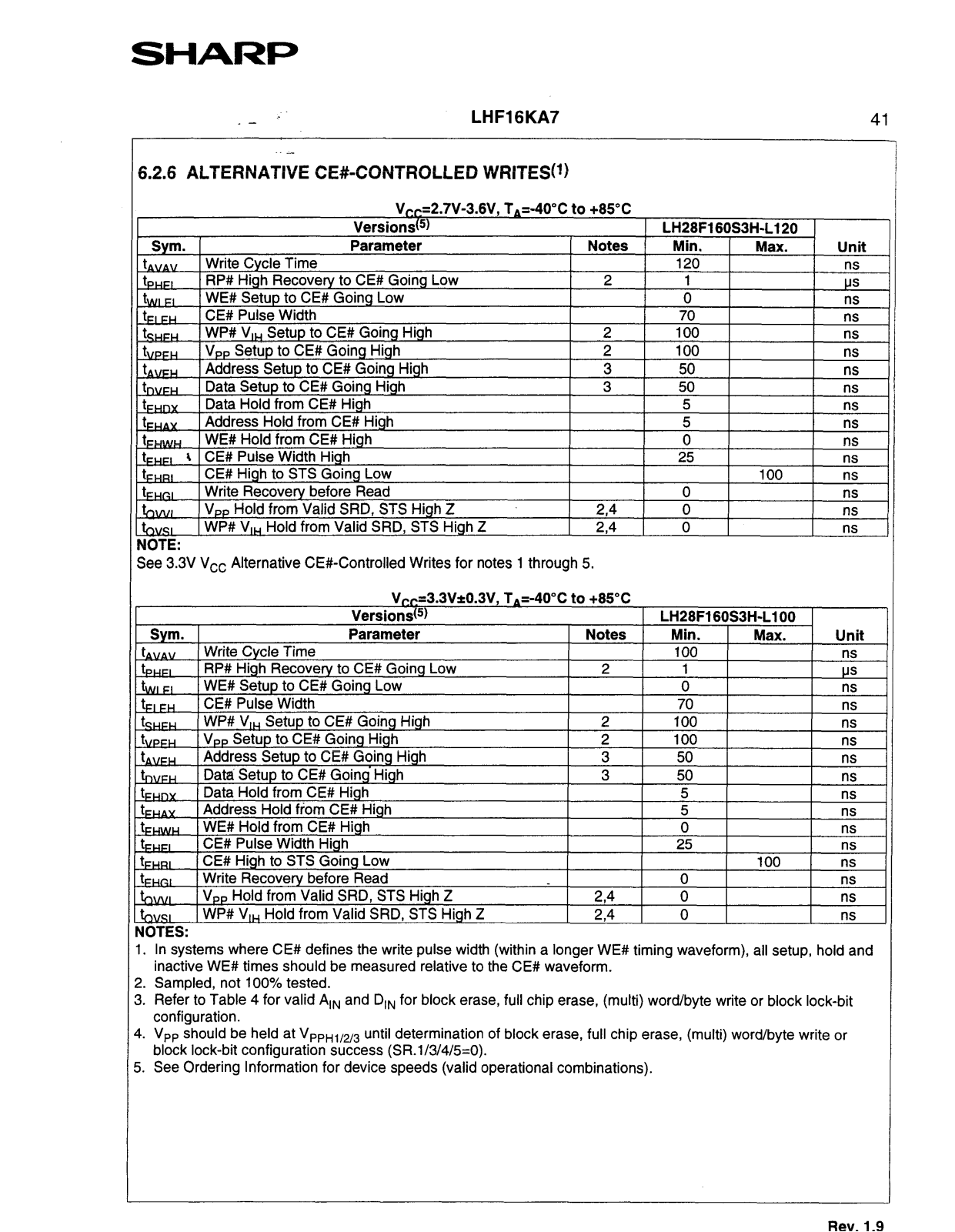

6.2.6 Alternative CE#-Controlled Writes..

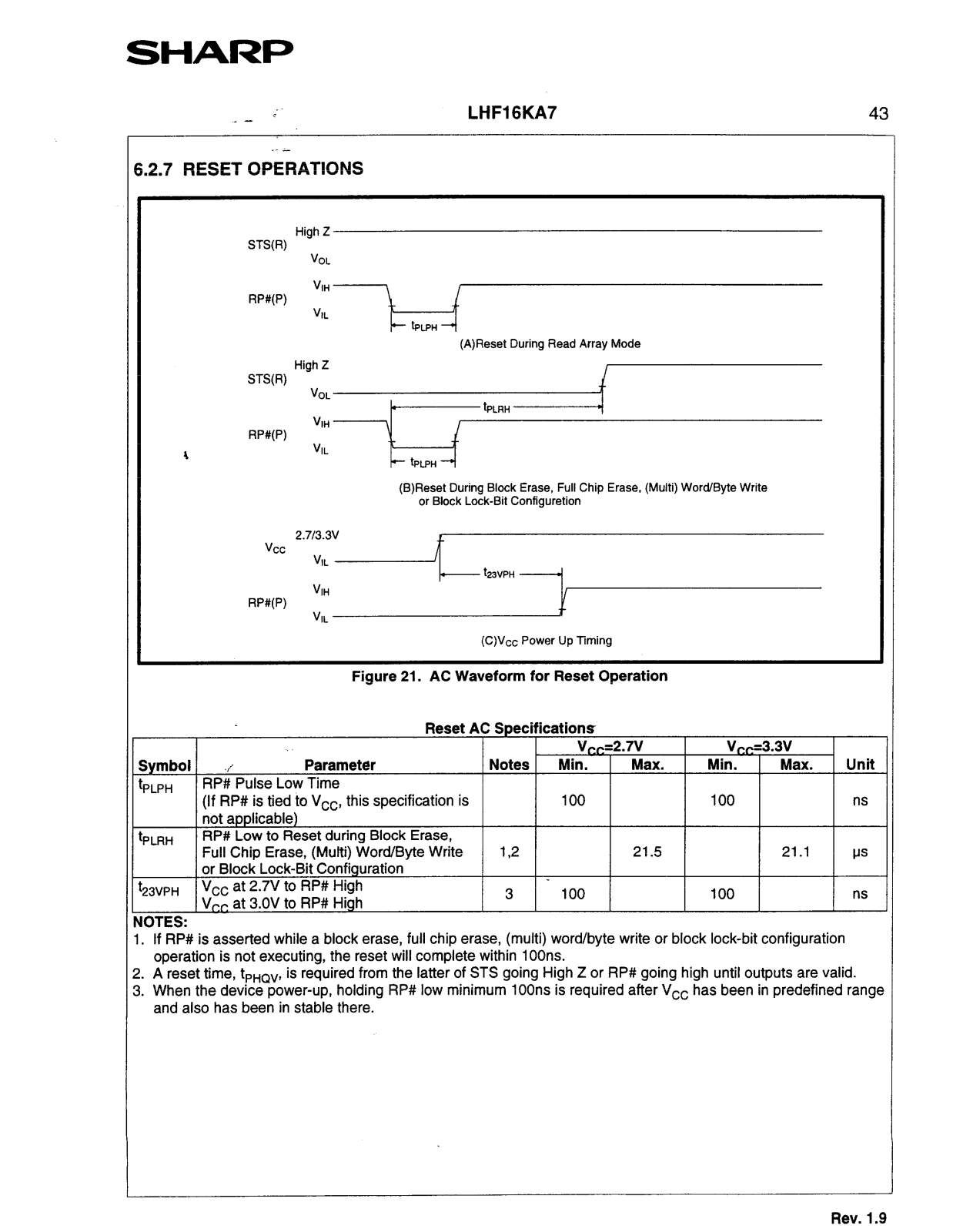

6.2.7 Reset Operations

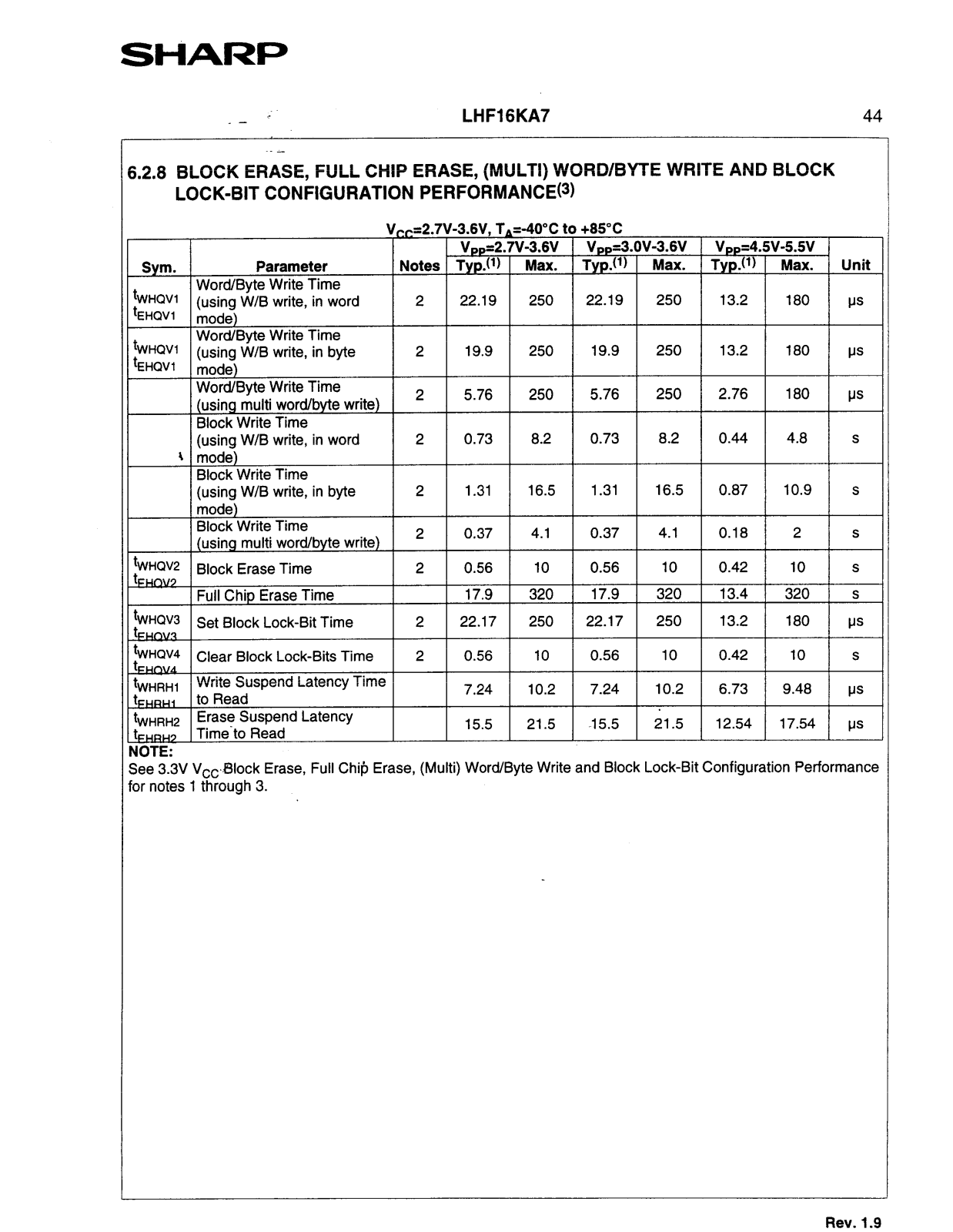

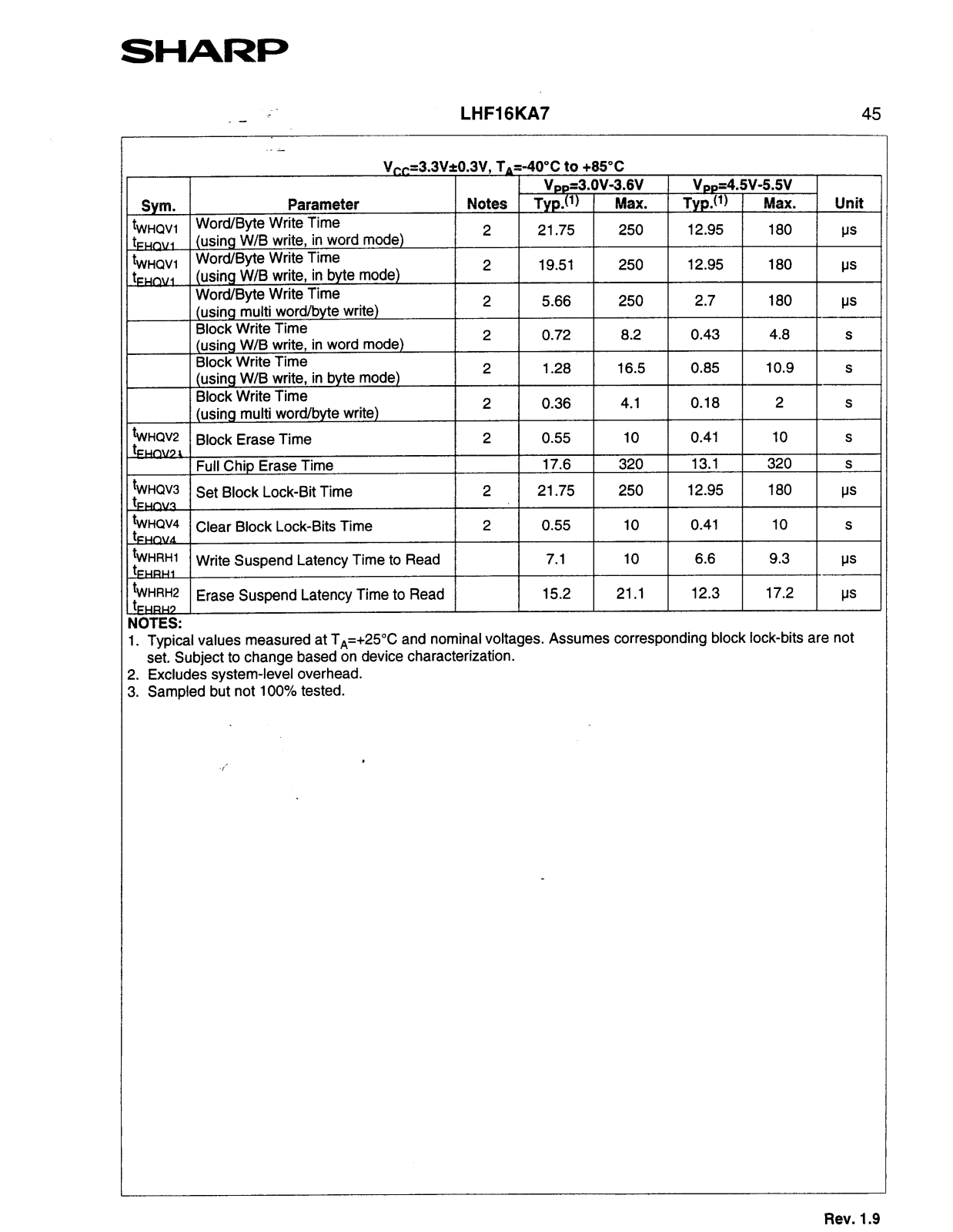

6.2.8 Block Erase, Full Chip Erase, (Multi)

7 ADDITIONAL INFORMATION ................................ 4E

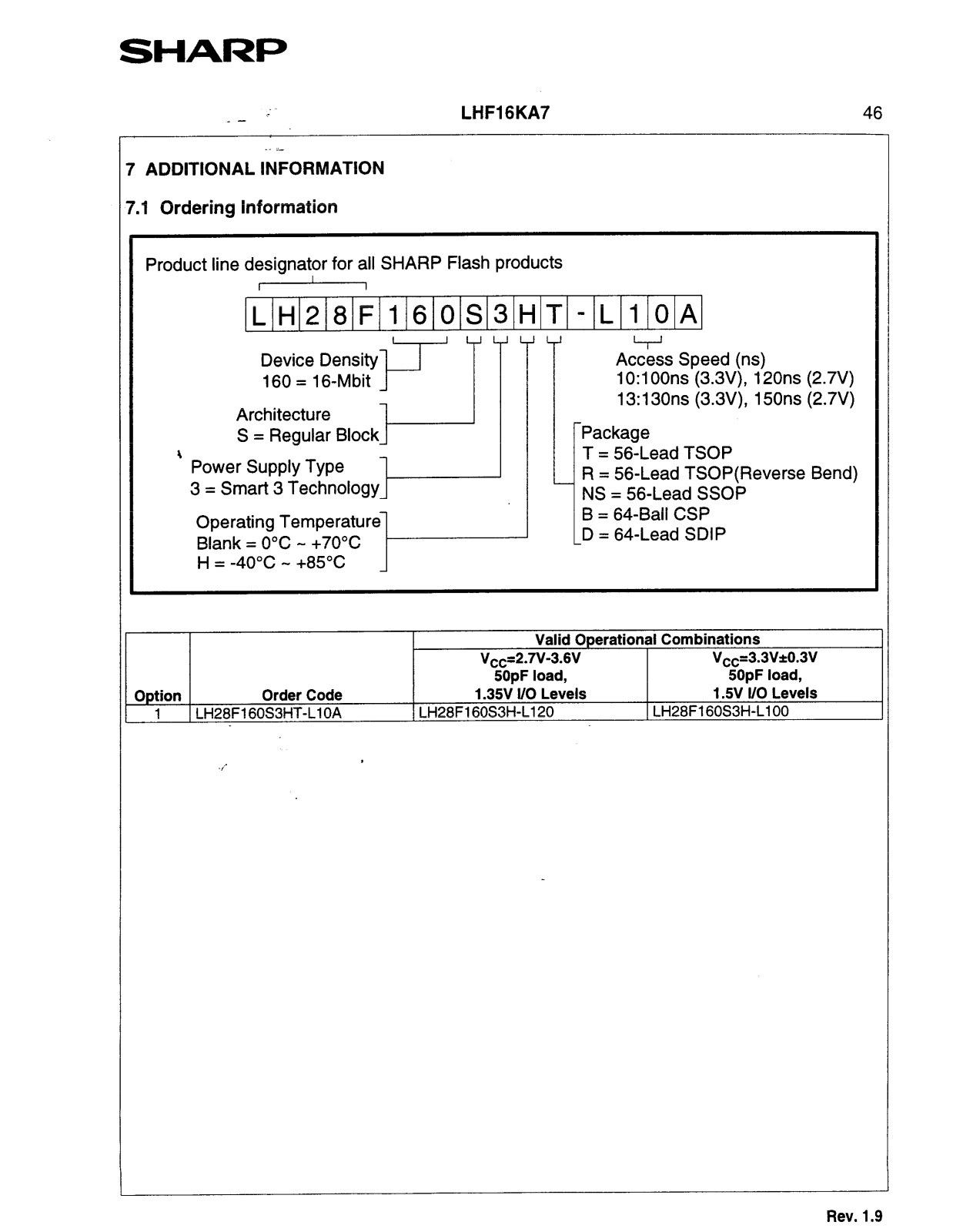

7.1 Ordering Information .......................................... 46

V,,,, RP# Transitions.. .............................. .31

............................................. .31

Word/Byte Write and Block Lock-Bit Configuration Performance..

................................

................................ .3C

.............................

........................

.............................. .3i

........................................ .4Z

........................

...............

....... .3E

.............

.3C

.31

.3i

.3Z

.41

.44

Rev. 1.9

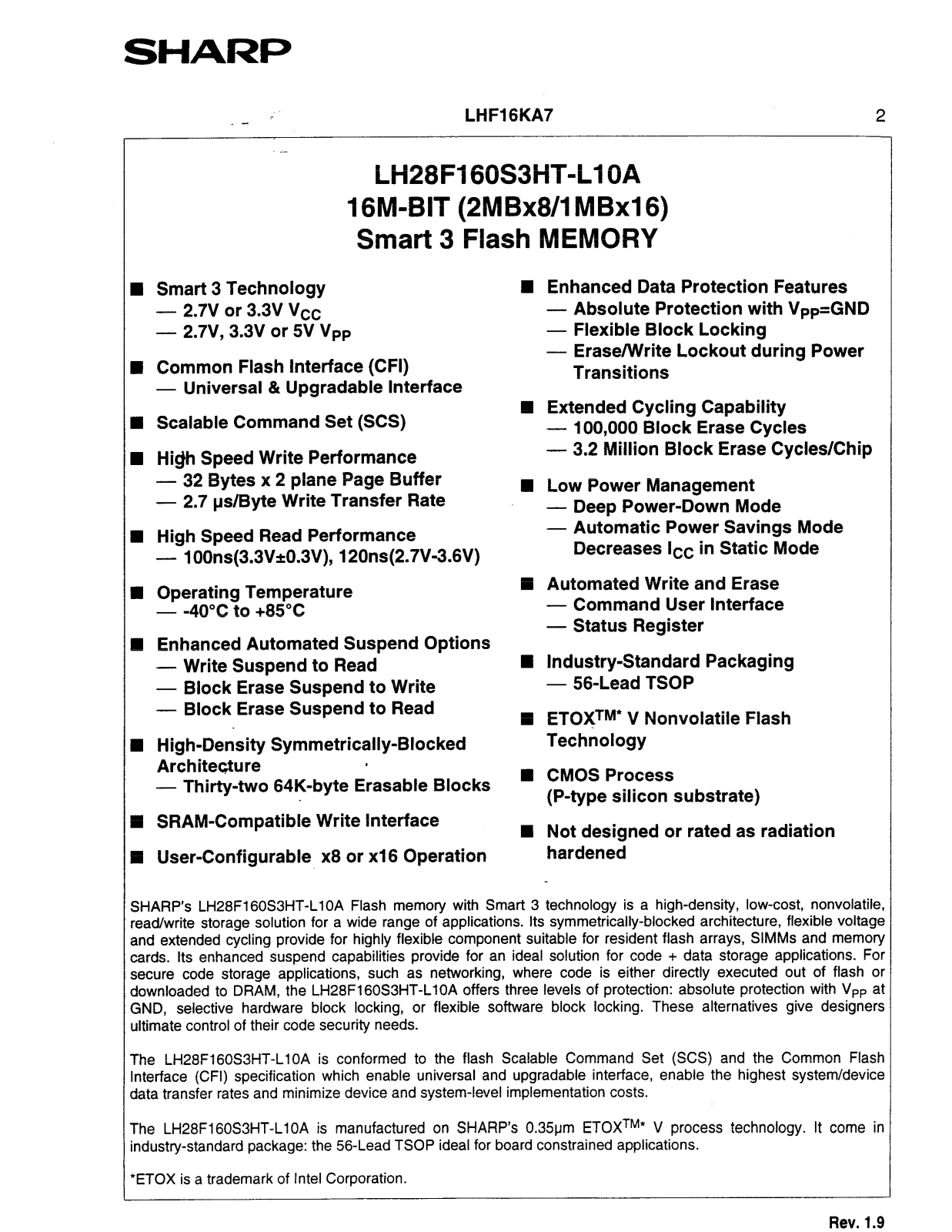

Page 4

SHAl?P

LHFlGKA7 2

LH28F160S3HT-Ll OA

1 GM-BIT (2MBx8/1 MBxl6)

Smart 3 Flash MEMORY

n Smart 3 Technology

- 2.7V or 3.3V Vcc

- 2.7V, 3.3V or SV Vpp

I Common Flash Interface (CFI)

Universal & Upgradable Interface I Scalable Command Set (SCS) n High Speed Write Performance

32 Bytes x 2 plane Page Buffer

2.7 @Byte Write Transfer Rate

n High Speed Read Performance

- 1 OOns(3.3V*O.3V), 120ns(2.7\1-3.6V)

I Operating Temperature

- -40°C to +85X

n Enhanced Automated Suspend Options

Write Suspend to Read

- Block Erase Suspend to Write

Block Erase Suspend to Read n High-Density Symmetrically-Blocked

Architecture

Thirty-two 64K-byte Erasable Blocks

n Enhanced Data Protection Features

- Absolute Protection with VpP=GND

- Flexible Block Locking

- Erase/Write Lockout during Power Transitions

n Extended Cycling Capability

- 100,000 Block Erase Cycles

- 3.2 Million Block Erase Cycles/Chip

n Low Power Management

- Deep Power-Down Mode

- Automatic Power Savings Mode Decreases ICC in Static Mode

n Automated Write and Erase

- Command User Interface

- Status Register

n Industry-Standard Packaging

- 56-Lead TSOP

n ETOgTM* V Nonvolatile Flash

Technology

n CMOS Process

(P-type silicon substrate)

I SRAM-Compatible Write Interface I User-Configurable x8 or x16 Operation

SHARP’s LH28F160S3HT-LlOA Flash memory with Smart 3 technology is a high-density, low-cost, nonvolatile, *cad/write storage solution for a wide range of applications. Its symmetrically-blocked architecture, flexible voltage and extended cycling provide for highly flexible component suitable for resident flash arrays, SlMMs and memory :ards. Its enhanced suspend capabilities provide for an ideal solution for code + data storage applications. For secure code storage applications, such as networking, where code is either directly executed out of flash or downloaded to DRAM, the LH28F160S3HT-LlOA offers three levels of protection: absolute protection with V,, at ?ND, selective hardware block locking, or flexible software block locking. These alternatives give designers Jltimate control of their code security needs.

The LH28F160S3HT-LlOA is conformed to the flash Scalable Command Set (SCS) and the Common Flash

nterface (CFI) specification which enable universal and upgradable interface, enable the highest system/device

data transfer rates and minimize device and system-level implementation costs. The LH28F160S3HT-LlOA is manufactured on SHARP’s 0.35um

ndustry-standard package: the 56-Lead TSOP ideal for board constrained applications.

‘ETOX is a trademark of Intel Corporation.

n Not designed or rated as radiation

hardened

ETOX TM* V process technology. It come in

Rev. 1.9

Page 5

SHARP

. -

LHFlGKA7

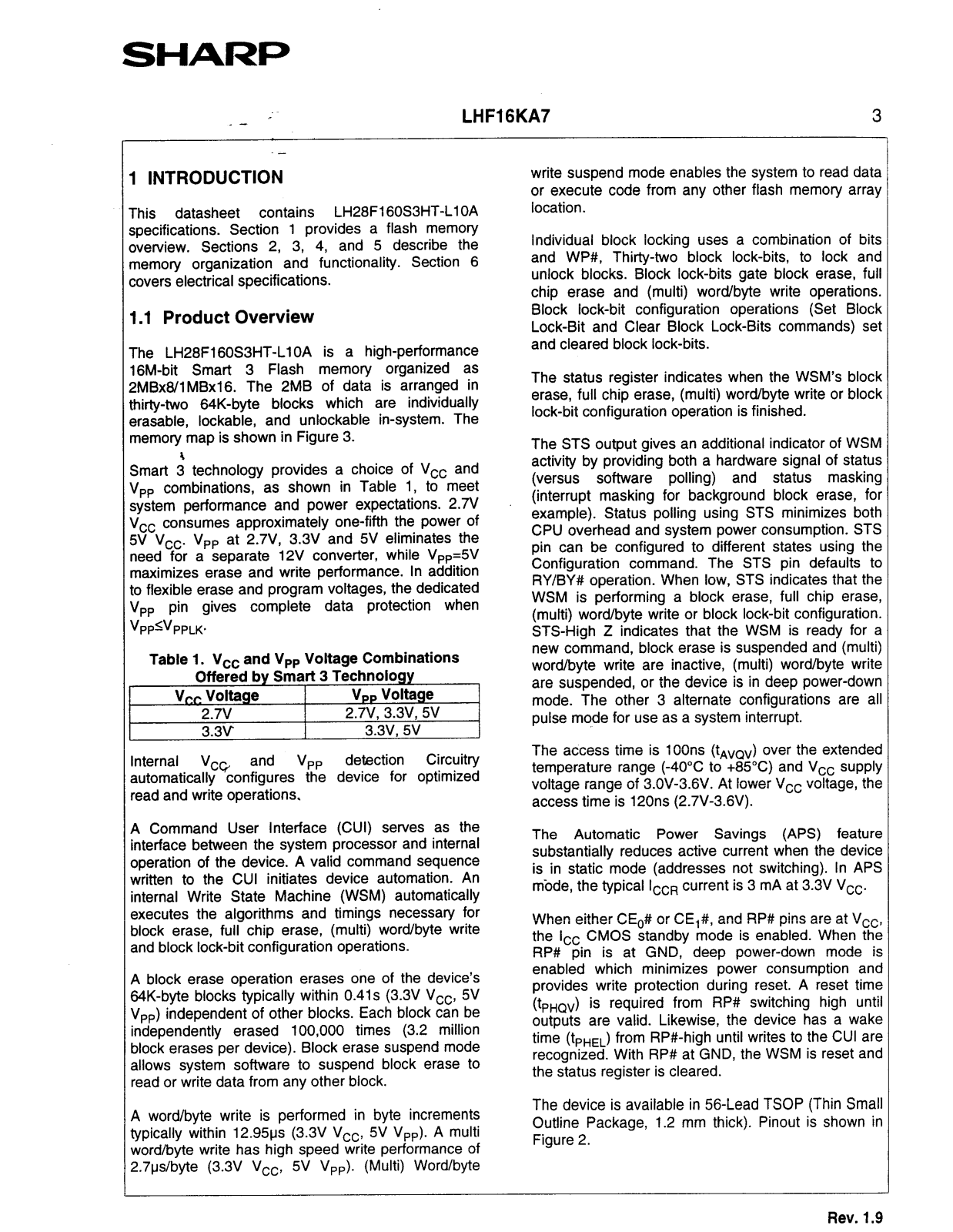

1 INTRODUCTION

This datasheet contains LH28F160S3HT-Ll OA specifications. Section 1 provides a flash memory overview. Sections 2, 3, 4, and 5 describe the memory organization and functionality. Section 6 covers electrical specifications.

1 .l Product Overview

The LH28F160S3HT-Ll OA is a high-performance

16M-bit Smart 3 Flash memory organized as 2MBx80MBxl6. The 2MB of data is arranged in thirty-two 64K-byte blocks which are individually erasable, lockable, and unlockable in-system. The

memory map is shown in Figure 3.

Smart 3’ technology provides a choice of V,, and V,, combinations, as shown in Table 1, to meet system performance and power expectations. 2.7V Vc, consumes approximately one-fifth the power of 5V Vc,. V,, at 2.7V, 3.3V and 5V eliminates the

need for a separate 12V converter, while V,,=5V

maximizes erase and write performance. In addition to flexible erase and program voltages, the dedicated

V,, pin gives complete data protection when

Table 1. Vcc and Vpp Voltage Combinations

Offered by Smart 3 Technology

Vcc Voltage Vpp Voltage

2.7V 2.7V, 3.3V, 5V

3.3v 3.3v, 5v

Internal automatically configures the device for optimized read and write operations.

and

VP,

detection Circuitry

write suspend mode enables the system to read data or execute code from any other flash memory array

location. Individual block locking uses a combination of bits

and WP#, Thirty-two block lock-bits, to lock ant unlock blocks. Block lock-bits gate block erase, full

chip erase and (multi) word/byte write operations. Block lock-bit configuration operations (Set Block Lock-Bit and Clear Block Lock-Bits commands) sei and cleared block lock-bits.

The status register indicates when the WSM’s block erase, full chip erase, (multi) word/byte write or block lock-bit configuration operation is finished.

The STS output gives an additional indicator of WSM activity by providing both a hardware signal of status (versus software polling) and status maskins (interrupt masking for background block erase, fol example). Status polling using STS minimizes bott CPU overhead and system power consumption. STS pin can be configured to different states using the Configuration command. The STS pin defaults tc

RY/BY# operation. When low, STS indicates that the

WSM is performing a block erase, full chip erase

(multi) word/byte write or block lock-bit configuration STS-High Z indicates that the WSM is ready for a

new command, block erase is suspended and (multi: word/byte write are inactive, (multi) word/byte write are suspended, or the device is in deep power-dowr

mode. The other 3 alternate configurations are al

pulse mode for use as a system interrupt. The access time is 100ns (tAVQv) over the extendec

temperature range (-40°C to +85”C) and Vc, suppI\ voltage range of 3.OV-3.6V. At lower V,, voltage, the access time is 120ns (2.7V-3.6V).

A Command User Interface (CUI) serves as the

interface between the system processor and internal operation of the device. A valid command sequence written to the CUI initiates device automation. An

internal Write State Machine (WSM) automatically executes the algorithms and timings necessary for block erase, full chip erase, (multi) word/byte write and block lock-bit configuration operations.

4 block erase operation erases one of the device’s %lK-byte blocks typically within 0.41s (3.3V Vcc, 5V VP,) independent of other blocks. Each block can be independently erased 100,000 times (3.2 million olock erases per device). Block erase suspend mode allows system software to suspend block erase to read or write data from any other block.

A word/byte write is performed in byte increments typically within 12.95ps (3.3V V,,, 5V VP,). A multi word/byte write has high speed write performance of

2.7@byte (3.3V V,,, 5V VP,). (Multi) Word/byte

The Automatic Power Savings (APS) feature

substantially reduces active current when the device is in static mode (addresses not switching). In APS m‘ode, the typical I,,, current is 3 mA at 3.3V V,c.

When either CE,# or CE,#, and RP# pins are at V,, the I,, CMOS standby mode is enabled. When the RP# pin is at GND, deep power-down mode ic enabled which minimizes power consumption and provides write protection during reset. A reset time (tPHav) is required from RP# switching high until outputs are valid. Likewise, the device has a wake time (tPHEL) from RP#-high until writes to the CUI are recognized. With RP# at GND, the WSM is reset and the status register is cleared.

The device is available in 56-Lead TSOP (Thin Small Outline Package, 1.2 mm thick). Pinout is shown in Figure 2.

Rev. 1.9

Page 6

SHARP

LHFlGKA7 4

Comparator

I/ + b

Cl3 WEX OE%

RP#

WP#

II-4 I

kE,#

VCC

CEo#

VPP

RP#

GND

NC Azo AIS Al6

A17 Al6

A15 Al.4 A13 Al2

41 AIO

As Ae

A7 As A5

2 A2 AI

3 4 5 6

‘7

8 9 10 11 12 13

14 15 16 17 18 19 20 21 22

d 23

24 25 26

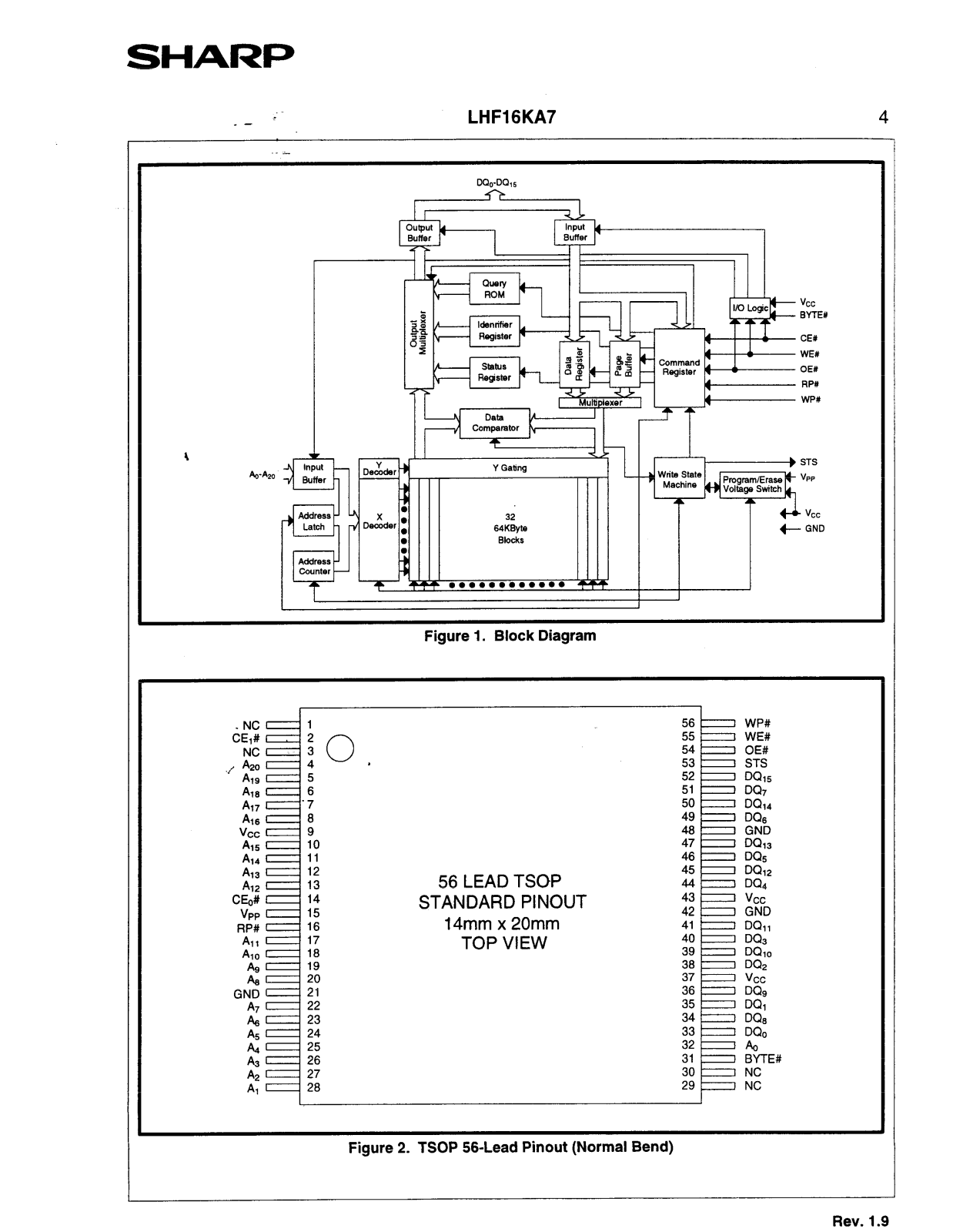

Figure 1. Block Diagram

56 LEAD TSOP

STANDARD PINOUT

14mm x 20mm

TOP VIEW

----G-L

53 52 51

50 49 48 47 46 45 44 43 42 41 40

34 1

33 I

32 I

31 )

WP# WE# OE# STS

DQ15

z:, DQ6

GND

DQ13 DQ5 DQ12

DQ4

vcc

GND

DQll DQ3 DQlo DQz

vcc

DQP DQ;

DQe DQo

A0 BYTE# NC NC

Figure 2. TSOP 56-Lead Pinout (Normal Bend)

Rev. 1.9

Page 7

SHARP

*o-*20

x&)-DC+!

CEO%

CE,#

RP#

OE#

WE#

STS

WP#

BYTE#

“PP

“cc

GND

_ -

Type

INPUT

INPUT/

3UTPUT

INPUT

INPUT INPUT

OPEN

DRAIN

OUTPUT

tWPUT

lNPUT

SUPPLY

LHF16KA7

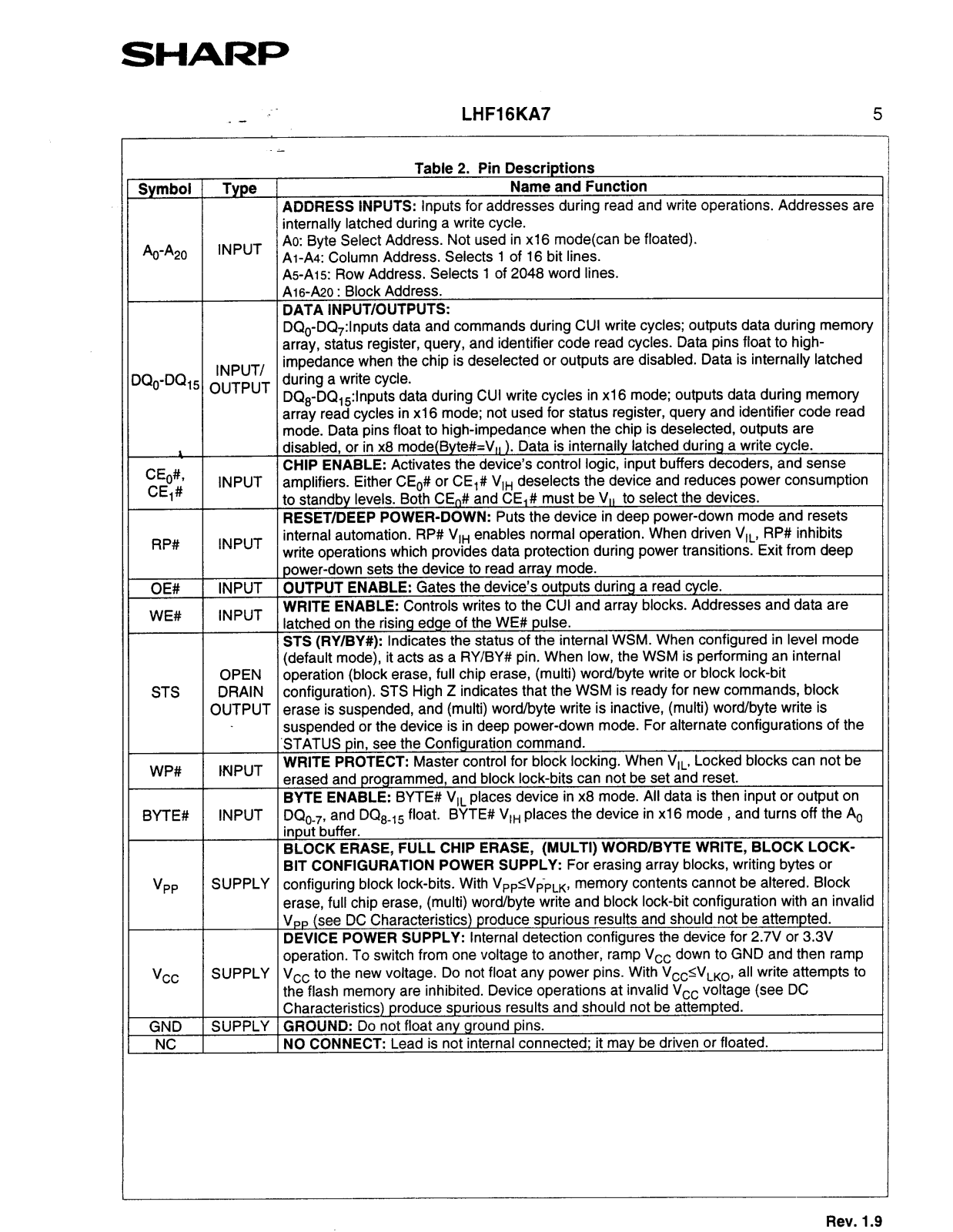

Table 2. Pin Descriptions

ADDRESS INPUTS: Inputs for addresses during read and write operations. Addresses are internally latched during a write cycle. Ao: Byte Select Address. Not used in x16 mode(can be floated). AI-AK Column Address. Selects 1 of 16 bit lines. A+Ai5: Row Address. Selects 1 of 2048 word lines.

A164420

DATA INPUT/OUTPUTS:

DQo-DQ,:lnputs data and commands during CUI write cycles; outputs data during memory array, status register, query, and identifier code read cycles. Data pins float to highimpedance when the chip is deselected or outputs are disabled. Data is internally latched during a write cycle.

DQs-DQ15:lnpUtS data during CUI write cycles in x16 mode; outputs data during memory array read cycles in xl 6 mode; not used for status register, query and identifier code read mode. Data pins float to high-impedance when the chip is deselected, outputs are disabled, or in x8 mode(Byte#=V,, ). Data is internally latched during a write cycle.

CHIP ENABLE: Activates the device’s control logic, input buffers decoders, and sense amplifiers. Either CE,# or CE,# V,, deselects the device and reduces power consumption to standby levels. Both CE,-# and CE,# must be V,, to select the devices. RESET/DEEP POWER-DOWN: Puts the device in deep power-down mode and resets internal automation. RP# V,, enables normal operation. When driven \JIL, RP# inhibits write operations which provides data protection during power transitions. Exit from deep power-down sets the device to read array mode. OUTPUT ENABLE: Gates the device’s outputs during a read cycle.

WRITE ENABLE: Controls writes to the CUI and array blocks. Addresses and data are

latched on the rising edge of the WE# pulse. STS (RY/BY#): Indicates the status of the internal WSM. When configured in level mode

(default mode), it acts as a RY/BY# pin. When low, the WSM is performing an internal operation (block erase, full chip erase, (multi) word/byte write or block lock-bit configuration). STS High Z indicates that the WSM is ready for new commands, block erase is suspended, and (multi) word/byte write is inactive, (multi) word/byte write is suspended or the device is in deep power-down mode. For alternate configurations of the

STATUS pin, see the Configuration command. WRITE PROTECT: Master control for block locking. When V,,, Locked blocks can not be erased and programmed, and block lock-bits can not be set and reset.

BYTE ENABLE: BYTE# V,, places device in x8 mode. All data is then input or output on

DQO-,, and DQse15 float. BYTE# V,, places the device in x16 mode , and turns off the A,

input buffer.

BLOCK ERASE, FULL CHIP ERASE, (MULTI) WORD/BYTE WRITE, BLOCK LOCK-

BIT CONFIGURATION POWER SUPPLY: For erasing array blocks, writing bytes or configuring block lock-bits. With V+V+~,K, memory contents cannot be altered. Block erase, full chip erase, (multi) word/byte write and block lock-bit configuration with an invalid

vpp (see DC Characteristics) produce spurious results and should not be attempted.

DEVICE POWER SUPPLY: Internal detection configures the device for 2.7” or 3.3” operation. To switch from one voltage to another, ramp V,, down to GND and then ramp V,, to the new voltage. Do not float any power pins. With V,,IV,,,, all write attempts to the flash memory are inhibited. Device operations at invalid V,, voltage (see DC Characteristics) produce spurious results and should not be attempted.

GROUND: Do not float any ground pins.

NO CONNECT: Lead is not internal connected; it may be driven or floated.

: Block Address.

Name and Function

Rev. 1.9

Page 8

SHARP

. -

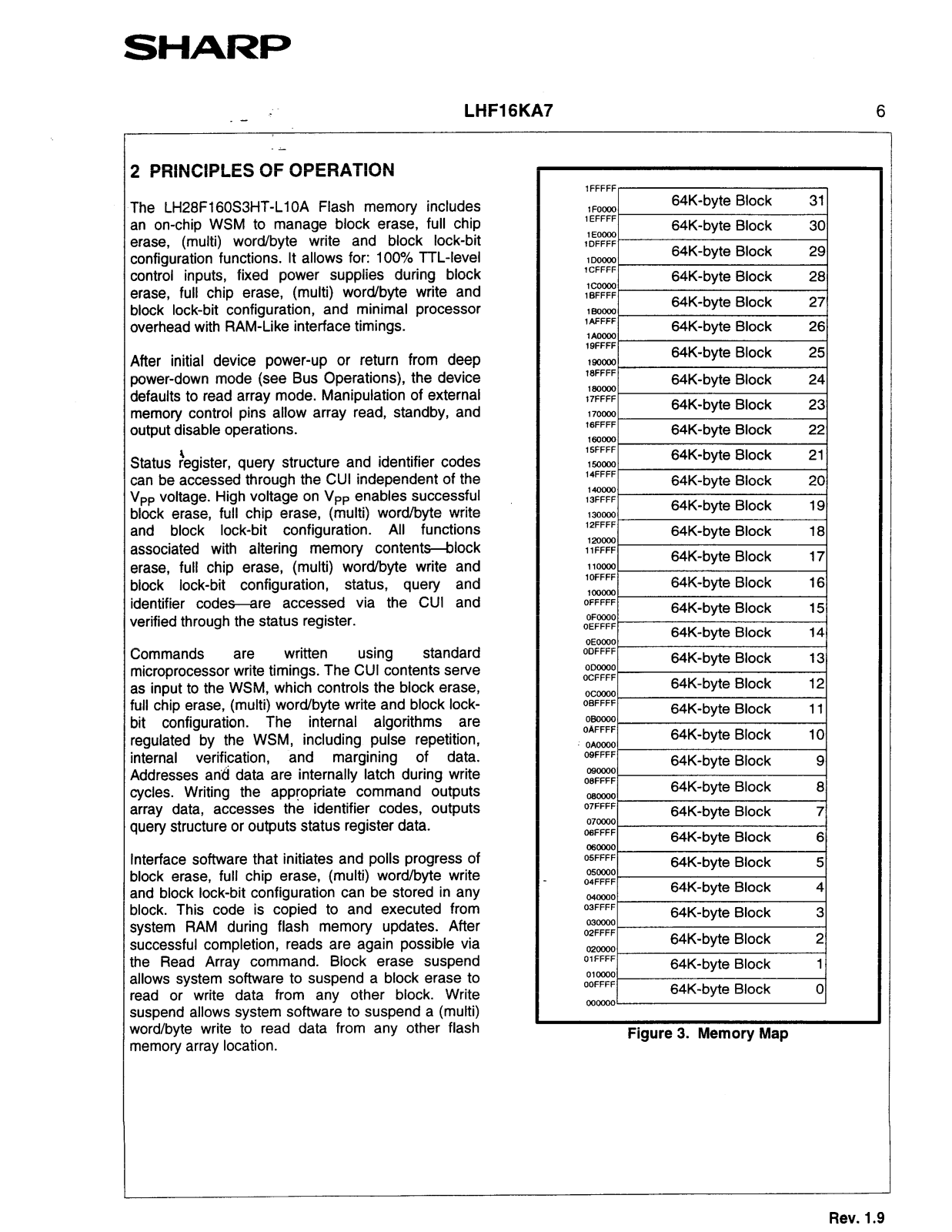

2 PRINCIPLES OF OPERATION

The LH28F160S3HT-Ll OA Flash memory includes an on-chip WSM to manage block erase, full chip erase, (multi) word/byte write and block lock-bit configuration functions. It allows for: 100% TTL-level control inputs, fixed power supplies during block erase, full chip erase, (multi) word/byte write and block lock-bit configuration, and minimal processor overhead with RAM-Like interface timings.

After initial device power-up or return from deep power-down mode (see Bus Operations), the device defaults to read array mode. Manipulation of external memory control pins allow array read, standby, and output disable operations.

Status :egister, query structure and identifier codes can be accessed through the CUI independent of the V,, voltage. High voltage on VPP enables successful block erase, full chip erase, (multi) word/byte write and block lock-bit configuration. All functions

associated with altering memory contents-block erase, full chip erase, (multi) word/byte write and block lock-bit configuration, status, query and identifier codes-are accessed via the CUI and

verified through the status register.

Commands are microprocessor write timings. The CUI contents serve as input to the WSM, which controls the block erase, full chip erase, (multi) word/byte write and block lockbit configuration. The internal algorithms are regulated by the WSM, including pulse repetition, internal verification, Addresses and data are internally latch during write cycles. Writing the appropriate command outputs array data, accesses the identifier codes, outputs query structure or outputs status register data.

Interface software that initiates and polls progress of block erase, full chip erase, (multi) word/byte write and block lock-bit configuration can be stored in any block. This code is copied to and executed from

system RAM during flash memory updates. After successful completion, reads are again possible via the Read Array command. Block erase suspend allows system software to suspend a block erase to

read or write data from any other block. Write suspend allows system software to suspend a (multi) word/byte write to read data from any other flash memory array location.

written using standard

and margining of data.

LHFlGKA7 6

64K-byte Block

1AFFFF

1 AOOW

ISFFFF

1SOOCKl

1SFFFF

laOW0

17FFFF

17OmO

IGFFFF

160000

15FFFF

15OoM)

14FFFF

14oooo

13FFFF

,-mm

IPFFFF

4~cyyI

1lFFFF

11ocw

1OFFFF

lcmoa

OFFFFF

OFOOOO

OEFFFF

OEOOOO

OIJFFFF

ODoooO

OCFFFF

ocoooo

OBFFFF

OAFFFF

OAOWO

OSFFFF

OSOWO

08FFFF

OKCOO

07FFFF

07wOo

OGFFFF

060000

OBFFFF

nE-n

04FFFF

04OWO

OIFFFF

03Ocm

OZFFFF

OZWOO

01 FFFF

01wo0

OOFFFF

64K-byte Block 26 64K-byte Block 25 64K-byte Block 24 64K-byte Block 23 64K-byte Block 22 64K-byte Block 21 64K-byte Block 20 64K-byte Block 19 64K-byte Block 64K-byte Block 17 64K-byte Block 16 64K-byte Block 15 64K-byte Block 14

64K-byte Block 13 64K-byte Block 12 64K-byte Block 11 64K-byte Block 10 64K-byte Block 9

64K-byte Block 8 64K-byte Block 7 64K-byte Block 6 64K-byte Block 5 64K-byte Block 4

64K-byte Block 64K-bvte Block 0

Figure 3. Memory Map

3’1

‘81

3 64K-byte Block

2 64K-byte Block

Rev. 1.9

Page 9

SHARP

LHFlGKA7

2.1 Data Protection

Depending on the application, the system designer may choose to make the V,, power supply switchable (available only when block erase, full chip erase, (multi) word/byte write and block lock-bit configuration are required) or hardwired to VPPH1,2/3. The device accommodates either design practice and encourages optimization of the processor-memory interface.

When Vpp~VppLKt

altered. The CUI, with multi-step block erase, full chip erase, (multi) word/byte write and block lock-bit configuration command sequences, provides protection from unwanted operations even when high

voltage,is applied to V,,. All write functions are disabled when Vcc is below the write lockout voltage V,,, or when RP# is at V,,. The device’s block

locking capability provides additional protection from inadvertent code or data alteration by gating block

erase, full chip erase and (multi) word/byte write operations.

memory contents cannot be

3 BUS OPERATION

The local CPU reads and writes flash memory insystem. All bus cycles to or from the flash memory conform to standard microprocessor bus cycles.

3.1 Read

Information can be read from any block, identifier codes, query structure,‘or status register independent

of the V,, voltage. RP# must be at VI,. The first task is to write the appropriate read mode

command (Read Array, Read Identifier Codes, Query or Read Status Register) to the CUI. Upon initial

device power-up or after exit from deep power-down mode, the device automatically resets to read array mode. Five control pins dictate the data flow in and out of the component: CE# (CE,#, CE,#), OE#, WE#, RP# and WP#. CE,#, CE,# and OE# must be driven active to obtain data at the outputs. CE,#, CE,# is the device selection control, and when active enables the selected memory device. OE# is the data output (DC&-DQ,,) control and when active drives the selected memory data onto the I/O bus. WE# and RP# must be at V,,. Figure 17, 18 illustrates a read cycle.

3.2 Output Disable

With OE# at a logic-high level (VI,), the devict outputs are disabled. Output pins DO,-DQ,, an

placed in a high-impedance state.

3.3 Standby

Either CE,# or CE,# at a logic-high level (V,,) place:

the device in standby mode which substantiall!

reduces device power consumption. DQo-DQ,, outputs are placed in a high-impedance statt independent of OE#. If deselected during bloc1 erase, full chip erase, (multi) word/byte write ant block lock-bit configuration, the device continue: functioning, and consuming active power until the operation completes.

3.4 Deep Power-Down

RP# at V,, initiates the deep power-down mode. In read modes, RP#-low deselects the memory

places output drivers in a high-impedance state ant

turns off all internal circuits. RP# must be held low fol a minimum of 100 ns. Time t,,crv is required after

return from power-down until initial memory access

outputs are valid. After this wakeup interval, norma operation is restored. The CUI is reset to read arra) mode and status register is set to 80H.

During block erase, full chip erase, (multi) word/byte write or block lock-bit configuration modes, RP#-low will abort the operation. STS remains low until the

reset operation is complete. Memory contents being altered are no longer valid; the data may be partially erased or written. Time tPHWL is required after RP# goes to logic-high (V,,) before another command can

be written. As with any automated device, it is important tc

assert RP# during system reset. When the system comes out of reset, it expects to read from the flash memory. Automated flash memories provide status information when accessed during block erase, full chip erase, (multi) word/byte write and block lock-bit configuration. If a CPU reset occurs with no flash memory reset, proper CPU initialization may not

occur because the flash memory may be providing status information instead of array data. SHARP’s flash memories allow proper CPU initialization following a system reset through the use of the RP#

input. In this application, RP# is controlled by the

same RESET# signal that resets the system CPU.

-l

Rev. 1 .Q

Page 10

_ -

LHFlGKA7

3.5 Read Identifier Codes Operation

The read identifier codes operation outputs the manufacturer code, device code, block status codes for each block (see Figure 4). Using the manufacturer and device codes, the system CPU can automatically match the device with its proper algorithms. The block status codes identify locked or unlocked block setting and erase completed or erase uncompleted condition.

1FFFFF :.. :

l !", ,: :.

,Fm; .. :. ,K)oo5

IF0004

,Fooo3 T ---,-. ~ _____ --; ____ T-------y---I

,Foooo :,. ., :‘i:

IEFFFF;:. :' . ; : ':,,..

02oooo; ,+ ..: ,, '. ', : .,. :.

OlFFFF ',

o,o(y& (I ” y., 01ooo5 ./’

010004 010003-

01~ 1. .,: .’ ‘.,

OOFFFF ;. 1.

ooooO6 . . coo005

OoOcQ4 OOanI3 OOmO2

oooQo1

: :. . . .,.

. . . .

..A. 1;; ,, . . .

,., . . :'.. ;.

iilr-' l_l..d+ - -----------_-------1----

.: ,;.'

'. .' j.: R&&&&, .,:, ': .:' .:

.. Future ~+irnentatt~n '.

Block 31 Status Code

JGxwv~d for

m..

tfutye h$e.merrtiian

: :

: . . '(~ioiks2thi~gl-l~) ;

" : ..,I. ; ,:" "')

: B&;k31

l---l-l---l-~--l’l-l----rll---lll-l---------

___________ --- ______ ---__----------

: .;

Block 1 Status Code

. . ..

i&e&ed~for ,:

:.. .: .f;uture:‘tmplemen~tiQn ..

Block”

Resewed far

Future Implementation

___- -- ____ -- ____ --------_------ -----_____-_____-_______-----------------____________________-----------------

Block 0 Status Code

Device Code

Manufacturer Code

Block (

3.6 Query Operation

The query operation outputs the query structure.

Query database is stored in the 48Byte ROM. Query

structure

information for controlling the flash component.

Query structure are always presented on the lowest-

order data output (DQc-DQ,) only.

allows system software to gain critical

3.7 Write

Writing commands to the CUI enable reading of

device data and identifier codes. They also control

inspection and clearing of the status register. When

Vcc=Vcc1,2 and VPP=VPPHt/2/3, the CUI additionally

controls block erase, full chip erase, (multi) wordlbyte

write and block lock-bit configuration.

The Block Erase command requires appropriate

command data and an address within the block to be

erased. The Word/byte Write command requires the

command and address of the location to be written.

Set Block Lock-Bit command requires the command

and block address within the device (Block Lock) to

be locked. The Clear Block Lock-Bits command

requires the command and address within the device.

The CUI does not occupy an addressable memory

location. It is written when WE# and CE# are active. The address and data needed to execute a command are latched on the rising edge of WE# or CE#

(whichever goes high first). Standard microprocessor write timings are used. Figures 19 and 20 illustrate WE# and CE#-controlled write operations.

4 COMMAND DEFINITIONS

When the V,, voltage I V,,,,, Read operations from the status register, identifier codes, query, or blocks

are enabled. Placing V,,,,,us on V,, enables

successful block erase, full chip erase, (multi)

word/byte write and block lock-bit configuration

operations.

Device operations are selected by writing specific

commands into the CUI. Table 4 defines these

commands.

Figure 4. Device Identifier Code Memory Map

Rev. 1.9

Page 11

SHARP

_- =

LHFlGKA7 9

Table 3. Bus Operations(BYTE#=V,Uj

Mode Read Output Disable

jeep Power-Down lead Identifier

Lodes Query

Write

Deep Power-Down Read Identifier Codes

Query Write

Notes RP#

1,2,3,9 v,w

3 V,H

CE”# CE,# OE# WE#

V,, V,, V,, V,H X X D&r X V,,

v,,, 11 1

V,, V,w V,H X X High Z X v

4 V,, X X X X 9

3,7&W

VI, %L

vlH VI, 4, VI,

I I I I I

1 ‘.‘,H 1 VII 1 VII 1 VI’I 1 VII I

VI,

%L 4, 4,

V,w

4 VI, X X X

9 9

‘1, VlL

‘1,

3,7,8,9 VI,,

VI,

VII

VI, YL ‘1,

VI,

VII

VI, vlH

V,H VII

1 Address 1 Vpp 1 DQnm15 1 STS

X X High Z High Z

See Table x

vlH

See

Figure 4

7-11

X Note 5 High Z

Note 6 High Z

1 x 1 DIN I x

X X X High Z High Z

See

Figure 4

SeeTable x

7-11

X Note 5 High Z

Note 6 High Z

X X DIN X

NOTES:

1. Refer to DC Characteristics. When V&f,,,,,

memory contents can be read, but not altered.

2. X can be V,, or VrH for control pins and addresses, and VP,,, or VPr+rt/2/s for V,,. See DC Characteristics for

bPLK and VPPH1/~3 voitagese

3. STS is V,, (if configured to RY/BY# mode) when the WSM is executing internal block erase, full chip erase, (multi) word/byte write or block lock-bit configuration algorithms. It is floated during when the WSM is not busy, in block erase suspend mode with (multi) word/byte write inactive, (multi) word/byte write suspend mode, or

deep power;down mode.

4. RP# at GN&O.2V ensures the lowest deep power-down current.

5. See Section 4.2 for read identifier code data.

6. See Section 4.5 for query data.

7. Command writes involving block erase, full chip erase, (multi) word/byte write or block lock-bit configuration are reliably executed when

Vpp=VPPH1/2/3

and Vcc=Vcc1~2.

8. Refer to Table 4 for valid D,, during a write operation.

9. Don’t use the timing both OE# and WE# are VI,.

Rev. 1.9

Page 12

SHARP

. -

Command

Read Array/Reset

Table 4. Command Definitions(l”)

Bus Cycles Notes First Bus Cycle Second Bus Cycle

Req’d

1 Write ( X 1 FFH

22 4 Write X 90H Read IA

2 2 2

4lternate Word/Byte Write SetupWrite Multi Word/Byte Write Setup/Confirm Block Erase and (Multi) Word/byte Write Suspend Confirm and Block Erase and (Multi) Word/byte Write Resume Block Lock-Bit Set Setup/Confirm Block Lock-Bit Reset Setup/Confirm STS Configuration Level-Mode for Erase and Write (RY/BY# Mode) STS Configuration

Pulse-Mode for Erase

STS Configuration

Pulse-Mode for Write

STS Configuration

Pulse-Mode for Erase and Write

NOTES:

1. BUS operations are defined in Table 3 and Table 3.1.

2. X=Any valid address within the device. IA=ldentifiep Code Address: see Figure 4.

QA=Quety Offset Address. BA=Address within the. block being erased or locked. WA=Address of memory location to be written.

3. SRD=Data read from status register. See Table 14 for a description of the status register bits.

WD=Data to be written at location WA. Data is latched on the rising edge of WE# or CE# (whichever goes high first).

ID=Data read from identifier codes.

QD=Data read from query database.

4. Following the Read Identifier Codes command, read operations access manufacturer, device and block status

codes. See Section 4.2 for read identifier code data.

5. If the block is locked, WP# must be at VI, to enable block erase or (multi) word/byte write operations. Attempts

to issue a block erase or (multi) word/byte write to a locked block while RP# is VI,.

6. Either 40H or 10H are recognized by the WSM as the byte write setup.

7. A block lock-bit can be set while WP# is VI,.

8. WP# must be at VI, to clear block lock-bits. The clear block lock-bits operation simultaneously clears all block

lock-bits.

9. Following the Third Bus Cycle, inputs the write address and write data of ‘N’ times. Finally, input the confirm

command ‘DOH’.

10. Commands other than those shown above are reserved by SHARP for future device implementations and should not be used.

1 5 2 2 8 Write X

2 Write X B8H Write X 02H 2 Write X B8H

LHFlGKA7

Oper(‘)

Write X 98H Read QA C Write X 70H Read X Write X

5 Write BA

Write X

55 596

Write WA

Write WA 10H 9 Write WA E8H 5 Write X BOH

Write X DOH 7 Write BA 60H

Write X B8H Write X OOH

Write X B8H Write X OlH

1 Add&*) 1 Data13) Ope#) 1 Addr(*) 1 Data13)

_ . .._-

60H Write X DOH

‘D II

Write WA WD Write WA N-l

Write BA

Write X 03H

OlH

Rev. 1.9

Page 13

SHARI=

. -

LHF16KA7

4.1 Read Array Command 4.3 Read Status Register Command

Upon initial device power-up and after exit from deep power-down mode, the device defaults to read array mode. This operation is also initiated by writing the Read Array command. The device remains enabled for reads until another command is written. Once the internal WSM has started a block erase, full chip erase, (multi) word/byte write or block lock-bit configuration, the device will not recognize the Read Array command until the WSM completes its operation unless the WSM is suspended via an Erase Suspend and (Multi) Word/byte Write Suspend command. The Read Array command functions independently of the VP,, voltage and RP# must be

Vi,*

The

status

register may be read to determine when i block erase, full chip erase, (multi) word/byte write OI block lock-bit configuration is complete and whethei the operation completed successfully(see Table 14)

It may be read at any time by writing the Read Statu:

Register command. After writing this command, al subsequent read operations output data from the status register until another valid command is written The status register contents are latched on the fallins edge of OE# or CE#(Either CE,# or CE,#) whichever occurs. OE# or CE#(Either CE,# or CE,#: must toggle to ‘Jr, before further reads to update the status register latch. The Read Status Register command functions independently of the V,, voltage

RP# must be VI,.

4.2 F&ad Identifier Codes Command

The extended status register may be read tc

The identifier code operation is initiated by writing the Read Identifier Codes command. Following the command write, read cycles from addresses shown in Figure 4 retrieve the manufacturer, device, block lock configuration and block erase status (see Table 5 for identifier code values). To terminate the operation, write another valid command. Like the Read Array command, the Read Identifier Codes command functions independently of the V,, voltage and RP# must be V,,. Following the Read Identifier Codes command, the following information can be read:

Table 5. Identifier Codes

Code

Manufacture Code

Device Code Block Status Code

*Block is Unlocked l Block is Locked *Last erase operation

completed successfully

@Last erase operation did

not completed successfully

OReserved for Future Use

NOTE:

1. X selects the specific block status code to be read. See Figure 4 for the device identifier code memory map.

Address

00000 00001 00002

00003 x0004(’ ) x0005(‘) ~

1 / DQ,=O 1

Data

DC&,=0 DQc= 1

DQ,=l

DQyw7

determine multi word/byte write availability(see Table

14.1). The extended status register may be read a any time by writing the Multi Word/Byte Write command. After writing this command, all subsequen read operations output data from the extended statuz register, until another valid command is written. Mult Word/Byte Write command must be re-issued tc update the extended status register latch.

4.4 Clear Status Register Command

Status register bits SR.5, SR.4, SR.3 and SR.l are set to “1”s by the WSM and can only be reset by the Clear Status Register command. These bits indicate

various failure conditions (see Table 14). By allowins

system software to reset these bits, severa operations (such as cumulatively erasing or lockinc multiple blocks or writing several bytes in sequence: may be performed. The status register may be pollee

to determine if an error occurs during the sequence. To clear the status register, the Clear Status Register

command (50H) is written. It functions independently of the applied V,, Voltage. RP# must be VI,. This command is not functional during block erase, ful chip erase, (multi) word/byte write block lock-bii configuration, block erase suspend or (multi: word/byte write suspend modes.

Rev. 1.9

Page 14

SHARP

. -

LHFlGKA7

1.5 Query Command

=luery database can be read by writing Query :ommand (98H). Following the command write, read

ycle from address shown in Table 7-l 1 retrieve the xitical information to write, erase and otherwise :ontrol the flash component. A, of query offset address is ignored when X8 mode (BYTE#=V,L).

;luery data are always presented on the low-byte jata output (DC&-D&). In x16 mode, high-byte ;DQs-DQ,s) outputs OOH. The bytes not assigned to any information or reserved for future use are set to ‘0”. This command functions independently of the Jpp voltage. RP# must be V,,.

Table 6. Example of Query Structure (

Mode Off set Address

A,, A,, A,, A,, A,, A,

1 , 0 , 0 , 0 (0 , 0 (20H) High Z

X8 mode 1 , 0 , 0 , 0 , 0 , 1 (21H) High Z

1, O,O,O,l ,0(22H) HighZ 1 , 0 , 0 , 0 , 1 , 1 (23H) High Z

A,, A,, A,, A,, A,

X16mode 1 ,O,O,O,O (10H) OOH

l,O,O,O,l (11H) OOH

DQ%8

But

DQm-,

"Q" "Q"

“R” “R”

“Q” “R”

1.5.1 Block Status Register

This field provides lock configuration and erase status for the specified block. These informations are only available Nhen device is ready (SR.7=1). If block erase or full chip erase operation is finished irregulary, block erase status lit will be set to “1”. If bit 1 is “l”, this block is invalid.

Table 7. Query Block Status Register

Offset

(Word Address)

(BA+2)H

v’

Uote: I. BA=The beginning of a Block Address.

Length

OlH Block Status Register

bit0 Block Lock Configuration

O=Block is unlocked

1 =Block is Locked

bit1 Block Erase Status

O=Last erase operation completed successfully

1 =Last erase operation not completed successfully

t&2-7 reserved for future use

Description

Rev. 1.9

Page 15

SHARP

_ -

LHFlGKA7

IS.2

CFI Query Identification String

‘he identification String provides verification that the component supports the Common Flash Interface specification. Additionally, it indicates which version of the spec and which Vendor-specified command set(s) is(are) upported.

Table 8. CFI Query Identification String

Offset

(Word Address)

lOH,l lH,12H 13H,14H 15H.16H

17H,18H

lSH,lAH

Length

03H Query Unique ASCII string “QRY”

51 H,52H,59H

02H 02H Address for Primary Algorithm Extended Query Table

02H 02H

Primary Vendor Command Set and Control Interface ID Code

01 H,OOH (SCS ID Code)

31 H,OOH (SCS Extended Query Table Offset)

Alternate Vendor Command Set and Control Interface ID Code

OOOOH (OOOOH means that no alternate exists) Address for Alternate Algorithm Extended Query Table

1 OOOOH (OOOOH means that no alternate exists)

Description

1.53 System Interface Information

The following device information can be useful in optimizing system interface software.

Table 9. System Information String

Offset

(Word Address)

1BH 1CH 1DH OlH 1EH

1FH 20H 21H 22H 23H 24H 25H OlH 26H OlH Maximum Timeout for Full Chip Erase, 2N times of typical.

./’

Length

OlH OlH V,, Logic Supply Maximum Write/Erase voltage

OlH

.OlH Typical Timeout per Single Byte/Word Write

1 01 H 1 Typical Timeout for Maximum Size Buffer Write (32

OlH Typical Timeout per Individual Block Erase OlH Typical Timeout for Full Chip Erase OlH Maximum Timeout per Single Byte/Word Write, 2N times of typical.

1 01

Voc Logic Supply Minimum Write/Erase voltage 27H (2.7V)

55H (5.5V) V,, Programming Supply Minimum.Write/Erase voltage 27H (2.7V) Up,, Programming Supply Maximum Write/Erase voltage 55H (5.5V)

I03H (23=8us)

06H (26=64us) OAH (OAH=lO 21°=1024ms) OFH (OFH=15, 215=32768ms)

I04H (24=1 6, 8usxl6=128us)

1 Maximum Timeout Maximum Size Buffer Write, 2N times of

04H (24=1 6, 64usxl6=1024us)

Maximum Timeout per Individual Block Erase, 2N times of typical. 04H (24=1 6,1024msxl6=16384ms)

I04H (24=1 6,32768msxl6=524288ms)

Description

Bytes)

typiCal.

Rev. 1.9

Page 16

SHARI=

_ -

LHFlGKA7 14

1.5.4 Device Geometry Definition

rhis field provides critical details of the flash device geometry.

Table 10. Device Geometry Definition

Offset

(Word Address)

27H 28H,29H

2AH,2BH 2CH

2DH,2EH

2FH,30H

Length

OlH Device Size

15H (15H=21,221=20971 52=2M Bytes)

02H 02H 01H 02H 02H

Flash Device Interface description

02H,OOH (x8/x16 supports x8 and xl 6 via BYTE#)

Maximum Number of Bytes in Multi word/byte write

05H,OOH (2s=32 Bytes )

Number of Erase Block Regions within device 01 H (symmetrically blocked)

The Number of Erase Blocks

1 FH,OOH (1 FH=31 ==> 31+1=32 Blocks)

The Number of “256 Bytes” cluster in a Erase block

, OOH,OlH (OlOOH=256 ==>256 Bytes x 256= 64K Bytes in a Erase Block)

1.5.5 SCS OEM Specific Extended Query Table

Description

Zertain flash features and commands may be optional in a vendor-specific algorithm specification. The optional rendor-specific Query table(s) may be used to specify this and other types of information. These structures are defined solely by the flash vendor(s).

Tat

e 11. SCS OEM Specific Extended Query Table

Offset

(Word Address)

31 H,32H,33H

38H,39H ”

3AH

3BH,3CH

3DH 3EH 3FH

Length

03H OlH

OlH 04H OFH,OOH,OOH,OOH

OlH

02H

OlH OlH

reserved

PRI 50H,52H,49H 31 H (1) Major Version Number , ASCII 30H (0) Minor Version Number, ASCII

Optional Command Support

bitO=l : Chip Erase Supported bit1 =l : Suspend Erase Supported bit2=1 : Suspend Write Supported bit3=1 : Lock/Unlock Supported bit4=0 : Queued Erase Not Supported bit531 =O : reserved for-future use

OlH

Supported Functions after Suspend

bitO=l : Write Supported after Erase Suspend bit1 -7=O : reserved for future use

03H,OOH

Block Status Register Mask

bitO=l : Block Status Register Lock Bit [BSR.O] active bitl=l : Block Status Register Valid Bit [BSR.l] active

bit2-15=0 : reserved for future use V,, Logic Supply Optimum Write/Erase voltage(highest performance) 50H@.OV) Vpp Programming Supply Optimum Write/Erase voltage(highest performance)

56i-l(5.OV)

deserved for future versions of the SCS Specification

Description

Rev. 1.9

Page 17

. -

LHFlGKA7

4.6 Block Erase Command

Block erase is executed one block at a time and initiated by a two-cycle command. A block erase

setup is first written, followed by an block erase confirm. This command sequence requires appropriate sequencing and an address within the block to be erased (erase changes all block data to

FFH). Block preconditioning, erase and verify are handled internally by the WSM (invisible to the system). After the two-cycle block erase sequence is written, the device automatically outputs status register data when read (see Figure 5). The CPU can detect block erase completion by analyzing the output data of the STS pin or status register bit SR.7.

When t$e block erase is complete, status register bit SR.5 should be checked. If a block erase error is detected, the status register should be cleared before system software attempts corrective actions. The CUI remains in read status register mode until a new command is issued.

This two-step command sequence of set-up followed by execution ensures that block contents are not accidentally erased. An invalid Block Erase command sequence will result in both status register bits SR.4 and SR.5 being set to “1 ‘I. Also, reliable block erasure can only occur when Vcc=Vcc1,2 and VPP=VPPH,,2/3. In the absence of this high voltage, block contents are protected against erasure. If block erase is attempted while V,,<V,,,,, SR.3 and SR.5 will be set to “1”. Successful block erase requires that the corresponding block lock-bit be cleared or if set, that NP#=V,,. If block erase is attempted when the :orresponding’ block lock-bit is set and WP#=V,,, 3R.l and SR.5 will be set.to “1”.

1.7 Full Chip Erase Command

erase setup is first written, followed by a full chif erase confirm. After a confirm command is written device erases the all unlocked blocks from block 0 tc Block 31 block by block. This command sequence requires appropriate

preconditioning,

internally by the WSM (invisible to the system). Afte

the two-cycle full chip erase sequence is written, the device automatically outputs status register dab

when read (see Figure 6). The CPU can detect ful chip erase completion by analyzing the output data o

the STS pin or status register bit SR.7.

When the full chip erase is complete, status register

bit SR.5 should be checked. If erase error i: detected, the status register should be cleared before

system software attempts corrective actions. The GUI

remains in read status register mode until a new command is issued. If error is detected on a block during full chip erase operation, WSM stops erasing,

Reading the block valid status by issuing Read ID Codes command or Query command informs which blocks failed to its erase.

This two-step command sequence of set-up followed

by execution ensures that block contents are no1 accidentally erased. An invalid Full Chip Erase command sequence will result in both status register bits SR.4 and SR.5 being set to “1”. Also, reliable full chip erasure can only occur when Vcc=Vcc1,2 and

VPP=VPPH1,2,3. In the absence of this high voltage, block contents are protected against erasure. If full chip erase is attempted while V,,IV,,,,, SR.3 and SR.5 will be set to “1”. When WP#=V,,, all blocks are

erased independent of block lock-bits status. When WP#=V,,, only unlocked blocks are erased. In this case, SR.l and SR.5 will not be set to “1“. Full chip erase can not be suspended.

erase and verify are handlec

sequencing. Bloci

This command followed by a confirm command ,DOH) erases all of the unlocked blocks. A full chip

Rev.1.9

Page 18

SHARP

_ -

LHF16KA7

4.8 Word/Byte Write Command

Word/byte write is executed by a two-cycle command sequence. Word/Byte Write setup (standard 40H or alternate 10H) is written, followed by a second write that specifies the address and data (latched on the rising edge of WE#). The WSM then takes over, controlling the word/byte write and write verify algorithms internally. After the word/byte write sequence is written, the device automatically outputs status register data when read (see Figure 7). The

CPU can detect the completion of the word/byte write event by analyzing the STS pin or status register bit SR.7.

When word/byte write is complete, status register bit SR.4 should be checked. If word/byte write error is detected, the status register should be cleared. The internal WSM verify only detects errors for “1”s that do not successfully write to “0”s. The CUI remains in read status register mode until it receives another command.

Reliable word/byte writes can only occur when Vcc=Vcc,,2 and VPP=VPPH112,3. In the absence of this high voltage, memory contents are protected against word/byte writes. If word/byte write is attempted while V+V,,,,, status register bits SR.3 and SR.4 will be set to “1”. Successful word/byte write requires that the corresponding block lock-bit be cleared or, if set, that WP#=V,,. If word/byte write is attempted when the corresponding block lock-bit is set and WP#=V,,, SR.1 and SR.4 will be set to “1”. Word/byte write operations with V,,<WP#<V,, produce spurious results and ,should not be attempted. ”

4.9 Multi Word/Byte Write Command

Multi word/byte write is executed by at least fourycle or up to 35cycle command sequence. Up to 32 bytes in x8 mode (16 words in xl6 mode) can be oaded into the buffer and written to the Flash Array. =irst, multi word/byte write setup (E8H) is written with :he write address. At this point, the device automatically outputs extended status register data :XSR) when read (see Figure 8, 9). If extended status register bit XSR.7 is 0, no Multi Word/Byte Nrite command is available and multi word/byte write setup which just has been written is ignored. To retry,

continue monitoring XSR.7 by writing multi word/byte write setup with write address until XSR.7 transitions to 1. When XSR.7 transitions to 1, the device is ready for loading the data to the buffer. A word/byte count

(N)-1 is written with write address. After writing a word/byte count(N)-1, the device automatically turns back to output status register data. The word/byte count (N)-1 must be less than or equal to 1FH in x8 mode (OFH in x16 mode). On the next write, device start address is written with buffer data. Subsequen writes provide additional device address and data depending on the count. All subsequent addres: must lie within the start address plus the count. Afte

the final buffer data is written, write confirm (DOH

must be written. This initiates WSM to begin copyin!

the buffer data to the Flash Array. An invalid Mull Word/Byte Write command sequence will result iI

both status register bits SR.4 and SR.5 being set tc

“1”. For additional multi word/byte write, write anothe multi word/byte write setup and check XSR.7. Tht Multi Word/Byte Write command can be queuec while WSM is busy as long as XSR.7 indicates “1” because LH28F160S3HT-LlOA has two buffers. If ar error occurs while writing, the device will stop writins

and flush next multi word/byte write command loader

in multi word/byte write command. Status register bi

SR.4 will be set to “1”. No multi word/byte writ6 command is available if either SR.4 or SR.5 are se to “1”. SR.4 and SR.5 should be cleared before

issuing multi word/byte write command. If a mult word/byte write command is attempted past an erase block boundary, the device will write the data to Flast

Array up. to an erase block boundary and then stag writing. Status register bits SR.4 and SR.5 will be se to “1 ‘I.

Reliable multi byte writes can only occur wher

Vcc=Vcc1,2 and VPP=VP~H11213. In the absence o this high voltage, memory contents are protectec against multi word/byte writes. If multi word/byte write is attempted while V+V,,,,, status register bits SR.3 and SR.4 will be set to “1”. Successful muIt, word/byte write requires that the corresponding block lock-bit be cleared or, if set, that WP#=V,,. If muIt, byte write is attempted when the corresponding block lock-bit is set and WP#=V,,, SR.l and SR.4 will be

set to “1 ‘I.

Rev. 1.9

Page 19

SHARP

. -

LHF16KA7 17

4.10 Block Erase Suspend Command

The Block Erase Suspend command allows blockerase interruption to read or (multi) word/byte-write lata in another block of memory. Once the blockxase process starts, Suspend command requests that the WSM suspend :he block erase sequence at a predetermined point in :he algorithm. The device outputs status register data when read after the Block Erase Suspend command s written. Polling status register bits SR.7 and SR.6 zan determine when the block erase operation has ?een suspended (both will be set to “1”). STS will also transition to High Z. Specification twHRH2 defines :he block erase suspend latency.

4t this point, a Read Array command can be written ;o read data from blocks other than that which is suspended. A (Multi) Word/Byte Write command sequence can also be issued during erase suspend IO program data in other blocks. Using the (Multi) word/Byte Write Suspend command (see Section

4.1 l), a (multi) word/byte write operation can also be suspended. During a (multi) word/byte write operation with block erase suspended, status register bit 33.7 will return to “0” and the STS (if set to RY/BY#) output will transition to VOL. However, SR.6 will remain “1” to indicate block erase suspend status.

The only other valid commands while block erase is suspended are Read Status Register and Block Erase Resume. After a Block Erase Resume command is written to the flash memory, the WSM will continue the block erase process. Status register oits SR.6 and SR.7 will automatically clear and STS will return to VIOL. IS written, the device automatically outputs status register data when read (see Figure 10). V,, must remain at VPPHi12,s (the same Vpp level used for block erase) while block erase is suspended. RP# must also remain at VI,.

After the Erase Resume command

writing the Block Erase

Block erase cannot resume

until (multi) word/byte write operations initiated during block erase suspend have completed.

4.11 (Multi) Word/Byte Write Suspend Command

The (Multi) Word/Byte Write Suspend command allows (multi) word/byte write interruption to read data in other flash memory locations. Once the (multi) word/byte write process starts, writing the (Multi) Word/Byte Write Suspend command requests that the WSM suspend the (multi) word/byte. write sequence at a predetermined point in the algorithm. The device continues to output status register data when read after the (Multi) Word/Byte Write Suspend command is written. Polling status register bits SR.7 and SR.2 can determine when the (multi) word/byte write operation has been suspended (both will be set to “1”). STS will also transition to High Z. Specification twHRH1 write suspend latency.

At this point, a Read Array command can be written to read data from locations other than that which is

suspended. The only other valid commands while (multi) word/byte write is suspended are Read Status Register and (Multi) Word/Byte Write Resume. After (Multi) Word/Byte Write Resume command is written

to the flash memory, the WSM will continue the

(multi) word/byte write process. Status register bits SR.2 and SR.7 will automatically clear and STS will return to V,,. After the (Multi) Word/Byte Write command is written, the device automatically outputs status register data when read (see Figure 11). V,, must remain at VPPH,,2,3 (the same V,, level used

for (multi) word/byte write) while in (multi) word/byte

write suspend mode. WP# must also remain at VI, or

VI,.

defines the (multi) word/byte

Rev. 1.9

Page 20

SHARP

_ -

.- -

LHF16KA7

4.12 Set Block Lock-Bit Command

A flexible block locking and unlocking scheme is enabled via block lock-bits. The block lock-bits gate program and erase operations With WP#=V,,, individual block lock-bits can be set using the Set

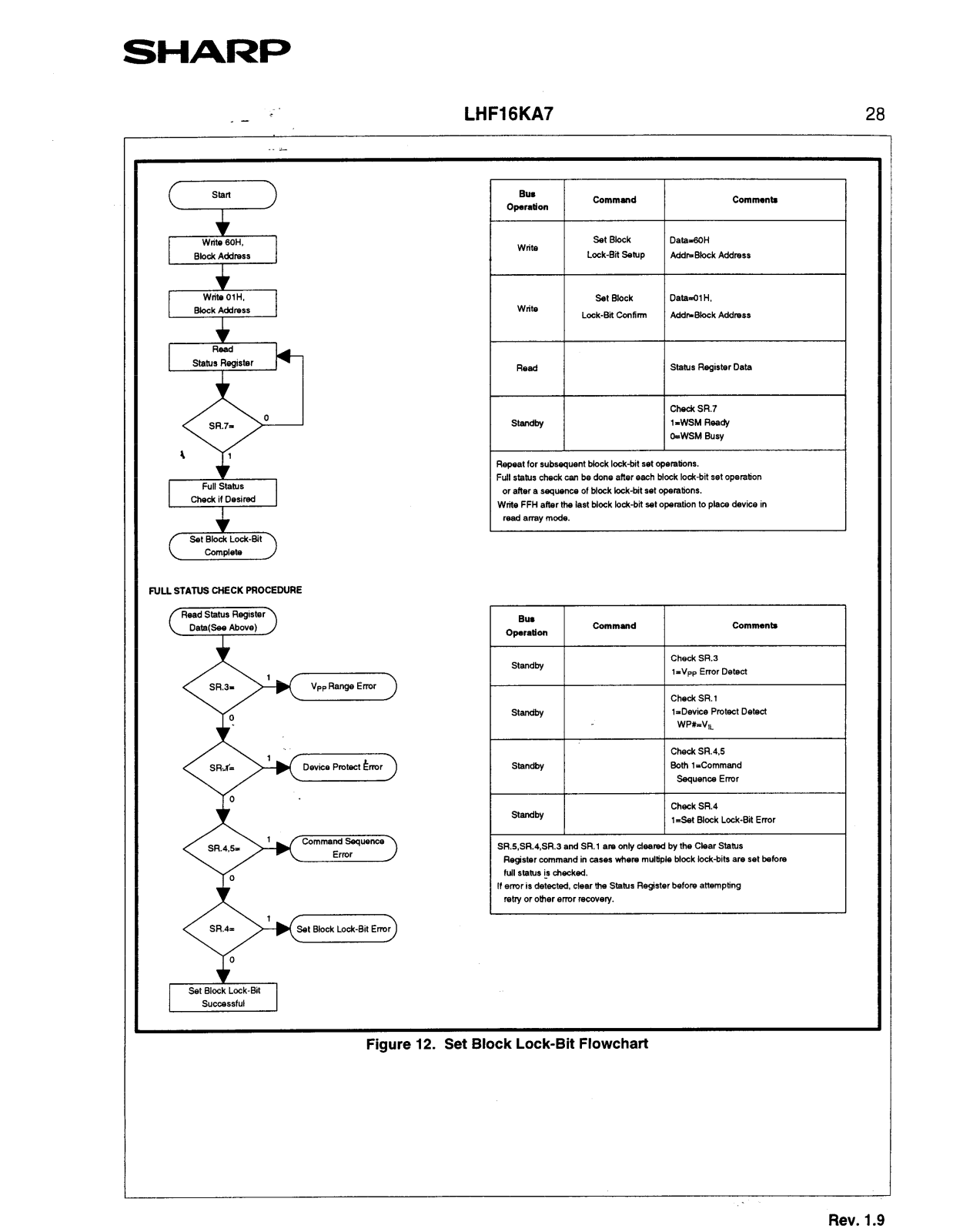

Block Lock-Bit command. See Table 13 for a summary of hardware and software write protection options.

Set block lock-bit is executed by a two-cycle command sequence. The set block lock-bit setup along with appropriate block or device address is written followed by either the set block lock-bit confirm (and an address within the block to be locked). The WSM then controls the set block lock-bit algorithm. After the sequence is written, the device automatically outputs status register data when read (see Figure 12). The CPU can detect the completion of the set block lock-bit event by analyzing the STS pin output or status register bit SR.7.

When the set block lock-bit operation is complete, status register bit SR.4 should be checked. If an error is detected, the status register should be cleared. The CUI will remain in read status register mode until a new command is issued.

This two-step sequence of set-up followed by execution ensures that block lock-bits are not accidentally set. An invalid Set Block Lock-Bit command will result in status register bits SR.4 and SR.5 being set -to “1”. Also, reliable operations occur only when Vcc=Vcc1,2 and VPP=VPPH,,2,s. In the absence of this high voltage, block lock-bit contents are protected against alteration.

block lock-bits can be cleared Block Lock-Bits command. See Table 13 for : summary of hardware and software write protectior

options. Clear block lock-bits operation is executed by a two

cycle command sequence. A clear block lock-bit: setup is first written. After the command is written, tht device automatically outputs status register datr

when read (see Figure 13). The CPU can detec

completion of the clear block lock-bits event b! analyzing the STS Pin output or status register bi SR.7.

When the operation is complete, status register bi SR.5 should be checked. If a clear block lock-bit erro is detected, the status register should be cleared

The CUI will remain in read status register mode unti

another command is issued.

This two-step sequence of set-up followed b)

execution ensures that block lock-bits are no

accidentally cleared. An invalid Clear Block Lock-Bits command sequence will result in status register bits SR.4 and SR.5 being set to “1”. Also, a reliable clear block lock-bits operation can only occur wher Vcc=VccI12 and VPP=VPPH1,2/3. If a clear block lock. bits operation is attempted while V,+V,,,,, SR.3 and SR.5 will be set to “1”. In the absence of this high voltage, the block lock-bits content are protectec against alteration. A successful clear block lock-bits

operation requires WP#=V,,. If it is attempted with WP#=V,,, SR.1 and SR.5 will be set to “1’ and the operation will fail. Clear block lock-bits operations with V,,<RP# produce spurious results and should

not be attempted.

using only

4 successful set block ‘lock-bit operation requires rNP#=V,,. If it is attempted with WP#=V,L, SR.l and SR.4 will be set to “1’ and the operation will fail. Set Yock lock-bit operations with WP#<V,, produce jpurious results and should not be attempted.

1.13 Clear Block Lock-Bits Command

411 set block lock-bits are cleared in parallel via the Zlear Block Lock-Bits command. With WP#=V,,,

If a clear block lock-bits operation is aborted due to V,, or Vco transitioning out of valid range or RP# active transition, block lock-bit values are left in an undetermined state. A repeat of clear block lock-bits is- required to initialize block lock-bit contents to known values.

Rev.1.9

Page 21

SHARI=

_ -

;

LHFlGKA7

I.14 STS Configuration Command

‘he Status (STS) pin can be configured to different ;tates using the STS Configuration command. Once he STS pin has been configured, it remains in that :onfiguration until another configuration command is ;sued, the device is powered down or RP# is set to /,L. Upon initial device power-up and after exit from leep power-down mode, the STS pin defaults to IY/BY# operation where STS low indicates that the YSM is busy. STS High Z indicates that the WSM is eady for a new operation.

-0 reconfigure the STS pin to other modes, the STS Configuration is issued followed by the appropriate :onfiguration code. The three alternate configurations Ire all pulse mode for use as a system interrupt. The ;TS Configuration command functions independently If the Vpp voltage and RP# must be VI,.

Table 12. STS Configuration Coding Description

Configuration

Bits

OOH

OlH

02H

03H

Set STS pin to default level mode

(RY/BY#). RY/BY# in the default level-mode of operation will indicate

WSM status condition.

Set STS pin to pulsed output signal

for specific erase operation. In this

mode, STS provides low pulse at

the completion of BLock Erase,

Full Chip Erase and Clear Block Lock-bits operations. Set STS pin to pulsed output signal

for a specific write operation. In this

mode, STS provides low pulse at

the completion of (Multi) Byte Write

and Set Block Lock-bit operation. Set STS pin to pulsed output signal for specific write and erase operation. STS provides low pulse at the completion of Block Erase,

Full Chip Erase, (Multi) Word/Byte Write and Block Lock-bit Configuration operations.

Effects

Operation

Block Erase, .

(Multi) Word/Byte ., ,

Write ,,,

Full Chip Erase Set Block Lock-Bit Clear Block Lock-Bits X

Block

Lock-Bit

091

X V,H X V,, Set Block Lock-Bit Disabled

Table 13. Write Protection Alternatives

WP#

v,, or V,,, Block Erase and (Multi) Word/Byte Write Enabled

VI,

V,, All unlocked blocks are erased, locked blocks are not erased

V,H Set Block Lock-Bit Enabled V,, Clear Block Lock-Bits Disabled V,w

Block is Locked. Block Erase and (Multi) Word/Byte Write Disabled Block Lock-Bit Override. Block Erase and (Multi) Word/Byte

Write Enabled All blocks are erased

Clear Block Lock-Bits Enabled

Effect

Rev. 1.9

Page 22

. -

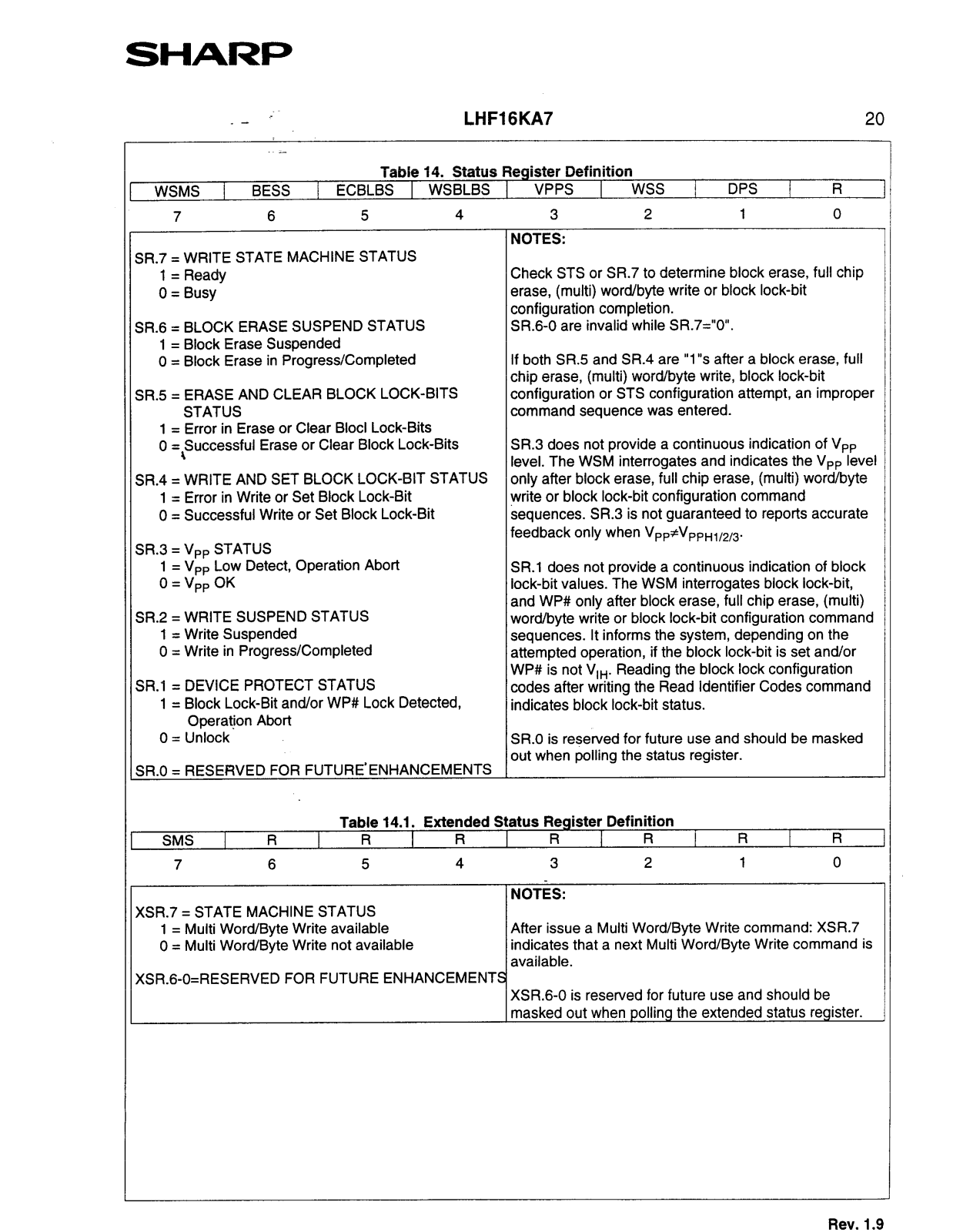

Table 14. Status Register Definition

WSMS 1 BESS 1 ECBLBS 1 WSBLBS 1 VPPS 1

SR.7 = WRITE STATE MACHINE STATUS

1 = Ready

0 = Busy

SR.6 = BLOCK ERASE SUSPEND STATUS

1 = Block Erase Suspended

= Block Erase in Progress/Completed If both SR.5 and SR.4 are “1 “s after a block erase, full

SR.5 = ERASE AND CLEAR BLOCK LOCK-BITS

STATUS 1 = Error in Erase or Clear Bloc1 Lock-Bits 0 =iSuccessful Erase or Clear Block Lock-Bits SR.3 does not provide a continuous indication of V,,

SR.4 = WRITE AND SET BLOCK LOCK-BIT STATUS only after block erase, full chip erase, (multi) word/byte

1 = Error in Write or Set Block Lock-Bit

0 = Successful Write or Set Block Lock-Bit

SR.3 = V,, STATUS

1 = V,, Low Detect, Operation Abort

O=V,,OK

SR.2 = WRITE SUSPEND STATUS

1 = Write Suspended

0 = Write in Progress/Completed

SR.1 = DEVICE PROTECT STATUS

1 = Block Lock-Bit and/or WP# Lock Detected,

Operation Abort

0 = Unlock

SR.0 = RESERVED FOR FUTURE’ENHANCEMENTS

6 5

LHFlGKA7 20

wss DPS R

4 3 2 1 0

NOTES:

Check STS or SR.7 to determine block erase, full chip erase, (multi) word/byte write or block lock-bit configuration completion. SR.6-0 are invalid while SR.7=“0”.

chip erase, (multi) word/byte write, block lock-bit configuration or STS configuration attempt, an improper command sequence was entered.

level. The WSM interrogates and indicates the V,, level

write or block lock-bit configuration command sequences. SR.3 is not guaranteed to reports accurate feedback only when V,,#V,,,,,z.s.

SR.l does not provide a continuous indication of block

lock-bit values. The WSM interrogates block lock-bit, and WP# only after block erase, full chip erase, (multi) word/byte write or block lock-bit configuration command sequences. It informs the system, depending on the attempted operation, if the block lock-bit is set and/or WP# is not V,,. Reading the block lock configuration codes after writing the Read Identifier Codes command

indicates block lock-bit status. SR.0 is reserved for future use and should be masked

out when polling the status register.

Table 14.1. Extended Status Register Definition

SMS

7 6 5

XSR.7 = STATE MACHINE STATUS

1 = Multi Word/Byte Write available After issue a Multi Word/Byte Write command: XSR.7

0 = Multi Word/Byte Write not available

XSR.G-O=RESERVED FOR FUTURE ENHANCEMENTS

R R R R

4 3

NOT&:

indicates that a next Multi Word/Byte Write command is available.

XSR.G-0 is reserved for future use and should be

masked out when polling the extended status register.

R R R 2 1 0

Rev. 1.9

Page 23

SHARI=

. -

Start

LHFlGKA7

write 70H

Block Address

Read Stata

Read Status Register Data

Repeat for subsequent block erasures. Full status check can be done after each block erase or after a sequence of

block erasures.

Write FFH after tie last operation to place dwico in mad array mode.

Data-7ol-l Addr=X

Data-DOH Adds-Within Block to be Erased

FULLSTAlUSC~ECKPROCEDURE

Read Status Register

Data(Sae Above)

Block Erase Successful

Standby

Device Protect Ertvr

Standby

SRs.SR.4.SR.3 and SR. 1 are only cleared by the Clear Status

Block Erase Error

before full statUs is checked.

If error is detected. clear the Status Register before attempting

retry or other error recovery.

Figure 5. Automated Block Erase FlOWChart

Check SR.3

l-Vpp Enor Detect

Chedt SR.1

I-Device Protect Detect

WP#-VIL,Bkxk Lock-Bit is Set

Only required for systems

implemenbng lock-bit con~@uration

Check SR.4.5

Both l=Command Sequence Error

Check SR.5

l=Block Erase Error

Rev. 1.9

Page 24

SHARI=

_ -

start

r I

. i

LHFlGKA7 22

Bus

OpWlO”

wlite

Read

Standby

write

Read

standby

Full stams check can be done after each full chip erase.

Write FFH after tie last operation to place device in read army mode.

Command

Read Status

Full Chip Erase

SbJP

Full Chip Ease

Confin

Data7OH Add-X

Status Register Data

Chedt SR.7 l.WSM Ready OIWSM Busy

Data=3OH Addr-X

Data-DOH Ad&X

Status Regtster Data

Check SR.7 l=WSM Ready

OIWSM Busy

Comments

Full Status

Check if Desired

FIJU STATUS CHECK PROCEDURE

Command Sequence

Bus

OpedfO”

Standby

Standby-

Error

SRS,SR.4,SR.3 and SR.l am only dewed by the Clear Status

If error is detected, clear the Status Register before attempting

retry or other error recovery.

Command

Figure 6. Automated Full Chip Erase Flowchart

Commenb

Check SR.3

l=Vpp Enor Detect

Check SR.4,5 Both l=Ccmmand Sequence Error

Check SR.5 l=Full Chip Erase Error

L-

Rev. 1.9

Page 25

SHARI=

_ -

Write 70H

Write 40H or 10H.

AddreSS

LHF16KA7 23

Comments

Data-70H AddrEX

Stabs Register Data

Check SR.7 1 .WSM Ready O-WSM Busy

DataYdOH or 10H Add-Location to Be Written

DateData to 5a Written Addhlocatfon to Se Wtitton

Read

standby

Repeat for subsequent w-or&byte writes. SR full status check can be done after each wordlbyte wtite, or after a sequence of

wodyte writes.

White FFH after the last word/byte write operation to place device in

read array mode.

Status Register Data

Check SR.7 1 -WSM Ready

O-WSM Busy

Complete

FULL STATUS CHECK PROCEDURE

Read Status R@ster

Data(See Above)

Word/Byte write

Successful

Standby

Dewce Protect Etmr

Standby

SR.4.SR.3 and SR.1 are only cleared by the Clear Status Register

command in casw where multiple locations are written before full stahls is checked.

f error is detected. clear the Status Register before attempbng

retry or other error recovery.

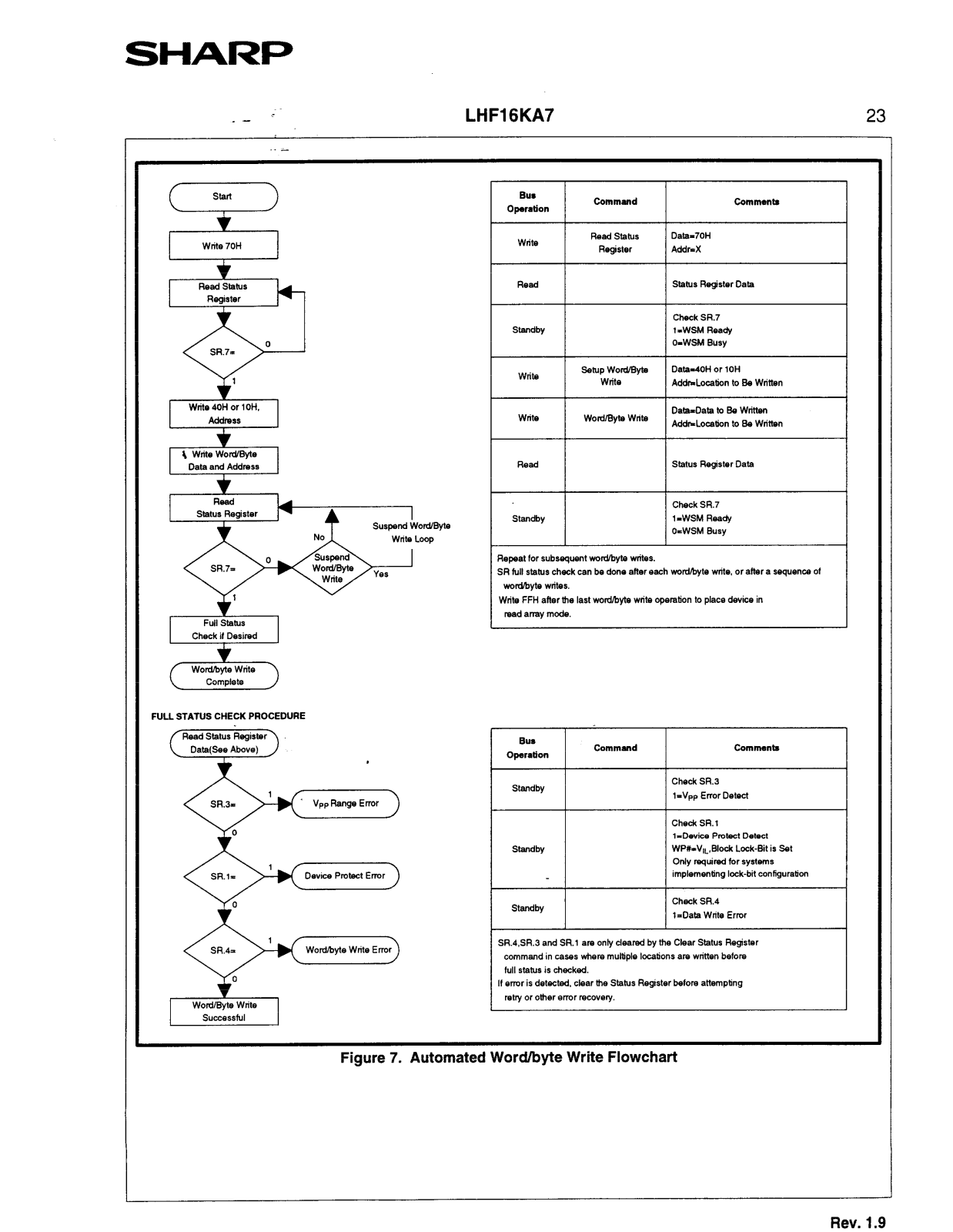

Figure 7. Automated Word/byte Write Flowchart

Check SR.1

l-Device Protect Detect

WPb-V~@xk Lock-Bit is Set

Only required for systems implementing lock-bit configuration

Check SR.4

l-Data Write Error

Rev. 1.9

Page 26

SHARI=

LHF16KA7

Read Extend

status Register

Start Address

Device Address

Bus

operation

write

Read

Standby

Write

(Note0

Writ9

(Note2.3)

Wnte

(Note4.5)

Write

Read

Standby

1, Byte or word count values on Dt& am loaded into the count register.

2. Write Buffer contents will be programmed at the start address.

3. Align tie start address on a Write Buffer boundary for maximum programming performance.

4.The device aboris the Multi Word/Byte Write command if the current address IS

outside of the original block address.

5.The Status Register indicates a” ‘improper command sequence if the Multi Word/Byte command is aborted. Follow this with a Clear Status Rqster command.

SR full status check can be done after each multi wordlbyte write,

or after a sequence of multi wordmyie writes.

Write FFH alter the last multi wordmyte write operation to place device in

mad army mode.

Command Comments

S-P

~~16 WordlByte Wlite Add&tart Address

Date=EBH

Extmded Status Register Data

Check XSR.7 1-Multi Word/Byte Write Ready 01Multl Word/Byte Write Busy

Data-Word or Byte Count (N)-1 Add&tart Address

Data-Buffer Data Addr=Start Address

Data-Buffer Data AddrpDewce Address

Deta=DOH Addr=X

Status Register Data

Check SR.7 1 =WSM Ready o=WSM Busy

Read Status

Figure 8. Automated Multi Word/Byte Write Flowchart

Rev. 1.9

Page 27

SHARI=

FULL STATUS CHECK PROCEDURE FOR MULTI WORD/BYTE WRITE OPERATION

Device Protect Error

LHF16KA7

Bus

OpwrIion

StandbY

standby

Standby

Command

Comments

Check SR.3 l=Vpp Error Detect

Check SRI l-Device Pmtecf Detect WPbV@bck M-Bit is Set Only required for systems implementing lock-bit configuration

Check SR.4,5 Both l-Command Sequence Error

Standby

SRS,SR.4.SR.3 and SR.l am only deamd by the Clear Status Register

command in cases where multiple locations are full status is checked.

‘f error is detected, clear the Status Register before attempting

retry or other error recovery.

Check SR.4 l-Data Write Error

written before

Figure 9. Full Status Check Procedure for Automated Multi Word/Byte Write

Rev. 1.9

Page 28

SHARP

. -

LHF16KA7

Status Register

:--

. A-

Road

SR.75

(Multi) WordByte write Loop

standby

Wlib

Commnd

Er;ue

suspmd

ElBe

Resume Addr-X

Df&PSOH Add-X

Status Register Data AddhX

Check SR.7 I -WSM Ready

OCWSM Busy

Chock SR.6 l&lock Erase Suspended

O-Stock Erase Completed

DatasDOH

Comments

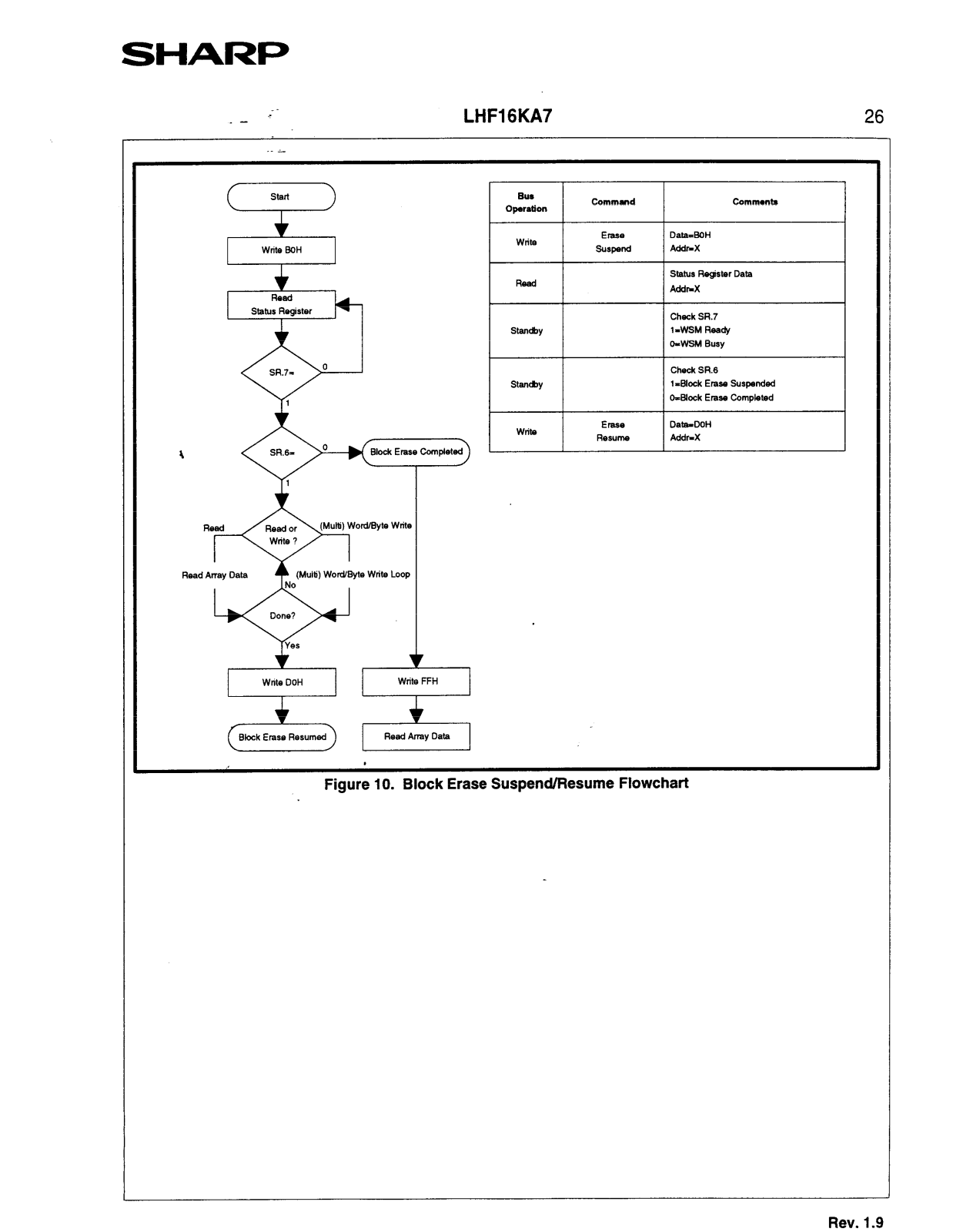

Figure 10. Block Erase Suspend/Resume Flowchart

Rev. 1.9

Page 29

SHARP

_ -

SR.7=

LHFlGKA7

Ella

Opf&iOfl

write

Read

Standby

write

Read

Wtite

Command

(Multt) Wordleyte Write D&&OH

Suspend Add-X

Status Register Data Addr=X

Check SR.7 I-WSM Ready o-WSM Eury

chack SR.2 l-(Multi) woweyte write

SUspMd6d

O-(MUHI) wordlsyta write

cmplatad

Read Array

(MuIC) Word/Byte Write Data=DOH

Resume Addr-X

DatawFFH

Addr-X

Read Anay locations other than that being written.

Comments

Done

Reading

c-l

Yes

Figure 11. (Multi) Word/Byte Write Suspend/Resume Flowchart

Rev. 1.9

Page 30

SHARP

LHFlGKA7

Check if Desired

FULL STATUS CHECK PROCEDURE

Command

write

Set Block

Lock-Bit Confirm Addr-Block Address

Read

Standby

Repeat for subsequent block lock-bit set operations. Full status check can be done after each Mock lock-bit set operation

or after a sequence of block lock-bit set operations.

Write FFH after the last block lock-bit set operation to place device in

read array mode.

Command

Data-01 H.

Status Register Data

Check SR.7

1 -WSM Ready

OaWSM Busy

Comments

Standby

standby

Standby

SR.S,SR.4,SR.3 and SR.l am only deared by the Clear Status

If error is detected. clear the Status Register before attempting

retry or other error recovery.

Figure 12. Set Block Lock-Bit Flowchart

Check SR.3

lnVpp Error Detect

CheckSR.1

l-Device Protect Detect

wP#=v,L

Check SR.4

l-Set Block Lock-Sit Error

Rev. 1.9

Page 31

SHARP

SR.7-

4 1

Chedc if Desired

. -

LHF16KA7

Command Comments

Wit0 FFH after tie Clear Block Lock-Bits operation to hce device in mad array mode.

FULL STATUS CHECK PROCEDURE

Read Status Register

Data(s-se Above)

Standby

SR.S.SR.4.SR.3 and SR. 1 are only deamd by the Clear Status

If error is det+d. clear the Status Register before attempting

retry or other wmr recovery.

Check SR.4.5 Both l=Command

Sequence Ermr

Check SR.5

l=Clear Block Lock-Bits Error

Figure 13. Clear Block Lock-Bits Flowchart

Rev. 1.9

Page 32

LHF16KA7

5 DESIGN CONSIDERATIONS

5.1 Three-Line Output Control

The device will often be used in large memory arrays. SHARP provides three control inputs to xcommodate multiple memory connections. ThreeJne control provides for:

a. Lowest possible memory power dissipation. b. Complete assurance that data bus contention will

not occur.

To use these control inputs efficiently, an address decoder should enable CE# while OE# should be connected to all memory devices and the system’s READ#icontrol line. This assures that only selected memory devices deselected memory devices are in standby mode. RP# should be connected to the system POWERGOOD signal to prevent unintended writes juring system power transitions. POWERGOOD should also toggle during system reset.

have active outputs while

5.2 STS and Block Erase, Full Chip Erase, (Multi) Word/Byte Write and Block Lock-Bit Confjguration Polling

STS is an open drain output that should be connected to V,, y hardware method of detecting block erase, full chip 3rase, (multi) -word/byte write and block lock-bit configuration completion. In default mode, it transitions low after block erase,, full chip erase, [multi) word/bfie write or block lock-bit configuration commands and returns tP V,, when the WSM has finished executing the internal algorithm. For alternate STS pin configurations, see the Configuration command.

b a pullup resistor to provide a

STS, in default mode, is also High Z when the device is in block erase suspend (with (multi) word/byte write inactive), (multi) word/byte write suspend or deep power-down modes.

5.3 Power Supply Decoupling

Flash memory power switching characteristics require careful device decoupling. System designers are

interested in three supply current issues: standby current levels, active current levels and transient peaks produced by falling and rising edges of CE#

and OE#. Transient current magnitudes depend on the device outputs’ capacitive and inductive loading. Two-line control and proper decoupling capacitor

selection will suppress transient voltage peaks. Each

device should have a O.lpF ceramic capacitor

connected between its Vcc and GND and between its

V,, and GND. These high-frequency, low inductance

capacitors should be placed as close as possible to

package leads. Additionally, for every eight devices,

a 4.7l.1F electrolytic capacitor should be placed at the

array’s power supply connection between Vc, and

GND. The bulk capacitor will overcome voltage

slumps caused by PC board trace inductance.

5.4 Vpp Trace on Printed Circuit Boards

Updating flash memories that reside in the target

system requires that the printed circuit board

designer pay attention to the V,, Power supply trace. The V,, pin supplies the memory cell current for

block erase, full chip erase, (multi) word/byte write

and block lock-bit configuration. Use similar trace widths and layout considerations given to the V,c

power bus. Adequate V,, supply traces and

decoupling will decrease V,, voltage spikes and

overshoots.

STS can be connected to an interrupt input of the system CPU or controller. It is active at all times.

Rev. 1.9

Page 33

SI-IARP

_ -

.- -

LHFlGKA7

5.5 VCC, Vpp, RP# Transitions

Block erase, full chip erase, (multi) word/byte write and block lock-bit configuration are not guaranteed if VP, falls outside of a valid VPPH1,2/3 range, Vcc falls outside of a valid Vccl,s range, or RP#=VIL. If V,, error is detected, status register bit SR.3 is set to “1” along with SR.4 or SR.5, depending on the attempted operation. If RP# transitions to V,, during block erase, full chip erase, (multi) word/byte write or block

lock-bit configuration, STS(if set to RY/BY# mode) will remain low until the reset operation is complete. Then, the operation will abort and the device will enter deep power-down. The aborted operation may

leave data partially altered. Therefore, the command sequence must be repeated after normal operation is restore& Device power-off or RP# transitions to V,, clear the

The CUI latches commands issued by system software and is not altered by Vpp or CE# transitions or WSM actions. Its state is read array mode upon power-up, after exit from deep power-down or after Vcc transitions below VLkO.

After block erase, full chip erase, (multi) word/byte write or block lock-bit configuration, even after V,, transitions down to VPPLK, the CUI must be placed in

read array mode via the Read Array command if

subsequent access to the memory array is desired.

status

5.6 Power-Up/Down Protection

The device is designed to offer protection against accidental blqck and full chip , erasure, (multi) word/byte writihg or block lock-bit configuration during power transitions. Upon. power-up, the device is indifferent as to which power supply (V,, or Vco)

powers-up first. Internal circuitry resets the CUI tc read array mode at power-up.

A system designer must guard against spuriou: writes for Vcc voltages above VLKO when V,, i: active. Since both WE# and CE# must be low for 2 command write, driving either to V,, will inhibit writes

The CUl’s two-step command sequence architecture

provides added level of protection against datz alteration.

In-system block lock and unlock capability prevents inadvertent data alteration. The device is disablec while RP#=V,, regardless of its control inputs state.

5.7 Power Dissipation

When designing portable systems, designers musi consider battery power consumption not only during device operation, but also for data retention during system idle time. Flash memory’s nonvolatility increases usable battery life because data is retained when system power is removed.

In addition, deep power-down mode ensures extremely low power consumption even when system power is applied. For example, portable computing products and other power sensitive applications thai use an array of devices for solid-state storage can consume negligible power by lowering RP# to V,,

standby or sleep modes. If access is again needed, the devices can be read following the t,,Qv and tPHWL wake-up cycles required after RP# is first

raised to V,,. See AC Characteristics- Read Only

and Write Operations and Figures 17, 18, 19, 20 for more information.

Rev. 1.9

Page 34

SHARF=

. -

-- -

LHFlGKA7

6 ELECTRICAL SPECIFICATIONS

6.1 Absolute Maximum Ratings*

Operating Temperature

During Read, Erase, Write and

Block Lock-Bit Configuration . . . ..-40°C to +85”C(1)

Temperature under Bias . . . . . . . . . . . . . . . -40°C to +85”C

Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . -65°C to +125”C

Voltage On Any Pin

(except Vcc, V,,) . . . . . . . . . . . . . . . -0SV to V,o+0.5V(2)

Vcc Suply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.2v to +7.ov(2)

V,, Update Voltage during

Erase, Write and

Block Lock-Bit Configuration . . . . ..-0.2V to +7.0Vt2)

Output Short Circuit Current . . . . . . . . . . . . . . . . . . . . . . . . 1 00mAt3)

*WARNING: Stressing the device beyond the

“Absolute Maximum Ratings” may cause permanen damage. These are stress ratings only. Operatior beyond the “Operating Conditions” is nc recommended and extended exposure beyond the

“Operating Conditions” may affect device reliability.

NOTES:

1. Operating temperature is for extender

temperature product defined by this specification.

2. All specified voltages are with respect to GND Minimum DC voltage is -0.5V on input/output pin:

and -0.2V on Vcc and V,, pins. Durin! transitions, this level may undershoot to -2.OV fo periods <20ns. input/output pins and Vcc is Vc.+O5V which during transitions, may overshoot to Vcc+2.0V fo periods <20ns.

3. Output shorted for no more than one second. NC

more than one output shorted at a time.

Maximum DC voltage or

6.2 Operating Conditions

Temperature and Vcc ODerating Conditions

Symbol Parameter Min. Max. Unit Test Condition

TA Operating Temperature -40 +85 “C Ambient Temperature Vc-., Vcc Supply Voltage (2.7V-3.6V) 2.7 Vccy Vcr. Supply Voltage (3.3ViO.3V)

3.0 3.6

3.6

V V

6.2.1 CAPACITANCE(‘)

.I’

T,=+25”C, f=l MHz Symbol Parameter C,N Input Capacitance c(y I-J- Output Capacitance

NOTE:

1. Sampled, not 100% tested.

Typ. Max.

7 10

9 12

Unit

pF v,,=o.ov pF Vnr

,T=O.OV

Condition

Rev. 1.9

Page 35

SHARP

. - 33

LHFlGKA7

2.2 AC INPUT/OUTPUT TEST CONDITIONS

yG-j(iqzzq~Z

AC test inputs are driven at 2.7V for a Logic “1” and O.OV for a Logic “0.” Input timing begins, and output timing ends, at 1.35V. Input rise and fall times (10% to 90%) ~10 ns.

Figure 14. Transient Input/Output Reference Waveform for Vc,=2.7V-3.6V

4 ~~~~z2~~pG-

AC test inputs are driven at 3.OV for a Logic “1” and O.OV for a Logic “0.” Input timing begins, and output timing ends, at 1 SV. Input rise and fail times (10% to 90%) cl 0 ns.

Figure 15. Transient Input/Output Reference Waveform for Vcc=3.3V*O.3V

1.3v lN914

CL Includes Jig

Capacitance

Figure 16. Transient Equivalent Testing

Load Circuit

A CL

Test Configuration Capacitance Loading Value

Test Configuration

=3.3V~0.3V, 2.7V-3.6V 1 50

CJpF)

Rev. 1.9

Page 36

SHARP

. -

. A

6.2.3 DC CHARACTERISTICS

Sym.

‘Ll

‘LO

‘cc,

lccD

‘cm

Input Load Current 1 Output Leakage Current 1 Vcc Standby Current

I V,, Deep Power-Down

Current V,, Read Current

Parameter Notes Typ.

LHF16KA7

DC Characteristics

V,c=2.N vcc=3.3v Test

1,396

20 100 20 100 PA V,,=V,,Max.

1 4 1 4 mA Vcc=VccMax.

1,5,6

Max. Typ. Max. Unit

*0.5 iO.5 PA 5ZO.5 rtO.5 PA

20 20 HA

Conditions Vcc=V,,Max. VIN=VCC or GND

;~“3”““““’ =VcT: or GND CMOS Inputs

CE#=RP#=Vccf0.2V TTL Inputs

CE#=RP#=V,,

RP#=GNDi0.2V &-,,,(STS)=OmA

CMOS Inputs

Block Erase Full Chi

Rev. 1.9

Page 37

LHFlGKA7

-- DC Characteristics (Continued)

V,,=2.N‘ V&.3V

Sym.

V,, Input Low Voltage 7 -0.5 0.8 -0.5 0.8 V hi

Input High Voltage 7

Output Low Voltage

Parameter Notes Min. Max.

2.0 kc 2.0

+0.5

Min. Max. Unit Conditions

Vcc v

+0.5

Test

VoH, VOH2

V,,,, V,, Lockout Voltage during V,,,, ‘V,, Voltage during Write or V,,,, V,, Voltage during Write or VppHs V,, Voltage during Write or V, kn Vcc Lockout Voltage

NOTES:

1. All currents are in RMS unless otherwise noted. Typical values at nominal Vcc voltage and TA=+25”C.

2* ICC,, and bCES

3. Includes STS.

4. Block erases, full chip erases, (multi) word/byte writes and block lock-bit configurations are inhibited when

5. Automatic Power Savings (APS) reduces typical Iccn to 3mA at 2.7V and 3.3V Vcc in static operation.

6. CMOS inputs are either Vcc*O.2V or GNDkO.2V. TTL inputs are either V,, or V,,.

7. Sampled, net 100% tested.

Output High Voltage

(CMOS)

4,7

Normal Operations Erase Operations

Erase Operations Erase Operations

are specified with the device de-selected. If read or byte written while in erase suspend mode,

the device’s current draw is the sum of I,,,, or IccEs and lCCR or Iccw, respectively.

V,+V,,,k, and not guaranteed in the range between V,,Lk(max.) and V,,,, (min.), between V,,,, (max.) and VppHp(min.), between Vpp,+(max.) and VppHs(min.) and above VppHs(max.).

’

2.7 3.6 - - V

3.0

4.5 5.5 4.5 5.5 v

2.0 2.0 V

1.5 1.5 v

3.6 3.0 3.6 V

Rev. 1.9

Page 38

SHARP

_ -

LHF16KA7

-- -

6.2.4 AC CHARACTERISTICS - READ-ONLY OPERATIONS(‘)

Vcc=2.7V-3.6V, T,=40”C to +85X

Versiond4)

Sym. I

Parameter

t . .._..

BYTE# to Output Delay 3 120 ns

~~~~~

BYTE# to Output in High 2 3

tELFL fF, FH

CE# Low to BYTE# High or Low

NOTE:

See 3.3V Vcc Read-Only Operations for notes 1 through 4.

1 Notes 1 Min. 1 Max. Unit

1 LH28F160S3H-L120

30 ns

5 ns

Sym. I

V ,&3.3kO.3\ I, Tp40”C to +85X

Versians(4)

_ -_-_-.--

Parameter

1 LH28F160S3H-Ll OO

( Notes I Min. I Max. Unit

I I tAvnv 1 Read Cycle Time 100 ns

tAvnv Address to Output Delay 100 ns fF, 0” CE# to Output Delay 2 100 ns

fF, (Jy

_fEtic;v CE# High to Output in

fLQV

FHnV

tJ, n,

FLFL

FI FH

RP# High to - . . - ’ uutput ueray

OE# to Output welay -vi) ns CE# to Output

,. .& n-l... ,

in Low 2 -; 0

I I I

r) AC

High Z 3

OE# to Output in Low Z

l?Y

’

Output Hold from Address, CE# or OE# Change, Whichever Occurs First

BYTE# to Output Delay

3 0

3 0 ns 3 100 ns

BYTE# to Output in High Z 3 30 ns

CE# Low to BYTE/# High or Low 3 5 ns

AA_

tluu

50 ns

NOTES:

1. See AC Input/Output Reference Waveform for maximum allowable input slew rate.

2. OE# may be delayed up to tELQv-&AI, after the falling

edge of CE# without impact on

3. Sampled, not 100% tested.

4. See Ordering Information for device speeds (valid operational combinations).

Rev. 1.9

Page 39

SHARP

VIH

CE#(E)

VIH

OE#(G)

VOH

VIL

_ -

. i

Device

Address Selection

Address Stable

LHF16KA7 37

Data Valid

tAVAV

1.11.11111

,.,o....mn

VOL

tAVQV

“““““-

NOTE: CE# i&defined as the latter of Cl&# and CE# going Low or the first of CEo# or CE$ going High.

Figure 17. AC Waveform for Read Operations

Rev. 1.9

Page 40

SHARP

LHFlGKA7

VIH

CWE)

VIL

VIH

OE#(G)

VIL

QJIH

BYTE#(F)

VIL

VOH

Device

Address Selection

Address Stable

tAVFL=tELFL

Data Valid

1..1.11..1

NOTE: CE# is defined as the latter of CEo# and CEI# going Low or the first of CEo# or CE+# going High.

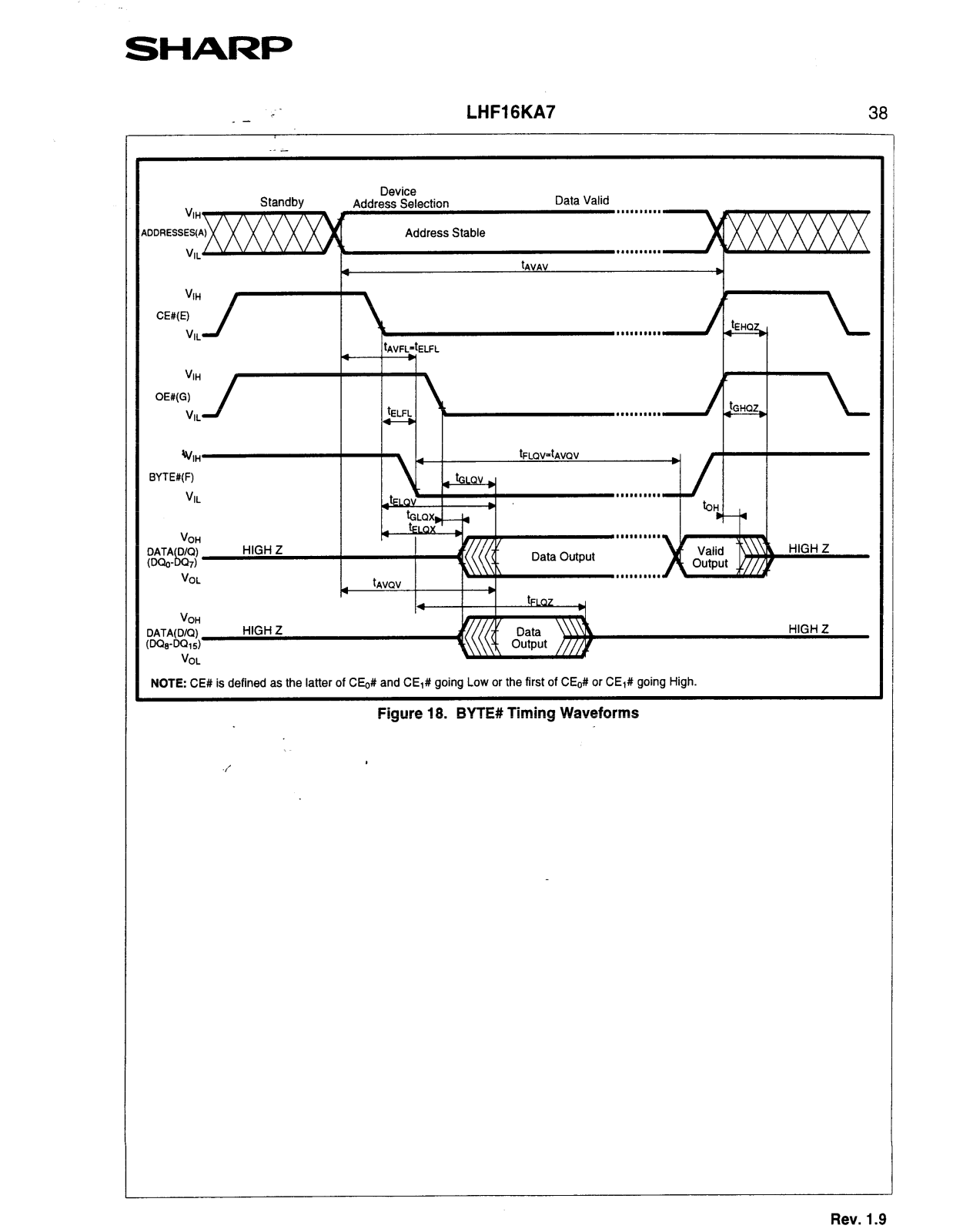

Figure 18. BYTE# Timing Waveforms

Rev. 1.9

Page 41

SHARP

LHFlGKA7

6.2.5 AC CHARACTERISTICS - WRITE OPERATIONS(‘)

NOTE: See 3.3V Vcc WE#-Controlled Writes for notes 1 through 5.

Vcc:=3.3V+0.3V, T,=40”C to +85”C

Versions@) 1 LH28F160S3H-Ll OO

Sym. I

twclr,, Write Recovery before Read 0 ns

Vpp Hold from Valid SRD, STS High Z WP# VI,, Hold from Valid SRD, STS High Z

NOTES:

1. Read timing characteristics during block erase, full chip erase, (multi) wrod/byte write and block lock-bit configuration operations are the same as during read-only operations. Refer to AC Characteristics for read-only operations.

2. Sampled, not 100% tested.

3. Refer to Table 4 for valid A,,,, and D,, for block erase, full chip erase, (multi) word/byte write or block lock-bit configuration.

4. Vpp should be held at V,PH1,2j3 until determination of block erase, full chip erase, (multi) word/byte write or block lock-bit configuration success (SR.1/3/4/5=0).

5. See Ordering Information for device speeds (valid operational combinations).

Parameter 1 Notes ) Min. ) Max. Unit

2,4 z4

0 ns 0 ns

Rev. 1.9

Page 42

SHARI=

LHFlGKA7

ADDRESSES(A)

NOTES:

1. Vcc power-up and standby.

2. Write erase or write setup.

3. Write erase confirm orvalid address and data.

4. Automated erase or program delay.

5. Read stat®ister data.

6. Write Read Array command.

7. CE# is defined as the latter of CEo# and CE,# going Low or the first of CEo# or CE,# going High.

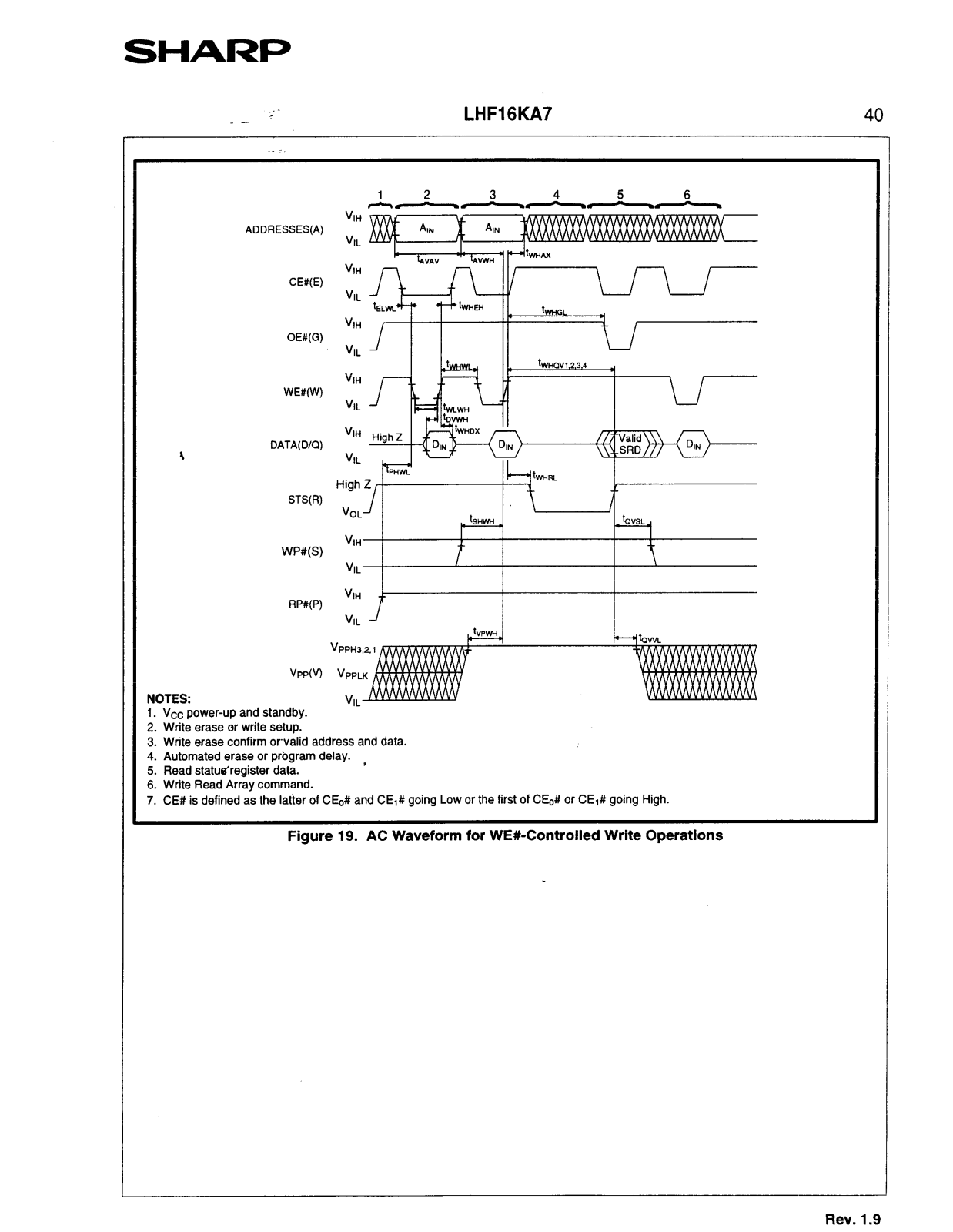

Figure 19. AC Waveform for WE#-Controlled Write Operations

Rev. 1.9

Page 43

SHARP

LHF16KA7

-- -

6.2.6 ALTERNATIVE CE#-CONTROLLED WRITES(‘)

I v

Versions@)

Sym. 1

om CE# Hiah h WE# Hold fr tFWF, 8 CE# Pulse Widt tfq+n, fFHG,

NOTE: See 3.3V Vco Alternative CE#-Controlled Writes for nc )tes 1 through 5.

clFl 1 RP# High Recovery to CE# Going Low 2 1

CE# High to STS Going Low Write Recovery before Read Vpp Hold from Valid SRD, STS High Z WP# VIH Hold from Valid SRD, STS High Z

( Write Cycle Time

Parameter

:h High 25

,,=2.7\1-3.6\ ~-40°C to +85”C

( Notes 1 Min. ( Max.

24 2,4

1 LH28F160S3H-L120 1

100 0 0 ns 0

100

Unit

..ns ns ns

t”pFw Vpp Setup to CE# Goi

tJJFH Address Setup to CE# Going High 3 50

$-)“FH Datd Setup to CE# Going High

11 tFwax I Address Hold from CE# High

Write Recovery before Read tFClr,,

hWl tnVSl

NOTES:

1. In systems where CE# defines the write pulse width (within a longer WE# timing waveform), all setup, hold and inactive WE# times should be measured relative to the CE# waveform.

2. Sampled, not 100% tested.

3. Refer to Table 4 for valid A,, and D,, for block erase, full chip erase, (multi) word/byte write or block lock-bit configuration.

4. V,, should be held at V,,,,,z,, until determination of block erase, full chip erase, (multi) word/byte write or block lock-bit configuration success (SR.1/3/4/5=0).

5. See Ordering Information for device speeds (valid operational combinations).

Vpp Hold from Valid SRD, STS High Z WP# V,, , Hold from Valid SRD, STS High Z

24 2,4

0 ns 0 0 ns

Rev. 1.9

Page 44

SHARI=

LHFlGKA7

ADDRESSES(A)

WE#(W)

OE#(G)

CE#(E)

DATA(D/Q)

STS(R)

VIH

A---

A-

NOTES:

1. Vcc power-up and standby.

2. Write erase or write setup.

3. Write erase confirm orvalid address and data.

4. Automated erase or program delay.

5. Read status’register data.

6. Write Read Array command.

7. CE# is defined as the latter of CEo# and CE,# going Low or the first of CE& or CE+ going High.

Figure 20. AC Waveform for CE#-Controlled Write Operations

Rev. 1.9

Page 45

SHARI=

RESET OPERATIONS

LHFlGKA7

. . ;

vcc

High Z

VOL

VIH

VIL

High Z

VOL

VIH

2.7f3.3V

VIH

VIL

tpLPH

(A)Reset During Read Array Mode

(B)Reset During Block Erase, Full Chip Erase, (Multi) Word/Byte Write

or Block Lock-Bit Configuretion

I-

(C)Vcc Power Up Timing

STS(R)

RP#(P)

STS( R)

RP#(P)

RP#( P)

Figure 21. AC Waveform for Reset Operation

Reset AC Specifications

V,.,=2.7V vr.c=3.3v

Symbol

tPLPH

Parameter RP#/ Pulse Low Time (If RP# is tied to Vcc, this specification is

Notes Min.

100 100 ns

Max. Min. Max. Unit

not applicable)

tPLRH

RP# Low to Reset during Block Erase, Full Chip Erase, (Multi) Word/Byte Write 1,2

21.5 21.1

IJS

or Block Lock-Bit Configuration

t23VPH

Vcc at 2.7V to RP# High Vcn at 3.OV to RP# High

3 - 100 100

MOTES:

1. If RP# is asserted while a block erase, full chip erase, (multi) word/byte write or block lock-bit configuration operation is not executing, the reset will complete within 1 OOns.

3. A reset time, tpHov,

is required from the latter of STS going High Z or RP# going high until outputs are valid.

3. When the device power-up, holding RP# low minimum 1OOns is required after Vcc has been in predefined range and also has been in stable there.

Rev. 1.9

Page 46

SHARP

LHFlGKA7

-- -

6.2.8 BLOCK ERASE, FULL CHIP ERASE, (MULTI) WORD/BYTE WRITE AND BLOCK LOCK-BIT CONFIGURATION PERFORMANCE@)

Vnn=2.7V-3.6V, TA=-40”C to +85”C

Vp,=3.0V-3.6V Vp,=4.5V-SSV

13.2 180

0.44 4.8 s ,

Sym.

tWHQVl

tEHQV1

tEHQVl

twHQyl

Vp,=2.7V-3.6V

Parameter

Word/Byte Write Time (using write, W/B in word 2 22.19 250 22.19 250

mode)

Word/Byte Write Time

(using write, byte W/B in mode)

Word/Byte Write Time

(using multi word/byte write) Block Write Time

(using W/B write, in word 2 0.73 8.2 0.73 8.2

4 mode)

Block Write Time

Notes ’ Typ.(l) Max. Typ.(‘) Max. Typ.(‘) Max. Unit

2 19.9 us

2 5.76 250 5.76 250 2.76 180 vs

250 19.9 250 13.2 180

NOTE: See 3.3V V&Block Erase, Full Chirj Erase, (Multi) Word/Byte Write and Block Lock-Bit Configuration Performance for notes 1 through 3.

Rev. 1.9

Page 47

SHAl?I=

_ -

-Voc=3.3V+0.3V, T,,=-40°C to +85”C

Sym. tw,,ov, Word/Byte Write Time tF,,,,,,,

PHQVl

Fwr,v, (using W/B write, in byte mode)

F Block Erase Time

FHnV7 \

‘wHQvs

iwHQV4 Clear Block Lock-Bits Time

FHOVA

:wHnHt Write Suspend Latency Time to Read

FHRHI

pHnH2 Erase Suspend Latency Time to Read 15.2 21 .l 12.3 17.2

FHRH7

NOTES:

1. Typical values measured at TA=+25”C and nominal voltages. Assumes corresponding block lock-bits are not set. Subject to change based on device characterization.

2. Excludes system-level overhead.

3. Sampled but not 100% tested.

(using W/B write, in word mode) Word/Byte Write Time Word/Byte Write Time

(using multi word/byte write)

, Block Write Time I r) I nvr, I a.2 1 0.43

(using W/B write, in word mode)

I Block Write Time

(using W/B write, in byte mode)

I Block Write Time

(using multi word/byte write)

Full Chip Erase Time

Set Block Lock-Bit

Parameter

Time

LHFlGKA7

Vp,=3.0V-3.6V vpp=4.5v-5.5v

Notes Typ.(‘) 1 Max.

2 21.75 250 12.95

2 19.51 250 12.95 180 2 5.66 250 2.7

I Q I 4 r)n I

L , I .L”

I “.J” -r 2 0.55 10 0.41 10

17.6

2 21.75 250 12.95 180 2 0.55

7.1 10 6.6 9.3

i5.5

320 13.1 320

10 0.41 10

Typ.(‘) 1 Max. Unit

1 0.85 1 10.9 1 s /I

180

1 4.8 1 s 1

IJS IJS P

S S

IJS

LJS IJS

Rev. 1.9

Page 48

SHARP

_ -

LHFlGKA7

. . L

7 ADDITIONAL INFORMATION

7.1 Ordering Information

Product line designator for all SHARP Flash products

I I

[L/H12/8)FIl~6~01S13~H~T~-1L~l~O~Al

Device Density

160 = 16-Mbit

Architecture

S = Regular Block

Power Supply Type

3 = Smart 3 Technology

Operating Temperature]

Blank = 0°C - +7O”C H = -40°C - +85”C

I I

ACTS Speed (ns)

1O:l OOns (3.3V), 120ns (2.7V) 13:130ns (3.3V), 150ns (2.7V)

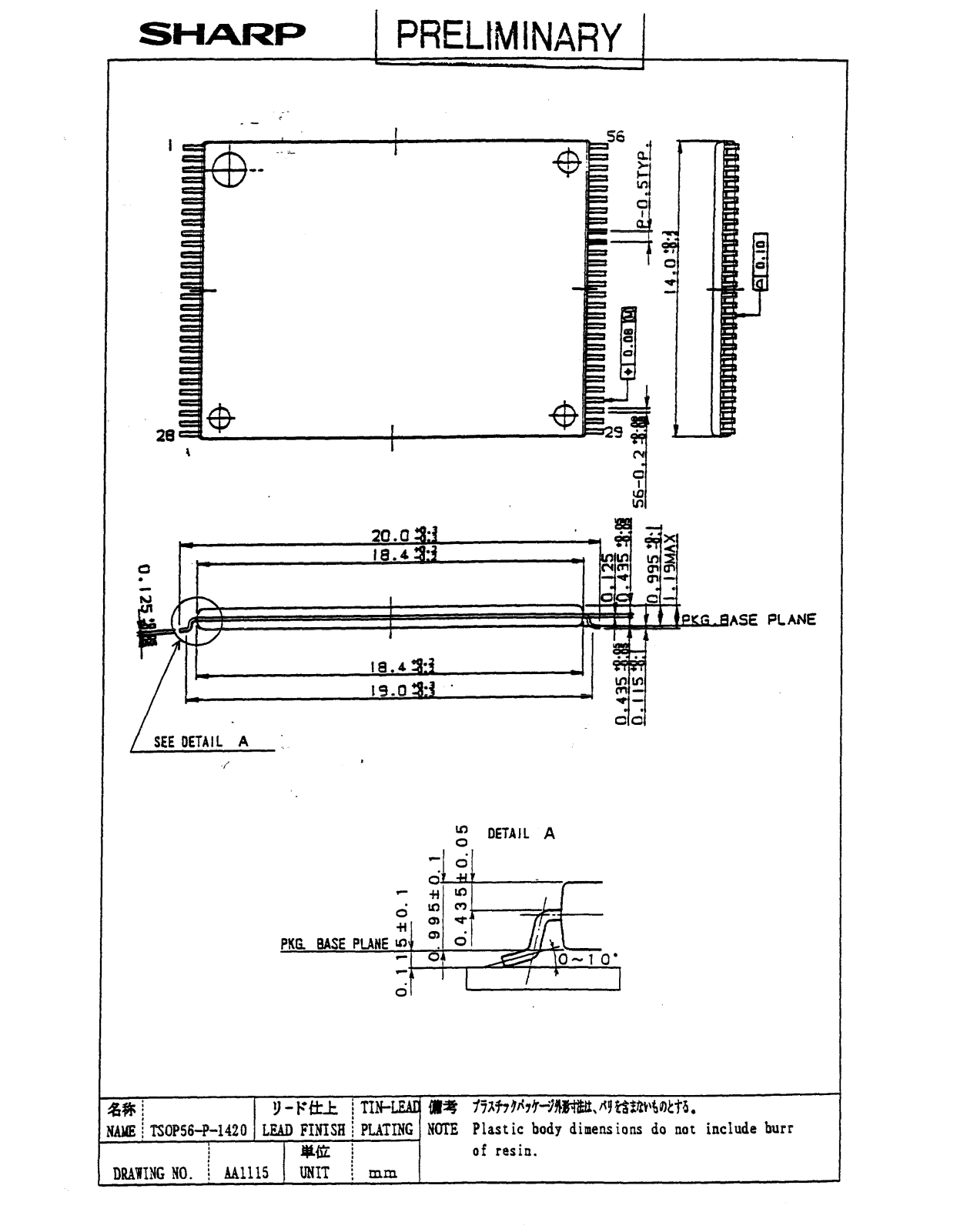

Package T = 56-Lead TSOP R = 56-Lead TSOP(Reverse Bend) NS = 56-Lead SSOP B = 64-Ball CSP D = 64-Lead SDIP

Valid Operational Combinations

V,,=2.7V-3.6V v(--=3.3v+o.3v

5OpF load, 5OpF load,

Option Order Code

1 LH28F160S3HT-Ll OA LH28F160S3H-L120 LH28F160S3H-Ll OO

.I’

1.35V I/O Levels 1 SV l/O Levels

Rev. 1.9

Page 49

SHARP

LHF16KA7 47

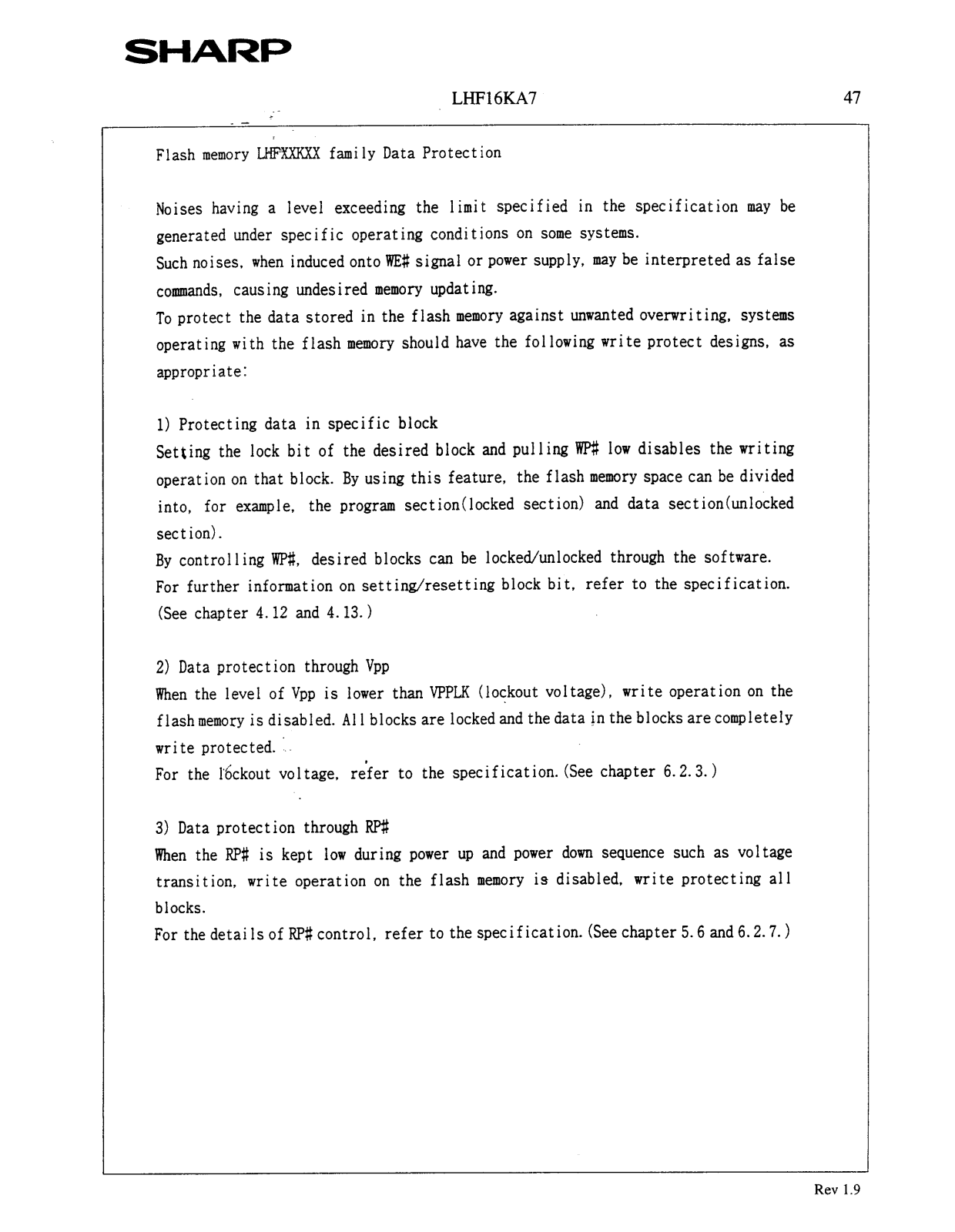

Flash memory LHFXKXX family Data Protection

Noises having a level exceeding the limit specified in the specification may be

generated under specific operating conditions on some systems. Such noises, when induced onto WE# signal or power supply, may be interpreted as false commands, causing undesired memory updating.

To protect the data stored in the flash memory against unwanted overwriting, systems

operating with the flash memory should have the following write protect designs, as appropriate:

1) Protecting data in specific block

Setting the lock bit of the desired block and pulling WP# low disables the writing

operation on that block. By using this feature, the flash memory space can be divided

into, for example, the program section(locked section) and data section(unlocked

set t ion). By controlling WP#, desired blocks can be locked/unlocked through the software. For further information on setting/resetting block bit, refer to the specification.

(See chapter 4.12 and 4.13.)

2) Data protection through Vpp When the level of Vpp is lower than VPPLK (lockout voltage), write operation on the

flashmemory is disabled. All blocks are lockedandthedata intheblocksarecompletely write protected. ..’ For the l&kout voltage, refer to the specification. (See chapter 6.2.3. >

3) Data protection through RP#

When the RP# is kept low during power up and power down sequence such as voltage

transition, write operation on the flash memory is disabled, write protecting all

blocks. For the detai 1s of RP# control, refer to the specification. (See chapter 5.6 and 6.27. )

Rev 1.9

Page 50

SHARP

_ -

-- -

LHF16KA7

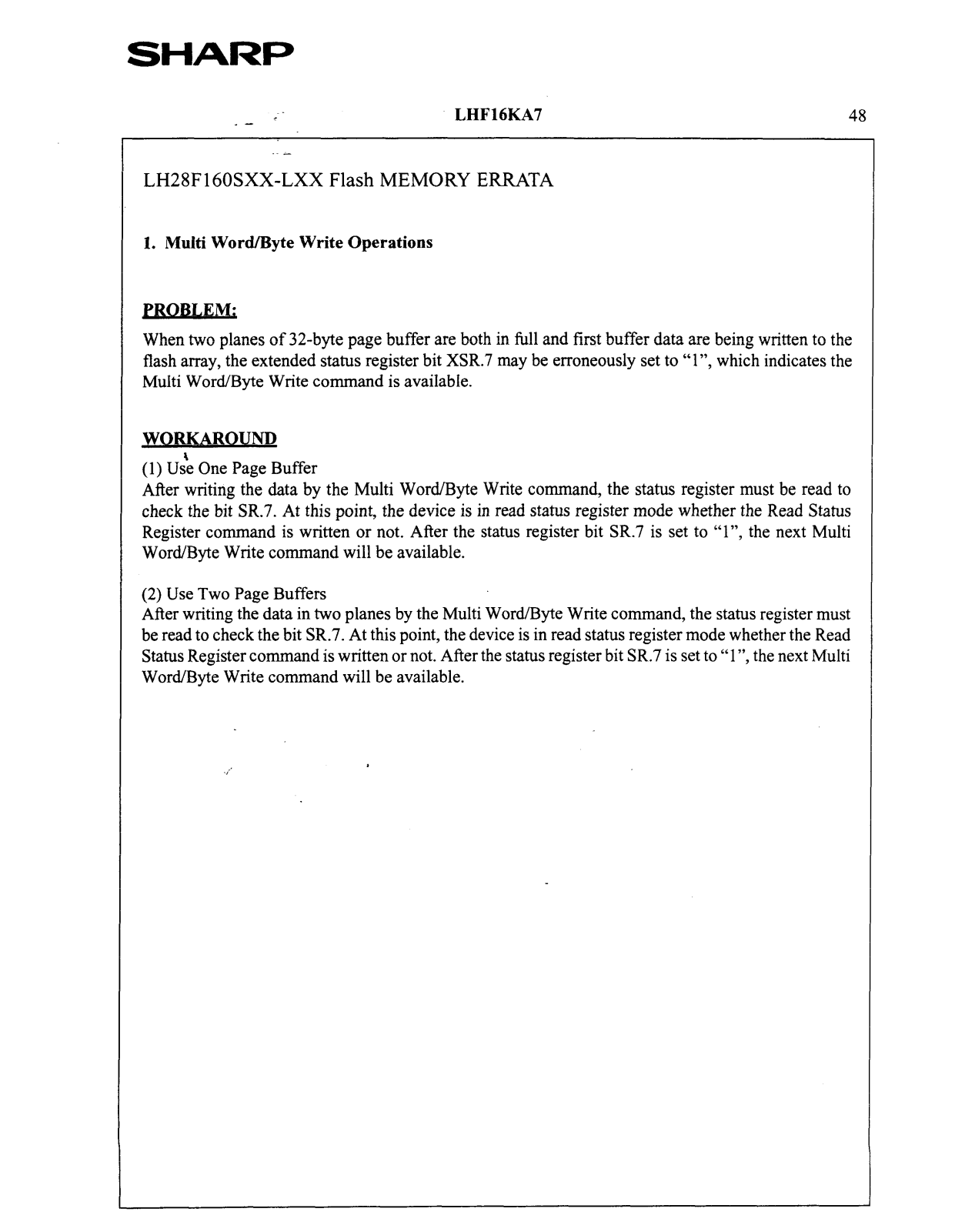

LH28F16OSXX-LXX Flash MEMORY ERRATA

1. Multi Word/Byte Write Operations

PROBJ,EMt

When two planes of 32-byte page buffer flash array, the extended status register bit XSR.7 may be erroneously set to “l”, which indicates the Multi Word/Byte Write command is available.

woRKARouND

(1) Usk One Page Buffer After writing the data by the Multi Word/Byte Write command, the status register must be read to

check the bit SR.7. At this point, the device is in read status register mode whether the Read Status

Word/Byte Write command will be available.

are

both in full and first buffer data are being written to the

(2) Use Two Page Buffers After writing the data in two planes by the Multi Word/Byte Write command, the status register must be read to check the bit SR.7. At this point, the device is in read status register mode whether the Read

Status Register command is written or not. After the status register bit SR.7 is set to “1”) the next Multi

Word/Byte Write command will be available.

.,l’

Page 51

SHARP

_ -

-- -

LHF16KA7

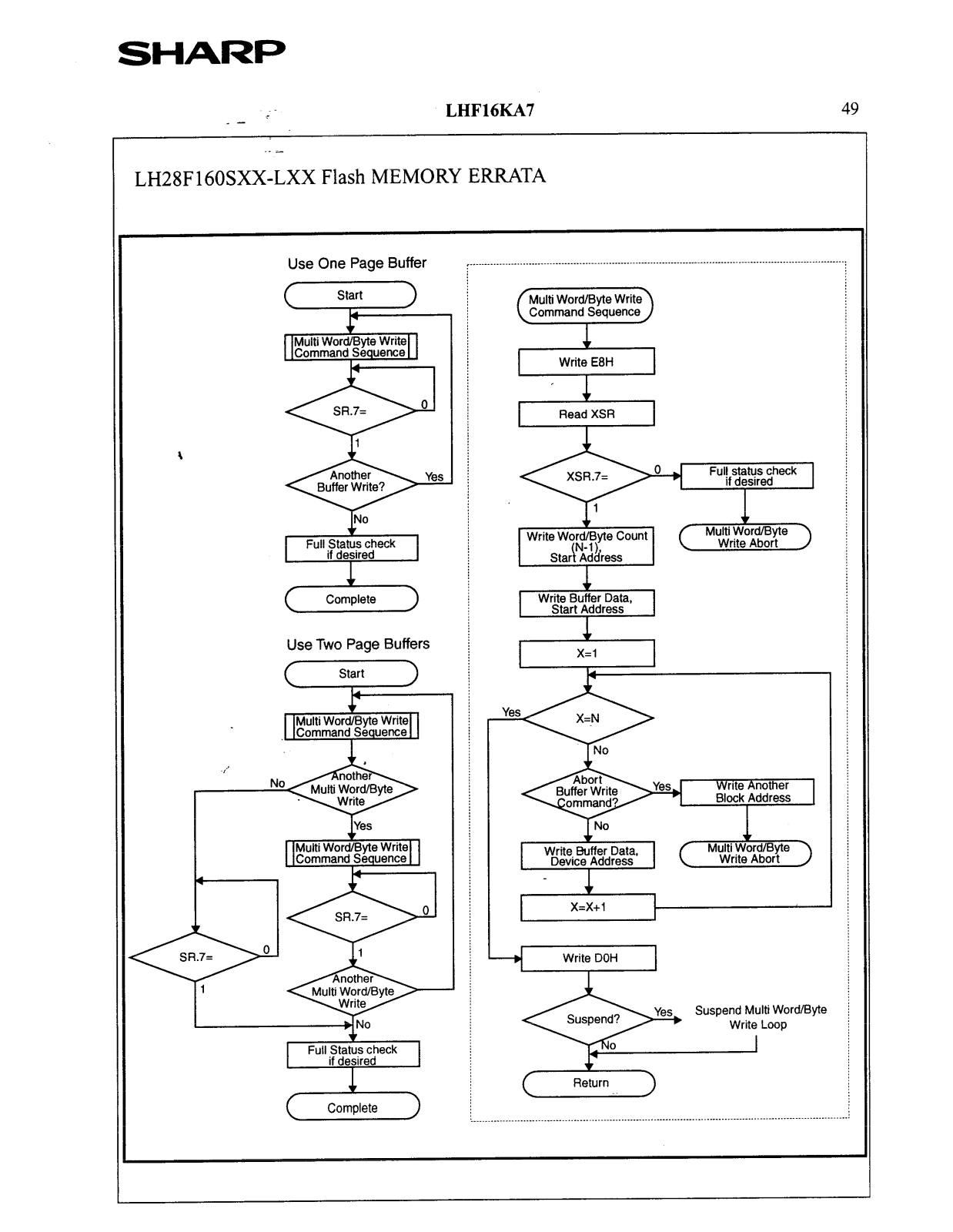

LH28F160SXX-LXX Flash MEMORY ERRATA

Use One Page Buffer

Start

r.. ____ _ _ __ _ ___ _ __ ___ _ _ _ . _ ___ __ __ _ _ ___ __ __ __. . . . ._ . . . . . . .

Command Sequence

- ~~-~~--~~~:

Write E8H

Read XSR

Start Address

Page 52
