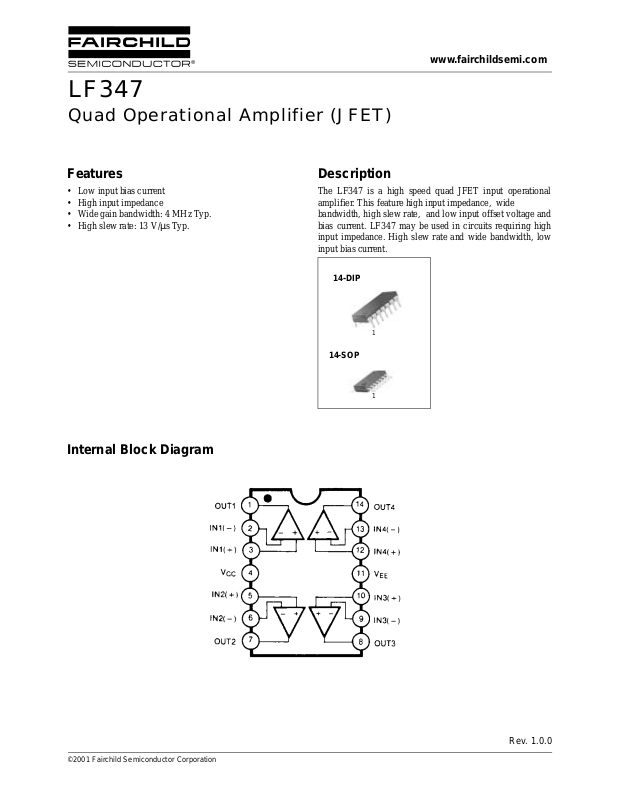

Page 1
LF347
Quad Operational Amplifier (JFET)
www.fairchildsemi.com
Features
• Low input bias current
• High input impedance
• Wide gain bandwidth: 4 MHz Typ.
• High slew rate: 13 V/µs Typ .
Internal Block Diagram
Description
The LF347 is a high speed quad JFET input operational
amplifier. This feature high input impedance, wide
bandwidth, high slew rate, and low input o ffset voltage and
bias current. LF347 may be used in cir cuits requiring high
input impedance. High slew rate and wide bandwidth, low
input bias current.
14-DIP
1
14-SOP
1
©2001 Fairchild Semiconductor Corporation
Rev. 1.0.0
Page 2
LF347
Schematic Diagram
(One Section Only)
Absolute Maximum Ratings
Parameter Symbol Value Unit
Supply Voltage V
Differential Input Voltage V
Input Voltage Range V
CC
I(DIFF)
I
Output Short Circuit Duration - Continuous Power Dissipation P
Operating Temperature Range T
Storage Temperature Range T
D
OPR
STG
±18 V
30 V
±15 V
570 mW
0 ~ + 70 °C
-65 ~ + 150 °C
2
Page 3
Electrical Characteristics
(VCC= +15V, VEE= -15V, TA=25
°C, unless otherwise specified)
LF347
Parameter Symbol Conditions
Input Offset Voltage V
Input Offset Voltage Drift(Note2) ∆V
Input Offset Current I
Input Bias Current I
Large Signal Voltage Gain G
Output Voltage Swing V
Input Voltage Range V
IO
/∆TRS = 10KΩ -10- µV/
IO
IO
BIAS
V
O(PP)
I(R)
Common-Mode Rejection Ratio CMRR R
Power Supply Rejection Ratio PSRR R
Input Resistance R
Supply Current I
I
CC
RS = 10KΩ -510
Note 1 - - 13
Note 1 - - 4 nA
Note 1 - - 8 nA
RL = 2KΩ 25 100 -
V
= ±10V Note 1 15 - -
O(P-P)
RL = 10KΩ±12 ±13.5 - V
- ±11
≤ 10KΩ 80 100 - dB
S
≤ 10KΩ 80 100 - dB
S
- -10
- -7.211 mA
LF347
Min. Typ. Max.
- 25 100 pA
- 50 200 pA
+15
-12
12
-V
- Ω
Unit
mV
°C
V/mV
Slew Rate SR - -13- V/µS
Gain Bandwidth Product(Note2) GBW - -4- MHz
Channel Seperation
Equivalent Input Noise
Voltage
Equivalent Input Noise
Current
CS
e
I
N
N
f = 1Hz ~ 20Khz
(input referenced)
RS = 100Ω
f = 1KHz
- 120 - dB
-20-
f = 1KHz - 0.01 - pA/
nV/
Hz
Hz
Note :
1. LF347 : 0≤T
≤+70 °C
A
2. Guaranteed by design
3
Page 4
LF347
Mechanical Dimensions
Package
6.40
±0.20
0.252
±0.008
14-DIP
Dimensions in millimeters
2.08
0.082
()
#1
#7
7.62
0.300
#14
#8
MAX
19.80
0.780
0.128
3.25
±0.20
±0.008
19.40
0.764
±0.20
±0.008
0.20
0.008
±0.10
0.46
2.54
MIN
±0.004
0.018
0.100
±0.10
1.50
±0.004
0.059
3.30
0.130
±0.30
±0.012
0~15°
0.25
0.010
5.08
0.200
+0.10
–0.05
+0.004
–0.002
MAX
4
Page 5
LF347
Mechanical Dimensions
Package
#1
(Continued)
14-SOP
#14
1.55
0.061
MAX
8.70
0.343
Dimensions in millimeters
0.05
MIN
0.002
±0.10
±0.004
0.47
0.10
±0.008
±0.20
8.56
0.337
-0.05
+
0.406
0.004
+
0.019
()
-0.002
0.016
0.10
+
-0.05
0.20
0.60
0.024
0.004
+
-0.002
0.008
±0.20
±0.008
#7
6.00
0.236
3.95
0.156
5.72
0.225
±0.30
±0.012
±0.20
±0.008
#8
0~8°
1.80
0.071
MAX
MAX0.10
MAX0.004
1.27
0.050
5
Page 6
LF347
Ordering Information
Product Number Package Operating Temperature
LF347N 14-DIP
LF347M 14-SOP
0 ~ + 70°C
