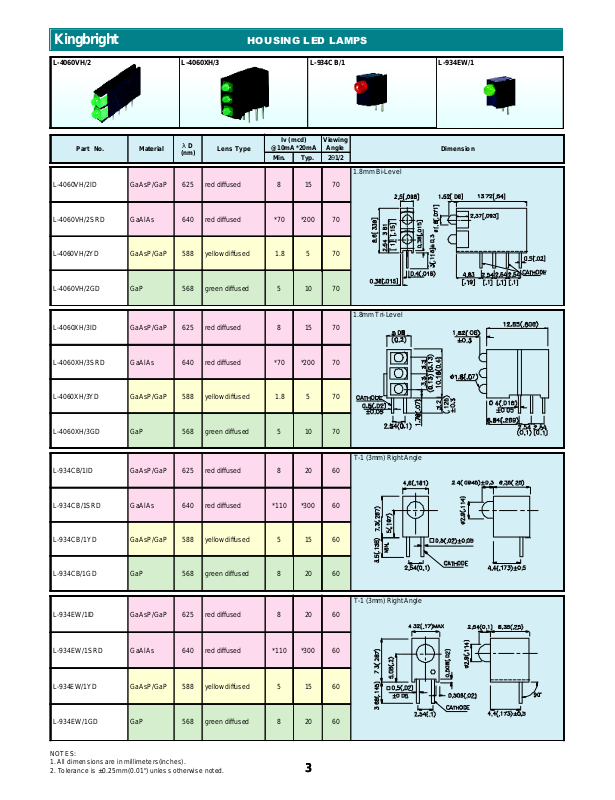

Kingbright
60
L-4060VH/2 L-4060XH/3 L-934CB/1 L-934EW/1
HOUSING LED LAMPS
Part No. Material
L-4060VH/2ID GaAsP/GaP 625 red diffused 8 15 70
L-4060VH/2SRD GaAlAs 640 red diffused *70 *200 70
L-4060VH/2YD GaAsP/GaP 588 yellow diffused 1.8 5 70
L-4060VH/2GD GaP 568 green diffused 5 10 70
L-4060XH/3ID GaAsP/GaP 625 red diffused 8 15 70
L-4060XH/3SRD GaAlAs 640 red diffused *70 *200 70
L-4060XH/3YD GaAsP/GaP 588 yellow diffused 1.8 5 70
L-4060XH/3GD GaP 568 green diffused 5 10 70
λ D
(nm)
Lens Type
Iv (mcd)
@10mA *20mA
Min. Typ. 2θ1/2
Viewing
Angle
Dimension
1.8mm Bi-Level
1.8mm Tri-Level
L-934CB/1ID GaAsP/GaP 625 red diffused 8 20 60
L-934CB/1SRD GaAlAs 640 red diffused *110 *300 60
L-934CB/1YD GaAsP/GaP 588 yellow diffused 5 15 60
L-934CB/1GD GaP 568 green diffused 8 20 60
L-934EW/1ID GaAsP/GaP 625 red diffused 8 20
L-934EW/1SRD GaAlAs 640 red diffused *110 *300 60
L-934EW/1YD GaAsP/GaP 588 yellow diffused 5 15 60
L-934EW/1GD GaP 568 green diffused 8 20 60
T-1 (3mm) Right Angle
T-1 (3mm) Right Angle
NOTES:
1. All dimensions are in millimeters(inches).
2. T olerance is ±0.25mm(0.01") unless otherwise noted.
3
3
