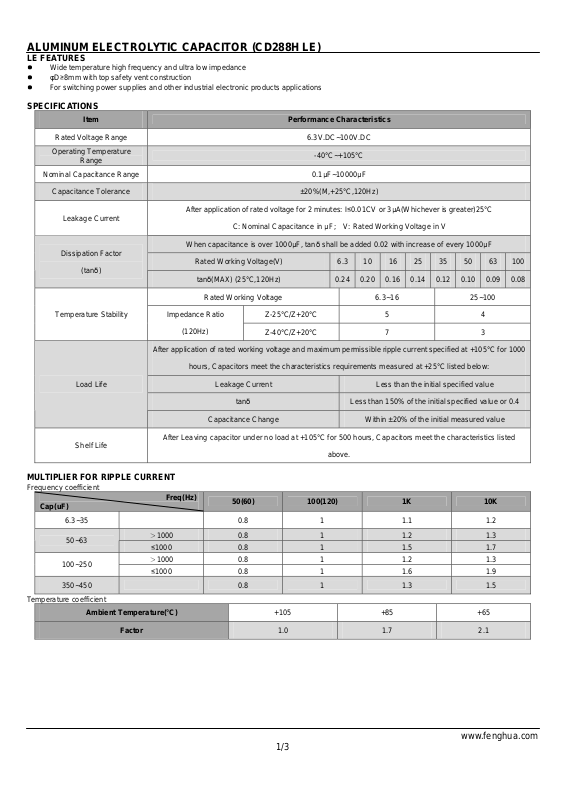

Page 1
ALUMINUM ELECTROLYTIC CAPACITOR (CD288H LE)
LE FEAT URES
Wide temperature high frequency and ultra low impedance
φD≥
For switching power supplies and other industrial electronic products applications
SPECIFICATIONS
8mm with top safety vent construction
Item
Performance Characteristics
Rated Voltage Range
Operating Temperature
Range
Nominal Capacitance Range
Capacitance Tolerance ±20%(M,+25°C,120Hz)
Leakage Current
Dissipation Factor
(tanδ)
Temperature Stability
After app lication of r at ed w or ki ng volt age and maximu m per mis s i ble rippl e current sp ecif ied at +10 5°C f or 1000
Load Lif e
After app lication of r at ed voltag e f or 2 mi nu t es: I
C: Nominal Capacitance in
When cap ac it ance is over 1000μF, tanδ shall b e add ed 0. 02 w ith incr ease of ever y 10 00μF
Rated Working Voltage(V) 6.3 10 16 25 35 50 63 100
tanδ(MAX) (25°C,120Hz) 0.24 0.20 0.16 0.14 0.12 0.10 0.09 0.08
Rated Working Voltage 6.3~16 25~100
Impedance Ratio
(120Hz)
hours, Capacitors meet the characteristics requirements measured at +25°C listed below:
Leakage Current Less than the initial specified va lue
tanδ Less than 150% of the initial specified value or 0.4
Z-25°C/Z+20°C 5 4
Z-40°C/Z+20°C 7 3
6.3V.DC~100V.DC
-40°C~+105°C
0.1μF~10000μF
≤
0.01CV or 3μA(Which ever is gr eat er ) 25 ° C
μ
F; V: Rated Working Voltage in V
Shelf Life
After Leaving capacitor under no load at +105°C for 500 hours, Capacitors meet the characteristics listed
MULTIPLIER FOR RIPPLE CURRENT
Frequency coefficient
Cap(uF)
6.3~35
50~63
100~250
350~450
T emperature coefficient
Ambient Temperature(°C) +105 +85 +65
Factor 1.0 1.7 2.1
Freq(Hz)
0.8 1 1.1 1.2
＞
1000 0.8 1 1.2 1.3
≤
1000 0.8 1 1.5 1.7
＞
1000 0.8 1 1.2 1.3
≤
1000 0.8 1 1.6 1.9
0.8 1 1.3 1.5
Capacitance Change Within ±20% of the initial measured value
above.
50(60) 100(120) 1K 10K
www.fenghua.com
1/3
Page 2
ALUMINUM ELECTROLYTIC CAPACITOR (CD288H LE)
Safety vent (Ф8up)
CASE SIZE TABLE
β
0.5 1.0
Ф
D 5 6.3 8 10 12,13 16 18
F±0.5 2.0 2.5 3.5 5 7.5
Ф
d±0.1 0.5 0.6 0.8
L 11 12,16 14,17,20 20,25 25,30 30,35,40
α
1.0 L<17:1.0; L≥17:2.0
Insulating Sleeve (P.V.C)
D
Ф
*Ф6.3 is avai l abl e b y R equ es t
DIMENSIONS, RATED VOLTAGE RANGE AND CAPACITANCE
WV(V)
CAP
(1)
6.3
(3) (1) (2) (3) (1) (2) (3) (1) (2) (3) (1) (2) (3)
(2)
10 16 25 35
Ф
d±0.05 Tinned copper-ply wire
15min L + β max
4min
F±0.5
33 6.3x11 0.58 210
47 6.3x11 0.58 210 6.3x11 0.35 200
100 6.3x11 0.58 210
220 8x12 0.22 340
330 8x12 0.22 340 8x12 0.20 450 8x12 0.13 640 10x14 0.080 840 10x17 0.060 1210
470 8x12 0.20 450 8x12 0.13 640
680
1000
1500 10x20 0.046 1400 10x20 0.042 1450 13x20 0.035 1900 13x25 0.027 2230 16x25 0.020 2880
2200 10x20 0.042 1650 13x20 0.031 1940 13x25 0.027 2210 16x25 0.020 2860 16x30 0.017 3140
3300 13x20 0.035 1900 13x25 0.027 2230 16x25 0.020 2880 16x3. 0.017 3140 18x35 0.013 4080
4700 16x25 0.024 2650 16x25 0.020 2880 16x30 0.017 3140 18x35 0.013 4080
6800 16x30 0.017 2860 18x30 0.017 3140 18x30 0.013 4080
10000 18x30 0.015 3140 18x40 0.013 4080
8x16
(10x14)
8x16
(10x14)
0.13 640 10x14 0.087 840 10x17 0.069 1050 10x20 0.046 1400 13x20 0.031 1900
0.087 840 10x14 0.060 1050 10x20 0.046 1400 13x20 0.031 1900 13x25 0.027 2210
8x12 0.22 340 8x12 0.25 450
8x16 0.13 640 10x14 0.080 840
8x16
(10x14)
0.087 840 10x14 0.060 1050 10x20 0.049 1400
www.fenghua.com
2/3
Page 3
ALUMINUM ELECTROLYTIC CAPACITOR (CD288H LE)
50 63 100 WV(V)
CAP
22 6.3x11 0.70 180
33 6.3x11 0.50 230 6.3x11 1.2 115
47 6.3x11 0.40 280 8x12 1.0 280 10x14 0.43 288
100 8x12 0.17 555 10x17 0.8 400 12x20 0.20 531
220 10x17 0.084 1050 12x20 0.20 531 16x25 0.091 905
330 12x20 0.055 1440 13x25 0.12 784 16x30 0.071 1180
470 13x20 0.043 1660 16x25 0.091 905 18x30 0.045 1630
180 16x25 0.030 2310 16x30 0.071 1180 18x35 0.040 1790
1000 16x30 0.21 2490 18x30 0.045 1630
1500 13x30 0.019 3150
2200 18x35 0.017 3680
(1) Case Size D×L(mm)
(2) Impedanc e at 100KHz+20 °C (
(3)Max allowable ripple current (mArms +105°C,100KHz)
(1) (2) (3) (1) (2) (3) (1) (2) (3)
Ω
)
www.fenghua.com
3/3
