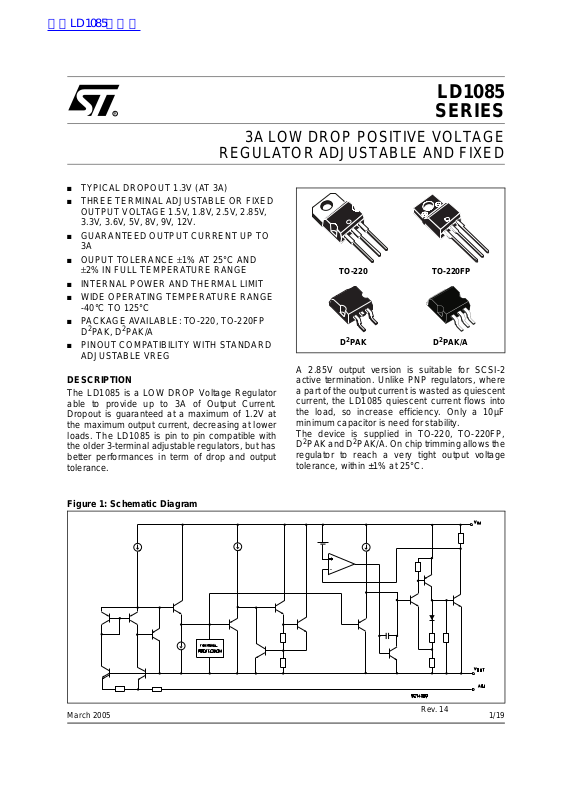

LD1085

SERIES

3A LOW DROP POSITIVE VOLTAGE

REGULATOR ADJUSTABLE AND FIXED

■ TYPICAL DROPOUT 1.3V (AT 3A)

■ THREE TERMINAL AD JUSTABLE OR FIXED

OUTPUT VOLTAGE 1.5V , 1.8V, 2.5V, 2.85V,

3.3V , 3.6V, 5V, 8V, 9V, 12V.

■ GUARANTEED OUTPUT CURRENT UP TO

■ OUPUT TOLERANCE ±1% AT 25°C AND

±2% IN FULL TEMPERATURE RANGE

■ INTERNAL POWER AND THERMAL LIMIT

■ WIDE OPERATING TEMPERATURE RANGE

-40°C TO 125°C

■ PACKAGE AVAILABLE: TO-220, TO-220FP

PAK, D2PAK/A

■ PINOUT COMPATIBILITY WITH STANDARD

ADJUSTABLE VREG

DESCRIPTION

The LD1085 is a LOW DROP Voltage Regulator able to provide up to 3A of Output Current. Dropout is guaran teed at a maximum o f 1.2V at the maximum output current, decreas ing at lower loads. The LD1085 is pin to pin compat ible with the older 3-terminal adjustable regulators, but has better performances in term of drop and output tolerance.

TO-220

D2PAK D2PAK/A

TO-220FP

A 2.85V output version is suitable for SCSI-2 active termination. Unlike PNP regulators, where a part of the output current is wasted as quiescent current, the LD1085 quiescent current flows into the load, so increase efficiency. Only a 10µF minimum capacitor is need for stability. The device is supplied in TO-220, TO-220FP,

PAK and D2PAK/A. On chip t rimming allows the regulator to reach a very tight output voltage tolerance, within ±1% at 25°C.

Figure 1: Schematic Diagram

Rev. 14

1/19March 2005

Page 2

LD1085 SERIES

Figure 2: Pin Connec tion (top view)

TO-220 TO-220FP

PAK D2PAK/A

Table 1: Order Codes

TO-220 TO-220FP

PAK (*) D2PAK/A (*)

LD1085V15 LD1085P15 LD1085D2T15 LD1085D2M15 1.5 V LD1085V18 LD1085P18 LD1085D2T18 LD1085D2M18 1.8 V LD1085V25 LD1085P25 LD1085D2T25 LD1085D2M25 2.5 V LD1085V28 LD1085P28 LD1085D2T28 LD1085D2M28 2.85 V LD1085V33 LD1085P33 LD1085D2T33 LD1085D2M33 3.3 V LD1085V36 LD1085P36 LD1085D2T36 LD1085D2M36 3.6 V LD1085V50 LD1085P50 LD1085D2T50 LD1085D2M50 5.0 V LD1085V80 LD1085P80 LD1085D2T80 LD1085D2M80 8.0 V LD1085V90 LD1085P90 LD1085D2T90 LD1085D2M90 9.0 V LD1085V12 LD1085P12 LD1085D2T12 LD1085D2M12 12.0 V

LD1085V LD1085P LD1085D2T LD1085D2M ADJ

(*) Avai l abl e in Tape & Reel with the suffix "R" for fixed ve rsion and "-R" for adj ustable version.

OUTPUT VOLTAGE

Table 2: Absolute Maximum Ratings

Symbol Parameter Value Unit

V I

DC Input Voltage

Output Current

Power Dissipation

Storage Temperature Range

stg

Operating Junction Temperature Range

30 V Internally Limited mA Internally Limited mW

-55 to +150 °C

-40 to +125 °C

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these condition is not implied.

2/19

Page 3

Table 3: Thermal Data

LD1085 SERIES

Symbol Parameter TO-220

thj-case

thj-amb

Thermal Resistance Junction-case Thermal Resistance Junction-ambient

33°C/W

50 62.5 °C/W

PAK

Unit

Figure 3: Applica tion Circuits

(1 + )

Table 4: Electrical Characteristics Of LD1085#15 (V

VO = V

REF

=4.5V, CI = CO =10µF, TA = -40 to 125°C, unless

otherwise specified.)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO = 0 mA TJ = 25°C 1.485 1.5 1.515 V

= 0 to 5AVI = 3.1 to 30V (note 1) 1.47 1.5 1.53 V

∆V

SVR Supply Voltage Rejection f = 120 Hz, C

Line Regulation IO = 0 mA VI = 3.1 to 18V TJ = 25°C 0.2 4 mV

= 0 mA VI = 3.1 to 15V 0.4 4 mV

Load Regulation IO = 0 to 3ATJ = 25°C 2 10 mV

= 0 to 3A 4 20 mV

Dropout Voltage IO =3 A 1.3 1.5 V

Quiescent Current VI ≤ 30V 5 10 mA

Short Circuit Current VI - VO = 5V 3.2 4.5 A

- VO = 25V 0.2 0.5 A

Thermal Regulation T

eN RMS Output Noise Voltage

(% of V

)

= 25°C, 30ms pulse 0.008 0.04 %/W

= 25 µF, IO = 3A

= 7.5 ± 3V

= 25°C f =10Hz to 10KHz 0.003 %

60 72 dB

S Temperature Stability 0.5 % S Long Term Stability TA = 125°C 1000Hrs 0.5 %

NOTE 1: Se e short-circuit curr ent curve for available output cur rent at fixed dropout.

3/19

Page 4

LD1085 SERIES

Table 5: Electrical Characteristics Of LD1085#18 (VI=4.8V, CI = CO =10µF, TA = -40 to 125°C, unless otherwise specified.)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO = 0 mA TJ = 25°C 1.782 1.8 1.818 V

= 0 to 5AVI = 3.4 to 30V (note 1) 1.764 1.8 1.836 V

∆V

SVR Supply Voltage Rejection f = 120 Hz, C

Line Regulation IO = 0 mA VI = 3.4 to 18V TJ = 25°C 0.2 4 mV

= 0 mA VI = 3.4 to 15V 0.4 4 mV

Load Regulation IO = 0 to 3ATJ = 25°C 2 10 mV

= 0 to 3A 4 20 mV

Dropout Voltage IO =3 A 1.3 1.5 V

Quiescent Current VI ≤ 30V 5 10 mA

Short Circuit Current VI - VO = 5V 3.2 4.5 A

- VO = 25V 0.2 0.5 A

Thermal Regulation T

eN RMS Output Noise Voltage

(% of V

)

= 25°C, 30ms pulse 0.008 0.04 %/W

= 25 µF, IO = 3A

= 7.5 ± 3V

= 25°C f =10Hz to 10KHz 0.003 %

60 72 dB

S Temperature Stability 0.5 % S Long Term Stability TA = 125°C 1000Hrs 0.5 %

NOTE 1: Se e short-circuit curr ent curve for available output cur rent at fixed dropout.

Table 6: Electrical Characteristics Of LD1085#25 (VI=5.5V, CI = CO =10µF, TA = -40 to 125°C, unless otherwise specified.)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO = 0 mA TJ = 25°C 2.475 2.5 2.525 V

= 0 to 3AVI = 4.1 to 30V (note 1) 2.45 2.5 2.55 V

∆V

SVR Supply Voltage Rejection f = 120 Hz, C

Line Regulation IO = 0 mA VI = 4.1 to 18V TJ = 25°C 0.2 4 mV

= 0 mA VI = 4.1 to 18V 0.4 4 mV

Load Regulation IO = 0 to 3ATJ = 25°C 2 10 mV

= 0 to 3A 4 20 mV

Dropout Voltage IO =3 A 1.3 1.5 V

Quiescent Current VI ≤ 30V 5 10 mA

Short Circuit Current VI - VO = 5V 3.2 4.5 A

- VO = 25V 0.2 0.5 A

Thermal Regulation T

eN RMS Output Noise Voltage

(% of V

)

= 25°C, 30ms pulse 0.008 0.04 %/W

= 25 µF, IO = 3A

= 7.5 ± 3V

= 25°C f =10Hz to 10KHz 0.003 %

60 72 dB

S Temperature Stability 0.5 % S Long Term Stability T

= 125°C 1000Hrs 0.5 %

NOTE 1: Se e short-circuit curr ent curve for available output cur rent at fixed dropout.

4/19

Page 5

LD1085 SERIES

Table 7: Electrical Characteristics Of LD1085#285 (VI=5.85V, CI = CO =10µF, TA = -40 to 125°C, unless otherwise specified.)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO = 0 mA TJ = 25°C 2.821 2.85 2.879 V

= 0 to 3AVI = 4.5 to 30V (note 1) 2.793 2.85 2.907 V

∆V

SVR Supply Voltage Rejection f = 120 Hz, C

Line Regulation IO = 0 mA VI = 4.5 to 18V TJ = 25°C 0.2 6 mV

= 0 mA VI = 4.5 to 18V 0.5 6 mV

Load Regulation IO = 0 to 3ATJ = 25°C 3 15 mV

= 0 to 3A 7 20 mV

Dropout Voltage IO =3 A 1.3 1.5 V

Quiescent Current VI ≤ 30V 5 10 mA

Short Circuit Current VI - VO = 5V 3.2 4.5 A

- VO = 25V 0.2 0.5 A

Thermal Regulation T

eN RMS Output Noise Voltage

(% of V

)

= 25°C, 30ms pulse 0.008 0.04 %/W

= 25 µF, IO = 3A

= 7.85 ± 3V

= 25°C f =10Hz to 10KHz 0.003 %

60 72 dB

S Temperature Stability 0.5 % S Long Term Stability TA = 125°C 1000Hrs 0.5 %

NOTE 1: Se e short-circuit curr ent curve for available output cur rent at fixed dropout.

Table 8: Electrical Characteristics Of LD1085#33 (VI=6.3V, CI = CO =10µF, TA = -40 to 125°C, unless otherwise specified.)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO = 0 mA TJ = 25°C 3.267 3.3 3.333 V

= 0 to 3AVI = 4.9 to 30V (note 1) 3.234 3.35 3.366 V

∆V

SVR Supply Voltage Rejection f = 120 Hz, C

Line Regulation IO = 0 mA VI = 4.9 to 18V TJ = 25°C 0.5 6 mV

= 0 mA VI = 4.9 to 18V 1 6 mV

Load Regulation IO = 0 to 3ATJ = 25°C 3 15 mV

= 0 to 3A 7 20 mV

Dropout Voltage IO =3 A 1.3 1.5 V

Quiescent Current VI ≤ 30V 5 10 mA

Short Circuit Current VI - VO = 5V 3.2 4.5 A

- VO = 25V 0.2 0.5 A

Thermal Regulation T

eN RMS Output Noise Voltage

(% of V

)

= 25°C, 30ms pulse 0.008 0.04 %/W

= 25 µF, IO = 5A

= 8.3 ± 3V

= 25°C f =10Hz to 10KHz 0.003 %

60 72 dB

S Temperature Stability 0.5 % S Long Term Stability T

= 125°C 1000Hrs 0.5 %

NOTE 1: Se e short-circuit curr ent curve for available output cur rent at fixed dropout.

5/19

Page 6

LD1085 SERIES

Table 9: Electrical Characteristics Of LD1085#36 (VI=6.6V, CI = CO =10µF, TA = -40 to 125°C, unless otherwise specified.)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO = 0 mA TJ = 25°C 3.564 3.6 3.636 V

= 0 to 3AVI = 5.2 to 30V (note 1) 3.528 3.6 3.672 V

∆V

SVR Supply Voltage Rejection f = 120 Hz, C

Line Regulation IO = 0 mA VI = 5.2 to 18V TJ = 25°C 0.5 10 mV

= 0 mA VI = 5.2 to 18V 1 10 mV

Load Regulation IO = 0 to 3ATJ = 25°C 3 15 mV

= 0 to 3A 7 20 mV

Dropout Voltage IO =3 A 1.3 1.5 V

Quiescent Current VI ≤ 30V 5 10 mA

Short Circuit Current VI - VO = 5V 3.2 4.5 A

- VO = 25V 0.2 0.5 A

Thermal Regulation T

eN RMS Output Noise Voltage

(% of V

)

= 25°C, 30ms pulse 0.008 0.04 %/W

= 25 µF, IO = 3A

= 8.6 ± 3V

= 25°C f =10Hz to 10KHz 0.003 %

60 72 dB

S Temperature Stability 0.5 % S Long Term Stability TA = 125°C 1000Hrs 0.5 %

NOTE 1: Se e short-circuit curr ent curve for available output cur rent at fixed dropout.

Table 10: Electrical Characteristics Of LD1085#50 (VI=8V, CI = CO =10µF, TA = -40 to 125°C, unless otherwise specified.)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO = 0 mA TJ = 25°C 4.95 5 5.05 V

= 0 to 3AVI = 6.6 to 30V (note 1) 4.9 5 5.1 V

∆V

SVR Supply Voltage Rejection f = 120 Hz, C

Line Regulation IO = 0 mA VI = 6.6 to 20V TJ = 25°C 0.5 10 mV

= 0 mA VI = 6.6 to 20V 1 10 mV

Load Regulation IO = 0 to 3ATJ = 25°C 5 10 mV

= 0 to 3A 10 35 mV

Dropout Voltage IO =3 A 1.3 1.5 V

Quiescent Current VI ≤ 30V 5 10 mA

Short Circuit Current VI - VO = 5V 3.2 4.5 A

- VO = 25V 0.2 0.5 A

Thermal Regulation T

eN RMS Output Noise Voltage

(% of V

)

= 25°C, 30ms pulse 0.008 0.04 %/W

= 25 µF, IO = 3A

= 10 ± 3V

= 25°C f =10Hz to 10KHz 0.003 %

60 72 dB

S Temperature Stability 0.5 % S Long Term Stability T

= 125°C 1000Hrs 0.5 %

NOTE 1: Se e short-circuit curr ent curve for available output cur rent at fixed dropout.

6/19

Page 7

LD1085 SERIES

Table 11: Electrical Characteristics Of LD1085#80 (VI=11V, CI = CO =10µF, TA = -40 to 125°C, unless otherwise specified.)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO = 0 mA TJ = 25°C 7.92 8 8.08 V

= 0 to 3AVI = 9.8 to 30V (note 1) 7.84 8 8.16 V

∆V

SVR Supply Voltage Rejection f = 120 Hz, C

Line Regulation IO = 0 mA VI = 9.8 to 20V TJ = 25°C 1 18 mV

= 0 mA VI = 9.8 to 20V 2 18 mV

Load Regulation IO = 0 to 3ATJ = 25°C 8 30 mV

= 0 to 3A 12 60 mV

Dropout Voltage IO =3 A 1.3 1.5 V

Quiescent Current VI ≤ 30V 5 10 mA

Short Circuit Current VI - VO = 5V 3.2 4.5 A

- VO = 25V 0.2 0.5 A

Thermal Regulation T

eN RMS Output Noise Voltage

(% of V

)

= 25°C, 30ms pulse 0.008 0.04 %/W

= 25 µF, IO = 3A

= 13 ± 3V

= 25°C f =10Hz to 10KHz 0.003 %

54 71 dB

S Temperature Stability 0.5 % S Long Term Stability TA = 125°C 1000Hrs 0.5 %

NOTE 1: Se e short-circuit curr ent curve for available output cur rent at fixed dropout.

Table 12: Electrical Characteristics Of LD1085#90 (VI=12V, CI = CO =10µF, TA = -40 to 125°C, unless otherwise specified.)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO = 0 mA TJ = 25°C 8.91 9 9.09 V

= 0 to 3AVI = 11 to 30V (note 1) 8.82 9 9.18 V

∆V

SVR Supply Voltage Rejection f = 120 Hz, C

Line Regulation IO = 0 mA VI = 11 to 20V TJ = 25°C 1 20 mV

= 0 mA VI = 11 to 20V 2 20 mV

Load Regulation IO = 0 to 3ATJ = 25°C 8 30 mV

= 0 to 3A 12 60 mV

Dropout Voltage IO =3 A 1.3 1.5 V

Quiescent Current VI ≤ 30V 5 10 mA

Short Circuit Current VI - VO = 5V 3.2 4.5 A

- VO = 25V 0.2 0.5 A

Thermal Regulation T

eN RMS Output Noise Voltage

(% of V

)

= 25°C, 30ms pulse 0.008 0.04 %/W

= 25 µF, IO = 3A

= 14 ± 3V

= 25°C f =10Hz to 10KHz 0.003 %

54 70 dB

S Temperature Stability 0.5 % S Long Term Stability T

= 125°C 1000Hrs 0.5 %

NOTE 1: Se e short-circuit curr ent curve for available output cur rent at fixed dropout.

7/19

Page 8

LD1085 SERIES

Table 13: Electrical Characteristics Of LD1085#12 (VI=15V, CI = CO =10µF, TA = -40 to 125°C, unless otherwise specified.)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO = 0 mA TJ = 25°C 11.88 12 1 2.12 V

= 0 to 3AVI = 13.8 to 30V (note 1) 11.76 12 12.24 V

∆V

SVR Supply Voltage Rejection f = 120 Hz, C

Line Regulation IO = 0 mA VI = 13.8 to 25V TJ = 25°C 1 25 mV

= 0 mA VI = 13.8 to 25V 2 25 mV

Load Regulation IO = 0 to 3ATJ = 25°C 12 36 mV

= 0 to 3A 24 72 mV

Dropout Voltage IO =3 A 1.3 1.5 V

Quiescent Current VI ≤ 30V 5 10 mA

Short Circuit Current VI - VO = 5V 3.2 4.5 A

- VO = 25V 0.2 0.5 A

Thermal Regulation T

eN RMS Output Noise Voltage

(% of V

)

= 25°C, 30ms pulse 0.008 0.04 %/W

= 25 µF, IO = 3A

= 17 ± 3V

= 25°C f =10Hz to 10KHz 0.003 %

54 66 dB

S Temperature Stability 0.5 % S Long Term Stability TA = 125°C 1000Hrs 0.5 %

NOTE 1: Se e short-circuit curr ent curve for available output cur rent at fixed dropout.

Table 14: Electrical Characteristics Of LD1085# (VI=4.25V, CI = CO =10µF, TA = -40 to 125°C, unless otherwise specified.)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO = 10mA TJ = 25°C 1.237 1.25 1.263 V

= 10mA to 5AVI = 2.85 to 30V (note 1) 1.225 1.25 1.275 V

∆V

O(min)

SVR Supply Voltage Rejection f = 120 Hz, C

∆I

NOTE 1: Se e short-circuit curr ent curve for available output cur rent at fixed dropout.

Line Regulation IO = 10mA VI = 2.85 to 16.5V TJ = 25°C 0.015 0.2 %

= 10mA VI = 2.85 to 16.5V 0.035 0.2 %

Load Regulation IO = 10mA to 5ATJ = 25°C 0.1 0.3 %

= 0 to 5A 0.2 0.4 %

Dropout Voltage IO = 5A 1.3 1.5 V

Minimum Load Current VI = 30V 3 10 mA Short Circuit Current VI - VO = 5V 5.5 6.5 A

- VO = 25V 0.5 0.7 A

Thermal Regulation T

Adjust Pin Current VI = 4.25V IO = 10 mA 55 120 µA

ADJ

Adjust Pin Current Change IO = 10mA to 5A VI = 2.85 to 16.5V

ADJ

= 25°C, 30ms pulse 0.003 0.015 %/W

= 25 µF, C

= 5A VI = 6.25 ± 3V

ADJ

= 25 µF,

60 72 dB

0.2 5 µA (note 1) T

eN RMS Output Noise Voltage

(% of V

)

= 25°C f =10Hz to 10KHz 0.003 %

S Temperature Stability 0.5 % S Long Term Stability T

= 125°C 1000Hrs 0.5 %

8/19

Page 9

LD1085 SERIES

TYPICAL CHARACT ERISTI CS

(unless otherwi se specified Tj = 25°C, CI=CO=10µF)

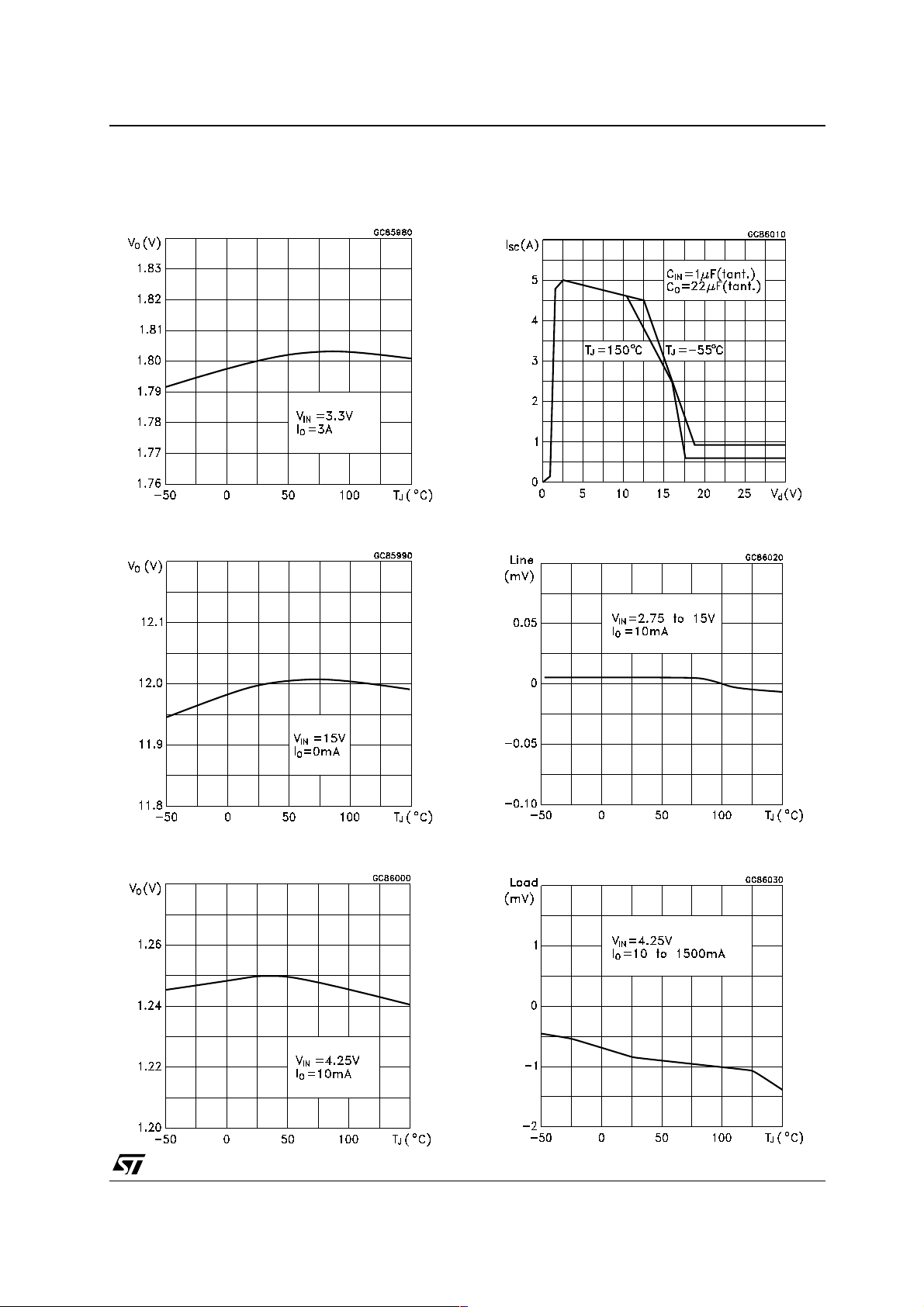

Figure 4: Output Voltage vs Temperature

Figure 5: Output Voltage vs Temperature

Figure 7: Short Circuit Current vs Dropout

Voltage

Figure 8: Line Regulation vs Temperature

Figure 6: Output Voltage vs Temperature

Figure 9: Load Regulation vs Tempe rature

9/19

Page 10

LD1085 SERIES

Figure 10: Dropout Voltage vs Temperature

Figure 11: Dropout Voltage vs Output Current

Figure 13: Quiescent Current vs Temperature

Figure 14: Dropout Voltage vs Output Current

Figure 12: Adjust Pin Current vs Temperature

10/19

Figure 15: Supply Voltage Rejection vs Output Cur rent

Page 11

LD1085 SERIES

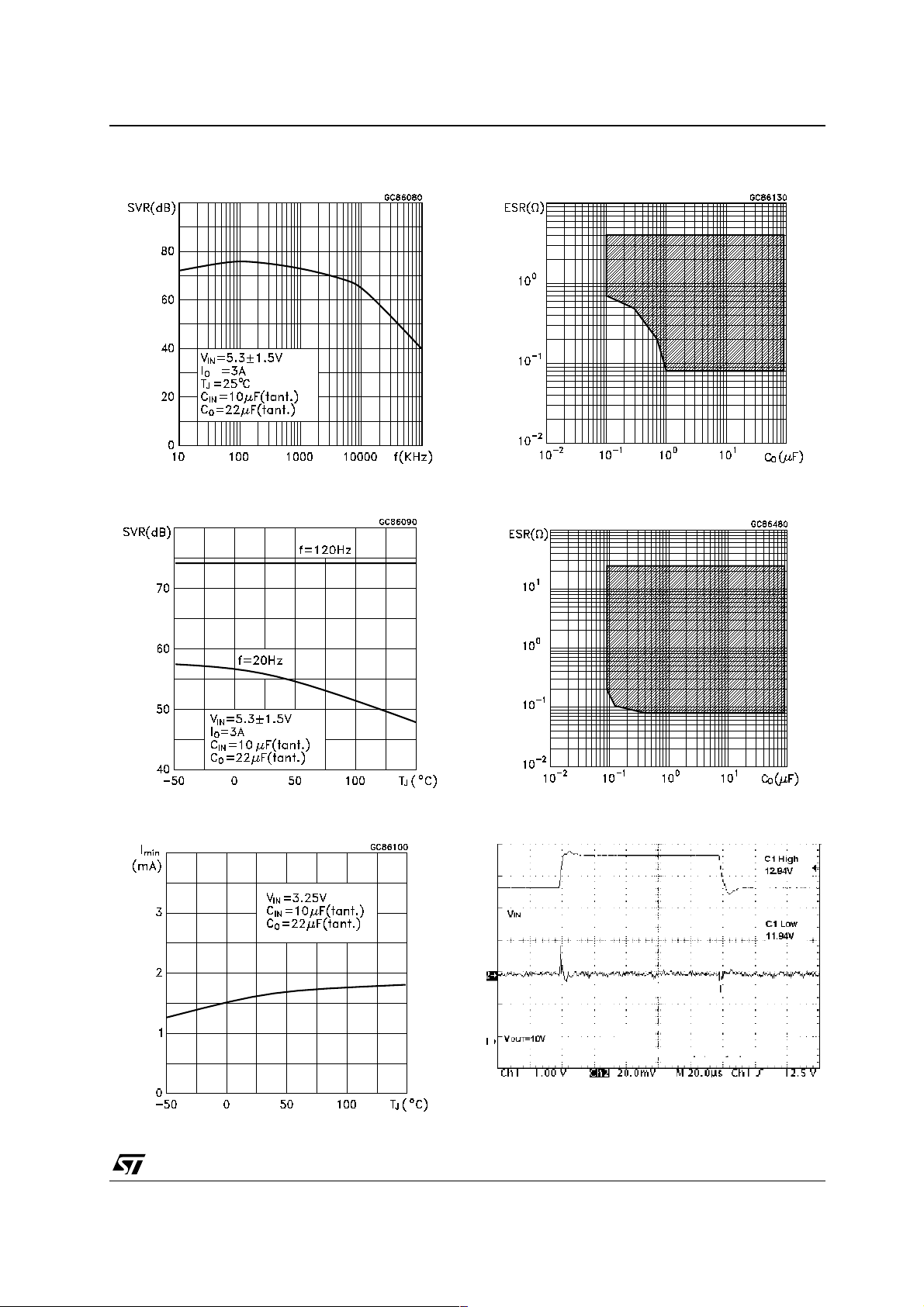

Figure 16: Supply Voltage Rejection vs

Frequency

Figure 17: Supply Voltage Rejection vs Temperature

Figure 19: Stability

Figure 20: Stability

Figure 18: Minimum Load Current vs

Temperature

Figure 21: Line Transient

VI=12 to 13V, IO=200mA, CI = 1µF(tant), CO=10µF(tant), C

= 1µF

ADJ

11/19

Page 12

LD1085 SERIES

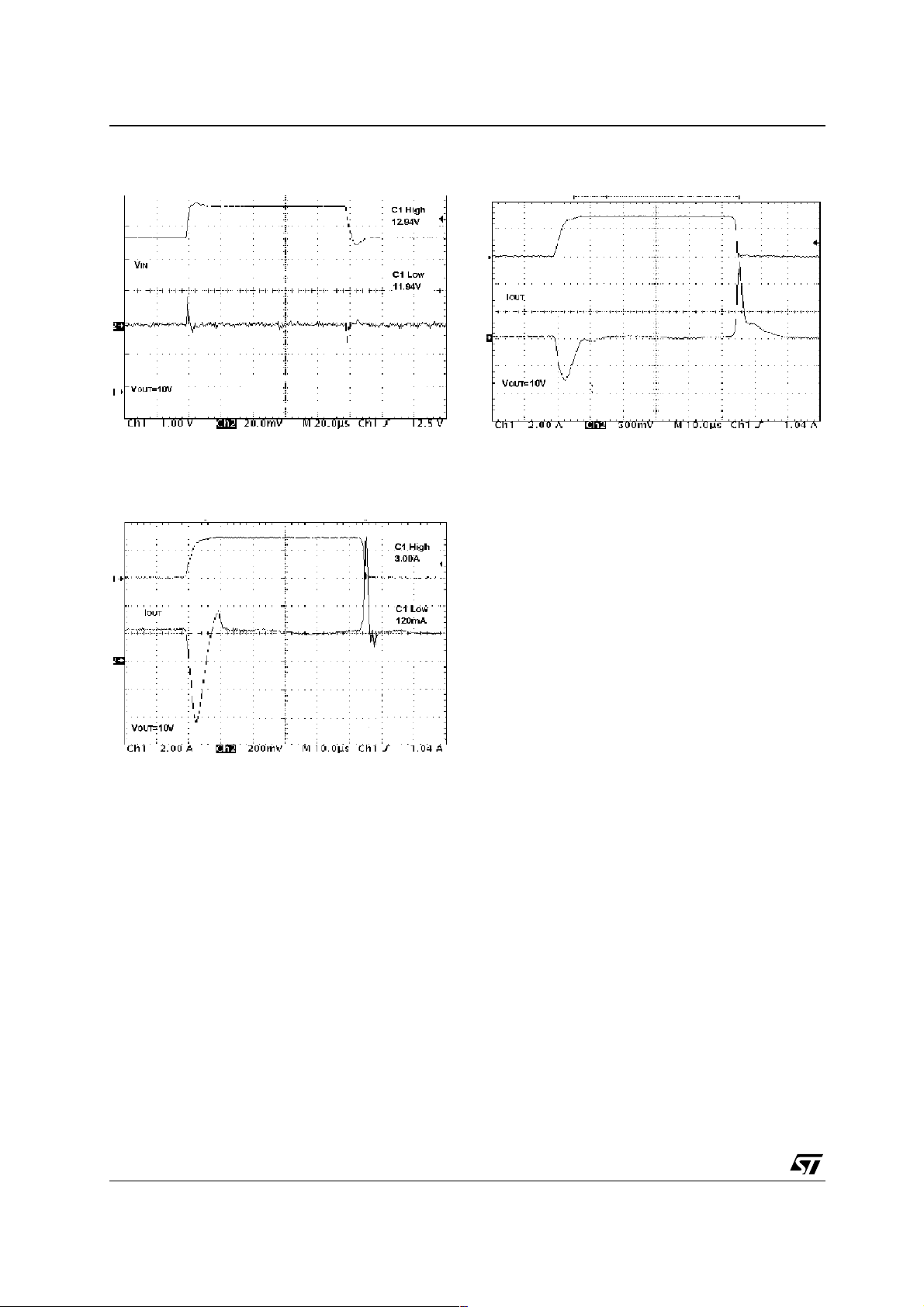

Figure 22: Line Transient

VI=12 to 13V, IO=200mA, CI = 1µF(tant), CO=10µF(tant), C

=1µF

ADJ

Figure 23: Load Transient

Figure 24: Load Transient

VI=12 V, IO=0.12 to 3 A, CI = 1µF(tant), CO=10µF(tant) C

=1µF

ADJ

VI=12 V, IO=0.12 to 3 A, CI = 1µF(tant), CO=10µF(tant) C

=1µF

ADJ

12/19

Page 13

LD1085 SERIES

TO-220 MECHANICAL DAT

DIM.

A 4.40 4.60 0.173 0.181 C 1.23 1.32 0.048 0.051 D 2.40 2.72 0.094 0.107

D1 1.27 0.050

E 0.49 0.70 0.019 0.027

F 0.61 0.88 0.024 0.034 F1 1.14 1.70 0.044 0.067 F2 1.14 1.70 0.044 0.067

G 4.95 5.15 0.194 0.203

G1 2.4 2.7 0.094 0.106

H2 10.0 10.40 0.393 0.409

L2 16.4 0.645 L4 13.0 14.0 0.511 0.551 L5 2.65 2.95 0.104 0.116 L6 15.25 15.75 0.600 0.620 L7 6.2 6.6 0.244 0.260 L9 3.5 3.93 0.137 0.154

DIA. 3.75 3.85 0.147 0.151

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

P011C

13/19

Page 14

LD1085 SERIES

TO-220FP MECHANICAL DATA

DIM.

A 4.40 4.60 0.173 0.181 B 2.5 2.7 0.098 0.106

D 2.5 2.75 0.098 0.108

E 0.45 0.70 0.017 0.027

F 0.75 1 0.030 0.039 F1 1.15 1.50 0.045 0.059 F2 1.15 1.50 0.045 0.059

G 4.95 5.2 0.194 0.204

G1 2.4 2.7 0.094 0.106

H 10.0 10.40 0.393 0.409 L2 16 0.630 L3 28.6 30.6 1.126 1.204 L4 9.8 10.6 0.385 0.417 L5 2.9 3.6 0.114 0.142 L6 15.9 16.4 0.626 0.645 L7 9 9.3 0.354 0.366

DIA. 3 3.2 0.118 0.126

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

14/19

7012510A-H

Page 15

LD1085 SERIES

D2PAK MEC

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 4.4 4.6 0.173 0.181 A1 2.49 2.69 0.098 0.106 A2 0.03 0.23 0.001 0.009

B 0.7 0.93 0.027 0.036 B2 1.14 1.7 0.044 0.067

C 0.45 0.6 0.017 0.023 C2 1.23 1.36 0.048 0.053

D 8.95 9.35 0.352 0.368 D1 8 0.315

E 10 10.4 0.393 0.409 E1 8.5 0.335

G 4.88 5.28 0.192 0.208

L 15 15.85 0.590 0.624 L2 1.27 1.4 0.050 0.055 L3 1.4 1.75 0.055 0.068

M 2.4 3.2 0.094 0.126

R 0.4 0.016

V2 0˚ 8˚ 0˚ 8˚

HANICAL DATA

P011P6G

15/19

Page 16

LD1085 SERIES

D2PAK/A MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 4.40 4.60 0.173 0.181 A1 2.49 2.69 0.098 0.106 A2 0.03 0.23 0.001 0.009

B 0.7 0.93 0.028 0.037 B1 0.8 1.3 0.031 0.051 B2 1.14 1.7 0.045 0.067

C 0.45 0.60 0.018 0.024 C2 1.23 1.36 0.048 0.054

D 8.95 9.35 0.352 0.368 D1 8 0.315

E 10 10.4 0.394 0.409 E1 8.5 0.335

G 4.88 5.28 0.192 0.208

L 15 15.85 0.591 0.624

L2 1.27 1.4 0.050 0.055

M 2.4 3.2 0.094 0.126

R 0.4 0.016 V2 0° 8° 0° 8°

16/19

7106164/D

Page 17

LD1085 SERIES

Tape & Reel D

DIM.

A 180 7.086

C 12.8 13.0 13.2 0.504 0.512 0.519

D 20.2 0.795

N 60 2.362

T 14.4 0.567 Ao 10.50 10.6 10.70 0.413 0.417 0.421 Bo 15.70 15.80 15.90 0.618 0.622 0.626 Ko 4.80 4.90 5.00 0.189 0.193 0.197 Po 3.9 4.0 4.1 0.153 0.157 0.161

P 11.9 12.0 12.1 0.468 0.472 0.476

PAK-P2PAK-D2PAK/A-P2PAK/A MECHANICAL DATA

mm. inch

MIN. TYP MAX. MIN. TYP. MAX.

17/19

Page 18

LD1085 SERIES

Table 15: Revision History

Date Revision D escrip tion of Change s

07-Oct-2004 12 Mistake Order Codes - Table 1. 08-Feb-2005 13 Mistake U.M. Load Regulation - V ==> mV. 01-Mar-2005 14 Version 1.2V removed.

18/19

Page 19

LD1085 SERIES

Information furnished is believed to be accurate an d reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implic ati o n or ot h er wis e und er an y pat ent or pa te nt r igh ts of STMi cr oe l ect ro ni cs . Sp ec if i cat i on s ment i o ned i n th is p ub li c ati on ar e s ubj ec t to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.

The ST logo is a registered trademark of STMicroelectronics

All other names are the property of their respective owners

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

19/19
