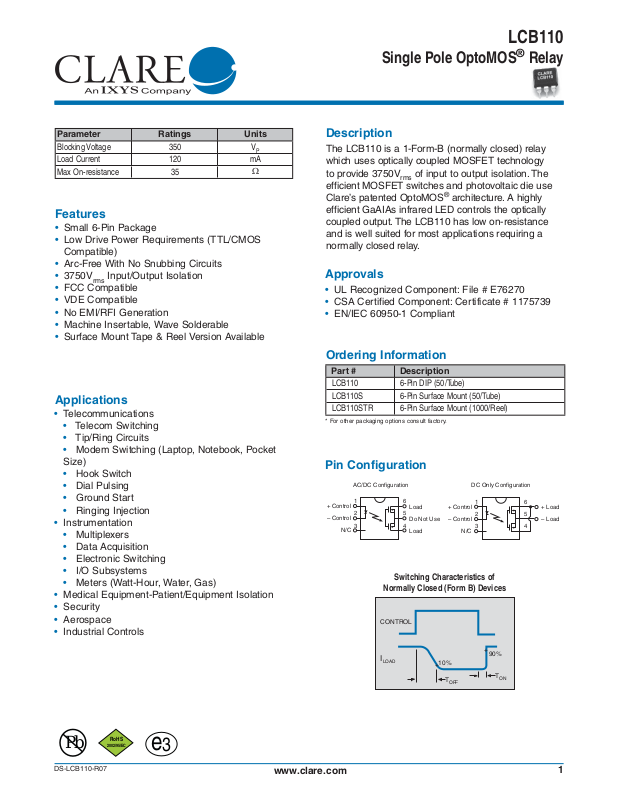

Page 1

LCB110

Single Pole OptoMOS® Relay

Parameter Ratings Units

Blocking Voltage 350 V

Load Current 120 mA

Max On-resistance 35

Features

• Small 6-Pin Package

• Low Drive Power Requirements (TTL/CMOS

Compatible)

• Arc-Free With No Snubbing Circuits

• 3750V

Input/Output Isolation

rms

• FCC Compatible

• VDE Compatible

• No EMI/RFI Generation

• Machine Insertable, Wave Solderable

• Surface Mount Tape & Reel Version Available

Applications

• Telecommunications

• Telecom Switching

• Tip/Ring Circuits

• Modem Switching (Laptop, Notebook, Pocket Size)

• Hook Switch

• Dial Pulsing

• Ground Start

• Ringing Injection

• Instrumentation

• Multiplexers

• Data Acquisition

• Electronic Switching

• I/O Subsystems

• Meters (Watt-Hour, Water, Gas)

• Medical Equipment-Patient/Equipment Isolation

• Security

• Aerospace

• Industrial Controls

Description

The LCB110 is a 1-Form-B (normally closed) relay which uses optically coupled MOSFET technology to provide 3750V

of input to output isolation. The

rms

efficient MOSFET switches and photovoltaic die use Clare’s patented OptoMOS® architecture. A highly efficient GaAIAs infrared LED controls the optically coupled output. The LCB110 has low on-resistance and is well suited for most applications requiring a normally closed relay.

Approvals

• UL Recognized Component: File # E76270

• CSA Certified Component: Certificate # 1175739

• EN/IEC 60950-1 Compliant

Ordering Information

Part # Description

LCB110 6-Pin DIP (50/Tube)

LCB110S 6-Pin Surface Mount (50/Tube)

LCB110STR 6-Pin Surface Mount (1000/Reel)

* For other packaging options consult factory.

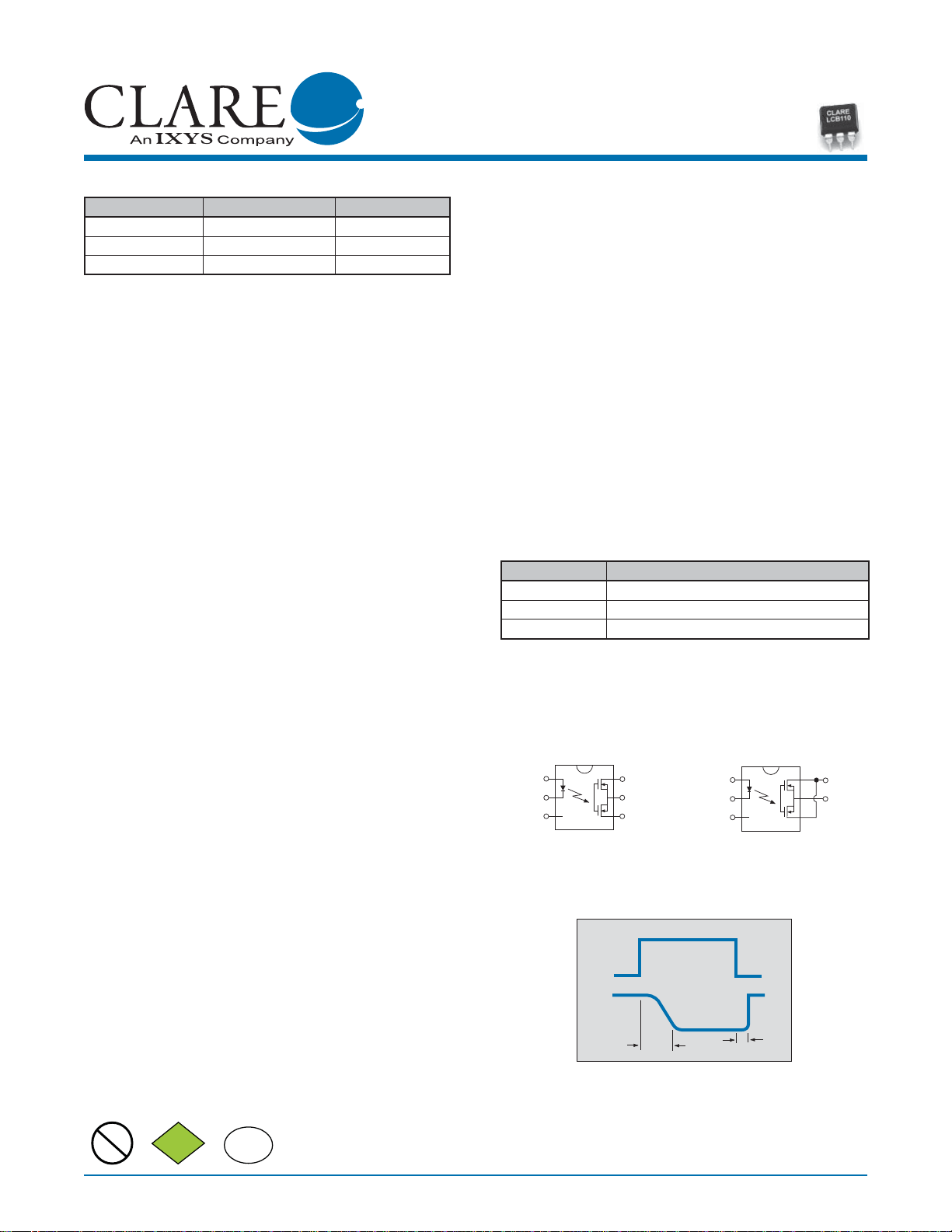

Pin Configuration

+ Control

– Control

N/C

AC/DC Configuration

Load

Do Not Use

Load

Switching Characteristics of

Normally Closed (Form B) Devices

CONTROL

DC Only Configuration

+ Control

– Control

N/C

+ Load

– Load

DS-LCB110-R07

RoHS

2002/95/EC

www.clare.com

LOAD

10%

90%

OFF

Page 2

LCB110

Absolute Maximum Ratings

Parameter Ratings Units

Blocking Voltage 350 V

Reverse Input Voltage 5 V

Input Control Current 50 mA

Peak (10ms) 1 A

Input Power Dissipation

Total Power Dissipation

Isolation voltage Input to Output 3750 V

150 mW

800 mW

rms

Operational Temperature -40 to +85 °C

Storage Temperature -40 to +125 °C

Derate Linearly 3.33 mw / ºC

Derate Linearly 6.67 mw / ºC

Electrical absolute maximum ratings are at 25°C

Electrical Characteristics

Parameter Conditions Symbol Min Typ Max Units

Output Characteristics @ 25°C

Load Current Continuous

AC/DC Conﬁ guration

DC Conﬁ guration 200

Peak Load Current t=10ms I

On-Resistance

AC/DC Conﬁ guration IL=120mA

DC Conﬁ guration IL=200mA - 7 10

Off-State Leakage Current I

Switching Speeds

Turn-On

Turn-Off t

Output Capacitance IF=5mA, 50V, f=1MHz C

Input Characteristics @ 25°C

Input Control Current IL=120mA I

Input Dropout Current - I

Input Voltage Drop IF=5mA V

Reverse Input Current VR=5V I

Common Characteristics @ 25°C

Input to Output Capacitance - C

-I

=5mA, VL=350V

=5mA, VL=10V

Absolute Maximum Ratings are stress ratings. Stresses in excess of these ratings can cause permanent damage to the device. Functional operation of the device at conditions beyond those indicated in the operational sections of this data sheet is not implied.

LEAK

OFF

OUT

I/O

- - 350 mA

-2335

--1μA

- 0.38 3

- 0.93 3

-25 -pF

--5mA

0.4 0.7 - mA

0.9 1.2 1.4 V

--10μA

-3 -pF

120

www.clare.com

R07

Page 3

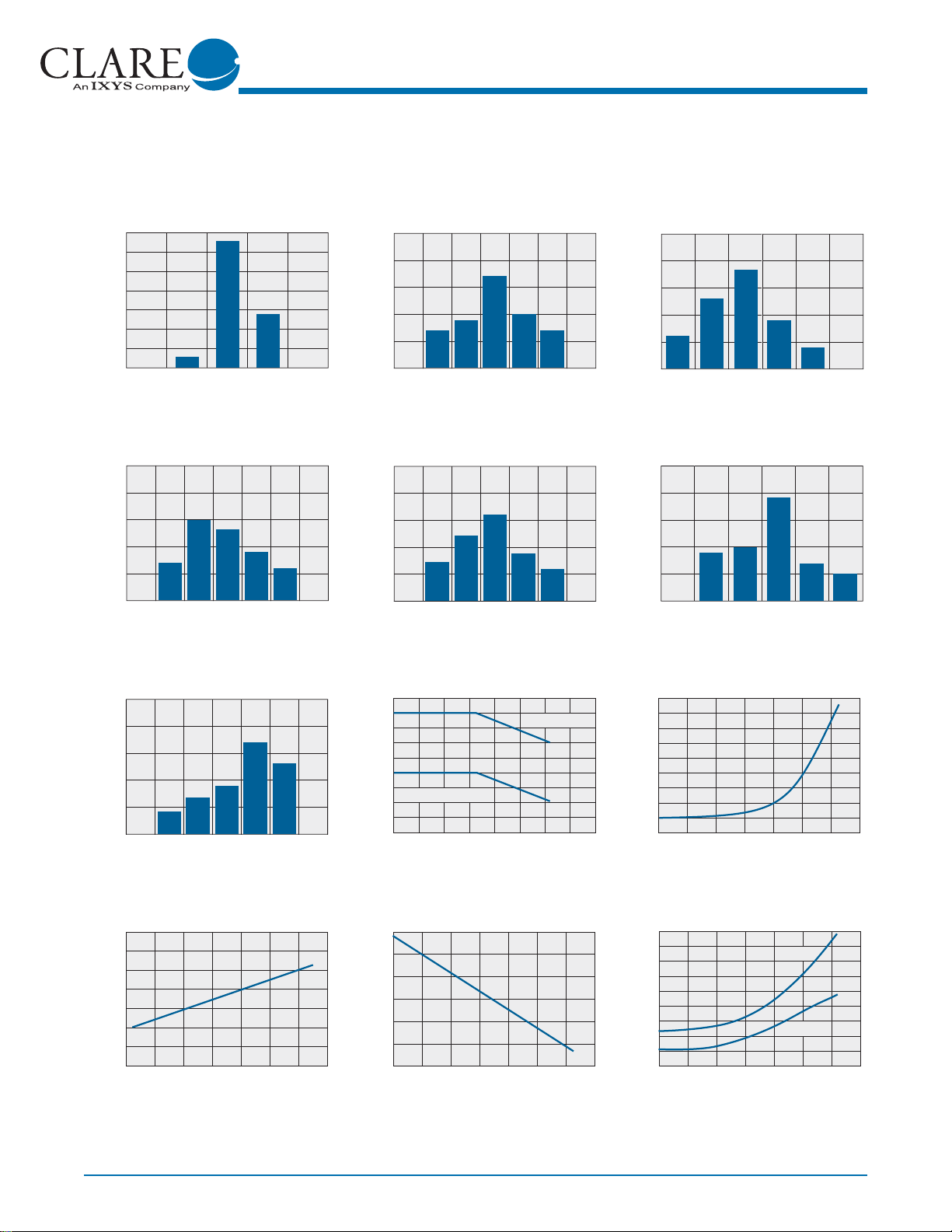

PERFORMANCE DATA*

LCB110

Typical LED Forward Voltage Drop

LCB110

Device Count (N)

(N=50, TA=25ºC, IF=5mA)

1.17 1.19 1.21 1.23 1.25

LED Forward Voltage Drop (V)

LCB110

Typical IF for Switch Operation

(N=50, TA=25ºC, IL=120mADC)

Device Count (N)

0.45 0.55 0.65 0.750.50 0.60 0.70

LED Current (mA)

LCB110

Typical Turn-Off Time

(N=50, TA=25ºC, IL=120mADC, IF=5mA)

Device Count (N)

0.80 0.90 1.050.75 0.85 0.95

Turn-Off (ms)

1.0

Typical On-Resistance Distribution

LCB110

(N=50, TA=25ºC, IL=120mADC)

Device Count (N)

22.4 23.0 23.6 24.222.7 23.3 23.9

On-Resistance (Ω)

LCB110

Typical IF for Switch Dropout

(N=50, TA=25ºC, IL=120mADC)

Device Count (N)

0.40 0.50 0.60 0.700.45 0.55 0.65

LED Current (mA)

LCB110

Typical Load Current vs. Temperature

220

200

180

160

140

120

100

AC/DC Configuration

Load Current (mA)

-40 -20 0 20 40 60 80 120100

(IF=0mA)

DC Co

Temperature (ºC)

nfiguration

Typical Blocking Voltage Distribution

LCB110

Device Count (N)

(N=50, TA=25ºC, IF=5mA)

370 375 380 385 390 395

Blocking Voltage (V

LCB110

Typical Turn-On Time

(N=50, TA=25ºC, IL=120mADC, IF=5mA)

Device Count (N)

0.18

0.25 0.39 0.530.32 0.46

Turn-On (ms)

LCB110

Typical Leakage vs. Temperature

(Measured Across Pins 4&6)

0.045

0.040

0.035

0.030

0.025

0.020

0.015

Leakage (μA)

0.010

0.005

-40

(VL=350V, IF=5mA)

-20 0 20 40 60 80 100

Temperature (ºC)

)

Typical Blocking Voltage vs. Temperature

LCB110

400

395

)

390

385

380

375

Blocking Voltage (V

370

365

-40

-20 0 20 40 60 80 100

(IF=5mA)

Temperature (ºC)

Typical Turn-On vs. Temperature

LCB110

0.6

0.5

0.4

0.3

0.2

Turn-On (ms)

0.1

-40

(IL=120mADC)

-20 0 20 40 60 80 100

Temperature (ºC)

=5mA

Typical Turn-Off vs. Temperature

2.0

1.8

1.6

1.4

1.2

1.0

0.8

Turn-Off (ms)

0.6

0.4

-40

-20 0 20 40 60 80 100

LCB110

(IL=120mADC)

IF=5mA

IF=10mA

Temperature (ºC)

*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written speciﬁ cations, please contact our application department.

R07

www.clare.com

Page 4

LCB110

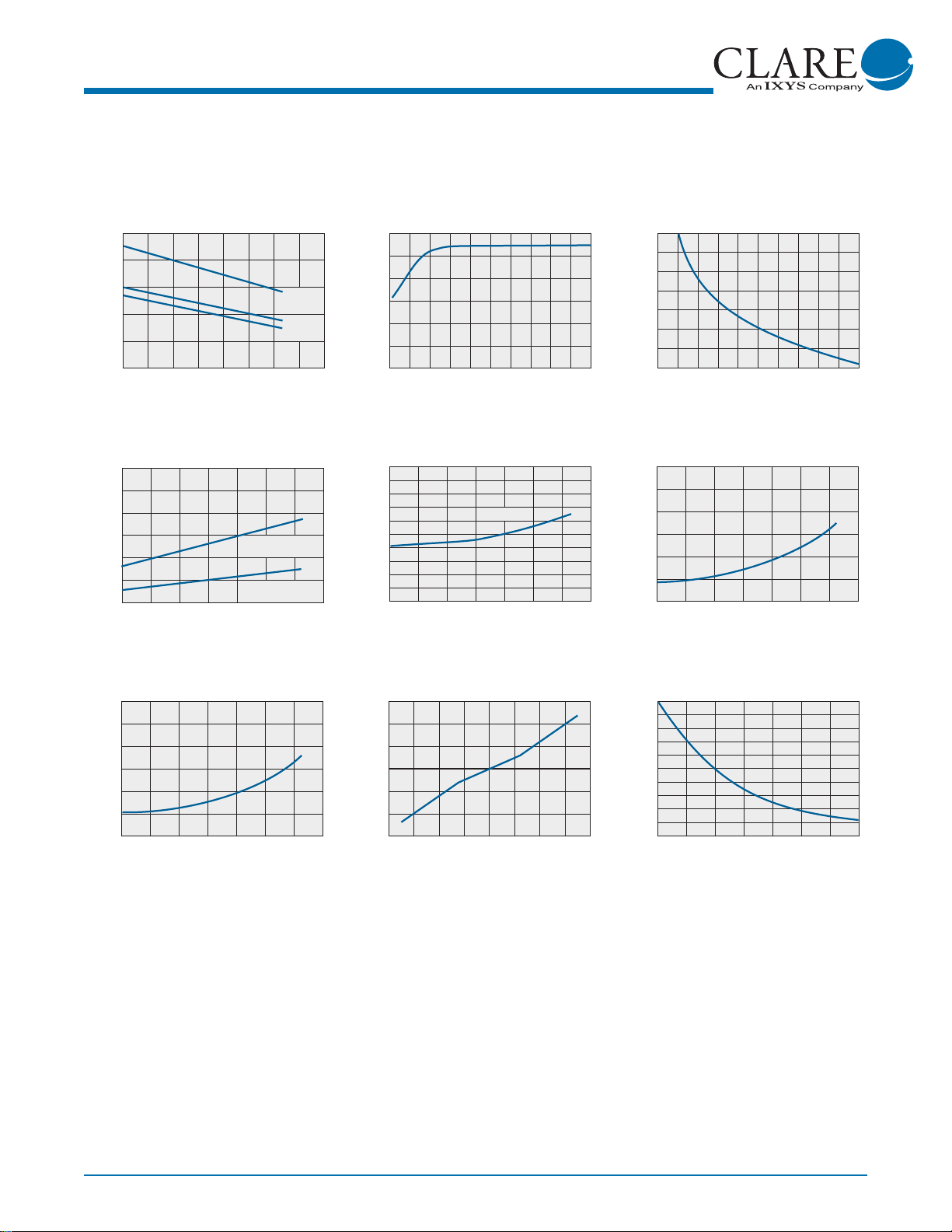

PERFORMANCE DATA*

Typical LED Forward Voltage Drop

LCB110

1.8

1.6

1.4

1.2

1.0

0.8

LED Forward Voltage Drop (V)

-40 -20 0 20 40 60 80 120100

vs. Temperature

Temperature (ºC)

LCB110

Typical On-Resistance vs. Temperature

On-Resistance (Ω)

-40

(IL=120mADC)

AC/DC Configuration

DC Configuration

-20 0 20 40 60 80 100

Temperature (ºC)

LCB110

Typical IF for Switch Operation

vs. Temperature

3.0

2.5

2.0

1.5

1.0

LED Current (mA)

0.5

-40

(IL=120mADC)

-20 0 20 40 60 80 100

Temperature (ºC)

=50mA

=10mA

=5mA

Typical Turn-On vs. LED Forward Current

LCB110

0.30

0.25

0.20

0.15

0.10

Turn-On (ms)

0.05

5 1015202530354045

(IL=120mADC)

LED Forward Current (mA)

LCB110

Typical On-Resistance vs. Temperature

50 45 40 35 30 25 20 15

On-Resistance (Ω)

5 0

-40

-20 0 20 40 60 80 100

(IL=100mA)

Instantaneous

Temperature (ºC)

LCB110

Typical Load Current vs. Load Voltage

150

100

-50

Load Current (mA)

-100

-150

-4 -3 -2 -1 1 2 304

(TA=25ºC)

Load Voltage (V)

Typical Turn-Off vs. LED Forward Current

LCB110

0.7

0.6

0.5

0.4

0.3

Turn-Off (ms)

0.2

0.1

5 1015202530354045

(IL=120mADC)

LED Forward Current (mA)

LCB110

Typical IF for Switch Dropout

vs. Temperature

3.0

2.5

2.0

1.5

1.0

LED Current (mA)

0.5

-40

(IL=120mADC)

-20 0 20 40 60 80 100

Temperature (ºC)

LCB110

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

Load Current (A)

0.2

0.1 0

10μs 1ms 100ms 10s100μs 10ms 1s 100s

Energy Rating Curve

Time

*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written speciﬁ cations, please contact our application department.

www.clare.com

R07

Page 5

Manufacturing Information

Soldering

For proper assembly, the component must be processed in accordance with the current revision of IPC/JEDEC standard J-STD-020. Failure to follow the recommended guidelines may cause permanent damage to the device resulting in impaired performance and/or a reduced lifetime expectancy.

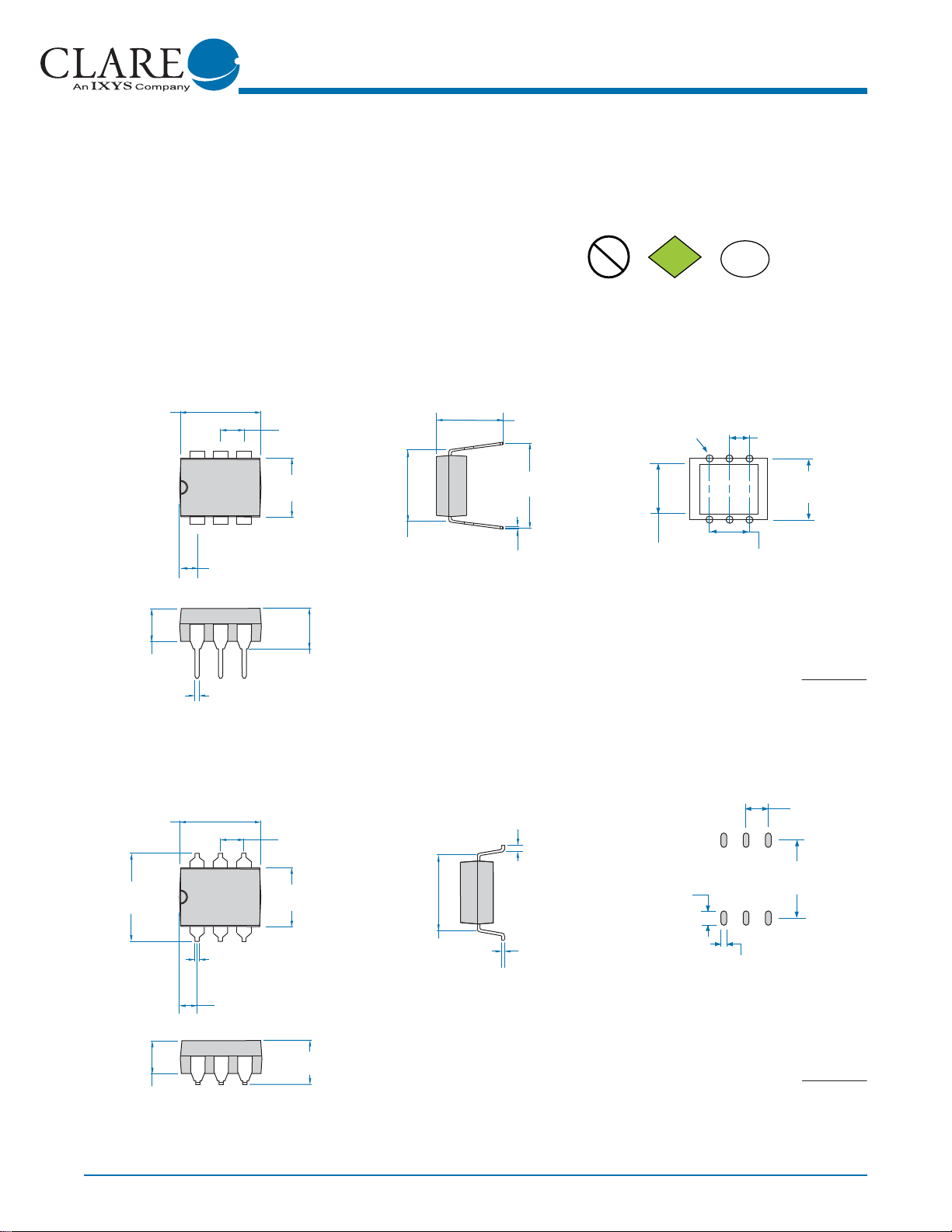

MECHANICAL DIMENSIONS

LCB110

Washing

Clare does not recommend ultrasonic cleaning or the use of chlorinated solvents.

RoHS

2002/95/EC

6-Pin DIP Thru-Hole Package

8.382 ± 0.381

(0.330 ± 0.015)

3.302 ± 0.051

(0.130 ± 0.002)

1.651 ± 0.254

(0.065 ± 0.010)

0.457 ± 0.076

(0.018 ± 0.003)

2.54 ± 0.127

(0.100 ± 0.005)

6.350 ± 0.127

(0.250 ± 0.005)

4.064 TYP

(0.160 TYP)

7.620 ± 0.254

(0.300 ± 0.010)

6-Pin Surface Mount Package (”S” Suffix)

8.382 ± 0.381

(0.330 ± 0.015)

9.524 ± 0.508

(0.375 ± 0.020)

2.54 ± 0.127

(0.100 ± 0.005)

6.350 ± 0.127

(0.250 ± 0.005)

7.239 TYP

(0.285 TYP)

9.144 ± 0.508

(0.360 ± 0.020)

0.254 TYP

(0.010 TYP)

0.635 ± 0.127

(0.025 ± 0.005)

PC Board Pattern

6 - 0.800 DIA.

(6 - 0.031 DIA.)

6.350 ± 0.127

(0.250 ± 0.005)

2.540 ± 0.127

(0.100 ± 0.005)

7.620 ± 0.127

(0.300 ± 0.005)

5.080 ± 0.127

(0.200 0.005)

Dimensions

(inches)

Recommended PCB Land Pattern

2.54

(0.10)

8.90

1.65

(0.0649)

(0.3503)

3.302 ± 0.051

(0.130 ± 0.002)

R07

0.457 ± 0.076

(0.018 ± 0.003)

1.651 ± 0.254

(0.065 ± 0.010)

4.445 ± 0.254

(0.175 ± 0.010)

7.620 ± 0.254

(0.300 ± 0.010)

www.clare.com

0.254 ± 0.0127

(0.010 ± 0.0005)

0.65

(0.0255)

Dimensions

(inches)

Page 6

MECHANICAL DIMENSIONS (Cont.)

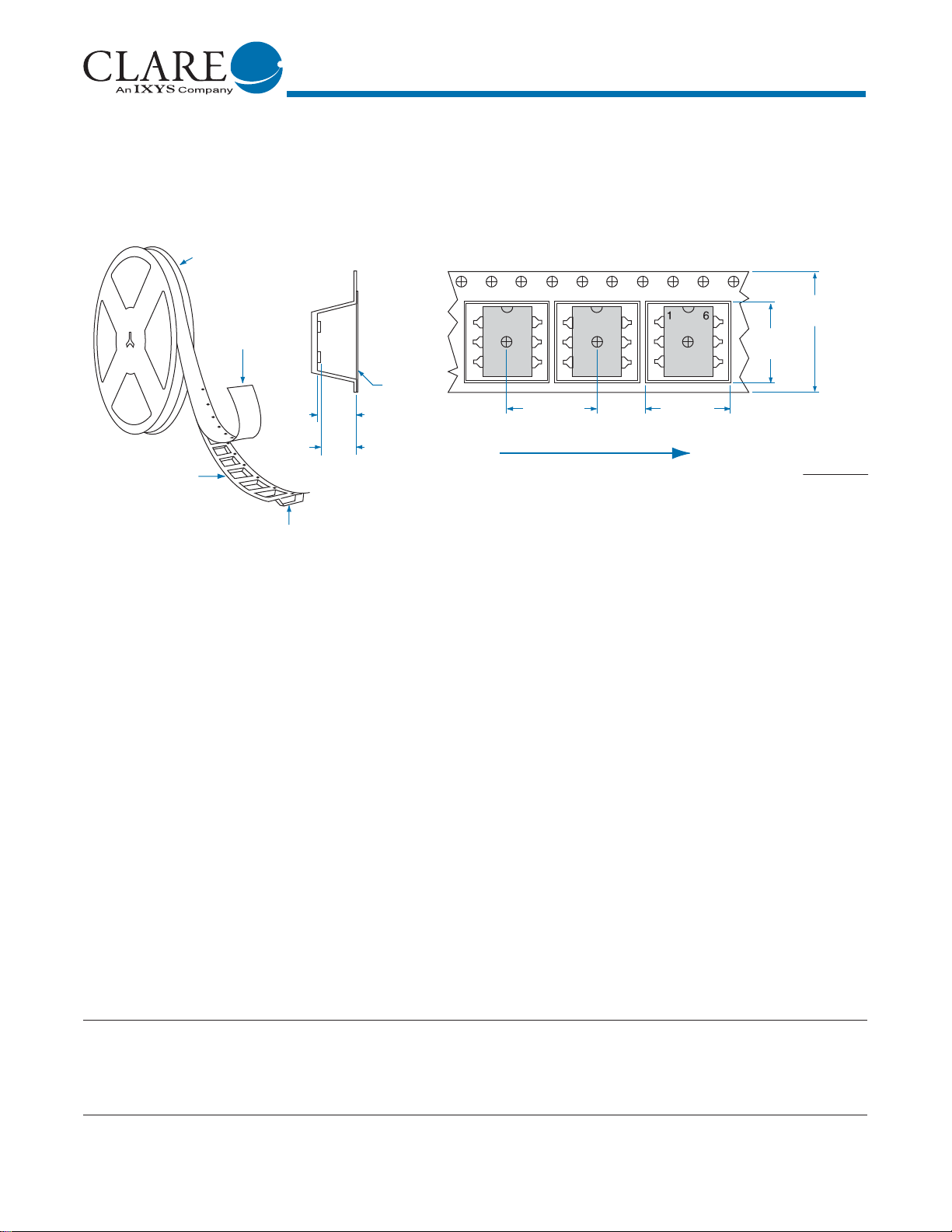

Tape and Reel Packaging for 6-Pin “S” Suffix Parts

330.2 Dia

(13.00 Dia)

LCB110

Embossed

Carrier

Top Cover

Tape Thickness

0.102 Max

(0.004 Max)

Embossment

Top Cover

Tape

K0 = 4.90 (0.19) K1 = 3.80 (0.15)

W = 16.00 MAX

(0.63 MAX)

= 10.10

(0.400)

P = 12.00

(0.472)

User Direction of Feed

= 10.10

(0.400)

Dimensions

(inches)

NOTE: Tape dimensions not shown comply with JEDEC Standard EIA-481-2

For additional information please visit our website at: www.clare.com

Clare, Inc. makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any time without notice. Neither circuit patent licenses nor indemnity are expressed or implied. Except as set forth in Clare’s Standard Terms and Conditions of Sale, Clare, Inc. assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

The products described in this document are not designed, intended, authorized or warranted for use as components in systems intended for surgical implant into the body, or in other applications intended to support or sustain life, or where malfunction of Clare’s product may result in direct physical harm, injury, or death to a person or severe property or environmental damage. Clare, Inc. reserves the right to discontinue or make changes to its products at any time without notice.

Specification: DS-LCB110-R07
