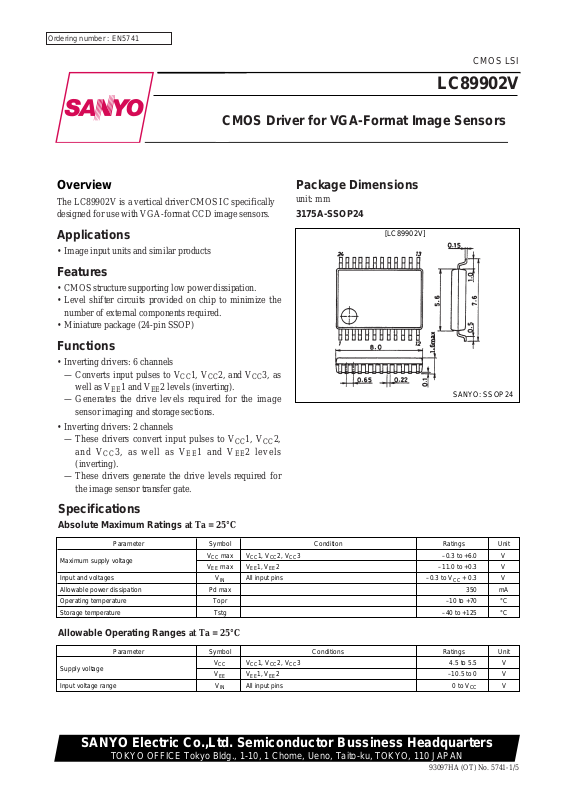

Overview
The LC89902V is a vertical driver CMOS IC specifically
designed for use with VGA-format CCD image sensors.
Applications
• Image input units and similar products
Features
•
CMOS structure supporting low power dissipation.
• Level shifter circuits provided on chip to minimize the
number of external components required.
• Miniature package (24-pin SSOP)
Functions
• Inverting drivers: 6 channels
— Converts input pulses to VCC1, VCC2, and VCC3, as
well as VEE1 and VEE2 levels (inverting).
— Generates the drive levels required for the image
sensor imaging and storage sections.
• Inverting drivers: 2 channels
— These drivers convert input pulses to VCC1, VCC2,
and VCC3, as well as VEE1 and VEE2 levels
(inverting).
— These drivers generate the drive levels required for
the image sensor transfer gate.
Package Dimensions
unit: mm
3175A-SSOP24
CMOS LSI
Ordering number : EN5741
93097HA (OT) No. 5741-1/5
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
CMOS Driver for VGA-Format Image Sensors
LC89902V
Specifications
Absolute Maximum Ratings at Ta = 25°C
Allowable Operating Ranges at Ta = 25°C
[LC89902V]
SANYO: SSOP24
Parameter Symbol Condition Ratings Unit
Maximum supply voltage
V
CC
max VCC1, VCC2, VCC3 –0.3 to +6.0 V
V
EE
max VEE1, VEE2 –11.0 to +0.3 V
Input and voltages V
IN
All input pins –0.3 to VCC+ 0.3 V
Allowable power dissipation Pd max 350 mA
Operating temperature Topr –10 to +70 °C
Storage temperature Tstg –40 to +125 °C
Parameter Symbol Conditions Ratings Unit
Supply voltage
V
CC
VCC1, VCC2, VCC3 4.5 to 5.5 V
V
EE
VEE1, VEE2 –10.5 to 0 V
Input voltage range V
IN
All input pins 0 to V
CC
V
Page 2
No. 5741-2/5
LC89902V
Block Diagram
Page 3
No. 5741-3/5
LC89902V
Pin Functions
Pin No. Pin name Function
1 GND Ground
2 V
EE
1 Negative power supply used to set the low output level
3 NC –
4 OUT1 Channel 1 driver output
5 OUT2 Channel 2 driver output
6 OUT3 Channel 3 driver output
7 OUT4 Channel 4 driver output
8 OUT5 Channel 5 driver output
9 OUT6 Channel 6 driver output
10 OUT TG1 Transfer gate 1 driver output
11 OUT YG2 Transfer gate 2 driver output
12 V
EE
2 Negative power supply used to set the low output level
13 V
CC
3 Positive power supply used to set the high output level
14 TG2 Transfer gate 2 driver input
15 TG1 Transfer gate 1 driver input
16 CH6 Channel 6 driver input
17 CH5 Channel 5 driver input
18 CH4 Channel 4 driver input
19 CH3 Channel 3 driver input
20 CH2 Channel 2 driver input
21 CH1 Channel 1 driver input
22 GND Ground
23 V
CC
2 Positive power supply used to set the high output level
24 V
CC
1 Positive power supply used to set the high output level
Parameter Symbol Conditions
Ratings
Unit
min typ max
Input high-level current
I
IH
All input pins, VIN= 5.0 V 10 µA
I
IL
All input pins, VIN= 0 V 5 nA
I
CCH
+
VCC1, VCC2, and VCC3, all input pins, VIN= 5.0 V
1 µA
Supply current
I
CCH
–
VEE1 and VEE2, all input pins, VIN= 5.0 V –10 µA
I
CCL
+
VCC1, VCC2, and VCC3, all input pins, VIN= 0 V
7 µA
I
CCL
–
VEE1 and VEE2, all input pins, VIN= 0 V –2 µA
Output voltage
V
OH
All input pins, VIN= 0 V 5.0 V
V
OL
All input pins, VIN= 5.0 V –10 V
Output voltage under actual operating conditions
VOH2 Load = LC99152, input = LC99055 * 5.0 V
V
OL
2 Load = LC99152, input = LC99055 * –10 V
Output current under actual operating conditions
ICC2+Load = LC99152, input = LC99055 * 1.62 mA
I
CC
2–Load = LC99152, input = LC99055 * 1.61 mA
Electrical Characteristics at Ta = 25°C, VCC1, VCC2, and VCC3 = 5.0 V, VEE1 and VEE2 = –10.0 V
Note: * Values for when the LC99055 timing IC provides the input pulses and the LC99152 image sensor is driven. These values are provided for reference
purposes only.
Page 4
No. 5741-4/5
LC89902V
Switching Characteristics at Ta = 25°C, VCC1, VCC2, and VCC3 = 5.0 V, VEE1 and VEE2 = –10.0 V, fIN= 3.58 MHz
Note: Load conditions
RL = 18 Ω, CL = 780 pF
Load Circuit
Switching Waveforms
Truth Table
Usage Notes
• Power supply application timing
When applying power to the LC89902V, either both power-supply voltages must be turned on at the same time or V
CC
(+5 V) must be turned on before VEE(–10 V) is turned on. The IC may be destroyed if VEEis turned on first.
• Power supply noise elimination
Clock frequency noise may occur on the power supply lines due to the charge and discharge currents required to drive
the CCD. Capacitors must be inserted both between VCCand ground and between VEEand ground to eliminate noise
from the power supply lines. These capacitors must have values of at least 47 µF.
Parameter Symbol Conditions
Ratings
Unit
min typ max
Propagation delay time t
PLH
All output pins 23 ns
Low level
→ high level
Propagation delay time t
PHL
All output pins
31 ns
High level → low level
Rise time tr
All output pins
47 ns
Fall time tf All output pins 42 ns
Output
Input
H V
OL
L V
OH
All inputs
All outputs
Page 5
No. 5741-5/5
LC89902V
