LBA110S
Datasheet (CLARE)
8 pgs129.02 Kb0
Datasheet (IXYS)
7 pgs314.53 Kb0

Datasheet LBA 110 S Datasheet (IXYS)

Download
Page 1
LBA110
e
3
RoHS
2002/95/EC
1
2
3
4
8
7
6
5
+ Control - Normally Closed
– Control - Normally Closed
+ Control - Normally Open
– Control - Normally Open
Normally Closed Pole
Normally Open Pole
CONTROL
10%
90%
90%
+
+
T
ON
T
OFF
+
I
LOAD
CONTROL
I
LOAD
10%
10%
90%
+
T
ON
T
OFF
+
+

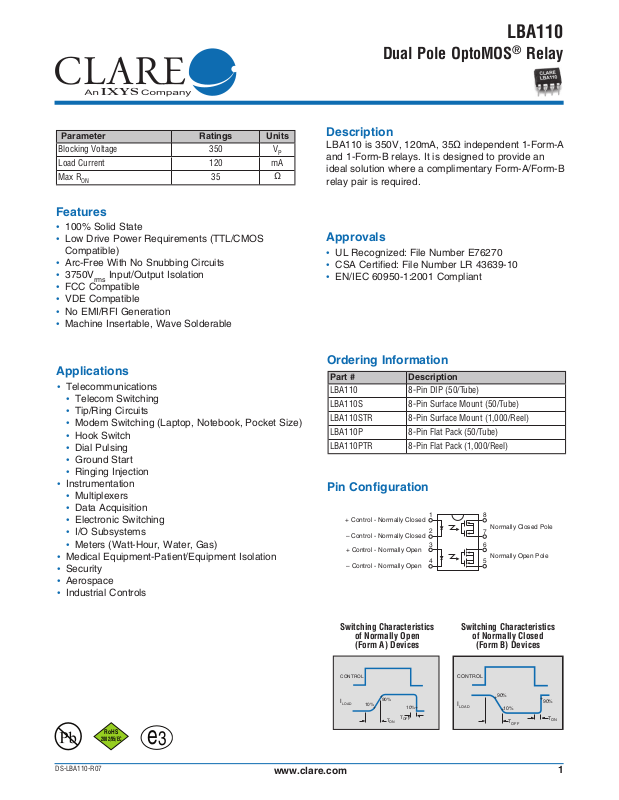

Dual Pole OptoMOS® Relay
Parameter Ratings Units
Blocking Voltage 350 V
P
Load Current 120 mA Max R
ON
35
Ω
Features
• 100% Solid State
• Low Drive Power Requirements (TTL/CMOS
Compatible)
• Arc-Free With No Snubbing Circuits
• 3750V
Input/Output Isolation
rms
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
Applications
• Telecommunications
• Telecom Switching
• Tip/Ring Circuits
• Modem Switching (Laptop, Notebook, Pocket Size)
• Hook Switch
• Dial Pulsing
• Ground Start
• Ringing Injection
• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls
Description
LBA110 is 350V, 120mA, 35Ω independent 1-Form-A and 1-Form-B relays. It is designed to provide an ideal solution where a complimentary Form-A/Form-B relay pair is required.
Approvals
• UL Recognized: File Number E76270
• CSA Certified: File Number LR 43639-10
• EN/IEC 60950-1:2001 Compliant
Ordering Information
Part # Description
Pin Configuration
DS-LBA110-R07
Switching Characteristics
of Normally Open (Form A) Devices
www.clare.com
Switching Characteristics
of Normally Closed
(Form B) Devices
1
Page 2
LBA110
Absolute Maximum Ratings
Parameter Ratings Units
Blocking Voltage 350 V Reverse Input Voltage 5 V Input Control Current 50 mA
P
Absolute Maximum Ratings are stress ratings. Stresses in excess of these ratings can cause permanent damage to the device. Functional operation of the device at conditions beyond those indicated in the operational sections of this data sheet is not implied.
Peak (10ms) 1 A Input Power Dissipation Total Power Dissipation Isolation Voltage, Input to Output 3750 V
1
2
150 mW 800 mW
rms
Operational Temperature -40 to +85 °C Storage Temperature -40 to +125 °C
1
Derate Linearly 1.33 mw/˚C
2
Derate Linearly 6.67 mw/˚C
Electrical absolute maximum ratings are at 25°C
Electrical Characteristics
Parameter Conditions Symbol Min Typ Max Units
Output Characteristics @ 25°C
Load Current, Continuous Peak Load Current t = 10ms I On-resistance IL=120mA R Off-State Leakage Current VL=350V I Switching Speeds Turn-On IF=5mA, VL=10V T Turn-Off IF=5mA, VL=10V T Output Capacitance 50V; f=1MHz C
Input Characteristics @ 25°C
Input Control Current IL=120mA I Input Dropout Current - I Input Voltage Drop IF=5mA V Reverse Input Current VR=5V I
Common Characteristics @ 25°C
Input to Output Capacitance - C
1
If both poles operate the load current must be derated so as not to exceed the package power dissipation value.
1
- I
L
LPK
ON
LEAK
ON
OFF
OUT
F
F
R
I/O
- - 120 mA
- - 350 mA
- 25 35
- - 1 μA
- - 3 ms
- - 3 ms
- 25 - pF
- - 2 mA
0.4 0.7 - mA
F
0.9 1.2 1.4 V
- - 10 μA
- 3 - pF
Ω
2
www.clare.com
R07
Page 3
PERFORMANCE DATA*
LBA110
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25°C; IF = 5mADC)
35
30
25
20
15
10
5
0
1.17 1.19 1.21 1.23 1.25
LED Forward Voltage Drop (V)
Device Count (N)
LBA110 - FormA
Typical On-resistance Distribution
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC, IF = 5mADC)
35
30
25
20
15
10
5
0
19.5 21.5 23.5 25.520.5 22.5 24.5
On-resistance (Ω)
Device Count (N)
LBA110 - FormB
Typical On-resistance Distribution
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC, IF = 5mADC)
25
20
15
10
5
0
25.5 27.5 29.5 31.526.5 28.5 30.5
On-resistance (Ω)
Device Count (N)
LBA110 - FormA
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25°C)
35
30
25
20
15
10
5
0
400 440 480 520420 460 500
Blocking Voltage (VP)
Device Count (N)
LBA110 - FormB
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25°C)
30
25
20
15
10
5
0
365 385 405 425375 395 415
Blocking Voltage (VP)
Device Count (N)
LBA110 - FormA
Typical IF for Switch Dropout
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
25
20
15
10
5
0
0.65 1.17 1.690.39 0.91 1.43 1.95
LED Current (mA)
Device Count (N)
LBA110 - FormB
Typical IF for Switch Dropout
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
25
20
15
10
5
0
0.9 1.3 1.70.7 1.1 1.5 1.9
LED Current (mA)
Device Count (N)
LBA110 - FormA
Typical IF for Switch Operation
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
0.65 1.17 1.690.91 1.43 1.95
LED Current (mA)
Device Count (N)
25
20
15
10
5
0
LBA110 - FormB
Typical IF for Switch Operation
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
25
20
15
10
5
0
0.7 1.1 1.5 1.90.9 1.3 1.7
LED Current (mA)
Device Count (N)
LBA110 - FormA
Typical Turn-On Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC; IF = 5mADC)
0.45 1.05 1.650.75 1.35
Turn-On (ms)
Device Count (N)
25
20
15
10
5
0
LBA110 - FormB
Typical Turn-On Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC; IF = 5mADC)
0.25 0.45 0.650.35 0.55 0.75
Turn-On (ms)
Device Count (N)
25
20
15
10
5
0
LBA110 - FormA
Typical Turn-Off Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC; IF = 5mADC)
0.12 0.28 0.44 0.600.520.360.20
Turn-Off (ms)
Device Count (N)
25
20
15
10
5
0
LBA110
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application department.
R07
www.clare.com
3
Page 4
LBA110
LBA110 - FormB
Typical Turn-Off Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC; IF = 5mADC)
0.40 0.72 1.040.880.560.24
Turn-Off (ms)
Device Count (N)
25
20
15
10
5
0
LBA110 - Form A
Typical Load Current vs. Temperature
Temperature (°C)
Load Current (mA)
180
160
140
120
100
80
60
40
20
0
-40 -20 0 20 40 60 80 120100
I
F
= 10mA
IF = 20mA
IF = 5mA
LBA110 - Form B
Typical Load Current vs. Temperature
Temperature (°C)
Load Current (mA)
180
160
140
120
100
80
60
40
20
0
-40 -20 0 20 40 60 80 120100
I
F
= 0mA
LBA110
Typical Leakage vs. Temperature
(Measured across Pins 5 & 6 or 7 & 8)
Temperature (°C)
Leakage (µA)
-40
0.016
0.014
0.012
0.010
0.008
0.006
0.004
0.002
0
-20 0 20 40 60 80 100
LBA110 - FormA
Typical Blocking Voltage vs. Temperature
Temperature (°C)
Blocking Voltage (V
P
)
-40
480
470
460
450
440
430
420
-20 0 20 40 60 80 100
LBA110 - FormB
Typical Blocking Voltage vs. Temperature
Temperature (°C)
Blocking Voltage (V
P
)
-40
415
410
405
400
395
390
385
380
375
-20 0 20 40 60 80 100
LBA110 - FormA
Typical Turn-On vs. Temperature
(Load Current = 120mADC)
Temperature (°C)
I
F
= 5m
A
Turn-On (ms)
-40
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
-20 0 20 40 60 80 100
IF = 10mA
IF = 20mA
LBA110 - FormB
Typical Turn-On vs. Temperature
(Load Current = 120mADC)
Temperature (°C)
Turn-On (ms)
-40
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-20 0 20 40 60 80 100
IF = 5mA
LBA110 - FormA
Typical Turn-Off vs. Temperature
(Load Current = 120mADC)
Temperature (°C)
I
F
= 5mA
Turn-Off (ms)
-40
0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0
-20 0 20 40 60 80 100
LBA110 - FormB
Typical Turn-Off vs. Temperature
(Load Current = 120mADC)
Temperature (°C)
I
F
= 5mA
I
F
= 10mA
I
F
= 20mA
Turn-Off (ms)
-40
1.2
1.0
0.8
0.6
0.4
0.2
0
-20 0 20 40 60 80 100
LBA110
Typical LED Forward Voltage Drop
vs. Temperature IF = 5mA
Temperature (°C)
LED Forward Voltage Drop (V)
I
F
= 50mA
I
F
= 30mA
I
F
= 20mA
I
F
= 10mA
I
F
= 5mA
1.8
1.6
1.4
1.2
1.0
0.8
-40 -20 0 20 40 60 80 120100
LBA110 - FormA
Typical Turn-On vs. LED Forward Current
(Load Current = 120mADC)
LED Forward Current (mA)
Turn-On (ms)
0
5 10 15 20 25 30 35 40 4
5
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1 0
50
PERFORMANCE DATA*
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application department.
4
www.clare.com
R07
Page 5
PERFORMANCE DATA*
LBA110 - FormB
Typical Turn-On vs. LED Forward Current
(Load Current = 120mADC)
LED Forward Current (mA)
Turn-On (ms)
0
5 10 15 20 25 30 35 40 45
0.42
0.41
0.40
0.39
0.38
0.37
0.36
0.35
0.34
50
LBA110 - FormA
Typical Turn-Off vs. LED Forward Current
(Load Current = 120mADC)
LED Forward Current (mA)
Turn-Off (ms)
0
5 10 15 20 25 30 35 40 45
0.220
0.215
0.210
0.205
0.200
0.195
0.190
0.185
0.180
0
50
LBA110 - FormB
Typical Turn-Off vs. LED Forward Current
(Load Current = 120mADC)
LED Forward Current (mA)
Turn-Off (ms)
0
5 10 15 20 25 30 35 40 4
5
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
50
LBA110 - FormA
Typical On-resistance vs. Temperature
(Load Current = 120mADC; I
F
= 5mADC)
Temperature (°C)
On-resistance (Ω)
-40
60
50
40
30
20
10
0
-20 0 20 40 60 80 100
LBA110 - FormB
Typical On-resistance vs. Temperature
(Load Current = 120mADC; I
F
= 5mADC)
Temperature (°C)
On-resistance (Ω)
-40
60
50
40
30
20
10
0
-20 0 20 40 60 80 100
LBA110 - FormA
Typical IF for Switch Operation vs. Temperature
(Load Current = 120mADC)
Temperature (°C)
LED Current (mA)
-40
2.5
2.0
1.5
1.0
0.5
0
-20 0 20 40 60 80 100
LBA110 - FormB
Typical IF for Switch Operation vs. Temperature
(Load Current = 120mADC)
Temperature (°C)
LED Current (mA)
-40
3.0
2.5
2.0
1.5
1.0
0.5
0
-20 0 20 40 60 80 100
LBA110 - FormA
Typical IF for Switch Dropout vs. Temperature
(Load Current = 120mADC)
Temperature (°C)
LED Current (mA)
-40
2.5
2.0
1.5
1.0
0.5
0
-20 0 20 40 60 80 100
LBA110 - FormB
Typical IF for Switch Dropout vs. Temperature
(Load Current = 120mADC)
Temperature (°C)
LED Current (mA)
-40
3.0
2.5
2.0
1.5
1.0
0.5
0
-20 0 20 40 60 80 100
LBA110 - FormA
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25°C; IF = 5mADC)
Load Voltage (V)
Load Current (mA)
150
100
50
0
-50
-100
-150
-4 -3 -1-2 0 1 2 3 4
LBA110 - FormB
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25°C; IF = 5mADC)
Load Voltage (V)
Load Current (mA)
150
100
50
0
-50
-100
-150
-4 -3 -1-2 0 1 2 3 4
LBA110
Energy Rating Curve
Time
Load Current (A)
10µs
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1 0
1ms100µs 100ms
1s
10ms 10s 100s
LBA110
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application department.
R07
www.clare.com
5
Page 6
LBA110
7.239 TYP. (0.285)
3.302
(0.130)
9.144 TYP. (0.360)
8-Pin DIP Through Hole (Standard)
7.620 ± 0.254
(0.300 ± 0.010)
2.540 ± 0.127
(0.100 ± 0.005)
6.350 ± 0.127
(0.250 ± 0.005)
8.077 ± 0.127
(0.318 ± 0.005)
9.144 ± 0.508
(0.360 ± 0.020)
0.457 ± 0.076
(0.018 ± 0.003)
9.652 ± 0.381
(0.380 ± 0.015)
PC Board Pattern (Top View)
8-0.800 DIA.
(8-0.031 DIA.)
2.540 ± 0.127
(0.100 ± 0.005)
7.620 ± 0.127
(0.300 ± 0.005)
7.620 ± 0.127
(0.300 ± 0.005)
6.350 ± 0.127
(0.250 ± 0.005)
3.302
(0.130)
0.254 TYP. (0.010)
0.635 TYP. (0.025)
8-Pin Surface Mount (“S” Suffix)
4.445 ± 0.127
(0.175 ± 0.005)
7.620 ± 0.254
(0.300 ± 0.010)
2.540 ± 0.127
(0.100 ± 0.005)
9.652 ± 0.381
(0.380 ± 0.015)
6.350 ± 0.127
(0.250 ± 0.005)
9.525 ± 0.254
(0.375 ± 0.010)
0.457 ± 0.076
(0.018 ± 0.003)
8.077 ± 0.127
(0.318 ± 0.005)
PC Board Pattern (Top View)
2.540 ± 0.127
(0.100 ± 0.005)
8.305 ± 0.127
(0.327 ± 0.005)
1.905 ± 0.127
(0.075 ± 0.005)
1.498 ± 0.127
(0.059 ± 0.005)
PC Board Pattern (Top View)
1.193
(0.047)
0.787
(0.031)
2.540 ± 0.127
(0.100 ± 0.005)
8.763 ± 0.127
(0.345 ± 0.005)
8-Pin Flatpack (“P” Suffix)
2.159 TYP. (0.085)
7.620 ± 0.254
(0.300 ± 0.010)
0.635 ± 0.127 (0.025)
9.652 ± 0.381
(0.380 ± 0.015)
2.540 ± 0.127
(0.100 ± 0.005)
9.398 ± 0.127
(0.370 ± 0.005)
0.457 ± 0.076
(0.018 ± 0.003)
8.077 ± 0.127
(0.318 ± 0.005)
6.350 ± 0.127
(0.250 ± 0.005)
2.286 MAX. (0.090)
0.203
(0.008)
e
3
RoHS
2002/95/EC
Manufacturing Information
Soldering
For proper assembly, the component must be processed in accordance with the current revision of IPC/JEDEC standard J-STD-020. Failure to follow the recommended guidelines may cause permanent damage to the device resulting in impaired performance and/or a reduced lifetime expectancy.
Recommended soldering processes are limited to 260ºC component body temperature for 10 seconds.
MECHANICAL DIMENSIONS
Washing
Clare does not recommend ultrasonic cleaning or the use of chlorinated solvents.
6
www.clare.com
Dimensions
mm
(inches)
R07
Page 7
MECHANICAL DIMENSIONS
Tape and Reel Packaging for 8-Pin Surface Mount Package
K1 = 4.20
(0.165)
Top Cover
Tape
P = 12.00
(0.472)
User Direction of Feed
W = 16.30 max
(0.642 max)
Bo = 10.30
(0.406)
Embossment
Embossed Carrier
Top Cover Tape Thickness
0.102 MAX. (0.004 MAX.)
Ao = 10.30
(0.406)
330.2 DIA.
(13.00 DIA.)
1 8
K0 = 4.90
(0.193)
NOTE: Tape dimensions not shown, comply with JEDEC Standard EIA-481-2
Tape and Reel Packaging for 8-Pin Flatpack Package
User Direction of Feed
Embossment
Embossed Carrier
Top Cover Tape Thickness
0.102 MAX. (0.004 MAX.)
330.2 DIA.
(13.00 DIA.)
1 8
K1 = 2.00
(0.079)
Top Cover
Tape
K0 = 2.70
(0.106)
P = 12.00
(0.472)
W = 16.30 max
(0.642 max)
Bo = 10.30
(0.406)
Ao = 10.30
(0.406)
NOTE: Tape dimensions not shown, comply with JEDEC Standard EIA-481-2
For additional information please visit our website at: www.clare.com
Clare, Inc. makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any time without notice. Neither circuit patent licenses nor indemnity are expressed or implied. Except as set forth in Clare’s Standard Terms and Conditions of Sale, Clare, Inc. assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
The products described in this document are not designed, intended, authorized or warranted for use as components in systems intended for surgical implant into the body, or in other applications intended to support or sustain life, or where malfunction of Clare’s product may result in direct physical harm, injury, or death to a person or severe property or environmental damage. Clare, Inc. reserves the right to discontinue or make changes to its products at any time without notice.
7
Dimensions
mm
(inches)
Specification: DS-LBA110-R07 ©Copyright 2006, Clare, Inc. OptoMOS® is a registered trademark of Clare, Inc. All rights reserved. Printed in USA. 10/27/06
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
