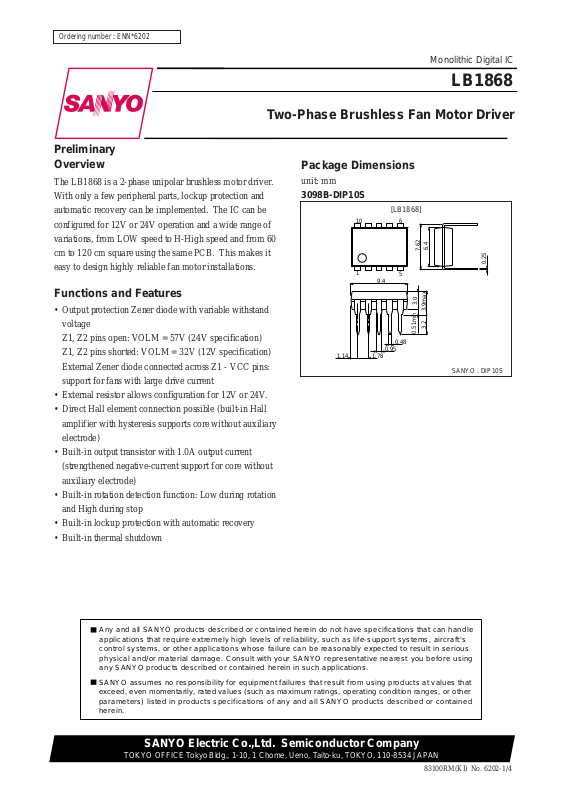

Ordering number : ENN*6202
LB1868
Two-Phase Brushless Fan Motor Driver
Preliminary
Overview
The LB1868 is a 2-phase unipolar brushless motor driver.
With only a few peripheral parts, lockup protection and
automatic recovery can be implemented. The IC can be
configured for 12V or 24V operation and a wide range of
variations, from LOW speed to H-High speed and from 60
cm to 120 cm square using the same PCB. This makes it
easy to design highly reliable fan motor installations.
Functions and Features
• Output protection Zener diode with variable withstand
voltage
Z1, Z2 pins open: VOLM = 57V (24V specification)
Z1, Z2 pins shorted: VOLM = 32V (12V specification)
External Zener diode connected across Z1 - VCC pins:
support for fans with large drive current
• External resistor allows configuration for 12V or 24V.
• Direct Hall element connection possible (built-in Hall
amplifier with hysteresis supports core without auxiliary
electrode)
• Built-in output transistor with 1.0A output current
(strengthened negative-current support for core without
auxiliary electrode)
• Built-in rotation detection function: Low during rotation
and High during stop
• Built-in lockup protection with automatic recovery
• Built-in thermal shutdown
Package Dimensions
unit: mm
3098B-DIP10S
[LB1868]
10
1
1.14 1.78
9.4
0.95
6
5
0.48
Monolithic Digital IC
LB1868
6.4
7.62
3.0
3.9max
3.2
0.51min
SANYO : DIP10S
0.25
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
83100RM(KI)
No. 6202-1/4
Page 2
LB1868
Specifications
Absolute Maximum Ratings at Ta = 25˚C
Parameter Symbol Conditions Ratings Unit
Maximum input current ICC max t ≤ 20 ms 200 mA
Maximum applied output voltage VOUT max Internal V
Maximum output current IOUT max 1.0 A
Current flowing into RD pin IRD max 10 mA
RD applied voltage VRD max 30 V
Allowable power dissipation Pd max 1.1 W
Operating temperature Topr –30 to +80 °C
Storage temperature Tstg –55 to +150 °C
Allowable Operating Ranges at Ta = 25˚C
Parameter Symbol Conditions Ratings Unit
Input voltage range ICC 6.0 to 50 mA
Common mode input voltage range VICM 0.2 to VIN–1.5 V
Electrical Characteristics at Ta = 25˚C, Icc = 10 mA
Parameter Symbol Conditions
Output limiter withstand voltage VOLM1 Z1, Z2 open 54 57 60 V
VOLM2 Z1, Z2 short 31 33 35 V
Output saturation voltage Vosat 1 Io = 0.5A 0.95 1.2 V
2 Io = 1.0A 0.15 1.5 V
VIN voltage VIN ICC = 7.0 mA 6.4 6.7 7.0 V
Hall input sensitivity (at zero peak) VHN Including offset and hysteresis 20 mV
RD output saturation voltage VRDsat IRD = 5 mA 0.1 0.3 V
CT drain current IC1 C = GND 2.7 3.8 4.9 µA
CT discharge current IC2 C = VIN 0.19 0.30 0.41 µA
Comp input threshold voltage VTH1 0.77
VTH2 0.42
Thermal protection operating temperature
Thermal protection circuit hysteresis ∆TSD Design target value* 40 °C
TSD Design target value* 180 °C
* Design target values are not measured.
Ratings
min typ max
0.8VIN
0.45VIN
0.83 V
0.48 V
Unit
Pd max – Ta
1. 1
1. 0
0. 9
0. 8
0. 7
0. 6
0. 5
0. 4
0. 3
0. 2
Allowable power dissipation, Pd max – W
0. 1
0
Ambient temperature, Ta – °C
100806040200–20–30
No. 6202-2/4
Page 3

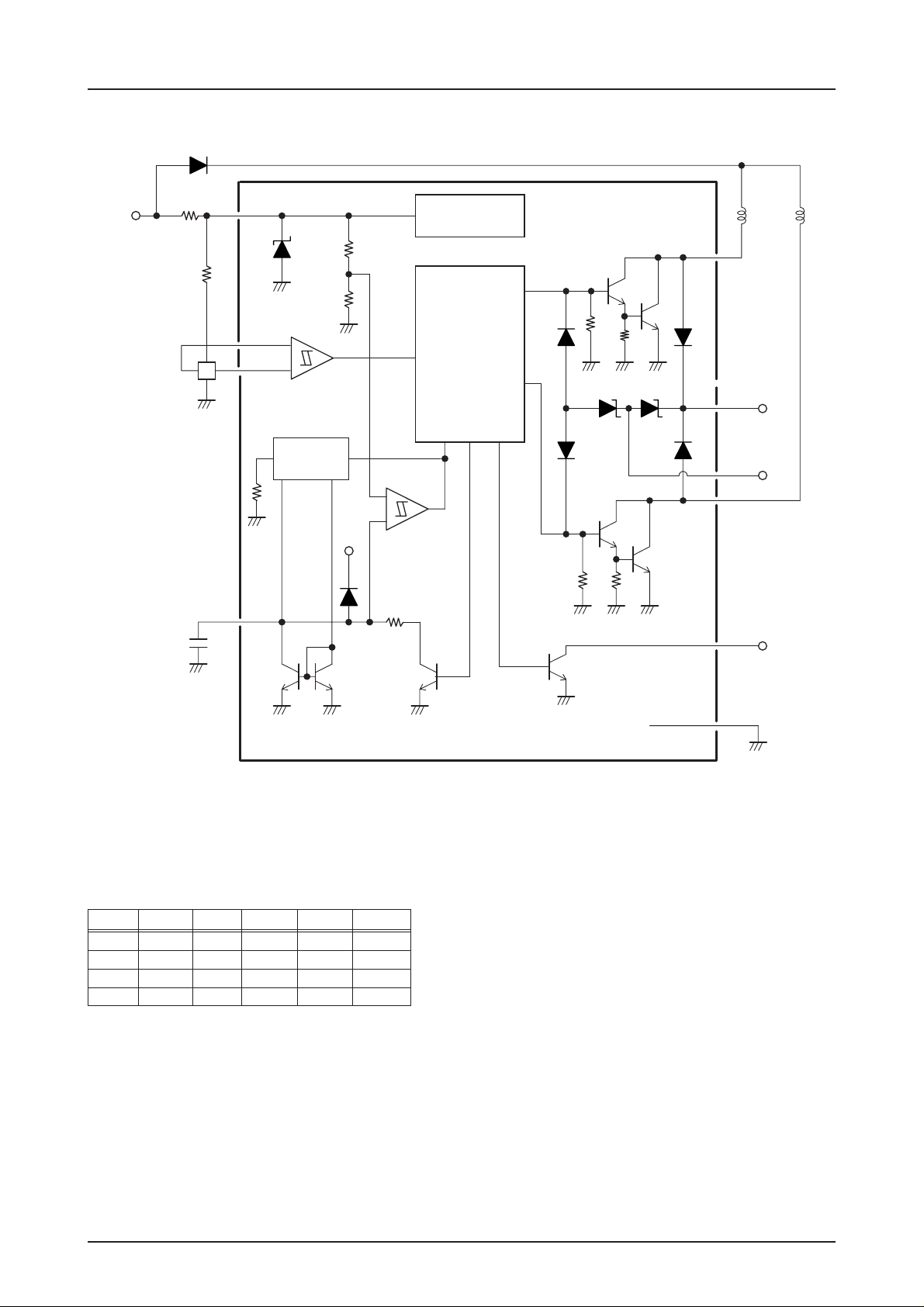

Block Diagram and Sample Application Circuit
2
LB1868
VCC
VIN
Thermal
L2L1
shutdown
R1
R
OUT
IN+
Control block
H
IN–
Z1
Constant
current
source
Z2
OUT2
CT
C1
0.47 to 10
µF
Truth Table
IN+ IN– C OUT1 OUT2 RD
HLLHLL
LHLLHL
HLHHHH
LHHHHH
RD
GND
*RD is a latch type output.
No. 6202-3/4
Page 4
LB1868
Pin Description
Pin name Function
IN– Hall input + pin Hysteresis amplifier
IN+ Hall input – pin Hysteresis amplifier
CT Lockup protection time setting capacitor pin (0.47 to 4.7 µF)
Z1 External Zener diode pin (external Zener diode to be connected between power supply and Z1)
Z2 Kickback absorption voltage alteration pin (shorted to Z1: 12V operation)
OUT1 Output 1 pin
OUT2 Output 2 pin
VIN Regulated power supply input pin (limiting resistor to be inserted between power supply and VIN)
GND GND pin
RD Lockup detection pin (latch type)

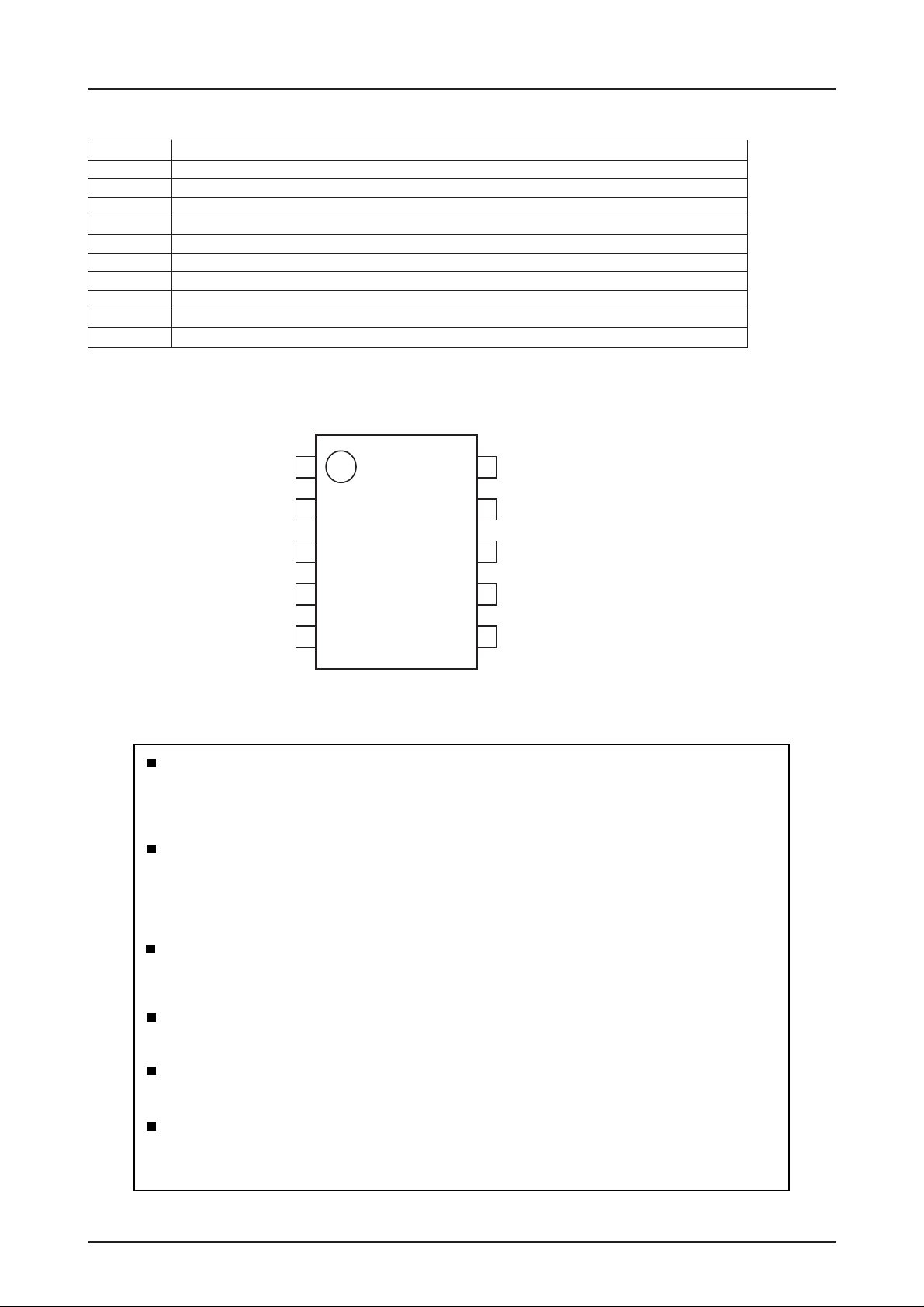

Pin Assignment
IN–
IN+
CT
OUT1
GND
1
2
3
LB1868
4
5
10
9
8
7
6
VIN
RD
Z2
Z1
OUT2
Top view
Specifications of any and all SANYO products described or contained herein stipulate the performance,
characteristics, and functions of the described products in the independent state, and are not guarantees
of the performance, characteristics, and functions of the described products as mounted in the customer's
products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,
the customer should always evaluate and test devices mounted in the customer's products or equipment.
SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all
semiconductor products fail with some probability. It is possible that these probabilistic failures could
give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,
or that could cause damage to other property. When designing equipment, adopt safety measures so
that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective
circuits and error prevention circuits for safe design, redundant design, and structural design.
In the event that any or all SANYO products(including technical data,services) described or
contained herein are controlled under any of applicable local export control laws and regulations,
such products must not be exported without obtaining the export license from the authorities
concerned in accordance with the above law.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system,
or otherwise, without the prior written permission of SANYO Electric Co. , Ltd.
Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"
for the SANYO product that you intend to use.
Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not
guaranteed for volume production. SANYO believes information herein is accurate and reliable, but
no guarantees are made or implied regarding its use or any infringements of intellectual property rights
or other rights of third parties.
This catalog provides information as of August, 2000. Specifications and information herein are subject to change
without notice.
No. 6202-4/4
