Datasheet LAA125STR, LAA125S, LAA125PTR, LAA125P, LAA125 Datasheet (CLARE)

1

www.clare.com

LAA125

DS-LAA125-R4

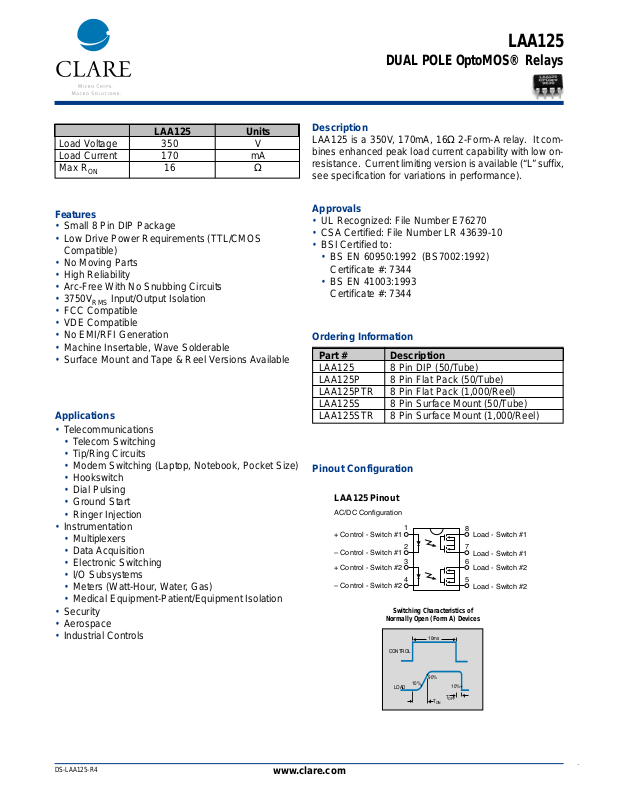

LAA125 is a 350V, 170mA, 16Ω 2-Form-A relay. It com­bines enhanced peak load current capability with low on­resistance. Current limiting version is available (“L” suffix,
see specification for variations in performance).

• Telecommunications

• Telecom Switching

• Tip/Ring Circuits

• Modem Switching (Laptop, Notebook, Pocket Size)

• Hookswitch

• Dial Pulsing

• Ground Start

• Ringer Injection

• Instrumentation

• Multiplexers

• Data Acquisition

• Electronic Switching

• I/O Subsystems

• Meters (Watt-Hour, Water, Gas)

• Medical Equipment-Patient/Equipment Isolation

• Security

• Aerospace

• Industrial Controls

• UL Recognized: File Number E76270

• CSA Certified: File Number LR 43639-10

• BSI Certified to:

• BS EN 60950:1992 (BS7002:1992)

Certificate #: 7344

• BS EN 41003:1993

Certificate #: 7344

• Small 8 Pin DIP Package

• Low Drive Power Requirements (TTL/CMOS

Compatible)

• No Moving Parts

• High Reliability

• Arc-Free With No Snubbing Circuits

• 3750V

RMS

Input/Output Isolation

• FCC Compatible

• VDE Compatible

• No EMI/RFI Generation

• Machine Insertable, Wave Solderable

• Surface Mount and Tape & Reel Versions Available

Applications

Features

Description

Approvals

DUAL POLE OptoMOS® Relays

Ordering Information

Part # Description

LAA125 8 Pin DIP (50/Tube)
LAA125P 8 Pin Flat Pack (50/Tube)
LAA125PTR 8 Pin Flat Pack (1,000/Reel)
LAA125S 8 Pin Surface Mount (50/Tube)
LAA125STR 8 Pin Surface Mount (1,000/Reel)

LAA125 Units

Load Voltage 350 V
Load Current 170 mA
Max R

ON

16 Ω

Switching Characteristics of

Normally Open (Form A) Devices

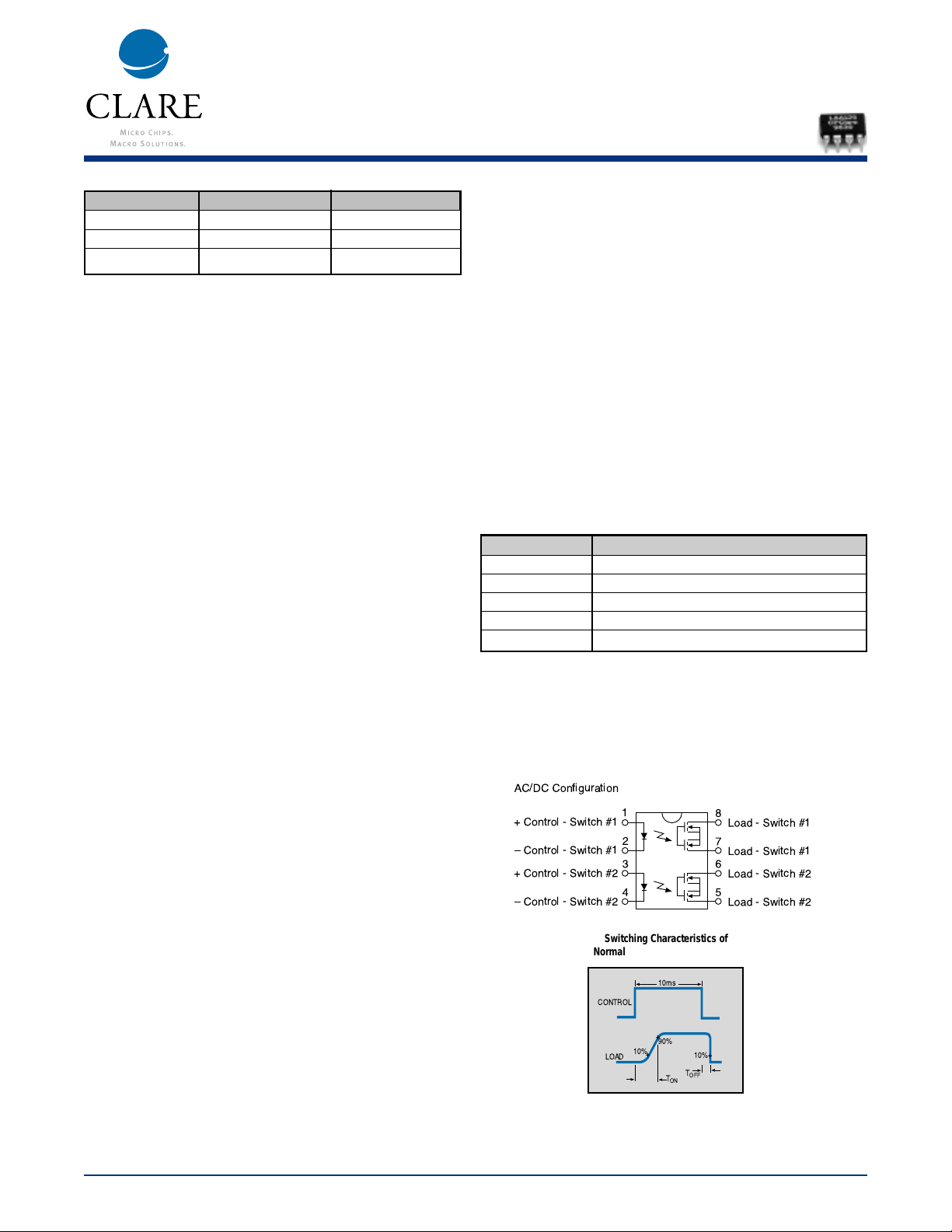

Pinout Configuration

LAA125 Pinout

AC/DC Configuration

+ Control - Switch #1

Ð Control - Switch #1

+ Control - Switch #2

Ð Control - Switch #2

CONTROL

1

2

3

4

10ms

8

Load - Switch #1

7

Load - Switch #1

6

Load - Switch #2

5

Load - Switch #2

LOAD

10%

+

90%

+

+

10%

T

OFF

T

ON

www.clare.com

LAA125

R4

Electrical Characteristics

Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at these or
any other conditions beyond those indicated in the opera­tional sections of this data sheet is not implied. Exposure
of the device to the absolute maximum ratings for an
extended period may degrade the device and effect its
reliability.

Absolute Maximum Ratings (@ 25˚ C)

2

PARAMETER CONDITIONS SYMBOL MIN TYP MAX UNITS

Output Characteristics @ 25°C

Load Voltage (Peak) - V

L

- - 350 V

Load Current (Continuous) - I

L

- - 170 mA

Peak Load Current 10ms max I

LPK

- - 400 mA

On-Resistance

AC/DC Configuration I

L

=Load Current R

ON

-- 16 Ω

Off-State Leakage Current V

L

=350V I

LEAK

-- 1 µA

Switching Speeds

Turn-On I

F

=5mA, VL=10V T

ON

-- 5 ms

Turn-Off I

F

=5mA, VL=10V T

OFF

-- 5 ms

Output Capacitance 50V; f=1MHz C

OUT

-50 - pF

Input Characteristics @ 25°C

Input Control Current I

L

=170mA I

F

5- 50 mA
Input Dropout Current - - 0.4 0.7 - mA
Input Voltage Drop I

F

=5mA V

F

0.9 1.2 1.4 V

Reverse Input Voltage - V

R

-- 5 V

Reverse Input Current VR=5V I

R

-- 10 µA

Input Characteristics @ 25°C

Input to Output Capacitance - C

I/O

-3 - pF

Input to Output Isolation - V

I/O

3750 - - V

RMS

Parameter Min Typ Max Units

Input Power Dissipation - - 1501 mW
Input Control Current - - 50 mA

Peak (10ms) - - 1 A
Reverse Input Voltage - - 5 V
Total Power Dissipation - - 8002mW
Capacitance

Input to Output - 3 - pF
Isolation Voltage

Input to Output 3750 - - V

RMS

Operational Temperature -40 - +85°C
Storage Temperature -40 - +125°C
Soldering Temperature

DIP Package - - +260

°

C
Flatpack/Surface Mount
Package - - +220°C
(10 Seconds Max.)

1

Derate Linearly 1.33 mw/˚C

2

Derate Linearly 6.67 mw/˚C

LAA125

www.clare.com

R4

3

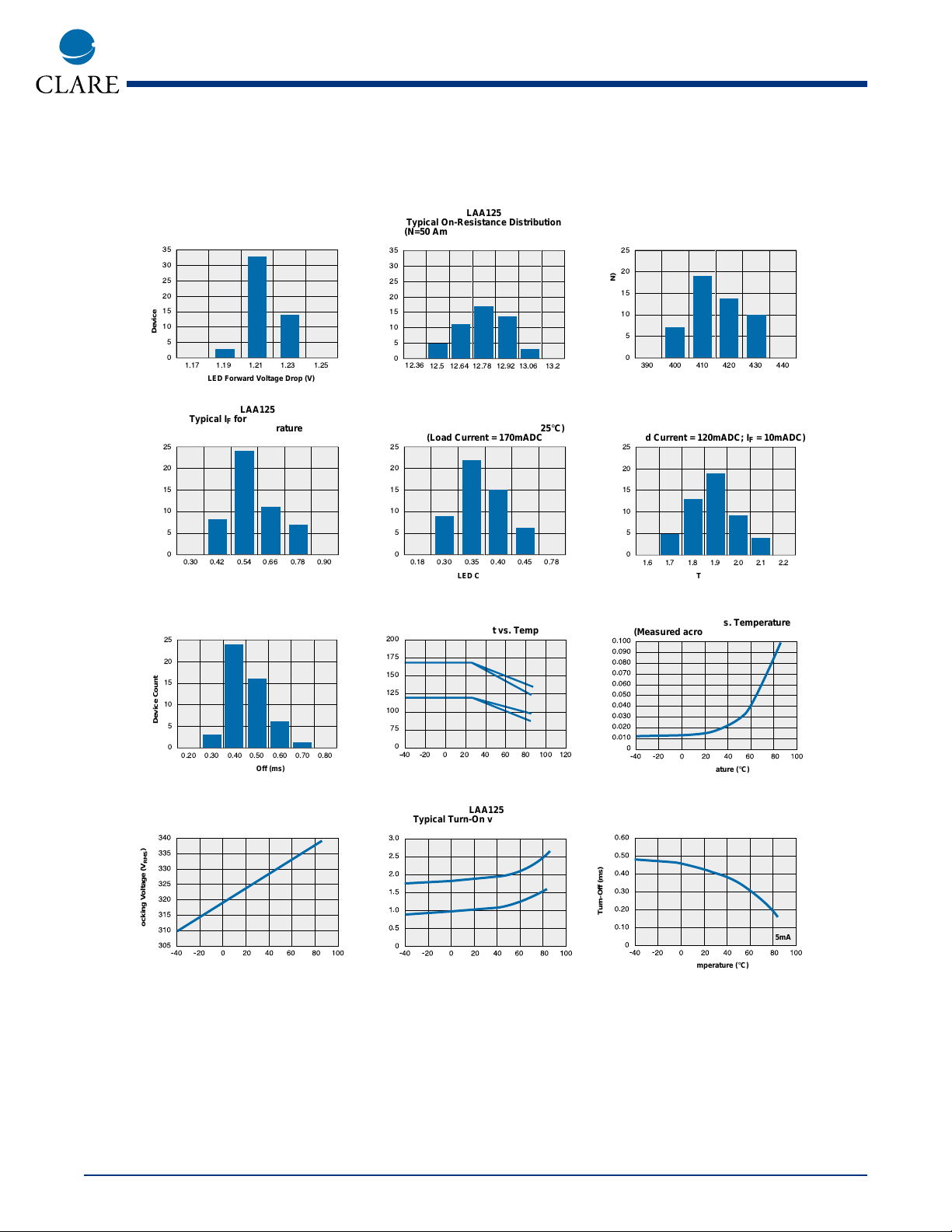

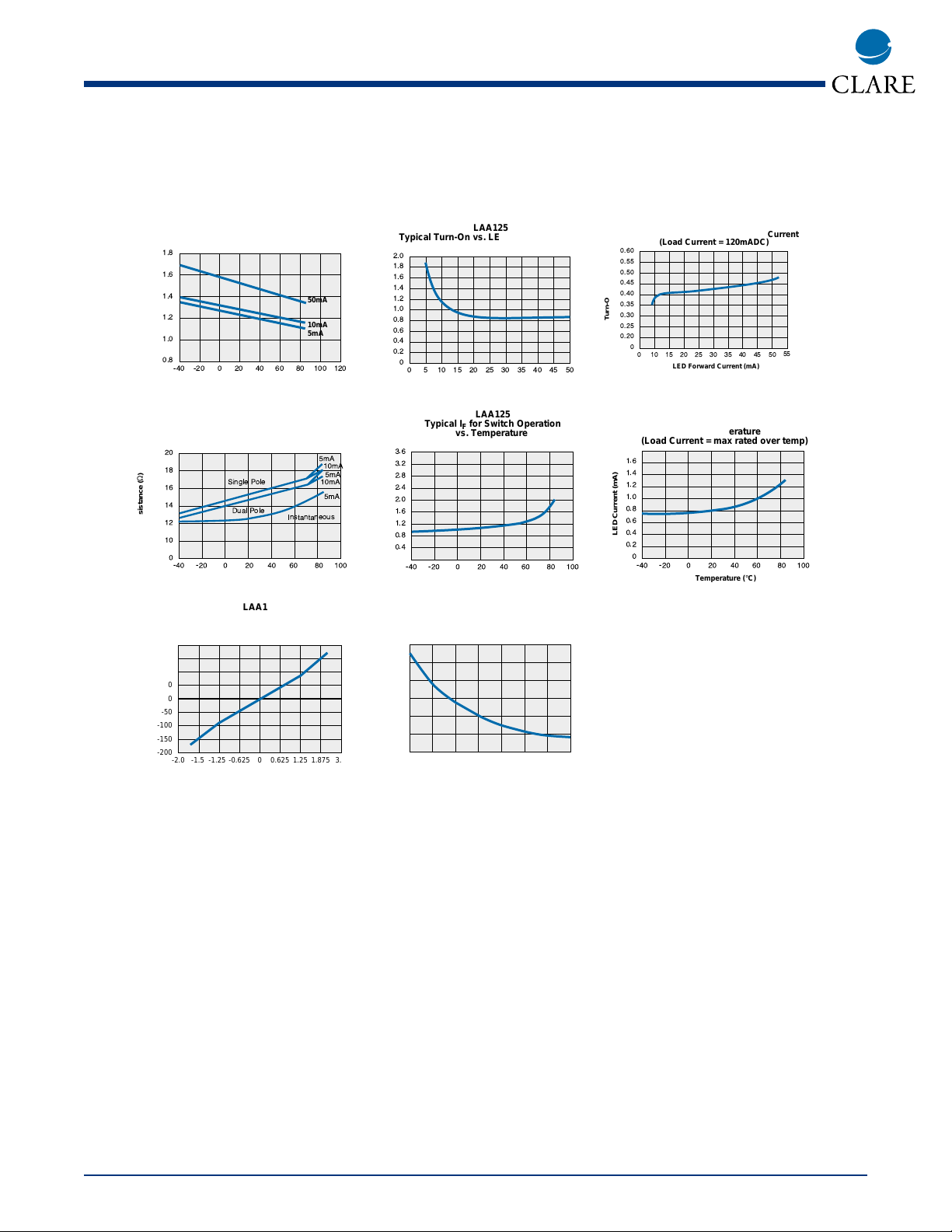

Performance Data*

LAA125

Typical LED Forward Voltage Drop

(N=50 Ambient Temperature = 25°C)

IF = 5mADC

35

30

25

20

15

10

5

0

1.17 1.19 1.21 1.23 1.25

LED Forward Voltage Drop (V)

Device Count (N)

LAA125

Typical Blocking Voltage Distribution

(N=50 Ambient Temperature = 25°C)

25

20

15

10

5

0

400 410 420 430

Blocking Voltage (V)

Device Count (N)

390

440

LAA125

Typical IF for Switch Operation

(N=50 Ambient Temperature = 25°C)

(Load Current = 170mADC)

LED Current (mA)

Device Count (N)

25

20

15

10

5

0

0.54 0.78 0.900.420.30 0.66

LAA125

Typical IF for Switch Dropout

(N=50 Ambient Temperature = 25°C)

(Load Current = 170mADC

25

20

15

10

5

0

0.30 0.40 0.780.18 0.35 0.45

LED Current (mA)

Device Count (N)

)

LAA125

Typical Turn-On Time

(N=50 Ambient Temperature = 25°C)

(Load Current = 120mADC; IF = 10mADC)

1.6 1.7 1.8 1.9 2.0 2.1 2.2

Turn-On (ms)

Device Count (N)

25

20

15

10

5

0

LAA125

Typical Turn-Off Time

(N=50 Ambient Temperature = 25°C)

(Load Current = 120mADC; IF = 10mADC)

0.30 0.50 0.700.20 0.40 0.60 0.80

Turn-Off (ms)

Device Count (N)

25

20

15

10

5

0

LAA125

Typical Load Current vs. Temperature

Temperature (°C)

Load Current (mA)

200

175

150

125

100

75

0

-40 -20 0 20 40 60 80 120100

5mA
10mA

5mA

10mA

Single Pole

Dual Pole

LAA125

Typical Leakage vs. Temperature

(Measured across Pins 5 & 6 or 7 & 8)

Temperature (°C)

Leakage (µA)

-40

0.100

0.090

0.080

0.070

0.060

0.050

0.040

0.030

0.020

0.010
0

-20 0 20 40 60 80 100

LAA125

Typical Blocking Voltage

vs. Temperature

Temperature (°C)

Blocking Voltage (V

RMS

)

-40

340

335

330

325

320

315

310

305

-20 0 20 40 60 80 100

LAA125

Typical Turn-On vs. Temperature

(Load Current = 80mADC)

Temperature (°C)

5mA

10mA

Turn-On (ms)

-40

3.0

2.5

2.0

1.5

1.0

0.5

0

-20 0 20 40 60 80 100

LAA125

Typical Turn-Off vs. Temperature

(Load Current = 120mADC)

Temperature (°C)

Turn-Off (ms)

-40

0.60

0.50

0.40

0.30

0.20

0.10

0

-20 0 20 40 60 80 100

5mA

LAA125

Typical On-Resistance Distribution

(N=50 Ambient Temperature = 25°C)

(Load Current = 170mADC)

35

30

25

20

15

10

5

0

12.64 12.92 13.212.5 12.78 13.06

On-Resistance (Ω)

Device Count (N)

12.36

www.clare.com

4

LAA125

R4

Performance Data*

LAA125

Typical LED Forward Voltage Drop

vs. Temperature

Temperature (°C)

LED Forward Voltage Drop (V)

1.8

1.6

1.4

1.2

1.0

0.8

-40 -20 0 20 40 60 80 120100

50mA

10mA
5mA

LAA125

Typical Turn-On vs. LED Forward Current

(Load Current = 170mADC)

LED Forward Current (mA)

Turn-On (ms)

0

5 1015202530354045

2.0

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2
0

50

LAA125

Typical Turn-Off vs. LED Forward Current

(Load Current = 120mADC)

LED Forward Current (mA)

Turn-Off (ms)

0

10 15 20 25 30 35 40 45

0.60

0.55

0.50

0.45

0.40

0.35

0.30

0.25

0.20
0

50

55

LAA125

Typical On-Resistance vs. Temperature

(Load Current = max rated over temp)

Temperature (°C)

On-Resistance (Ω)

-40

20

18

16

14

12

10

0

-20 0 20 40 60 80 100

Single Pole

Dual Pole

5mA

5mA

5mA

10mA

10mA

Instantaneous

LAA125

Typical IF for Switch Operation

vs. Temperature

(Load Current = max rated over temp)

Temperature (°C)

LED Current (mA)

-40

3.6

3.2

2.8

2.4

2.0

1.6

1.2

0.8

0.4

-20 0 20 40 60 80 100

LAA125

Typical IF for Switch Dropout

vs. Temperature

(Load Current = max rated over temp)

Temperature (°C)

LED Current (mA)

-40

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2
0

-20 0 20 40 60 80 100

LAA125

Typical Load Current vs. Load Voltage

(Ambient Temperature = 25°C)

IF = 5mADC

Load Voltage (V)

Load Current (mA)

200
150
100

50

0

-50

-100

-150

-200

-2.0 -1.5 -1.25 -0.625 0 0.625 1.25 1.875 3.0

LAA125

Energy Rating Curve

Time

Load Current (A)

1.2

1.0

0.8

0.6

0.4

0.2
0

10µs 1ms 100ms 10s100µs 10ms 1s 100s

LAA125

www.clare.com

5

R4

Dimensions

mm

(Inches)

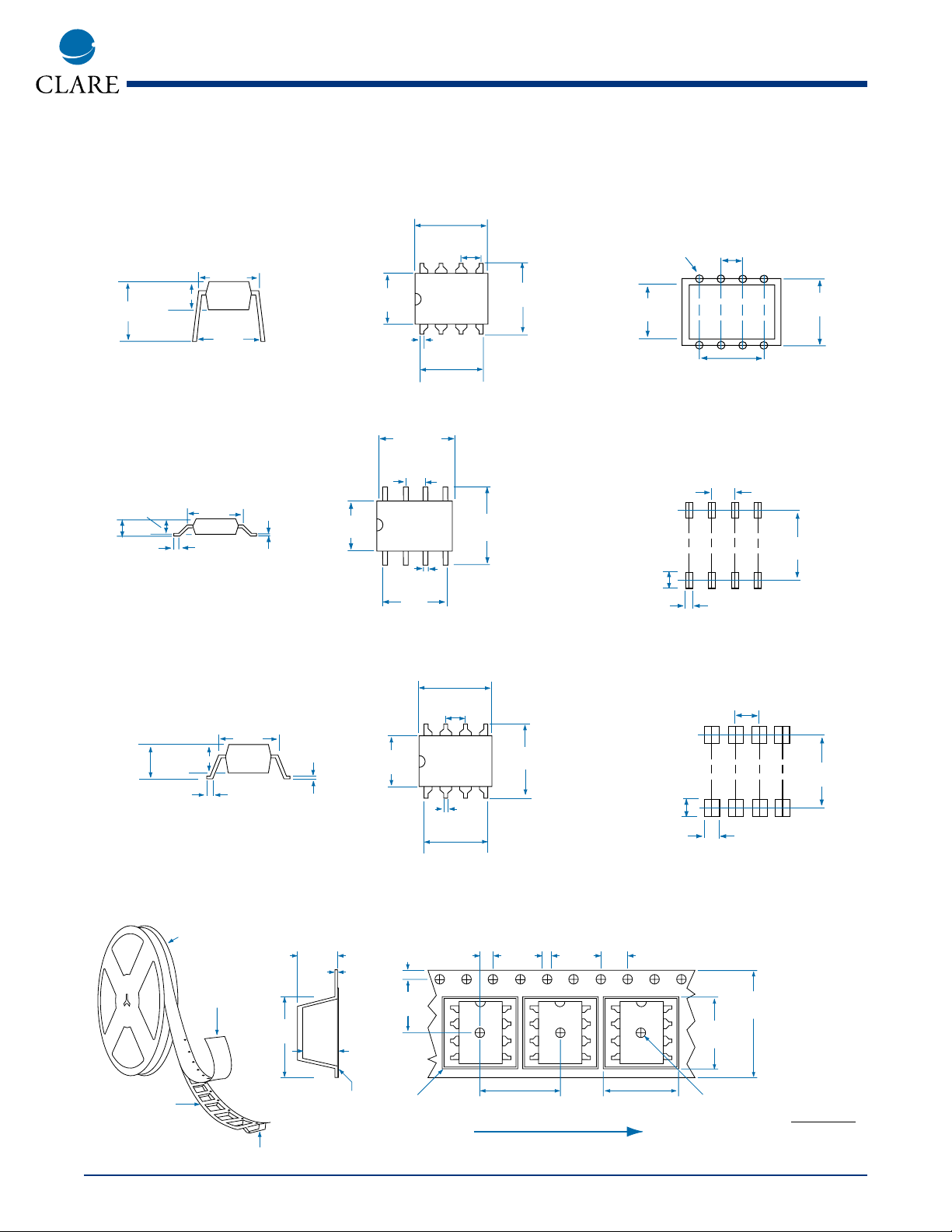

MECHANICAL DIMENSIONS

8 Pin DIP Through Hole (Standard)

7.620 ± .254

(.300 ± .010)

3.302

7.239 TYP.
(.285)

(.130)

9.144 TYP.
(.360)

8 Pin Flatpack (“P” Suffix)

2.159 TYP.
(.085)

2.286 MAX.
(.090)

7.620 ± .254
(.300 ± .010)

.635 ± .127

(.025)

.203

(.008)

6.350 ± .127

(.250 ± .005)

6.350 ± .127
(.250 ± .005)

9.652 ± .381

(.380 ± .015)

2.540 ± .127

(.100 ± .005)

.457 ± .076

(.018 ± .003)

8.077 ± .127

(.318 ± .005 )

9.652 ± .381
(.380 ± .015)

2.540 ± .127
(.100 ± .005)

.457 ± .076

(.018 ± .003)

8.077 ± .127
(.318 ± .005)

9.144 ± .508

(.360 ± .020)

9.398 ± .127
(.370 ± .005)

PC Board Pattern
(Top View)

8-.800 DIA.

(8-.031 DIA.)

6.350 ± .127

(.250 ± .005)

2.540 ± .127

(.100 ± .005)

7.620 ± .127

(.300 ± .005)

PC Board Pattern
(Top View)

2.540 ± .127

(.100 ± .005)

1.193

(.047)

.787

(.031)

7.620 ± .127

(.300 ± .005)

8.763 ± .127

(.345 ± .005)

8 Pin DIP Surface Mount (“S” Suffix)

7.620 ± .254

(.300 ± .010)

4.445 ± .127

(.175 ± .005)

Tape and Reel Packaging for 8 Pin Surface Mount Package

Embossed Carrier

3.302

(.130)

.635 TYP.

(.025)

330.2 DIA.
(13.00)

Top Cover
Tape Thickness
.102 MAX.
(.004)

12.090
(.476)

Embossment

.254 TYP.

(.010)

6.731 MAX.
(.265)

6.350 ± .127

(.250 ± .005)

.406 MAX.

(.016)

4.877
(.192)

Top Cover

Tape

1.753 ± .102

(.069 ± .004)

7.493 ± .102
(.295 ± .004)

.050R TYP.

9.652 ± .381

(.380 ± .015)

2.540 ± .127

(.100 ± .005)

.457 ± .076

(.018 ± .003)

8.077 ± .127

(.318 ± .005)

2.007 ± .102
(.079 ± .004)

9.525 ± .254

(.375 ± .010)

1.498 ± .102
(.059 ± .004)

11.989 ± .102
(.472 ± .004)

User Direction of Feed

PC Board Pattern
(Top View)

1.905 ± .127

(.075 ± .005)

1.498 ± .127

(.059 ± .005)

3.987 ± .102
(.157 ± .004)

18

10.300 ± .102
(.405 ± .004)

2.540 ± .127

(.100 ± .005)

16.002 ± .305
(.630 ± .012)

10.300
(.405)

1.549 ± .102
(.061 ± .004)

8.305 ± .127

(.327 ± .005)

CLARE LOCATIONS

Clare Headquarters
78 Cherry Hill Drive
Beverly, MA 01915
Tel: [phone]
Fax: [phone]
Toll Free: 1-800-27-CLARE

Clare Micronix Division
145 Columbia
Aliso Viejo, CA 92656-1490
Tel: [phone]
Fax: [phone]

SALES OFFICES
AMERICAS

Americas Headquarters

Clare
78 Cherry Hill Drive
Beverly, MA 01915
Tel: [phone]
Fax: [phone]
Toll Free: 1-800-27-CLARE

Eastern Region

Clare
P.O. Box 856
Mahwah, NJ 07430
Tel: [phone]
Fax: [phone]
Toll Free: 1-800-27-CLARE

Central Region

Clare Canada Ltd.
3425 Harvester Road, Suite 202
Burlington, Ontario L7N 3N1
Tel: [phone]
Fax: [phone]

Western Region

Clare
1852 West 11th Street, #348
Tracy, CA 95376
Tel: [phone]
Fax: [phone]
Toll Free: 1-800-27-CLARE

Canada

Clare Canada Ltd.
3425 Harvester Road, Suite 202
Burlington, Ontario L7N 3N1
Tel: [phone]
Fax: [phone]

EUROPE

European Headquarters

CP Clare nv
Bampslaan 17
B-3500 Hasselt (Belgium)
Tel: [phone]
Fax: [phone]

France

Clare France Sales
Lead Rep
99 route de Versailles
91160 Champlan
France
Tel: [phone]
Fax: [phone]

Germany

Clare Germany Sales
ActiveComp Electronic GmbH
Mitterstrasse 12
85077 Manching
Germany
Tel: [phone]
Fax: [phone]

Italy

C.L.A.R.E.s.a.s.
Via C. Colombo 10/A
I-20066 Melzo (Milano)
Tel: [phone]
Fax: [phone]

Sweden

Clare Sales
Comptronic AB
Box 167
S-16329 Spånga
Tel: [phone]
Fax: [phone]

United Kingdom

Clare UK Sales
Marco Polo House
Cook Way
Bindon Road
Taunton
UK-Somerset TA2 6BG
Tel: [phone]
Fax: [phone]

ASIA PACIFIC

Asian Headquarters

Clare
Room N1016, Chia-Hsin, Bldg II,
10F, No. 96, Sec. 2
Chung Shan North Road
Taipei, Taiwan R.O.C.
Tel: [phone]
Fax: [phone]

http://www.clare.com

Worldwide Sales Offices

Specification: DS-LAA125-R4
©Copyright 2001, Clare, Inc.
OptoMOS®is a registered trademark of Clare, Inc.
All rights reserved. Printed in USA.
2/23/01

Clare cannot assume responsibility for use of any circuitry other
than circuitry entirely embodied in this Clare product. No circuit
patent licenses nor indemnity are expressed or implied. Clare
reserves the right to change the specification and circuitry, with­out notice at any time. The products described in this document
are not intended for use in medical implantation or other direct life
support applications where malfunction may result in direct phys­ical harm, injury or death to a person.
