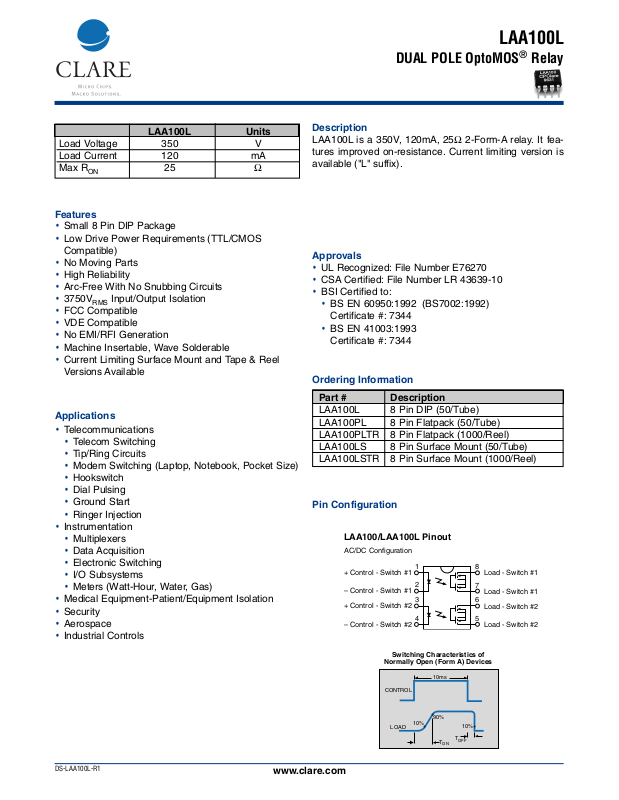

LAA100L
DS-LAA100L-R1
LAA100L is a 350V, 120mA, 25Ω 2-Form-A relay. It features improved on-resistance. Current limiting version is
available ("L" suffix).
• Telecommunications
• Telecom Switching
• Tip/Ring Circuits
• Modem Switching (Laptop, Notebook, Pocket Size)
• Hookswitch
• Dial Pulsing
• Ground Start
• Ringer Injection
• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls
• UL Recognized: File Number E76270
• CSA Certified: File Number LR 43639-10
• BSI Certified to:
• BS EN 60950:1992 (BS7002:1992)
Certificate #: 7344
• BS EN 41003:1993
Certificate #: 7344
• Small 8 Pin DIP Package
• Low Drive Power Requirements (TTL/CMOS
Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• 3750V
RMS
Input/Output Isolation
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• Current Limiting Surface Mount and Tape & Reel
Versions Available
Applications
Features
Description
Approvals
DUAL POLE OptoMOS®Relay
Ordering Information
Part # Description
LAA100L 8 Pin DIP (50/Tube)
LAA100PL 8 Pin Flatpack (50/Tube)
LAA100PLTR 8 Pin Flatpack (1000/Reel)
LAA100LS 8 Pin Surface Mount (50/Tube)
LAA100LSTR 8 Pin Surface Mount (1000/Reel)
LAA100L Units
Load Voltage 350 V
Load Current 120 mA
Max R
ON
25 Ω
Pin Configuration
LAA100/LAA100L Pinout
AC/DC Configuration
+ Control - Switch #1
– Control - Switch #1
+ Control - Switch #2
– Control - Switch #2
1
2
3
4
8
Load - Switch #1
7
Load - Switch #1
6
Load - Switch #2
5
Load - Switch #2
Switching Characteristics of
Normally Open (Form A) Devices
10ms
CONTROL
+
90%
10%
LOAD
+
T
ON
+
10%
T
OFF
Page 2
www.clare.com
LAA100L
Rev. 1
Absolute Maximum Ratings are stress ratings. Stresses
in excess of these ratings can cause permanent damage
to the device. Functional operation of the device at these
or any other conditions beyond those indicated in the
operational sections of this data sheet is not implied.
Exposure of the device to the absolute maximum ratings
for an extended period may degrade the device and effect
its reliability.
Absolute Maximum Ratings (@ 25˚ C)
2
Parameter Min Typ Max Units
Input Power Dissipation - - 1501mW
Input Control Current - - 50 mA
Peak (10ms) - - 1 A
Reverse Input Voltage - - 5 V
Total Power Dissipation - - 8002mW
Isolation Voltage
Input to Output 3750 - - V
RMS
Operational Temperature -40 - +85 °C
Storage Temperature -40 - +125 °C
Soldering Temperature
DIP Package - - +260 °C
Flatpack/Surface Mount Pkg - - +220 °C
(10 Seconds Max.)
1
Derate Linearly 1.33 mw/˚C
2
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter Conditions Symbol Min Typ Max Units
Output Characteristics @ 25°C
Load Voltage (Peak) - V
L
- - 350 V
Load Current (Continuous)
AC/DC Configuration - I
L
- - 120 mA
Peak Load Current 10ms I
LPK
- - 350 mA
On-Resistance
AC/DC Configuration I
L
=120mA R
ON
-- 25Ω
Off-State Leakage Current V
L
=35OV I
LEAK
-- 1 µA
Switching Speeds
Turn-On I
F
=5mA, VL=10V T
ON
-- 5ms
Turn-Off I
F
=5mA, VL=10V T
OFF
-5ms
Output Capacitance 50V; f=1MHz C
OUT
-35 - pF
Capacitance
Input to Output - - - 3 - pF
Input Characteristics @ 25°C
Input Control Current I
L
=120mA I
F
5- 50mA
Input Dropout Current - I
F
0.4 0.7 - mA
Input Voltage Drop I
F
=5mA V
F
0.9 1.2 1.4 V
Reverse Input Voltage - V
R
-- 5 V
Reverse Input Current V
R
=5V I
R
- - 10 µA
Page 3
LAA100L
www.clare.com
3
Rev. 1

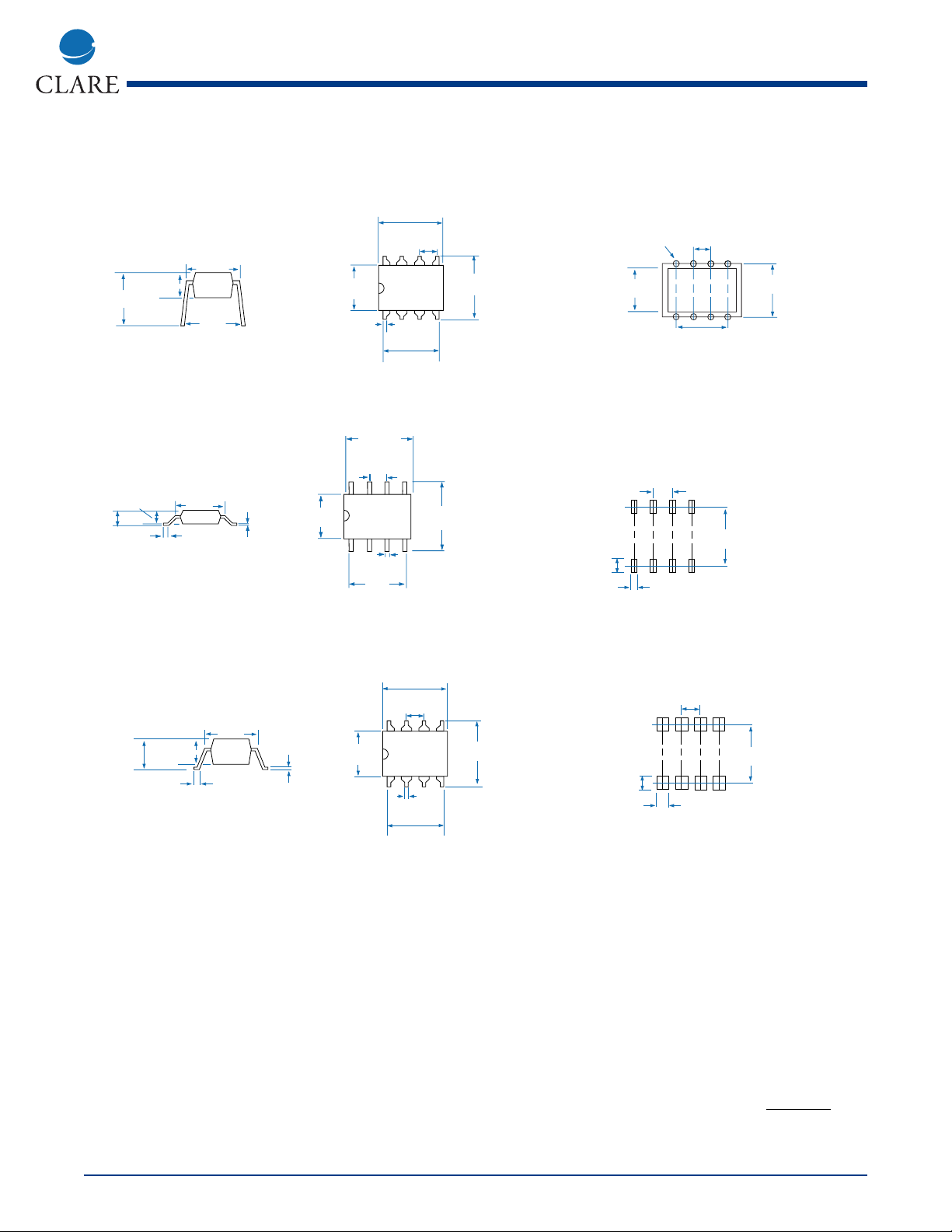

Dimensions
mm
(inches)
Mechanical Dimensions
PC Board Pattern
(Top View)
6.350 ± .127
(.250 ± .005)
2.540 ± .127
(.100 ± .005)
7.620 ± .127
(.300 ± .005)
7.620 ± .127
(.300 ± .005)
8-.800 DIA.
(8-.031 DIA.)
7.239 TYP.
(.285)
3.302
(.130)
7.620 ± .254
(.300 ± .010)
9.144 TYP.
(.360)
6.350 ± .127
(.250 ± .005)
9.652 ± .381
(.380 ± .015)
2.540 ± .127
(.100 ± .005)
9.144 ± .508
(.360 ± .020)
8.077 ± .127
(.318 ± .005 )
8 Pin DIP Through Hole (Standard)
.457 ± .076
(.018 ± .003)
PC Board Pattern
(Top View)
2.540 ± .127
(.100 ± .005)
8.763 ± .127
(.345 ± .005)
1.193
(.047)
.787
(.031)
8 Pin Flatpack (“P” Suffix)
7.620 ± .254
(.300 ± .010)
2.159 TYP.
(.085)
2.286 MAX.
(.090)
9.398 ± .127
(.370 ± .005)
6.350 ± .127
(.250 ± .005)
9.652 ± .381
(.380 ± .015)
2.540 ± .127
(.100 ± .005)
8.077 ± .127
(.318 ± .005)
.457 ± .076
(.018 ± .003)
.203
(.008)
.635 ± .127
(.025)
PC Board Pattern
(Top View)
2.540 ± .127
(.100 ± .005)
8.305 ± .127
(.327 ± .005)
1.905 ± .127
(.075 ± .005)
1.498 ± .127
(.059 ± .005)
4.445 ± .127
(.175 ± .005)
3.302
(.130)
7.620 ± .254
(.300 ± .010)
6.350 ± .127
(.250 ± .005)
8.077 ± .127
(.318 ± .005)
2.540 ± .127
(.100 ± .005)
9.525 ± .254
(.375 ± .010)
.457 ± .076
(.018 ± .003)
.254 TYP.
(.010)
.635 TYP.
(.025)
8 Pin DIP Surface Mount (“S” Suffix)
9.652 ± .381
(.380 ± .015)
Page 4
www.clare.com
4
LAA100L
Rev. 1

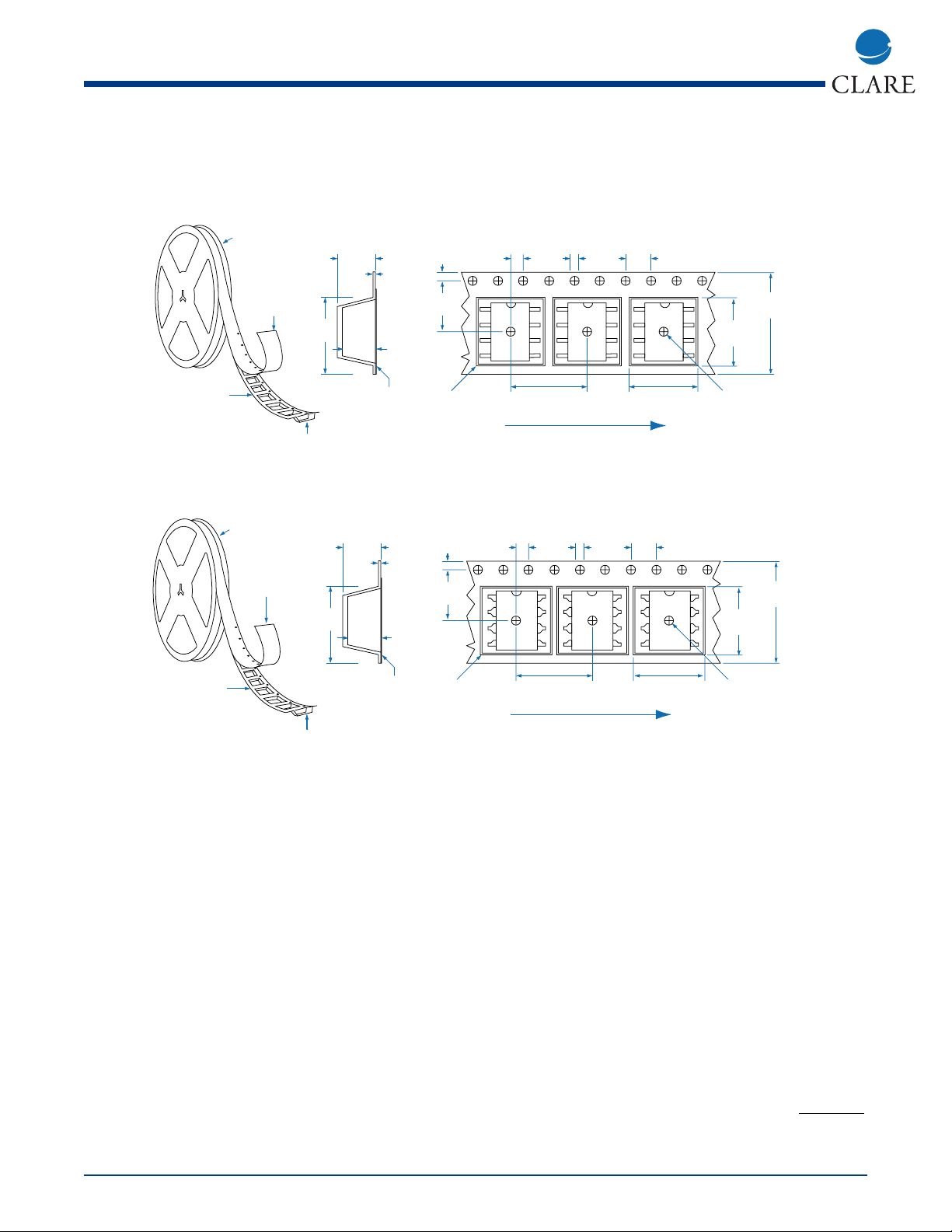

Tape and Reel Packaging for 8 Pin Flatpack Package
7.493 ± .102
(.295 ± .004)
12.090
(.476)
1.753 ± 0.102
(.069 ± .004)
3.987 ± .102
(.157 ± .004)
1.498 ± .102
(.059 ± .004)
6.731 MAX.
(.265)
.406 MAX.
(.016)
4.877
(.192)
Top Cover
Tape
2.007 ± .102
(.079 ± .004)
11.988 ± .102
(.472 ± .004)
User Direction of Feed
.050R TYP.
16.002 ± .305
(.630 ± .012)
10.287
(.405)
Embossment
Embossed Carrier
Top Cover
Tape Thickness
.102 MAX.
(.004)
10.287 ± .102
(.405 ± .004)
1.549 ± .102
(.061 ± .004)
330.2 DIA.
(13.00)
18
Dimensions
mm
(inches)
Mechanical Dimensions
Tape and Reel Packaging for 8 Pin Surface Mount Package
7.493 ± .102
(.295 ± .004)
12.090
(.476)
1.753 ± .102
(.069 ± .004)
3.987 ± .102
(.157 ± .004)
1.498 ± .102
(.059 ± .004)
6.731 MAX.
(.265)
.406 MAX.
(.016)
4.877
(.192)
Top Cover
Tape
2.007 ± .102
(.079 ± .004)
11.989 ± .102
(.472 ± .004)
User Direction of Feed
.050R TYP.
16.002 ± .305
(.630 ± .012)
10.300
(.405)
Embossment
Embossed Carrier
Top Cover
Tape Thickness
.102 MAX.
(.004)
10.300 ± .102
(.405 ± .004)
1.549 ± .102
(.061 ± .004)
330.2 DIA.
(13.00)
18
Page 5
CLARE LOCATIONS
Clare Headquarters
78 Cherry Hill Drive
Beverly, MA 01915
Tel: 1-978-524-6700
Fax: 1-978-524-4900
Toll Free: 1-800-27-CLARE
Clare Micronix Division
145 Columbia
Aliso Viejo, CA 92656-1490
Tel: 1-949-831-4622
Fax: 1-949-831-4628
SALES OFFICES
AMERICAS
Americas Headquarters
Clare
78 Cherry Hill Drive
Beverly, MA 01915
Tel: 1-978-524-6700
Fax: 1-978-524-4900
Toll Free: 1-800-27-CLARE
Eastern Region
Clare
P.O. Box 856
Mahwah, NJ 07430
Tel: 1-201-236-0101
Fax: 1-201-236-8685
Toll Free: 1-800-27-CLARE
Central Region
Clare Canada Ltd.
3425 Harvester Road, Suite 202
Burlington, Ontario L7N 3N1
Tel: 1-905-333-9066
Fax: 1-905-333-1824
Western Region
Clare
1852 West 11th Street, #348
Tracy, CA 95376
Tel: 1-209-832-4367
Fax: 1-209-832-4732
Toll Free: 1-800-27-CLARE
Canada
Clare Canada Ltd.
3425 Harvester Road, Suite 202
Burlington, Ontario L7N 3N1
Tel: 1-905-333-9066
Fax: 1-905-333-1824
EUROPE
European Headquarters
CP Clare nv
Bampslaan 17
B-3500 Hasselt (Belgium)
Tel: 32-11-300868
Fax: 32-11-300890
France
Clare France Sales
Lead Rep
99 route de Versailles
91160 Champlan
France
Tel: 33 1 69 79 93 50
Fax: 33 1 69 79 93 59
Germany
Clare Germany Sales
ActiveComp Electronic GmbH
Mitterstrasse 12
85077 Manching
Germany
Tel: 49 8459 3214 10
Fax: 49 8459 3214 29
Italy
C.L.A.R.E.s.a.s.
Via C. Colombo 10/A
I-20066 Melzo (Milano)
Tel: 39-02-95737160
Fax: 39-02-95738829
Sweden
Clare Sales
Comptronic AB
Box 167
S-16329 Spånga
Tel: 46-862-10370
Fax: 46-862-10371
United Kingdom
Clare UK Sales
Marco Polo House
Cook Way
Bindon Road
Taunton
UK-Somerset TA2 6BG
Tel: 44-1-823 352541
Fax: 44-1-823 352797
ASIA/PACIFIC
Asian Headquarters
Clare
Room N1016, Chia-Hsin, Bldg II,
10F, No. 96, Sec. 2
Chung Shan North Road
Taipei, Taiwan R.O.C.
Tel: 886-2-2523-6368
Fax: 886-2-2523-6369
http://www.clare.com
Worldwide Sales Offices
Specification: DS-LAA100L-R1
©Copyright 2001, Clare, Inc.
OptoMOS
®
is a registered trademark of Clare, Inc.
All rights reserved. Printed in USA.
6/19/01
