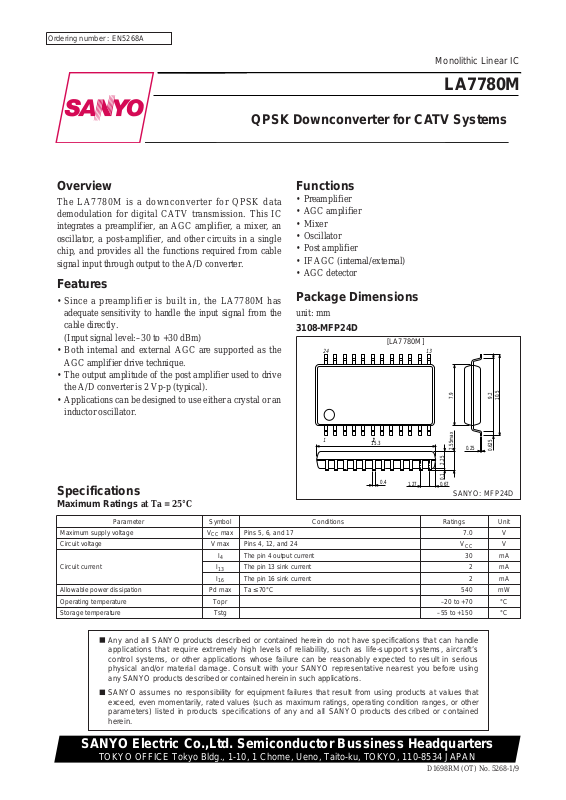

Overview
The LA7780M is a downconverter for QPSK data
demodulation for digital CATV transmission. This IC
integrates a preamplifier, an AGC amplifier, a mixer, an
oscillator, a post-amplifier, and other circuits in a single
chip, and provides all the functions required from cable
signal input through output to the A/D converter.
Features
• Since a preamplifier is built in, the LA7780M has
adequate sensitivity to handle the input signal from the
cable directly.
(Input signal level:–30 to +30 dBm)
• Both internal and external AGC are supported as the
AGC amplifier drive technique.
• The output amplitude of the post amplifier used to drive
the A/D converter is 2 Vp-p (typical).
• Applications can be designed to use either a crystal or an
inductor oscillator.
Functions
• Preamplifier
• AGC amplifier
• Mixer
• Oscillator
• Post amplifier
• IF AGC (internal/external)
• AGC detector
Package Dimensions
unit: mm
3108-MFP24D
0.25
24
13
15.3
112
0.67
0.4
1.27
7.9
9.2
10.5
0.625
2.55max
2.250.1
Monolithic Linear IC
D1698RM (OT) No. 5268-1/9
SANYO: MFP24D
[LA7780M]
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
QPSK Downconverter for CATV Systems
LA7780M
Ordering number : EN5268A
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage V
CC
max Pins 5, 6, and 17 7.0 V
Circuit voltage V max Pins 4, 12, and 24 V
CC
V
I
4
The pin 4 output current 30 mA
Circuit current I
13
The pin 13 sink current 2 mA
I
16
The pin 16 sink current 2 mA
Allowable power dissipation Pd max Ta ≤ 70°C 540 mW
Operating temperature Topr –20 to +70 °C
Storage temperature Tstg –55 to +150 °C
Specifications
Maximum Ratings at Ta = 25°C
Page 2
No. 5268-2/9
LA7780M
Parameter Symbol Conditions
Ratings
Unit
min typ max
Circuit current I
total
Pins 4, 5, 6, and 17: no signal 64 80 95 mA
RF input frequency range f
(in)
Pins 1, 8, and 9 30 150 MHz
IF output level V
O(IF)
Pin 13: *1 1.6 2.0 2.5 Vp-p
IF output IM3 V
O(IM3)
Pin 13: *2 40 dB
IF output frequency bandwidth BW Pin 13: *3 15 MHz
Local oscillator frequency range f
(LO)
Pins 18, 19, 20, and 21 30 200 MHz
AGC amplifier input sensitivity Vin(RF2) Pins 8 and 9: *4 –25 –21 –17 dBmV
AGC range GR Pin 13: IF output level < ±1 dB 60 80 dB
AGC flatness ∆V
O(IF)
Pin 13: Compare with the state when
–1 0 +1 dB
Vin (RF2) = 30 dBmV
Preamplifier gain G
(RF1)
Pin 4: *5 17 19 21 dB
Maximum preamplifier output level V
Omax
Pin 4: *6 50 dBmV
Oscillator output level V
O(OSC)
Pin 23: The pin 23 frequency is 1/2 that of
500 800 1000 mVp-p
the local oscillator
AC Characteristics at Ta = 25°C, VCC= 5.0 V, internal AGC mode, Pin 24 is left open.
Operating Modes
Mode Pin 10 Pin 11 Pin 12
Internal AGC GND
With a capacitor between
Connected to pin 11
pin 11 and ground
External AGC GND With a capacitor between External AGC voltage supply
(Narrow control range: 3 to 5 V) (AGC divider inactive) pin 11 and ground Pin 12 = high impedance
External AGC Open With a capacitor between External AGC voltage supply
(Wide control range: 0 to 5 V) (AGC divider active) pin 11 and ground Pin 12 = low impedance (14 kΩ)
Internal AGC
External AGC
Caution:
Note 1.
Input: SG = 69.55 MHz, 20 dBm V
Other conditions:
Internal AGC mode
Pin 24 left open.
Output: The post amplifier output (pin 13) at 5 MHz
Note: In internal AGC mode, the IF output level can be adjusted by varying the pin 24 DC voltage.
Parameter Symbol Conditions Ratings Unit
Recommended supply voltage V
CC
Pins 5, 6, and 17 5.0 V
Operating supply voltage range V
CC
op Pins 5, 6, and 17 4.5 to 5.5 V
Operating Conditions at Ta = 25°C
Transfer ratio = 1 : 1
Page 3
No. 5268-3/9
LA7780M
Note 2.
Input: SG1 = 69.55 MHz, SG2 = 70.55 MHz
Other conditions:
Internal AGC mode
Pin 24 left open.
Output: The post amplifier output (pin 13)
Note 3.
Post amplifier output level = –3 dB
Remove the low-pass filter between pins 14 and 16.
(
Short the coil of 27 µH and remove the capacitors of 27 pF and 15 pF.)
Note 4.
Input: SG1 = 69.55 MHz
Note 5.
SG = 75 MHz, 20 dBm V
Note 6.
SG1 = 75 MHz, SG2 = 76 MHz,
Adjust the pin 1 level until the IM3 in the pin 4 output is 40 dB.
Output:RF1-OUT (pin 4)
V
O(IM3)
= 40 dB
Other conditions:
Internal AGC mode
Pin 24 left open.
Output: The signal level such that the post
amplifier output (pin 13) falls by –3 dB.
Point = 20 dBmV (69.55 MHz) + 20 dBmV (70.55 MHz)
Page 4

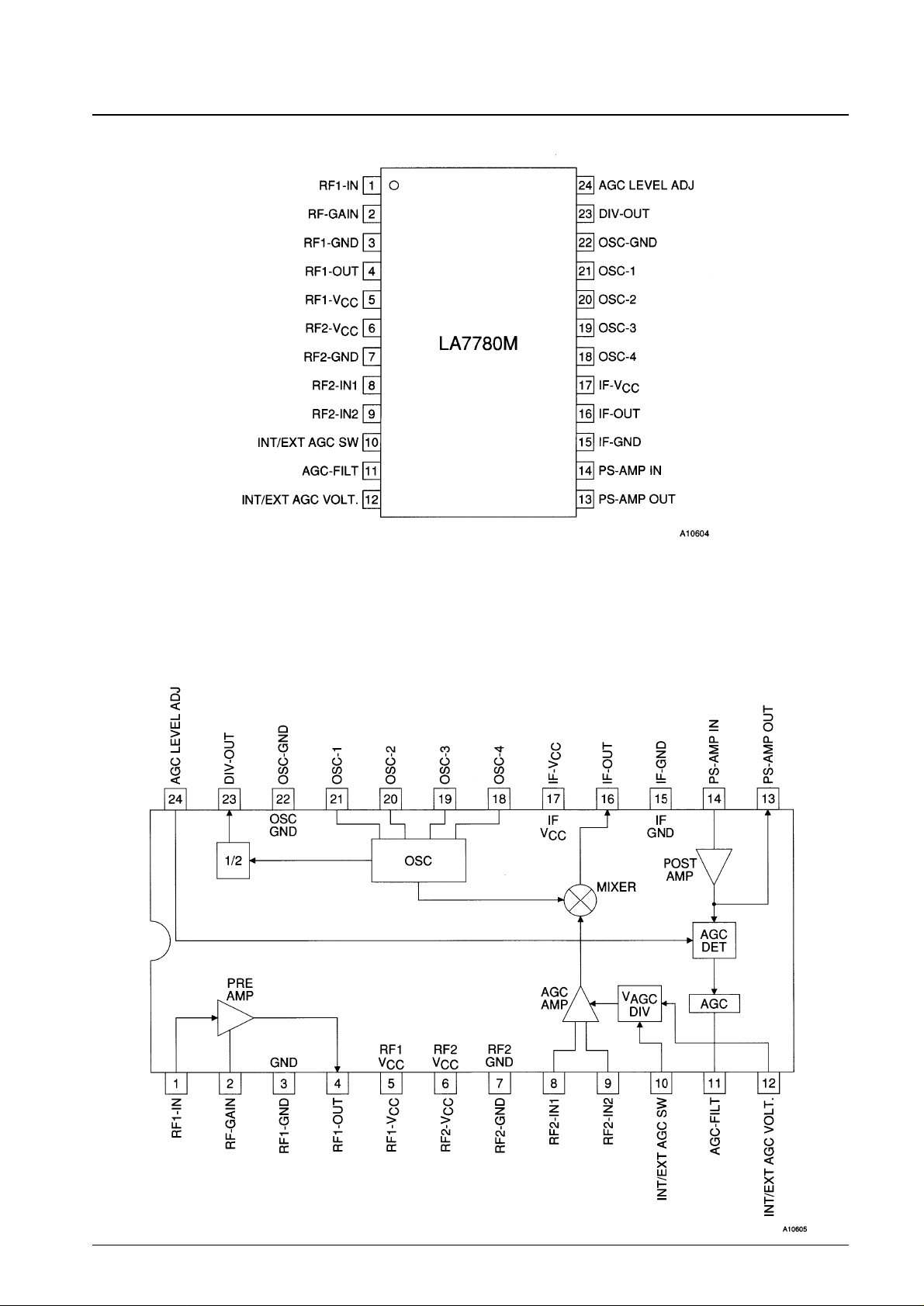

Pin Assignment
No. 5268-4/9
LA7780M
Block Diagram
Usage Notes
• The oscillator may stop if the power supply rise time is extremely short. To prevent this problem, insert a 500 kΩ
resistor between pin 18 and ground or between pin 21 and ground. (This applies when a crystal oscillator is used.)
• This IC should be used with the pin 13 output level between 1 Vp-p and 2 Vp-p.
• Use a low-pass filter with a 6-dB attenuation between pins 14 and 16.
• Since the high-frequency process is adopted, care must be taken to prevent the influence of static electricity.
Top view
Page 5
No. 5268-5/9
LA7780M
Pin No. Function Pin voltage (V) Note Equivalent circuit
1 RF1 input 2.8
Impedance connected to pin 2 must be > 45 Ω2 RF gain 1.3
3 GND 0
4 RF1 output Open collector
5
V
CC
5.0
6
V
CC
5.0
7 GND 0
V = 2.5 V
R = 1 kΩ
8
9
RF2 input (1)
RF2 input (2)
2.5
2.5
Pin 10 → GND : Internal or external AGC
(narrow control range)
Pin 10 → open : External AGC (wide control range)
10
Internal/external
AGC switch
0 (GND)
1.0 (open)
I1 = 20 µA
I2 = 100 µA
I3, I4 & Q1 are switched on and off by pin 10.
11
12
AGC filter 2
AGC filter 1
Open collector
Open base
(Pin 10 → GND)
4.0 (Pin 10 open)
Continued on next page.

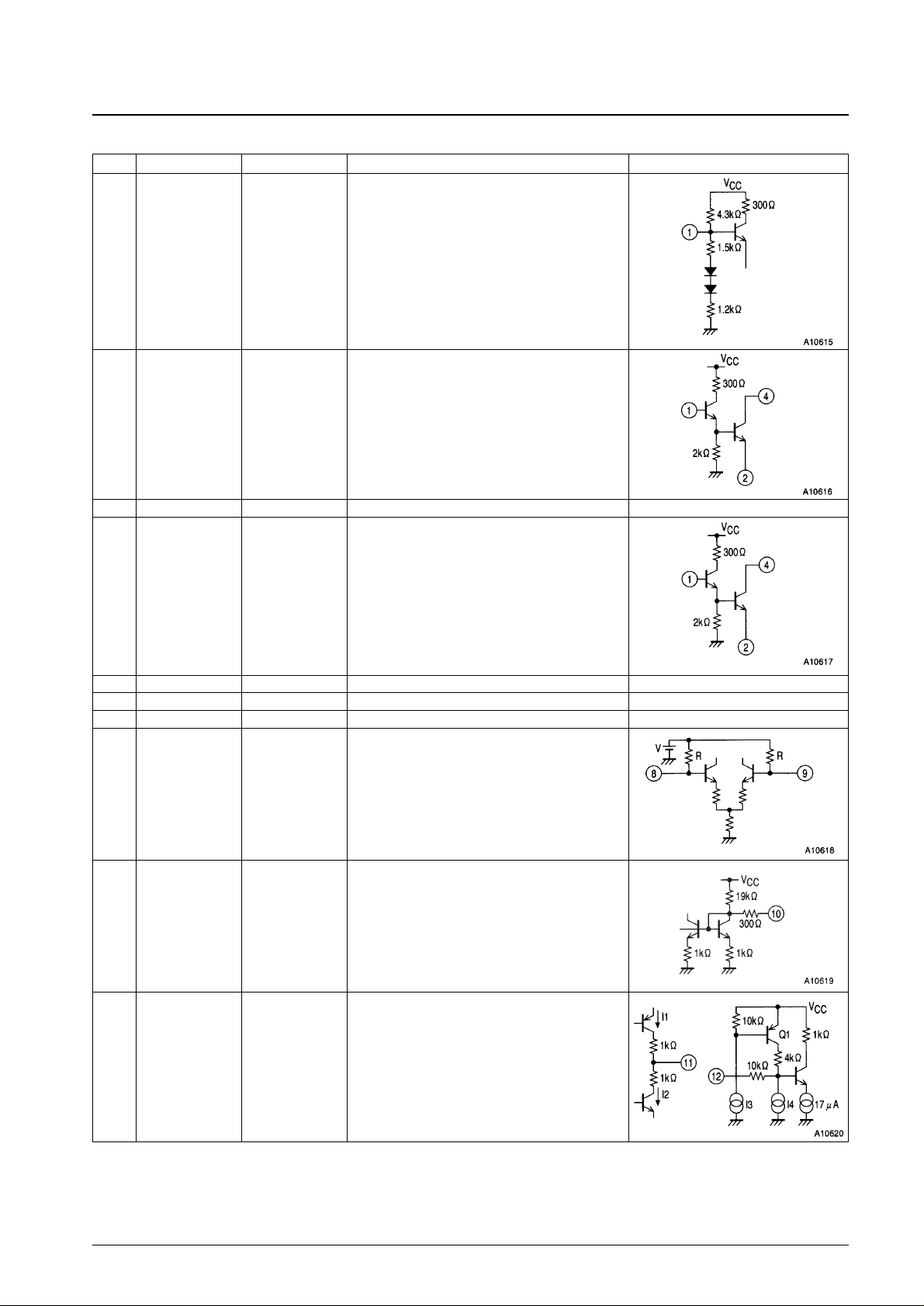

Pin Descriptions
Page 6
No. 5268-6/9
LA7780M
Continued from preceding page.
Pin No. Function Pin voltage (V) Note Equivalent circuit
13 Post-amp output 2, 3
R = 30 Ω
I = 7 mA
14 Post-amp input 2.0
V = 2.1 V
R = 300 Ω
15 GND 0
16 IF output 1.7
R = 100 Ω
I = 3.5 mA
17
V
CC
5.0
18
19
20
21
Oscillator input 4
Oscillator input 3
Oscillator input 2
Oscillator input 1
3.0
3.0
V = 3.0 V
R = 5 kΩ
I = 1 mA
22 GND 0
23 Divider output 3.3
R = 100 Ω
I = 1 mA
24
Output level
adjustment
2.5 R = 25 kΩ
Page 7

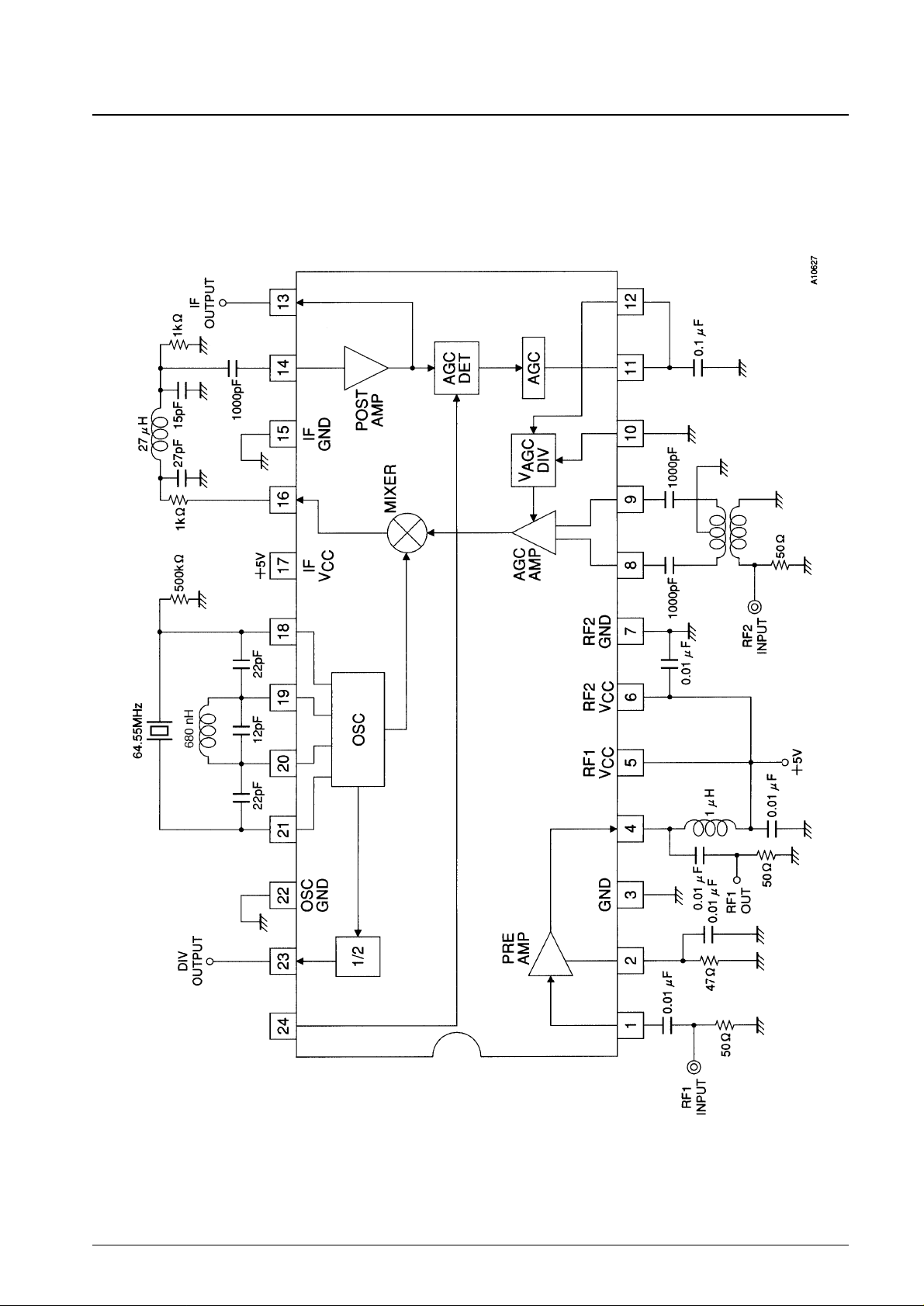

Test Circuit
No. 5268-7/9
LA7780M
Page 8
No. 5268-8/9
LA7780M

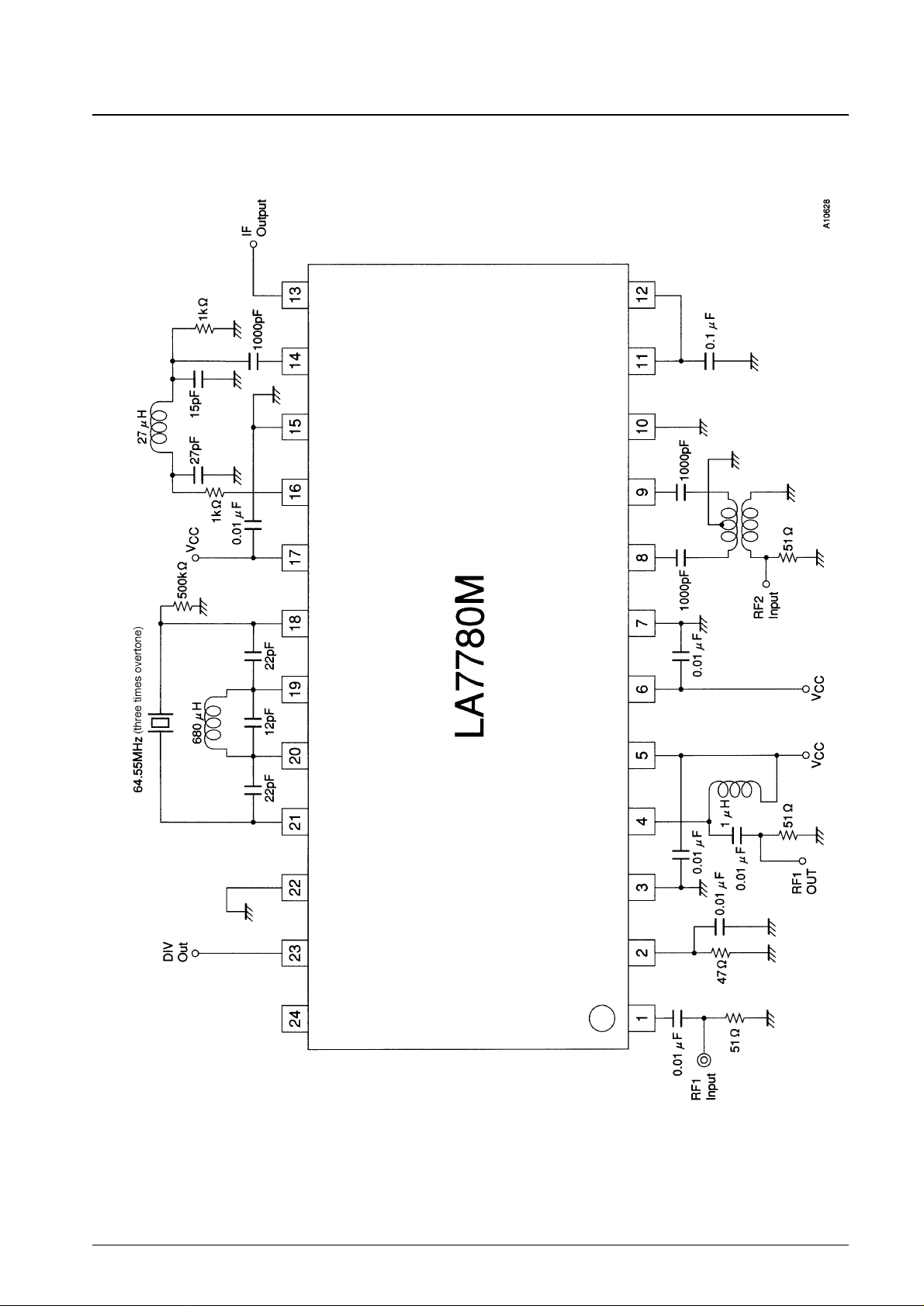

Sample Application Circuit
*: The choke coil between pins 19 and
20 is not required if the fundamental
frequency of the crystal (not an
overtone) is used.
Page 9
PS No. 5268-9/9
LA7780M
