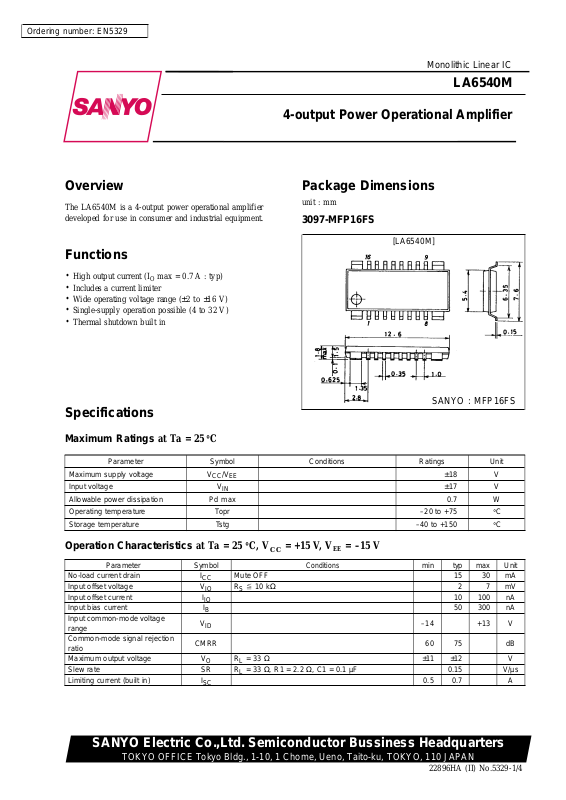

Page 1
Ordering number: EN5329
Monolithic Linear IC
LA6540M
4-output Power Operational Amplifier
Overview
The LA6540M is a 4-output power operational amplifier
developed for use in consumer and industrial equipment.
Package Dimensions
unit : mm
3097-MFP16FS
[LA6540M]
Functions
.
High output current (IOmax = 0.7 A : typ)
.
Includes a current limiter
.
Wide operating voltage range (±2to±16 V)
.
Single-supply operation possible (4 to 32 V)
.
Thermal shutdown built in
SANYO : MFP16FS
Specifications
Maximum Ratings atTa=25°C
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage V
Input voltage V
Allowable power dissipation Pd max 0.7 W
Operating temperature Topr –20 to +75
Storage temperature Tstg –40 to +150
CC/VEE
IN
±18 V
±17 V
C
°
C
°
Operation Characteristics atTa=25°C, VCC= +15 V, VEE= –15 V
Parameter Symbol
No-load current drain I
Input offset voltage V
Input offset current I
Input bias current I
Input common-mode voltage
range
Common-mode signal rejection
ratio
Maximum output voltage V
Slew rate SR R
Limiting current (built in) I
CC
IO
IO
B
V
ID
CMRR 60 75 dB
O
SC
Mute OFF 15 30 mA
RS% 10 kΩ 27mV
RL=33Ω±11 ±12 V
=33Ω,R1=2.2Ω, C1 = 0.1 µF 0.15 V/µs
L
Conditions
min typ max Unit
–14 +13 V
0.5 0.7 A
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
22896HA (II) No.5329-1/4
10 100 nA
50 300 nA
Page 2
Pin Assignment
LA6540M
Sample Application Circuit
No.5329-2/4
Page 3

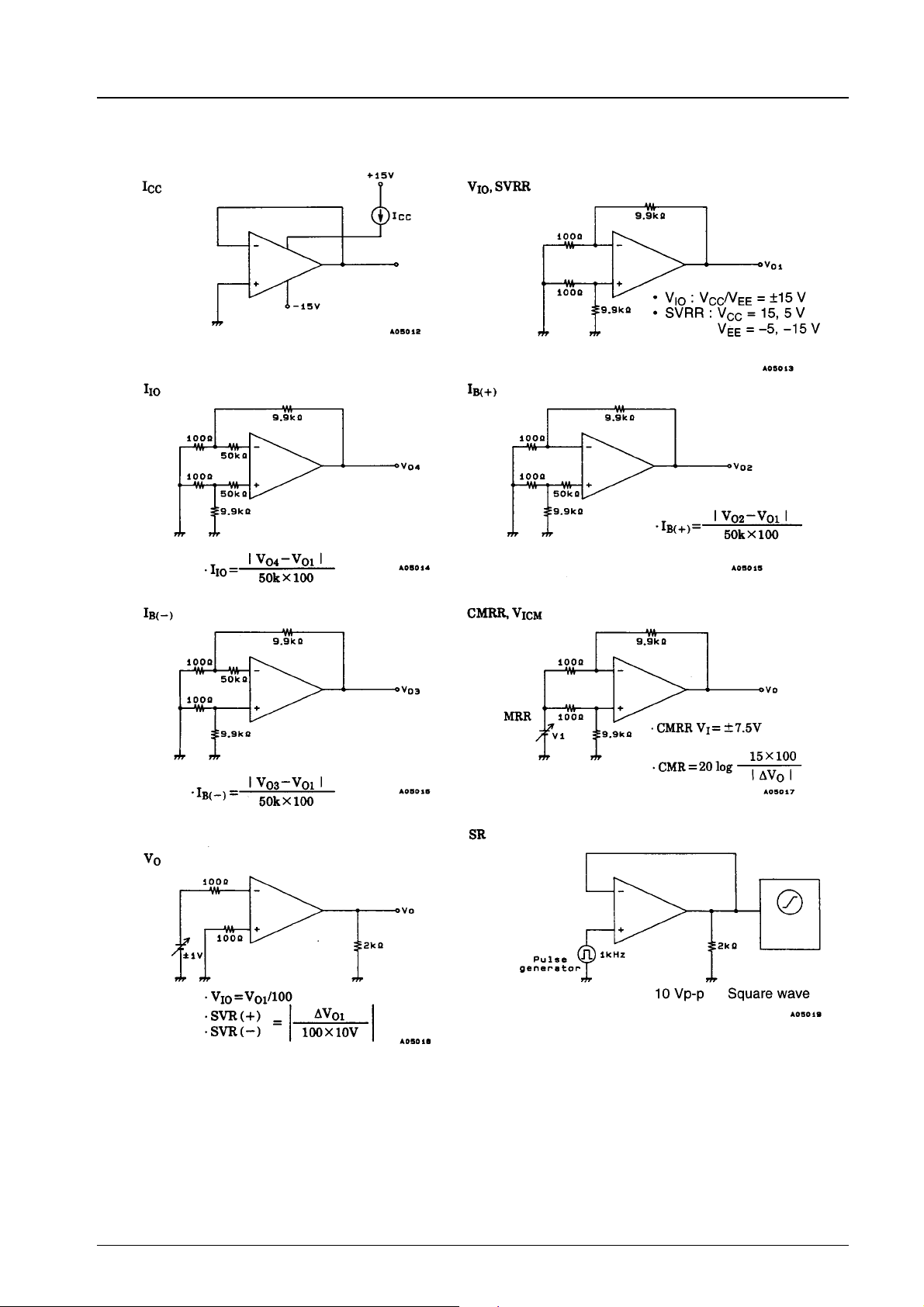

Test Circuits
LA6540M
No.5329-3/4
Page 4
LA6540M
Specifications of specified board
25 × 25 × 1.65 mm
Material: Glass epoxy
With specified board
Independent IC
Allowable power dissipation, Pd max − W
Ambient temperature, Ta —°C
3
Copper foiled area:
2
100 mm
No products described or contained hereinareintended for use in surgical implants, life-support systems, aerospace equipment,
nuclear power control systems, vehicles, disaster/crime-prevention equipment and the like, the failure of which may directly or
indirectly cause injury, death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
1 Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors
and all their officers and employees, jointly and severally, against any and all claims and litigation and all damages, cost and
expenses associated with such use:
2 Not impose any responsibility for any fault or negligence which may be cited in any such claim or litigation on SANYO
ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of their officers and employees jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guaranteed for volume
production. SANYO believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use
or any infringements of intellectual property rights or other rights of third parties.
This catalog provides information as of February, 1996. Specifications and information herein are subject to change without notice.
No.5329-4/4
