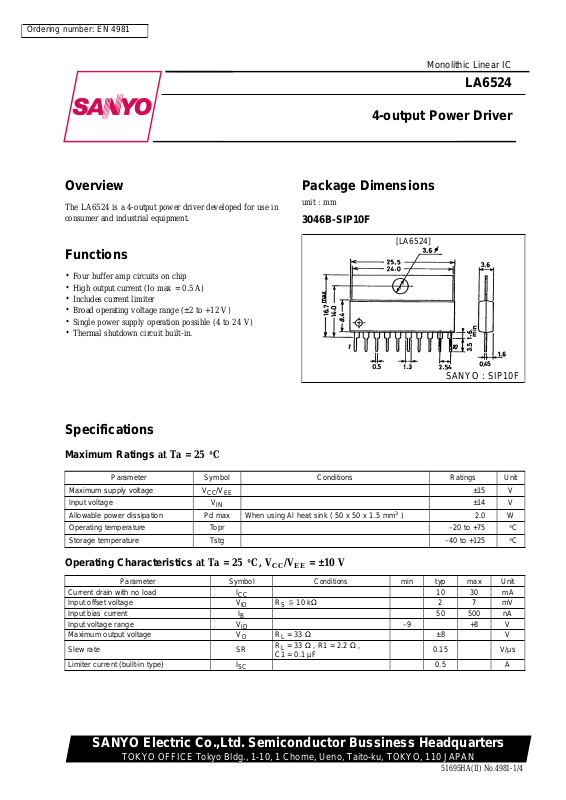

Ordering number: EN 4981
Monolithic Linear IC
LA6524
4-output Power Driver
Overview
The LA6524 is a 4-output power driver developed for use in
consumer and industrial equipment.
Functions
.
Four buffer amp circuits on chip
.
High output current (Io max = 0.5 A)
.
Includes current limiter
.
Broad operating voltage range (±2 to +12 V)
.
Single power supply operation possible (4 to 24 V)
.
Thermal shutdown circuit built-in.
Specifications
Maximum Ratings atTa=25°C
Package Dimensions
unit : mm
3046B-SIP10F
[LA6524]
SANYO : SIP10F
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage V
Input voltage V
Allowable power dissipation Pd max When using Al heat sink ( 50 x 50 x 1.5 mm
Operating temperature Topr –20 to +75
Storage temperature Tstg –40 to +125
CC/VEE
IN
3
) 2.0 W
Operating Characteristics atTa=25°C, VCC/VEE= ±10 V
Parameter Symbol
Current drain with no load I
Input offset voltage V
Input bias current I
Input voltage range V
Maximum output voltage V
Slew rate SR
Limiter current (built-in type) I
CC
SC
IO
B
ID
O
RS% 10 kΩ 27mV
RL=33Ω ±8 V
R
L
C1 = 0.1 µF
Conditions
=33Ω,R1=2.2Ω,
min typ max Unit
10 30 mA
50 500 nA
–9 +8 V
0.15 V/µs
0.5 A
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
51695HA(II) No.4981-1/4
±15 V
±14 V
C
°
C
°
Page 2
Pin Assignments
Block Diagram
LA6524
Sample Application Circuit
Load
2.2[Ω]
0.1[µF] (Film)
No.4981-2/4
Page 3

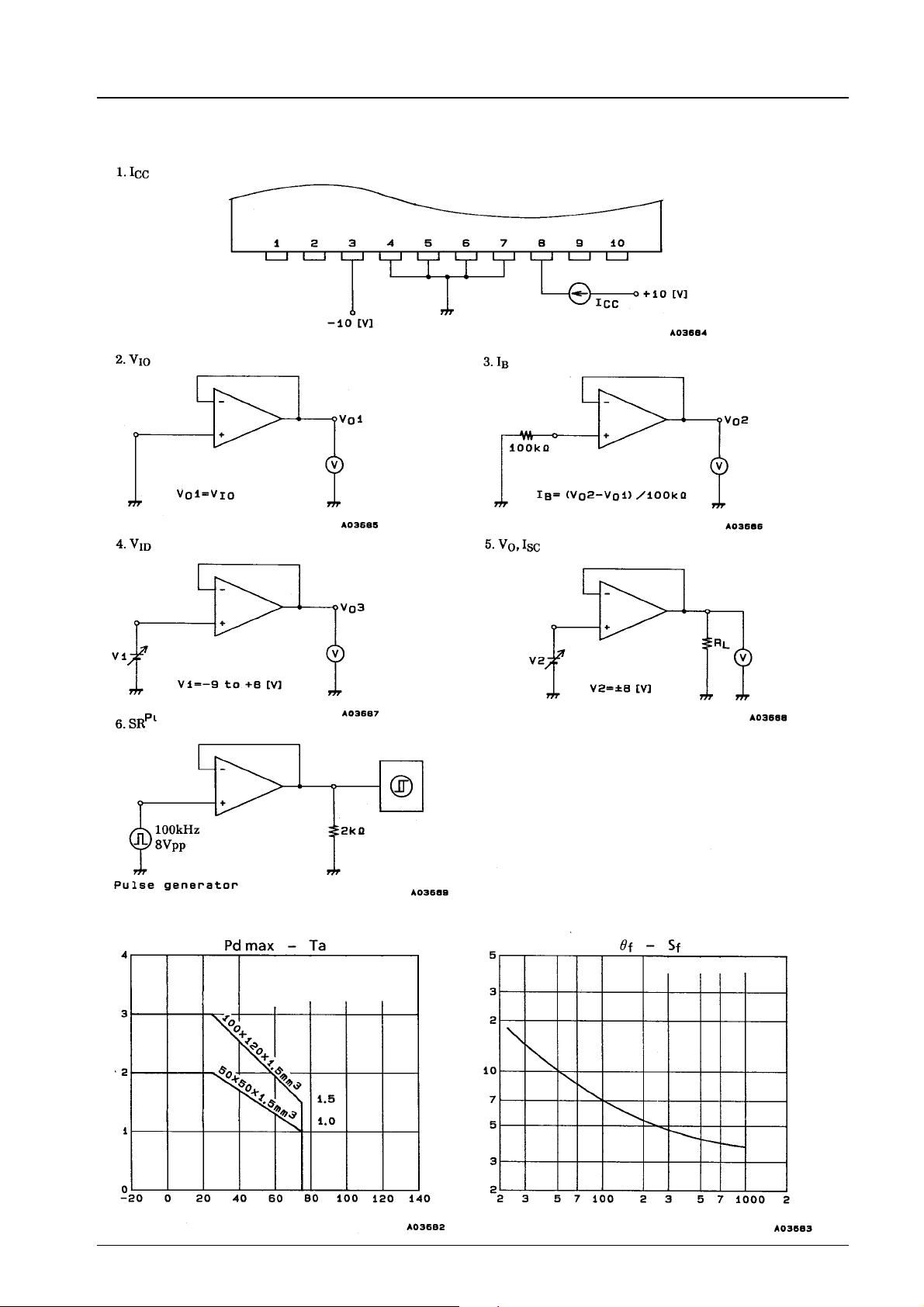

Test Circuit
