Overview
The LA6516 is a two-output power amplifier developed
for use in both consumer and industrial equipment.
Functions
• High slew rate (1.0 V/µs)
• High output current (IOmax = 1.0 A)
• Current limiter function
• Wide operating voltage range (±2 to 18 V)
• Supports single-voltage power supply operation (4 to 36 V)
• Thermal shutdown function
• Muting circuit (Functions for both channels; when the
mute input is high the output will be on.)
Package Dimensions
unit: mm
3046B-SIP10F
Monolithic Linear IC
Ordering number : EN5674
93097HA(OT) No. 5674-1/4
SANYO: SIP10F
[LA6516]
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
Two-Output Power Amplifier
LA6516
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage V
CC/VEE
±18 V
Input voltage V
IN
±17 V
Allowable power dissipation Pd max 2.5 W
Operating temperature Topr –20 to +75 °C
Storage temperature Tstg –40 to +150 °C
Specifications
Absolute Maximum Ratings at Ta = 25°C
Ambient temperature, Ta — °C
Allowable power dissipation, Pd max — W
With no heat sink
With an arbitrarily large heat sink
θ
j-c = 10°C/W
Tightening torque: 39 N·cm
Page 2
No. 5674-2/4
LA6516
Pin Assignment
Pin Functions
Pin No. Pin Item Function
1 VM
REF
MUTE
Muting on/off reference voltage input
2 MUTE
Muting on/off signal input. Muting is activated when the MUTE pin voltage is less than the VM
REF
pin
voltage plus 1.2 V (typ).
3 VIN1
+
Amplifier 1 noninverting input
4 V
IN
1
–
AMP1 Amplifier 1 inverting input
5 V
O
1 Amplifier 1 output
6 V
EE
Negative power supply Negative power supply (–2.0 to –18.0 V)
7 V
O
2 Amplifier 2 output
8 V
IN
2
–
AMP2 Amplifier 2 inverting input
9 V
IN
2
+
Amplifier 2 noninverting input
10 V
CC
Positive power supply Positive power supply (+2.0 to +18.0 V)
Parameter Symbol Conditions
Ratings
Unit
min typ max
Quiescent current I
CC
Mute off 10 30 mA
Input offset voltage V
IO
VCC/VEE= ±15 V 2 7 mV
Input offset current I
IO
10 100 nA
Input bias current I
B
50 300 nA
Common-mode input voltage range V
ICM
–9 +8 V
Common-mode rejection ratio CMRR V
IN
= 15 Vp-p 75 dB
Supply voltage rejection ratio SVRR V
CC/VEE
= ±5 V, 15 V 30 µV/V
Voltage gain VG
O
80 dB
Maximum output voltage
V
O
1 RL= 33 Ω ±8 V
V
O
2 RL= 8 Ω ±5.6 ±6 V
Slew rate SR R
L
= 2 kΩ 1 V/µS
Limit current I
LIMIT
1 A
Muting on voltage V
MUTE ONVMREF
= 0.0 V 0.5 1.0 V
Muting off voltage VM
UTE OFFVMREF
= 0.0 V 1.0 2.0 V
Offset voltage temperature coefficient ∆ V
IO
/∆T Ta = –20 to +75°C 25 µV/°C
Electrical Characteristics at Ta = 25°C, VCC= 10 V, VEE= –10 V
V
IN
1
+
V
IN
1
–
Page 3
No. 5674-3/4
LA6516

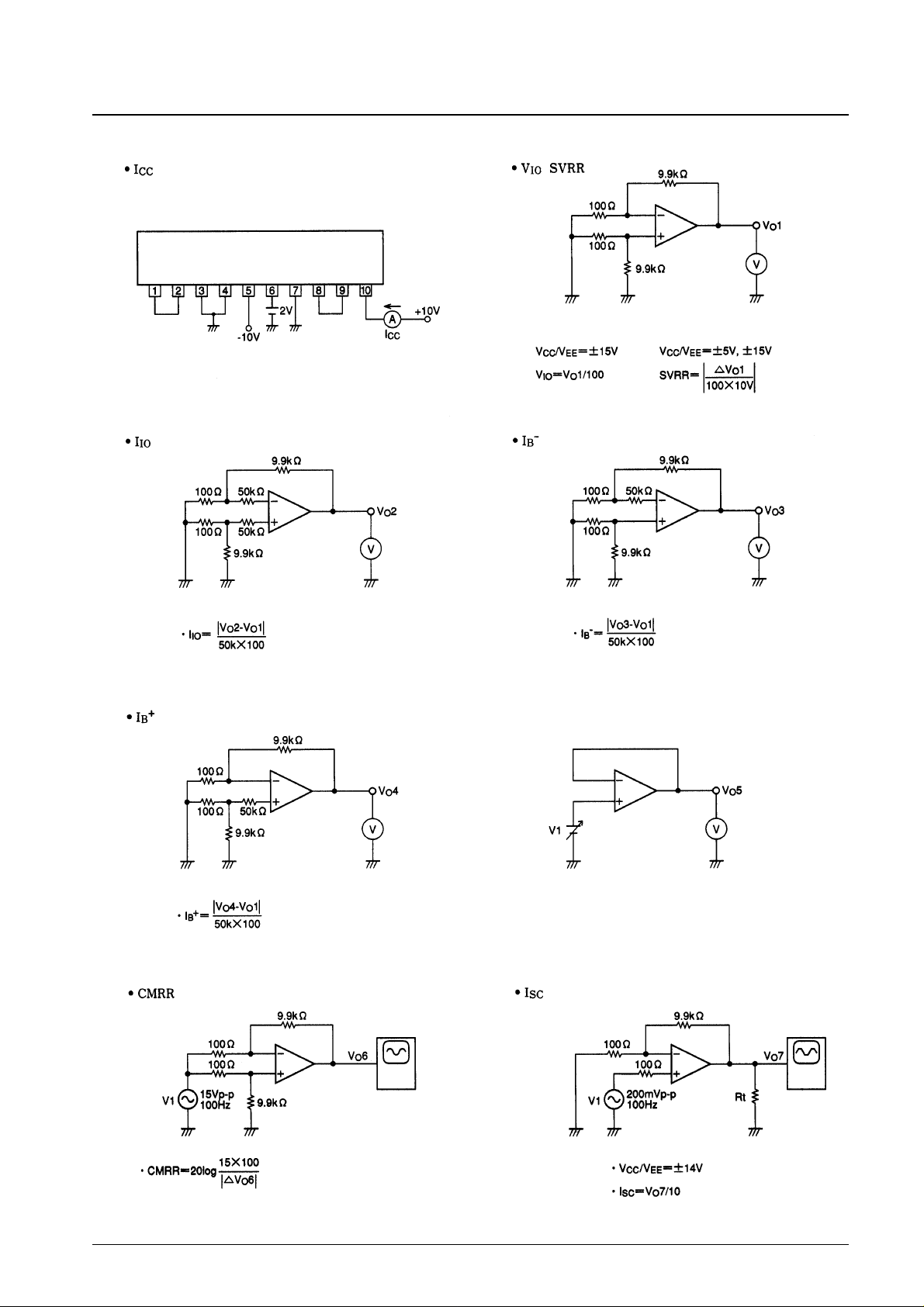

Test Circuits
• For V
IO
• V
ICM
V1 = –9 to +8 V
3 kΩ
• For SVRR
Continued on next page.
Page 4
No. 5674-4/4
LA6516
This catalog provides information as of September, 1997. Specifications and information herein are subject to
change without notice.
■ No products described or contained herein are intended for use in surgical implants, life-support systems, aerospace
equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and the like, the failure of
which may directly or indirectly cause injury, death or property loss.
■ Anyone purchasing any products described or contained herein for an above-mentioned use shall:
➀ Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and
distributors and all their officers and employees, jointly and severally, against any and all claims and litigation and all
damages, cost and expenses associated with such use:
➁ Not impose any responsibility for any fault or negligence which may be cited in any such claim or litigation on
SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of their officers and employees
jointly or severally.
■ Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guaranteed for
volume production. SANYO believes information herein is accurate and reliable, but no guarantees are made or implied
regarding its use or any infringements of intellectual property rights or other rights of third parties.
Continued from preceding page.
200-mV p-p
10-kHz
square wave

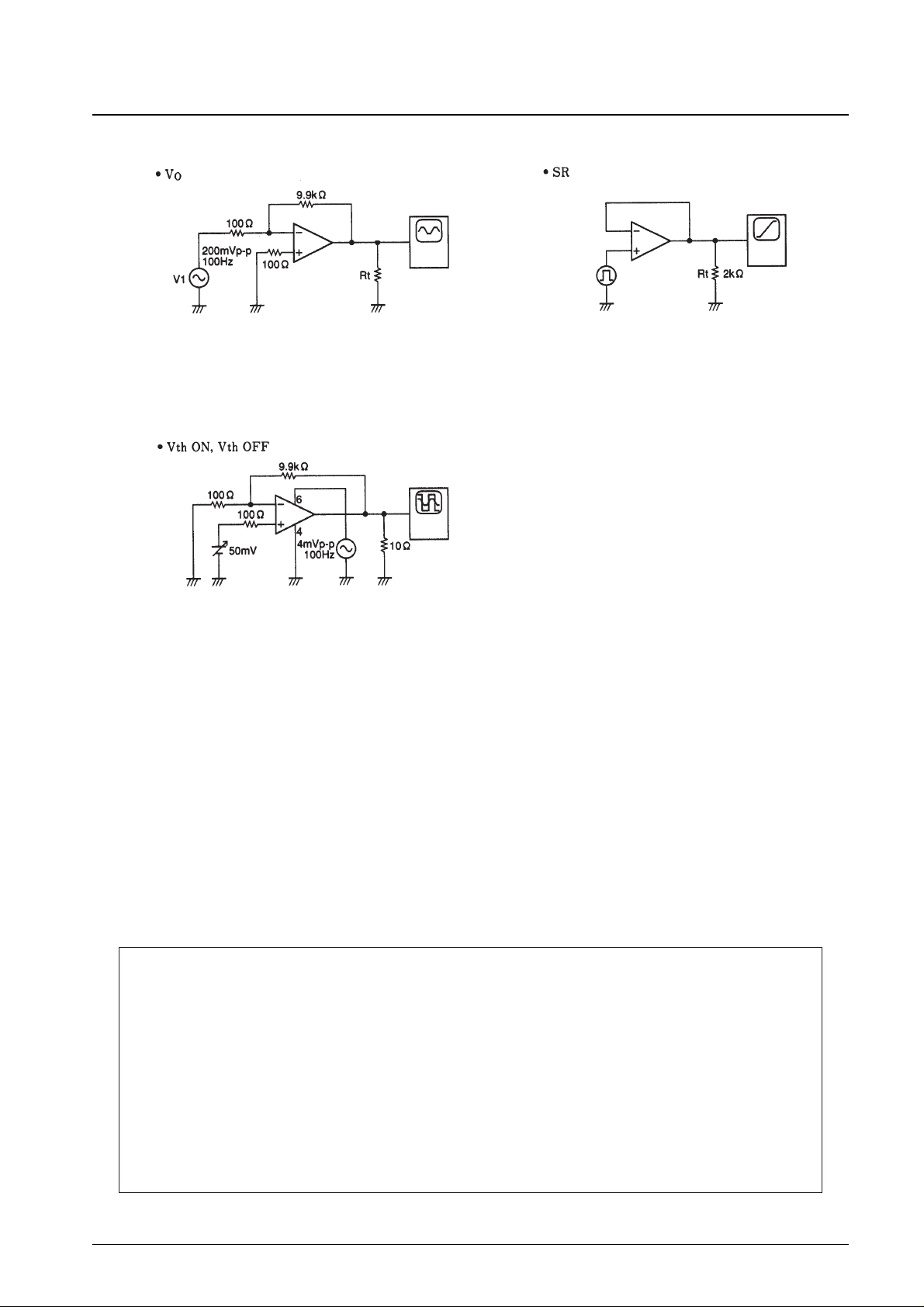

• For VO1: RL= 33 Ω
• For V
O
2: RL= 8 Ω
VO1
VO2
