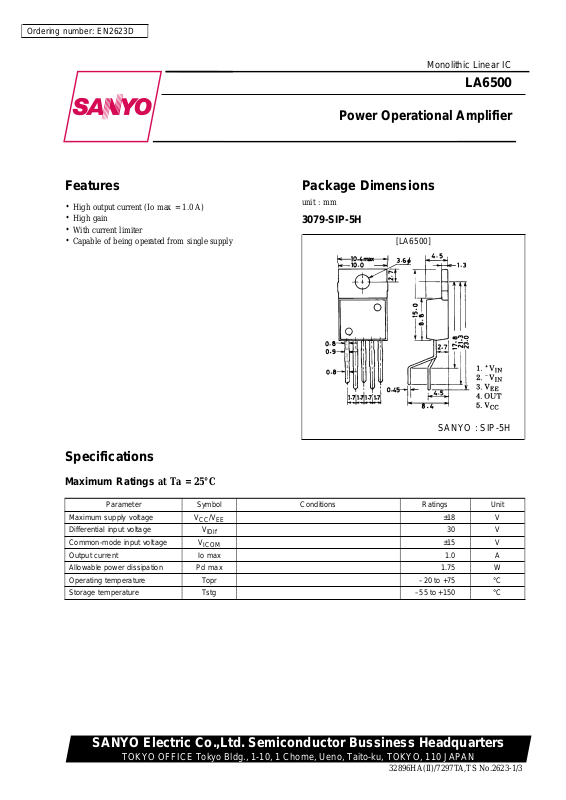

Page 1
Ordering number: EN2623D
Monolithic Linear IC
LA6500
Power Operational Amplifier
Features
.
High output current (Io max = 1.0 A)
.
High gain
.
With current limiter
.
Capable of being operated from single supply
Specifications
Package Dimensions
unit : mm
3079-SIP-5H
[LA6500]
SANYO : SIP-5H
Maximum Ratings at Ta = 25°C
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage V
Differential input voltage V
Common-mode input voltage V
Output current Io max 1.0 A
Allowable power dissipation Pd max 1.75 W
Operating temperature Topr –20 to +75 °C
Storage temperature Tstg –55 to +150 °C
CC/VEE
IDIf
ICOM
±18 V
30 V
±15 V
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
32896HA(II)/7297TA,TS No.2623-1/3
Page 2
LA6500
Operating Characteristics at Ta = 25°C, VCC/VEE= ±15 V
Parameter Symbol Conditions min typ max Unit
Quiescent current dissipation I
Input offset voltage V
Input offset current I
Input bias current I
Common-mode input voltage
range
Common-mode rejection CMR 80 dB
Maximum output voltage Vo R
Voltage gain VG
Slew rate SR G
Equivalent input noise voltage V
Supply voltage rejection SVR 30 µV/V
Limiting current I
CCO
V
IO
IO
B
ICM
NI
SC
Rs % 10 kΩ 2mV
–15 +13 V
=33Ω±13 V
L
O
=0,RL=33Ω,R=2.2Ω, L = 0.1 µF 0.15 V/µs
V
Rg=1kΩ, DIN Audio 2 µV
Sample Application Circuit
6mA
10 nA
100 nA
100 dB
1.00 A
Infinite heat sink
5°C/W heat sink
10°C/W heat sink
20°C/W heat sink
No heat sink
Allowable power dissipation, Pd max – W
Ambient temperature, Ta – °C
No.2623-2/3
Page 3
LA6500
No products described or contained herein areintendedforuse in surgical implants, life-support systems, aerospace equipment,
nuclear power control systems, vehicles, disaster/crime-prevention equipment and the like, the failure of which may directly or
indirectly cause injury, death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
1 Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors
and all their officers and employees, jointly and severally, against any and all claims and litigation and all damages, cost and
expenses associated with such use:
2 Not impose any responsibility for any fault or negligence which may be cited in any such claim or litigation on SANYO
ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of their officers and employees jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guaranteed for volume
production. SANYO believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use
or any infringements of intellectual property rights or other rights of third parties.
This catalog provides information as of March, 1996. Specifications and information herein are subject to change without notice.
No.2623-3/3
