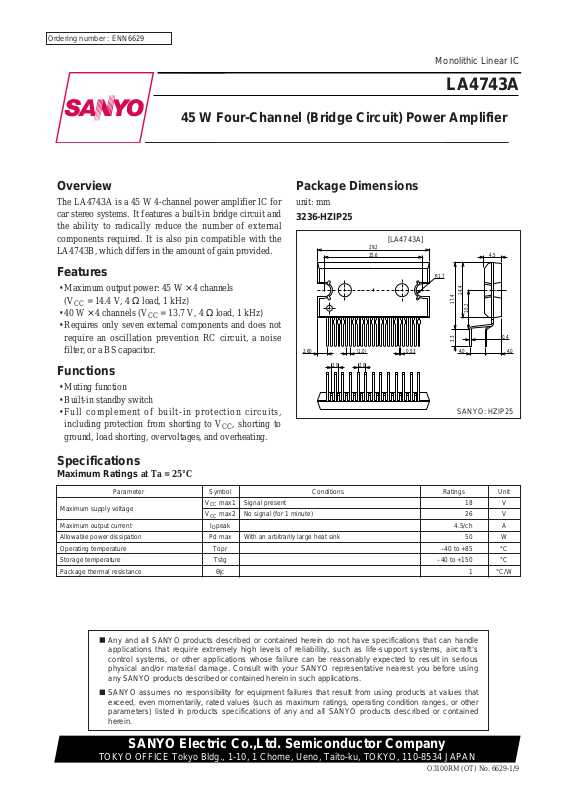

Ordering number : ENN6629
O3100RM (OT) No. 6629-1/9
Overview
The LA4743A is a 45 W 4-channel power amplifier IC for
car stereo systems. It features a built-in bridge circuit and
the ability to radically reduce the number of external
components required. It is also pin compatible with the
LA4743B, which differs in the amount of gain provided.
Features
• Maximum output power: 45 W × 4 channels
(VCC= 14.4 V, 4 Ω load, 1 kHz)
• 40 W × 4 channels (VCC= 13.7 V, 4 Ω load, 1 kHz)
• Requires only seven external components and does not
require an oscillation prevention RC circuit, a noise
filter, or a BS capacitor.
Functions
• Muting function
• Built-in standby switch
• Full complement of built-in protection circuits,
including protection from shorting to VCC, shorting to
ground, load shorting, overvoltages, and overheating.
Package Dimensions
unit: mm
3236-HZIP25
2.02.0
29.2
2.60 (1.0)
25.6
0.53
R1.7
0.4
17.4
14.4
4.5
10.2
3.3
4.0
4.0
SANYO: HZIP25
[LA4743A]
LA4743A
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
45 W Four-Channel (Bridge Circuit) Power Amplifier
Monolithic Linear IC
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft’s
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage
V
CC
max1 Signal present 18 V
V
CC
max2 No signal (for 1 minute) 26 V
Maximum output current I
O
peak 4.5/ch A
Allowable power dissipation Pd max With an arbitrarily large heat sink 50 W
Operating temperature Topr –40 to +85 °C
Storage temperature Tstg –40 to +150 °C
Package thermal resistance θjc 1 °C/W
Specifications
Maximum Ratings at Ta = 25°C
Page 2
No. 6629-2/9
LA4743A
Parameter Symbol Conditions
Ratings
Unit
min typ max
Quiescent current I
CCORL
= ∞, Rg = 0 100 200 350 mA
Standby current Ist Vst = 0 V 10 µA
Output offset voltage V
N
offset Rg = 0 –100 +100 mV
Voltage gain VG V
O
= 0 dBm 25 26 27 dB
Voltage gain difference ∆VG –1 +1 dB
P
O
1 THD = 10 % 23 28 W
Output power P
O
max1 VCC= 13.7 V, VIN= 5 Vrms 40 W
P
O
max2 VIN= 5 Vrms 45 W
Total harmonic distortion THD P
O
= 4 W 0.05 0.4 %
Channel separation CHsep V
O
= 0 dBm, Rg = 10 kΩ 55 65 dB
Ripple rejection ratio SVRR f
r
= 100 Hz, VR= 0 dBm, Rg = 0 50 60 dB
Output noise voltage V
NO
Rg = 0, B.P.F. = 20 Hz to 20 kHz 100 200 µVrms
Muting attenuation Mute(att) V
O
= 20 dBm 70 80 dB
Operating Characteristics at Ta = 25°C, VCC= 14.4 V, f = 1 kHz, RL= 4 Ω, Rg = 600 Ω
Parameter Symbol Conditions Ratings Unit
Recommended supply voltage V
CC
14.4 V
Recommended load resistance R
L
4 Ω
Operating supply voltage range V
CC
op 9 to 18 V
Operating Conditions at Ta = 25°C
Page 3
No. 6629-3/9
LA4743A
Sample Application Circuit and Block Diagram
911
6 20
71
8
5
312
2
4
2210
1715
1925N.C
1813
21
2314
2416
Top view
OUT 1+
VCC1/2 VCC3/4
OUT 1
–
PWR GND 1
OUT 2+
OUT 2–
PWR GND 2
Mute
OUT 3+
OUT 3–
PWR GND 3
10 kΩ
OUT 4+
OUT 4–
PWR GND 4
+
+
+
IN 1
0.22 µF
+
IN 2
0.22 µF
3.3 µF
0.022 µF
+
IN 3
ST BY
0.22 µF
+
IN 4
0.22 µF
47 µF
R.F
+
2200 µF
+
22 µF
PRE GND
ON TIME C
+
+
+
+
+
+
–
–
–
–
–
–
–
–
+
+
TAB
Protective
Circuit
Standby
Switch
Ripple
Filter
Mute
Circuit
Low Level
Mute ON
Muting &
ON Time Control
Circuit
Protective
Circuit
A13496
+5 V
ST ON
Page 4
No. 6629-4/9
LA4743A

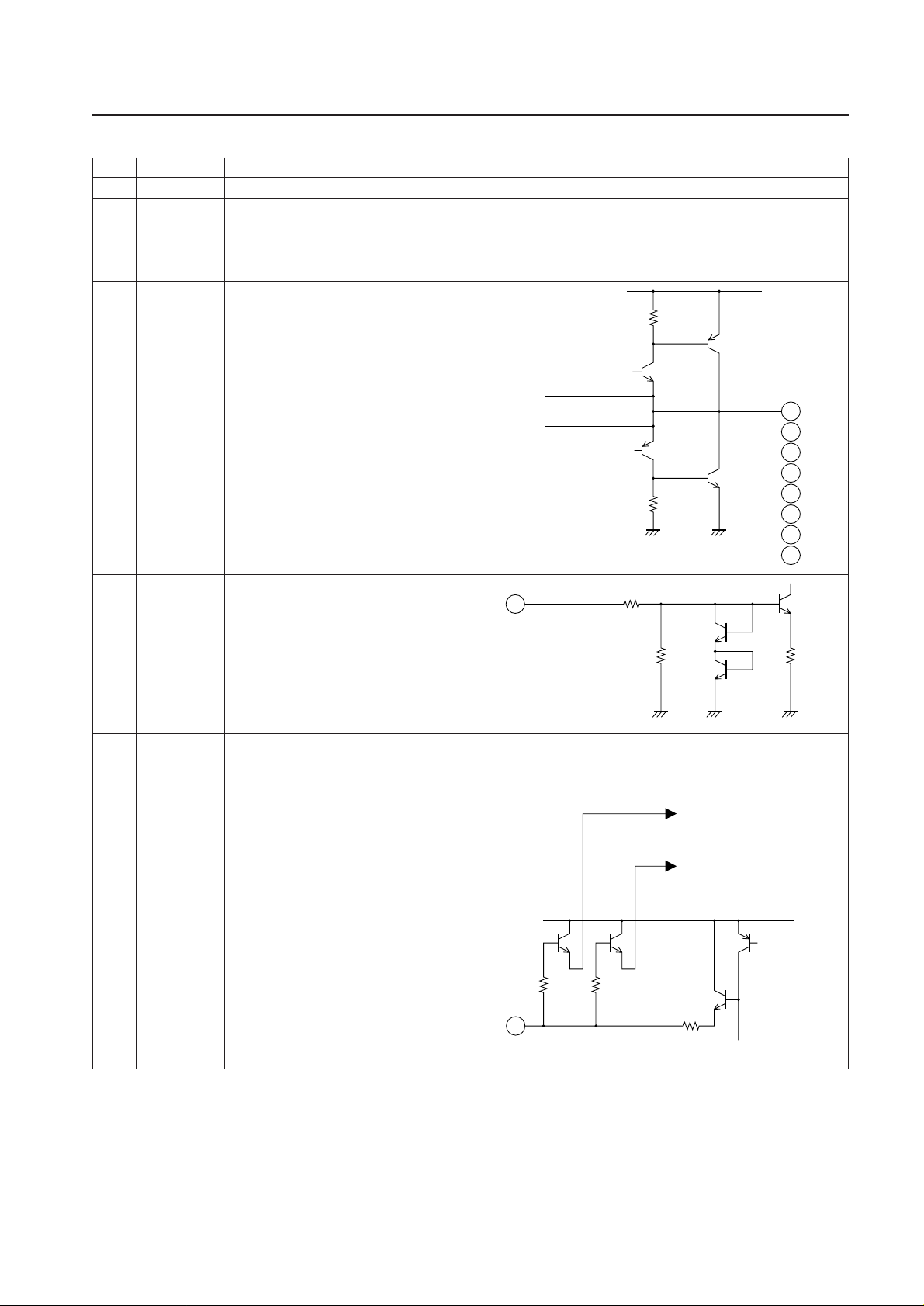

Pin Functions and Equivalent Circuits at VCC= 14.4 V, ST-BY = 5 V
Pin No. Function
DC voltage [V]
Notes Internal equivalent circuit
1 TAB
2
8
18
24
POWER GND
3
130 Ω
130 Ω
V
CC
5
7
9
17
19
21
23
A13497
3
5
7
9
17
19
21
23
–OUT2
+OUT2
–OUT1
+OUT1
+OUT3
–OUT3
+OUT4
–OUT4
2.7
• The amplifier will be on when the
applied voltage is between 2 V and
V
CC
.
4 ST-BY
10 kΩ
30 kΩ 1.5 kΩ
4
A13498
6
20
V
CC
1/2
V
CC
3/4
• Low ripple power supply line for all
internal IC blocks
10 SVR
13.2
200 Ω 200 Ω
V
CC
1 kΩ
10
A13499
Continued on next page.
Low saturation
voltage circuit
Bias circuit ST-BY power
supply line
Input amplifier ST-BY
power supply line
Page 5
No. 6629-5/9
LA4743A

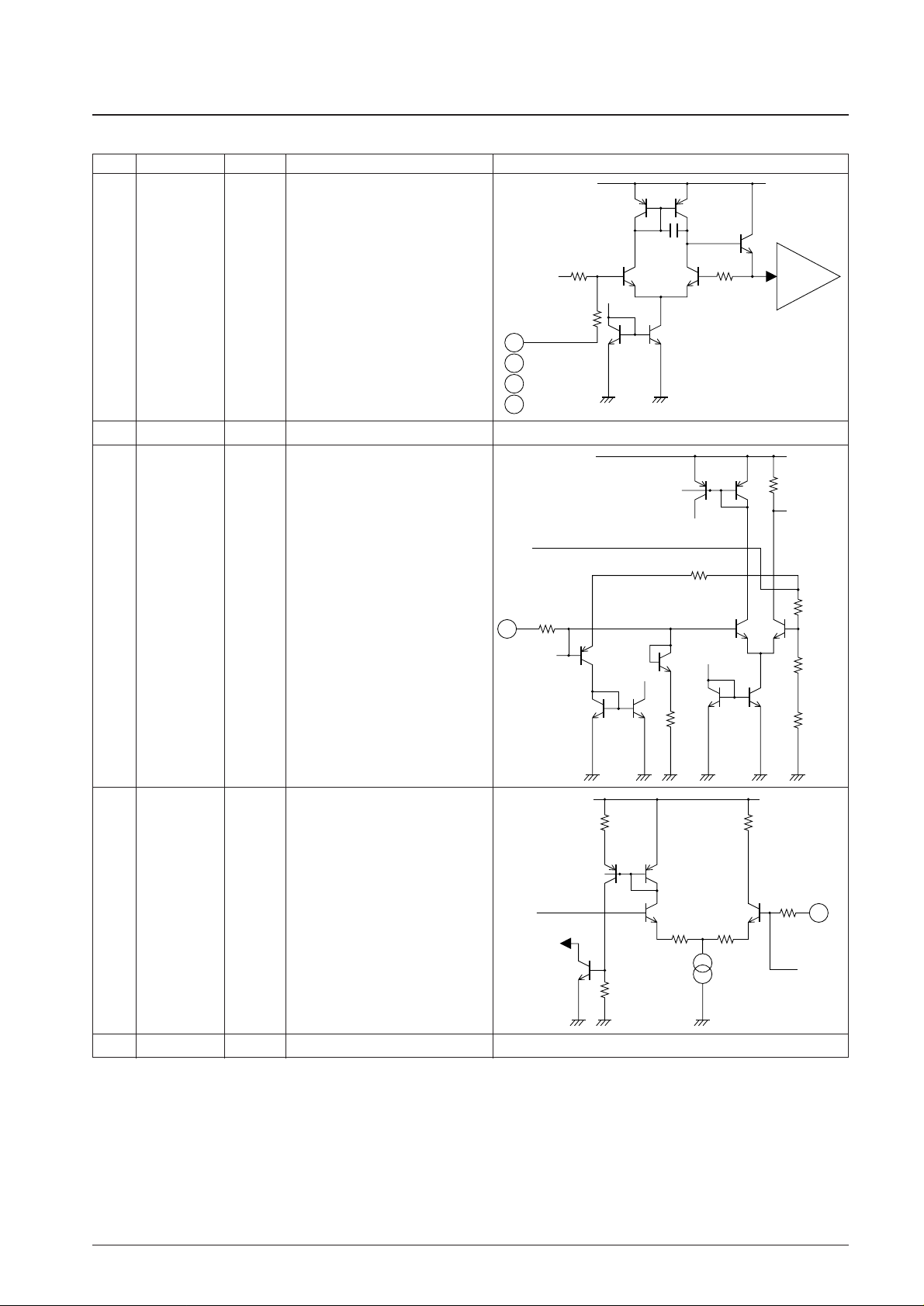

Continued from preceding page.
Pin No. Function
DC voltage [V]
Notes Internal equivalent circuit
11
12
14
15
IN1
IN2
IN4
IN3
100 Ω
1 kΩ
5 pF
30 kΩ
V
REF
11
12
14
15
A13500
• Amplifier turn-on time control circuit
• Impulse noise prevention circuit
• With a 22 µF capacitor, the turn-on
time will be 0.6 s.
16 ON TIME MUTE
20 kΩ
10 kΩ
2 kΩ
13 kΩ
40 kΩ
2 kΩ
200 Ω
V
REF
16
A13501
13
• The muting function is activated when
the applied voltage is under 1 V.
22 MUTE
4.1
3 kΩ 1 kΩ
7.5 kΩ 10 kΩ
100 Ω
100 kΩ
V
REF
V
REF
22
A13502
3.1
• Input amplifiers that require no
capacitor in the input noise filter.
PRE GND
2.6
25
N.C.
Input amplifier
ST-BY power
supply line
Inverter
amplifier
Bias circuit
power supply line
Input amplifier
ST-BY power
supply line
Amplifier
bias circuit
Page 6
No. 6629-6/9
LA4743A
Notes on Usage and Handling
• Oscillator stabilization time
In some cases, details of the printed circuit board layout may lead to induced parasitic oscillation. This oscillation can
be prevented by adding any one of the following components. Verify the optimal values for these capacitors by testing
in actual end products.
Technique 1 ... Connect Mylar capacitors (0.1 µF) between the BTL amplifier outputs.
Technique 2 ... Connect an RC circuit (2.2 Ω and 0.1 µF in series) between each output and ground.
• Audio quality (low band)
The low-band frequency characteristics can be improved by adjusting the values of the input capacitors. The
recommended value is 2.2 µF.
• Impulse noise
The LA4743A includes a built-in impulse noise suppression circuit. However, further improvement can be achieved by
using the muting circuit. When first applying power, activate the muting function at the same time as applying power.
Then, after the output DC potential has stabilized, turn off the muting function. When turning off the power, first
activate the muting function and then turn off the power. Sample transient responses are attached (see the timing
charts).

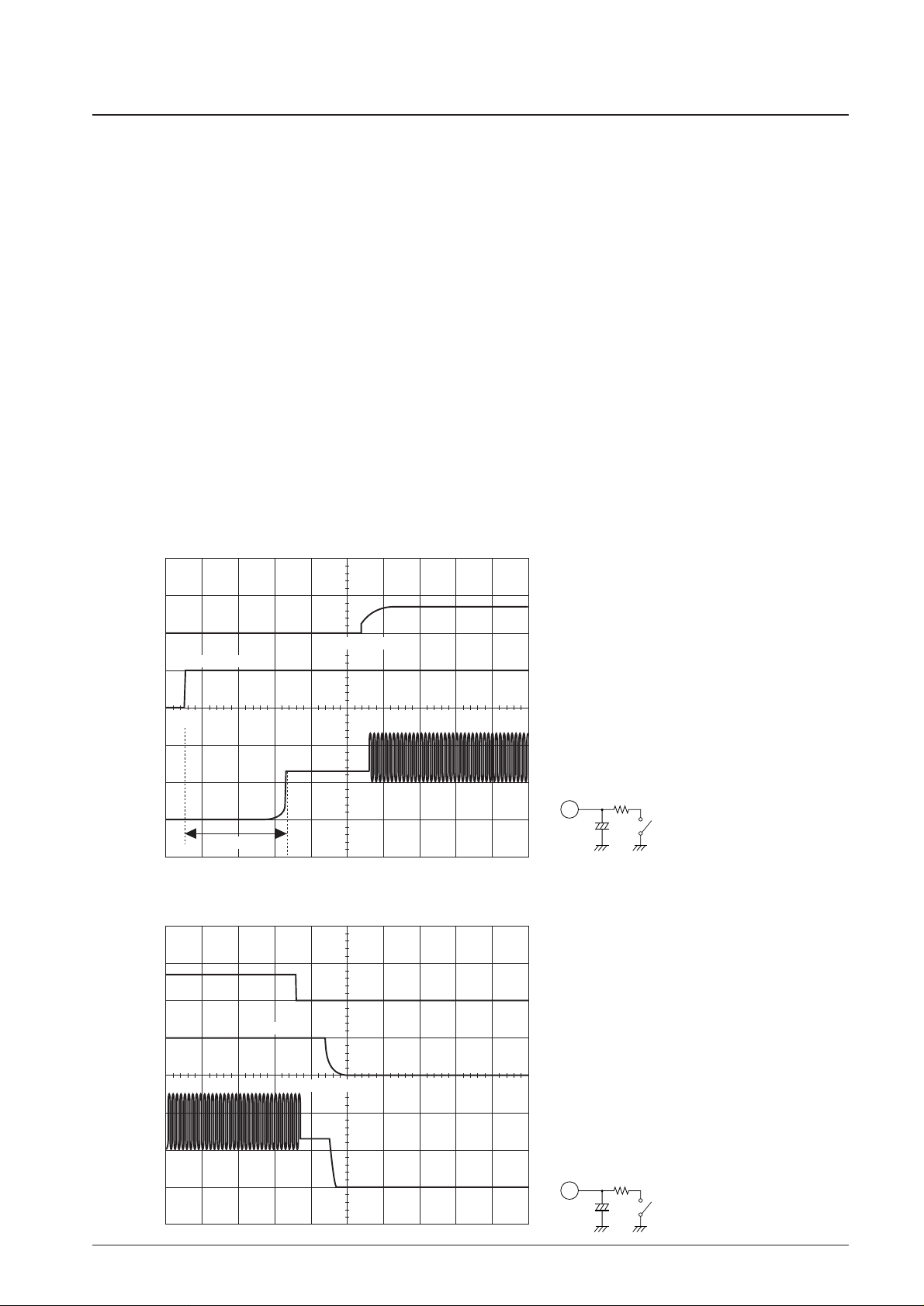

Transient Responses at Power On
Power on: Standby and muting activated at the same time.
Muting is turned off after the output has stabilized.
+
22
3.3 µF
Mute
10 kΩ
MUTE
MUTE OFF
ON TIME
5 [V]
0
4
2
0
200 ms/div
0 [V]
5 [V]
Transient Responses at Power Off
Power off: After activating the muting circuit, turn the power off.
+
22
3.3 µF
Mute
10 kΩ
MUTE
200 ms/div
5 [V]
0
4
2
0
0 [V]
5 [V]
Standby set high
External 10 kΩ muting switch
Standby pin
Output pin
Standby set low
External 10 kΩ muting switch
Standby pin
Output pin
Page 7
No. 6629-7/9
LA4743A
50
0
100
150
200
250
300
0 5 10 15 20 25
2
3
5
7
0.1
2
3
5
7
1.0
2
3
5
7
10
2
3
5
7
100
0.01
1
0
2
3
4
5
10
23 5
7
100
23 5
7
1k
23 5
7
10k
8
12
16
4
20
24
28
32
36
40
44
48
8 101214161820
2
3
5
7
0.1
2
3
5
7
1
2
3
5
7
10
2
3
5
7
100
0.01
0.1
23 57123 571023 57
100
2
3
5
7
0.1
2
3
5
7
1
2
3
5
7
10
2
3
5
7
100
0.01
0.1
357
1
2357
10
2357
100
2
2
3
5
7
0.1
2
3
5
7
1
2
3
5
7
10
2
3
5
7
100
0.01
0.1
23
57
1
23
57
10
23
57
100
–10
–8
–6
–4
–2
0
2
4
10
I
CCO
, VN — V
CC
I
CCO
I
CCO
V
N
V
N
0.22 µF
2.2 µF
OUT1, 3
OUT2, 4
OUT1, 3
OUT2, 4

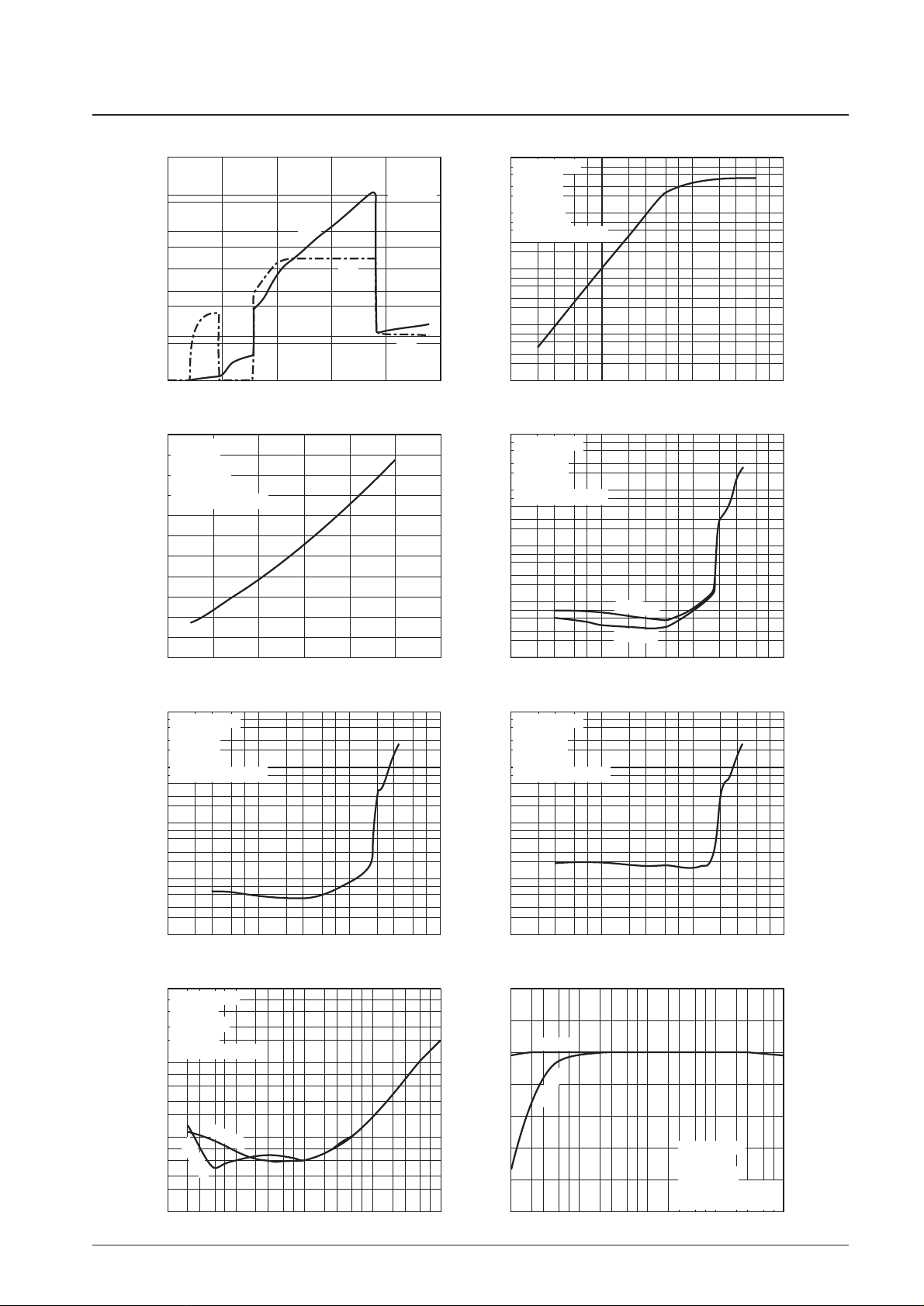

PO — V
IN
PO — V
CC
RL = Open
Rg = 0 Ω
Vst = 5 V
THD — P
O
THD — P
O
f — ResponseTHD — f
V
CC
= 14.4 V
RL = 4 Ω
f = 1 kHz
Rg = 600 Ω
VG = 26 dB
All channels driven
V
CC
= 14.4 V
RL = 4 Ω
f = 100 Hz
Rg = 600 Ω
All channels driven
V
CC
= 14.4 V
RL = 4 Ω
f = 1 kHz
Rg = 600 Ω
All channels driven
V
CC
= 14.4 V
RL = 4 Ω
Rg = 600 Ω
PO = 2 W
All channels driven
V
CC
= 14.4 V
RL = 4 Ω
Rg = 600 Ω
VO = 0 dBm at f = 1 kHz
All channels driven
V
CC
= 14.4 V
RL = 4 Ω
f = 10 kHz
Rg = 600 Ω
All channels driven
RL = 4 Ω
f = 1 kHz
Rg = 600 Ω
THD = 10 %
All channels driven
2
3
5
7
0.1
2
3
5
7
1
2
3
5
7
10
0.01
10
23 57
100
23 57
100
23 571k23 57
10k
23 57
100k
23 571k23 57
10k
23 57
100k
THD — P
O
Supply voltage, VCC— V
Quiescent current, I
CCO
— V
Output pin voltage, V
N
— V
Output power, P
O
— W
Input level, VIN— mVrms
Output power, P
O
— W
Supply voltage, VCC— V
Output power, P
O
— W
Total harmonic distortion, THD — %
Output power, PO— WOutput power, PO— W
Total harmonic distortion, THD — %
Total harmonic distortion, THD — %Total harmonic distortion. THD — %
Input frequency, f — Hz Input frequency, f — Hz
Response — dB
Page 8
–80
–100
–60
–40
–20
–80
–100
–60
–40
–20
0
–80
–60
–40
–20
0
0
–80
–60
–40
–20
0
10
2357
100
23571k2357
10k
2357
100k
10
2357
100
23571k2357
10k
2357
100k
2357
100
23571k2357
10k
2357
2357 2357 23 57 23 57
100k
100 1k 10k 100k
10
–100 –100
10
2
3
5
0.01
7
0.1
2
3
5
7
1
10
2357
100
23571k2357
10k
2357
100k
–100
–80
–60
–40
–20
0
10
23 57
100
23 571k23 57
10k
23 57
100k
00.1
1
10
50
100
150
200
250
300100
–60 –40 –20 0 20 40 60 80 100

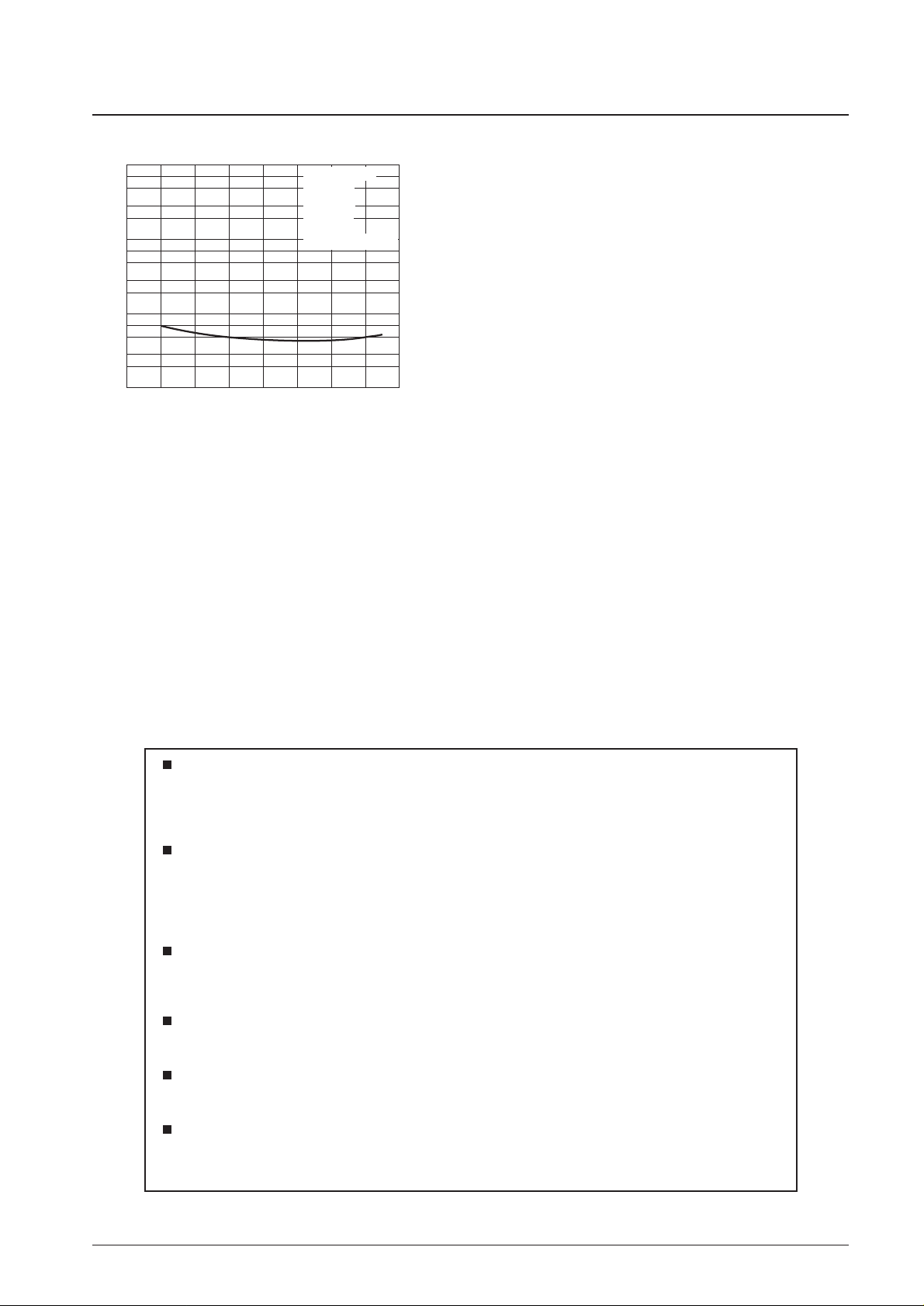

CH Sep — f
1 → 2
2 → 1
2 → 3
2 → 4
1 → 3
1 → 4
3 → 1
3 → 2
Pd [W]
I
CC
[A]
4 → 3
4 → 2
4 → 1
3 → 4
CH Sep — f
CH Sep — f CH Sep — f
V
NO
— Rg
I
CCO
— TaPd, I
CC
— P
O
1
2
3
5
7
10
2
3
5
7
100
0.01
23 57
0.1
23 57123 571023 57
100
SVRR — fr
V
CC
= 14.4 V
RL = 4 Ω
Rg = 10 kΩ
VO = 0 dBm
V
CC
= 14.4 V
RL = 4 Ω
Rg = 10 kΩ
VO = 0 dBm
V
CC
= 14.4 V
RL = 4 Ω
DIN AUDIO
V
CC
= 14.4 V
RL = 4 Ω
Rg = 10 kΩ
VO = 0 dBm
V
CC
= 14.4 V
RL = 4 Ω
Rg = 0 Ω
V
CCR
= 0 dBm
V
CC
= 14.4 V
RL = OPEN
Rg = 0 Ω
V
CC
= 14.4 V
RL = 4 Ω
Rg = 10 kΩ
VO = 0 dBm
V
CC
= 14.4 V
RL = 4 Ω
Rg = 600 Ω
f = 1 kHz
All channels driven
No. 6629-8/9
LA4743A
Channel separation, CH Sep — dB
Input frequency, f — Hz
Channel separation, CH Sep — dB
Channel separation, CH Sep — dB
Channel separation, CH Sep — dB
Input frequency, f — Hz
Input frequency, f — Hz Input frequency, f — Hz
Input resistor, Rg — Ω
Ripple frequency, fr — Hz
Output noise voltage, V
NO
— mVrms
Ripple rejection ratio, SVRR — dB
Output power, PO— W
Ambient temperature, Ta — °C
Power dissipation, Pd — W
Quiescent current, I
CCO
— mA
Current drain, I
CC
— A
Page 9
PS No. 6629-9/9
LA4743A
This catalog provides information as of October, 2000. Specifications and information herein are subject
to change without notice.
Specifications of any and all SANYO products described or contained herein stipulate the performance,
characteristics, and functions of the described products in the independent state, and are not guarantees
of the performance, characteristics, and functions of the described products as mounted in the customer’s
products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,
the customer should always evaluate and test devices mounted in the customer’s products or equipment.
SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all
semiconductor products fail with some probability. It is possible that these probabilistic failures could
give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,
or that could cause damage to other property. When designing equipment, adopt safety measures so
that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective
circuits and error prevention circuits for safe design, redundant design, and structural design.
In the event that any or all SANYO products (including technical data, services) described or contained
herein are controlled under any of applicable local export control laws and regulations, such products must
not be exported without obtaining the export license from the authorities concerned in accordance with the
above law.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system,
or otherwise, without the prior written permission of SANYO Electric Co., Ltd.
Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. When designing equipment, refer to the “Delivery Specification”
for the SANYO product that you intend to use.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not
guaranteed for volume production. SANYO believes information herein is accurate and reliable, but
no guarantees are made or implied regarding its use or any infringements of intellectual property rights
or other rights of third parties.
Ambient temperature, Ta — °C
Total harmonic distortion, THD — %
10
7
5
3
2
1
7
5
3
2
0.1
7
5
3
2
0.01
–60 –40 –20 0 20 40 60 80 100
THD — Ta
V
= 14.4 V
CC
RL = 4 Ω
Rg = 600 Ω
f = 1 kHz
PO = 2 W
All channels driven
Loading...
