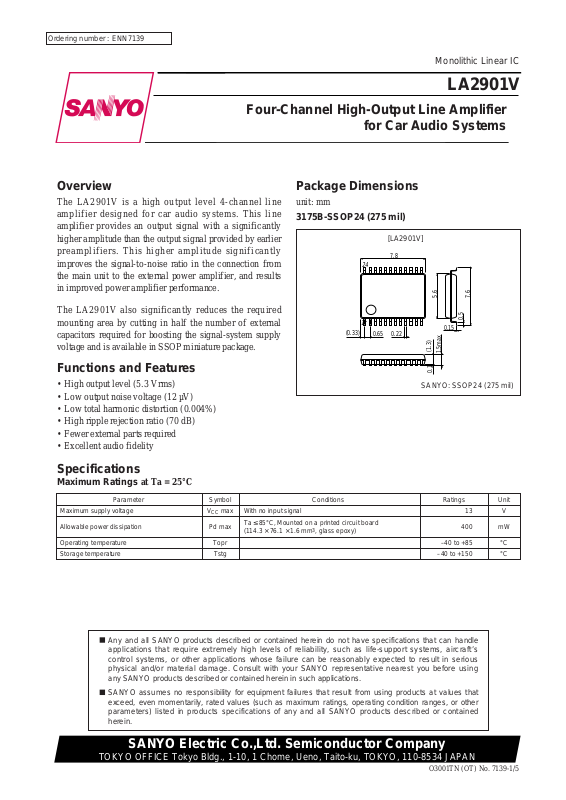

Ordering number : ENN7139
O3001TN (OT) No. 7139-1/5
Overview
The LA2901V is a high output level 4-channel line
amplifier designed for car audio systems. This line
amplifier provides an output signal with a significantly
higher amplitude than the output signal provided by earlier
preamplifiers. This higher amplitude significantly
improves the signal-to-noise ratio in the connection from
the main unit to the external power amplifier, and results
in improved power amplifier performance.
The LA2901V also significantly reduces the required
mounting area by cutting in half the number of external
capacitors required for boosting the signal-system supply
voltage and is available in SSOP miniature package.
Functions and Features
• High output level (5.3 Vrms)
• Low output noise voltage (12 µV)
• Low total harmonic distortion (0.004%)
• High ripple rejection ratio (70 dB)
• Fewer external parts required
• Excellent audio fidelity
Package Dimensions
unit: mm
3175B-SSOP24 (275 mil)
1
7.6
7.8
0.5
5.6
0.1
1.5max
24
0.65
0.22
(0.33)
0.15
(1.3)
SANYO: SSOP24 (275 mil)
[LA2901V]
LA2901V
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
Four-Channel High-Output Line Amplifier
for Car Audio Systems
Monolithic Linear IC
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft’s
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage V
CC
max With no input signal 13 V
Allowable power dissipation Pd max
Ta ≤ 85°C, Mounted on a printed circuit board
400 mW
(114.3 × 76.1 × 1.6 mm3, glass epoxy)
Operating temperature Topr –40 to +85 °C
Storage temperature Tstg –40 to +150 °C
Specifications
Maximum Ratings at Ta = 25°C
Page 2
No. 7139-2/5
LA2901V
Parameter Symbol Conditions
Ratings
Unit
min typ max
Quiescent current I
CCO
Rg = 0 10 16 22 mA
Voltage gain V
G
VO= 0 dBm 7.5 8 8.5 dB
Output voltage V
O
THD = 0.1% 5.0 5.3 Vrms
Total harmonic distortion THD V
O
= 3 Vrms, LPF = 80 kHz 0.004 0.01 %
Output noise voltage V
NO
Rg = 0, BPF = 20 Hz to 20 kHz 12 17 µVrms
Ripple rejection ratio SVRR
Rg = 0, fr = 100 Hz, Vr = 100 mVrms,
60 70 dB
BPF = 20 Hz to 20 kHz
Channel separation CH
sep
Rg = 10 kΩ, VO= 1 Vrms 60 70 dB
Input resistance Ri 21 30 39 kΩ
Electrical Characteristics at Ta = 25°C, VCC= 9 V, RL = 10 kΩ, f = 1 kHz, Rg = 600Ω
Parameter Symbol Conditions Ratings Unit
Recommended operating voltage V
CC
9 V
Allowable operating supply voltage range V
CCOP
6 to 12 V
Recommended load resistance RL
OP
10 kΩ
Recommended Operating Conditions at Ta = 25°C
Pin Assignment
10 11 12
15 14 13
9
16
8
17
7
18
6
19
5
20
4
21
3
22
2
23
1
24
ILA00924
LF IN+
N.C
LF IN--
LR IN--
LR IN+
DC L
DC R
RF IN+
RF IN--
N.C
RR IN+
RR IN--
LR OUT
LF OUT
L GND
LIFT L VD
LIFT L OUT
V
CC
L
V
CC
R
LIFT R OUT
LIFT R VD
R GND
RF OUT
RR OUT
Top view
LA2901V
Page 3
No. 7139-3/5
LA2901V

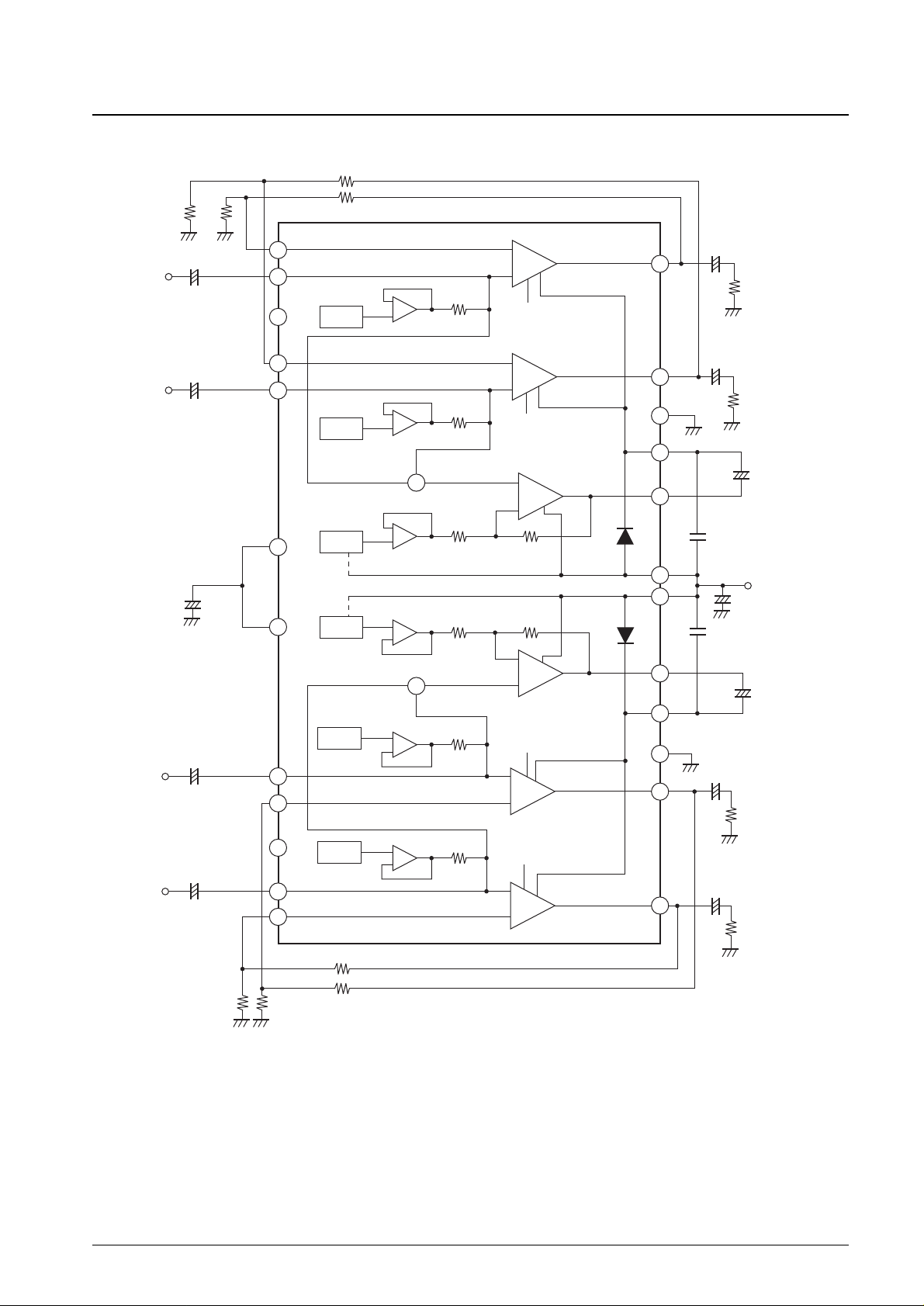

Sample Application Circuit and Block Diagram
36kΩ
24kΩ
24kΩ
36kΩ
36kΩ
30kΩ
30kΩ
12kΩ 36kΩ
12kΩ
30kΩ
30kΩ
36kΩ
36kΩ
10kΩ 10kΩ 10kΩ 10kΩ
24kΩ
24kΩ
+
+
22µF
22µF
47µF
LF-IN
LR-IN
Ripple
Filter
+
22µF
22µF
RF-IN
+
22µF
RR-IN
+
DC-R
DC-L
--
-+
--
+
-+
+
--
+
--
+
--
+
--
+
--
+
+
22µF
100µF
10µF
100µF
22µF
1.5NF 1.5NF
+
+
+
+
+
22µF
+
LF-OUT
LR-OUT
RF-OUT
RR-OUT
V
CC
9.0V
V
REF
V
REF
V
REF
V
REF
V
REF
V
REF
V
CC
V
CC
V
CC
V
CC
SIGNAL
AMP
SIGNAL
AMP
LIFT
AMP
LIFT
AMP
SIGNAL
AMP
SIGNAL
AMP
--
+
-+
-+
ILA00923
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
X
X
Note: We recommend using resistors with tolerances of 1% or better for the 24 kΩ and 36 kΩ feedback resistors.
Page 4
No. 7139-4/5
LA2901V

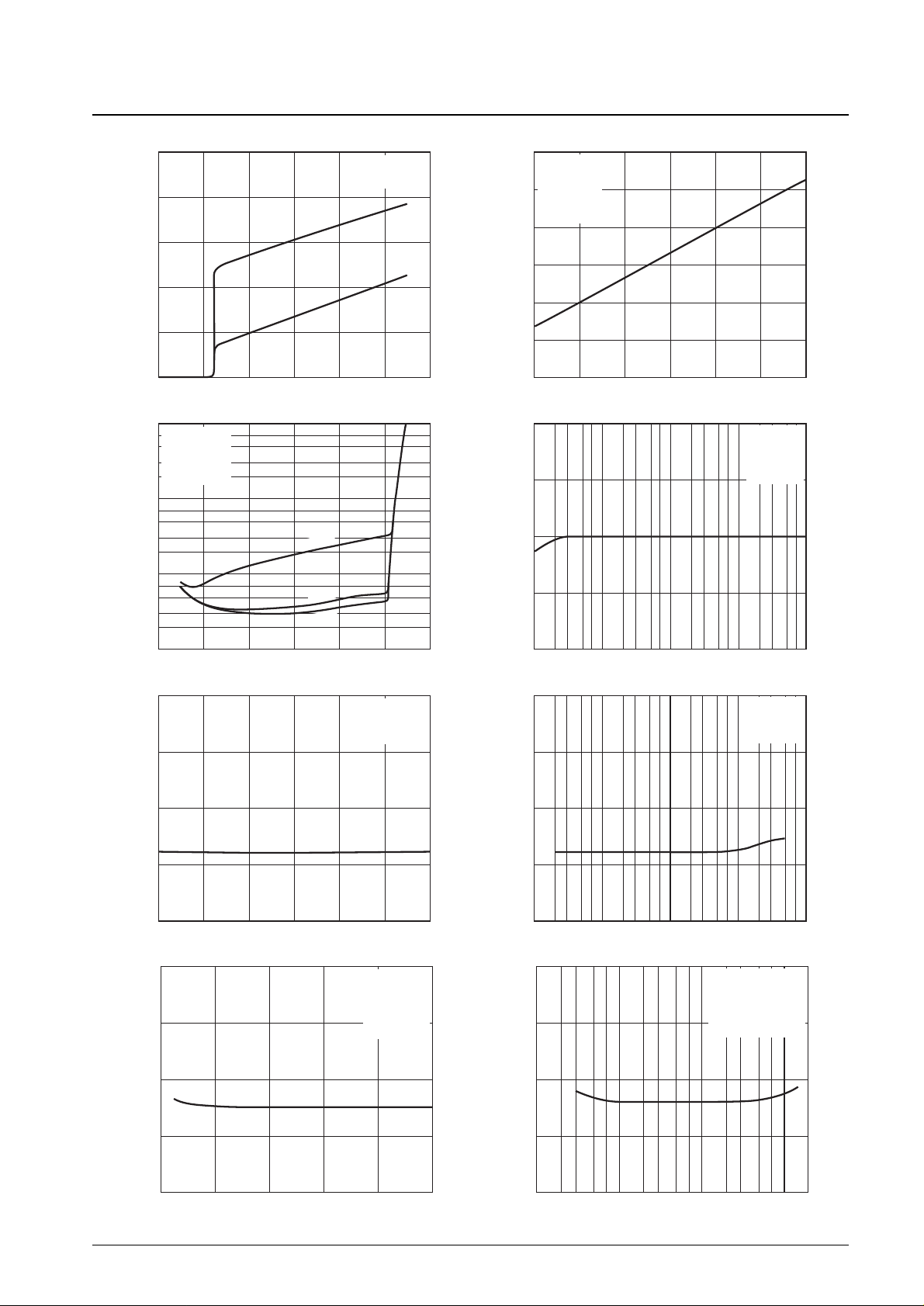

2 4 6 8 10 12 14
0
10
15
20
25
5
0
10
15
20
25
5
ILA00925
ILA00927
ILA00929
ILA00926
ILA00928
ILA00930
RL=10kΩ
Rg=0
6 7 8 9 10 11 12
2
4
5
6
3
8
7
VO -- V
CC
0 1 2 3 4 5 6
0.001
0.01
0.1
1.0
2
3
5
7
2
3
5
7
2
3
5
7
f Response -- f
VNO -- Rg
10
2 3 5 7 2 3 5 7
1k 10k100
2 3 5 7 2 3 5 7
100k
--2
--1
0
1
2
0
10
20
30
40
VNO -- V
CC
I
CCO,
VN -- V
CC
THD -- V
O
6 7 8 9 10 11 12
10
32 5 7
100
2 3 5 71k2 3 5
10k
7 2 3 5 7
100k
0
10
20
30
40
VCC=9V
RL=10kΩ
DIN AUDIO
Rg=0
RL=10kΩ
DIN AUDIO
VCC=9V
RL=10kΩ
VO=0dBm
Rg=600Ω
VCC=9V
RL=10kΩ
Rg=600Ω
L.P.F=80kHz
RL=10kΩ
f=1kHz
THD=0.1%
Rg=600Ω
L.P.F=80kHz
I
CCO
V
N
10kHz
1kHz
100Hz
0 200 400 600 800 1000
--100
--80
--60
--40
--20
ILA00931 ILA00932
VCC=9V
RL=10kΩ
fr=1kHz
Rg=0
DIN AUDIO
10
7532 2
100
753 2 753
1k 10k
2
--100
--60
--40
--80
--20
SVRR -- f
r
SVRR -- VCCR
VCC=9V
RL=10kΩ
VCCR=100mVrms
Rg=0
DIN AUDIO
Power supply ripple voltage, VCCR — mVrms
Ripple rejection ratio, SVRR — dB
Ripple rejection ratio, SVRR — dB
Ripple frequency, fr— Hz
Supply voltage, VCC— V
Supply voltage, V
CC
— V
Quiescent current, I
CCO
— mA
Output voltage, V
O
— Vrms
Output voltage, VO— Vrms
Input frequency, f — Hz
Input resistance, Rg — Ω
Supply voltage, V
CC
— V
Total harmonic distortion, THD — %
Output noise voltage, V
NO
— µVrms
Response — dB
Output noise voltage, V
NO
— µVrms
Output pin voltage, V
N
— V
