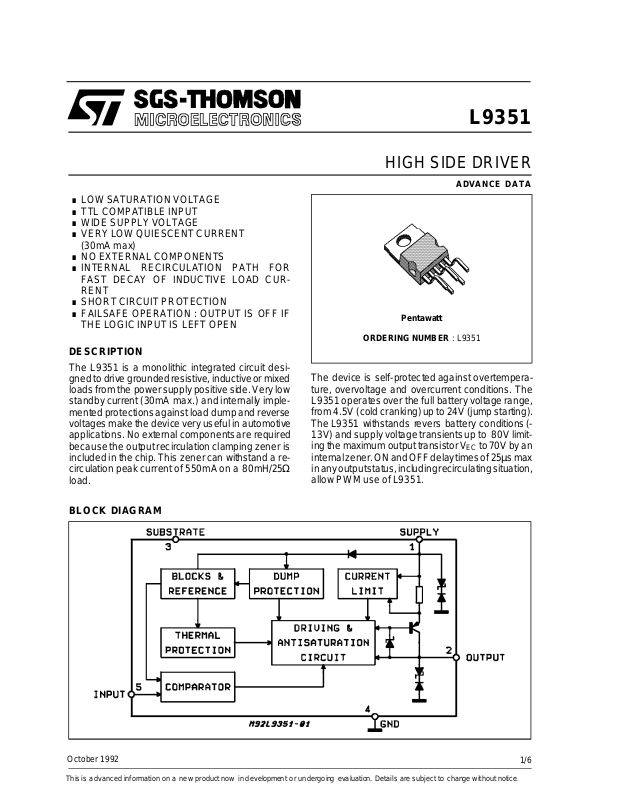

Datasheet L9351 Datasheet (SGS Thomson Microelectronics)

. LOWSATURATIONVOLTAGE

.TTL COMPATIBLEINPUT

.WIDE SUPPLYVOLTAGE

.VERYLOW QUIESCENTCURRENT

(30mA max)

.NO EXTERNAL COMPONENTS

.INTERNAL RECIRCULATION PATH FOR

FAST DECAY OF INDUCTIVE LOAD CUR­RENT

.SHORT CIRCUIT PROTECTION

.FAILSAFE OPERATION : OUTPUT IS OFF IF

THELOGIC INPUTIS LEFTOPEN

DES CRIP TI ON

The L9351 is a monolithic integrated circuit desi­gnedto drivegroundedresistive,inductiveor mixed
loadsfromthe powersupplypositive side.Very low
standbycurrent (30mA max.) and internally imple­mentedprotectionsagainstload dumpandreverse
voltagesmakethe deviceveryusefulin automotive
applications.No externalcomponentsare required
becausethe outputrecirculationclampingzener is
includedin thechip. This zenercan withstanda re­circulation peakcurrentof 550mAon a 80mH/25Ω
load.

L9351

HIGHSIDE DRIVER

ADVANCE DATA

Pentawatt

ORDERING NUMBER : L9351

The device is self-protectedagainst overtempera­ture, overvoltage and overcurrent conditions. The
L9351operatesover thefull battery voltage range,
from4.5V (coldcranking)upto 24V (jumpstarting).
TheL9351 withstands revers battery conditions(­13V)and supplyvoltage transientsup to 80Vlimit­ingthemaximum outputtransistorV
internalzener.ONandOFFdelaytimesof25µsmax
inanyoutputstatus,includingrecirculatingsituation,
allowPWM useof L9351.

to70V byan

EC

BLOCK DIAGRAM

October1992

Thisis advanced informationon a new product now in development or undergoing evaluation.Details are subject to changewithoutnotice.

1/6

L9351

PIN CO NNE CTI O N (top view)

Note : P i n 3 mus t be left op en or connected to ground.

ABSOLUTEMAXIMUM RATINGS

Symbol Parameter Value Unit

V

D.C. Supply Voltage

S

D.C. Reverse Supply Voltage
Load Dump: 5ms ≤ trise ≤ 10ms
τf Fall Time Constant = 100ms, Rsource ≥ 0.5Ω

24

–13

60

V
V
V

Low Energy Spikes: Rsource ≥ 10Ω,t

rise

=1µs,

±85

tf = 2ms, fr Repetition Frequency = 0.2Hz

Input Voltage –0.3 to 7 V

i

Output Current Internally Limited

O

Total Power Dissipation at T

tot

=90°C 17.1 W

case

Junction and Storage Temperature –55 to 150 °C

P

T

j,Tstg

V
I

THERMAL DATA

Symbol Parameter Value Unit

R

th j-amb

R

th j-case

Thermal Resistance Junction-ambient Max.
Thermal Resistance Junction-case Max.

80

3.5

V

°C/W
°C/W

2/6

ELECTRICALCHARACTERISTICS

= 14.4V, – 40°C ≤ Tj≤ + 125°C unlessotherwisespecified).

(V

S

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

S

V

IH

V

IL

I

I

I

PL

V

sat

I

SC

I

Q

V

ZO

T

on

T

off

Operating Supply Voltage 4.5 24 V
Input Voltage High 4.5 < VS< 24 2.0 V
Input Voltage Low 1 0.8 V
Input Current 0.8 < VI< 5.5V 40 µA
Output Leakage Current VO=0V VS= 24V

V

< 0.8V

I

140 µA

Output Saturation Voltage IO= 125mAVS= 4.5V 0.5 V

= 225mAVS= 14.4V 0.5 V

I

O

= 550mAVS= 14.4V 0.7 V

I

O

Output Short Circuit Current 0.6 1.5 A
Quiescent Current VI>2V 30 mA

< 0.8V Stand-by Condition 100 150 µA

V

I

Negative Output Zener Voltage RL=25Ω L = 80mH

Transition from ”1”to ”0”

on V

I

Turn ON Delay Resistive Load RL=25Ω,

=25°C (fig.2)

T

Turn OFF Delay 25 µs

j

–36 –30 –24 V

20 µs

L9351

Figure1 : TypicalAutomotiveApplicationCircuit.

3/6

L9351

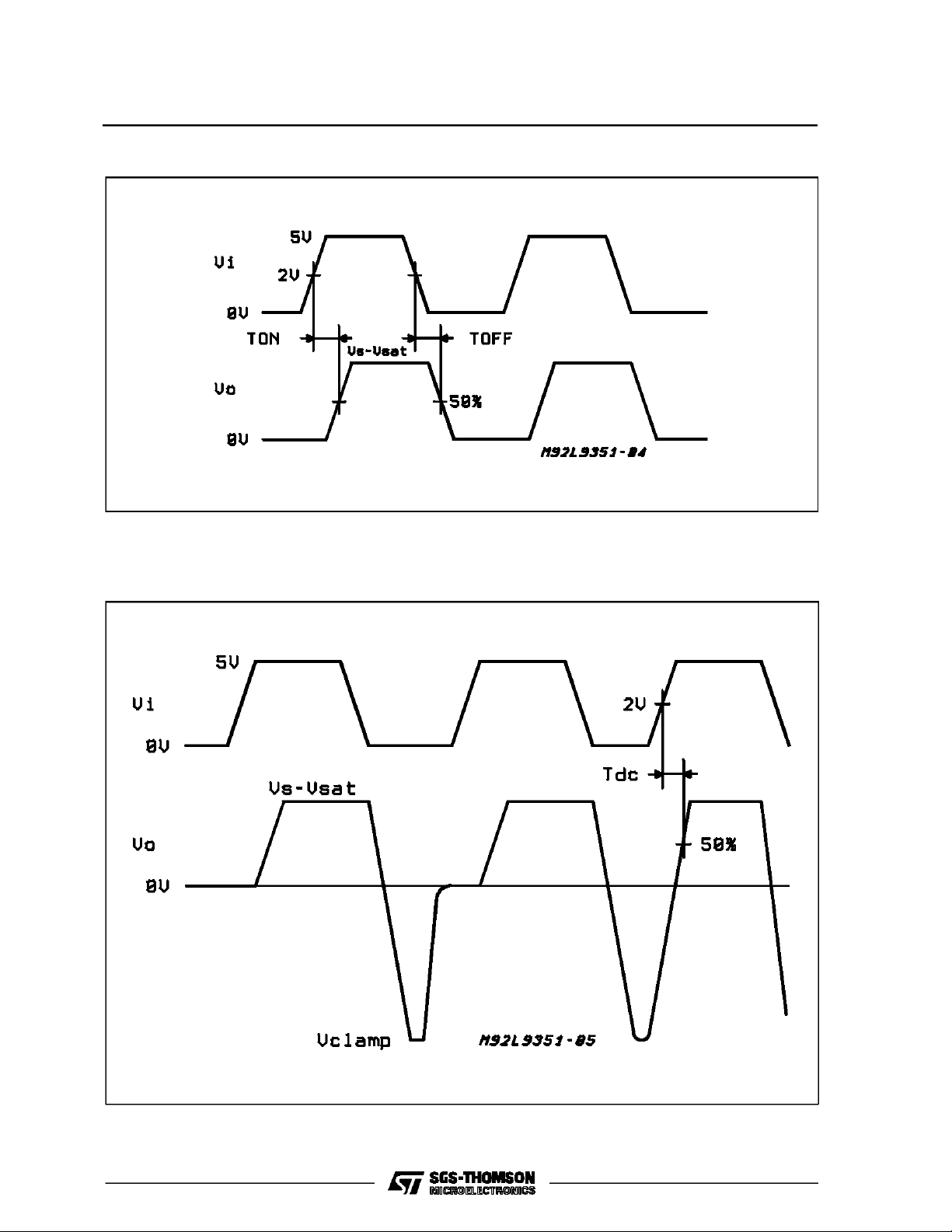

Figure 2 : ResistiveLoad.

Figure 3 : InductiveLoad.

4/6

PENTAWATT PACKAGE MECHANICAL DATA

L9351

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

mm inch

A 4.8 0.189
C 1.37 0.054
D 2.4 2.8 0.094 0.110

D1 1.2 1.35 0.047 0.053

E 0.35 0.55 0.014 0.022
F 0.8 1.05 0.031 0.041

F1 1 1.4 0.039 0.055

G 3.4 0.126 0.134 0.142

G1 6.8 0.260 0.268 0.276

H2 10.4 0.409
H3 10.05 10.4 0.396 0.409

L 17.85 0.703
L1 15.75 0.620
L2 21.4 0.843
L3 22.5 0.886
L5 2.6 3 0.102 0.118
L6 15.1 15.8 0.594 0.622
L7 6 6.6 0.236 0.260

M 4.5 0.177
M1 4 0.157
Dia 3.65 3.85 0.144 0.152

A

H3

L

L1

C

D1

L5

Dia.

L7

L6

L2
L3

D

F1

H2

E

MM1

G1

G

F

5/6

L9351
