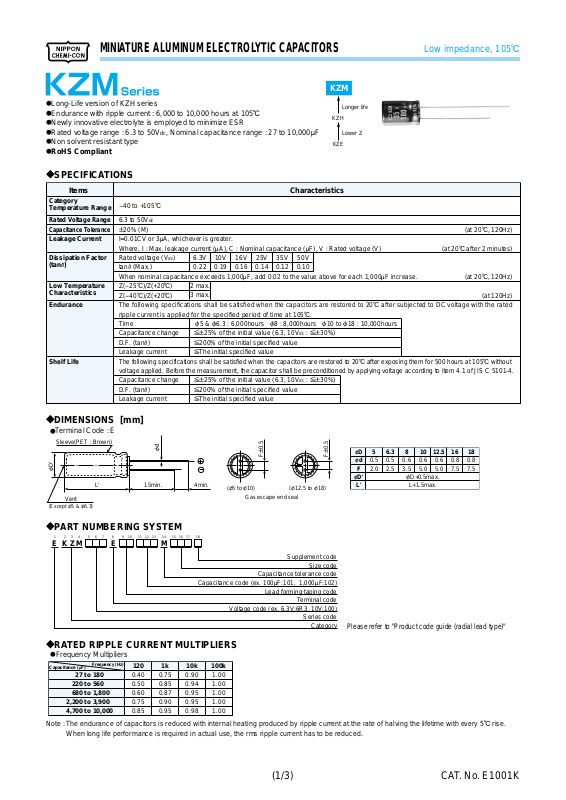

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
@Long-Life version of KZH series
@Endurance with ripple current : 6,000 to 10,000 hours at 105C
@Newly innovative electrolyte is employed to minimize ESR
@Rated voltage range : 6.3 to 50Vdc, Nominal capacitance range : 27 to 10,000MF
@Non solvent resistant type
@RoHS Compliant
SPECIFICATIONS
?
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tane)
Low Temperature
Characteristics
Endurance
Shelf Life
-
40 to +105C
6.3 to 50Vdc
P20% (M)
I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
Rated voltage (V
tanE (Max.)
When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase.
Z(
-
25C)/Z(+20C)
Z(
-
40C)/Z(+20C)
The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for the specified period of time at 105C.
Time F5 & F6.3 : 6,000hours F8 : 8,000hours F10 to F18 : 10,000hours
Capacitance change [P25% of the initial value (6.3, 10V
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P25% of the initial value (6.3, 10V
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
6.3V
10V
16V
dc)
0.22
0.19
2 max.
3 max.
0.16
25V
0.14
Characteristics
35V
50V
0.12
0.10
dc : [P30%)
dc : [P30%)
KZM
KZH
KZE
Longer life
Lower Z
Low impedance, 105
(at 20C, 120Hz)
(at 20C after 2 minutes)
(at 20C, 120Hz)
(at 120Hz)
C
DIMENSIONS [mm]
?
Terminal Code : E
@
Sleeve(PET : Brown)
FD'
L' 15min. 4min.
Vent
(Except F5 & F6.3)
PART NUMBERING SYSTEM
?
13426789105121311 16 17 181514
E K Z M A AA E A A A AA A AA NM
RATED RIPPLE CURRENT MULTIPLIERS
?
Frequency Mul ti pli ers
@
Capacitance (mF)
Frequency (Hz)
27 to 180
220 to 560
680 to 1,800
2,200 to 3,900
4,700 to 10,000
120
0.40
0.50
0.60
0.75
0.85
Fd
1k
0.75
0.85
0.87
0.90
0.95
FP0.5
(F5 to F10) (F12.5 to F18)
Gas escape end seal
Supplement code
Capacitance code (ex. 100MF:101, 1,000MF:102)
100k
10k
1.00
0.90
1.00
0.94
1.00
0.95
1.00
0.95
1.00
0.98
Capacitance tolerance code
Lead forming·taping code
Terminal code
Voltage code (ex. 6.3V:6R3, 10V:100)
Series code
FP0.5
Size code
Category
fD
fd
fD'
5
0.5
0.5
2.0
2.5
F
L'
0.6
0.6
5.0
3.5
FD+0.5max.
L+1.5max.
0.6
5.0
10
12.5
8
6.3
16
0.8
7.5
18
0.8
7.5
Please refer to "Product code guide (radial lead type)"
Note : The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
(1/3)
CAT. No. E1001K
Page 2
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
STANDARD RATINGS
?
WV
dc)
(V
6.3
10
16
: Enter the appropriate lead forming or taping code.
SS
Cap
(mF)
220 5B11 0.22 0.22 0.80 345 EKZM6R3ESS221ME11D
470 6.3B11 0.22 0.094 0.35 540 EKZM6R3ESS471MF11D
820 8B11.5 0.22 0.056 0.19 945 EKZM6R3ESS821MHB5D
1,200 8B15 0.22 0.045 0.15 1,250 EKZM6R3ESS122MH15D
1,200 10B12.5 0.22 0.039 0.14 1,330 EKZM6R3ESS122MJC5S
1,500 8B20 0.22 0.029 0.11 1,500 EKZM6R3ESS152MH20D
1,800 10B16 0.22 0.028 0.10 1,760 EKZM6R3ESS182MJ16S
2,200 10B20 0.24 0.020 0.060 1,960 EKZM6R3ESS222MJ20S
2,700 10B25 0.24 0.018 0.054 2,250 EKZM6R3ESS272MJ25S
3,900 12.5B20 0.26 0.017 0.043 2,480 EKZM6R3ESS392MK20S
4,700 12.5B25 0.28 0.015 0.038 2,900 EKZM6R3ESS472MK25S
5,600 12.5B30 0.30 0.013 0.033 3,450 EKZM6R3ESS562MK30S
6,800 12.5B35 0.32 0.012 0.031 3,570 EKZM6R3ESS682MK35S
6,800 16B20 0.32 0.015 0.038 3,250 EKZM6R3ESS682ML20S
8,200 16B25 0.36 0.013 0.035 3,630 EKZM6R3ESS822ML25S
10,000 18B25 0.40 0.012 0.031 3,650 EKZM6R3ESS103MM25S
150 5B11 0.19 0.22 0.80 345 EKZM100ESS151ME11D
330 6.3B11 0.19 0.094 0.35 540 EKZM100ESS331MF11D
680 8B11.5 0.19 0.056 0.19 945 EKZM100ESS681MHB5D
1,000 8B15 0.19 0.045 0.15 1,250 EKZM100ESS102MH15D
1,000 10B12.5 0.19 0.039 0.14 1,330 EKZM100ESS102MJC5S
1,500 8B20 0.19 0.029 0.11 1,500 EKZM100ESS152MH20D
1,500 10B16 0.19 0.028 0.10 1,760 EKZM100ESS152MJ16S
1,800 10B20 0.19 0.020 0.060 1,960 EKZM100ESS182MJ20S
2,200 10B25 0.21 0.018 0.054 2,250 EKZM100ESS222MJ25S
3,300 12.5B20 0.23 0.017 0.043 2,480 EKZM100ESS332MK20S
3,900 12.5B25 0.23 0.015 0.038 2,900 EKZM100ESS392MK25S
4,700 12.5B30 0.25 0.013 0.033 3,450 EKZM100ESS472MK30S
4,700 16B20 0.25 0.015 0.038 3,250 EKZM100ESS472ML20S
5,600 12.5B35 0.27 0.012 0.031 3,570 EKZM100ESS562MK35S
6,800 16B25 0.29 0.013 0.035 3,630 EKZM100ESS682ML25S
8,200 18B25 0.33 0.012 0.031 3,650 EKZM100ESS822MM25S
100 5B11 0.16 0.22 0.80 345 EKZM160ESS101ME11D
220 6.3B11 0.16 0.094 0.35 540 EKZM160ESS221MF11D
470 8B11.5 0.16 0.056 0.19 945 EKZM160ESS471MHB5D
680 8B15 0.16 0.045 0.15 1,250 EKZM160ESS681MH15D
680 10B12.5 0.16 0.039 0.14 1,330 EKZM160ESS681MJC5S
1,000 8B20 0.16 0.029 0.11 1,500 EKZM160ESS102MH20D
1,000 10B16 0.16 0.028 0.10 1,760 EKZM160ESS102MJ16S
1,500 10B20 0.16 0.020 0.060 1,960 EKZM160ESS152MJ20S
1,800 10B25 0.16 0.018 0.054 2,250 EKZM160ESS182MJ25S
2,200 12.5B20 0.18 0.017 0.043 2,480 EKZM160ESS222MK20S
2,700 12.5B25 0.18 0.015 0.038 2,900 EKZM160ESS272MK25S
3,300 12.5B30 0.20 0.013 0.033 3,450 EKZM160ESS332MK30S
3,300 16B20 0.20 0.015 0.038 3,250 EKZM160ESS332ML20S
3,900 12.5B35 0.20 0.012 0.031 3,570 EKZM160ESS392MK35S
4,700 16B25 0.22 0.013 0.035 3,630 EKZM160ESS472ML25S
5,600 18B25 0.24 0.012 0.031 3,650 EKZM160ESS562MM25S
Case size
fDBL(mm)
tane
Impedance
(omax/100kHz)
20c
-10c
Rated ripple current
(mArms/105c,100kHz)
Low impedance, 105
Part No.
C
(2/3)
CAT. No. E1001K
Page 3
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
STANDARD RATINGS
?
WV
dc)
(V
25
35
50
: Enter the appropriate lead forming or taping code.
SS
Cap
(mF)
68 5B11 0.14 0.22 0.80 345 EKZM250ESS680ME11D
150 6.3B11 0.14 0.094 0.35 540 EKZM250ESS151MF11D
330 8B11.5 0.14 0.056 0.19 945 EKZM250ESS331MHB5D
390 8B15 0.14 0.045 0.15 1,250 EKZM250ESS391MH15D
470 10B12.5 0.14 0.039 0.14 1,330 EKZM250ESS471MJC5S
560 8B20 0.14 0.029 0.11 1,500 EKZM250ESS561MH20D
680 10B16 0.14 0.028 0.10 1,760 EKZM250ESS681MJ16S
820 10B20 0.14 0.020 0.060 1,960 EKZM250ESS821MJ20S
1,000 10B25 0.14 0.018 0.054 2,250 EKZM250ESS102MJ25S
1,500 12.5B20 0.14 0.017 0.043 2,480 EKZM250ESS152MK20S
1,800 12.5B25 0.14 0.015 0.038 2,900 EKZM250ESS182MK25S
2,200 12.5B30 0.16 0.013 0.033 3,450 EKZM250ESS222MK30S
2,200 16B20 0.16 0.015 0.038 3,250 EKZM250ESS222ML20S
2,700 12.5B35 0.16 0.012 0.031 3,570 EKZM250ESS272MK35S
3,300 16B25 0.18 0.013 0.035 3,630 EKZM250ESS332ML25S
3,900 18B25 0.18 0.012 0.031 3,650 EKZM250ESS392MM25S
47 5B11 0.12 0.22 0.80 345 EKZM350ESS470ME11D
100 6.3B11 0.12 0.094 0.35 540 EKZM350ESS101MF11D
220 8B11.5 0.12 0.056 0.19 945 EKZM350ESS221MHB5D
270 8B15 0.12 0.045 0.15 1,250 EKZM350ESS271MH15D
330 10B12.5 0.12 0.039 0.14 1,330 EKZM350ESS331MJC5S
390 8B20 0.12 0.029 0.11 1,500 EKZM350ESS391MH20D
470 10B16 0.12 0.028 0.10 1,760 EKZM350ESS471MJ16S
560 10B20 0.12 0.020 0.060 1,960 EKZM350ESS561MJ20S
680 10B25 0.12 0.018 0.054 2,250 EKZM350ESS681MJ25S
1,000 12.5B20 0.12 0.017 0.043 2,480 EKZM350ESS102MK20S
1,200 12.5B25 0.12 0.015 0.038 2,900 EKZM350ESS122MK25S
1,500 12.5B30 0.12 0.013 0.033 3,450 EKZM350ESS152MK30S
1,500 16B20 0.12 0.015 0.038 3,250 EKZM350ESS152ML20S
1,800 12.5B35 0.12 0.012 0.031 3,570 EKZM350ESS182MK35S
2,200 16B25 0.14 0.013 0.035 3,630 EKZM350ESS222ML25S
2,700 18B25 0.14 0.012 0.031 3,650 EKZM350ESS272MM25S
27 5B11 0.10 0.34 1.18 238 EKZM500ESS270ME11D
56 6.3B11 0.10 0.14 0.50 385 EKZM500ESS560MF11D
100 8B11.5 0.10 0.074 0.22 724 EKZM500ESS101MHB5D
120 8B15 0.10 0.061 0.18 950 EKZM500ESS121MH15D
150 10B12.5 0.10 0.061 0.18 979 EKZM500ESS151MJC5S
180 8B20 0.10 0.046 0.14 1,190 EKZM500ESS181MH20D
220 10B16 0.10 0.042 0.12 1,370 EKZM500ESS221MJ16S
270 10B20 0.10 0.030 0.090 1,580 EKZM500ESS271MJ20S
330 10B25 0.10 0.028 0.085 1,870 EKZM500ESS331MJ25S
470 12.5B20 0.10 0.027 0.068 2,050 EKZM500ESS471MK20S
560 12.5B25 0.10 0.023 0.059 2,410 EKZM500ESS561MK25S
680 12.5B30 0.10 0.021 0.052 2,860 EKZM500ESS681MK30S
820 12.5B35 0.10 0.019 0.051 2,960 EKZM500ESS821MK35S
820 16B20 0.10 0.023 0.059 2,730 EKZM500ESS821ML20S
1,000 16B25 0.10 0.021 0.056 3,010 EKZM500ESS102ML25S
1,500 18B25 0.10 0.019 0.051 3,290 EKZM500ESS152MM25S
Case size
fDBL(mm)
tane
Impedance
(omax/100kHz)
20c
-10c
Rated ripple current
(mArms/105c,100kHz)
Low impedance, 105
Part No.
C
(3/3)
CAT. No. E1001K
