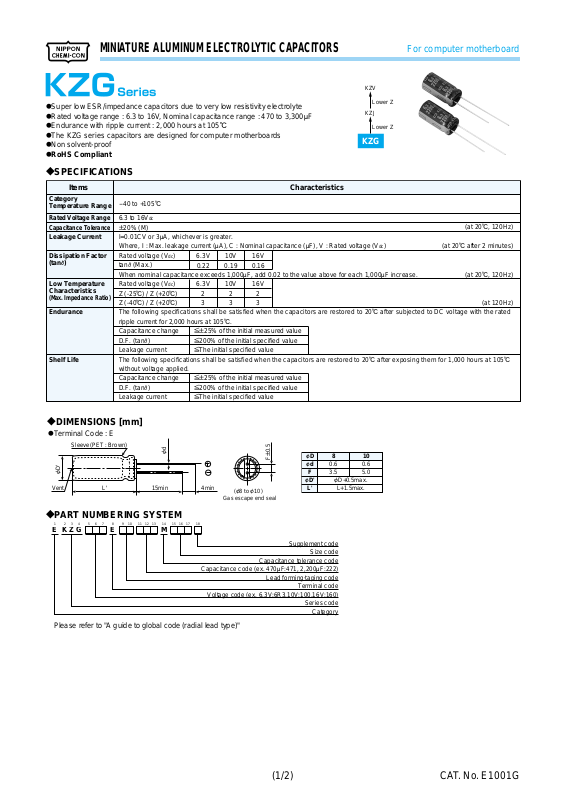

Page 1
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
@Super low ESR/impedance capacitors due to very low resistivity electrolyte
@Rated voltage range : 6.3 to 16V, Nominal capacitance range : 470 to 3,300MF
@Endurance with ripple current : 2,000 hours at 105C
@The KZG series capacitors are designed for computer motherboards
@Non solvent-proof
@RoHS Compliant
SPECIFICATIONS
?
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
-
40 to +105C
6.3 to 16V
P20% (M)
I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V
Rated voltage (V
tanE (Max.)
When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase.
Rated voltage (V
Z (-25C) / Z (+20C)
Z (-40C) / Z (+20C)
The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current for 2,000 hours at 105C.
Capacitance change [P25% of the initial measured value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C
without voltage applied.
Capacitance change [P25% of the initial measured value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
dc
dc)
6.3V
0.22
dc)
6.3V
2
3
10V
0.19
10V
2
3
16V
0.16
16V
2
3
Characteristics
KZV
Lower Z
KZJ
Lower Z
KZG
For computer motherboard
dc)
(at 20C after 2 minutes)
(at 20C, 120Hz)
(at 20C, 120Hz)
(at 120Hz)
DIMENSIONS [mm]
?
Terminal Code : E
@
Sleeve(PET : Brown)
FD'
Vent
PART NUMBERING SYSTEM
?
13426789105121311 16 17 181514
E K Z G A AA E A A A AA A A A NM
L' 15min 4min
Fd
Capacitance code (ex. 470MF:471, 2,200MF:222)
Voltage code (ex. 6.3V:6R3,10V:100,16V:160)
Please refer to "A guide to global code (radial lead type)"
(F8 to F10)
Gas escape end seal
Capacitance tolerance code
Lead forming·taping code
FP0.5
Supplement code
fD
0.6
fd
3.5
F
fD'
L'
Size code
Terminal code
Series code
Category
8
FD+0.5max.
L+1.5max.
10
0.6
5.0
(1/2)
CAT. No. E1001G
Page 2
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
STANDARD RATINGS
?
For computer motherboard
120
0.50
0.60
0.75
Case size
fDbL(mm)
1k
0.85
0.87
0.90
10k
0.94
0.95
0.95
(omax/20c, 100kHz)
100k
1.00
1.00
1.00
WV(Vdc) Cap(mF)
820 8B11.5 0.036 1,140 EKZG6R3ESS821MHB5D
1,200 8B15 0.028 1,490 EKZG6R3ESS122MH15D
6.3
10
16
: Fill with appropriate lead forming or taping code.
SS
RATED RIPPLE CURRENT MULTIPLIERS
?
Frequency Mul ti pli ers
@
Capacitance(mF)
680 to 1,800
2,200 to 3,300
1,500 10B12.5 0.026 1,540 EKZG6R3ESS152MJC5S
1,800 8B20 0.021 1,870 EKZG6R3ESS182MH20D
1,800 10B16 0.019 2,000 EKZG6R3ESS182MJ16S
2,200 10B20 0.013 2,550 EKZG6R3ESS222MJ20S
3,300 10B25 0.012 2,800 EKZG6R3ESS332MJ25S
680 8B11.5 0.036 1,140 EKZG100ESS681MHB5D
1,000 8B15 0.028 1,490 EKZG100ESS102MH15D
1,000 10B12.5 0.026 1,540 EKZG100ESS102MJC5S
1,500 8B20 0.021 1,870 EKZG100ESS152MH20D
1,500 10B16 0.019 2,000 EKZG100ESS152MJ16S
1,800 10B20 0.013 2,550 EKZG100ESS182MJ20S
2,200 10B25 0.012 2,800 EKZG100ESS222MJ25S
470 8B11.5 0.036 1,140 EKZG160ESS471MHB5D
680 8B15 0.028 1,490 EKZG160ESS681MH15D
680 10B12.5 0.026 1,540 EKZG160ESS681MJC5S
1,000 8B20 0.021 1,870 EKZG160ESS102MH20D
1,000 10B16 0.019 2,000 EKZG160ESS102MJ16S
1,500 10B20 0.013 2,550 EKZG160ESS152MJ20S
1,800 10B25 0.012 2,800 EKZG160ESS182MJ25S
Frequency (Hz)
470
Impedance
Rated ripple current
(mArms/105c, 100kHz)
Part No.
The endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
(2/2)
CAT. No. E1001G
