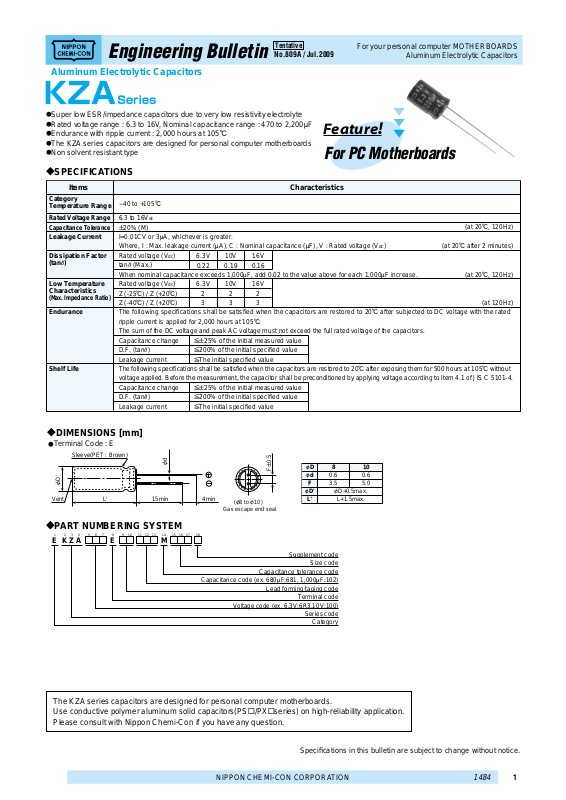

Page 1
Tentative
Engineering Bulletin
No.809A / Jul.2009
Aluminum Electrolytic Capacitors
@Super low ESR/impedance capacitors due to very low resistivity electrolyte
@Rated voltage range : 6.3 to 16V, Nominal capacitance range : 470 to 2,200MF
@Endurance with ripple current : 2,000 hours at 105C
@The KZA series capacitors are designed for personal computer motherboards
@Non solvent resistant type
SPECIFICATIONS
?
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
-
40 to +105C
6.3 to 16Vdc
P20% (M)
I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V
Rated voltage (V
tanE (Max.)
When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase.
Rated voltage (V
Z (-25C) / Z (+20C)
Z (-40C) / Z (+20C)
The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 2,000 hours at 105C.
The sum of the DC voltage and peak AC voltage must not exceed the full rated voltage of the capacitors.
Capacitance change [P25% of the initial measured value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P25% of the initial measured value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
dc)
6.3V
0.22
dc)
6.3V
2
3
10V
0.19
10V
2
3
16V
0.16
16V
2
3
Characteristics
For your personal computer MOTHERBOARDS
Aluminum Electrolytic Capacitors
Feature
!
For PC Motherboards
dc)
(at 20C after 2 minutes)
(at 20C, 120Hz)
(at 20C, 120Hz)
(at 120Hz)
DIMENSIONS [mm]
?
Terminal Code : E
@
Sleeve(PET : Brown)
FD'
Vent
PART NUMBERING SYSTEM
?
13426789105121311 16 17 181514
E K Z A AAA E A A A A A A A A NM
L' 15min 4min
Fd
(F8 to F10)
Gas escape end seal
Capacitance code (ex. 680MF:681, 1,000MF:102)
Voltage code (ex. 6.3V:6R3,10V:100)
FP0.5
Supplement code
Capacitance tolerance code
Lead forming·taping code
Terminal code
fD
0.6
fd
3.5
F
fD'
L'
Size code
Series code
Category
8
FD+0.5max.
10
0.6
5.0
L+1.5max.
The KZA series capacitors are designed for personal computer motherboards.
Use conductive polymer aluminum solid capacitors(PSS/PXSseries) on high-reliability application.
Please consult with Nippon Chemi-Con if you have any question.
Specifi cations in this bulletin are subject to change without notice.
NIPPON CHEMI-CON CORPORATION
1484
1
Page 2
Engineering Bulletin
STANDARD RATINGS
?
Tentative
No.809A / Jul.2009
For your personal computer MOTHERBOARDS
Aluminum Electrolytic Capacitors
1k
0.85
0.87
0.90
Case size
fDbL(mm)
10k
0.94
0.95
0.95
100k
1.00
1.00
1.00
WV(Vdc) Cap(mF)
1,000 8B11.5 0.022 1,340 EKZA6R3ESS102MHB5D
1,200 8B15 0.018 1,850 EKZA6R3ESS122MH15D
6.3
10
16
: Lead forming / Taping code
SS
RATED RIPPLE CURRENT MULTIPLIERS
?
Frequency Mul ti pli ers
@
Capacitance(mF)
470
680 to 1,800
2,200
1,500 10B12.5 0.018 1,960 EKZA6R3ESS152MJC5S
1,800 8B20 0.015 2,350 EKZA6R3ESS182MH20D
1,800 10B16 0.015 2,460 EKZA6R3ESS182MJ16S
2,200 10B20 0.012 2,770 EKZA6R3ESS222MJ20S
680 8B11.5 0.022 1,340 EKZA100ESS681MHB5D
1,000 8B15 0.018 1,850 EKZA100ESS102MH15D
1,000 10B12.5 0.018 1,960 EKZA100ESS102MJC5S
1,500 8B20 0.015 2,350 EKZA100ESS152MH20D
1,500 10B16 0.015 2,460 EKZA100ESS152MJ16S
1,800 10B20 0.012 2,770 EKZA100ESS182MJ20S
470 8B11.5 0.022 1,340 EKZA160ESS471MHB5D
680 8B15 0.018 1,850 EKZA160ESS681MH15D
680 10B12.5 0.018 1,960 EKZA160ESS681MJC5S
1,000 8B20 0.015 2,350 EKZA160ESS102MH20D
1,000 10B16 0.015 2,460 EKZA160ESS102MJ16S
1,500 10B20 0.012 2,770 EKZA160ESS152MJ20S
Frequency (Hz)
120
0.50
0.60
0.75
Impedance
(omax/20c, 100kHz)
Rated ripple current
(mArms/105c, 100kHz)
Part No.
Specifi cations in this bulletin are subject to change without notice.
NIPPON CHEMI-CON CORPORATION
1484
2
