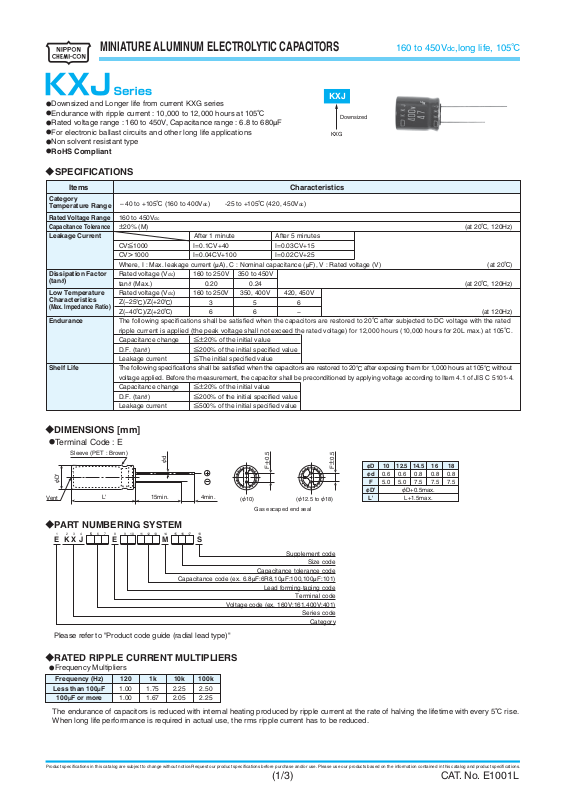

Datasheet KXJ series Specification

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

160 to 450Vdc, long life, 105

℃

●

Downsized and Longer life from current KXG series

●

Endurance with ripple current : 10,000 to 12,000 hours at 105

●

Rated voltage range : 160 to 450V, Capacitance range : 6.8 to 680µF

●

For electronic ballast circuits and other long life applications

●

Non solvent resistant type

●

RoHS Compliant

℃

◆SPECIFICATIONS

Items

Category

Temperature Range

Rated Voltage Range
Capacitance Tolerance

Leakage Current

Dissipation Factor

δ)

(tan

Low Temperature
Characteristics

(Max. Impedance Ratio)

Endurance

Shelf Life

– 40 to +105℃ (160 to 400Vdc) -25 to +105℃ (420, 450Vdc)

160 to 450V

dc

±20% (M)

After 1 minute After 5 minutes

CV≦1000 I=0.1CV+40 I=0.03CV+15
CV

>1000 I=0.04CV+100 I=0.02CV+25

Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
Rated voltage (V
tan

δ (Max.)

Rated voltage (V
Z(−25℃)/Z(+20℃)
Z(−40

℃

)/Z(+20℃)

dc)

dc

)

160 to 250V

0.20

160 to 250V

3
6

350 to 450V

0.24

350, 400V

5

6
The following specifications shall be satisfied when the capacitors are restored to 20
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 12,000 hours (10,000 hours for 20L max.) at 105
Capacitance change ≦±20% of the initial value

δ) ≦200% of the initial specified value

D.F. (tan
Leakage current ≦The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change ≦±20% of the initial value
D.F. (tanδ)

≦200% of the initial specified value

Leakage current ≦500% of the initial specified value

Characteristics

420, 450V

6

−

KXJ

KXG

Downsized

after subjected to DC voltage with the rated

℃

after exposing them for 1,000 hours at 105℃ without

℃

(at 20℃, 120Hz)

(at 20

℃

(at 20

, 120Hz)

℃

(at 120Hz)

℃

)

.

◆DIMENSIONS [mm]

●

Terminal Code : E

Sleeve (PET : Brown)

φD'

Vent

◆PART NUMBERING SYSTEM

1851811 12 13

E K X J A A A E A A A A A A A A SM

L' 15min. 4min.

14234 567 910

φd

15 16 17

0.5

±

F

(φ10)

Gas escaped end seal

Capacitance tolerance code

Capacitance code (ex. 6.8µF:6R8,10µF:100,100µF:101)

Lead forming·taping code

Voltage code (ex. 160V:161,400V:401)

(φ12.5 toφ18)

Supplement code

Terminal code

Series code

Size code

Category

0.5

±

F

φD
φd

φD'

14.5

0.8

7.5

L+1.5max.

0.8

7.5

16

0.8

7.5

12.5

10

0.6

0.6

5.0

5.0

F

L'

φD+0.5max.

18

Please refer to "Product code guide (radial lead type)"

◆RATED RIPPLE CURRENT MULTIPLIERS

●

Frequency Multipliers

Frequency (Hz)

Less than 100µF

100µF or more

The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.

120

1.00

1.00

1k

1.75

1.67

10k

2.25

2.05

100k

2.50

2.25

Product specifi cations in this catalog are subject to change without notice.Request our product specifi cations before purchase and/or use. Please use our products based on the information contained in this catalog and product specifi cations.

CAT. No. E1001L(1/3)

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

160 to 450Vdc long life, 105℃

◆STANDARD RATINGS

Cap

WV

(Vdc)

160

200

□□

Product specifi cations in this catalog are subject to change without notice.Request our product specifi cations before purchase and/or use. Please use our products based on the information contained in this catalog and product specifi cations.

Case size

(µF)

φ

D

L(mm)

×

39 10
56 10
82 10

82 10
100 12.5×20 0.20 575 EKXJ161E□□101MK20S
120 10
120 14.5×20 0.20 675 EKXJ161E□□121MU20S
150 10×40 0.20 665 EKXJ161E□□151MJ40S
150 10×45 0.20 695 EKXJ161E□□151MJ45S
150 12.5
180 10×50 0.20 785 EKXJ161E□□181MJ50S
180 12.5×30 0.20 885 EKXJ161E□□181MK30S
180 14.5×25 0.20 890 EKXJ161E□□181MU25S
180 16×20 0.20 855 EKXJ161E□□181ML20S
220 12.5×35 0.20 1,040 EKXJ161E□□221MK35S
220 16
220 18×20 0.20 990 EKXJ161E□□221MM20S
270 12.5
270 12.5
270 14.5×31.5 0.20 1,170 EKXJ161E□□271MUN3S
270 14.5×35.5 0.20 1,210 EKXJ161E□□271MUP1S
330 12.5×50 0.20 1,400 EKXJ161E□□331MK50S
330 14.5
330 16
330 18
390 14.5×45 0.20 1,545 EKXJ161E□□391MU45S
390 16×35.5 0.20 1,500 EKXJ161E□□391MLP1S
470 14.5
470 16×40 0.20 1,700 EKXJ161E□□471ML40S
470 16
470 18
470 18×35.5 0.20 1,715 EKXJ161E□□471MMP1S
560 16
560 18×40 0.20 1,905 EKXJ161E□□561MM40S
680 18
680 18×50 0.20 2,145 EKXJ161E□□681MM50S

27 10×16 0.20 200 EKXJ201E□□270MJ16S

47 10×20 0.20 290 EKXJ201E□□470MJ20S

56 10×25 0.20 345 EKXJ201E□□560MJ25S

68 10

82 12.5×20 0.20 520 EKXJ201E□□820MK20S
100 10×35 0.20 520 EKXJ201E□□101MJ35S
100 12.5×25 0.20 625 EKXJ201E□□101MK25S
100 14.5×20 0.20 615 EKXJ201E□□101MU20S
120 10
120 10×45 0.20 620 EKXJ201E□□121MJ45S
120 12.5×30 0.20 725 EKXJ201E□□121MK30S
120 16×20 0.20 695 EKXJ201E□□121ML20S
150 10×50 0.20 720 EKXJ201E□□151MJ50S
150 12.5
150 14.5
180 14.5
180 16
180 18
220 12.5
220 12.5
220 14.5×35.5 0.20 1,095 EKXJ201E□□221MUP1S
220 18×25 0.20 1,050 EKXJ201E□□221MM25S
270 12.5×50 0.20 1,265 EKXJ201E□□271MK50S
270 14.5
270 14.5×45 0.20 1,290 EKXJ201E□□271MU45S
270 16
270 16
330 14.5
330 16×40 0.20 1,425 EKXJ201E□□331ML40S
330 18
390 16
390 18×35.5 0.20 1,565 EKXJ201E□□391MMP1S
470 16
470 18×40 0.20 1,745 EKXJ201E□□471MM40S
470 18×45 0.20 1,770 EKXJ201E□□471MM45S
560 18×50 0.20 1,945 EKXJ201E□□561MM50S

16 0.20 245 EKXJ161E□□390MJ16S

×

20 0.20 315 EKXJ161E□□560MJ20S

×

25 0.20 415 EKXJ161E□□820MJ25S

×

30 0.20 445 EKXJ161E□□820MJ30S

×

35 0.20 570 EKXJ161E□□121MJ35S

×

25 0.20 765 EKXJ161E□□151MK25S

×

25 0.20 1,020 EKXJ161E□□221ML25S

×

40 0.20 1,190 EKXJ161E□□271MK40S

×

45 0.20 1,230 EKXJ161E□□271MK45S

×

40 0.20 1,385 EKXJ161E□□331MU40S

×

31.5 0.20 1,350 EKXJ161E□□331MLN3S

×

25 0.20 1,290 EKXJ161E□□331MM25S

×

50 0.20 1,735 EKXJ161E□□471MU50S

×

45 0.20 1,730 EKXJ161E□□471ML45S

×

31.5 0.20 1,660 EKXJ161E□□471MMN3S

×

50 0.20 1,920 EKXJ161E□□561ML50S

×

45 0.20 2,130 EKXJ161E□□681MM45S

×

30 0.20 405 EKXJ201E□□680MJ30S

×

40 0.20 595 EKXJ201E□□121MJ40S

×

35 0.20 860 EKXJ201E□□151MK35S

×

25 0.20 810 EKXJ201E□□151MU25S

×

31.5 0.20 955 EKXJ201E□□181MUN3S

×

25 0.20 925 EKXJ201E□□181ML25S

×

20 0.20 895 EKXJ201E□□181MM20S

×

40 0.20 1,075 EKXJ201E□□221MK40S

×

45 0.20 1,110 EKXJ201E□□221MK45S

×

40 0.20 1,250 EKXJ201E□□271MU40S

×

31.5 0.20 1,220 EKXJ201E□□271MLN3S

×

35.5 0.20 1,250 EKXJ201E□□271MLP1S

×

50 0.20 1,450 EKXJ201E□□331MU50S

×

31.5 0.20 1,395 EKXJ201E□□331MMN3S

×

45 0.20 1,575 EKXJ201E□□391ML45S

×

50 0.20 1,755 EKXJ201E□□471ML50S

×

: Enter the appropriate lead forming or taping code.

Rated ripple

tan

current

δ

(mArms/105℃,120Hz) (mArms/105℃,120Hz)

Part No.

WV Cap Case size

(µF)

(µF)

φ

dc)

(V

(Vdc)

220

250

φ

D

D

L(mm)

L(mm)

×

×

27 10
39 10
56 10×25 0.20 345 EKXJ221E□□560MJ25S
56 10×30 0.20 370 EKXJ221E□□560MJ30S
68 12.5×20 0.20 475 EKXJ221E□□680MK20S
82 10

82 14.5×20 0.20 555 EKXJ221E□□820MU20S
100 10×40 0.20 545 EKXJ221E□□101MJ40S
100 10×45 0.20 565 EKXJ221E□□101MJ45S
100 12.5
120 10×50 0.20 645 EKXJ221E□□121MJ50S
120 12.5×30 0.20 725 EKXJ221E□□121MK30S
120 14.5×25 0.20 725 EKXJ221E□□121MU25S
120 16×20 0.20 695 EKXJ221E□□121ML20S
150 12.5×35 0.20 860 EKXJ221E□□151MK35S
150 16
150 18×20 0.20 815 EKXJ221E□□151MM20S
180 12.5
180 12.5
180 14.5×31.5 0.20 955 EKXJ221E□□181MUN3S
220 12.5×50 0.20 1,145 EKXJ221E□□221MK50S
220 14.5×35.5 0.20 1,095 EKXJ221E□□221MUP1S
220 14.5
220 16
220 18
270 14.5×45 0.20 1,285 EKXJ221E□□271MU45S
270 14.5×50 0.20 1,315 EKXJ221E□□271MU50S
270 16
270 18×31.5 0.20 1,260 EKXJ221E□□271MMN3S
330 16
330 16
330 18×35.5 0.20 1,440 EKXJ221E□□331MMP1S
390 16
390 18×40 0.20 1,590 EKXJ221E□□391MM40S
390 18
470 18×50 0.20 1,785 EKXJ221E□□471MM50S

22 10×16 0.20 185 EKXJ251E□□220MJ16S

33 10×20 0.20 240 EKXJ251E□□330MJ20S

47 10×25 0.20 315 EKXJ251E□□470MJ25S

47 10

56 12.5×20 0.20 430 EKXJ251E□□560MK20S

68 10×35 0.20 430 EKXJ251E□□680MJ35S

68 14.5×20 0.20 505 EKXJ251E□□680MU20S

82 10×40 0.20 495 EKXJ251E□□820MJ40S

82 10

82 12.5×25 0.20 565 EKXJ251E□□820MK25S
100 10×50 0.20 585 EKXJ251E□□101MJ50S
100 12.5×30 0.20 660 EKXJ251E□□101MK30S
100 14.5×25 0.20 665 EKXJ251E□□101MU25S
100 16
120 12.5
120 16
120 18
150 12.5
150 12.5
150 14.5
180 12.5×50 0.20 1,035 EKXJ251E□□181MK50S
180 14.5×35.5 0.20 990 EKXJ251E□□181MUP1S
180 14.5×40 0.20 1,020 EKXJ251E□□181MU40S
180 16
180 18×25 0.20 950 EKXJ251E□□181MM25S
220 14.5
220 14.5
220 16
220 18×31.5 0.20 1,135 EKXJ251E□□221MMN3S
270 16
270 16
270 18×35.5 0.20 1,300 EKXJ251E□□271MMP1S
330 16
330 18×40 0.20 1,460 EKXJ251E□□331MM40S
330 18×45 0.20 1,485 EKXJ251E□□331MM45S
390 18×50 0.20 1,625 EKXJ251E□□391MM50S

16 0.20 200 EKXJ221E□□270MJ16S

×

20 0.20 265 EKXJ221E□□390MJ20S

×

35 0.20 470 EKXJ221E□□820MJ35S

×

25 0.20 625 EKXJ221E□□101MK25S

×

25 0.20 845 EKXJ221E□□151ML25S

×

40 0.20 975 EKXJ221E□□181MK40S

×

45 0.20 1,005 EKXJ221E□□181MK45S

×

40 0.20 1,130 EKXJ221E□□221MU40S

×

31.5 0.20 1,100 EKXJ221E□□221MLN3S

×

25 0.20 1,050 EKXJ221E□□221MM25S

×

35.5 0.20 1,245 EKXJ221E□□271MLP1S

×

40 0.20 1,425 EKXJ221E□□331ML40S

×

45 0.20 1,450 EKXJ221E□□331ML45S

×

50 0.20 1,600 EKXJ221E□□391ML50S

×

45 0.20 1,620 EKXJ221E□□391MM45S

×

30 0.20 340 EKXJ251E□□470MJ30S

×

45 0.20 515 EKXJ251E□□820MJ45S

×

20 0.20 635 EKXJ251E□□101ML20S

×

35 0.20 770 EKXJ251E□□121MK35S

×

25 0.20 755 EKXJ251E□□121ML25S

×

20 0.20 730 EKXJ251E□□121MM20S

×

40 0.20 890 EKXJ251E□□151MK40S

×

45 0.20 920 EKXJ251E□□151MK45S

×

31.5 0.20 870 EKXJ251E□□151MUN3S

×

31.5 0.20 995 EKXJ251E□□181MLN3S

×

45 0.20 1,160 EKXJ251E□□221MU45S

×

50 0.20 1,185 EKXJ251E□□221MU50S

×

35.5 0.20 1,125 EKXJ251E□□221MLP1S

×

40 0.20 1,285 EKXJ251E□□271ML40S

×

45 0.20 1,310 EKXJ251E□□271ML45S

×

50 0.20 1,475 EKXJ251E□□331ML50S

×

Rated ripple

tan

tan

δ

δ

(mArms/105℃,120Hz)

current

Part No.

CAT. No. E1001L(2/3)

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

◆STANDARD RATINGS

Cap

WV

dc)

(V

350

400

□□

: Enter the appropriate lead forming or taping code.

Case size

(µF)

φD×L(mm)

12 10×16 0.24 135 EKXJ351E□□120MJ16S
22 10×20 0.24 200 EKXJ351E□□220MJ20S
27 10×25 0.24 240 EKXJ351E□□270MJ25S
27 10×30 0.24 255 EKXJ351E□□270MJ30S
33 12.5×20 0.24 330 EKXJ351E□□330MK20S
39 10×35 0.24 325 EKXJ351E□□390MJ35S
47 10×40 0.24 375 EKXJ351E□□470MJ40S
47 12.5×25 0.24 425 EKXJ351E□□470MK25S
47 14.5×20 0.24 420 EKXJ351E□□470MU20S
56 10×45 0.24 425 EKXJ351E□□560MJ45S
56 12.5×30 0.24 495 EKXJ351E□□560MK30S
56 16×20 0.24 475 EKXJ351E□□560ML20S
68 10×50 0.24 485 EKXJ351E□□680MJ50S
68 12.5×35 0.24 580 EKXJ351E□□680MK35S
68 14.5×25 0.24 545 EKXJ351E□□680MU25S
68 18×20 0.24 550 EKXJ351E□□680MM20S
82 12.5×40 0.24 655 EKXJ351E□□820MK40S
82 14.5×31.5 0.24 645 EKXJ351E□□820MUN3S

82 16×25 0.24 625 EKXJ351E□□820ML25S
100 12.5×45 0.24 750 EKXJ351E□□101MK45S
100 12.5×50 0.24 770 EKXJ351E□□101MK50S
100 14.5×35.5 0.24 740 EKXJ351E□□101MUP1S
100 16×31.5 0.24 740 EKXJ351E□□101MLN3S
100 18×25 0.24 710 EKXJ351E□□101MM25S
120 14.5×40 0.24 835 EKXJ351E□□121MU40S
120 14.5×45 0.24 860 EKXJ351E□□121MU45S
120 16×35.5 0.24 830 EKXJ351E□□121MLP1S
150 14.5×50 0.24 980 EKXJ351E□□151MU50S
150 16×40 0.24 960 EKXJ351E□□151ML40S
150 16×45 0.24 975 EKXJ351E□□151ML45S
150 18×31.5 0.24 940 EKXJ351E□□151MMN3S
180 16×50 0.24 1,090 EKXJ351E□□181ML50S
180 18×35.5 0.24 1,065 EKXJ351E□□181MMP1S
180 18×40 0.24 1,080 EKXJ351E□□181MM40S
220 18×45 0.24 1,210 EKXJ351E□□221MM45S
220 18×50 0.24 1,220 EKXJ351E□□221MM50S

10 10×16 0.24 125 EKXJ401E□□100MJ16S

18 10×20 0.24 180 EKXJ401E□□180MJ20S

22 10×25 0.24 215 EKXJ401E□□220MJ25S

27 10×30 0.24 255 EKXJ401E□□270MJ30S

12.5×20 0.24 300 EKXJ401E□□270MK20S

27

33 10×35 0.24 300 EKXJ401E□□330MJ35S

39 10×40 0.24 340 EKXJ401E□□390MJ40S

39

10×45 0.24 355 EKXJ401E□□390MJ45S
39 12.5×25 0.24 390 EKXJ401E□□390MK25S
39 14.5×20 0.24 385 EKXJ401E□□390MU20S
47 12.5×30 0.24 455 EKXJ401E□□470MK30S
47 16×20 0.24 435 EKXJ401E□□470ML20S
56 10×50 0.24 440 EKXJ401E□□560MJ50S
56 12.5×35 0.24 525 EKXJ401E□□560MK35S
56 14.5×25 0.24 495 EKXJ401E□□560MU25S
56 18×20 0.24 500 EKXJ401E□□560MM20S
68 12.5×40 0.24 600 EKXJ401E□□680MK40S
68 14.5×31.5 0.24 585 EKXJ401E□□680MUN3S
68 16×25 0.24 570 EKXJ401E□□680ML25S
82 12.5×45 0.24 680 EKXJ401E□□820MK45S
82 12.5×50 0.24 700 EKXJ401E□□820MK50S
82 14.5×35.5 0.24 670 EKXJ401E□□820MUP1S
82 16×31.5 0.24 670 EKXJ401E□□820MLN3S
82 18×25 0.24 640 EKXJ401E□□820MM25S

100 14.5×40 0.24 760 EKXJ401E□□101MU40S
100 14.5×45 0.24 785 EKXJ401E□□101MU45S
100 16×35.5 0.24 760 EKXJ401E□□101MLP1S
120 14.5×50 0.24 875 EKXJ401E□□121MU50S
120 16×40 0.24 860 EKXJ401E□□121ML40S
120 16×45 0.24 875 EKXJ401E□□121ML45S
120 18×31.5 0.24 840 EKXJ401E□□121MMN3S
120 18×35.5 0.24 870 EKXJ401E□□121MMP1S
150

16×50 0.24 995 EKXJ401E□□151ML50S

150 18×40 0.24 985 EKXJ401E□□151MM40S
180 18×45 0.24 1,095 EKXJ401E□□181MM45S
220 18×50 0.24 1,220 EKXJ401E□□221MM50S

Rated ripple

δ

tan

(mArms/105℃,120Hz)

current

Part No.

160 to 450Vdc long life, 105

Cap

(V

WV

420

450

dc)

Case size

(µF)

φD×L(mm)

6.8 10×16 0.24 105 EKXJ421E□□6R8MJ16S
12 10×20 0.24 150 EKXJ421E□□120MJ20S
15 10×25 0.24 185 EKXJ421E□□150MJ25S
18 10×30 0.24 215 EKXJ421E□□180MJ30S
22 12.5×20 0.24 285 EKXJ421E□□220MK20S
27 10×35 0.24 275 EKXJ421E□□270MJ35S
27 10×40 0.24 290 EKXJ421E□□270MJ40S
27 12.5×25 0.24 340 EKXJ421E□□270MK25S
27 14.5×20 0.24 335 EKXJ421E□□270MU20S
33 10×45 0.24 335 EKXJ421E□□330MJ45S
33 12.5×30 0.24 400 EKXJ421E□□330MK30S
33 16×20 0.24 385 EKXJ421E□□330ML20S
39 10×50 0.24 375 EKXJ421E□□390MJ50S
39 14.5×25 0.24 435 EKXJ421E□□390MU25S
47 12.5×35 0.24 505 EKXJ421E□□470MK35S
47 16×25 0.24 500 EKXJ421E□□470ML25S
47 18×20 0.24 480 EKXJ421E□□470MM20S
56 12.5×40 0.24 570 EKXJ421E□□560MK40S
56 12.5×45 0.24 590 EKXJ421E□□560MK45S
56 14.5×31.5 0.24 560 EKXJ421E□□560MUN3S
68 12.5×50 0.24 670 EKXJ421E□□680MK50S
68 14.5×35.5 0.24 640 EKXJ421E□□680MUP1S
68 14.5×40 0.24 660 EKXJ421E□□680MU40S
68 16×31.5 0.24 645 EKXJ421E□□680MLN3S
68 18×25 0.24 615 EKXJ421E□□680MM25S
82 14.5×45 0.24 750 EKXJ421E□□820MU45S
82 16×35.5 0.24 725 EKXJ421E□□820MLP1S
82 18×31.5 0.24 730 EKXJ421E□□820MMN3S

100 14.5×50 0.24 845 EKXJ421E□□101MU50S
100 16×40 0.24 825 EKXJ421E□□101ML40S
100 16×45 0.24 840 EKXJ421E□□101ML45S
100 18×35.5 0.24 835 EKXJ421E□□101MMP1S
120 16×50 0.24 935 EKXJ421E□□121ML50S
120 18×40 0.24 930 EKXJ421E□□121MM40S
120 18×45 0.24 945 EKXJ421E□□121MM45S
150 18×50 0.24 1,060 EKXJ421E□□151MM50S

6.8 10×16 0.24 105 EKXJ451E□□6R8MJ16S
12 10×20 0.24 150 EKXJ451E□□120MJ20S
15 10×25 0.24 185 EKXJ451E□□150MJ25S
18 10×30 0.24 215 EKXJ451E□□180MJ30S
18 12.5×20 0.24 255 EKXJ451E□□180MK20S
22 10×35 0.24 250 EKXJ451E□□220MJ35S
27 10×40 0.24 290 EKXJ451E□□270MJ40S
27 10×45 0.24 305 EKXJ451E□□270MJ45S
27 12.5×25 0.24 340 EKXJ451E□□270MK25S
27 14.5×20 0.24 335 EKXJ451E□□270MU20S
33 12.5×30 0.24 400 EKXJ451E□□330MK30S
33 14.5×25 0.24 400 EKXJ451E□□330MU25S
33 16×20 0.24 38
39 10×50 0.24 375 EKXJ451E□□390MJ50S
39 12.5×35 0.24 460 EKXJ451E□□390MK35S
39 18×20 0.24 440 EKXJ451E□□390MM20S
47 12.5×40 0.24 525 EKXJ451E□□470MK40S
47 14.5×31.5 0.24 515 EKXJ451E□□470MUN3S
47 16×25 0.24 500 EKXJ451E□□470ML25S
56 12.5×45 0.24 590 EKXJ451E□□560MK45S
56 14.5×35.5 0.24 580 EKXJ451E□□560MUP1S
56 16×31.5 0.24 585 EKXJ451E□□560MLN3S
56 18×25 0.24 560 EKXJ451E□□560MM25S
68 12.5×50 0.24 670 EKXJ451E□□680MK50S

14.5×40 0.24 660 EKXJ451E□□680MU40S

68
68 14.5×45 0.24 680 EKXJ451E□□680MU45S
68 16×35.5 0.24 660 EKXJ451E□□680MLP1S
82 14.5×50 0.24 765 EKXJ451E□□820MU50S
82 16×40 0.24 750 EKXJ451E□□820ML40S
82 16×45 0.24 760 EKXJ451E□□820ML45S
82 18×31.5 0.24 730 EKXJ451E□□820MMN3S

100 16×50 0.24 855 EKXJ451E□□101ML50S
100 18×35.5 0.24 835 EKXJ451E□□101MMP1S
120 18×40 0.24 930 EKXJ451E□□121MM40S
120 18×45 0.24 945 EKXJ451E□□121MM45S
150 18×50 0.24 1,060 EKXJ451E□□151MM50S

Rated ripple

δ

tan

(mArms/105℃,120Hz)

current

5 EKXJ451E□□330ML20S

℃

Part No.

Product specifi cations in this catalog are subject to change without notice.Request our product specifi cations before purchase and/or use. Please use our products based on the information contained in this catalog and product specifi cations.

CAT. No. E1001L(3/3)
