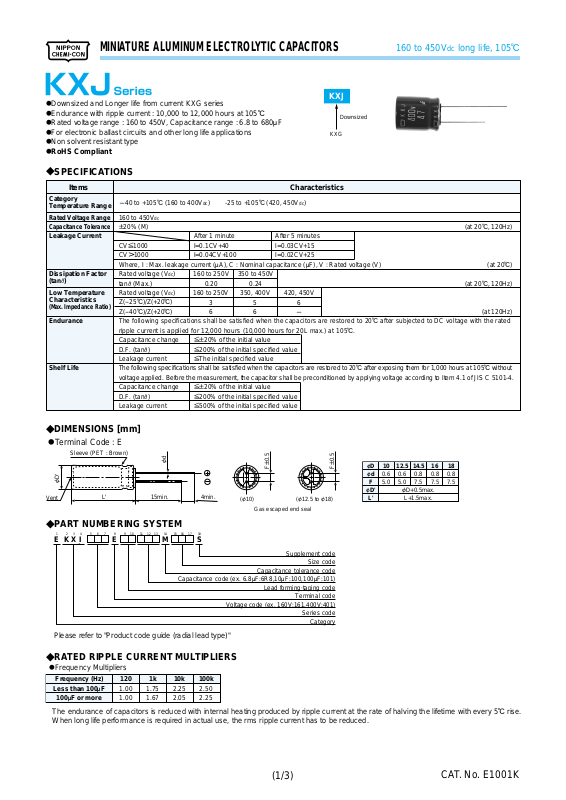

Page 1
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
160 to 450Vdc long life, 105C
@Downsized and Longer life from current KXG series
@Endurance with ripple current : 10,000 to 12,000 hours at 105C
@Rated voltage range : 160 to 450V, Capacitance range : 6.8 to 680MF
@For electronic ballast circuits and other long life applications
@Non solvent resistant type
@RoHS Compliant
SPECIFICATIONS
?
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tanE)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
-
40 to +105C (160 to 400Vdc) -25 to +105C (420, 450Vdc)
160 to 450Vdc
P20% (M)
CV[1000 I=0.1CV+40 I=0.03CV+15
CV
>
1000 I=0.04CV+100 I=0.02CV+25
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
Rated voltage (V
tanE (Max.)
Rated voltage (V
Z(
-
25C)/Z(+20C)
Z(
-
40C)/Z(+20C)
The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 12,000 hours (10,000 hours for 20L max.) at 105C.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [500% of the initial specified value
After 1 minute After 5 minutes
dc)
dc)
160 to 250V
0.20
160 to 250V
3
6
350 to 450V
0.24
350, 400V
5
6
Characteristics
420, 450V
6
-
KXJ
Downsized
KXG
(at 20C, 120Hz)
(at 20C)
(at 20C, 120Hz)
(at 120Hz)
DIMENSIONS [mm]
?
@Terminal Code : E
Sleeve (PET : Brown)
FD'
Vent
PART NUMBERING SYSTEM
?
13426789105121311 16 17 181514
E K X J A AA E AA A AA AA A SM
L' 15min. 4min.
Please refer to "Product code guide (radial lead type)"
RATED RIPPLE CURRENT MULTIPLIERS
?
@Frequency Mul ti pli ers
Frequency (Hz)
Less than 100mF
100mF or more
120
1.00
1.00
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
1k
1.75
1.67
Fd
(F10) (F12.5 to F18)
Capacitance code (ex. 6.8MF:6R8,10MF:100,100MF:101)
Voltage code (ex. 160V:161,400V:401)
10k
100k
2.25
2.50
2.05
2.25
FP0.5
Gas escaped end seal
Supplement code
Capacitance tolerance code
Lead forming·taping code
Terminal code
Series code
Size code
Category
FP0.5
fD
fd
fD'
14.5
0.8
7.5
L+1.5max.
0.8
7.5
16
0.8
7.5
12.5
10
0.6
0.6
5.0
5.0
FD+0.5max.
F
L'
18
(1/3)
CAT. No. E1001K
Page 2
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
STANDARD RATINGS
?
Cap
WV
dc)
(V
160
200
: Enter the appropriate lead forming or taping code.
SS
Case size
(mF)
fDbL(mm)
39 10B16 0.20 245 EKXJ161ESS390MJ16S
56 10B20 0.20 315 EKXJ161ESS560MJ20S
82 10B25 0.20 415 EKXJ161ESS820MJ25S
82 10B30 0.20 445 EKXJ161ESS820MJ30S
100 12.5B20 0.20 575 EKXJ161ESS101MK20S
120 10B35 0.20 570 EKXJ161ESS121MJ35S
120 14.5B20 0.20 675 EKXJ161ESS121MU20S
150 10B40 0.20 665 EKXJ161ESS151MJ40S
150 10B45 0.20 695 EKXJ161ESS151MJ45S
150 12.5B25 0.20 765 EKXJ161ESS151MK25S
180 10B50 0.20 785 EKXJ161ESS181MJ50S
180 12.5B30 0.20 885 EKXJ161ESS181MK30S
180 14.5B25 0.20 890 EKXJ161ESS181MU25S
180 16B20 0.20 855 EKXJ161ESS181ML20S
220 12.5B35 0.20 1,040 EKXJ161ESS221MK35S
220 16B25 0.20 1,020 EKXJ161ESS221ML25S
220 18B20 0.20 990 EKXJ161ESS221MM20S
270 12.5B40 0.20 1,190 EKXJ161ESS271MK40S
270 12.5B45 0.20 1,230 EKXJ161ESS271MK45S
270 14.5B31.5 0.20 1,170 EKXJ161ESS271MUN3S
270 14.5B35.5 0.20 1,210 EKXJ161ESS271MUP1S
330 12.5B50 0.20 1,400 EKXJ161ESS331MK50S
330 14.5B40 0.20 1,385 EKXJ161ESS331MU40S
330 16B31.5 0.20 1,350 EKXJ161ESS331MLN3S
330 18B25 0.20 1,290 EKXJ161ESS331MM25S
390 14.5B45 0.20 1,545 EKXJ161ESS391MU45S
390 16B35.5 0.20 1,500 EKXJ161ESS391MLP1S
470 14.5B50 0.20 1,735 EKXJ161ESS471MU50S
470 16B40 0.20 1,700 EKXJ161ESS471ML40S
470 16B45 0.20 1,730 EKXJ161ESS471ML45S
470 18B31.5 0.20 1,660 EKXJ161ESS471MMN3S
470 18B35.5 0.20 1,715 EKXJ161ESS471MMP1S
560 16B50 0.20 1,920 EKXJ161ESS561ML50S
560 18B40 0.20 1,905 EKXJ161ESS561MM40S
680 18B45 0.20 2,130 EKXJ161ESS681MM45S
680 18B50 0.20 2,145 EKXJ161ESS681MM50S
27 10B16 0.20 200 EKXJ201ESS270MJ16S
47 10B20 0.20 290 EKXJ201ESS470MJ20S
56 10B25 0.20 345 EKXJ201ESS560MJ25S
68 10B30 0.20 405 EKXJ201ESS680MJ30S
82 12.5B20 0.20 520 EKXJ201ESS820MK20S
100 10B35 0.20 520 EKXJ201ESS101MJ35S
100 12.5B25 0.20 625 EKXJ201ESS101MK25S
100 14.5B20 0.20 615 EKXJ201ESS101MU20S
120 10B40 0.20 595 EKXJ201ESS121MJ40S
120 10B45 0.20 620 EKXJ201ESS121MJ45S
120 12.5B30 0.20 725 EKXJ201ESS121MK30S
120 16B20 0.20 695 EKXJ201ESS121ML20S
150 10B50 0.20 720 EKXJ201ESS151MJ50S
150 12.5B35 0.20 860 EKXJ201ESS151MK35S
150 14.5B25 0.20 810 EKXJ201ESS151MU25S
180 14.5B31.5 0.20 955 EKXJ201ESS181MUN3S
180 16B25 0.20 925 EKXJ201ESS181ML25S
180 18B20 0.20 895 EKXJ201ESS181MM20S
220 12.5B40 0.20 1,075 EKXJ201ESS221MK40S
220 12.5B45 0.20 1,110 EKXJ201ESS221MK45S
220 14.5B35.5 0.20 1,095 EKXJ201ESS221MUP1S
220 18B25 0.20 1,050 EKXJ201ESS221MM25S
270 12.5B50 0.20 1,265 EKXJ201ESS271MK50S
270 14.5B40 0.20 1,250 EKXJ201ESS271MU40S
270 14.5B45 0.20 1,290 EKXJ201ESS271MU45S
270 16B31.5 0.20 1,220 EKXJ201ESS271MLN3S
270 16B35.5 0.20 1,250 EKXJ201ESS271MLP1S
330 14.5B50 0.20 1,450 EKXJ201ESS331MU50S
330 16B40 0.20 1,425 EKXJ201ESS331ML40S
330 18B31.5 0.20 1,395 EKXJ201ESS331MMN3S
390 16B45 0.20 1,575 EKXJ201ESS391ML45S
390 18B35.5 0.20 1,565 EKXJ201ESS391MMP1S
470 16B50 0.20 1,755 EKXJ201ESS471ML50S
470 18B40 0.20 1,745 EKXJ201ESS471MM40S
470 18B45 0.20 1,770 EKXJ201ESS471MM45S
560 18B50 0.20 1,945 EKXJ201ESS561MM50S
Rated ripple
tane
(mArms/105c,120Hz)
current
Part No.
160 to 450Vdc long life, 105C
Cap
(V
WV
dc)
220
250
Case size
(mF)
fDbL(mm)
27 10B16 0.20 200 EKXJ221ESS270MJ16S
39 10B20 0.20 265 EKXJ221ESS390MJ20S
56 10B25 0.20 345 EKXJ221ESS560MJ25S
56 10B30 0.20 370 EKXJ221ESS560MJ30S
68 12.5B20 0.20 475 EKXJ221ESS680MK20S
82 10B35 0.20 470 EKXJ221ESS820MJ35S
82 14.5B20 0.20 555 EKXJ221ESS820MU20S
100 10B40 0.20 545 EKXJ221ESS101MJ40S
100 10B45 0.20 565 EKXJ221ESS101MJ45S
100 12.5B25 0.20 625 EKXJ221ESS101MK25S
120 10B50 0.20 645 EKXJ221ESS121MJ50S
120 12.5B30 0.20 725 EKXJ221ESS121MK30S
120 14.5B25 0.20 725 EKXJ221ESS121MU25S
120 16B20 0.20 695 EKXJ221ESS121ML20S
150 12.5B35 0.20 860 EKXJ221ESS151MK35S
150 16B25 0.20 845 EKXJ221ESS151ML25S
150 18B20 0.20 815 EKXJ221ESS151MM20S
180 12.5B40 0.20 975 EKXJ221ESS181MK40S
180 12.5B45 0.20 1,005 EKXJ221ESS181MK45S
180 14.5B31.5 0.20 955 EKXJ221ESS181MUN3S
220 12.5B50 0.20 1,145 EKXJ221ESS221MK50S
220 14.5B35.5 0.20 1,095 EKXJ221ESS221MUP1S
220 14.5B40 0.20 1,130 EKXJ221ESS221MU40S
220 16B31.5 0.20 1,100 EKXJ221ESS221MLN3S
220 18B25 0.20 1,050 EKXJ221ESS221MM25S
270 14.5B45 0.20 1,285 EKXJ221ESS271MU45S
270 14.5B50 0.20 1,315 EKXJ221ESS271MU50S
270 16B35.5 0.20 1,245 EKXJ221ESS271MLP1S
270 18B31.5 0.20 1,260 EKXJ221ESS271MMN3S
330 16B40 0.20 1,425 EKXJ221ESS331ML40S
330 16B45 0.20 1,450 EKXJ221ESS331ML45S
330 18B35.5 0.20 1,440 EKXJ221ESS331MMP1S
390 16B50 0.20 1,600 EKXJ221ESS391ML50S
390 18B40 0.20 1,590 EKXJ221ESS391MM40S
390 18B45 0.20 1,620 EKXJ221ESS391MM45S
470 18B50 0.20 1,785 EKXJ221ESS471MM50S
22 10B16 0.20 185 EKXJ251ESS220MJ16S
33 10B20 0.20 240 EKXJ251ESS330MJ20S
47 10B25 0.20 315 EKXJ251ESS470MJ25S
47 10B30 0.20 340 EKXJ251ESS470MJ30S
56 12.5B20 0.20 430 EKXJ251ESS560MK20S
68 10B35 0.20 430 EKXJ251ESS680MJ35S
68 14.5B20 0.20 505 EKXJ251ESS680MU20S
82 10B40 0.20 495 EKXJ251ESS820MJ40S
82 10B45 0.20 515 EKXJ251ESS820MJ45S
82 12.5B25 0.20 565 EKXJ251ESS820MK25S
100 10B50 0.20 585 EKXJ251ESS101MJ50S
100 12.5B30 0.20 660 EKXJ251ESS101MK30S
100 14.5B25 0.20 665 EKXJ251ESS101MU25S
100 16B20 0.20 635 EKXJ251ESS101ML20S
120 12.5B35 0.20 770 EKXJ251ESS121MK35S
120 16B25 0.20 755 EKXJ251ESS121ML25S
120 18B20 0.20 730 EKXJ251ESS121MM20S
150 12.5B40 0.20 890 EKXJ251ESS151MK40S
150 12.5B45 0.20 920 EKXJ251ESS151MK45S
150 14.5B31.5 0.20 870 EKXJ251ESS151MUN3S
180 12.5B50 0.20 1,035 EKXJ251ESS181MK50S
180 14.5B35.5 0.20 990 EKXJ251ESS181MUP1S
180 14.5B40 0.20 1,020 EKXJ251ESS181MU40S
180 16B31.5 0.20 995 EKXJ251ESS181MLN3S
180 18B25 0.20 950 EKXJ251ESS181MM25S
220 14.5B45 0.20 1,160 EKXJ251ESS221MU45S
220 14.5B50 0.20 1,185 EKXJ251ESS221MU50S
220 16B35.5 0.20 1,125 EKXJ251ESS221MLP1S
220 18B31.5 0.20 1,135 EKXJ251ESS221MMN3S
270 16B40 0.20 1,285 EKXJ251ESS271ML40S
270 16B45 0.20 1,310 EKXJ251ESS271ML45S
270 18B35.5 0.20 1,300 EKXJ251ESS271MMP1S
330 16B50 0.20 1,475 EKXJ251ESS331ML50S
330 18B40 0.20 1,460 EKXJ251ESS331MM40S
330 18B45 0.20 1,485 EKXJ251ESS331MM45S
390 18B50 0.20 1,625 EKXJ251ESS391MM50S
Rated ripple
tane
(mArms/105c,120Hz)
current
Part No.
(2/3)
CAT. No. E1001K
Page 3
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
STANDARD RATINGS
?
Cap
WV
dc)
(V
350
400
: Enter the appropriate lead forming or taping code.
SS
Case size
(mF)
fDbL(mm)
12 10B16 0.24 135 EKXJ351ESS120MJ16S
22 10B20 0.24 200 EKXJ351ESS220MJ20S
27 10B25 0.24 240 EKXJ351ESS270MJ25S
27 10B30 0.24 255 EKXJ351ESS270MJ30S
33 12.5B20 0.24 330 EKXJ351ESS330MK20S
39 10B35 0.24 325 EKXJ351ESS390MJ35S
47 10B40 0.24 375 EKXJ351ESS470MJ40S
47 12.5B25 0.24 425 EKXJ351ESS470MK25S
47 14.5B20 0.24 420 EKXJ351ESS470MU20S
56 10B45 0.24 425 EKXJ351ESS560MJ45S
56 12.5B30 0.24 495 EKXJ351ESS560MK30S
56 16B20 0.24 475 EKXJ351ESS560ML20S
68 10B50 0.24 485 EKXJ351ESS680MJ50S
68 12.5B35 0.24 580 EKXJ351ESS680MK35S
68 14.5B25 0.24 545 EKXJ351ESS680MU25S
68 18B20 0.24 550 EKXJ351ESS680MM20S
82 12.5B40 0.24 655 EKXJ351ESS820MK40S
82 14.5B31.5 0.24 645 EKXJ351ESS820MUN3S
82 16B25 0.24 625 EKXJ351ESS820ML25S
100 12.5B45 0.24 750 EKXJ351ESS101MK45S
100 12.5B50 0.24 770 EKXJ351ESS101MK50S
100 14.5B35.5 0.24 740 EKXJ351ESS101MUP1S
100 16B31.5 0.24 740 EKXJ351ESS101MLN3S
100 18B25 0.24 710 EKXJ351ESS101MM25S
120 14.5B40 0.24 835 EKXJ351ESS121MU40S
120 14.5B45 0.24 860 EKXJ351ESS121MU45S
120 16B35.5 0.24 830 EKXJ351ESS121MLP1S
150 14.5B50 0.24 980 EKXJ351ESS151MU50S
150 16B40 0.24 960 EKXJ351ESS151ML40S
150 16B45 0.24 975 EKXJ351ESS151ML45S
150 18B31.5 0.24 940 EKXJ351ESS151MMN3S
180 16B50 0.24 1,090 EKXJ351ESS181ML50S
180 18B35.5 0.24 1,065 EKXJ351ESS181MMP1S
180 18B40 0.24 1,080 EKXJ351ESS181MM40S
220 18B45 0.24 1,210 EKXJ351ESS221MM45S
220 18B50 0.24 1,220 EKXJ351ESS221MM50S
10 10B16 0.24 125 EKXJ401ESS100MJ16S
18 10B20 0.24 180 EKXJ401ESS180MJ20S
22 10B25 0.24 215 EKXJ401ESS220MJ25S
27 10B30 0.24 255 EKXJ401ESS270MJ30S
27 12.5B20 0.24 300 EKXJ401ESS270MK20S
33 10B35 0.24 300 EKXJ401ESS330MJ35S
39 10B40 0.24 340 EKXJ401ESS390MJ40S
39 10B45 0.24 355 EKXJ401ESS390MJ45S
39 12.5B25 0.24 390 EKXJ401ESS390MK25S
39 14.5B20 0.24 385 EKXJ401ESS390MU20S
47 12.5B30 0.24 455 EKXJ401ESS470MK30S
47 16B20 0.24 435 EKXJ401ESS470ML20S
56 10B50 0.24 440 EKXJ401ESS560MJ50S
56 12.5B35 0.24 525 EKXJ401ESS560MK35S
56 14.5B25 0.24 495 EKXJ401ESS560MU25S
56 18B20 0.24 500 EKXJ401ESS560MM20S
68 12.5B40 0.24 600 EKXJ401ESS680MK40S
68 14.5B31.5 0.24 585 EKXJ401ESS680MUN3S
68 16B25 0.24 570 EKXJ401ESS680ML25S
82 12.5B45 0.24 680 EKXJ401ESS820MK45S
82 12.5B50 0.24 700 EKXJ401ESS820MK50S
82 14.5B35.5 0.24 670 EKXJ401ESS820MUP1S
82 16B31.5 0.24 670 EKXJ401ESS820MLN3S
82 18B25 0.24 640 EKXJ401ESS820MM25S
100 14.5B40 0.24 760 EKXJ401ESS101MU40S
100 14.5B45 0.24 785 EKXJ401ESS101MU45S
100 16B35.5 0.24 760 EKXJ401ESS101MLP1S
120 14.5B50 0.24 875 EKXJ401ESS121MU50S
120 16B40 0.24 860 EKXJ401ESS121ML40S
120 16B45 0.24 875 EKXJ401ESS121ML45S
120 18B31.5 0.24 840 EKXJ401ESS121MMN3S
120 18B35.5 0.24 870 EKXJ401ESS121MMP1S
150 16B50 0.24 995 EKXJ401ESS151ML50S
150 18B40 0.24 985 EKXJ401ESS151MM40S
180 18B45 0.24 1,095 EKXJ401ESS181MM45S
220 18B50 0.24 1,220 EKXJ401ESS221MM50S
Rated ripple
tane
(mArms/105c,120Hz)
current
Part No.
160 to 450Vdc long life, 105C
Cap
(V
WV
dc)
420
450
Case size
(mF)
fDbL(mm)
6.8 10B16 0.24 105 EKXJ421ESS6R8MJ16S
12 10B20 0.24 150 EKXJ421ESS120MJ20S
15 10B25 0.24 185 EKXJ421ESS150MJ25S
18 10B30 0.24 215 EKXJ421ESS180MJ30S
22 12.5B20 0.24 285 EKXJ421ESS220MK20S
27 10B35 0.24 275 EKXJ421ESS270MJ35S
27 10B40 0.24 290 EKXJ421ESS270MJ40S
27 12.5B25 0.24 340 EKXJ421ESS270MK25S
27 14.5B20 0.24 335 EKXJ421ESS270MU20S
33 10B45 0.24 335 EKXJ421ESS330MJ45S
33 12.5B30 0.24 400 EKXJ421ESS330MK30S
33 16B20 0.24 385 EKXJ421ESS330ML20S
39 10B50 0.24 375 EKXJ421ESS390MJ50S
39 14.5B25 0.24 435 EKXJ421ESS390MU25S
47 12.5B35 0.24 505 EKXJ421ESS470MK35S
47 16B25 0.24 500 EKXJ421ESS470ML25S
47 18B20 0.24 480 EKXJ421ESS470MM20S
56 12.5B40 0.24 570 EKXJ421ESS560MK40S
56 12.5B45 0.24 590 EKXJ421ESS560MK45S
56 14.5B31.5 0.24 560 EKXJ421ESS560MUN3S
68 12.5B50 0.24 670 EKXJ421ESS680MK50S
68 14.5B35.5 0.24 640 EKXJ421ESS680MUP1S
68 14.5B40 0.24 660 EKXJ421ESS680MU40S
68 16B31.5 0.24 645 EKXJ421ESS680MLN3S
68 18B25 0.24 615 EKXJ421ESS680MM25S
82 14.5B45 0.24 750 EKXJ421ESS820MU45S
82 16B35.5 0.24 725 EKXJ421ESS820MLP1S
82 18B31.5 0.24 730 EKXJ421ESS820MMN3S
100 14.5B50 0.24 845 EKXJ421ESS101MU50S
100 16B40 0.24 825 EKXJ421ESS101ML40S
100 16B45 0.24 840 EKXJ421ESS101ML45S
100 18B35.5 0.24 835 EKXJ421ESS101MMP1S
120 16B50 0.24 935 EKXJ421ESS121ML50S
120 18B40 0.24 930 EKXJ421ESS121MM40S
120 18B45 0.24 945 EKXJ421ESS121MM45S
150 18B50 0.24 1,060 EKXJ421ESS151MM50S
6.8 10B16 0.24 105 EKXJ451ESS6R8MJ16S
12 10B20 0.24 150 EKXJ451ESS120MJ20S
15 10B25 0.24 185 EKXJ451ESS150MJ25S
18 10B30 0.24 215 EKXJ451ESS180MJ30S
18 12.5B20 0.24 255 EKXJ451ESS180MK20S
22 10B35 0.24 250 EKXJ451ESS220MJ35S
27 10B40 0.24 290 EKXJ451ESS270MJ40S
27 10B45 0.24 305 EKXJ451ESS270MJ45S
27 12.5B25 0.24 340 EKXJ451ESS270MK25S
27 14.5B20 0.24 335 EKXJ451ESS270MU20S
33 12.5B30 0.24 400 EKXJ451ESS330MK30S
33 14.5B25 0.24 400 EKXJ451ESS330MU25S
33 16B20 0.24 385 EKXJ451ESS330ML20S
39 10B50 0.24 375 EKXJ451ESS390MJ50S
39 12.5B35 0.24 460 EKXJ451ESS390MK35S
39 18B20 0.24 440 EKXJ451ESS390MM20S
47 12.5B40 0.24 525 EKXJ451ESS470MK40S
47 14.5B31.5 0.24 515 EKXJ451ESS470MUN3S
47 16B25 0.24 500 EKXJ451ESS470ML25S
56 12.5B45 0.24 590 EKXJ451ESS560MK45S
56 14.5B35.5 0.24 580 EKXJ451ESS560MUP1S
56 16B31.5 0.24 585 EKXJ451ESS560MLN3S
56 18B25 0.24 560 EKXJ451ESS560MM25S
68 12.5B50 0.24 670 EKXJ451ESS680MK50S
68 14.5B40 0.24 660 EKXJ451ESS680MU40S
68 14.5B45 0.24 680 EKXJ451ESS680MU45S
68 16B35.5 0.24 660 EKXJ451ESS680MLP1S
82 14.5B50 0.24 765 EKXJ451ESS820MU50S
82 16B40 0.24 750 EKXJ451ESS820ML40S
82 16B45 0.24 760 EKXJ451ESS820ML45S
82 18B31.5 0.24 730 EKXJ451ESS820MMN3S
100 16B50 0.24 855 EKXJ451ESS101ML50S
100 18B35.5 0.24 835 EKXJ451ESS101MMP1S
120 18B40 0.24 930 EKXJ451ESS121MM40S
120 18B45 0.24 945 EKXJ451ESS121MM45S
150 18B50 0.24 1,060 EKXJ451ESS151MM50S
Rated ripple
tane
(mArms/105c,120Hz)
current
Part No.
(3/3)
CAT. No. E1001K
Loading...
