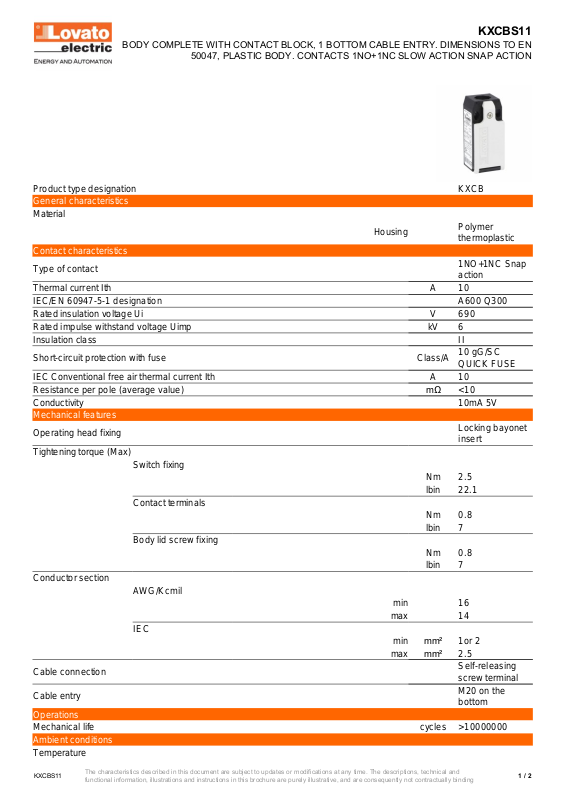

Page 1
Product type designation KXCB
General characteristics
Material
Housing
Polymer
thermoplastic
Contact characteristics
Type of contact
1NO+1NC Snap
action
Thermal current Ith A 10
IEC/EN 60947-5-1 designation A600 Q300
Rated insulation voltage Ui V 690
Rated impulse withstand voltage Uimp kV 6
Insulation class II
Short-circuit protection with fuse Class/A
10 gG/SC
QUICK FUSE
IEC Conventional free air thermal current Ith A 10
Resistance per pole (average value) mΩ <10
Conductivity 10mA 5V
Mechanical features
Operating head fixing
Locking bayonet
insert
Tightening torque (Max)
Switch fixing
Nm 2.5
lbin 22.1
Contact terminals
Nm 0.8
lbin 7
Body lid screw fixing
Nm 0.8
lbin 7
Conductor section
AWG/Kcmil
min 16
max 14
IEC
min mm² 1or 2
max mm² 2.5
Cable connection
Self-releasing
screw terminal
Cable entry
M20 on the
bottom
Operations
Mechanical life cycles >10000000
Ambient conditions
Temperature
KXCBS11
BODY COMPLETE WITH CONTACT BLOCK, 1 BOTTOM CABLE ENTRY. DIMENSIONS TO EN
50047, PLASTIC BODY. CONTACTS 1NO+1NC SLOW ACTION SNAP ACTION
KXCBS11
The characteristics described in this document are subject to updates or modifications at any time. The descriptions, technical and
functional information, illustrations and instructions in this brochure are purely illustrative, and are consequently not contractually binding
1 / 2
Page 2
Operating temperature
min °C -25
max °C +70
Storage temperature
min °C -40
max °C +70
Resistance & Protection
IP degree
Terminals IP20
Body housing IP65
Pollution degree 3
Wiring diagrams
Certifications and compliance
Compliance
CSA C22.2 n° 14
EN 50047
IEC/EN 60204-1
IEC/EN 60947-1
IEC/EN 60947-5-1
UL508
Certificates
cULus
EAC
ETIM classification
ETIM 8.0
EC002498 Accessories/spare
parts for lowvoltage switch
technology
KXCBS11
BODY COMPLETE WITH CONTACT BLOCK, 1 BOTTOM CABLE ENTRY. DIMENSIONS TO EN
50047, PLASTIC BODY. CONTACTS 1NO+1NC SLOW ACTION SNAP ACTION
KXCBS11
The characteristics described in this document are subject to updates or modifications at any time. The descriptions, technical and
functional information, illustrations and instructions in this brochure are purely illustrative, and are consequently not contractually binding
2 / 2
