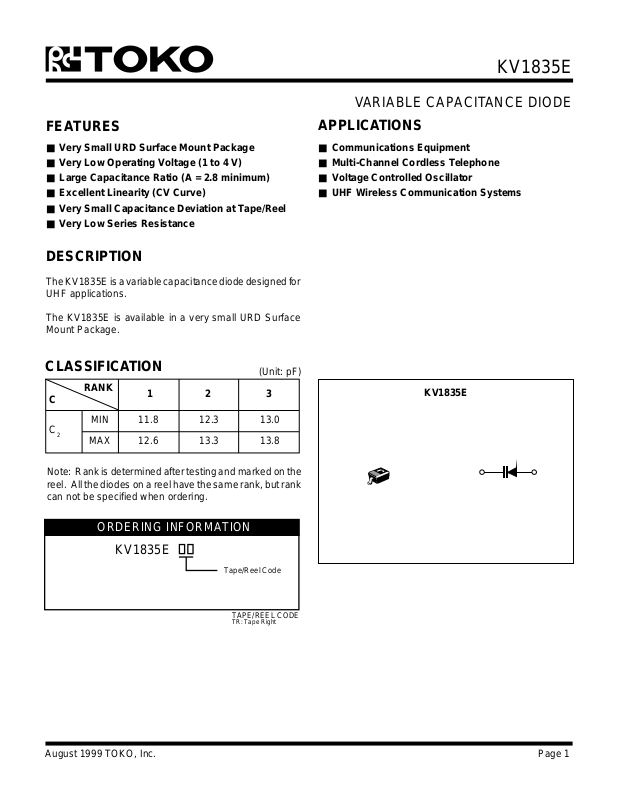

KV1835E

VARIABLE CAPACITANCE DIODE

FEATURES

■ Very Small URD Surface Mount Package

■ Very Low Operating Voltage (1 to 4 V)

■ Large Capacitance Ratio (A = 2.8 minimum)

■ Excellent Linearity (CV Curve)

■ Very Small Capacitance Deviation at Tape/Reel

■ Very Low Series Resistance

DESCRIPTION

The KV1835E is a variable capacitance diode designed for
UHF applications.

The KV1835E is available in a very small URD Surface
Mount Package.

CLASSIFICATION

RANK

C

12 3

(Unit: pF)

APPLICATIONS

■ Communications Equipment

■ Multi-Channel Cordless Telephone

■ Voltage Controlled Oscillator

■ UHF Wireless Communication Systems

KV1835E

MIN 11.8 12.3 13.0

C

2

Note: Rank is determined after testing and marked on the
reel. All the diodes on a reel have the same rank, but rank
can not be specified when ordering.

MAX 12.6 13.3 13.8

ORDERING INFORMATION

KV1835E

Tape/Reel Code

TAPE/REEL CODE

TR: Tape Right

August 1999 TOKO, Inc. Page 1

KV1835E

ABSOLUTE MAXIMUM RATINGS

Reverse Voltage....................................................... 28 V

Forward Current .................................................... 10 mA

Power Dissipation ................................................ 50 mW

ELECTRICAL CHARACTERISTICS

Test conditions: T

SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS

= 25 °C

A

Storage Temperature Range ................... -55 to +150 °C

Operating Temperature Range ...................-55 to +85 °C

V

REV

I

REV

C

0.5

C

2

R

S

A Capacitance Ratio C

Note 1: Diode Capacitance measured with HP 4279A or equivalent instruments (at OSC level 20 mVrms, ± 5 mVrms).
Note 2: Series Resistance measured with HP 4191A or equivalent instruments.

Reverse Voltage I
Reverse Current V
Diode Capacitance 0.5 V
Diode Capacitance 2 V

Series Resistance V

= 10 µA 20 V

REV

= 16 V 5.0 nA

REV

= 0.5 V, f = 1 MHz 36.5 42.5 pF

REV

= 2 V, f = 1 MHz 11.8 13.8 pF

REV

= 1.5 V, f = 100 MHz 0.6

REV

0.5

/ C

2

2.8

Ω

Page 2 August 1999 TOKO, Inc.

TYPICAL PERFORMANCE CHARACTERISTICS

KV1835E

CAPACITANCE vs.

REVERSE VOLTAGE

100

TA = 25 °C
f = 1 MHz

10

C (pF)

1

0 1 2 3

V

(V)

REV

QUALITY FACTOR vs.

1000

100

Q

REVERSE VOLTAGE

f = 50 MHz

100 MHz

300 MHz

REVERSE CURRENT vs.

REVERSE VOLTAGE

TA = 85 °C

TA = 55 °C

TA = 25 °C

0 4 8 12 16 20

V

(V)

REV

SERIES RESISTANCE vs.

FREQUENCY

V

REV

TA = 25 °C

(nA)

REV

I

0.01

0.001

1.0

(Ω)

S

R

1

0.1

= 2 V

470 MHz

0.1
50 100 300 1000

f (MHz)

CAPACITANCE TEMPERATURE

COEFFICIENT vs. REVERSE VOLTAGE

10000

TA = -55 °C to +85 °C
f = 1 MHz

1000

(ppm/ C)

A

∆C / T

300

100

0 1 2 3

V

(V)

REV

)

A

C (T

10

0 1 2 3

V

(V)

REV

C (TA)

1.10

1.06

1.02

C (25 C)

0.98

0.94

0.90

C (25 °C)

TA = 85 °C

-15 °C

-55 °C

0 1 2 3

vs. TEMPERATURE

55 °C

25 °C

V

REV

(V)

August 1999 TOKO, Inc. Page 3

KV1835E

PACKAGE OUTLINE

URD

Cathode Mark

1.7

Marking

+0.15

-0.05

Marking Information

Product Code J

2.3

0.8

0.8

1.25

Recommended Mount Pad

0.9

0.13

0.2 min

+ 0.3

2.5

Dimensions are shown in millimeters
Tolerance: x.x = ± 0.2 mm (unless otherwise specified)

0.3

0 ~ 0.1
