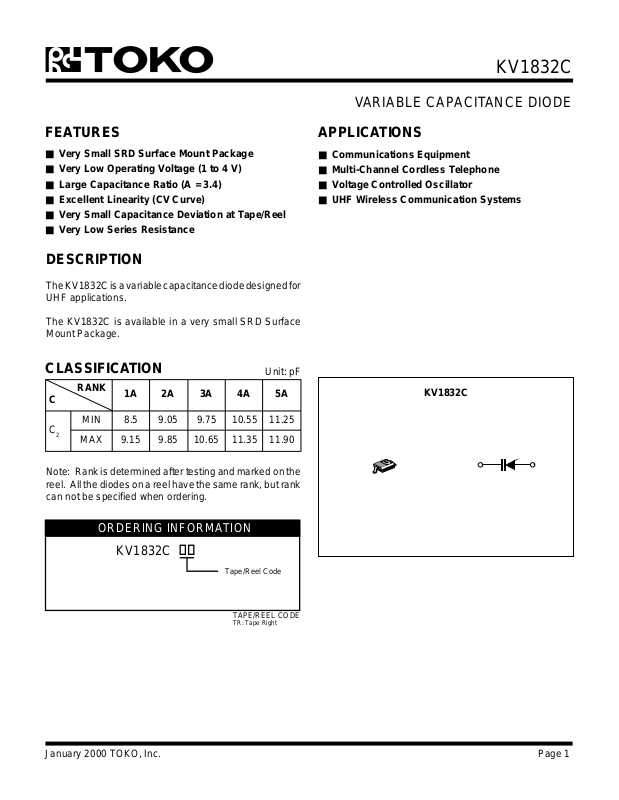

KV1832C

VARIABLE CAPACITANCE DIODE

FEATURES

■ Very Small SRD Surface Mount Package

■ Very Low Operating Voltage (1 to 4 V)

■ Large Capacitance Ratio (A = 3.4)

■ Excellent Linearity (CV Curve)

■ Very Small Capacitance Deviation at Tape/Reel

■ Very Low Series Resistance

DESCRIPTION

The KV1832C is a variable capacitance diode designed for
UHF applications.

The KV1832C is available in a very small SRD Surface
Mount Package.

CLASSIFICATION

RANK

C

MIN 8.5 9.05 9.75 10.55 11.25

C

2

MAX 9.15 9.85 10.65 11.35 11.90

1A 2A 3A 4A 5A

Unit: pF

APPLICATIONS

■ Communications Equipment

■ Multi-Channel Cordless Telephone

■ Voltage Controlled Oscillator

■ UHF Wireless Communication Systems

KV1832C

Note: Rank is determined after testing and marked on the
reel. All the diodes on a reel have the same rank, but rank
can not be specified when ordering.

ORDERING INFORMATION

KV1832C

Tape/Reel Code

TAPE/REEL CODE

TR: Tape Right

January 2000 TOKO, Inc. Page 1

KV1832C

ABSOLUTE MAXIMUM RATINGS

Reverse Voltage....................................................... 28 V

Forward Current .................................................... 10 mA

Power Dissipation ................................................ 50 mW

ELECTRICAL CHARACTERISTICS

Test conditions: T

SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS

= 25 °C

A

Storage Temperature Range ................... -55 to +150 °C

Operating Temperature Range ...................-55 to +85 °C

V
I
C
C
C
R

REV

REV

1

2

4

S

Reverse Voltage I
Reverse Current V
Diode Capacitance 1 V
Diode Capacitance 2 V
Diode Capacitance 4 V

Series Resistance C = 7 pF, f = 470 MHz 0.7

A Capacitance Ratio C

Note 1: Diode Capacitance measured with HP 4279A or equivalent instruments (at OSC level 20 mVrms, ± 5 mVrms).
Note 2: Series Resistance measured with HP 4191A or equivalent instruments.

= 10 µA 20 V

REV

= 16 V 5.0 nA

REV

= 1 V, f = 1 MHz 15.40 16.60 17.90 pF

REV

= 2 V, f = 1 MHz 8.50 10.20 11.90 pF

REV

= 4 V, f = 1 MHz 3.60 4.30 5.05 pF

REV

/ C

1

4

3.40

Ω

Page 2 January 2000 TOKO, Inc.

TYPICAL PERFORMANCE CHARACTERISTICS

KV1832C

CAPACITANCE vs.

30

10

C (pF)

3

500
300

100

Q

REVERSE VOLTAGE

TA = 25 °C
f = 1 MHz

0 1 2 3 4

V

(V)

REV

QUALITY FACTOR vs.

REVERSE VOLTAGE

f = 50 MHz

70 MHz

100 MHz

REVERSE CURRENT vs.

1 n

100 p

10 p

(A)

REV

I

1 p

100 f

10 f

1.0

(Ω)

S

0.7

R

REVERSE VOLTAGE

TA = 85 °C

TA = 55 °C

TA = 25 °C

0 4 8 12 16 20

V

(V)

REV

SERIES RESISTANCE vs.

FREQUENCY

V

REV

TA = 25 °C

= 4 V

)

A

C (T

30

10

0 1 2 3 4

C (TA)

C (25 °C)

1.10

1.06

1.02

C (25 C)

0.98

0.94

0.90

TA = 85 °C

55 °C
25 °C

-15 °C

-55 °C

0 1 2 3 4

470 MHz

V

(V)

REV

vs. TEMPERATURE

V

(V)

REV

0.5
0 100 300 1000

f (MHz)

CAPACITANCE TEMPERATURE

COEFFICIENT vs. REVERSE VOLTAGE

3000

TA = -55 °C to +85 °C
f = 1 MHz

1000

(ppm/ C)

A

∆C / T

300

100

0 1 2 3 4

V

(V)

REV

January 2000 TOKO, Inc. Page 3

KV1832C

PACKAGE OUTLINE

SRD

Marking Information

Product Code C

3.5

Mark

1

Cathode Mark

2.65

0.3

3.8

2

1.6

+0.10

-0.05

0.13

1.5

1.5

Recommended Mount Pad

1.1

0.6

-0.05 ~ 0.1

Dimensions are shown in millimeters
Tolerance: x.x = ± 0.2 mm (unless otherwise specified)
