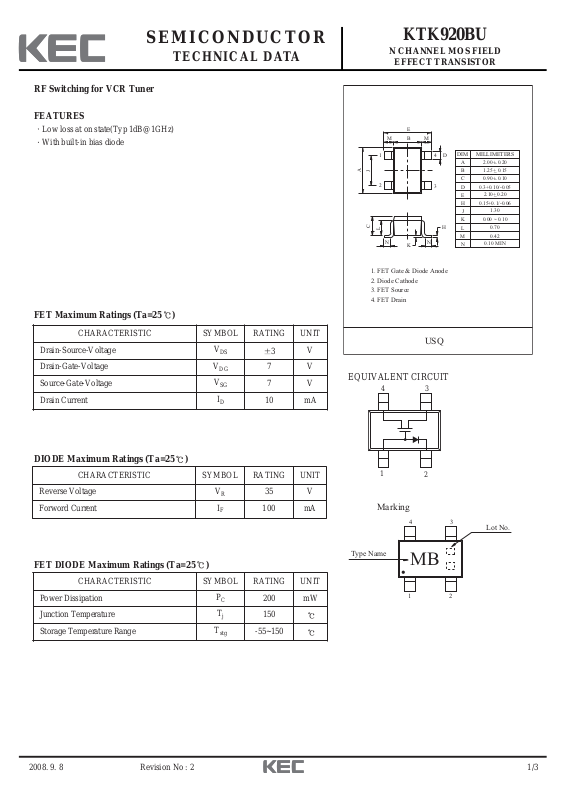

Page 1
2008. 9. 8 1/3
SEMICONDUCTOR
TECHNICAL DATA
KTK920BU
Revision No : 2
RF Switching for VCR Tuner
FEATURES
Low loss at on state(Typ 1dB@1GHz)
With built-in bias diode
FET Maximum Ratings (Ta=25 )
N CHANNEL MOS FIELD
EFFECT TRANSISTOR
1
2
34
EQUIVALENT CIRCUIT
CHARACTERISTIC SYMBOL RATING UNIT
Drain-Source-Voltage
V
DS
3
V
Drain-Gate-Voltage
V
DG
7 V
Source-Gate-Voltage
V
SG
7 V
Drain Current
I
D
10 mA
CHARACTERISTIC SYMBOL RATING UNIT
Power Dissipation
P
C
200 mW
Junction Temperature
T
j
150
Storage Temperature Range
T
stg
-55~150
CHARACTERISTIC SYMBOL RATING UNIT
Reverse Voltage
V
R
35 V
Forword Current
I
F
100 mA
FET DIODE Maximum Ratings (Ta=25 )
DIODE Maximum Ratings (Ta=25 )
E
M
1
J
A
2
C
L
N
1. FET Gate & Diode Anode
2. Diode Cathode
3. FET Source
4. FET Drain
M
B
DIM MILLIMETERS
D
4
A
B
C
3
D
E
H
J
K
H
L
N
K
M
N
_
2.00 0.20+
_
1.25 0.15+
_
0.90 0.10+
0.3+0.10/-0.05
_
2.10 0.20+
0.15+0.1/-0.06
1.30
0.00 ~ 0.10
0.70
0.42
0.10 MIN
USQ
Marking
4
3
Lot No.
Type Name
MB
12
Page 2
2008.9 .8 2/3
KTK920BU
Revision No : 2
CHARACTERISTIC SYMBOL TEST CONDITIONS MIN TYP MAX UNIT
Gate-Source Breakdown Voltage
V
(BR)GSS
VDS=0, IGS=-0.1mA
7 - - V
Gate-Source Pinch-off Voltage
V
GS(OFF)
VDS=1V, ID=20 A
- -3 -4 V
Drain-Source Leakage Current
I
DSX
VDS=2V, VGS=-5V
- - 10
A
Gate Cut-off Current
I
GSS
VDS=0, VGS=-5V
- - -100 nA
Drain-Source On-State Resistance
R
DS(ON)
VGS=0, ID=1mA
- 12 20
Loss(On-State)
S
21(ON)
2
VSC=VDC=0, RS=RL=50 , IF=0, f 1GHz
- - 2 dB
VSC=VDC=0, RS=RL=50 , IF=0, f=1GHz
- 1.3 - dB
VSC=VDC=0, RS=RL=75 , IF=0, f 1GHz
- - 3 dB
Isolation (Off-State)
S
21(OFF)
2
VSC=VDC=5V, RS=RL=50 , IF=1mA, f 1GHz
30 - - dB
VSC=VDC=5V, RS=RL=50 , IF=1mA, f= 1GHz
- 38 - dB
VSC=VDC=5V, RS=RL=75 , IF=1mA, f 1GHz
30 - - dB
Input Capacitance
Note1
C
ic
VSC=VDC=5V, IF=1mA, f=1MHz
- 1 - pF
VSC=VDC=0, IF=0, f=1MHz
- 0.65 - pF
Output Capacitance
Note1
C
oc
VSC=VDC=5V, IF=1mA, f=1MHz
- 1 - pF
VSC=VDC=0, IF=0, f=1MHz
- 0.65 - pF
DIODE ELECTRICAL CHARACTERISTICS (Ta=25 )
t
Fig. S
21(on)
2
S
21(off)
2
Test Circuit
Note : 1 Cicis the series connection of Csgand Cgc;
C
oc
is the series connection of Cdgand Cgc;
CHARACTERISTIC SYMBOL TEST CONDITIONS MIN TYP MAX UNIT
Forward Voltage
V
F
IF=2mA
- - 0.85 V
Reverse Current
I
R
VR=15V
- - 0.1
Reverse Voltage
V
R
IR=1
35 - - V
Total Capacitance
C
T
VR=6V, f=1MHz
- 0.7 1.2 pF
Series Resistance
r
S
IF=2mA, f=100MHz
- 0.5 0.9
FET ELECTRICAL CHARACTERISTICS (Ta=25 )
50Ω
Output
1nF
100kΩ
47kΩ
1nF
4.7kΩ
100kΩ
V
On-State : V=0V
Off-State : V=5V
1nF
50Ω
Inpu
1nF
V
Page 3
2008.9 .8 3/3
KTK920BU
Revision No : 2
0 0
2
S
21(ON)
(dB)
-1
-2
-3
LOSS (ON-STATE)
-4
0800400
S
2
21(ON)
- f S
VSC=VDC=0V, RS=R
= 0mA
I
F
Measured in test circuit (fig.)
FREQUENCY f (MHz)
=50Ω
L
1200
S
2
21(OFF)
(dB)
ISOLATION (OFF-STATE)
VSC=VDC=5V, RS=R
Measured in test circuit (fig.)
-20
-40
-60
0800400 1200
2
= 1mA
F
- f
21(OFF)
=50Ω , I
L
FREQUENCY f (MHz)
