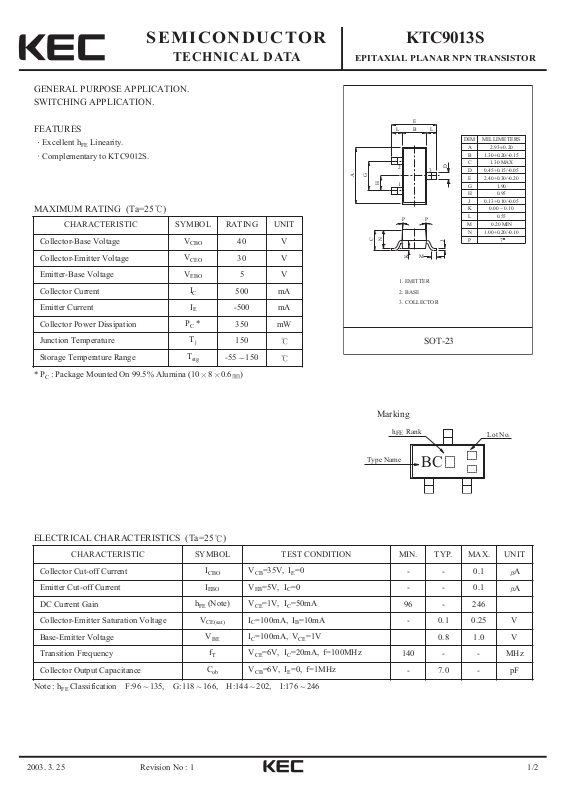

Page 1
2003. 3. 25 1/2
SEMICONDUCTOR
TECHNICAL DATA
KTC9013S
EPITAXIAL PLANAR NPN TRANSISTOR
Revision No : 1
GENERAL PURPOSE APPLICATION.
SWITCHING APPLICATION.
FEATURES
Excellent hFELinearity.
Complementary to KTC9012S.
MAXIMUM RATING (Ta=25 )
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage
V
CBO
40 V
Collector-Emitter Voltage
V
CEO
30 V
Emitter-Base Voltage
V
EBO
5 V
Collector Current
I
C
500 mA
Emitter Current
I
E
-500 mA
Collector Power Dissipation
PC*
350 mW
Junction Temperature
T
j
150
Storage Temperature Range
T
stg
-55 150
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current
I
CBO
VCB=35V, IE=0
- - 0.1
A
Emitter Cut-off Current
I
EBO
VEB=5V, IC=0
- - 0.1
A
DC Current Gain
h
FE
(Note) VCE=1V, IC=50mA
96 - 246
Collector-Emitter Saturation Voltage
V
CE(sat)
IC=100mA, IB=10mA
- 0.1 0.25 V
Base-Emitter Voltage
V
BE
IC=100mA, VCE=1V
0.8 1.0 V
Transition Frequency
f
T
VCE=6V, IC=20mA, f=100MHz
140 - - MHz
Collector Output Capacitance
C
ob
VCB=6V, IE=0, f=1MHz
- 7.0 - pF
Note : h
FE
Classification F:96 135, G:118 166, H:144 202, I:176 246
* PC: Package Mounted On 99.5% Alumina (10 8 0.6 )
E
B
LL
DIM MILLIMETERS
A
B
C
G
A
2
H
1
PP
C
N
K
D
3
M
D
E
G 1.90
H
J
K
L
M
N
P7
J
_
2.93 0.20
+
1.30+0.20/-0.15
1.30 MAX
0.45+0.15/-0.05
2.40+0.30/-0.20
0.95
0.13+0.10/-0.05
0.00 ~ 0.10
0.55
0.20 MIN
1.00+0.20/-0.10
1. EMITTER
2. BASE
3. COLLECTOR
SOT-23
Marking
h Rank
FE
Type Name
BC
Lot No.
Page 2
2003. 3. 25 2/2
KTC9013S
Revision No : 1
I - V
CCE
(LOW VOLTAGE REGION)
500
400
C
6.0
300
200
100
COLLECTOR CURRENT I (mA)
0
0
1
COLLECTOR-EMITTER VOLTAGE V (V)
4.0
2345
COMMON EMITTER
Ta=25 C
3.0
2.0
1.0
0.5
I =0.1mA
B
CE
500
300
FE
100
Ta =100 C
Ta =25 C
Ta =-25 C
50
30
DC CURRENT GAIN h
COMMON EMITTER
10
1 3 10 30 1K100 300
0.5
COLLECTOR CURRENT I (mA)
h - I
CFE
V =6V
CE
V =1V
CE
C
V - I
CE(sat)
1
COMMON EMITTER
I /I =10
CB
0.5
0.3
CE(sat)
0.1
VOLTAGE V (V)
0.05
0.03
COLLECTOR-EMITTER SATURATION
0.5 1 3 10 30 1K100 300
Ta =100 C
COLLECTOR CURRENT I (mA)
Pc - Ta
500
400
1
MOUNTED ON 99.5%
1
ALUMINA 10x8x0.6mm
Ta=25 C
2
C
Ta =25 C
Ta =-25 C
C
BASE CURRENT I (ยตA)
I - V
BBE
2K
COMMON
1K
EMITTER
V =6V
500
300
B
CE
100
50
30
Ta =25 C
Ta =100 C
Ta =-25 C
10
5
0
0.2 0.4 0.6 0.8 1.0 1.2
BASE-EMITTER VOLTAGE V (V)
BE
300
200
Pc (mW)
2
100
COLLECTOR POWER DISSIPATION
0
25 50 75 100 125 150 175
0
AMBIENT TEMPERATURE Ta ( C)
