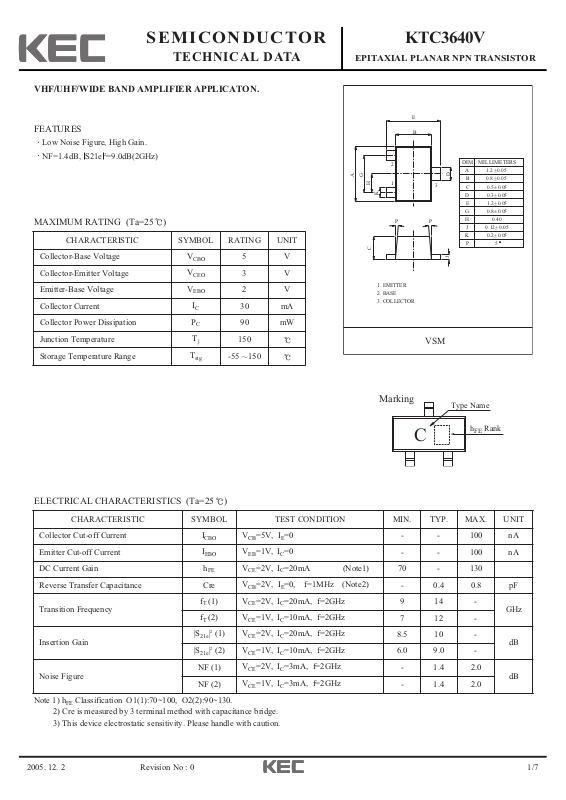

2005. 12. 2 1/7

SEMICONDUCTOR

TECHNICAL DATA

KTC3640V

EPITAXIAL PLANAR NPN TRANSISTOR

Revision No : 0

VHF/UHF/WIDE BAND AMPLIFIER APPLICATON.

FEATURES

Low Noise Figure, High Gain.

NF=1.4dB, S21e 2=9.0dB(2GHz)

MAXIMUM RATING (Ta=25 )

CHARACTERISTIC SYMBOL RATING UNIT

Collector-Base Voltage

V

CBO

5 V

Collector-Emitter Voltage

V

CEO

3 V

Emitter-Base Voltage

V

EBO

2 V

Collector Current

I

C

30 mA

Collector Power Dissipation

P

C

90 mW

Junction Temperature

T

j

150

Storage Temperature Range

T

stg

-55 150

ELECTRICAL CHARACTERISTICS (Ta=25 )

CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT

Collector Cut-off Current

I

CBO

VCB=5V, IE=0

- - 100 nA

Emitter Cut-off Current

I

EBO

VEB=1V, IC=0

- - 100 nA

DC Current Gain

h

FE

VCE=2V, IC=20mA (Note1)

70 - 130

Reverse Transfer Capacitance Cre

VCB=2V, IE=0, f=1MHz (Note2)

- 0.4 0.8 pF

Transition Frequency

fT (1) VCE=2V, IC=20mA, f=2GHz

9 14 -

GHz

fT (2) VCE=1V, IC=10mA, f=2GHz

7 12 -

Insertion Gain

|S

21e

|

2

(1) VCE=2V, IC=20mA, f=2GHz

8.5 10 ­dB

|S

21e

|

2

(2) VCE=1V, IC=10mA, f=2GHz

6.0 9.0 -

Noise Figure

NF (1)

VCE=2V, IC=3mA, f=2GHz

- 1.4 2.0
dB

NF (2)

VCE=1V, IC=3mA, f=2GHz

- 1.4 2.0

Note 1) hFEClassification O1(1):70~100, O2(2):90~130.

2) Cre is measured by 3 terminal method with capacitance bridge.

3) This device electrostatic sensitivity. Please handle with caution.

E

B

A

G

H

K

C

1. EMITTER

2. BASE

3. COLLECTOR

2

1

P

P

D

3

J

DIM MILLIMETERS

A

B

C

D
E
G
H

K 0.2 0.05

P

_

1.2 0.05

+
_

0.8 0.05

+
_

0.5 0.05

+
_

0.3 0.05

+
_

1.2 0.05

+
_

0.8 0.05

+

0.40
_

0.12 0.05

J

+

_

+

5

VSM

Marking

Type Name

h

FE

C

Rank

2005. 12. 2 2/7

KTC3640V

Revision No : 0

I

25

(mA)

C

20

15

10

5

0

COLLECTOR CURRENT I

1.0 2.00

C

- V

CE

200µA
180µA

160µA
140µA

120µA
100µA

80µA
60µA
40µA

IB = 20µA

3.0

Ta=25 C

500

FE

200

100

50

20

DC CURRENT GAIN h

10

1

hFE - I

V

V

C

Ta=25 C

= 2V

CE

= 1V

CE

10010

COLLECTOR EMITTER VOLTAGE VCE (V)

1.0

REVERSE TRANSFER

CAPACITANCE Cre (pF)

0.1
11020

COLLECTOR - BASE VOLTAGE V

(dB)

2

f = 2GHz
Ta=25 C

10

21e

5

Cre - V

2

S

21e

CB

- I

COLLECTOR CURRENT I

fT - I

C

f = 1MHz
Ta=25 C

(GHz)

TRANSITION FREQUENCY f

(V)

CB

C

f = 2GHz

15

T

Ta=25 C

10

5

11020

COLLECTOR CURRENT IC (mA)

NF - I

C

3

2

2V

1V

C

(mA)

2V

1V

30

f = 2GHz
Ta=25 C

1

NOISE FIGURE NF (dB)

INSERTION GAIN S

0

20

301051

(mA)

C

2010

COLLECTOR CURRENT IC (mA)

130

COLLECTOR CURRENT I

2005. 12. 2 3/7

KTC3640V

Revision No : 0

(mA)

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.855 -29.1 8.760 154.8 0.051 72.3 0.921 -20.4
400 0.702 -54.5 7.301 135.0 0.089 58.0 0.751 -37.5
600 0.611 -78.6 6.101 118.6 0.116 50.2 0.614 -53.1

800 0.532 -95.9 5.216 106.8 0.132 45.3 0.526 -63.3
1000 0.465 -111.3 4.546 99.1 0.144 41.8 0.444 -69.8
1200 0.423 -126.3 3.995 92.1 0.156 40.0 0.374 -75.5
1400 0.406 -138.4 3.505 84.5 0.168 40.0 0.317 -82.2
1600 0.390 -148.8 3.097 78.8 0.173 41.1 0.276 -89.5
1800 0.371 -159.7 2.755 73.9 0.177 41.0 0.245 -96.5
2000 0.374 -171.2 2.493 69.3 0.183 39.3 0.214 -104.4
2200 0.392 -179.9 2.269 63.8 0.193 37.8 0.193 -114.8
2400 0.404 173.9 2.126 58.6 0.204 37.4 0.187 -125.9
2600 0.414 168.2 2.026 55.3 0.216 38.1 0.187 -134.2
2800 0.423 162.7 1.882 52.9 0.221 38.8 0.183 -142.6
3000 0.440 158.2 1.733 48.8 0.224 38.1 0.182 -150.9

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.960 -16.2 3.497 164.4 0.056 77.3 0.982 -10.2

400 0.879 -31.5 3.179 149.8 0.106 66.6 0.909 -19.9

600 0.812 -49.6 2.906 135.7 0.151 57.1 0.825 -31.6

800 0.772 -64.5 2.738 123.0 0.184 49.3 0.775 -41.8
1000 0.708 -77.3 2.636 113.7 0.208 41.9 0.724 -48.3
1200 0.641 -89.8 2.397 105.5 0.228 35.8 0.657 -53.4
1400 0.591 -102.4 2.167 96.0 0.243 32.2 0.583 -58.7
1600 0.554 -114.4 2.048 87.6 0.245 29.9 0.521 -64.5
1800 0.515 -125.0 1.899 81.0 0.242 26.7 0.481 -70.2
2000 0.478 -137.7 1.737 74.8 0.241 22.0 0.439 -75.1
2200 0.473 -150.1 1.612 67.4 0.244 19.1 0.397 -80.8
2400 0.482 -159.1 1.536 60.8 0.246 17.9 0.372 -88.3
2600 0.480 -166.4 1.481 56.2 0.242 17.3 0.362 -94.8
2800 0.475 -173.5 1.390 52.5 0.236 17.3 0.349 -99.6
3000 0.479 179.1 1.295 47.6 0.230 16.4 0.331 -104.6

S-PARAMETER

VCE=1V, IC=1mA, ZO=50 , Ta=25

VCE=1V, IC=3mA, ZO=50 , Ta=25

C

50

40

30

VCE=2V

Ta=25 C

I

C

- V

BE

150

(mW)

C

100

PC - Ta

20

10

0

COLLECTOR CURRENT I

0.5

BASE EMITTER VOLTAGE V

BE

(V)

50

COLLECTOR POWER

DISSIPATION P

1.00

0

0

50 100 150

AMBIENT TEMPERATURE Ta ( C)

2005. 12. 2 4/7

KTC3640V

Revision No : 0

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.766 -38.7 12.311 147.9 0.048 68.9 0.861 -27.6

400 0.586 -70.1 9.469 126.0 0.077 55.2 0.637 -48.2

600 0.497 -95.5 7.440 110.1 0.098 49.8 0.494 -64.2

800 0.428 -113.3 6.115 99.8 0.111 47.5 0.405 -74.0
1000 0.381 -129.4 5.175 93.3 0.123 46.9 0.330 -80.8
1200 0.364 -143.9 4.470 87.0 0.136 46.4 0.272 -87.6
1400 0.361 -154.3 3.888 80.5 0.150 47.1 0.231 -96.0
1600 0.352 -163.5 3.409 75.6 0.160 48.5 0.202 -105.2
1800 0.346 -173.6 3.005 71.5 0.168 48.8 0.181 -114.0
2000 0.359 176.8 2.711 67.3 0.177 47.3 0.161 -125.9
2200 0.380 170.0 2.489 61.9 0.188 45.4 0.154 -138.9
2400 0.396 164.9 2.300 57.7 0.203 44.4 0.161 -150.7
2600 0.408 160.1 2.186 54.7 0.219 44.6 0.167 -158.4
2800 0.420 155.4 2.028 52.6 0.227 44.9 0.174 -167.2
3000 0.439 151.8 1.859 49.0 0.231 43.9 0.182 -174.9

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.590 -57.4 17.649 136.9 0.040 63.5 0.726 -40.2

400 0.429 -96.2 11.847 114.0 0.060 55.3 0.465 -63.8

600 0.369 -121.6 8.676 99.9 0.078 54.5 0.341 -79.4

800 0.334 -139.3 6.880 92.2 0.093 55.2 0.267 -89.2
1000 0.320 -154.2 5.687 87.1 0.107 56.0 0.215 -98.1
1200 0.327 -165.6 4.859 81.7 0.122 56.2 0.178 -108.5
1400 0.335 -172.7 4.189 76.2 0.139 56.5 0.158 -120.1
1600 0.333 -180.0 3.645 72.3 0.153 57.1 0.146 -131.9
1800 0.338 171.8 3.204 68.9 0.165 57.2 0.140 -143.9
2000 0.358 164.6 2.884 65.1 0.176 55.3 0.138 -157.9
2200 0.379 159.8 2.641 60.0 0.189 52.7 0.148 -169.7
2400 0.396 155.9 2.440 56.4 0.206 50.9 0.165 -177.6
2600 0.410 152.0 2.312 53.8 0.225 50.4 0.179 176.6
2800 0.427 148.4 2.142 52.0 0.235 50.3 0.193 170.0
3000 0.444 145.8 1.960 48.7 0.241 48.8 0.208 164.9

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.678 -47.8 15.208 142.4 0.040 65.8 0.795 -34.1

400 0.499 -83.4 10.893 119.5 0.068 54.7 0.545 56.5

600 0.422 -109.1 8.182 104.1 0.086 51.6 0.408 -72.5

800 0.370 -127.1 6.587 95.4 0.100 51.3 0.326 -82.1
1000 0.340 -142.9 5.502 89.6 0.113 51.7 0.262 -89.6
1200 0.338 -156.1 4.726 83.9 0.127 51.6 0.215 -98.4
1400 0.342 -164.8 4.085 78.1 0.143 52.3 0.186 -108.4
1600 0.338 -173.0 3.560 73.7 0.155 53.4 0.166 -119.0
1800 0.338 177.9 3.132 70.0 0.165 53.6 0.153 -129.9
2000 0.356 169.6 2.820 66.1 0.176 52.0 0.143 -143.6
2200 0.378 164.0 2.585 60.9 0.188 49.6 0.146 -156.9
2400 0.394 159.7 2.389 57.0 0.205 58.3 0.159 -166.6
2600 0.407 155.2 2.266 54.3 0.222 48.1 0.171 -173.8
2800 0.422 151.3 2.102 52.4 0.232 48.3 0.182 178.9
3000 0.441 148.2 1.925 48.9 0.237 47.0 0.194 172.6

S-PARAMETER

VCE=1V, IC=5mA, ZO=50 , Ta=25

VCE=1V, IC=10mA, ZO=50 , Ta=25

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.374 -106.5 19.871 120.8 0.031 61.1 0.463 -57.8

400 0.358 -144.4 11.404 101.0 0.046 61.7 0.257 -81.0

600 0.355 -161.5 7.944 90.2 0.064 64.3 0.181 -96.4

800 0.356 -173.4 6.193 84.6 0.083 65.1 0.140 -107.7
1000 0.370 177.4 5.083 80.5 0.100 65.6 0.115 -121.6
1200 0.390 172.1 4.321 75.7 0.116 64.9 0.105 -136.6
1400 0.396 168.6 3.713 70.8 0.135 64.0 0.105 -150.0
1600 0.396 163.6 3.226 67.6 0.152 63.7 0.110 -161.7
1800 0.405 157.5 2.826 64.5 0.164 63.2 0.116 -173.6
2000 0.428 152.9 2.547 60.7 0.177 61.1 0.129 176.2
2200 0.448 149.8 2.299 56.5 0.191 57.9 0.147 169.0
2400 0.463 147.0 2.154 52.6 0.209 55.5 0.166 164.9
2600 0.477 143.8 2.040 50.2 0.227 54.6 0.183 161.1
2800 0.493 141.2 1.882 48.6 0.240 54.4 0.200 156.7
3000 0.511 139.4 1.725 45.0 0.245 52.7 0.217 153.5

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.962 -14.6 3.530 165.5 0.048 79.4 0.984 -8.8

400 0.892 -28.5 3.230 151.9 0.090 68.8 0.922 -17.3

600 0.824 -45.2 2.976 138.6 0.131 59.6 0.845 -27.8

800 0.788 -59.4 2.820 126.3 0.162 52.3 0.802 -37.3
1000 0.728 -71.3 2.743 117.4 0.184 45.2 0.761 -43.3
1200 0.661 -82.8 2.519 109.6 0.203 39.3 0.699 -47.7
1400 0.604 -94.9 2.278 100.5 0.219 35.8 0.626 -52.3
1600 0.562 -106.7 2.162 92.0 0.223 33.5 0.564 -57.5
1800 0.521 -117.1 2.019 85.4 0.221 30.4 0.523 -62.7
2000 0.477 -129.4 1.854 79.2 0.220 25.9 0.482 -67.2
2200 0.463 -142.2 1.727 71.8 0.224 23.0 0.441 -71.7
2400 0.469 -152.0 1.643 65.2 0.227 21.7 0.411 -78.3
2600 0.465 -159.7 1.591 60.5 0.225 21.4 0.398 -84.4
2800 0.457 -167.1 1.497 56.7 0.220 21.6 0.385 -88.7
3000 0.457 -175.1 1.400 52.1 0.214 20.7 0.363 -92.8

2005. 12. 2 5/7

KTC3640V

Revision No : 0

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.418 -84.6 20.871 126.0 0.033 63.1 0.561 -52.7

400 0.345 -126.8 12.516 104.9 0.050 59.2 0.324 -76.6

600 0.326 -148.1 8.792 93.3 0.067 61.5 0.232 -92.4

800 0.319 -162.7 6.850 87.1 0.085 62.4 0.180 -103.1
1000 0.327 -174.0 5.641 82.8 0.101 63.3 0.146 -115.4
1200 0.344 178.7 4.797 77.9 0.118 62.8 0.130 -129.2
1400 0.353 174.3 4.109 73.1 0.136 62.2 0.124 -142.1
1600 0.354 168.6 3.580 69.7 0.153 62.0 0.125 -153.9
1800 0.363 162.0 3.133 66.6 0.165 61.9 0.129 -166.0
2000 0.386 156.7 2.827 63.0 0.178 59.7 0.139 -177.5
2200 0.407 153.2 2.579 58.2 0.191 56.7 0.156 173.9
2400 0.423 150.1 2.385 54.7 0.209 54.4 0.174 168.8
2600 0.438 146.7 2.260 52.4 0.228 53.6 0.191 164.7
2800 0.455 143.7 2.089 50.8 0.240 53.4 0.208 159.4
3000 0.473 141.8 1.912 47.3 0.245 51.5 0.225 155.9

S-PARAMETER

VCE=1V, IC=30mA, ZO=50 , Ta=25

VCE=2V, IC=1mA, ZO=50 , Ta=25

2005. 12. 2 6/7

KTC3640V

Revision No : 0

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.870 -25.6 8.863 156.7 0.044 73.4 0.935 -17.4

400 0.724 -48.2 7.556 138.0 0.078 61.2 0.784 -32.2

600 0.628 -70.6 6.416 122.1 0.105 53.1 0.652 -46.2

800 0.548 -86.8 5.549 110.2 0.120 48.2 0.568 -55.6
1000 0.473 -101.0 4.883 102.4 0.132 45.3 0.490 -60.9
1200 0.418 -115.3 4.315 95.6 0.144 43.1 0.420 -65.1
1400 0.390 -127.8 3.805 88.0 0.156 43.1 0.358 -69.9
1600 0.370 -138.8 3.375 82.1 0.162 44.2 0.311 -75.6
1800 0.346 -149.9 3.007 77.3 0.166 44.1 0.277 -81.1
2000 0.341 -162.2 2.727 72.6 0.172 42.3 0.245 -86.6
2200 0.354 -172.3 2.511 66.6 0.181 40.8 0.215 -93.9
2400 0.367 -179.2 2.331 62.1 0.193 40.4 0.199 -103.4
2600 0.376 174.5 2.225 58.6 0.205 41.2 0.193 -111.5
2800 0.383 168.5 2.073 56.0 0.211 41.8 0.181 -118.7
3000 0.397 163.2 1.911 52.3 0.213 41.4 0.174 -126.6

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.704 -41.2 15.691 145.2 0.040 68.4 0.827 -28.9

400 0.514 -72.8 11.586 122.7 0.061 57.3 0.589 -48.1

600 0.422 -97.4 8.906 107.2 0.079 54.6 0.447 -61.8

800 0.356 -114.6 7.201 98.2 0.092 54.0 0.364 -69.4
1000 0.315 -130.2 6.066 92.4 0.105 53.7 0.296 -74.0
1200 0.299 -144.6 5.212 86.7 0.118 54.1 0.245 -78.8
1400 0.298 -154.9 4.510 80.8 0.134 54.4 0.205 -85.2
1600 0.292 -164.2 3.937 76.4 0.146 55.6 0.176 -93.0
1800 0.289 -174.0 3.476 72.7 0.156 56.1 0.155 -101.2
2000 0.303 176.4 3.133 68.9 0.166 54.4 0.134 -111.6
2200 0.325 169.7 2.868 63.8 0.178 52.2 0.123 -125.2
2400 0.342 164.8 2.667 59.4 0.193 50.7 0.125 -139.4
2600 0.356 160.1 2.525 57.1 0.211 50.6 0.129 -149.1
2800 0.370 155.7 2.345 55.2 0.221 51.0 0.135 -159.7
3000 0.388 152.0 2.146 51.8 0.226 49.7 0.142 -169.0

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.787 -33.8 12.596 150.3 0.041 69.6 0.883 -23.6

400 0.609 -61.4 9.951 129.3 0.068 58.5 0.678 -41.2

600 0.508 -85.4 7.969 113.4 0.089 53.0 0.534 -55.5

800 0.430 -102.2 6.609 102.9 0.102 50.3 0.447 -63.8
1000 0.371 -117.4 5.643 96.2 0.114 49.7 0.371 -68.6
1200 0.339 -132.1 4.902 90.0 0.127 49.0 0.311 -72.9
1400 0.327 -143.7 4.268 83.5 0.140 49.5 0.261 -78.4
1600 0.317 -153.8 3.748 78.5 0.150 51.0 0.225 -85.0
1800 0.306 -164.5 3.317 74.5 0.158 51.4 0.198 -91.6
2000 0.314 -175.4 2.992 70.3 0.167 50.0 0.172 -99.5
2200 0.333 176.4 2.749 64.9 0.178 48.0 0.152 -110.0
2400 0.349 170.8 2.551 60.3 0.192 47.0 0.145 -122.8
2600 0.360 165.4 2.418 57.7 0.207 47.2 0.145 -132.1
2800 0.373 160.3 2.252 55.6 0.216 47.9 0.144 -142.3
3000 0.391 156.1 2.067 52.1 0.221 46.7 0.144 -151.7

S-PARAMETER

VCE=2V, IC=3mA, ZO=50 , Ta=25

VCE=2V, IC=5mA, ZO=50 , Ta=25

VCE=2V, IC=7mA, ZO=50 , Ta=25

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.434 -70.0 22.783 129.5 0.029 64.5 0.625 -43.1

400 0.313 -110.0 14.092 108.0 0.045 62.6 0.374 -60.8

600 0.276 -133.8 10.021 95.9 0.062 63.3 0.267 -70.9

800 0.258 -150.7 7.839 89.6 0.079 64.2 0.210 -76.1
1000 0.258 -164.2 6.468 85.3 0.094 65.3 0.165 -80.1
1200 0.270 -173.6 5.484 80.6 0.109 64.6 0.134 -85.8
1400 0.281 -179.3 4.724 75.7 0.126 64.3 0.112 -95.1
1600 0.283 174.3 4.105 72.4 0.143 64.3 0.096 -107.2
1800 0.292 167.1 3.613 69.4 0.154 64.1 0.088 -121.0
2000 0.313 160.9 3.254 65.8 0.167 62.1 0.082 -138.8
2200 0.335 157.1 2.971 61.3 0.180 59.2 0.087 -156.0
2400 0.354 153.9 2.763 57.3 0.196 57.0 0.101 -168.3
2600 0.370 150.3 2.584 55.0 0.215 56.3 0.115 -176.6
2800 0.387 147.1 2.418 53.8 0.228 56.1 0.130 175.1
3000 0.406 144.9 2.215 50.6 0.233 54.5 0.145 169.0

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.357 -83.5 23.436 125.1 0.026 64.0 0.559 -45.5

400 0.282 -125.0 13.927 104.5 0.042 64.8 0.324 -60.4

600 0.263 -146.7 9.793 93.3 0.058 65.9 0.229 -68.1

800 0.258 -161.7 7.627 87.6 0.075 67.1 0.181 -71.5
1000 0.264 -173.3 6.255 83.6 0.090 67.6 0.143 -74.0
1200 0.282 179.3 5.327 79.0 0.106 67.1 0.117 -78.2
1400 0.292 174.7 4.569 74.3 0.123 66.4 0.096 -86.2
1600 0.296 169.1 3.963 71.1 0.139 66.2 0.080 -98.2
1800 0.306 162.7 3.489 68.1 0.152 66.3 0.071 -112.8
2000 0.330 157.4 3.143 64.7 0.164 63.8 0.066 -132.0
2200 0.352 154.0 2.870 60.1 0.177 61.0 0.069 -151.7
2400 0.372 151.2 2.667 56.2 0.194 58.7 0.083 -166.8
2600 0.388 147.8 2.522 54.3 0.211 57.7 0.097 -175.3
2800 0.405 145.0 2.333 52.8 0.225 57.7 0.112 176.0
3000 0.424 143.1 2.133 49.5 0.231 56.0 0.128 169.8

2005. 12. 2 7/7

KTC3640V

Revision No : 0

FREQUENCY

S

11

S

21

S

12

S

22

MHz MAG ANG MAG ANG MAG ANG MAG ANG

200 0.617 -49.2 18.466 139.9 0.036 65.6 0.765 -34.0

400 0.434 -83.8 12.811 117.3 0.055 57.7 0.511 -53.7

600 0.356 -108.5 9.500 102.8 0.072 57.1 0.377 -66.5

800 0.307 -126.1 7.569 94.8 0.086 57.3 0.302 -73.5
1000 0.280 -141.8 6.310 89.6 0.100 58.4 0.242 -78.0
1200 0.277 -155.1 5.390 84.3 0.114 58.2 0.199 -83.3
1400 0.282 -164.0 4.665 78.9 0.130 58.3 0.166 -90.8
1600 0.280 -172.3 4.068 74.8 0.144 59.0 0.143 -100.2
1800 0.283 178.6 3.579 71.5 0.155 59.5 0.127 -110.3
2000 0.300 170.4 3.220 67.9 0.167 57.5 0.112 -123.7
2200 0.322 164.7 2.953 63.0 0.179 55.1 0.108 -138.9
2400 0.340 160.4 2.740 58.7 0.195 53.3 0.116 -152.8
2600 0.355 156.4 2.565 56.2 0.213 52.9 0.126 -161.9
2800 0.371 152.2 2.403 54.8 0.225 52.9 0.135 -171.8
3000 0.390 149.1 2.198 51.6 0.230 51.4 0.146 -179.7

S-PARAMETER

VCE=2V, IC=10mA, ZO=50 , Ta=25

VCE=2V, IC=20mA, ZO=50 , Ta=25

VCE=2V, IC=30mA, ZO=50 , Ta=25
