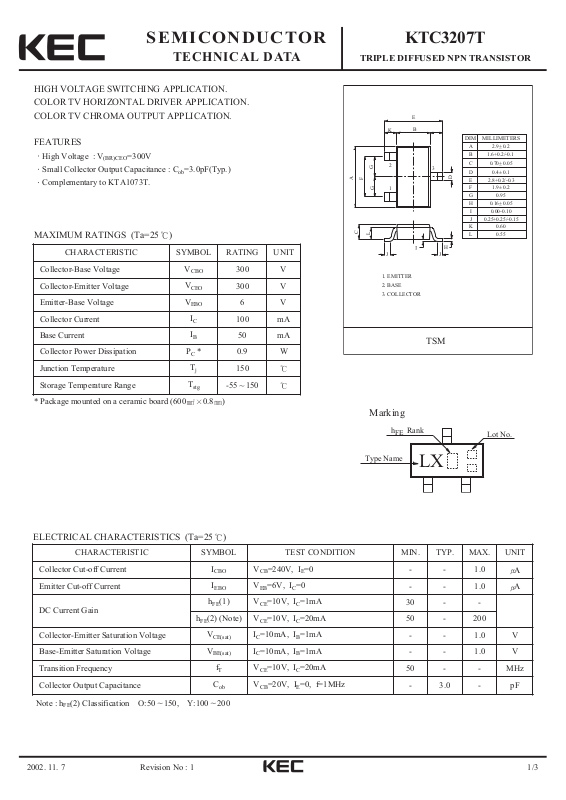

2002. 11. 7 1/3
SEMICONDUCTOR
TECHNICAL DATA
KTC3207T
TRIPLE DIFFUSED NPN TRANSISTOR
Revision No : 1
HIGH VOLTAGE SWITCHING APPLICATION.
COLOR TV HORIZONTAL DRIVER APPLICATION.
COLOR TV CHROMA OUTPUT APPLICATION.
FEATURES
High Voltage : V
(BR)CEO
=300V
Small Collector Output Capacitance : Cob=3.0pF(Typ.)
Complementary to KTA1073T.
MAXIMUM RATINGS (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage
V
CBO
300 V
Collector-Emitter Voltage
V
CEO
300 V
Emitter-Base Voltage
V
EBO
6 V
Collector Current
I
C
100 mA
Base Current
I
B
50 mA
Collector Power Dissipation
PC *
0.9 W
Junction Temperature
T
j
150
Storage Temperature Range
T
stg
-55 150
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current
I
CBO
VCB=240V, IE=0
- - 1.0
A
Emitter Cut-off Current
I
EBO
VEB=6V, IC=0
- - 1.0
A
DC Current Gain
hFE(1) VCE=10V, IC=1mA
30 - -
hFE(2) (Note) VCE=10V, IC=20mA
50 - 200
Collector-Emitter Saturation Voltage
V
CE(sat)
IC=10mA, IB=1mA
- - 1.0 V
Base-Emitter Saturation Voltage
V
BE(sat)
IC=10mA, IB=1mA
- - 1.0 V
Transition Frequency
f
T
VCE=10V, IC=20mA
50 - - MHz
Collector Output Capacitance
C
ob
VCB=20V, IE=0, f=1MHz
- 3.0 - pF
* Package mounted on a ceramic board (600 0.8 )
Note : hFE(2) Classification O:50 150, Y:100 200
E
B
A
F
C
K
G
G
L
J
1. EMITTER
2. BASE
3. COLLECTOR
2
1
3
I
D
H
J
DIM MILLIMETERS
A
B
C
D
E
F
G
H
I
J
K 0.60
L 0.55
_
2.9 0.2
+
1.6+0.2/-0.1
_
0.70 0.05
+
_
0.4 0.1
+
2.8+0.2/-0.3
_
1.9 0.2
+
0.95
_
0.16 0.05
+
0.00-0.10
0.25+0.25/-0.15
TSM
Marking
h Rank
Type Name
FE
Lot No.
LX
Page 2
2002. 11. 7 2/3
KTC3207T
Revision No : 1
120
100
C
80
60
40
20
COLLECTOR CURRENT I (mA)
0
4 8 12 16 20 24
0
COLLECTOR-EMITTER VOLTAGE V (V)
h - I
FE C
500
300
FE
100
50
30
I - V
CCE
COMMON EMITTER
Ta=25 C
6
4
3
2
1
0.6
100
COMMON
EMITTER
80
C
V =10V
CE
60
40
0.4
I =0.2mA
B
0
CE
20
COLLECTOR CURRENT I (mA)
0
0.2
0.4 0.6 0.8 1.0 1.2
BASE-EMITTER VOLTAGE V (V)
500
COMMON EMITTER
Ta=25 C V =10V
V =20V
CE
V =10V
CE
V =5V
CE
FE
300
100
Ta=100 C
Ta=25 C
50
Ta=-25 C
30
I - V
Ta=25 C
Ta=100 C
h - I
COMMON EMITTER
BEC
Ta=-25 C
BE
CFE
CE
DC CURRENT GAIN h
10
COLLECTOR CURRENT I (mA)
V - I
CE(sat) C
5
COMMON EMITTER
3
Ta=25 C
1
CE(sat)
0.5
0.3
I /I =10
B
VOLTAGE V (V)
C
0.1
COLLECTOR-EMITTER SATURATION
0.05
0.3 1 50 100
COLLECTOR CURRENT I (mA)
I /I =5
C
I /I =2
B
C
DC CURRENT GAIN h
10
50301050.5
100310.3
C
0.3 1 3 100
0.5 5 10 30 50
COLLECTOR CURRENT I (mA)
5
COMMON EMITTER
3
I /I =5
B
C
V - I
C
CCE(sat)
1
CE(sat)
0.5
0.3
B
3010350.5
C
VOLTAGE V (V)
0.1
0.05
COLLECTOR-EMITTER SATURATION
0.5 531030
COLLECTOR CURRENT I (mA)
Ta=100 C
Ta=-25 C
C
Ta=25 C
1005010.3
Page 3
2002. 11. 7 3/3
KTC3207T
Revision No : 1
V - I
5
3
1
BE(sat)
0.5
0.3
VOLTAGE V (V)
BASE-EMITTER SATURATION
0.1
0.3 1 3 100
COLLECTOR CURRENT I (mA)
50
30
10
ob
5
C (pF)
3
BE(sat) C
COMMON EMITTER
I /I =5
C
Ta=25 C
5305010
C - V
ob CB
f - I
C
T
500
B
300
T
100
50
COMMON EMITTER
Ta=25 C
V =20V
CE
V =10V
V =5V
CE
CE
30
10
TRANSITION FREQUENCY f (MHz)
C
COLLECTOR CURRENT I (mA)
10 50305
C
100310.3
Pc - Ta
I =0
E
f=1MHz
Ta=25 C
1.4
1.2
1.0
0.8
C
0.6
P (W)
0.4
MOUNTED ON A
CERAMIC BOARD
2
(600mm `0.8mm)
COLLECTOR OUTPUT CAPACITANCE
1
53050100
COLLECTOR-BASE VOLTAGE V (V)
CB
0.2
COLLECTOR POWER DISSIPATION
3001031
0
0
20 40 60 80 100 120
140 160
AMBIENT TEMPERATURE Ta ( C)
