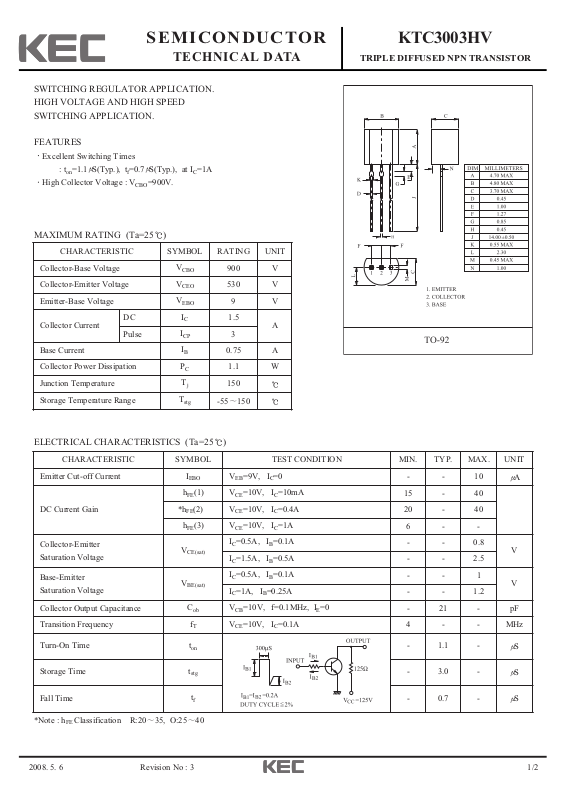

Page 1
2008. 5. 6 1/2
SEMICONDUCTOR
TECHNICAL DATA
KTC3003HV
TRIPLE DIFFUSED NPN TRANSISTOR
Revision No : 3
SWITCHING REGULATOR APPLICATION.
HIGH VOLTAGE AND HIGH SPEED
SWITCHING APPLICATION.
FEATURES
Excellent Switching Times
: t
on
=1.1 S(Typ.), tf=0.7 S(Typ.), at IC=1A
High Collector Voltage : V
CBO
=900V.
MAXIMUM RATING (Ta=25 )
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage
V
CBO
900 V
Collector-Emitter Voltage
V
CEO
530 V
Emitter-Base Voltage
V
EBO
9 V
Collector Current
DC
I
C
1.5
A
Pulse
I
CP
3
Base Current
I
B
0.75 A
Collector Power Dissipation
P
C
1.1 W
Junction Temperature
T
j
150
Storage Temperature Range
T
stg
-55 150
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Emitter Cut-off Current
I
EBO
VEB=9V, IC=0
- - 10
A
DC Current Gain
hFE(1) VCE=10V, IC=10mA
15 - 40
*hFE(2) VCE=10V, IC=0.4A
20 - 40
hFE(3) VCE=10V, IC=1A
6 - -
Collector-Emitter
Saturation Voltage
V
CE(sat)
IC=0.5A, IB=0.1A
- - 0.8
V
IC=1.5A, IB=0.5A
- - 2.5
Base-Emitter
Saturation Voltage
V
BE(sat)
IC=0.5A, IB=0.1A
- - 1
V
IC=1A, IB=0.25A
- - 1.2
Collector Output Capacitance
C
ob
VCB=10V, f=0.1MHz, IE=0
- 21 - pF
Transition Frequency
f
T
VCE=10V, IC=0.1A
4 - - MHz
Turn-On Time
t
on
- 1.1 -
S
Storage Time
t
stg
- 3.0 -
S
Fall Time
t
f
- 0.7 -
S
*Note : h
FE
Classification R:20 35, O:25 40

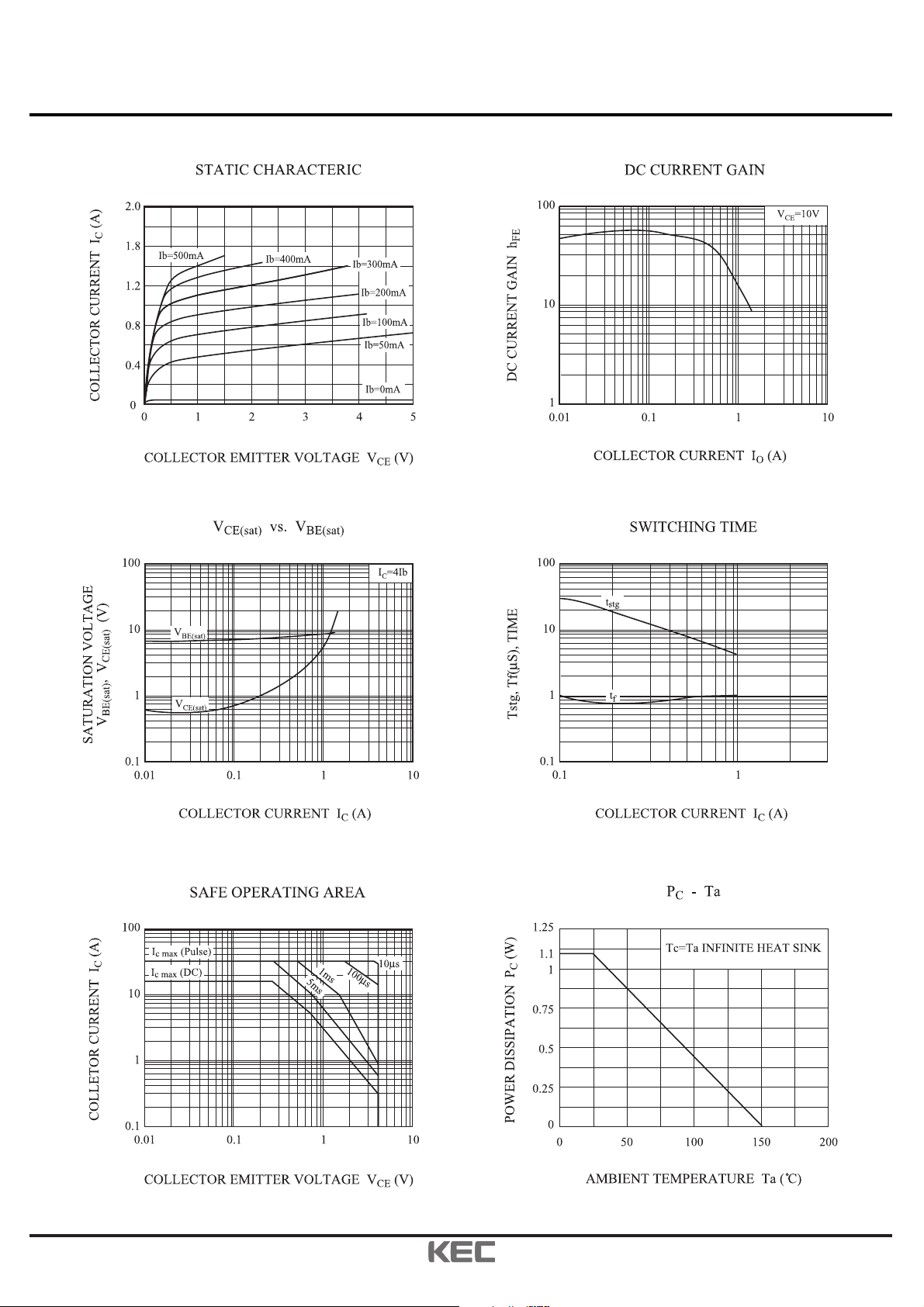

Page 2
2008. 5. 6 2/2
KTC3003HV
Revision No : 3
