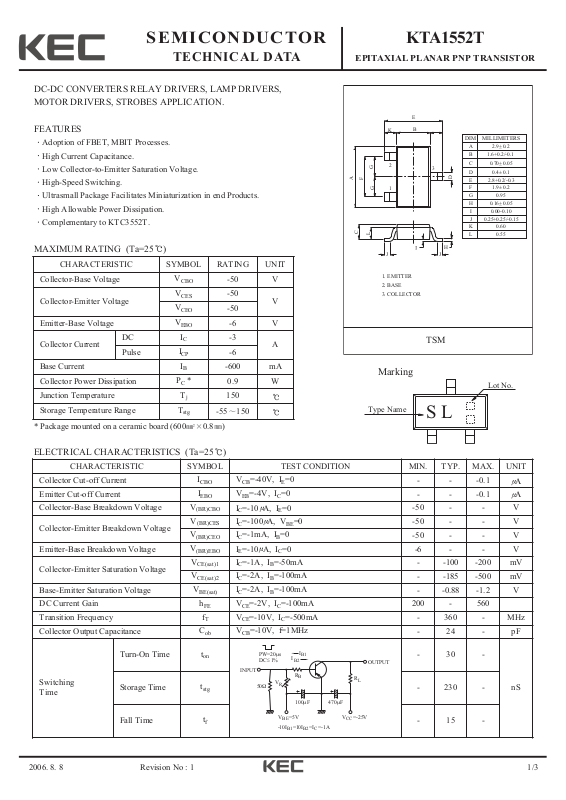

2006. 8. 8 1/3
SEMICONDUCTOR
TECHNICAL DATA
KTA1552T
EPITAXIAL PLANAR PNP TRANSISTOR
Revision No : 1
DC-DC CONVERTERS RELAY DRIVERS, LAMP DRIVERS,
MOTOR DRIVERS, STROBES APPLICATION.
FEATURES
Adoption of FBET, MBIT Processes.
High Current Capacitance.
Low Collector-to-Emitter Saturation Voltage.
High-Speed Switching.
Ultrasmall Package Facilitates Miniaturization in end Products.
High Allowable Power Dissipation.
Complementary to KTC3552T.
MAXIMUM RATING (Ta=25 )
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage
V
CBO
-50 V
Collector-Emitter Voltage
V
CES
-50
V
V
CEO
-50
Emitter-Base Voltage
V
EBO
-6 V
Collector Current
DC
I
C
-3
A
Pulse
I
CP
-6
Base Current
I
B
-600 mA
Collector Power Dissipation
PC *
0.9 W
Junction Temperature
T
j
150
Storage Temperature Range
T
stg
-55 150
* Package mounted on a ceramic board (600 0.8 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current
I
CBO
VCB=-40V, IE=0
- - -0.1
A
Emitter Cut-off Current
I
EBO
VEB=-4V, IC=0
- - -0.1
A
Collector-Base Breakdown Voltage
V
(BR)CBO
IC=-10 A, IE=0
-50 - - V
Collector-Emitter Breakdown Voltage
V
(BR)CES
IC=-100 A, VBE=0
-50 - - V
V
(BR)CEOIC
=-1mA, IB=0
-50 - - V
Emitter-Base Breakdown Voltage
V
(BR)EBO
IE=-10 A, IC=0
-6 - - V
Collector-Emitter Saturation Voltage
V
CE(sat)1
IC=-1A, IB=-50mA
- -100 -200 mV
V
CE(sat)2
IC=-2A, IB=-100mA
- -185 -500 mV
Base-Emitter Saturation Voltage
V
BE(sat)
IC=-2A, IB=-100mA
- -0.88 -1.2 V
DC Current Gain
h
FE
VCE=-2V, IC=-100mA
200 - 560
Transition Frequency
f
T
VCE=-10V, IC=-500mA
- 360 - MHz
Collector Output Capacitance
C
ob
VCB=-10V, f=1MHz
- 24 - pF
Switching
Time
Turn-On Time
t
on
- 30 -
nS
Storage Time
t
stg
- 230 -
Fall Time
t
f
- 15 -
E
B
A
F
C
K
G
G
L
J
1. EMITTER
2. BASE
3. COLLECTOR
2
1
3
I
D
H
J
DIM MILLIMETERS
A
B
C
D
E
F
G
H
I
J
K 0.60
L 0.55
_
2.9 0.2
+
1.6+0.2/-0.1
_
0.70 0.05
+
_
0.4 0.1
+
2.8+0.2/-0.3
_
1.9 0.2
+
0.95
_
0.16 0.05
+
0.00-0.10
0.25+0.25/-0.15
TSM
Marking
Lot No.
Type Name
S L
I
I
B2
R
B
V
R
100µF
V =5V
BE
-10I =10I =I =-1A
B1
INPUT
PW=20µs
<
DC 1%
=
50Ω
B1
470µF
C
B2
R
L
V =-25V
CC
OUTPUT
Page 2
2006. 8. 8 2/3
KTA1552T
Revision No : 1
I - V
-2.0
-1.6
C
-1.2
-0.8
-0.4
COLLECTOR CURRENT I (A)
-1K
-500
-300
0
0
-0.2 -0.4 -0.6 -0.8 -1.0
COLLECTOR-EMITTER VOLTAGE V (V)
V - I
CE(sat) C
I /I =20
CB
C
-40mA
CE
-30mA
-20mA
I =0mA
CE
-10mA
-8.0mA
-6.0mA
-4.0mA
-2.0mA
B
1K
500
FE
300
100
50
30
DC CURRENT GAIN h
V =-2V
CE
10
-0.01 -0.03 -0.1 -1
-1K
I /I =50
CB
-500
-300
h - I
C
FE
Ta=75 C
Ta=25 C
Ta=-25 C
COLLECTOR CURRENT I (A)
V - I
CE(sat) C
C
-3-0.3
CE(sat)
-100
-50
-30
VOLTAGE V (mV)
-10
COLLECTOR-EMITTER SATURATION
Ta=75 C
Ta=25 C
-0.01 -0.03 -0.1 -1
COLLECTOR CURRENT I (A)
V - I
BE(sat) C
-10K
-5K
-3K
BE(sat)
-1K
-500
-300
VOLTAGE V (mV)
Ta=-25 C
Ta=25 C
BASE-EMITTER SATURATION
-100
-0.01 -0.03
-0.1 -0.3 -1 -3 -10
COLLECTOR CURRENT I (A)
Ta=-25 C
C
Ta=75 C
C
I /I =50
CB
CE(sat)
-100
Ta=75 C
Ta=-25 C
-50
-30
VOLTAGE V (mV)
-10
-3-0.3
COLLECTOR-EMITTER SATURATION
-0.01 -0.03 -0.1 -1 - 3-0.3
COLLECTOR CURRENT I (A)
Ta=25 C
I - V
C
C
BE
-3.0
V =-2V
-2.5
C
CE
-2.0
C
-1.5
Ta=75
a=-25 C
Ta=25 C
-1.0
T
-0.5
COLLECTOR CURRENT I (A)
0
-0.2 -0.4 -0.6 -0.8 -1.0-0.1 -0.3 -0.5 -0.7 -0.9
0
BASE-EMITTER VOLTAGE V (V)
BE
Page 3
2006. 8. 8 3/3
KTA1552T
Revision No : 1
C - V
ob
f - I
TC
1K
V =-10V
CE
500
T
300
100
50
30
CB
100
50
30
10
TRANSITION FREQUENCY f (MHz)
-0.01 -0.03 -0.1 -1 -3-0.3
COLLECTOR CURRENT I (A)
SAFE OPERATING AREA
-10
I MAX.(PULSED)
C
-5
-3
I MAX
C
-1
(CONTIN-
UOUS)
DC OPERATION
C
-0.5
-0.3
-0.1
-0.05
-0.03
COLLECTOR CURRENT I (A)
-0.01
SINGLE NONREPETITIVE
*
PULSE Ta=25 C
CURVES MUST BE DERATED
LINEARLY WITH INCREASE
IN TEMPERATURE
MOUNTED ON A CERAMIC BOARD
2
(600mm 0.8mm)
-0.1 -0.3 -1 -3 -10 -30 -100
COLLECTOR-EMITTER VOLTAGE V (V)
1mS*
100mS*
C
10mS*
500µS*
CE
100µS*
10
ob
C (pF)
5
3
COLLECTOR OUTPUT CAPACITANCE
1
-10 -30-3-1
COLLECTOR-BASE VOLTAGE V (V)
Pc - Ta
1.0
0.8
0.6
C
P (W)
0.4
0.2
COLLECTOR POWER DISSIPATION
0
20 40 60 80 100 120
0
AMBIENT TEMPERATURE Ta ( C)
f=1MHz
CB
MOUNTED ON A
CERAMIC BOARD
2
(600mm 0.8mm)
140 160
-100
