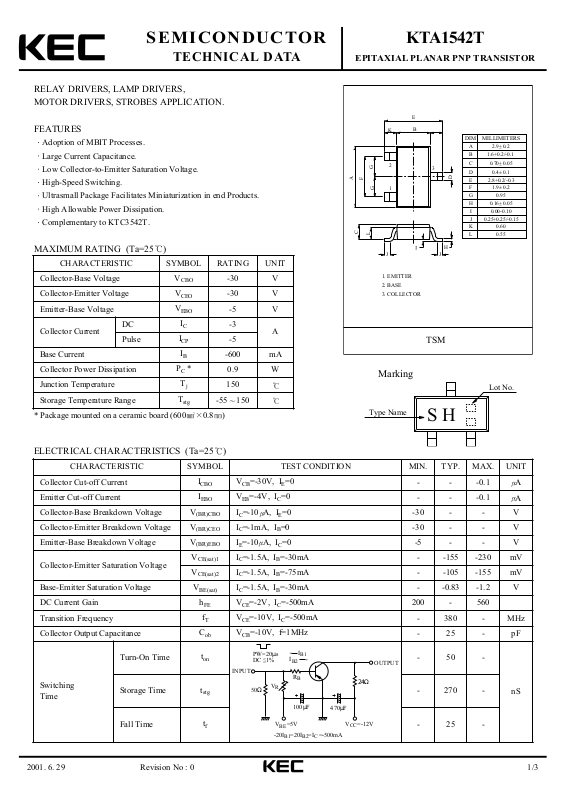

KTA1542T

EPITAXIAL PLANAR PNP TRANSISTOR

Revision No : 0

RELAY DRIVERS, LAMP DRIVERS,

MOTOR DRIVERS, STROBES APPLICATION.

FEATURES

Adoption of MBIT Processes.

Large Current Capacitance.

Low Collector-to-Emitter Saturation Voltage.

High-Speed Switching.

Ultrasmall Package Facilitates Miniaturization in end Products.

High Allowable Power Dissipation.

Complementary to KTC3542T.

MAXIMUM RATING (Ta=25 )

ELECTRICAL CHARACTERISTICS (Ta=25 )

CHARACTERISTIC SYMBOL RATING UNIT

Collector-Base Voltage

V

CBO

-30 V

Collector-Emitter Voltage

V

CEO

-30 V

Emitter-Base Voltage

V

EBO

-5 V

Collector Current

DC

I

C

-3 A

Pulse

I

CP

-5

Base Current

I

B

-600 mA

Collector Power Dissipation

PC *

0.9 W

Junction Temperature

T

j

150

Storage Temperature Range

T

stg

-55 150

* Package mounted on a ceramic board (600 0.8 )

CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT

Collector Cut-off Current

I

CBO

VCB=-30V, IE=0

- - -0.1

A

Emitter Cut-off Current

I

EBO

VEB=-4V, IC=0

- - -0.1

A

Collector-Base Breakdown Voltage

V

(BR)CBO

IC=-10 A, IE=0

-30 - - V

Collector-Emitter Breakdown Voltage

V

(BR)CEOIC

=-1mA, IB=0

-30 - - V

Emitter-Base Breakdown Voltage

V

(BR)EBO

IE=-10 A, IC=0

-5 - - V

Collector-Emitter Saturation Voltage

V

CE(sat)1

IC=-1.5A, IB=-30mA

- -155 -230 mV

V

CE(sat)2

IC=-1.5A, IB=-75mA

- -105 -155 mV

Base-Emitter Saturation Voltage

V

BE(sat)

IC=-1.5A, IB=-30mA

- -0.83 -1.2 V

DC Current Gain

h

FE

VCE=-2V, IC=-500mA

200 - 560

Transition Frequency

f

T

VCE=-10V, IC=-500mA

- 380 - MHz

Collector Output Capacitance

C

ob

VCB=-10V, f=1MHz

- 25 - pF

Switching Time

Turn-On Time

t

on

- 50 -

nS

Storage Time

t

stg

- 270 -

Fall Time

t

f

- 25 -

E

B

K

2

G

F

A

G

1

C

L

J

1. EMITTER

2. BASE

3. COLLECTOR

3

I

TSM

D

H

J

DIM MILLIMETERS

A

B

C

D

E F

G

H

I

J

K 0.60 L 0.55

_

2.9 0.2

+

1.6+0.2/-0.1

_

0.70 0.05

+ _

0.4 0.1

+

2.8+0.2/-0.3 _

1.9 0.2

+

0.95 _

0.16 0.05

+

0.00-0.10

0.25+0.25/-0.15

Marking

Lot No.

Type Name

S H

I

B2

R

B

V

R

100µF

V =5V

BE

-20I =20I =I =-500mA

B1

INPUT

PW=20µs

<

DC 1%

=

50Ω

B1

470µF

V =-12V

C

B2

OUTPUT

24Ω

CC

2001. 6. 29 2/3

KTA1542T

Revision No : 0

I - V

-2.0

-1.6

C

-50mA

-30mA

-40mA

-20mA

-1.2

-0.8

-0.4

COLLECTOR CURRENT I (A)

0

-200 -400 -600 -800 -1K

COLLECTOR-EMITTER VOLTAGE V (mV)

V - I

-1

I /I =20

CB

-0.5

-0.3

CE

C

CE(sat) C

-10mA

-8.0mA

-6.0mA

I =0mA

CE

-4.0mA

-2.0mA

B

1K

500

FE

300

100

50

30

DC CURRENT GAIN h

10

-0.01 -0.03

COLLECTOR CURRENT I (A)

-10

I /I =50

CB

-5

-3

h - I

FE C

V =-2V

CE

Ta=75 C

Ta=25 C

Ta=-25 C

-0.1 -0.3 -1 -3 -10

C

V - I

CE(sat) C

-0.1

-0.05

-0.03

CE(sat)

-0.01

Ta=75 C

Ta=25 C

Ta=-25 C

-0.005

-0.003

VOLTAGE V (V)

-0.001

COLLECTOR-EMITTER SATURATION

-0.01 -0.03

-0.1 -0.3 -1 -3 -10

COLLECTOR CURRENT I (A)

V - I

BE(sat) C

-10

I /I =50

CB

-5

-3

BE(sat)

-1

-0.5

Ta=-25 C

Ta=25 C

Ta=75 C

-0.3

VOLTAGE V (mV)

BASE-EMITTER SATURATION

-0.1

-0.01 -0.03 -0.1 -0.3 -1 -3 -10

COLLECTOR CURRENT I (A)

-1

-0.5

CE(sat)

-0.3

-0.1

-0.05

VOLTAGE V (V)

-0.03

COLLECTOR-EMITTER SATURATION

-0.01

-0.01 -0.03

C

-4.0

-3.5

C

-3.0

COLLECTOR CURRENT I (A)

V =-2V

CE

Ta=75 C

Ta=25 C

-0.1 -0.3 -1 -3 -10

I - V

C

Ta=-25 C

C

BE

-2.5

Ta=25 C

Ta=75 C

25 C

Ta=-

-2.0

-1.5

-1.0

-0.5

COLLECTOR CURRENT I (A)

0

-0.2 -0.4 -0.6 -0.8 -1.0 -1.2

0

C

BASE-EMITTER VOLTAGE V (V)

BE

2001. 6. 29 3/3

KTA1542T

Revision No : 0

C - V

ob

f - I

TC

1K

V =-10V

CE

500

T

300

100

70

50

CB

f=1MHz

100

50

30

10

TRANSITION FREQUENCY f (MHz)

-10 -30 -100 -1K -3K-300

COLLECTOR CURRENT I (mA)

SAFE OPERATING AREA

-10

I MAX.(PULSED)

C

-5

-3

I MAX

C

COLLECTOR CURRENT I (A)

(CONTIN UOUS)

-1

DC OPERATION

-0.5

-0.3

-0.1

-0.05

-0.03

-0.01

SINGLE NONREPETITIVE

*

PULSE Ta=25 C CURVES MUST BE DERATED LINEARLY WITH INCREASE IN TEMPERATURE MOUNTED ON A CERAMIC BOARD

2

(600mm `0.8mm)

-0.1

-0.3 -1 -3 -10 -30-0.5 -5 -50

COLLECTOR-EMITTER VOLTAGE V (V)

100

1mS*

10mS*

mS*

30

ob

C (pF)

10

COLLECTOR OUTPUT CAPACITANCE

-1 -3 -5 -30-10

C

COLLECTOR-BASE VOLTAGE V (V)

CB

Pc - Ta

1.2

1.0

0.8

0.6

C

P (W)

0.4

0.2

COLLECTOR POWER DISSIPATION

0

20 40 60 80 100 120

0

AMBIENT TEMPERATURE Ta ( C)

MOUNTED ON A

CERAMIC BOARD

2

(600mm `0.8mm)

140 160

500µ

CE

100µ

S*

S

*
