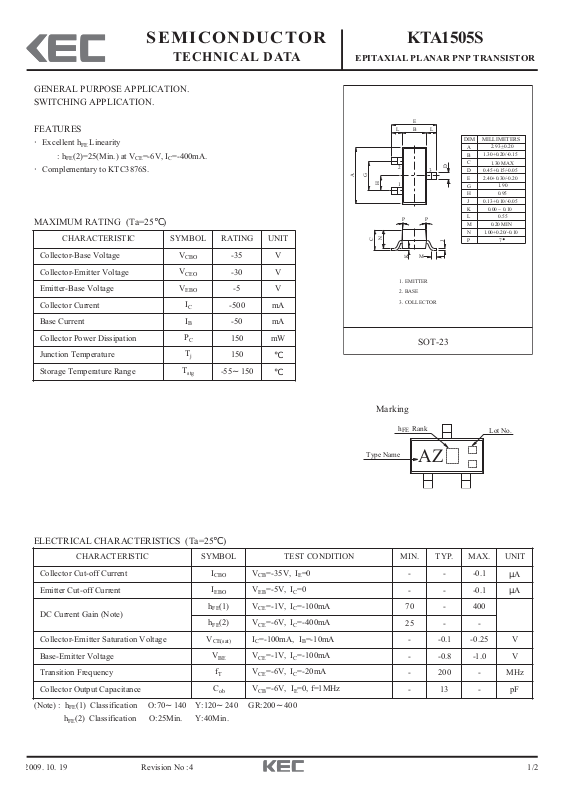

Page 1
SEMICONDUCTOR
TECHNICAL DATA
KTA1505S
EPITAXIAL PLANAR PNP TRANSISTOR
Revision No :4
GENERAL PURPOSE APPLICATION.
SWITCHING APPLICATION.
FEATURES
·Excellent h
FE
Linearity
: h
FE
(2)=25(Min.) at VCE=-6V, IC=-400mA.
·Complementary to KTC3876S.
MAXIMUM RATING (Ta=25℃)
ELECTRICAL CHARACTERISTICS (Ta=25℃)
(Note) : h
FE
(1) Classification O:70～140 Y:120～240 GR:200～400
h
FE
(2) Classification O:25Min. Y:40Min.
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage
V
CBO
-35 V
Collector-Emitter Voltage
V
CEO
-30 V
Emitter-Base Voltage
V
EBO
-5 V
Collector Current
I
C
-500 mA
Base Current
I
B
-50 mA
Collector Power Dissipation
P
C
150 mW
Junction Temperature
T
j
150
℃
Storage Temperature Range
T
stg
-55～150
℃
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current
I
CBO
VCB=-35V, IE=0
- - -0.1
μA
Emitter Cut-off Current
I
EBO
VEB=-5V, IC=0
- - -0.1
μA
DC Current Gain (Note)
hFE(1) VCE=-1V, IC=-100mA
70 - 400
hFE(2) VCE=-6V, IC=-400mA
25 - -
Collector-Emitter Saturation Voltage
V
CE(sat)
IC=-100mA, IB=-10mA
- -0.1 -0.25 V
Base-Emitter Voltage
V
BE
VCE=-1V, IC=-100mA
- -0.8 -1.0 V
Transition Frequency
f
T
VCE=-6V, IC=-20mA
- 200 - MHz
Collector Output Capacitance
C
ob
VCB=-6V, IE=0, f=1MHz
- 13 - pF
E
B
LL
MILLIMETERS
DIM
2.93 0.20
A
1.30+0.20/-0.15
B
C
D
3
J
M
C
H
N
2
1
PP
K
1. EMITTER
2. BASE
3. COLLECTOR
A
G
1.30 MAX
0.45+0.15/-0.05
D
E
2.40+0.30/-0.20
G
H
J
0.13+0.10/-0.05
K
0.00 ~ 0.10
L
M
0.20 MIN
1.00+0.20/-0.10
N
P7
SOT-23
Marking
1.90
0.95
0.55
_
+
h Rank
FE
Type Name
AZ
Lot No.
Page 2
KTA1505S
Revision No : 4
k
I - V (LOW VOLTAGE REGION)
CCE
-600
-8
-7
-500
C
-6
-400
-300
-200
-100
COLLECTOR CURRENT I (mA)
0
0
-1 -2 -3 -4 -5
COLLECTOR-EMITTER VOLTAGE V (V)
V - I
CE(sat) C
-3
-1
-0.5
-0.3
CE(sat)
-0.1
-0.05
-0.03
VOLTAGE V (V)
-0.01
COLLECTOR-EMITTER SATURATION
-0.5 -1 -3 -10
Ta=100 C
Ta=25 C
Ta=-25 C
COLLECTOR CURRENT I (mA)
COMMON
I =-1mA
B
B
C
EMITTER
Ta=25 C
-4
-3
-2
0
CE
-5
COMMON EMITTER
I /I =10
-30 -100 -300 -1k
C
1k
500
FE
300
Ta=100 C
100
50
Ta=-25 C
30
DC CURRENT GAIN h
10
-0.2
-1 -3 -10 -30 -100 -1
COLLECTOR CURRENT I (mA)
-3k
COMMON
EMITTER
-1k
V =-6V
-300
B
CE
-100
-30
-10
-3
BASE CURRENT I (µA)
-1
-0.3
0
-0.2 -0.4 -0.6 -0.8 -1.0 -1.2
BASE-EMITTER VOLTAGE V (V)
h - I
FE C
Ta=25 C
I - V
BBE
Ta=100 C
COMMON EMITTER
V =-6V
V =-1V
CE
-100 -300
C
Ta=25 C
Ta=-25 C
BE
CE
P - Ta
C
300
200
C
P (mW)
100
COLLECTOR POWER DISSIPATION
0
0
25 50 75 100 125 150 175
AMBIENT TEMPERATURE Ta ( C)
