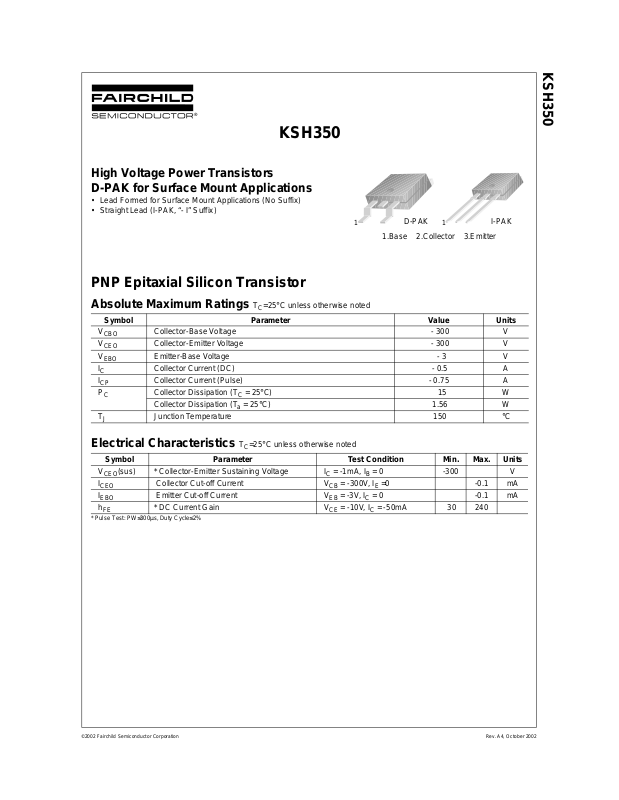

Page 1
KSH350
High Voltage Power Transistors
D-PAK for Surface Mount Applications
• Lead Formed for Surface Mount Applications (No Suffix)
• Straight Lead (I-PAK, “- I” Suffix)
PNP Epitaxial Silicon Transistor
11
D-PAK I-PAK
1.Base 2.Collector 3.Emitter
KSH350
Absolute Maximum Ratings
Symbol Parameter Value Units
V
CBO
V
CEO
V
EBO
I
C
I
CP
P
C
T
J
Collector-Base Voltage - 300 V
Collector-Emitter Voltage - 300 V
Emitter-Base Voltage - 3 V
Collector Current (DC) - 0.5 A
Collector Current (Pulse) - 0.75 A
Collector Dissipation (TC = 25°C) 15 W
Collector Dissipation (T
Junction Temperature 150 °C
Electrical Characteristics
Symbol Parameter Test Condition Min. Max. Units
V
(sus) * Collector-Emitter Sustaining Voltage IC = -1mA, IB = 0 -300 V
CEO
I
CEO
I
EBO
h
FE
* Pulse Test: PW≤300µs, Duty Cycle≤2%
Collector Cut-off Current V
Emitter Cut-off Current V
* DC Current Gain V
TC=25°C unless otherwise noted
= 25°C) 1.56 W
a
TC=25°C unless otherwise noted
= -300V , IE =0 -0.1 mA
CB
= -3V, IC = 0 -0.1 mA
EB
= -10V , IC = -50mA 30 240
CE
©2002 Fairchild Semiconductor Corporation Rev. A4, October 2002
Page 2
Typical Characteristics
KSH350
1000
100
10
, DC CURRENT GAIN
FE
h
1
-1 -10 -100 -1000
IC[A], COLLECTOR CURRENT
Figure 1. DC current Gain Figure 2. Base-Emitter Saturation Voltage
-1000
ICP(max)
IC(max)
-100
-10
[mA], COLLECTOR CURRENT
C
I
-1
-10 -100 -1000
VCE[V], COLLECTOR-EMITTER VOLTAGE
100
500
µ
s
µ
1ms
s
DC
VCE = -10V
-10
-1
-0.1
(sat)[V], SATURATION VOLTAGE
CE
(sat), V
BE
V
-0.01
-1 -10 -100 -1000
VBE(sat)
VCE(sat)
IC = 10 I
B
IC[A], COLLECTOR CURRENT
Collector-Emitter Saturation Voltage
24
21
18
15
12
9
6
[W], POWER DISSIPATION
C
P
3
0
0 25 50 75 100 125 150 175
TC[oC], CASE TEMPERATURE
Figure 3. Safe Operating Area Figure 4. Power Derating
©2002 Fairchild Semiconductor Corporation Rev. A4, October 2002
Page 3
Package Dimensions
6.60 ±0.20
5.34 ±0.30
D-PAK
(4.34)(0.50) (0.50)
0.70 ±0.20
KSH350
2.30 ±0.10
0.50 ±0.10
0.60 ±0.20
0.80 ±0.20
MAX0.96
2.30TYP
[2.30±0.20]
2.70 ±0.20
0.76 ±0.10
2.30TYP
[2.30±0.20]
9.50 ±0.30
6.10 ±0.20
6.10 ±0.20
9.50 ±0.30
2.70 ±0.20
±0.10
0.91
0.89 ±0.10
6.60 ±0.20
(5.34)
(5.04)
(1.50)
(2XR0.25)
0.50 ±0.10
1.02 ±0.20
2.30 ±0.20
(0.70)
0.76 ±0.10
MIN0.55
(1.00)
(0.90)
(0.10) (3.05)
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation Rev. A4, October 2002
Page 4
KSH350
Package Dimensions
6.60
5.34
(0.50) (0.50)(4.34)
±0.20
0.60
±0.10
0.80
MAX0.96
0.76
±0.10
(Continued)
±0.20
±0.20
I-PAK
±0.20
±0.20
0.70
6.10
±0.20
±0.30
1.80
9.30
2.30
0.50
±0.20
±0.10
±0.30
16.10
0.50
2.30TYP
[2.30±0.20]
2.30TYP
[2.30±0.20]
±0.10
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation Rev. A4, October 2002
