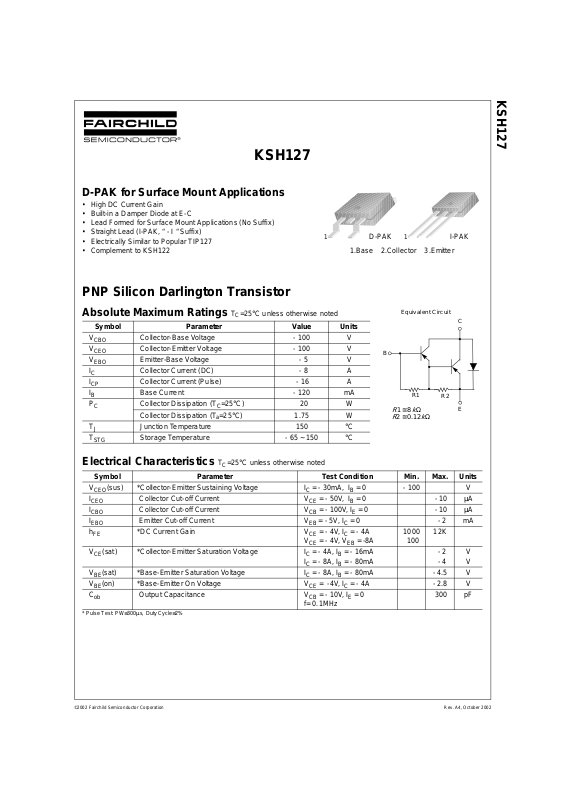

©2002 Fairchild Semiconductor Corporation Rev. A4, October 2002
KSH127
PNP Silicon Darlington Transistor
Absolute Maximum Ratings
TC=25°C unless otherwise noted
Electrical Characteristics
TC=25°C unless otherwise noted
* Pulse Test: PW≤300µs, Duty Cycle≤2%
Symbol Parameter Value Units
V
CBO
Collector-Base Voltage - 100 V
V
CEO
Collector-Emitter Voltage - 100 V
V
EBO
Emitter-Base Voltage - 5 V
I
C
Collector Current (DC) - 8 A
I
CP
Collector Current (Pulse) - 16 A
I
B
Base Current - 120 mA
P
C
Collector Dissipation (TC=25°C) 20 W
Collector Dissipation (T
a
=25°C) 1.75 W
T
J
Junction T emperature 150 °C
T
STG
Storage Temperature - 65 ~ 150 °C
Symbol Parameter Tes t Condition Min. Max. Units
V
CEO
(sus) *Collector-Emitter Sustaining Voltage IC = - 30mA, IB = 0 - 100 V
I
CEO
Collector Cut-off Current V
CE
= - 50V, IB = 0 - 10 µA
I
CBO
Collector Cut-off Current V
CB
= - 100V, IE = 0 - 10 µA
I
EBO
Emitter Cut-off Current V
EB
= - 5V , IC = 0 - 2 mA
h
FE
*DC Current Gain V
CE
= - 4V , IC = - 4A
V
CE
= - 4V , V
EB
= -8A
1000
100
12K
V
CE
(sat) *Collector-Emitter Saturation Voltage IC = - 4A, IB = - 16mA
I
C
= - 8A, IB = - 80mA
- 2
- 4
V
V
V
BE
(sat) *Base-Emitter Saturation Voltage IC = - 8A, IB = - 80mA - 4.5 V
V
BE
(on) *Base-Emitter On Voltage V
CE
= -4V, IC = - 4A - 2.8 V
Cob
Output Capacitance V
CB
= - 10V, IE = 0
f= 0.1MHz
300 pF
KSH127
D-PAK for Surface Mount Applications
• High DC Current Gain
• Built-in a Damper Diode at E-C
• Lead Formed for Surface Mount Applications (No Suffix)
• Straight Lead (I-PAK, “ - I “ Suffix)
• Electrically Similar to Popular TIP127
• Complement to KSH122
Equivalent Circuit
B
E
C
R1
R2
R
18
k
Ω≅
R
20.12
k
Ω≅
1.Base 2.Collector 3.Emitter
D-PAK I-PAK
11
Page 2
©2002 Fairchild Semiconductor Corporation
KSH127
Rev. A4, October 2002
Typical Characteristics
Figure 1. DC current Gain Figure 2. Base-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
Figure 3. Collector Output Capacitance Figure 4. Turn On Time
Figure 5. Turn Off Time Figure 6. Safe Operating Area
-0.1 -1 -10
100
1k
10k
VCE = -4V
h
FE
, DC CURRENT GAIN
IC[A], COLLECTOR CURRENT
-0.1 -1 -10 -100
-0.01
-0.1
-1
-10
IC = 250 I
B
VCE(sat)
VBE(sat)
V
BE
(sat), V
CE
(sat)[V], SATURATION VOLTAGE
IC[A], COLLECTOR CURRENT
-0.1 -1 -10 -100
1
10
100
1000
C
ob
[pF], CAPACITANCE
VCB[V], COLLECTOR BASE VOLTAGE
-0.1 -1 -10
0.01
0.1
1
10
VCC= -30V
IC= 250I
B
IB1= -I
B2
tD, VBE(off)=0
t
R
t
R
,t
D
[
µ
s], TURN ON TIME
IC[A], COLLECTOR CURRENT
-0.1 -1 -10
0.1
1
10
VCC= -30V
IC= 250I
B
IB1= -I
B2
t
F
t
STG
t
STG
,t
F
[
µ
s], TURN OFF TIME
IC[A], COLLECTOR CURR EN T
-1 -10 -100 -1000
-0.01
-0.1
-1
-10
-100
500
µ
s
5ms
100
µ
s
1ms
DC
I
C
[A], COLLECTOR CURRENT
VCE[V], COLLECTOR-EMITTER VOLTAGE

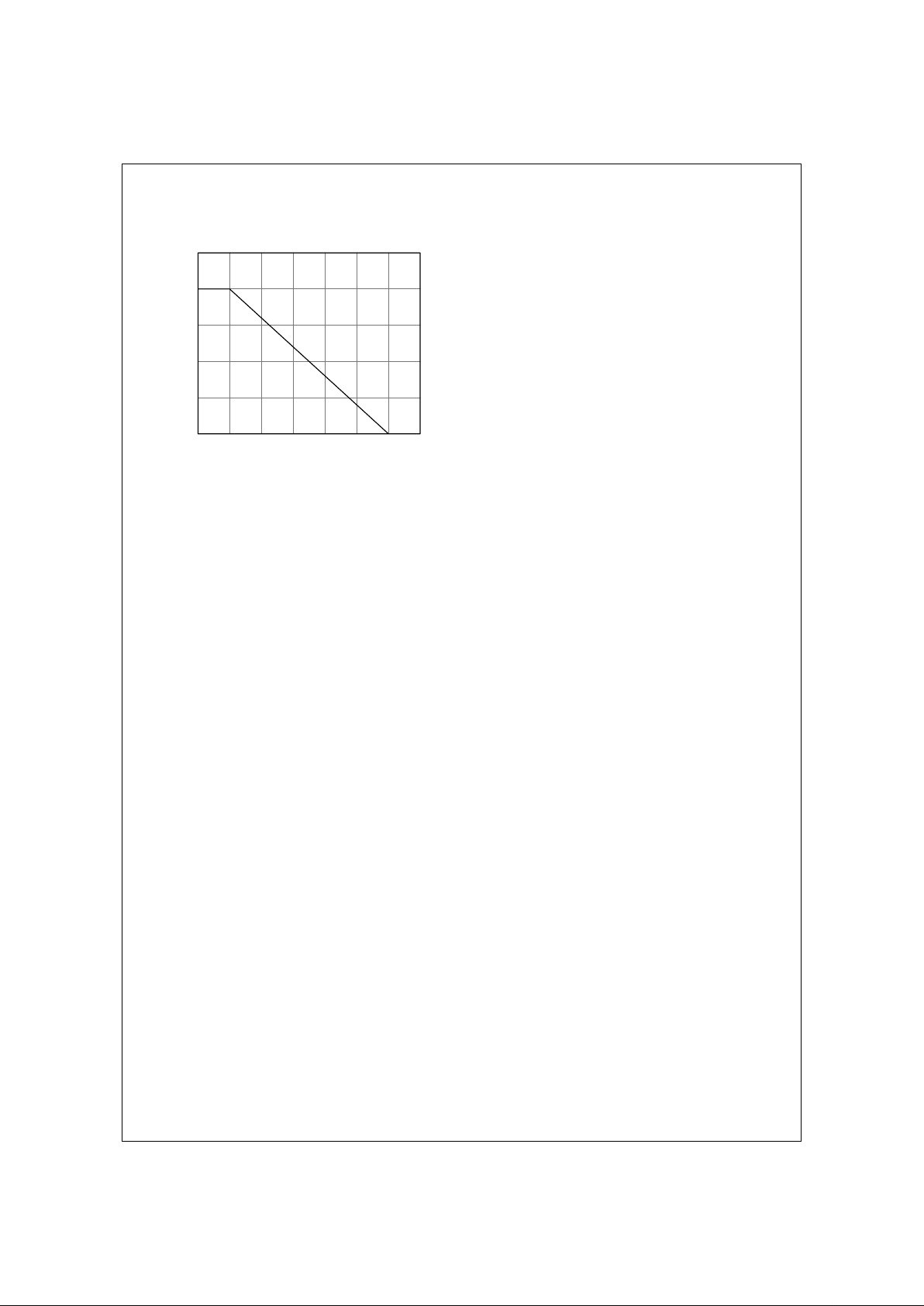

Page 3
©2002 Fairchild Semiconductor Corporation Rev. A4, October 2002
KSH127
Typical Characteristic
(Continued)
Figure 7. Power Derating
0 25 50 75 100 125 150 175
0
5
10
15
20
25
P
C
[W], POWER DISSIPATION
TC[oC], CASE TEMPERATURE
Page 4

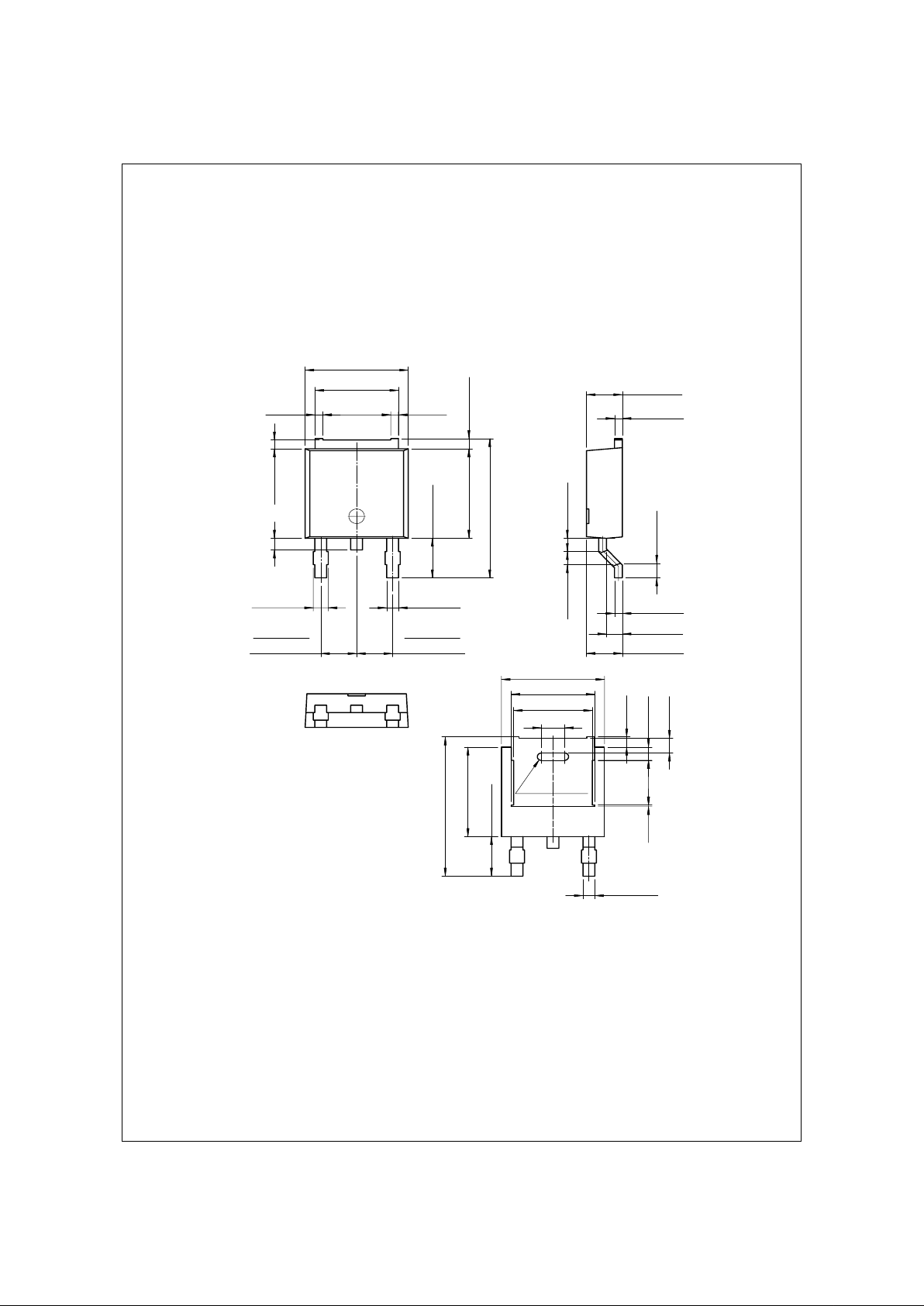

Package Dimensions
KSH127
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation Rev. A4, October 2002
6.60 ±0.20
2.30 ±0.10
0.50 ±0.10
5.34 ±0.30
0.70 ±0.20
0.60 ±0.20
0.80 ±0.20
9.50 ±0.30
6.10 ±0.20
2.70 ±0.20
9.50 ±0.30
6.10 ±0.20
2.70 ±0.20
MIN0.55
0.76 ±0.10
0.50 ±0.10
1.02 ±0.20
2.30 ±0.20
6.60 ±0.20
0.76 ±0.10
(5.34)
(1.50)
(2XR0.25)
(5.04)
0.89 ±0.10
(0.10) (3.05)
(1.00)
(0.90)
(0.70)
0.91
±0.10
2.30TYP
[2.30±0.20]
2.30TYP
[2.30±0.20]
MAX0.96
(4.34)(0.50) (0.50)
D-PAK
Page 5
©2002 Fairchild Semiconductor Corporation Rev. A4, October 2002
KSH127

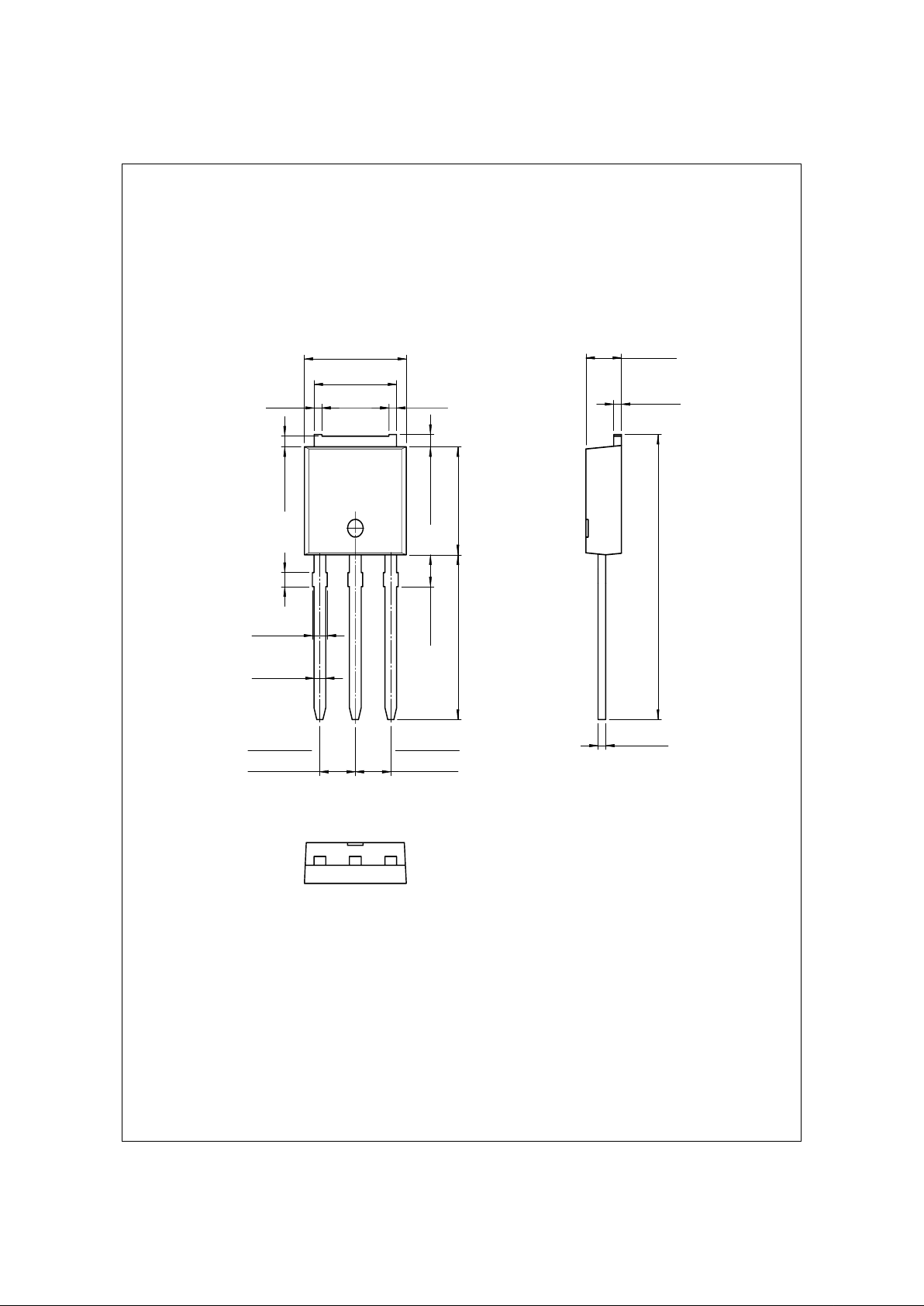

Package Dimensions
(Continued)
Dimensions in Millimeters
6.60
±0.20
0.76
±0.10
MAX0.96
2.30TYP
[2.30±0.20]
2.30TYP
[2.30±0.20]
0.60
±0.20
0.80
±0.10
1.80
±0.20
9.30
±0.30
16.10
±0.30
6.10
±0.20
0.70
±0.20
5.34
±0.20
0.50
±0.10
0.50
±0.10
2.30
±0.20
(0.50) (0.50)(4.34)
I-PAK
Page 6
©2002 Fairchild Semiconductor Corporation Rev. I1
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not
intended to be an exhaustive list of all such trademarks.
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY
PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY
LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR
CORPORATION.
As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body,
or (b) support or sustain life, or (c) whose failure to perform
when properly used in accordance with instructions for use
provided in the labeling, can be reasonably expected to
result in significant injury to the user.
2. A critical component is any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification Product Status Definition
Advance Information Formative or In
Design
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
Preliminary First Production This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
No Identification Needed Full Production This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
Obsolete Not In Production This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
FACT™
FACT Quiet series™
FAST
®
FASTr™
FRFET™
GlobalOptoisolator™
GTO™
HiSeC™
I
2
C™
ImpliedDisconnect™
ISOPLANAR™
LittleFET™
MicroFET™
MicroPak™
MICROWIRE™
MSX™
MSXPro™
OCX™
OCXPro™
OPTOLOGIC
®
OPTOPLANAR™
PACMAN™
POP™
Power247™
PowerTrench
®
QFET™
QS™
QT Optoelectronics™
Quiet Series™
RapidConfigure™
RapidConnect™
SILENT SWITCHER
®
SMART START™
SPM™
Stealth™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SyncFET™
TinyLogic™
TruTranslation™
UHC™
UltraFET
®
VCX™
ACEx™
ActiveArray™
Bottomless™
CoolFET™
CROSSVOLT™
DOME™
EcoSPARK™
E
2
CMOS™
EnSigna™
