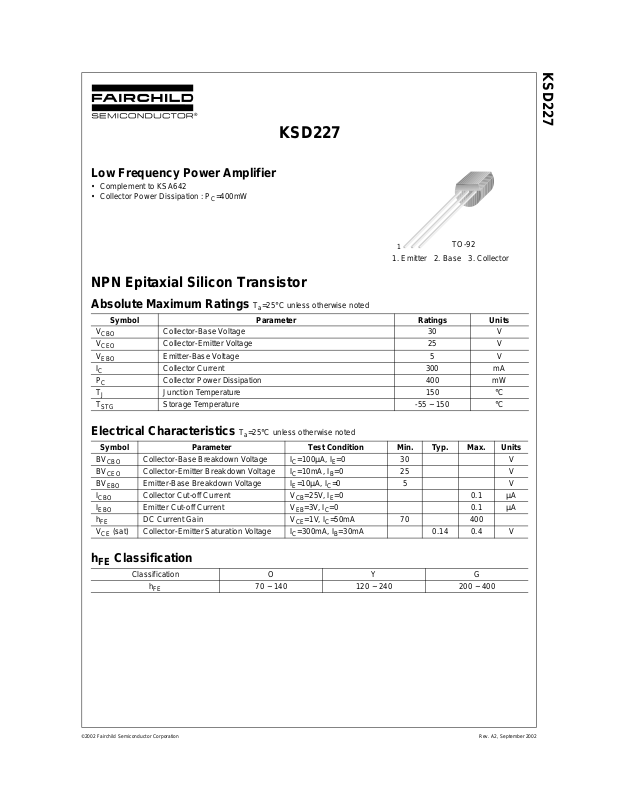

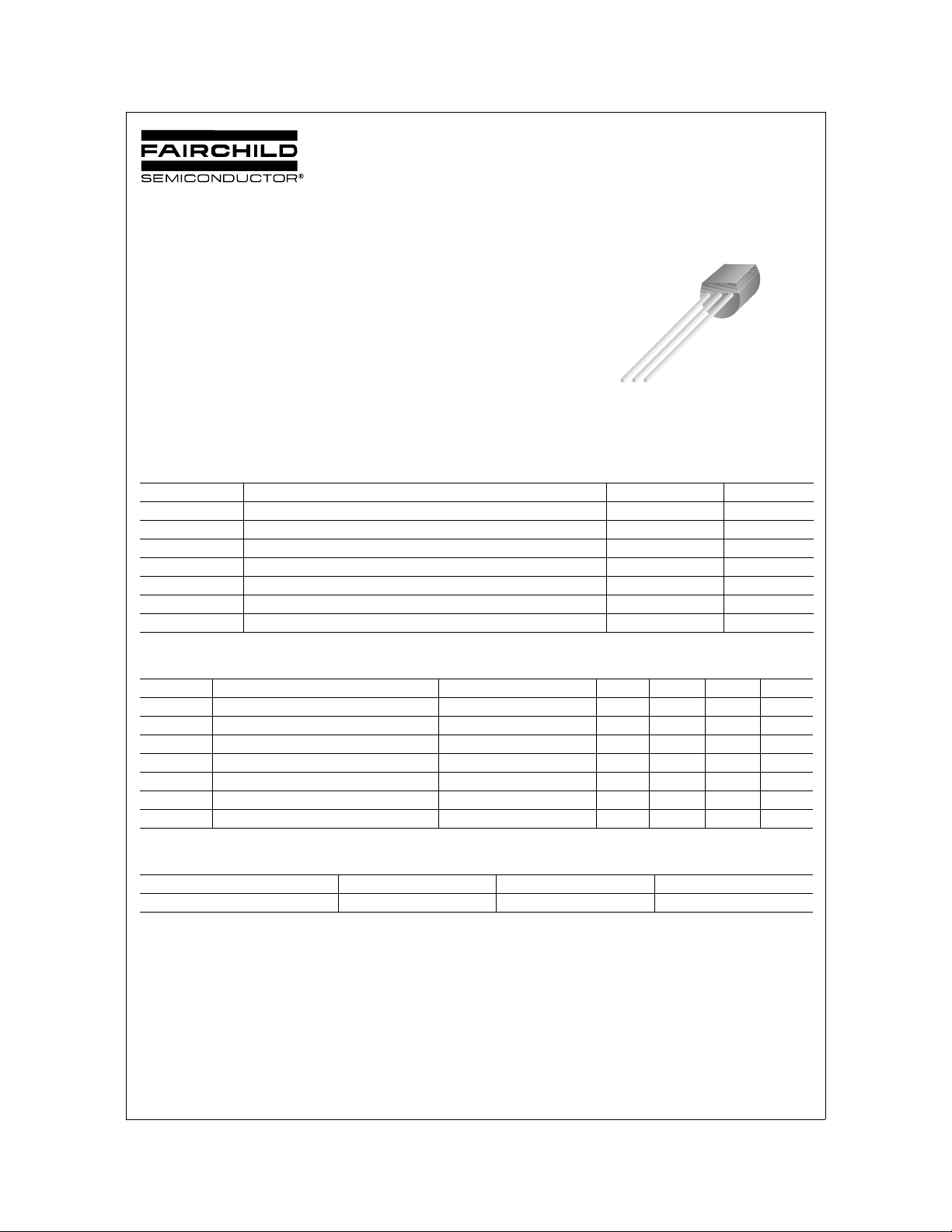

Low Frequency Power Amplifier
• Complement to KSA642
• Collector Power Dissipation : P
=400mW
C
KSD227
KSD227
1
1. Emitter 2. Base 3. Collector
TO-92
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings
Symbol Parameter Ratings Units
V
V
V
I
P
T
T
CBO
CEO
EBO
C
C
J
STG
Collector-Base Voltage 30 V
Collector-Emitter Voltage 25 V
Emitter-Base Voltage 5 V
Collector Current 300 mA
Collector Power Dissipation 400 mW
Junction Temperature 150 °C
Storage Temperature -55 ~ 150 °C
Electrical Characteristics
Symbol Parameter Tes t Condition Min. Typ. Max. Units
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE
(sat) Collector-Emitter Saturation Voltage IC=300mA, IB=30mA 0.14 0.4 V
V
CE
Collector-Base Breakdown Voltage IC=100µA, IE=0 30 V
Collector-Emitter Breakdown Voltage IC=10mA, IB=0 25 V
Emitter-Base Breakdown Voltage IE=10µA, IC=0 5 V
Collector Cut-off Current VCB=25V, IE=0 0.1 µA
Emitter Cut-off Current VEB=3V, IC=0 0.1 µA
DC Current Gain VCE=1V, IC=50mA 70 400
Ta=25°C unless otherwise noted
Ta=25°C unless otherwise noted
hFE Classification
Classification O Y G
h
FE
©2002 Fairchild Semiconductor Corporation Rev. A2, September 2002
70 ~ 140 120 ~ 240 200 ~ 400
Page 2

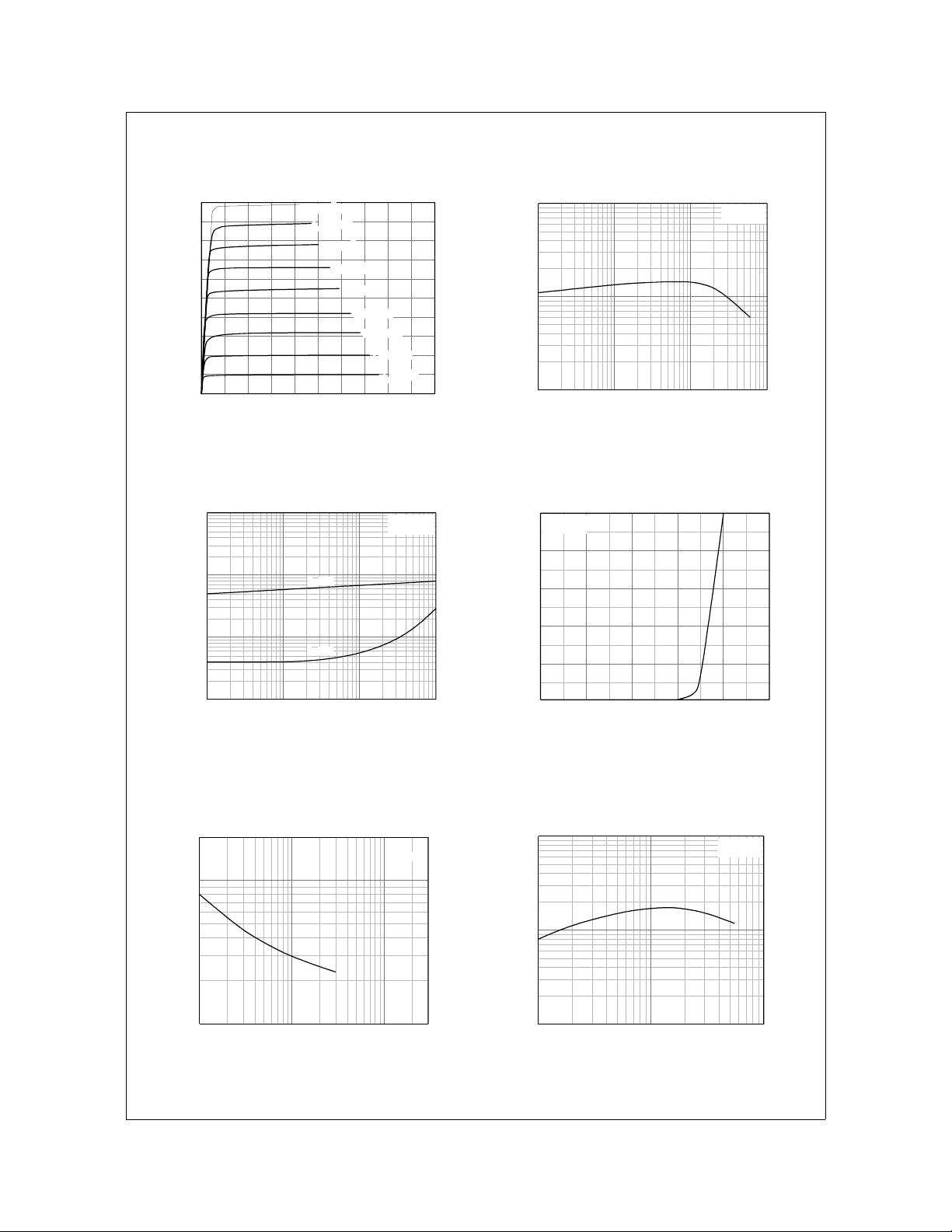

Typical Characteristics
KSD227
50
45
40
35
30
25
20
15
[mA], COLLECTOR CURRENT
10
C
I
5
0
012345678910
IB = 450µA
IB = 400µA
IB = 350µA
IB = 300µA
IB = 250µA
IB = 200µA
IB = 150µA
IB = 100µA
IB = 50µA
VCE[V], COLLECTOR-EMITTER VOLTAGE
Figure 1. Static Characteristic Figure 2. DC current Gain
10
1
0.1
(sat)[V], SATURATION VOLTAGE
CE
(sat), V
BE
V
0.01
0.1 1 10 100
IC[mA], COLLECTOR CURRENT
VBE(sat)
VCE(sat)
IC = 10 I
1000
100
, DC CURRENT GAIN
FE
h
10
1 10 100 1000
VCE = 1V
IC[mA], COLLECTOR CURRENT
100
B
VCE = 1V
80
60
40
20
[mA], COLLECTOR CURRENT
C
I
0.0 0.2 0.4 0.6 0.8 1.0
VBE[V], BASE-EMITTER VOLTAGE
Figure 3. Base-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
20
10
[pF], CAPACITANCE
ob
C
1
1 10 100 300
VCB [V], COLLECTOR-BASE VOLTAGE
Figure 5. Collector Output Capacitance Figure 6. Current Gain Bandwidth Product
©2002 Fairchild Semiconductor Corporation
Figure 4. Base-Emitter On Voltage
IE = 0
1000
f = 1MHz
100
10
110100
[MHz], CURRENT GAIN-BANDWIDTH PRODUCT
T
f
IC[mA], COLLECTOR CURRENT
VCE = 5V
Rev. A2, September 2002
Page 3
Package Dimensions
4.58
0.46
±0.10
+0.25
–0.15
KSD227
TO-92
±0.20
4.58
±0.40
1.27TYP
[1.27
±0.20
3.86MAX
±0.10
1.02
+0.10
–0.05
0.38
14.47
1.27TYP
]
3.60
±0.20
[1.27
±0.20
]
0.38
+0.10
–0.05
(0.25)
(R2.29)
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation Rev. A2, September 2002
