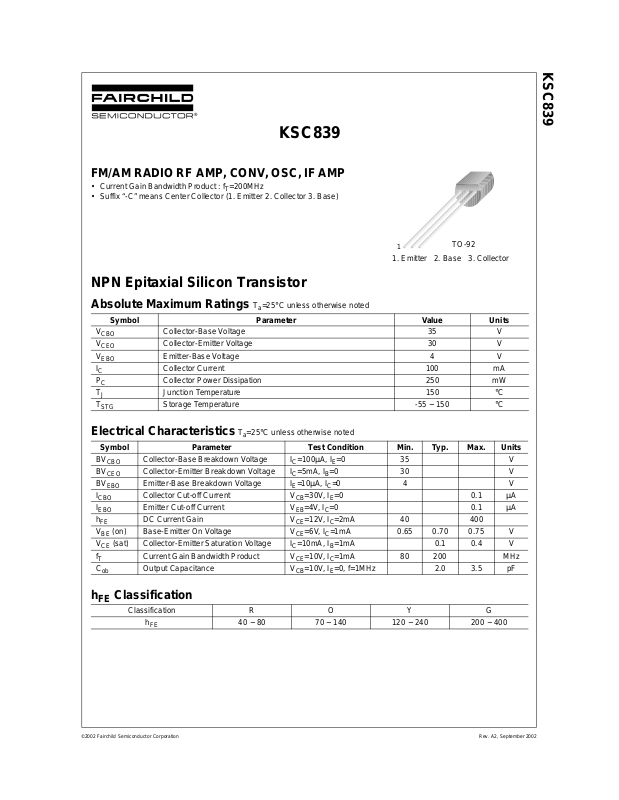

Page 1
KSC839
FM/AM RADIO RF AMP, CONV, OSC, IF AMP
• Current Gain Bandwidth Product : fT=200MHz
• Suffix “-C” means Center Collector (1. Emitter 2. Collector 3. Base)
KSC839
1
1. Emitter 2. Base 3. Collector
TO-92
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings
Symbol Parameter Value Units
V
V
V
I
P
T
T
CBO
CEO
EBO
C
C
J
STG
Collector-Base Voltage 35 V
Collector-Emitter Voltage 30 V
Emitter-Base Voltage 4 V
Collector Current 100 mA
Collector Power Dissipation 250 mW
Junction Temperature 150 °C
Storage Temperature -55 ~ 150 °C
Electrical Characteristics
Symbol Parameter Tes t Condition Min. Typ. Max. Units
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE
(on) Base-Emitter On Voltage VCE=6V, IC=1mA 0.65 0.70 0.75 V
V
BE
(sat) Collector-Emitter Saturation Voltage IC=10mA, IB=1mA 0.1 0.4 V
V
CE
f
T
C
ob
Collector-Base Breakdown Voltage IC=100µA, IE=0 35 V
Collector-Emitter Breakdown Voltage IC=5mA, IB=0 30 V
Emitter-Base Breakdown Voltage IE=10µA, IC=0 4 V
Collector Cut-off Current VCB=30V, IE=0 0.1 µA
Emitter Cut-off Current VEB=4V, IC=0 0.1 µA
DC Current Gain VCE=12V, IC=2mA 40 400
Current Gain Bandwidth Product VCE=10V, IC=1mA 80 200 MHz
Output Capacitance VCB=10V, IE=0, f=1MHz 2.0 3.5 pF
Ta=25°C unless otherwise noted
Ta=25°C unless otherwise noted
hFE Classification
Classification R O Y G
h
FE
©2002 Fairchild Semiconductor Corporation Rev. A2, September 2002
40 ~ 80 70 ~ 140 120 ~ 240 200 ~ 400
Page 2
Typical Characteristics
KSC839
10
9
8
7
6
5
4
3
[mA], COLLECTOR CURRENT
2
C
I
1
0
012345678910
VCE[V], COLLECTOR-EMITTER VOLTAGE
Figure 1. Static Characteristic Figure 2. DC current Gain
10
IC=10I
B
1
0.1
(sat)[V], SATURATION VOLTAGE
CE
(sat), V
BE
V
0.01
0.1 1 10
IC[mA], COLLECTOR CURRENT
V
BE(sat)
V
CE(sat)
IB = 90µA
IB = 80µA
IB = 70µA
IB = 60µA
IB = 50µA
IB = 40µA
IB = 30µA
IB = 20µA
IB = 10µA
1000
VCE=12V
100
, DC CURRENT GAIN
FE
h
10
110
IC[mA], COLLECTOR CURRENT
10
f = 1MHz
IE=0
[pF], CAPAC IT A NCE
ob
C
1
110100
VCB[V], COLLECTOR-BASE VOLTAGE
Figure 3. Base-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
1000
VCE=10V
100
[MHz], CURRENT GAIN BANDWIDTH PRODUCT
T
f
10
110
IC[mA], COLLECTOR CURRENT
Figure 5. Current Gain Bandwidth Product
©2002 Fairchild Semiconductor Corporation
Figure 4. Collector Output Capacitance
Rev. A2, September 2002
Page 3
Package Dimensions
0.46
±0.10
4.58
+0.25
–0.15
KSC839
TO-92
±0.20
4.58
±0.40
1.27TYP
[1.27
±0.20
3.86MAX
±0.10
1.02
+0.10
–0.05
0.38
14.47
1.27TYP
]
3.60
±0.20
[1.27
±0.20
]
0.38
+0.10
–0.05
(0.25)
(R2.29)
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation Rev. A2, September 2002
