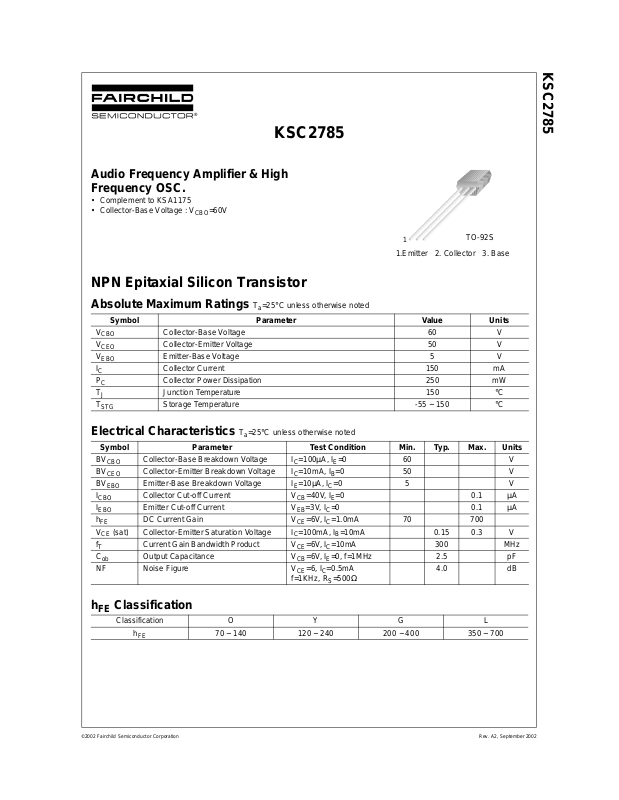

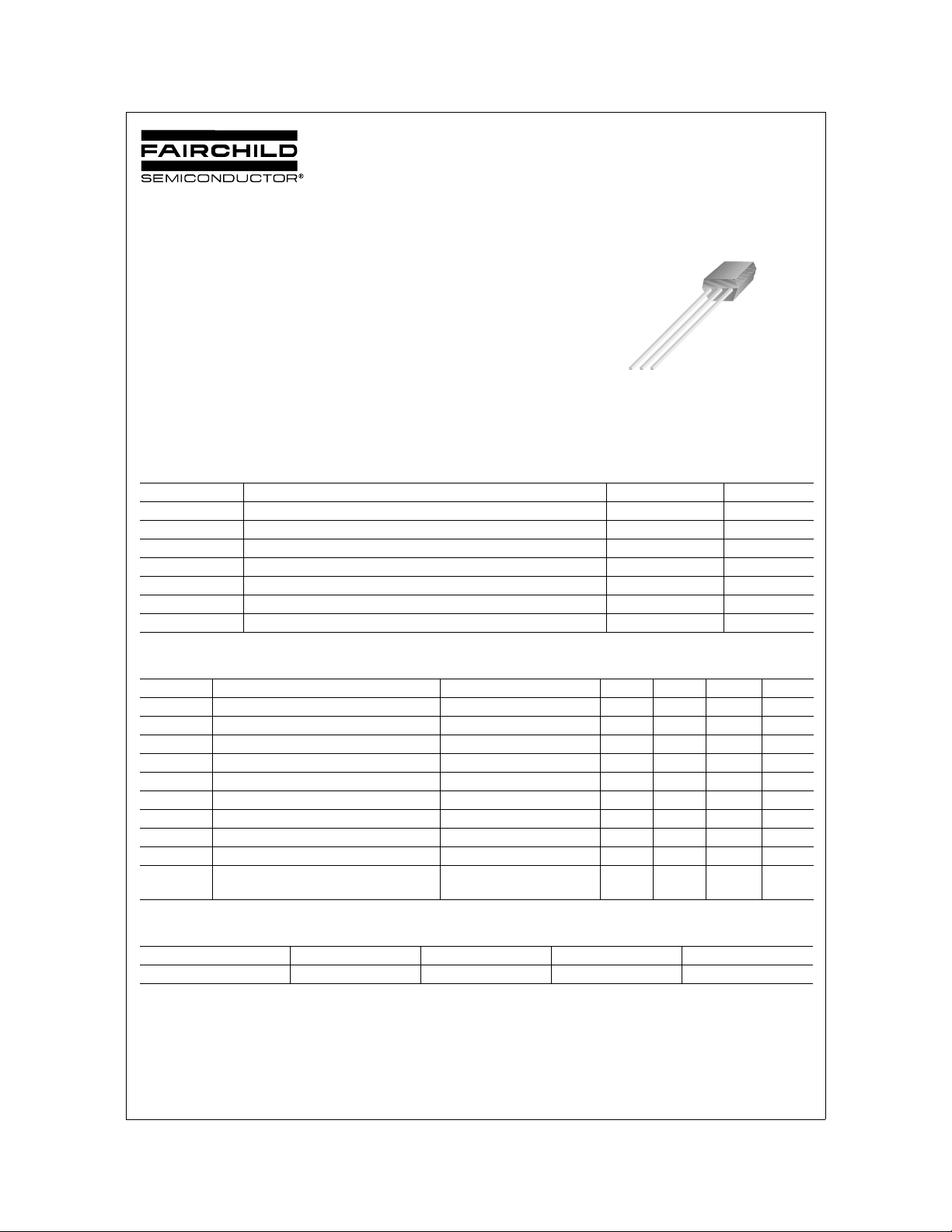

Page 1
KSC2785
Audio Frequency Amplifier & High
Frequency OSC.
• Complement to KSA1175
• Collector-Base Voltage : V
CBO
=60V
KSC2785
1
1.Emitter 2. Collector 3. Base
TO-92S
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings
Symbol Parameter Value Units
V
V
V
I
P
T
T
CBO
CEO
EBO
C
C
J
STG
Collector-Base Voltage 60 V
Collector-Emitter Voltage 50 V
Emitter-Base Voltage 5 V
Collector Current 150 mA
Collector Power Dissipation 250 mW
Junction Temperature 150 °C
Storage Temperature -55 ~ 150 °C
Electrical Characteristics
Symbol Parameter Test Condition Min. Typ. Max. Units
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE
(sat) Collector-Emitter Saturation Voltage IC=100mA, IB=10mA 0.15 0.3 V
V
CE
f
T
C
ob
NF Noise Figure V
Collector-Base Breakdown Voltage IC=100µA, IE=0 60 V
Collector-Emitter Breakdown Voltage IC=10mA, IB=0 50 V
Emitter-Base Breakdown Voltage IE=10µA, IC=0 5 V
Collector Cut-off Current VCB=40V, IE=0 0.1 µA
Emitter Cut-off Current VEB=3V, IC=0 0.1 µA
DC Current Gain VCE=6V, IC=1.0mA 70 700
Current Gain Bandwidth Product VCE=6V, IC=10mA 300 MHz
Output Capacitance VCB=6V, IE=0, f=1MHz 2.5 pF
Ta=25°C unless otherwise noted
Ta=25°C unless otherwise noted
=6, IC=0.5mA
CE
f=1KHz, R
=500Ω
S
4.0 dB
hFE Classification
Classification O Y G L
h
FE
©2002 Fairchild Semiconductor Corporation Rev. A2, September 2002
70 ~ 140 120 ~ 240 200 ~ 400 350 ~ 700
Page 2

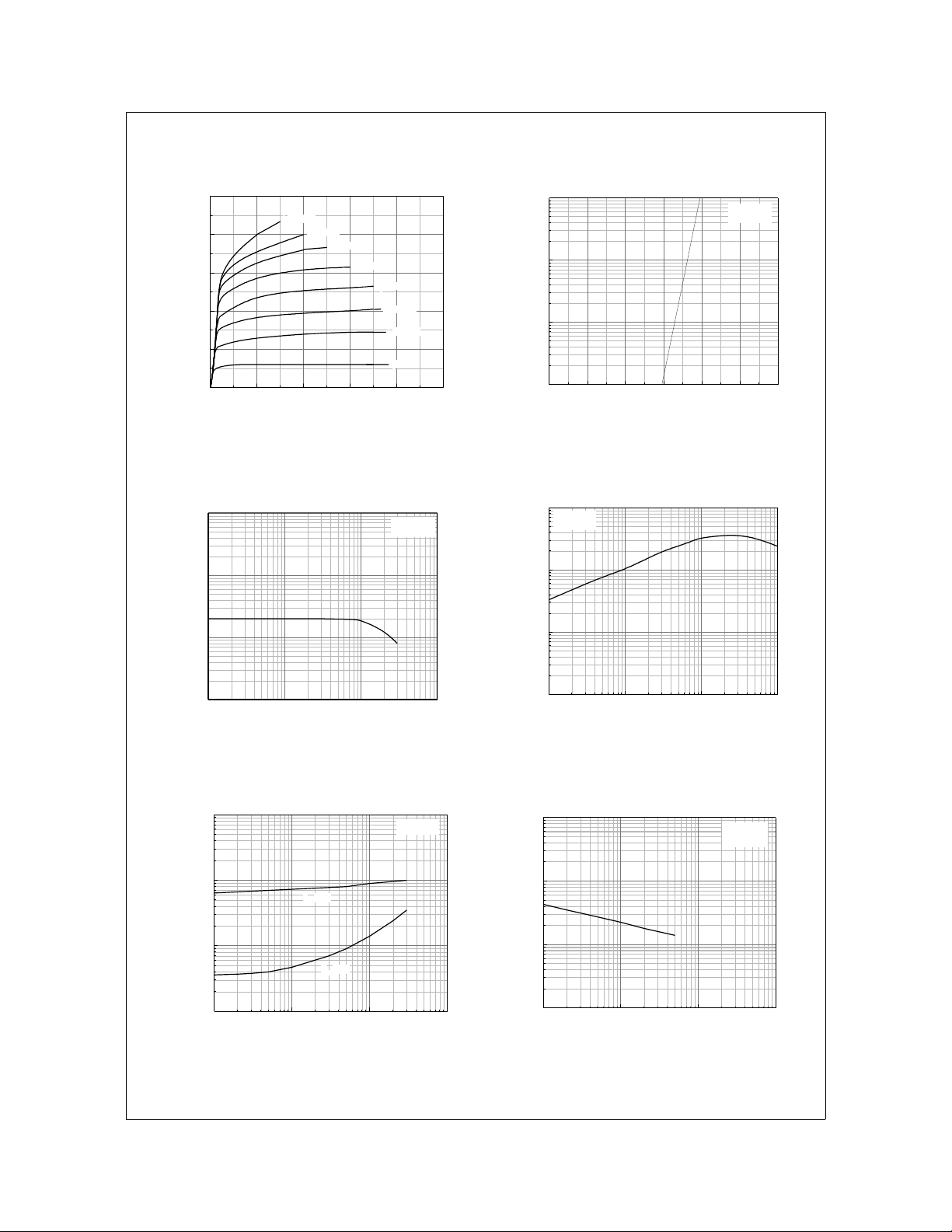

Typical Characteristics
KSC2785
100
IB = 400µA
80
60
40
20
[mA], COLLECTOR CURRENT
C
I
0
048121620
IB = 350µA
IB = 300µA
IB = 250µA
IB = 200µA
IB = 150µA
IB = 100µA
IB = 50µA
VCE[V], COLLECTOR-EMITTER VOLTAGE
Figure 1. Static Characteristics Figure 2. Base-Emitter On Voltage
VCE = 6V
, DC CURRENT GAIN
FE
h
10000
1000
100
100
VCE = 6V
10
1
[mA], COLLECTOR CURRENT
C
I
0.1
0.0 0.2 0.4 0.6 0.8 1.0 1.2
VBE [V], BASE-EMITTER VOLTAGE
1000
VCE = 6V
100
10
10
1 10 100 1000
IC [mA], COLLECTOR CURRENT
Figure 3. DC Current Gain Figure 4. f
10000
1000
100
(sat)[mV], SATURATION VOLTAGE
CE
(sat), V
BE
V
10
1 10 100 1000
Figure 5. Saturation Voltage Figure 6. Output Capacitance
©2002 Fairchild Semiconductor Corporation
VBE (sat)
VCE (sat)
IC [mA], COLLECTOR CURRENT
IC = 10 I
1
0.1 1 10 100
[MHz], CURRENT GAIN BANDWIDTH PRODUCT
T
f
IC [mA], COLLECTOR CURRENT
- I
T
C
B
100
10
1
[pF], OUTPUT CAPACITANCE
ob
C
0.1
1 10 100 1000
f = 1 MHz
I
= 0
E
VCB[V], COLLECTOR-BASE VOLTAGE
Rev. A2, September 2002
Page 3

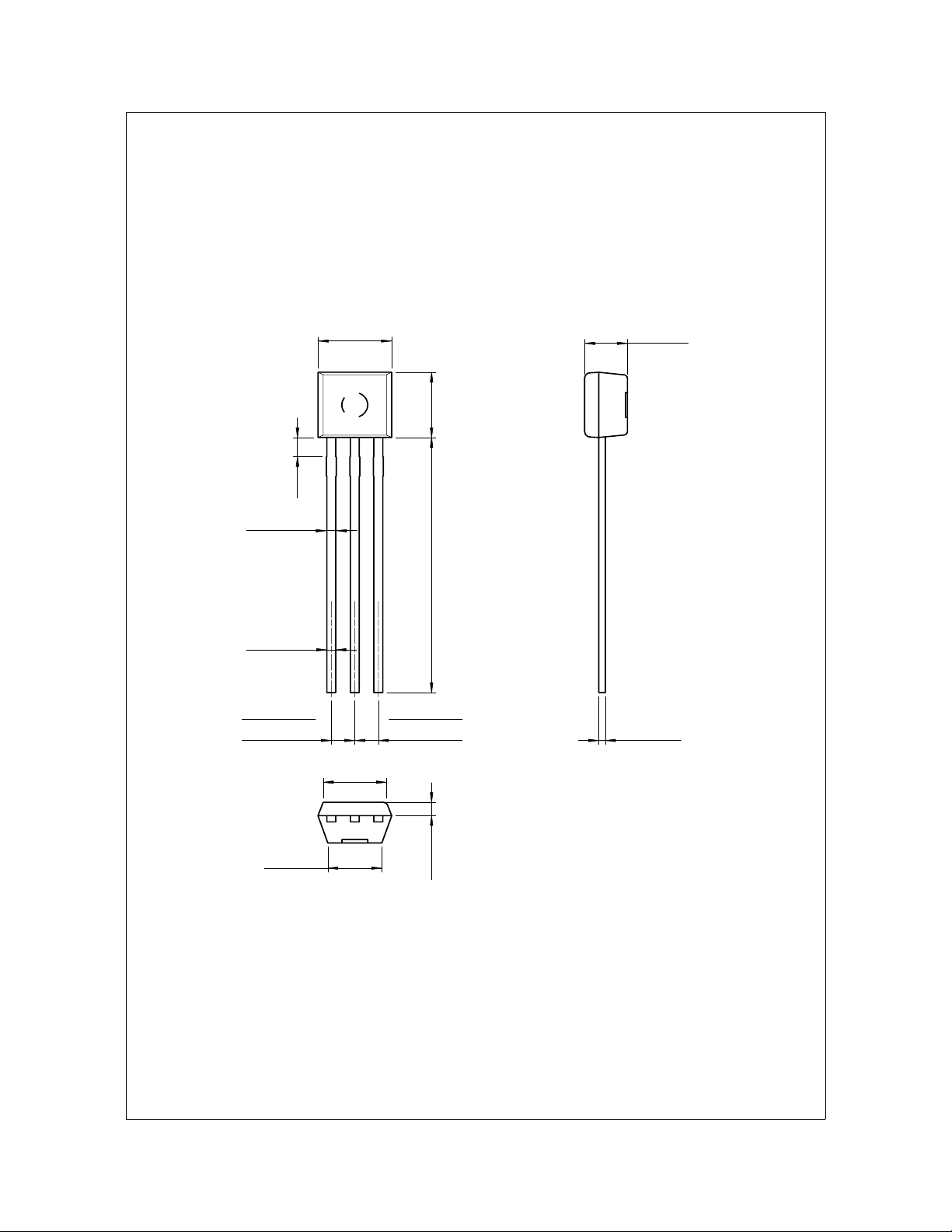

Package Dimensions
4.00
(1.10)
0.66 MAX.
±0.20
TO-92S
±0.20
3.70
±0.30
2.31
KSC2785
±0.20
14.47
0.49
±0.10
1.27TYP
[1.27±0.20] [1.27±0.20]
3.72
2.86
±0.20
1.27TYP
±0.20
±0.10
0.77
0.35
+0.10
–0.05
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation Rev. A2, September 2002
