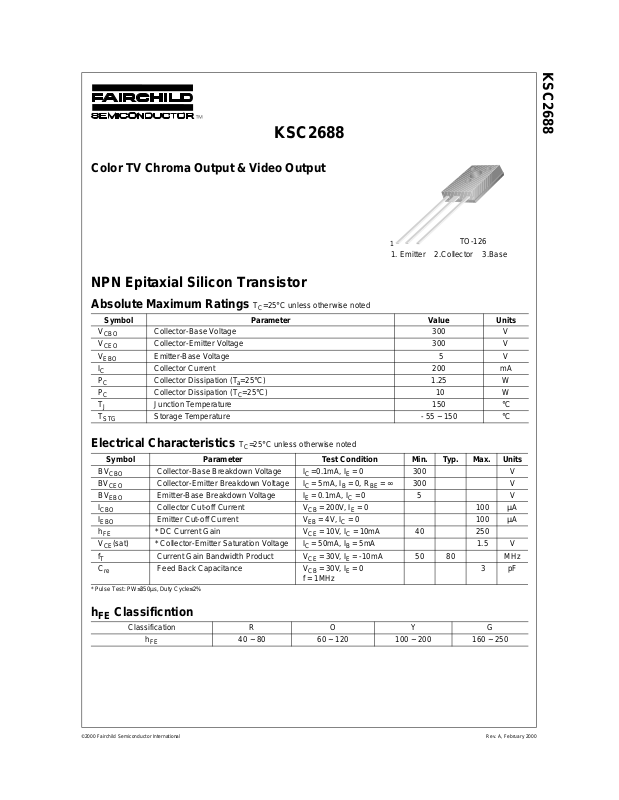

KSC2688
Color TV Chroma Output & Video Output
KSC2688
1
TO-126
1. Emitter 2.Collector 3.Base
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings
Symbol Parameter Value Units
V
CBO
V
CEO
VEBO
IC
PC
PC
T
J
T
STG
Collector-Base Voltage 300 V
Collector-Emitter Voltage 300 V
Emitter-Base Voltage 5 V
Collector Current 200 mA
Collector Dissipation (Ta=25°C) 1.25 W
Collector Dissipation (TC=25°C) 10 W
Junction Temperature 150 °C
Storage T emperature - 55 ~ 150 °C
Electrical Characteristics
Symbol Parameter Test Condition Min. Typ. Max. Units
BV
CBO
BVCEO
BV
EBO
ICBO
I
EBO
h
FE
(sat) * Collector-Emitter Saturation Voltage IC = 50mA, IB = 5mA 1.5 V
V
CE
f
T
C
re
* Pulse Test: PW≤350µs, Duty Cycle≤2%
Collector-Base Breakdown Voltage IC =0.1mA, IE = 0 300 V
Collector-Emitter Breakdown Voltage IC = 5mA, IB = 0, R
Emitter-Base Breakdown Voltage IE = 0.1mA, IC = 0 5 V
Collector Cut-off Current V
Emitter Cut-off Cu rr en t V
* DC Current Gain V
Current Gain Bandwidth Product V
Feed Back Capacitance V
TC=25°C unless otherwise noted
TC=25°C unless otherwise noted
= 200V, IE = 0 100 µA
CB
= 4V, IC = 0 100 µA
EB
= 10V, IC = 10mA 40 250
CE
= 30V, IE = -10mA 50 80 MHz
CE
= 30V, IE = 0
CB
f = 1MHz
= ∞ 300 V
BE
3 pF
hFE Classificntion
Classification R O Y G
h
FE
©2000 Fairchild Semiconductor International Rev. A, February 2000
40 ~ 80 60 ~ 120 100 ~ 200 160 ~ 250
Page 2
Typical Characteristics
KSC2688
100
10
[pF], CAPACITANCE
re
C
1
110100
IE=0
f=1MHz
16
14
12
10
[W], POWER DERATING
P
8
6
4
C
2
0
VCB[V], COLLECTOR-BASE VOLTAGE
Figure 1. Feedback Capacitance Figure 2. Power Derating
2.00
1.75
1.50
1.25
1.00
0.75
0.50
[W], POWER DERATING
C
P
0.25
0.00
0 25 50 75 100 125 150 175
Ta[oC], AMBIENT TEMPERATURE
0 25 50 75 100 125 150 175
TC[oC], CASE TEMPERATURE
Figure 3. Power Derating
©2000 Fairchild Semiconductor International
Rev. A, February 2000
Page 3
Package Demensions
KSC2688
TO-126
ø3.20
0.75
1.60
0.75
2.28TYP
[2.28±0.20]
±0.10
3.90
±0.10
±0.10
±0.10
±0.10
8.00
#1
±0.30
2.28TYP
[2.28±0.20]
14.20MAX
±0.30
13.06
±0.20
11.00
(1.00)
±0.20
16.10
0.50
3.25
(0.50)
1.75
+0.10
–0.05
±0.20
±0.20
Dimensions in Millimeters
