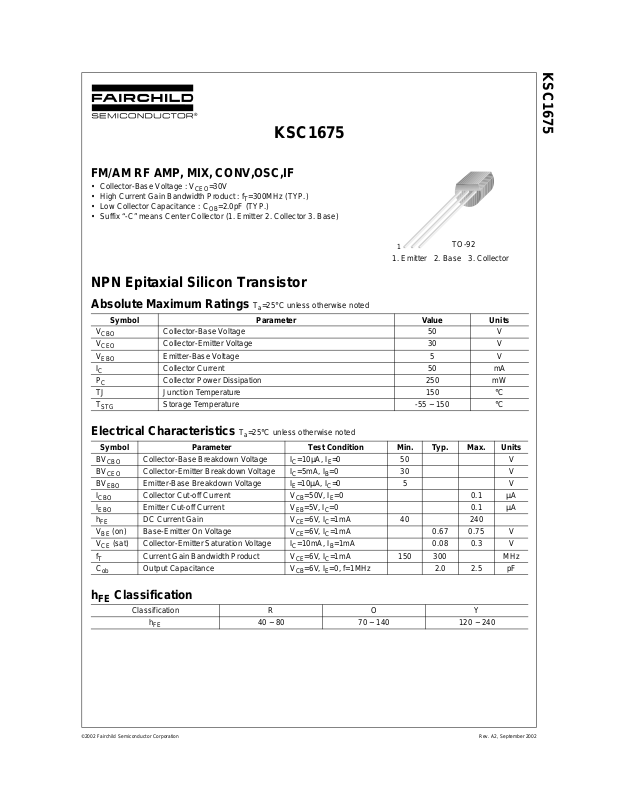

KSC1675
FM/AM RF AMP, MIX, CONV,OSC,IF
• Collector-Base Voltage : V
• High Current Gain Bandwidth Product : f
• Low Collector Capacitance : C
• Suffix “-C” means Center Collector (1. Emitter 2. Collector 3. Base)
CEO
=30V
OB
=300MHz (TYP.)
T
=2.0pF (TYP.)
KSC1675
1
1. Emitter 2. Base 3. Collector
TO-92
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings
Symbol Parameter Value Units
V
CBO
V
CEO
V
EBO
I
C
P
C
TJ Junction Temperature 150 °C
T
STG
Collector-Base Voltage 50 V
Collector-Emitter Voltage 30 V
Emitter-Base Voltage 5 V
Collector Current 50 mA
Collector Power Dissipation 250 mW
Storage Temperature -55 ~ 150 °C
Electrical Characteristics
Symbol Parameter Tes t Condition Min. Typ. Max. Units
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE
(on) Base-Emitter On Voltage VCE=6V, IC=1mA 0.67 0.75 V
V
BE
(sat) Collector-Emitter Saturation Voltage IC=10mA, IB=1mA 0.08 0.3 V
V
CE
f
T
C
ob
Collector-Base Breakdown Voltage IC=10µA, IE=0 50 V
Collector-Emitter Breakdown Voltage IC=5mA, IB=0 30 V
Emitter-Base Breakdown Voltage IE=10µA, IC=0 5 V
Collector Cut-off Current VCB=50V, IE=0 0.1 µA
Emitter Cut-off Current VEB=5V, IC=0 0.1 µA
DC Current Gain VCE=6V, IC=1mA 40 240
Current Gain Bandwidth Product VCE=6V, IC=1mA 150 300 MHz
Output Capacitance VCB=6V, IE=0, f=1MHz 2.0 2.5 pF
Ta=25°C unless otherwise noted
Ta=25°C unless otherwise noted
hFE Classification
Classification R O Y
h
FE
©2002 Fairchild Semiconductor Corporation Rev. A2, September 2002
40 ~ 80 70 ~ 140 120 ~ 240
Page 2

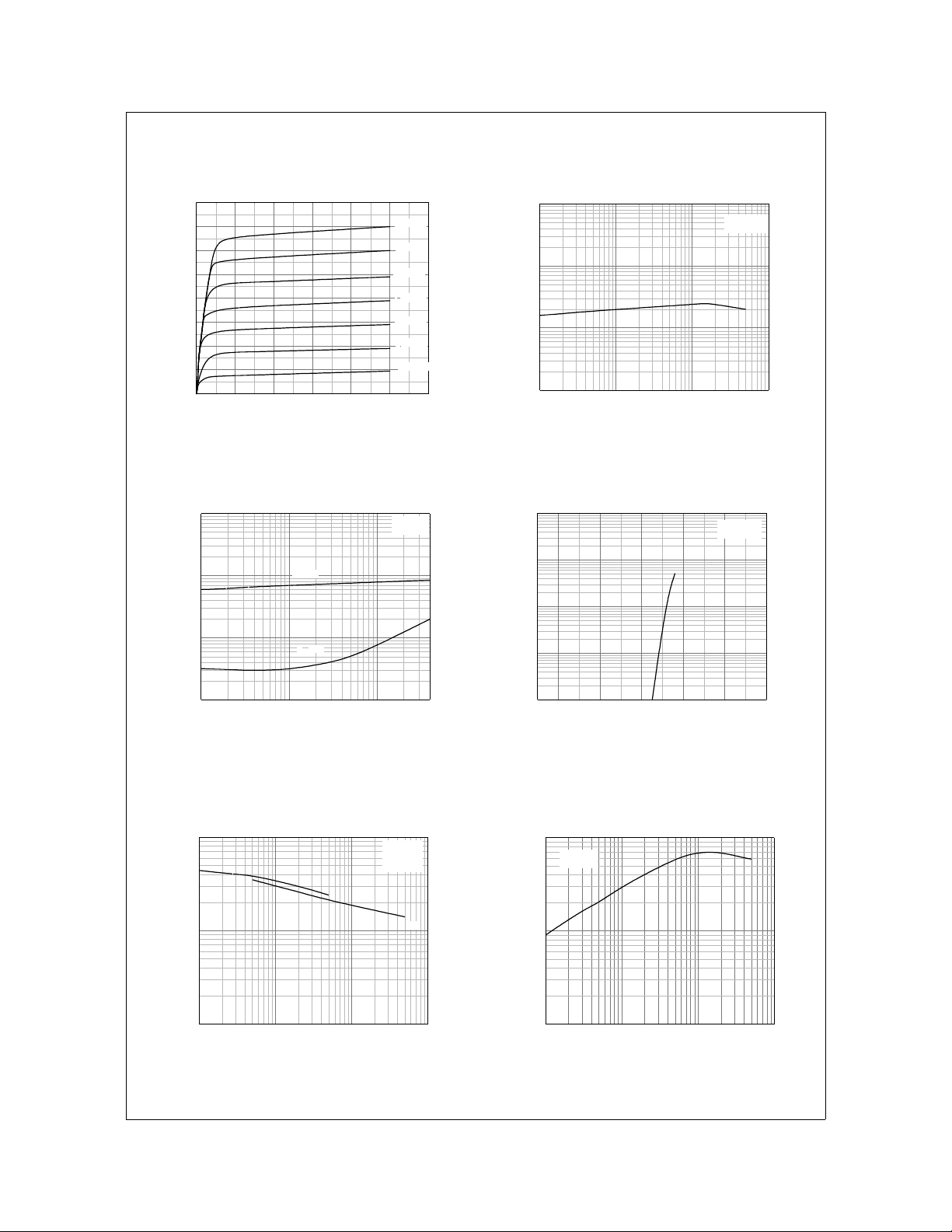

Typical Characteristics
KSC1675
16
14
12
10
8
6
4
[mA], COLLECTOR CURRENT
C
I
2
0
0 4 8 12 16 20 24
VCE[V], COLLECTOR-EMITTER VOLT A G E
IB = 70µA
IB = 60µA
IB = 50µA
IB = 40µA
IB = 30µA
IB = 20µA
IB = 10µA
10000
1000
100
, DC CURRENT GAIN
FE
h
10
0.1 1 10 100
IC[mA], COLLECTOR CURRENT
Figure 1. Static Charactersitic Figure 2. DC current Gain
10
1
0.1
(sat)[V], SATURATION VOLTAGE
CE
(sat), V
BE
0.01
V
0.1 1 10
VBE(sat)
VCE(sat)
IC[mA], COLLECTOR CURRENT
IC=10I
B
1000
100
10
1
[mA], COLLECTOR CURRENT
C
I
0.1
0.2 0.4 0.6 0.8 1.0 1.2
VBE(V),BASE-EMITTER VOLTAGE
VCE = 6V
VCE = 6V
Figure 3. Base-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
10
1
[pF], CAPACITANCE
ob
C
0.1
0.1 1 10 100
VCB[V], COLLECTOR-BASE VOLTAGE
Figure 5. Input Output Capacitance Figure 6. Current Gain Bandwidth Product
©2002 Fairchild Semiconductor Corporation
Figure 4. Base-Emitter On Voltage
f=1MHz
=0
I
E
Cib
Cob
1000
VCE=6V
100
[MHz],
T
f
10
CURRENT GAIN-BAND WIDTH PROD UCT
0.1 1 10 100
IC[mA], COLLECTOR CURRENT
Rev. A2, September 2002
Page 3
Package Dimensions
0.46
±0.10
4.58
+0.25
–0.15
KSC1675
TO-92
±0.20
4.58
±0.40
1.27TYP
[1.27
±0.20
3.86MAX
±0.10
1.02
+0.10
–0.05
0.38
14.47
1.27TYP
]
3.60
±0.20
[1.27
±0.20
]
0.38
+0.10
–0.05
(0.25)
(R2.29)
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation Rev. A2, September 2002
