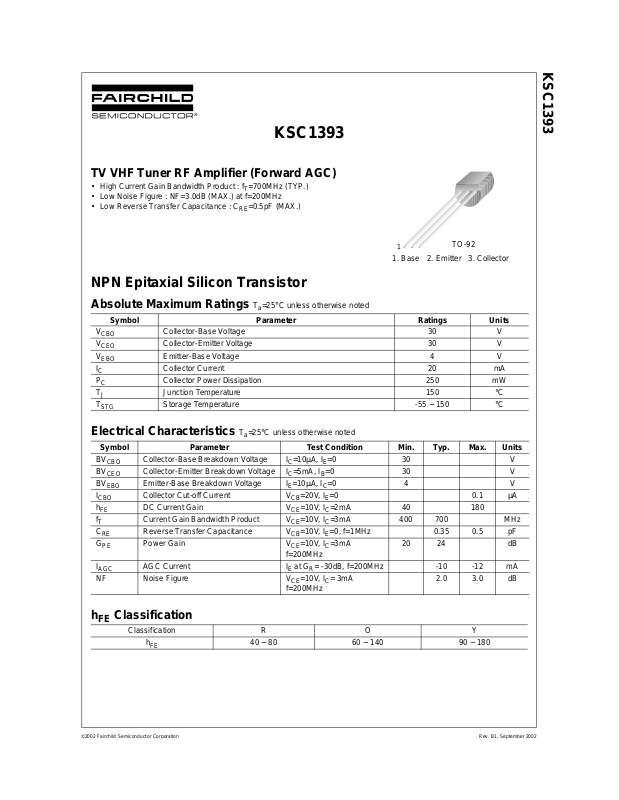

KSC1393
TV VHF Tuner RF Amplifier (Forward AGC)
• High Current Gain Bandwidth Product : fT=700MHz (TYP.)
• Low Noise Figure : NF=3.0dB (MAX.) at f=200MHz
• Low Reverse Transfer Capacitance : C
=0.5pF (MAX.)
RE
KSC1393
1
1. Base 2. Emitter 3. Collector
TO-92
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings
Symbol Parameter Ratings Units
V
V
V
I
P
T
T
CBO
CEO
EBO
C
C
J
STG
Collector-Base Voltage 30 V
Collector-Emitter Voltage 30 V
Emitter-Base Voltage 4 V
Collector Current 20 mA
Collector Power Dissipation 250 mW
Junction Temperature 150 °C
Storage Temperature -55 ~ 150 °C
Electrical Characteristics
Symbol Parameter Test Condition Min. Typ. Max. Units
BV
CBO
BV
CEO
BV
EBO
I
CBO
DC Current Gain VCE=10V, IC=2mA 40 180
h
FE
f
T
C
RE
G
PE
I
AGC
NF Noise Figure V
Collector-Base Breakdown Voltage IC=10µA, IE=0 30 V
Collector-Emitter Breakdown Voltage IC=5mA, IB=0 30 V
Emitter-Base Breakdown Voltage IE=10µA, IC=0 4 V
Collector Cut-off Current VCB=20V, IE=0 0.1 µA
Current Gain Bandwidth Product VCE=10V, IC=3mA 400 700 MHz
Reverse Transfer Capacitance VCB=10V, IE=0, f=1MHz 0.35 0.5 pF
Power Gain VCE=10V, IC=3mA
AGC Current IE at GR= -30dB, f=200MHz -10 -12 mA
Ta=25°C unless otherwise noted
Ta=25°C unless otherwise noted
f=200MHz
=10V, IC= 3mA
CE
f=200MHz
20 24 dB
2.0 3.0 dB
hFE Classification
Classification R O Y
h
FE
©2002 Fairchild Semiconductor Corporation Rev. B1, September 2002
40 ~ 80 60 ~ 140 90 ~ 180
Page 2
Typical Characteristics
KSC1393
10
9
8
7
6
5
4
3
2
[mA], COLLECTOR CURRENT
C
I
1
0
012345678910
IB = 200µA
VCE[V], COLLECTOR-EMITTER VOLTAGE
IB = 180µA
IB = 160µA
IB = 140µA
IB = 120µA
IB = 100µA
IB = 80µA
IB = 60µA
IB = 40µA
IB = 20µA
100
, DC CURRENT GAIN
FE
h
10
0.1 1 10
IC[mA], COLLECTOR CURRENT
Figure 1. Static Characteristic Figure 2. DC current Gain
10
1
0.1
(sat)[V], SATURATION VOLTAGE
CE
VBE(sat)
VCE(sat)
IC=10I
B
10
1
[pF], CAPACITANCE
re
C
VCE = 2V
f=1MHz
I
=0
E
(sat), V
BE
0.01
V
0.1 1 10
IC[mA], COLLECTOR CURRENT
Figure 3. Base-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
10000
1000
[MHz],
T
f
100
10
CURRENT GAIN-BANDWIDTH PRODUC T
0.1 1 10 100
IC[mA], COLLECTOR CURRENT
Figure 5. Current Gain Bandwidth Product
©2002 Fairchild Semiconductor Corporation
0.1
1 100
VCB[V], COL LECTOR-BASE VOLTAGE
Figure 4. Reverse Capacitance
VCE = 10V
Rev. B1, September 2002
Page 3
Package Dimensions
0.46
±0.10
4.58
+0.25
–0.15
KSC1393
TO-92
±0.20
4.58
±0.40
1.27TYP
[1.27
±0.20
3.86MAX
±0.10
1.02
+0.10
–0.05
0.38
14.47
1.27TYP
]
3.60
±0.20
[1.27
±0.20
]
0.38
+0.10
–0.05
(0.25)
(R2.29)
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation Rev. B1, September 2002
