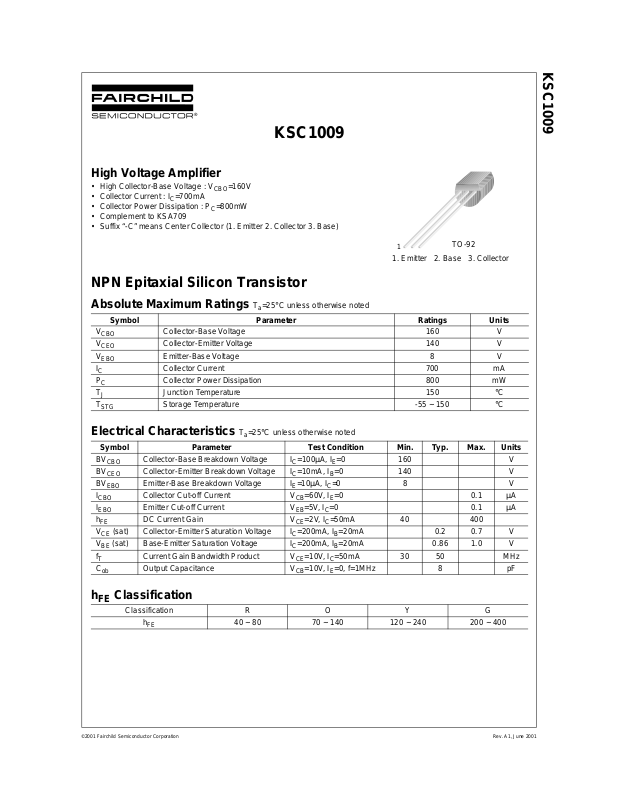

Page 1
KSC1009
High Voltage Amplifier
• High Collector-Base Voltage : V
• Collector Current : I
=700mA
C
• Collector Power Dissipation : P
• Complement to KSA709
• Suffix “-C” means Center Collector (1. Emitter 2. Collector 3. Base)
=160V
CBO
=800mW
C
KSC1009
1
TO-92
1. Emitter 2. Base 3. Collector
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings
Symbol Parameter Ratings Units
V
V
V
I
P
T
T
CBO
CEO
EBO
C
C
J
STG
Collector-Base Voltage 160 V
Collector-Emitter Voltage 140 V
Emitter-Base Voltage 8 V
Collector Current 700 mA
Collector Power Dissipation 800 mW
Junction Temperature 150 °C
Storage Temperature -55 ~ 150 °C
Electrical Characteristics
Symbol Parameter Tes t Condition Min. Typ. Max. Units
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE
(sat) Collector-Emitter Saturation Voltage IC=200mA, IB=20mA 0.2 0. 7 V
V
CE
(sat) Base-Emitter Saturation Voltage IC=200mA, IB=20mA 0.86 1.0 V
V
BE
f
T
C
ob
Collector-Base Breakdown Voltage IC=100µA, IE=0 160 V
Collector-Emitter Breakdown Voltage IC=10mA, IB=0 140 V
Emitter-Base Breakdown Voltage IE=10µA, IC=0 8 V
Collector Cut-off Current VCB=60V, IE=0 0.1 µA
Emitter Cut-off Current VEB=5V, IC=0 0.1 µA
DC Current Gain VCE=2V, IC=50mA 40 400
Current Gain Bandwidth Product VCE=10V, IC=50mA 30 50 MHz
Output Capacitance VCB=10V, IE=0, f=1MHz 8 pF
Ta=25°C unless otherwise noted
Ta=25°C unless otherwise noted
hFE Classification
Classification R O Y G
h
FE
©2001 Fairchild Semiconductor Corporation Rev. A1, June 2001
40 ~ 80 70 ~ 140 120 ~ 240 200 ~ 400
Page 2
Typical Characteristics
KSC1009
100
90
80
70
60
50
40
30
20
[mA], COLLECTOR CURRENT
C
I
10
0
0246810
VCE[V], COLLECTOR-EMITTER VOLTAGE
IB=0.8mA
IB=0.6mA
IB=0.4mA
IB=0.2mA
1000
100
10
, DC CURRENT GAIN
FE
h
1
1 10 100 1000
IC[mA], COLLECTOR CURRENT
Figure 1. Static Characteristic Figure 2. DC current Gain
VBE(sat)
VCE(sat)
IC=10I
1000
B
100
10
[mA], COLLECTOR CURRENT
C
I
1
0.0 0.2 0.4 0.6 0.8 1.0 1.2
VBE[V], BASE-EMITTER VOLTAGE
10
1
0.1
(sat)[V], SATURATION VOLTAGE
CE
(sat), V
0.01
BE
V
1 10 100 1000
IC[mA], COLLECTOR CURRENT
VCE = 5V
VCE=2V
Figure 3. Base-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
100
10
[pF],CAPACTIANCE
ob
C
1
110100
VCB[V], COLLECTOR-BASE VOLTAGE
Figure 5. Collector Output Capacitance
©2001 Fairchild Semiconductor Corporation
Figure 4. Base-Emitter On Voltage
f=1MHz
I
=0
E
Rev. A1, June 2001
Page 3
Package Demensions
4.58
0.46
±0.10
+0.25
–0.15
K
SC1009
TO-92
±0.20
4.58
±0.40
1.27TYP
[1.27
±0.20
3.86MAX
±0.10
1.02
+0.10
–0.05
0.38
14.47
1.27TYP
]
3.60
±0.20
[1.27
±0.20
]
0.38
+0.10
–0.05
(0.25)
(R2.29)
Dimensions in Millimeters
©2001 Fairchild Semiconductor Corporation Rev. A1, June 2001
