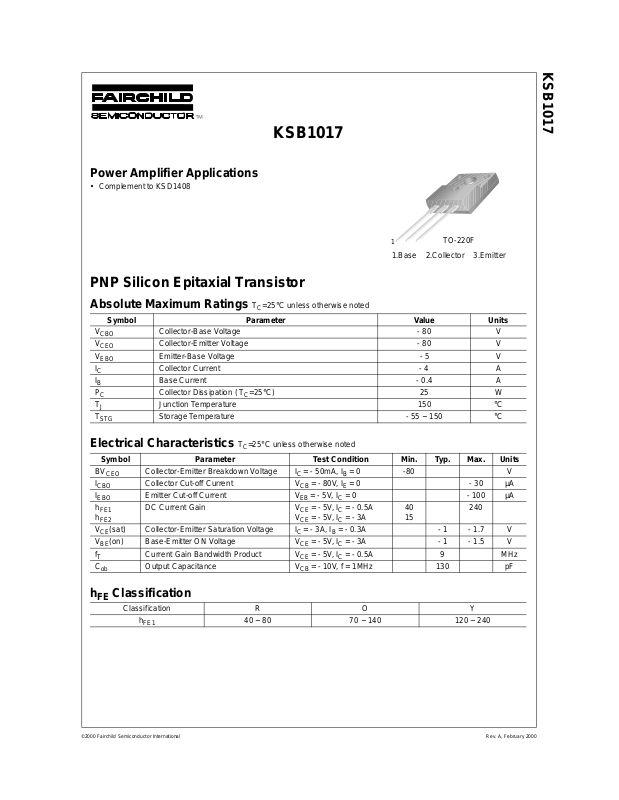

Page 1
Power Amplifier Applications
• Complement to KSD1408
KSB1017
KSB1017
1
TO-220F
1.Base 2.Collector 3.Emitter
PNP Silicon Epitaxial Transistor
Absolute Maximum Ratings
Symbol Parameter Value Units
V
V
V
I
I
P
T
T
CBO
CEO
EBO
C
B
C
J
STG
Collector-Base Voltage - 80 V
Collector-Emitter Voltage - 80 V
Emitter-Base Voltage - 5 V
Collector Current - 4 A
Base Current - 0.4 A
Collector Dissipation ( TC=25°C) 25 W
Junction Temperature 150 °C
Storage Temperature - 55 ~ 150 °C
Electrical Characteristics
Symbol Parameter Tes t Condition Min. Typ. Max. Units
BV
Collector-Emitter Breakdown Voltage IC = - 50mA, IB = 0 -80 V
CEO
I
CBO
I
EBO
h
FE1
h
FE2
(sat) Collector-Emitter Saturat ion Voltage IC = - 3A, IB = - 0.3A - 1 - 1.7 V
V
CE
(on) Base-Emitter ON Voltage V
V
BE
f
T
C
ob
Collector Cut-off Current V
Emitter Cut-off Current V
DC Current Gain V
Current Gain Bandwidth Product V
Output Capacitance V
TC=25°C unless otherwise noted
TC=25°C unless otherwise noted
= - 80V, IE = 0 - 30 µA
CB
= - 5V, IC = 0 - 100 µA
EB
= - 5V, IC = - 0.5A
CE
V
= - 5V, IC = - 3A
CE
= - 5V, IC = - 3A - 1 - 1.5 V
CE
= - 5V, IC = - 0.5A 9 MHz
CE
= - 10V, f = 1MHz 130 pF
CB
40
15
240
h
Classification
FE
Classification R O Y
h
FE1
©2000 Fairchild Semiconductor International Rev. A, February 2000
40 ~ 80 70 ~ 140 120 ~ 240
Page 2
Typical Characteristics
KSB1017
-4.0
-3.2
-2.4
-1.6
[A], COLLECTOR CURRENT
-0.8
C
I
-0.0
-0 -1 -2 -3 -4 -5
IB = -160mA
IB = -140mA
IB = -180mA
IB = -120mA
IB = -100mA
IB = 0A
VCE[V], COLLECTOR-EMITTER VOLTAGE
Figure 1. Static Characteristic Figure 2. DC current Gain
-10
-1
-0.1
(sat)[V], SATURATION VOLTAGE
CE
V
-0.01
-1E-3 -0. 01 -0.1 -1 -10
IC[A], COLLECTOR CURRENT
IB = -80mA
IB = -60mA
IB = -40mA
IB = -20mA
IC=10I
1000
VCE = -5V
100
10
, DC CURRENT GAIN
FE
h
1
-1E-3 -0.01 -0.1 -1 -10
IC[A], COLLECTOR CURRENT
B
-4
-3
-2
-1
[A], COLLECTOR CURRENT
C
I
-0
-0.0 -0.2 -0.4 -0.6 -0.8 -1.0 -1.2 -1.4 -1.6
VCE = -5V
VBE[V], BASE-EMITTER VOLTAGE
Figure 3. Collector-Emitter Saturation Voltage Figure 4. Base-Emitter On Voltage
-100
IC(max). (Pulse)
-10
IC(max). (DC)
-1
[A], COLLECTOR CURRENT
C
I
-0.1
-1 -10 -100 -1000
VCE[V], COLLECTOR-EMITTER V OLT AGE
Figure 5. Safe Operating Area Figure 6. Power Derating
©2000 Fairchild Semiconductor International
1
m
s
100
10ms
m
s
1s
DC
MAX.
CEO
V
40
35
30
25
20
15
10
[W], POWER DISSIPATION
D
P
5
0
0 25 50 75 100 125 150 175 200
TC[oC], CASE TEMPERATURE
Rev. A, February 2000
Page 3
Package Demensions
±0.10
3.30
±0.20
15.80
10.16
(7.00)
TO-220F
±0.20
ø3.18
±0.10
±0.20
6.68
(1.00x45°)
2.54
(0.70)
KSB1017
±0.20
±0.20
15.87
±0.30
9.75
MAX1.47
0.80
0.35
2.54TYP
±0.20
[2.54
±0.10
±0.10
(30°)
#1
0.50
+0.10
–0.05
2.76
±0.20
2.54TYP
]
9.40
±0.20
[2.54
±0.20
±0.20
]
4.70
Dimensions in Millimeters
©2000 Fairchild Semiconductor International Rev. A, February 2000
