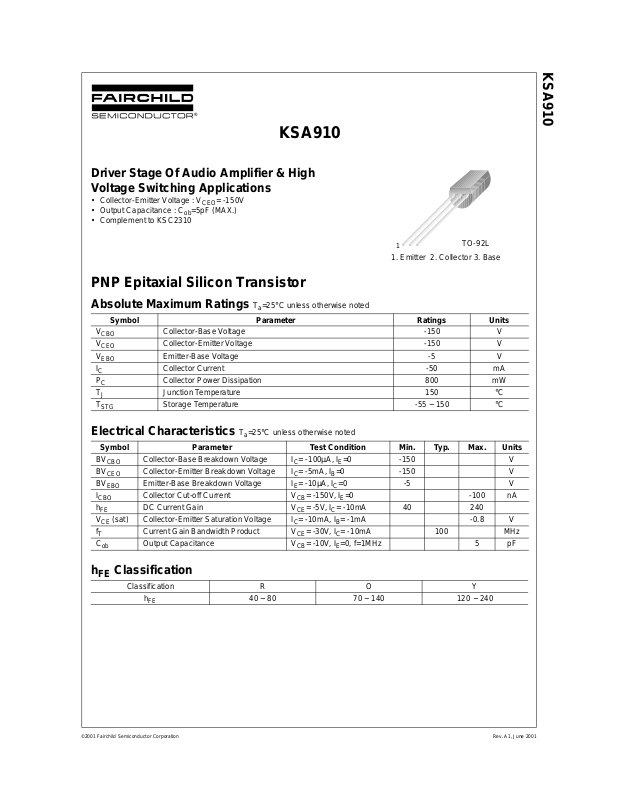

KSA910

Driver Stage Of Audio Amplifier & High Voltage Switching Applications

• Collector-Emitter Voltage : V

• Output Capacitance : C

• Complement to KSC2310

= -150V

CEO

=5pF (MAX.)

KSA910

1. Emitter 2. Collector 3. Base

TO-92L

PNP Epitaxial Silicon Transistor

Absolute Maximum Ratings

Symbol Parameter Ratings Units

V V V I P T T

CBO CEO EBO

C J STG

Collector-Base Voltage -150 V Collector-Emitter Voltage -150 V Emitter-Base Voltage -5 V Collector Current -50 mA Collector Power Dissipation 800 mW Junction Temperature 150 °C Storage Temperature -55 ~ 150 °C

Electrical Characteristics

Symbol Parameter Test Condition Min. Typ. Max. Units

CBO

CEO

EBO

CBO

(sat) Collector-Emitter Saturation Voltage IC= -10mA, IB= -1mA -0.8 V

Collector-Base Breakdown Voltage IC= -100µA, IE=0 -150 V Collector-Emitter Breakdown Voltage IC= -5mA, IB=0 - 150 V Emitter-Base Breakdown Voltage IE= -10µA, IC=0 -5 V Collector Cut-off Current VCB= -150V, IE=0 -100 nA DC Current Gain VCE= -5V, IC= -10mA 40 240

Current Gain Bandwidth Product VCE= -30V, IC= -10mA 100 MHz Output Capacitance VCB= -10V, IE=0, f=1MHz 5 pF

Ta=25°C unless otherwise noted

hFE Classification

Classification R O Y

40 ~ 80 70 ~ 140 120 ~ 240

Page 2

Typical Characteristics

KSA910

-70

-65

-60

-55

-50

-45

-40

-35

-30

-25

-20

-15

[mA], COLLECTOR CURRENT

-10

-5 0

0-1-2-3-4-5-6-7-8-9-10-11-12-13-14

VCE[V], COLLECTOR-EMITTER VOLTAGE

Figure 1. Static Characteristic Figure 2. DC current Gain

-10

-1

-0.1

(sat)[V], SATURATION VOLTAGE

(sat), V

-0.01 1 10 100 1000

IC[mA], COLLECTOR CURRENT

VBE(sat)

VCE(sat)

IB = -600µA

IB = -500µA

IB = -400µA

IB = -300µA

IB = -200µA

IB = -100µA

IC = 10 I

1000

VCE = -5V

100

, DC CURRENT GAIN

-0.1 -1 -10 -100

IC[mA], COLLECTOR CURRENT

-80

-70

-60

-50

-40

-30

-20

[mA], COLLECTOR CURRENT

-10

0.0 -0.2 -0.4 -0.6 -0.8 -1.0 -1.2 -1.4

VCE = -5V

VBE[V], BASE-EMITTER VOLTAGE

Figure 3. Collector-Emitter Saturation Voltage

Base-Emitter Saturation Voltage

-1000

-100

-10

[mA], COLLECTOR CURRENT

-1

-1 -10 -100 -1000

VCE[V], COLLECTOR-EMITTER VOLTAGE

Figure 5. Safe Operating Area Figure 6. Power Derating

Figure 4. Base-Emitter On Voltage

100ms

1.0

0.8

0.6

0.4

[W], POWER DISSIPATIO N

0.2

0.0 0 25 50 75 100 125 150 175

Ta[oC], AMBIENT TEMPERATURE

Rev. A1, June 2001

Page 3

Package Demensions

±0.20

8.00

±0.20

±0.10

1.70

±0.40

1.00

4.90

±0.20

TO-92L

0.70MAX.

0.80

±0.10

1.00MAX.

KSA910

13.50

0.50

±0.20

3.90

±0.10

±0.20

1.45

3.90

±0.20

1.27TYP

[1.27

2.54 TYP

±0.10

0.45

±0.20

]

±0.10

0.45

Dimensions in Millimeters
