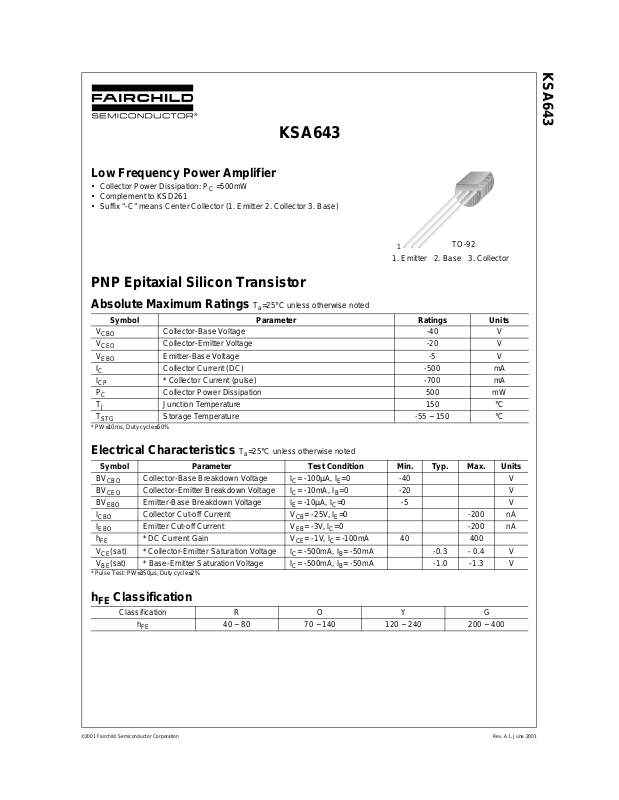

KSA643
Low Frequency Power Amplifier
• Collector Power Dissipation: PC =500mW
• Complement to KSD261
• Suffix “-C” means Center Collector (1. Emitter 2. Collector 3. Base)
KSA643
1
1. Emitter 2. Base 3. Collector
TO-92
PNP Epitaxial Silicon Transistor
Absolute Maximum Ratings
Symbol Parameter Ratings Units
V
Collector-Base Voltage -40 V
CBO
Collector-Emitter Voltage -20 V
V
CEO
V
EBO
I
C
I
CP
P
C
T
J
T
STG
* PW≤10ms, Duty cycle≤50%
Emitter-Base Voltage -5 V
Collector Current (DC) -500 mA
* Collector Current (pulse) -700 mA
Collector Power Dissipation 500 mW
Junction Temperature 150 °C
Storage Temperature -55 ~ 150 °C
Electrical Characteristics
Symbol Parameter Tes t Condition Min. Typ. Max. Units
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE
(sat) * Collector-Emitter Saturation Voltage IC= -500mA, IB= -50mA -0.3 - 0.4 V
V
CE
(sat) * Base-Emitter Saturation Voltage IC= -500mA, IB= -50mA -1.0 -1.3 V
V
BE
* Pulse Test: PW≤350µs, Duty cycle≤2%
Collector-Base Breakdown Voltage IC= -100µA, IE=0 -40 V
Collector-Emitter Breakdown Voltage IC= -10mA, IB=0 -20 V
Emitter-Base Breakdown Voltage IE= -10µA, IC=0 -5 V
Collector Cut-off Current VCB= -25V , IE=0 -200 nA
Emitter Cut-off Current VEB= -3V, lC=0 -200 nA
* DC Current Gain VCE= -1V, IC= -100mA 40 400
Ta=25°C unless otherwise noted
Ta=25°C unless otherwise noted
h
Classification
FE
Classification R O Y G
h
FE
©2001 Fairchild Semiconductor Corporation Rev. A1, June 2001
40 ~ 80 70 ~ 140 120 ~ 240 200 ~ 400
Page 2
Typical Characteristics
KSA643
-500
-450
-400
-350
-300
-250
-200
-150
-100
[mA], COLLECTOR CURRENT
C
I
-50
0
0 -2 -4 -6 -8 -10 -12 -14 -16 -18 -20
IB = -1.6mA
IB = -1.4mA
IB = -1.2mA
IB = -1.0mA
IB = -0.8mA
IB = -0.6mA
IB = -0.4mA
VCE[V], COLLECTOR-EMITTER VOLTAGE
Figure 1. Static Characteristic Figure 2. DC current Gain
-10
-1
-0.1
(sat)[V], SATURATION VOLTAGE
CE
(sat), V
BE
V
-0.01
-1 -10 -100 -1000
IC[mA], COLLECTOR CURRENT
VBE(sat)
VCE(sat)
IB = -0.2mA
IC = 10 I
1000
VCE = -1V
100
, DC CURRENT GAIN
FE
h
10
-1 -10 -100 -1000
IC[mA], COLLECTOR CURRENT
B
-1000
-100
-10
[mA], COLLECTOR CURRENT
C
I
-1
0.0 -0.2 -0.4 -0.6 -0.8 -1.0 -1.2
VCE = -1V
VBE[V], BASE-EMITTER VOLTAGE
Figure 3. Base-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
100
10
[pF], CAPACITANCE
ob
C
1
-1
-1 -10
VCB [V], COLLECTOR-BASE VOLTAGE
Figure 5. Collector Output Capacitance
©2001 Fairchild Semiconductor Corporation
Figure 4. Base-Emitter On Voltage
IE = 0
f = 100KHz
Rev. A1, June 2001
Page 3
Package Demensions
4.58
0.46
±0.10
+0.25
–0.15
KSA643
TO-92
±0.20
4.58
±0.40
1.27TYP
[1.27
±0.20
3.86MAX
±0.10
1.02
+0.10
–0.05
0.38
14.47
1.27TYP
]
3.60
±0.20
[1.27
±0.20
]
0.38
+0.10
–0.05
(0.25)
(R2.29)
Dimensions in Millimeters
©2001 Fairchild Semiconductor Corporation Rev. A1, June 2001
