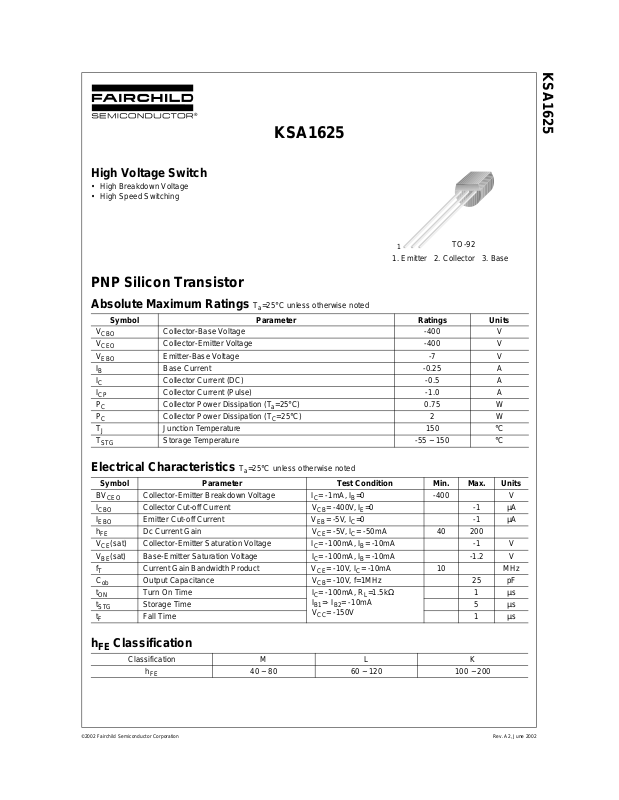

High Voltage Switch
• High Breakdown Voltage
• High Speed Switching
KSA1625
KSA1625
1
1. Emitter 2. Collector 3. Base
TO-92
PNP Silicon Transistor
Absolute Maximum Ratings
Symbol Parameter Ratings Units
V
CBO
V
CEO
V
EBO
I
B
I
C
I
Collector Current (Pulse) -1.0 A
CP
P
C
Collector Power Dissipation (TC=25°C) 2 W
P
C
T
J
T
STG
Collector-Base Voltage -400 V
Collector-Emitter Voltage -400 V
Emitter-Base Voltage -7 V
Base Current -0.25 A
Collector Current (DC) -0.5 A
Collector Power Dissipation (Ta=25°C) 0.75 W
Junction Temperature 150 °C
Storage Temperature -55 ~ 150 °C
Electrical Characteristics
Symbol Parameter Test Condition Min. Max. Units
BV
CEO
I
CBO
I
EBO
Dc Current Gain VCE= -5V, IC= -50mA 40 200
h
FE
(sat) Collector-Emitter Saturation Voltage IC= -100mA, IB= -10mA -1 V
V
CE
(sat) Base-Emitter Saturation Voltage IC= -100mA, IB= -10mA -1.2 V
V
BE
f
T
C
ob
t
ON
t
STG
t
F
Collector-Emitter Breakdown Voltage IC= -1mA, IB=0 -400 V
Collector Cut-off Current VCB= -400V, IE=0 -1 µA
Emitter Cut-off Current VEB= -5V, IC=0 -1 µA
Current Gain Bandwidth Product VCE= -10V, IC= -10mA 10 MHz
Output Capacitance VCB= -10V, f=1MHz 25 pF
Turn On Time IC= -100mA, RL=1.5kΩ
Storage Time 5 µs
Fall Time 1 µs
Ta=25°C unless otherwise noted
Ta=25°C unless otherwise noted
I
=- IB2= -10mA
B1
= -150V
V
CC
1 µs
h
Classification
FE
Classification M L K
h
FE
©2002 Fairchild Semiconductor Corporation Rev. A2, June 2002
40 ~ 80 60 ~ 120 100 ~ 200
Page 2

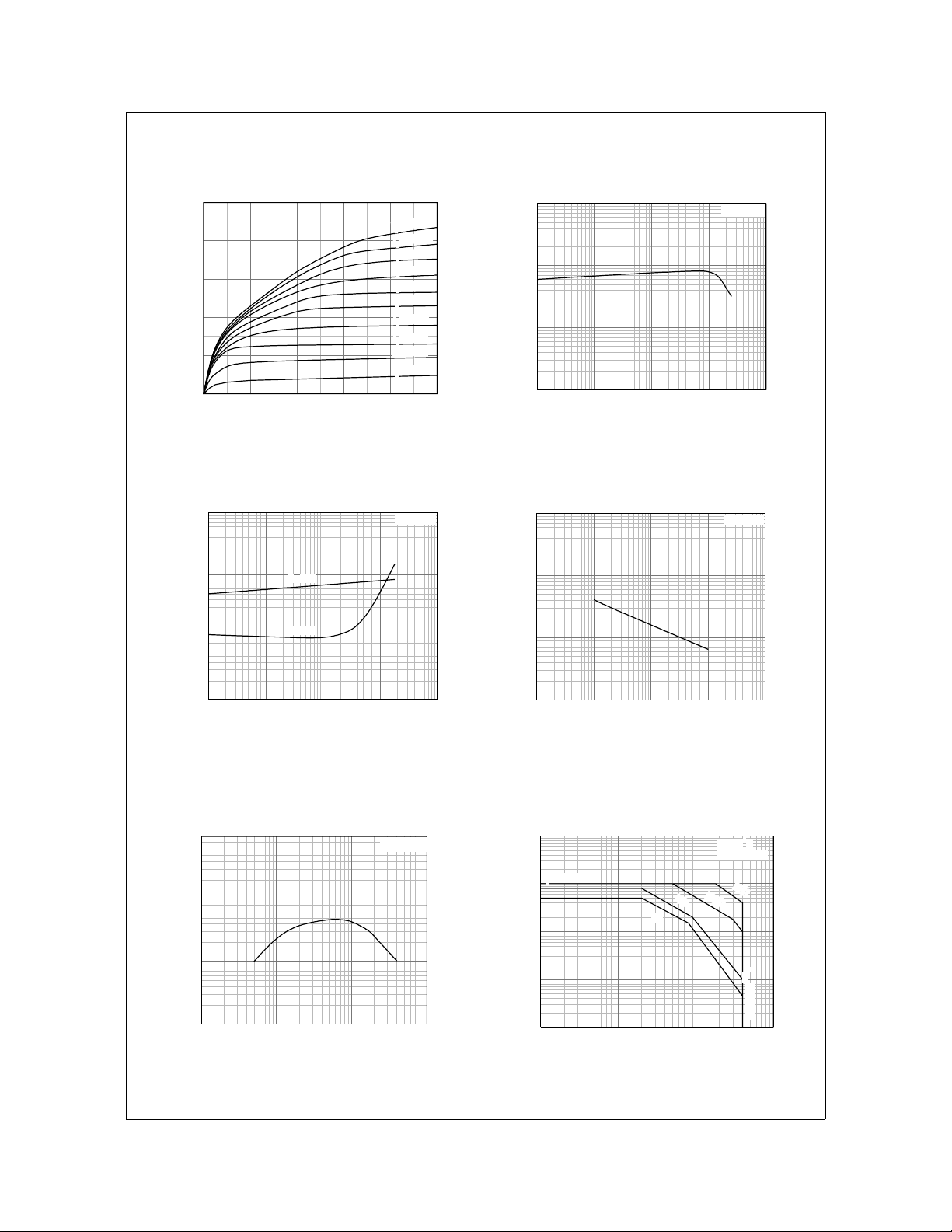

Typical Characteristics
KSA1625
-0.5
-0.4
-0.3
-0.2
[A], COLLECTOR CURRENT
C
-0.1
I
-0 -2 -4 -6 -8 -10
VCE[V], COLLECTOR-EMITTER VOLTAGE
Figure 1. Static Characteristic Figure 2. DC current Gain
-10
-1
-0.1
(sat)[V], SATURATION VOLTAGE
CE
VBE(sat)
VCE(sat)
=-200mA
I
B
=-180mA
I
B
=-160mA
I
B
IB=-140mA
IB=-120mA
IB=-100mA
IB=-80mA
IB=-60mA
IB=-40mA
IB=-20mA
IC= - 10 I
1000
100
10
, DC CURRENT GAIN
FE
h
1
-0.1 -1 -10 -100 -1000
VCE= - 5V
IC[mA], COLLECTOR CURRENT
B
1000
100
10
[pF], CAPACITANCE
ob
C
f=1.0MHz
(sat), V
BE
V
-0.01
-0.1 -1 -10 -100 -1000
IC[mA], COLLECTOR CURRENT
Figure 3. Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
1000
100
10
1
-1 -10 -100 -1000
[MHz], CURRENT GAIN-BANDWIDTH PRODUCT
T
f
IC[mA], COLLECTOR CURRENT
Figure 5. Current Gain Bandwidth Product Figure 6. Safe Operating Area
©2002 Fairchild Semiconductor Corporation
1
-0.1 -1 -10 -100 -1000
VCB[V], COLLECTOR-BASE VOLTAGE
Figure 4. Collector Output Capacitance
VCE = -10V
-10
ICMAX(Pulse)
-1
-0.1
-0.01
[A], COLLECTOR CURRENT
C
I
-0.001
-1 -10 -100 -1000
VCE[V], COLLECTOR-EMITTER VOLTAGE
Ta=25oC
Single Pulse
10
µ
s
100
1ms
µ
s
DC
V
CEO
(sus)MAX
Rev. A2, June 2002
Page 3
Package Demensions
4.58
0.46
±0.10
+0.25
–0.15
KSA1625
TO-92
±0.20
4.58
±0.40
1.27TYP
[1.27
±0.20
3.86MAX
±0.10
1.02
+0.10
–0.05
0.38
14.47
1.27TYP
]
3.60
±0.20
[1.27
±0.20
]
0.38
+0.10
–0.05
(0.25)
(R2.29)
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation Rev. A2, June 2002
Page 4
