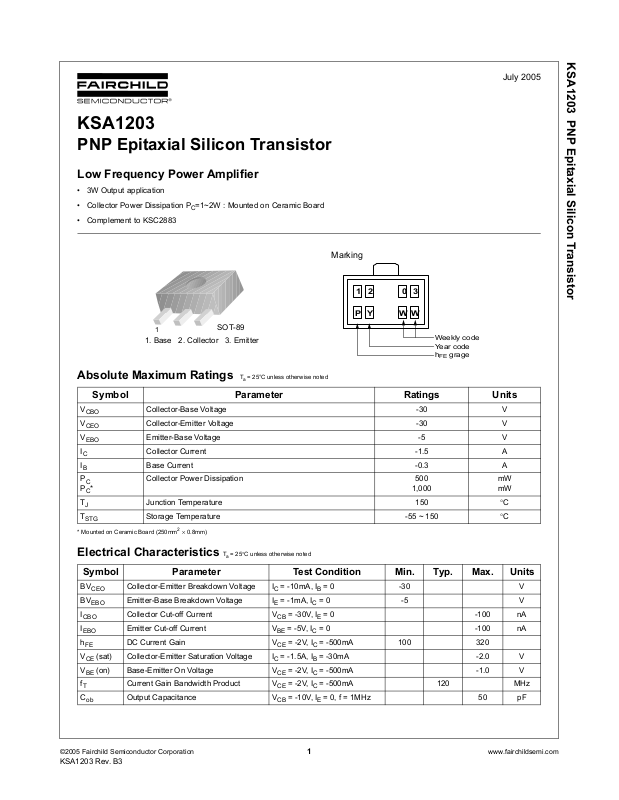

KSA1203
PNP Epitaxial Silicon Transistor
Low Frequency Power Amplifier
• 3W Output application
• Collector Power Dissipation P
• Complement to KSC2883
1
1. Base 2. Collector 3. Emitter
=1~2W : Mounted on Ceramic Board
C
SOT-89
Marking
12 03
PY WW
Weekly code
Year co de
hFE grage
KSA1203 PNP Epitaxial Silicon Transistor
July 2005
Absolute Maximum Ratings
Ta = 25°C unless otherwise noted
Symbol Parameter Ratings Units
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
PC*
T
J
T
STG
* Mounted on Ceramic Board (250mm
Electrical Characteristics
Collector-Base Voltage -30 V
Collector-Emitter Voltage -30 V
Emitter-Base Voltage -5 V
Collector Current -1.5 A
Base Current -0.3 A
Collector Power Dissipation 500
1,000
mW
mW
Junction Temperature 150 °C
Storage Temperature -55 ~ 150 °C
2
× 0.8mm)
Ta = 25°C unless otherwise noted
Symbol Parameter Test Condition Min. Typ. Max. Units
BV
BV
I
CBO
I
EBO
h
V
V
f
T
C
CEO
EBO
FE
CE
BE
ob
Collector-Emitter Breakdown Voltage IC = -10mA, IB = 0 -30 V
Emitter-Base Breakdown Voltage IE = -1mA, IC = 0 -5 V
Collector Cut-off Current V
Emitter Cut-off Current V
DC Current Gain V
= -30V, IE = 0 -100 nA
CB
= -5V, IC = 0 -100 nA
BE
= -2V, IC = -500mA 100 320
CE
(sat) Collector-Emitter Saturation Voltage IC = -1.5A, IB = -30mA -2.0 V
(on) Base-Emitter On Voltage V
Current Gain Bandwidth Product V
Output Capacitance V
= -2V, IC = -500mA -1.0 V
CE
= -2V, IC = -500mA 120 MHz
CE
= -10V, IE = 0, f = 1MHz 50 pF
CB
©2005 Fairchild Semiconductor Corporation
KSA1203 Rev. B3
1
www.fairchildsemi.com
Page 2
hFE Classification
Classification O Y
h
FE
100 ~ 200 160 ~ 320
Package Marking and Ordering Information
Device Marking Device Package Reel Size Tape Width Quantity
1203 KSA1203 SOT-89 13” -- 4,000
KSA1203 PNP Epitaxial Silicon Transistor
KSA1203 Rev. B3
2
www.fairchildsemi.com
Page 3
Typical Performance Characteristics
Figure 1. Static Characteristic Figure 2. DC Current Gain
-1.6
-1.4
IB =-10mA
1000
IB =-8mA
KSA1203 PNP Epitaxial Silicon Transistor
VCE = -2V
-1.2
-1.0
-0.8
-0.6
-0.4
[A], COLLECTOR CURRENT
C
I
-0.2
-0 -2 -4 -6 -8 -10 -12 -14 -16
VCE[V], COLLECTOR-EMITTER VOLTAGE
IB =-6mA
IB =-4mA
IB =-3mA
IB =-2mA
IB =-1mA
IB =0mA
100
, DC CURRENT GAIN
FE
h
10
-1 -10 -100 -1000 -10000
IC[mA], COLLECTOR CURRENT
Figure 3. Collector-Emitter Saturation Voltage Figure 4. Base-Emitter On Voltage
-10
-1
IC = 50I
B
-0.1
(sat)[V], SATURATION VOLTAGE
CE
V
[A], COLLECTOR CURRENT
C
I
-1.6
-1.4
-1.2
-1.0
-0.8
-0.6
-0.4
-0.2
VCE = -2V
-0.01
-1 -10 -100 -1000 -10000
0 - 0.2 -0.4 -0.6 -0.8 -1.0 -1.2 -1.4 -1.6
IC[mA], COLLECTOR CURRENT
Figure 5. Safe Operating Area Figure 6. Power Derating
-10
-1
-0.1
[A], COLLECTOR CURRENT
C
I
-0.01
-0.1 -1 -10 -100
KSA1203 Rev. B3
ICMAX(Pulse)
ICMAX(DC)
VCE[V], COLLECTOR-EMITTER VOLTAGE
Ta=25oC
Single Pulse
1
1
m
0
m
s
s
1
0
0
m
s
1
s
MAX
CEO
V
1.6
1.4
1.2
1.0
0.8
0.6
0.4
[W], POWER DISSIPATION
C
P
0.2
0 25 50 75 100 125 150 175 200
3
VBE[V], BASE-EMITTER VOLTAGE
M
o
u
n
t
e
d
o
n
C
e
r
a
m
i
c
B
o
a
r
d
(
2
5
0
m
m
2
X
0
.
8
m
m
)
Ta[oC], AMBIENT TEMPERATURE
www.fairchildsemi.com
Page 4
Mechanical Dimensions
4.50
±0.20
SOT-89
1.50
KSA1203 PNP Epitaxial Silicon Transistor
±0.20
0.50
1.65
±0.10
1.50 TYP 1.50 TYP
±0.10
C0.2
0.40
±0.10
(0.50)
±0.20
2.50
(1.10)
±0.20
4.10
0.40
(0.40)
+0.10
–0.05
KSA1203 Rev. B3
Dimensions in Millimeters
4
www.fairchildsemi.com
Page 5
