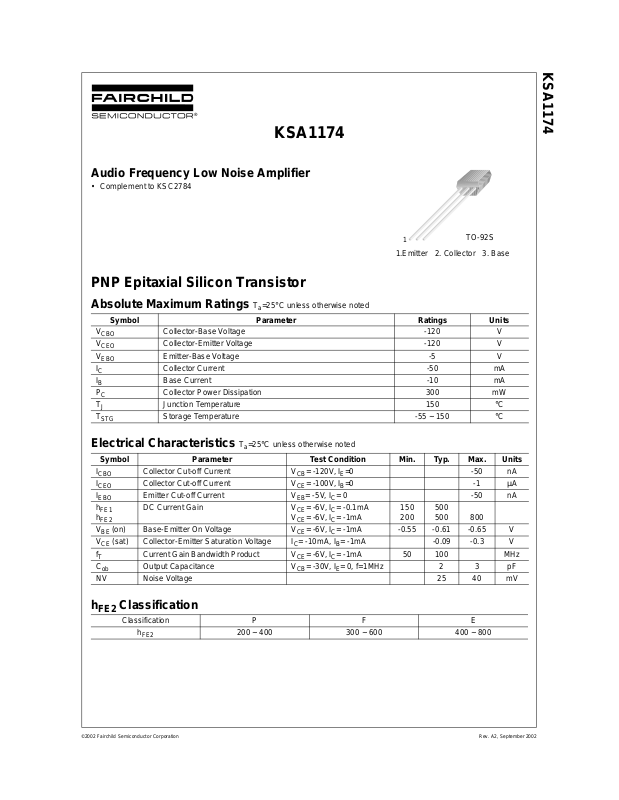

Page 1
KSA1174
Audio Frequency Low Noise Amplifier
• Complement to KSC2784
KSA1174
1
1.Emitter 2. Collector 3. Base
TO-92S
PNP Epitaxial Silicon Transistor
Absolute Maximum Ratings
Symbol Parameter Ratings Units
V
V
V
I
I
P
T
T
CBO
CEO
EBO
C
B
C
J
STG
Collector-Base Voltage -120 V
Collector-Emitter Voltage -120 V
Emitter-Base Voltage -5 V
Collector Current -50 mA
Base Current -10 mA
Collector Power Dissipation 300 mW
Junction Temperature 150 °C
Storage Temperature -55 ~ 150 °C
Electrical Characteristics
Symbol Parameter Test Condition Min. Typ. Max. Units
I
CBO
I
CEO
I
EBO
h
FE1
h
FE2
(on) Base-Emitter On Voltage VCE= -6V, IC= -1mA -0.55 -0.61 -0.65 V
V
BE
(sat) Collector-Emitter Saturation Voltage IC= -10mA, IB= -1mA -0.09 -0.3 V
V
CE
f
T
C
ob
NV Noise Voltage 25 40 mV
Collector Cut-off Current VCB= -120V, IE=0 -50 nA
Collector Cut-off Current VCE= -100V, IB=0 -1 µA
Emitter Cut-off Current VEB= -5V, IC= 0 -50 nA
DC Current Gain VCE= -6V, IC= -0.1mA
Current Gain Bandwidth Product VCE= -6V, IC= -1mA 50 100 MHz
Output Capacitance VCB= -30V, IE= 0, f=1MHz 2 3 pF
Ta=25°C unless otherwise noted
Ta=25°C unless otherwise noted
V
= -6V, IC= -1mA
CE
150
200
500
500 800
h
Classification
FE2
Classification P F E
h
FE2
©2002 Fairchild Semiconductor Corporation Rev. A2, September 2002
200 ~ 400 300 ~ 600 400 ~ 800
Page 2
Typical Characteristics
KSA1174
-1.0
-0.8
-0.6
-0.4
-0.2
[mA], COLLECTOR CURRENT
C
I
0.0
0 -20 -40 -60 -80 -100
IB = -1.4µA
IB = -1.2µA
IB = -1.0µA
IB = 0
VCE[V], CO LLEC T OR-EMITTE R VOLTAGE

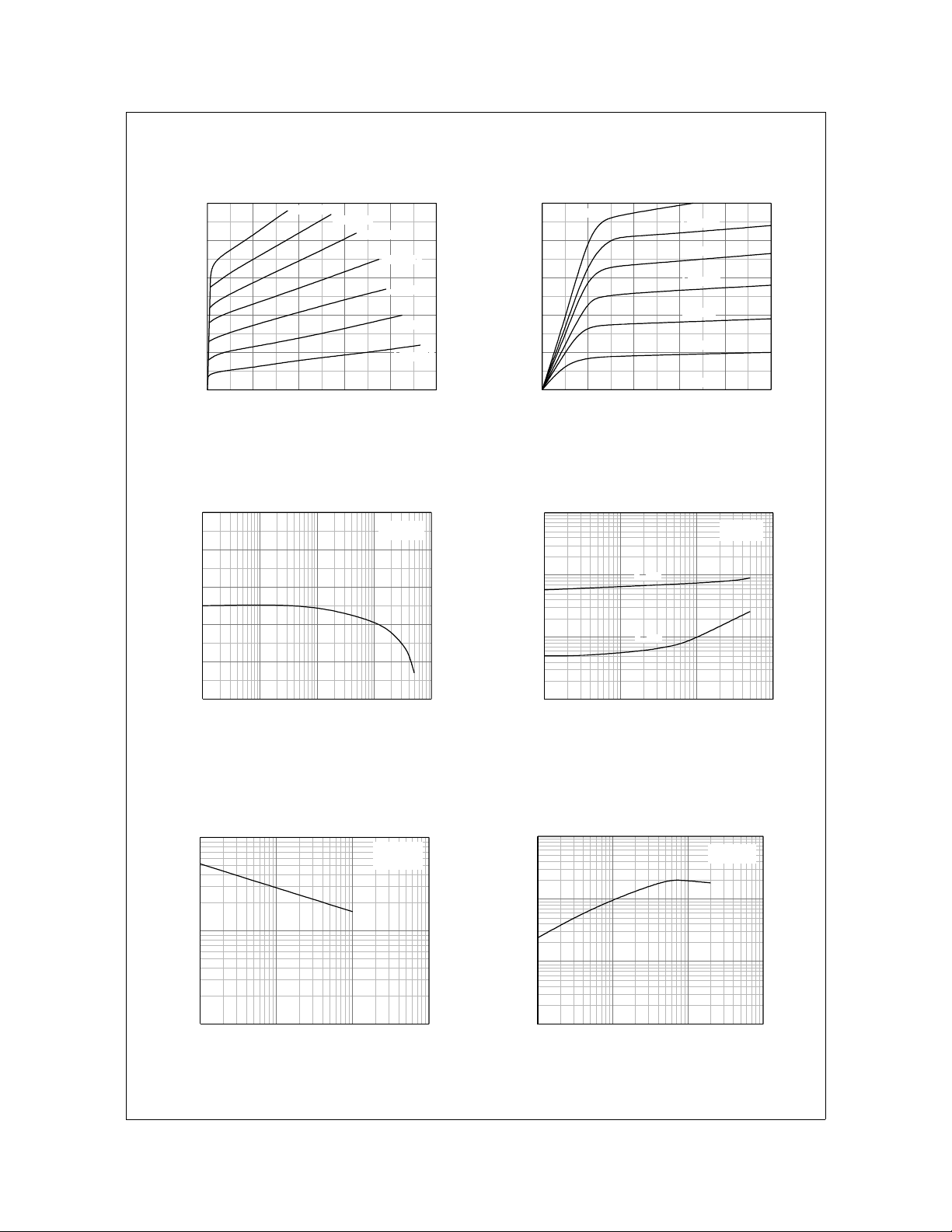

Figure 1. Static Characteristic Figure 2. Static Characteristic
1000
800
600
400
, DC CURRENT GAIN
FE
h
200
0
-0.01 -0.1 -1 -10 -100
IC[mA], COLLECTOR CURRENT
IB = -0.8µA
IB = -0.6µA
IB = -0.4µA
IB = -0.2µA
VCE= -6V
-10
IB = -24µA
-8
-6
-4
-2
[mA], COLLECTOR CURRENT
C
I
0
0-1-2-3-4-5
IB = -20µA
IB = -16µA
IB = -12µA
IB = -8µA
IB = -4µA
IB = 0
VCE[V], COLLECTOR-EMITTER VOLTAGE
VBE(sat)
VCE(sat)
IC = 10I
B
-10
-1
-0.1
(sat)[V], SATURATION VOLTAGE
BE
(sat), V
CE
V
-0.01
-0.1 -1 -10 -100
IC[mA], COLLECTOR CURRENT
Figure 3. DC current Gain Figure 4. Base-Emitter Saturation Voltage
10
1
[pF], CAPACITANCE
ob
C
0.1
-1 -10 -100 -1000
VCB [V], COLLECTOR-BASE VOLTAGE
Figure 5. Collector Output Capacitance Figure 6. Current Gain Bandwidth Product
©2002 Fairchild Semiconductor Corporation
Collector-Emitter Saturation Voltage
1000
IE=0
f = 1MHz
100
10
1
0.1 1 10 100
[MHz], CURRENT GAIN-BANDWIDTH PRODUCT
T
f
IE[mA], COLLECTOR CURRENT
VCE = -6V
Rev. A2, September 2002
Page 3
KSA1174
Typical Characteristics
800
700
600
500
400
300
200
[mW], POWER DISSIPATION
C
P
100
0
0 25 50 75 100 125 150 175 200
Ta[oC], AMBIENT TEMPERATURE

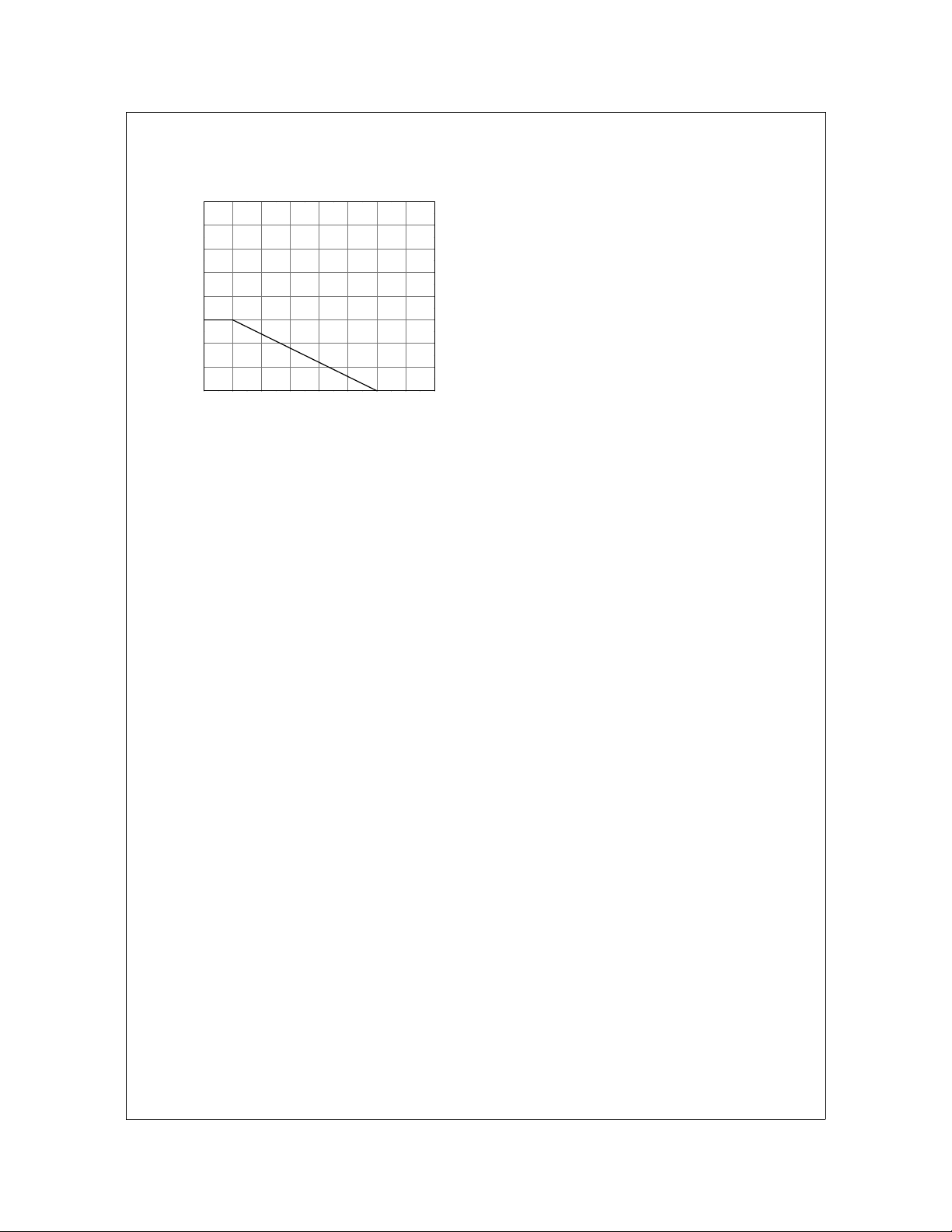

Figure 7. Power Derating
(Coninued)
©2002 Fairchild Semiconductor Corporation
Rev. A2, September 2002
Page 4

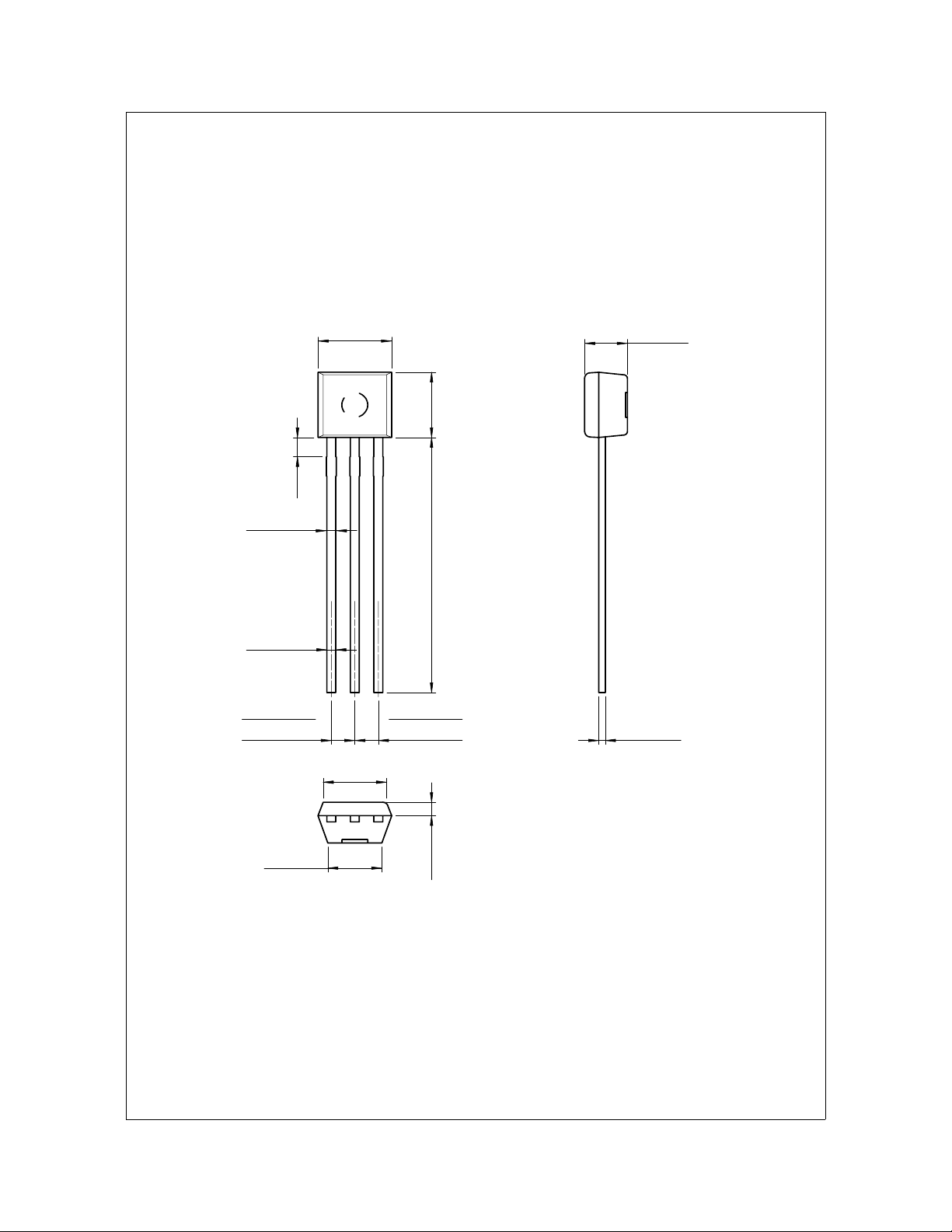

Package Dimensions
4.00
(1.10)
0.66 MAX.
±0.20
TO-92S
±0.20
3.70
±0.30
2.31
KSA1174
±0.20
14.47
0.49
±0.10
1.27TYP
[1.27±0.20] [1.27±0.20]
3.72
2.86
±0.20
1.27TYP
±0.20
±0.10
0.77
0.35
+0.10
–0.05
Dimensions in Millimeters
